Description:
Combines all components needed for a rugged cost-effective HART® Hand-Held
Communicator
Includes:
• Durabook R11 semi-rugged tablet PC with Bluetooth, Windows 10,
WI-FI, 4GB RAM, 128GB Storage Memory, 10.1 inch Touch Screen.
• Stylus
• DevCom2000 Smart Device Communicator Software
• Complete HART DD Library
• HM-BT-BAT-ER Bluetooth HART Modem
• Loop Resistor, 250 Ohm
• Rugged hard plastic case with carrying handle
• 1 year warranty, 3 year warranty on tablet

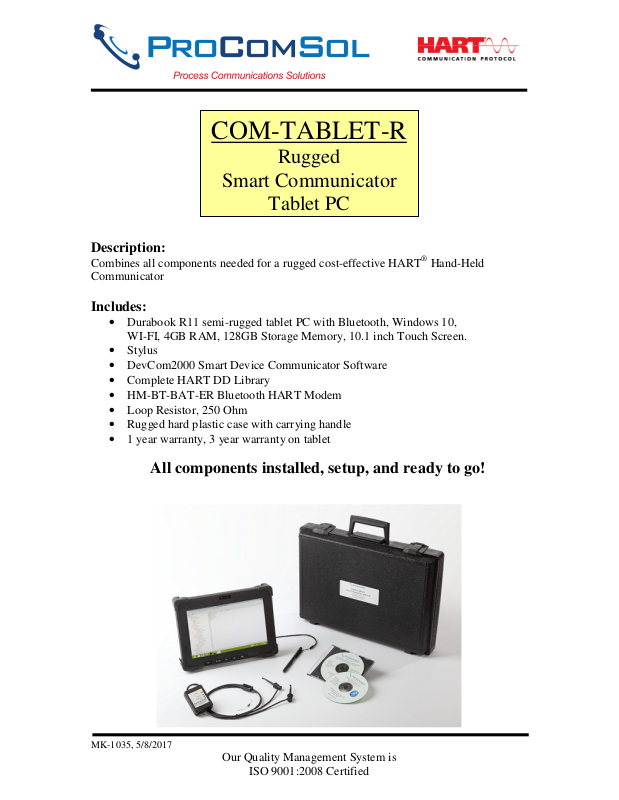

COM-TABLET-R
Rugged
Smart Communicator
All components installed, setup, and ready to go!
MK-1035, 5/8/2017
Our Quality Management System is
ISO 9001:2008 Certified

Specifications:
Durabook R11
Operating System Windows 10
Screen 10.1” WXGA (1280 x 800 pixels) Multi-Touch Screen
Communications Bluetooth 3.0, WLAN 1x1 b/g/n
Bluetooth Modem Range 300 ft (100 m)
Memory 4 GB RAM, 128 GB Storage
Camera 5 Megapixel
Battery One 4130mAH Li-Polymer battery pack
Drop Resistance MIL-STD 810G 516.6 Procedure IV
Shock Resistance MIL-STD 810G 514.6 General Vibration
Spill Resistance IP-43
DevCom2000 Smart Device Communicator Software
DD Library Included
Current Library HCF Release 2017 No. 1 (call for latest data)
DD Updates Quarterly updates for 1 year free
HM-BT-BAT-ER Bluetooth HART Modem
Dimensions 2.00” x 2.75” x 0.80” (50mm x 70mm x 20mm)
Total Unit Weight 6 oz (170 g)
HART Specifications HART 4, HART 5, HART 6, HART 7,
HART Physical Layer Spec HCF_SPEC-54
Loop Resistor, 250 Ohm
Power Rating 1 Watt
Carrying Case
Size 17" L x 12" W x 3-1/2" H
Note: For full specifications see individual data sheets.
