Data sheet
•
WPS-04 Exx
explosion-proof call station, 4 toggle
Explosion-proof digital intercom call station with 2-wire technology, suitable for intercom
and public address applications in areas exposed to explosion risks zone 2 / 22
At a glance:
economical 2-wire digital technology
• Up to 4 km remote installation with internal 4 Watt loudspeaker
• Compact and robust design for wall mounting
• With built-in loudspeaker and microphone
• Intercom electronics with microphone preamplifier and dynamic compressor
• 25 W booster amplifier with 100V output
• 4 toggles allow 4 connections
• LED to indicate operating states for each toggle
• Material made of glass-reinforced polyester, fully insulated, colour red (RAL 3001)
• Operating voltage 48 VDC
• Protection class IP65
• Dimensions h/w/d = 400 x 100 x 100 (130) mm
• Weight approx. 3,5 kg
General data:
2-wire technology
Operating voltage: 48 VDC
Amplifier power: 1 Watt
Optionally with additional amplifiers: 25 Watt
Power consumption: max. 5W stand-alone (typically)
max. 50W with booster amplifier
Frequency range: up to 12 kHz with 4DAV
Volume control, adjust: 0 - 25 dB
Microphone: dynamic, direct
4 toggles with LED indicators
4 label fields
04.11.2013
/5
© 2008 ProCom, Alle Rechte und technische Änderungen vorbehalten
WPS-04Exx_1714_02
Date:
Page:
2
Editor:
JL
Document
-
N0.:
Data sheet
WPS-04 Exx
explosion-proof call station, 4 toggle
System design:
The explosion-protected station consists of a bottom part and a lid. The lower part is
equipped with a PCB (Printed Basic Board) and 3 cable glands. Optionally, the board is
expandable for external speakers with an additional 25 W amplifier. The performancerelevant parts are molded according to ATEX II 3G Ex nA IIC T4 Gc and ATEX II 3D Ex
tc IIIC T130°C . The stations cover is equipped wit h speaker, microphone, keyboard circuit board (electronics including stations 1 watt amplifier) and 4 toggles. LEDs for signaling are assigned the toggles mounted on the PCB.
To the DVS-21, WPS-04 Exx is connected with one pair on the LF interface slot 4DAV. A
booster amplifier for the additional power supply is required. These can be picked up
over a second pair of wires at the 4DAV or supplied locally.
Data transfer between the station and DVS-21 is uP controlled. On the light-emitting diodes busy messages, voice and call signalling receipts are displayed. The display and
blinking behaviour of the LEDs is configured with the operating software of ICS DVS
21st
Casing characteristics:
Material: GRP
Protection class: IP65 acc. to EN 60529
Stability: < 7 Nm acc. to EN 50014
Temperature range: -25 °C to +60 °C acc. to EN 6072 1-3-3 (T4)
Fastening of cover with casing: 6 stainless steel +/- front plate screws, M6 thread
Sealing: gasket in tongue and groove system
Microphone in protective casing:
Type: directional, noise cancelling
Mechanical protection: Gore membrane
Internal loudspeaker:
Electrical power: 4 Watt
Sound pressure level: ≥ 92 dB @ 0,25m
Frequency range: 300 Hz - 12 kHz
Impedance: 4 Ohm
04.11.2013
/5
© 2008 ProCom, Alle Rechte und technische Änderungen vorbehalten
WPS-04Exx_1714_02
Date:
Page:
3
Editor:
JL
Document
-
N0.:
Data sheet
WPS-04 Exx
explosion-proof call station, 4 toggle

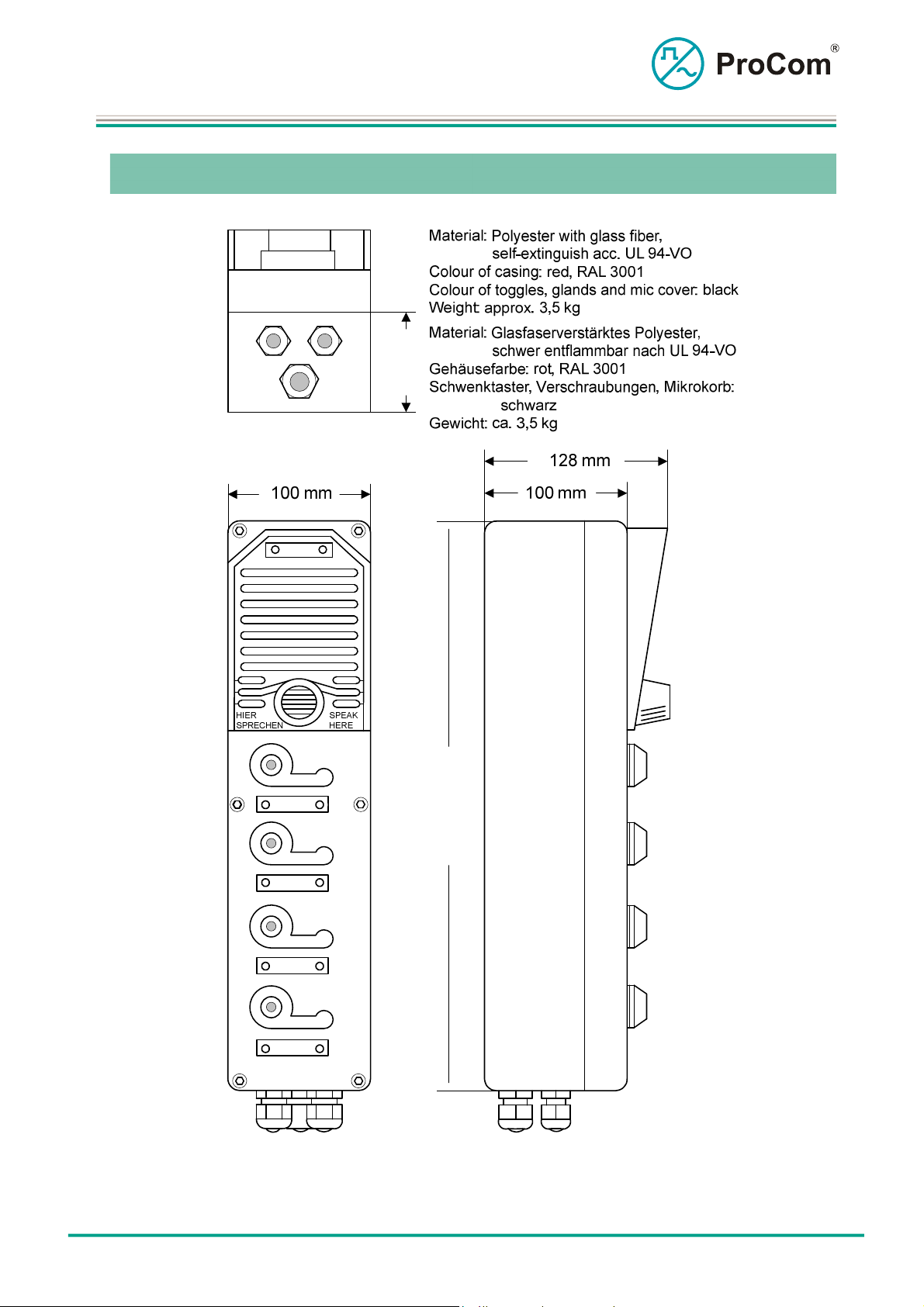

Installation and cabling:
70 mm
04.11.2013
400 mm
/5
© 2008 ProCom, Alle Rechte und technische Änderungen vorbehalten
WPS-04Exx_1714_02
Date:
Page:
4
Editor:
JL
Document
-
N0.:
Data sheet
WPS-04 Exx
explosion-proof call station, 4 toggle
The explosion-proof stations have 4 integrated fastening holes for direct wall mounting. Apart
from the fastening screws, no further mounting material are necessary. The connection cable
is inserted through the cable gland and the wires are connected to the clamp terminals. There
are three cable glands available, one for the cable coming from the exchange DVS-21, a second for the cable to the external loudspeaker, and the remaining one for Use of additional signalling units, e.g. indicator.
The required terminal connections for the above-mentioned applications are shown on the
circuit board, allowing the connection of wires even without the necessity of any drawings. The
terminals are accessible after removing the casing cover and the protective cover. In case of
service at the call station in areas with explosion risk the call stations must be made zero potential during this process.
Mounting on wall: 4 holes for 6 mm screws integrated in casing
Whole assembly: 362 x 84 mm (14.25 x 3.3 inches)
Cabling glands: one cable gland M25 (exchange cable)
one cable gland M20 (add. loudspeaker)
one cable gland M20 (indicator)
Wire/cable requirement for stations operating with internal loudspeaker only:
• Data/voice/power: 1 pair twisted (a/b symmetrical)
• Cable type: standard telephone cable, e.g. AY(2YL),
preferably >0.8 mm diameter wire,
Ex-approved connection terminals 2 x 2.5 mm².
• Cable to indicator (48 VDC): 2 cords, standard telephone cable,
preferably >0.8 mm diameter wire,
Ex-approved connection terminals 2 x 2.5 mm².
switching capacity max. 48 VDC/0.6 A
Additional wire/cable requirement for stations operating with external loudspeaker:
• Cable to ext. loudspeaker: 2 cords of 0.8 mm or higher (100 V-line),
terminals permit 1 x 2.5 mm².
• Additional power feed 2 cores of 0.8 mm or higher,
terminals permit 1 x 2.5 mm².
04.11.2013
/5
© 2008 ProCom, Alle Rechte und technische Änderungen vorbehalten
WPS-04Exx_1714_02
Date:
Page:
5
Editor:
JL
Document
-
N0.:
Data sheet
WPS-04 Exx
explosion-proof call station, 4 toggle
Attachments:

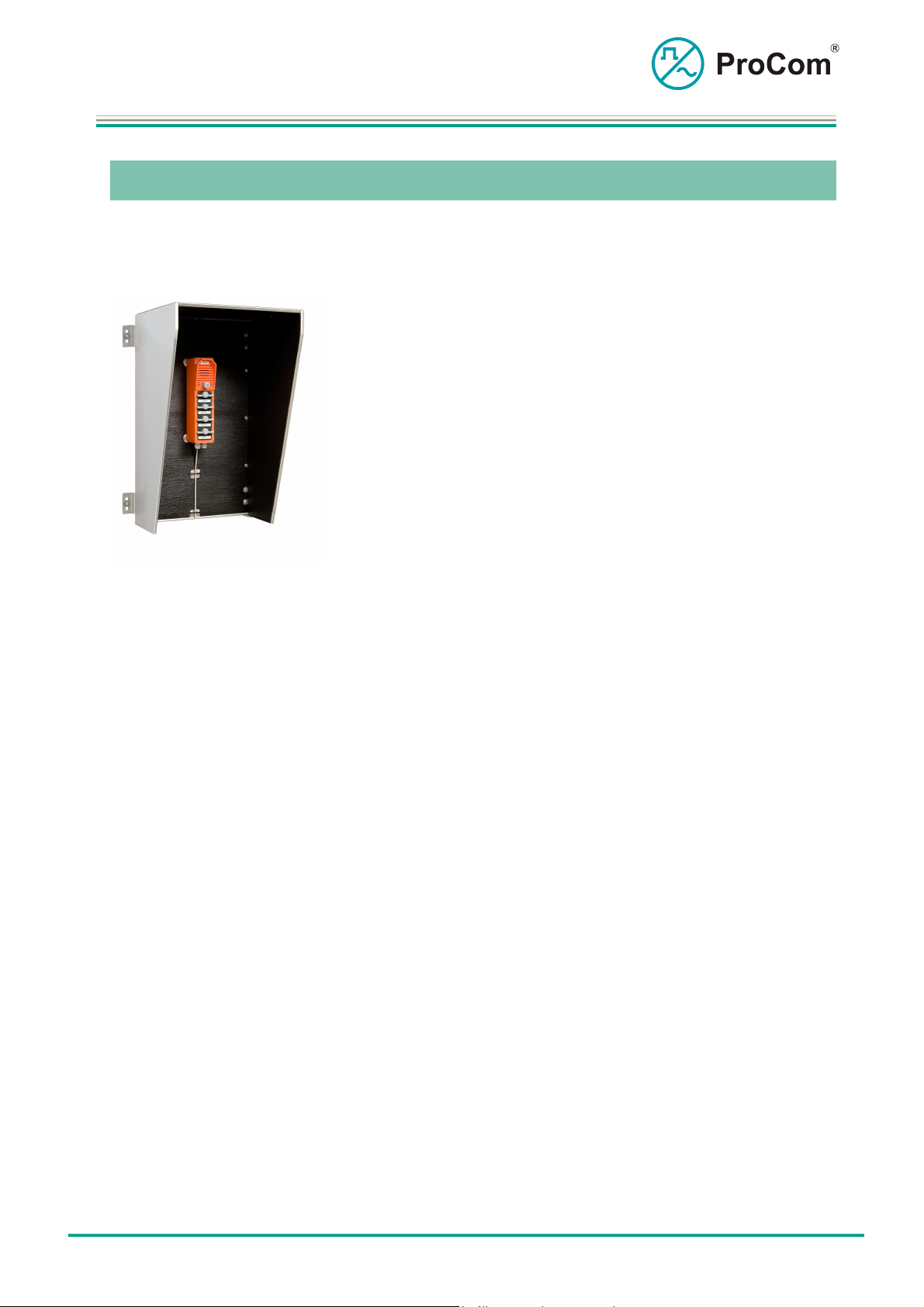

- Sound insulation hood:
L-No. 1.340 made of
V2A, H x W x D = 1000 x
600 x 500 mm
Weight: approx. 27 kg
Optional: with pole
bracket
- Ex-Indicator
On enquiry
- Strobe & Sounder
Combination
On enquiry
