PRO-COM
V50HYLC
V50HYLD
Freestanding
Electric Fireplace
V50HYLC SHOWN
Installation Instructions and Homeowner’s Manual
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
FLAMMABLE VAPORS OR LIQUIDS
IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE
FOR YOUR SAFETY
DO NOT STORE
OR USE GASOLINE OR OTHER
ANSI/UL1278. MOVABLE AND WALL-OR CEILING HUNG ELECTRIC ROOM HEATERS
INSTALLER: DO NOT DISCARD THIS MANUAL-LEAVE FOR HOME OWNER
CUSTOMER： PLEASE RETAIN THIS MANUAL FOR FUTURE USE
TABLE OF CONTENTS
1
PLEASE READ THE INSTALLATION & OPERATION INSTRUCTIONS BEFORE
USING THIS APPLIANCE
WE ARE PLEASED THAT YOU HAVE CHOSEN TO PURCHASE AN ELECTRIC FIREPLACE MANUFACTURED BY
NANJING PRO-COM ELECTRIC APPLIANCE CO., LTD
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to
follow these instructions may result in a possible electric shock, fire hazard and will void the
warranty.
Important instructions ……………………………………………………………………2
General…………………………………………………………………………………..2
Locating Your Electric Fireplace………………………………………………………2
Clearance To Combustibles…………………………………………………………...3
Electrical Connections…..………………………………………………… ………….3
Electrical Specifications………………………………………………………………..3
Service Instructions…………………………………………………………………………..3
Replacing Light Bulbs…………………………………………………………………..3
Glass Information……………………………………………………………………….4
Maintenance of Motors…………………………………………………………………4
Electrical Wiring Diagram………………………………………………………………4
Operating Instructions……………………………………………………………………….5
On/Off Switch…………………………………………………………………………...5
Heater Control…………………………………………………………………………..5
Instructions for power…………………………………………………………………..5、6
Specifications………………………………………………………………………..….6
Replacement Parts List (V50HYLC) ………………………………………………………7

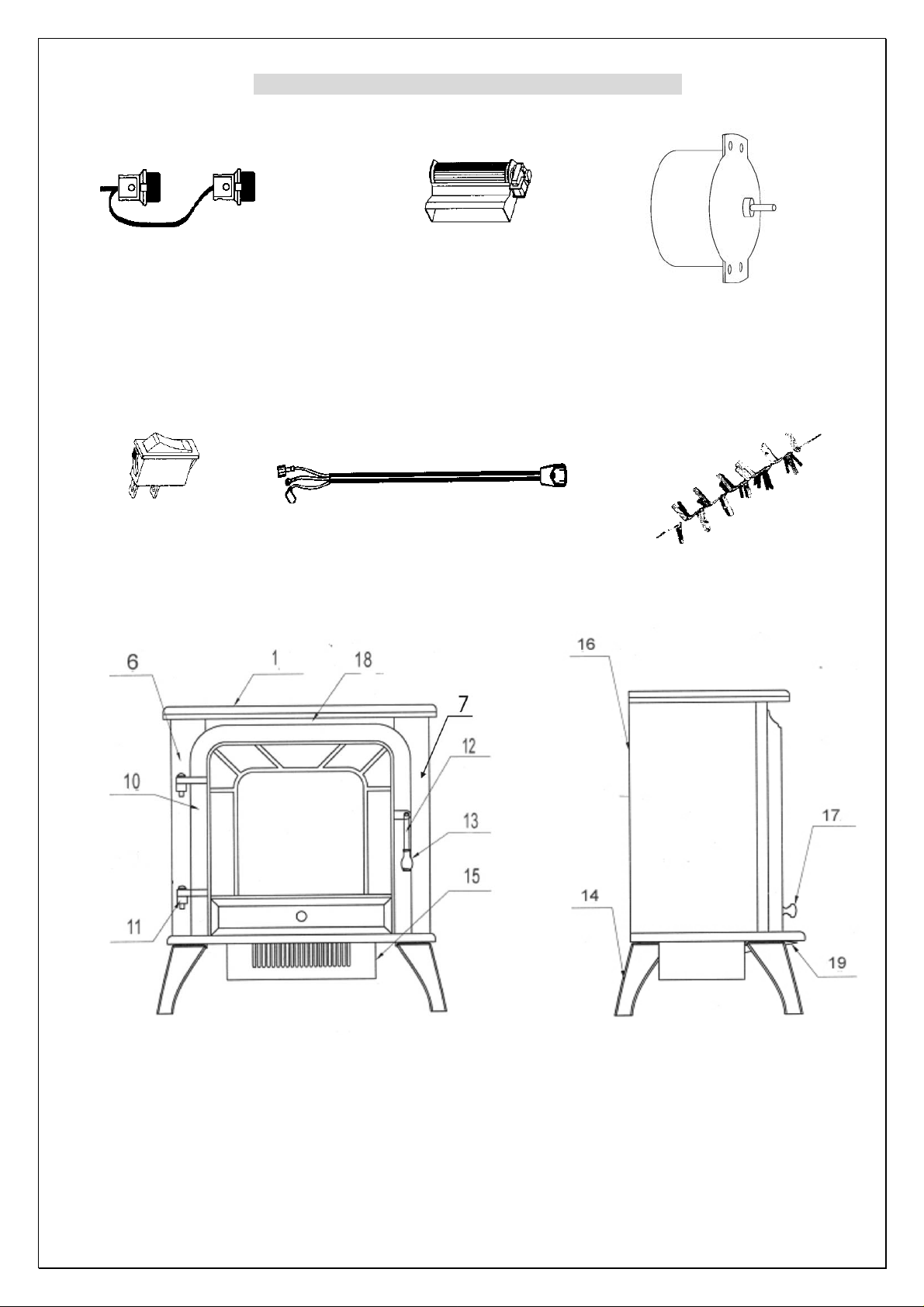

Replacement Parts Pictures…………………………………………………………...7、8
Replacement Parts List (V50HYLD)…………………………………………………………9
Replacement Parts Pictures……………………………….………………………....9、10
IMPORTANT INSTRUCTIONS
r
f
A
t
r
r
1. Read all instructions before using this appliance.
2. This appliance is hot when in use. To avoid burns, do
not let bare skin touch hot surfaces. Keep
combustible materials, such as furniture, pillows,
bedding, papers, clothes, and curtains at least 3
feet(1m.) from the front of this appliance.
3. CAUTION: Extreme caution is
necessary when any heater is used
by or near children or invalids and
whenever the heater is left Operating
and unattended.
4. Always unplug heater when not in
use.
5. Do not operate any heater with a
damaged cord or plug or after the
heater malfunctions, has been
dropped or damaged in any manner.
6. Any repairs to this appliance should be carried out by
a qualified service person.
7. Under no circumstances should this electric fireplace
be modified. Parts having to be removed fo
servicing must be replaced prior to operating this
electric fireplace again
8. Do not use outdoors.
9. This heater is not intended for use in bathrooms,
laundry areas or similar indoor locations. Never use
this appliance near a bathtub or vicinity of water.
.
10. Do not run cord under carpeting. Do not cover cord
with throw rugs, runners or the like.
away from traffic areas and where it will not be
tripped over.
Arrange cord
11. To disconnect this appliance, turn controls to the of
position and remove plug from outlet.
12. Connect to properly grounded outlets only.
GENERAL
13. When this appliance is installed, it must be
14. Do not insert or allow foreign objects to enter any
15. To prevent fire, do not block air intakes or exhaust
16. Caution this appliance gets hot and it contains
17. Use this appliance only as described in this
18. Avoid the use of an extension cord because it may
19. SAVE THESE INSTRUCTIONS.
LOCATING YOUR ELECTRIC
FIREPLACE
Your new freestanding electric fireplace may be
installed virtually anywhere in your home.
However when choosing a location for your
new electric fireplace, ensure that the general
instructions are followed. For best effect results, install
the electric fireplace out of direct sunlight.
electrically grounded in accordance with local
codes with the current CSA C22.1 Canadian local
codes of for USA installations. Follow local codes
and National Electrical Code,
ANSI/NFP
NO.70 and Canadian Code: CZ 22.2 NO.0.
ventilation or exhaust opening as this may cause
electric shock, fire or damage to the appliance.
in any manner. Do not use on soft surfaces, such
as a bed, where
internal parts that could arc or spark. Do not use i
in areas where gasoline, paint, or flammable
liquids are used or stored. This electric fireplace
should not be used as a drying rack for clothing.
Also, do not have Christmas stockings o
decorations hung on or near it.
manual. All other uses not recommended by the
manufacturer may cause fire, electric shock, o
injury.
overheat and cause a fire hazard. However if you
must use an extension cord, the cord shall be
NO.16, 1900 Watts. The extension cord must be a
three wire cord with grounding type plug and cord
connector.
openings may become blocked.
2
A
f
f
r
b
r
CLEARANCE TO COMBUSTIBLES
Back………………2”/50.8mm
Sides……………..6”/156.4mm
Floor……………..0”/0mm
Top……………….24”/610mm
ELECTRICAL CONNECTION
15 AMP, 120 Volt, 60Hz circuit with a properly grounded
outlet is required. Preferably, the heater will be on a
dedicated circuit. Other appliances on the same circuit
may cause the circuit breaker to trip or the fuse to blow
when the heater is on operation. The unit comes standard
with a 6’ (1828mm) long three wire cord exiting from the
rear of the fireplace. Plan the installation to avoid the use
of an extension cord. If an extended cord must be used, it
must be a minimum 16 AWG three wire with grounding
type plug connector and rated no less than 1900 Watts.
WARNING: Electrical outlet wiring
must comply with local building
codes and all other applicable
regulations to reduce the risk o
fire, electrical shock and injury.
WARNING: Do not use this
fireplace if any part of it has been
under water. Immediately call a
qualified service technician to
inspect the fireplace and replace
any part of the electrical system i
necessary.
ELECTRICAL SPECIFICATIONS
Voltage………………120 VAC/60Hz
T ot al Amps…………..1 1.3 Amps
Total Watts…………..1345 Watts
Heater Ratings………1200 Watts
SERVICE INSTRUCTIONS
WARNING: Disconnect powe
This fireplace uses two clear 120 Volt, 60 Watt, E-12
socket base light bulbs (small base, chandelier candle
type).The 60 Watt bulbs are located under the log
set/ember bed. For convenience, if one of the bulbs
urns out, it may be a good idea to replace both of the
light bulbs.
1. Turn off power to the unit by unplugging the powe
cord.
2. Let fireplace cool if it has been operating.
3. Open the front door by pulling the handle.
4. Remove the two screws that secure the log set in
position.
before attempting any
maintenance or cleaning to
reduce the risk of fire, electrical
shock or personal injury
REPLACING LIGHT BULBS
5. Remove the two screws of the front baffle and
take them out.
6. Examine the bulbs to determine which one
needs to be replaced.
7. While holding the socket, unscrew the defective
bulb(s).
8. Install the new light bulb(s) by holding the socket
and screwing them in.
9. Reinstall the baffle、log set and screen. Follow
the above procedure in reverse order.
WARNING: Do not exceed 60
Watts per bulb. Use of higher
rated bulbs may result in a fire
causing property damage and
personal injury.
3
f
r
The motors used on both blowers fan and flame
simulator assembly are prelubricated for the
extended warranty of the motor, no further lubrication
is required. However, periodic cleaning/vacuuming o
the fan/heater unit is recommended.
MAINTENANCE OF MOTORS
WARNING: Make sure that the
power is turned off before
proceeding.
1. Under no circumstances should this
2. Do not strike or slam the glass.
3. Do not use abrasive cleaners to clean the
4. Replacement glass is available from the
GLASS INFORMATION
product be operated with missing o
broken glass.
glass.
manufacturer and replacement should be
carried out by a qualified service person.
Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician and accordance
with national and local codes.
ELECTRICAL WIRING DIAGRAM
If repairing or replacing any electrical component or wiring, please refer to
schematic diagram below.
4
Operating Instructions
5
This section provides easy step by step instructions for operating your fireplace.
1. Make sure the unit is unplugged from the power source (see warning on page 6)
2. Plug the heater into a 15AMP/120volt outlet. If the cord does not reach, you may use an extension
cord rated for a minimum of 1900 watts.
To access the controls, open the door of the fireplace at the front of the unit (see Figure A).
Figure A
A. PROPER WAY TO INSTALLING HANDLE
Insert handle’s threading tip
into the hole, turn slightly the
handle to proper position and
make threading tip get through
the hole, screwing the nut
supplied. See Figure B
B. MAIN ON/OFF SWITCH
The on/off switch supplies power to all fireplace functions (heater/flame).
C. HEATER ON/OFF SWITCH 1
The HEATER ON/OFF SWITCH 1 supplies power to the heater fan and the heater element.
NOTE: When switched ON, the heater fan and the heater element will operate. But it gives an
output of 600W. It is just half of the total power.
D. HEATER ON/OFF SWITCH 2
The HEATER ON/OFF SWITCH 2 supplies power to the heater element, and the remaining
voltage to the heater.
NOTE: When switched ON, the heater fan and the heater element will still operate. But it gives
an another output of 600W. Then, the heater will arrive its total value of 1200W. The heater fan
and the heater element will not operate if SWITCH 2 is ON but SWITCH 1 is OFF.
E. INSTRUCTIONS FOR POWER
Figure B
This heater is for use on 120 volts only. The cord has a plug as shown at A in the following figure.
/
6
An adapter as shown at C is available for connecting three-blade grounding-type plugs to
two-slot receptacles. The green grounding lug extending from the adapter must be connected to
a permanent ground such as a properly grounded outlet box. The adapter should not be used if
a three-slot grounded receptacle is available.
Warning: Before servicing this heater be sure to unplug heater from wall outlet. Do not only turn off heater
from the main “ON/OFF” switch, be sure to unplug this heater.
5
(Adaptor NOT permitted in Canada)
Under CZ22.2 NO. 0 standard
SPECIFICATIONS:
Model:V50HYLC
Voltage: 120V/60HZ Total Amps: 11.3A
T otal Watts: 1345W Heating Ratings: 1200W
Dimensions, Inches (H x W X D)
Fireplace 24-3/4”x23-3/8”x13-3/8”
Carton 27-1/2”x29-3/8”x15-3/8”
Weight, Pounds
Fireplace 35
Shipping 45
Model: V50HYLD
Voltage: 120V/60HZ Total Amps: 11.3A
T otal Watts: 1345W Heating Ratings: 1200W
Dimensions, Inches (H x W X D)
Fireplace 24-7/8”x23-7/8”x13-7
Carton 27-1/2”x29-3/8”x15-3/8”
Weight, Pounds
Fireplace 35
Shipping 45
8”
Replacement Parts List
V50HYLC
Item # Part Description Part Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
VC Top Panel Right Part
Fan/Heater Assembly
Synchronization Motor-120Volt AC w/Terminal
Cord Power 16/3 HPN w/Terminals
ON/OFF Switch
VC Top Panel Left Part
VC Top Panel (Middle Part)
Flame Generator Assembly
Light Bulb Socket
Right Side-panel
Left Side-panel
Door
Door Pivot
Door Adorning
Leg(s)
Back Panel
Electrothermal Hood
Door Knob
Knob Dressing
Air Transfer Panel
Glistening Paper
VL107-02Q
NFHTX186/V
VL051-01
NFHL008-A
VL067-01
VL107-02Q
VL107-02P
VB17001-C-3
VL054-01
VL102-01
VL101-01
VL108-01
VL111-01P
VL117-01-A
SL017-04A
VL109-01
VL035
VCL008
VCL008-01
VCL011
VB17001-C-4
7
9
5
REPLACEMENT PARTS PICTURES OF V50HYLC
2
4
3
8 OR 22
8
Item # Part Description Part Number
Replacement Parts List
V50HYLD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Top Panel
Fan/Heater Assembly
Synchronization Motor-120Volt AC w/Terminal
Cord Power 16/3 HPN w/Terminals
ON/OFF Switch
Left Side Panel
Right Side Panel
Flame Generator Assembly
Light Bulb Socket w/Wiring Assembly
Door
Door Pivot
Door Knob
Knob Dressing
Legs
Electrothermal Hood
Back Panel
Door Adorning
Cross Band
Air Transfer Panel
Glistening Paper
VL107-02F
NFHTX186/VB17-000G
VL051-01
NFHL008-A
VL067-01
VL101-01P
VL101-02P
VB17001-C-3
VL054-01
VL108-01
VL111-01P
VCL008
VCL008-01
VCL019-01
VL035
VL109-03
VL117-01-A
VL113-01G
VCL011
VB17001-C-4
9
9
5
REPLACEMENT PARTS PICTURES OF V50HYLD
2
4
7
3
8 OR 21
10
Loading...
