SFE23RE SHOWN
Installation Instructions and Owner’s Manual
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE
MAY RESULT CAUSING PROPERTY, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS OR LIQUIDS
IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE
INSTALLER: DO NOT DISCARD THIS MANUAL-LEAVE FOR HOME OWNER
1
PC(220)-FE23A610-0709
TABLE OF CONTENTS
PLEASE READ THE INSTALLATION & OPERATION INSTRUCTIONS
BEFORE USING THIS APPLIANCE
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow
these instructions may result in a possible electric shock, fire hazard and will void the warranty.
Important Instructions ….…………………………………………………………....2
Locating Your Electric Fireplace…………………………………….………….......3
Clearance To Combustibles………………………………………….…………......3
Electrical Connections…..……………………………………………….……….....3
Electrical Specifications…………………………………………...……………......3
Installing decorating logs..……………………………………………………........4
Service Instructions…………………………………………………………….…......5
Replacing Light Bulbs…………………………………….……………………........5
Maintenance of Motors………………………………………...........…………….…5
Glass Information……………………………………………...........………………..5
Electrical Wiring Diagram……………………………………........………….......…6.7
Operating Instructions………………………………………………………....…........8
Specification........………………………………………………………………...........9
Replacement Parts..…………………………………………………….....10. 11
Replacement Parts List........................……………………………………………..12
2
1
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions
should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the
following:
1.Read all instructions before using this heater.
2.This appliance is hot when in use. To avoid
burns, do not come in contact with heater. Keep
combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains
at least 3 feet (1m.) from the front of the heater.
3.Extreme caution is necessary when any heater
is used by or near children or invalids and when-
ever the heater is left operating and unattended.
4.Always unplug heater when not in use.
5.Do not operate any heater with a damaged cord
or plug or after the heater malfunctions, has
been dropped or damaged in any manner.
6.Any repairs to this appliance should be carried
out by a qualified service person.
7.Under no circumstances should this electric fire-
place be modified. Parts having to be removed
for servicing must be replaced prior to operat-
ing this electric fireplace again.
8.Do not use outdoors.
9.This heater is not intended for use in bathrooms,
laundry areas or similar indoor locations. Never
use this appliance near a bathtub or other wa-
ter container.
11.To disconnect heater, turn controls to OFF, then
remove plug from outlet.
12. Connect to properly grounded outlets only.
13. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause
electric shock, fire or damage to the heater.
14.To prevent a possible fire, do not block air intakes
or exhaust in any manner. Do not use on soft
surfaces, such as a bed, where openings may
become blocked.
15.This heater gets hot and it contains internal parts
that sparks and arcs. Do not use it in areas where
gasoline, paint, or flammable liquids are used or
stored.
16.Use this heater only as described in this manual.
Other uses not recommended by the manufac-
turer may cause fire, electric shock, or injury.
17.Avoid the use of an extension cord because it may
overheat and cause a risk of fire. However if you
must use an extension cord, the cord shall be No.
1.0 mm2 minimum size and rated not less than
1900 watt. The extension cord must be a three
wire cord with grounding type plug and cord
connector.
18. This electric fireplace heater should not be used
as a drying rack for clothing. Also, do not hang
Christmas stockings or decorations on or near it.
19.SAVE THESE INSTRUCTIONS.
10.Do not run cord under carpeting. Do not cover
cord with throw rugs, runners or similar
coverings. Arrange cord away from traffic areas
and where it will not be tripped over.
2
3
LOCATING YOUR ELECTRIC FIREPLACE
Your new freestanding electric fireplace may be installed vir-
tually anywhere in your home. However when choosing a
location for your new electric fireplace, ensure that the gen-
eral instructions are followed. For best effect results, install
the electric fireplace out of direct sunlight.
WARNING: Electrical outlet wir-
ing must comply with local build-
ing codes and all other appli-
cable regulations to reduce the
risk of fire, electrical shock and
injury.
CLEARANCE TO COMBUSTIBLES
Sides....................................0 mm 0 inches
Floor.....................................0 mm 0 inches
Top........................................0 mm 0 inches
ELECTRICAL CONNECTION
A 10 AMP, 220 Volt, 50Hz circuit with a properly grounded outlet
is required. Preferably, the fireplace will be on a dedicated
circuit. Other appliances on the same circuit may cause the
circuit breaker to trip or the fuse to blow when the heater is on
operation. The unit comes standard with a 6’ (1828mm) long
three wire cord exiting from the rear of the fireplace. Plan the
installation to avoid the use of an extension cord. If an exten-
sion cord must be used, it must be a minimum 1.0 mm2 three
wire with grounding type plug connector and rated no less
than 1900 Watts. The cord shall not be more than 20 feet in
length.
WARNING: Do not use this fire-
place if any part of it has been
under water. Immediately call a
qualified service technician to
inspect the fireplace and re-
place any part of the electrical
system if necessary.
ELECTRICAL SPECIFICATIONS
Voltage:220 VAC, 50 Hz
Total Amps:6.3 Amps
Total Watts:1380 Watts
Heater Rating:1200 Watts
4
3
Installing decorating logs
Installing logs for SFE33RE Series:
1
23
456
FIG 1
4123
FIG 3
123
FIG 2
1.Place log 1, log 2 and log 3 into the corresponding holes on grate. (See FIG 2).
41253
FIG 4
2.Insert the pin on one end of log 4 to the recessed
hole on log 1, with the other end of log 4 placed
where marked. (See FIG 3).
641253
FIG 5
4.Insert the pin on log 6 to the recessed hole on
log 4, and place log 6 as figure shows. (See FIG 5).
3.Insert the pin on one end of log 5 to the recessed
hole on log 2, with the other end of log 5 placed
where marked. (See FIG 4).
4
5
MAINTENANCE OF MOTORS
GLASS INFORMATION
The motors used on the fan and flame genera-
tor assembly are prelubricated for extended
bearing life and require no further lubrication.
However, periodic cleaning/vacuuming of the
fan/heater unit is recommended.
WARNING: Make sure that the
power is turned off before
proceeding.
SERVICE INSTRUCTIONS
WARNING: Disconnect power before
attempting any maintenance or
cleaning to reduce the risk of fire,
electrical shock or personal injury.
REPLACING LIGHT BULBS
This fireplace uses clear 220 Volt, 60 Watt, E-14
socket base light bulbs (small base, chandelier
candle type). The 60 Watt bulbs are located under
the log set/ember bed. For convenience, if one of
the bulbs burns out, it may be a good idea to replace all of the light bulbs.
1. Turn off power to the unit by unplugging the power cord.
2. Let fireplace cool if it has been operating.
3. Remove the two screws on the top corner of screen. Pull
the screen upward slightly, and then pull out.
1.Under no circumstances should this product be
operated with missing or broken glass.
2.Do not strike or slam the glass.
3.Do not use abrasive cleaners to clean the glass.
4. Replacement glass is available from the manu-
facturer and replacement should be carried out
by a qualified service person.
4.Remove the four screws that secure the log set/em-
ber bed in position.
5. Remove log set / ember bed and grate assembly.
6.Examine the bulb(s) to determine which bulbs need
to be replaced.
7. While holding the socket, unscrew defective bulb(s)
counterclockwise.
8.Install the new light bulb(s) by holding the socket and
screwing clockwise.
9. Reinstall the log set/ember bed, grate assembly and
screen. Follow the above procedure in reverse order.
WARNING: Do not exceed 60 Watts
per bulb. The use of higher rated
bulbs may result in a fire causing
property damage and personal
injury.
Note: SFE23RE uses three lights bulbs.
SFE33RE uses four lights bulbs.
6
5
ELECTRICAL WIRING DIAGRAM
Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in
accordance with national and local codes.
If repairing or replacing any electrical component or wiring, the original
wire routing, color coding and securing location must be followed.
6
7

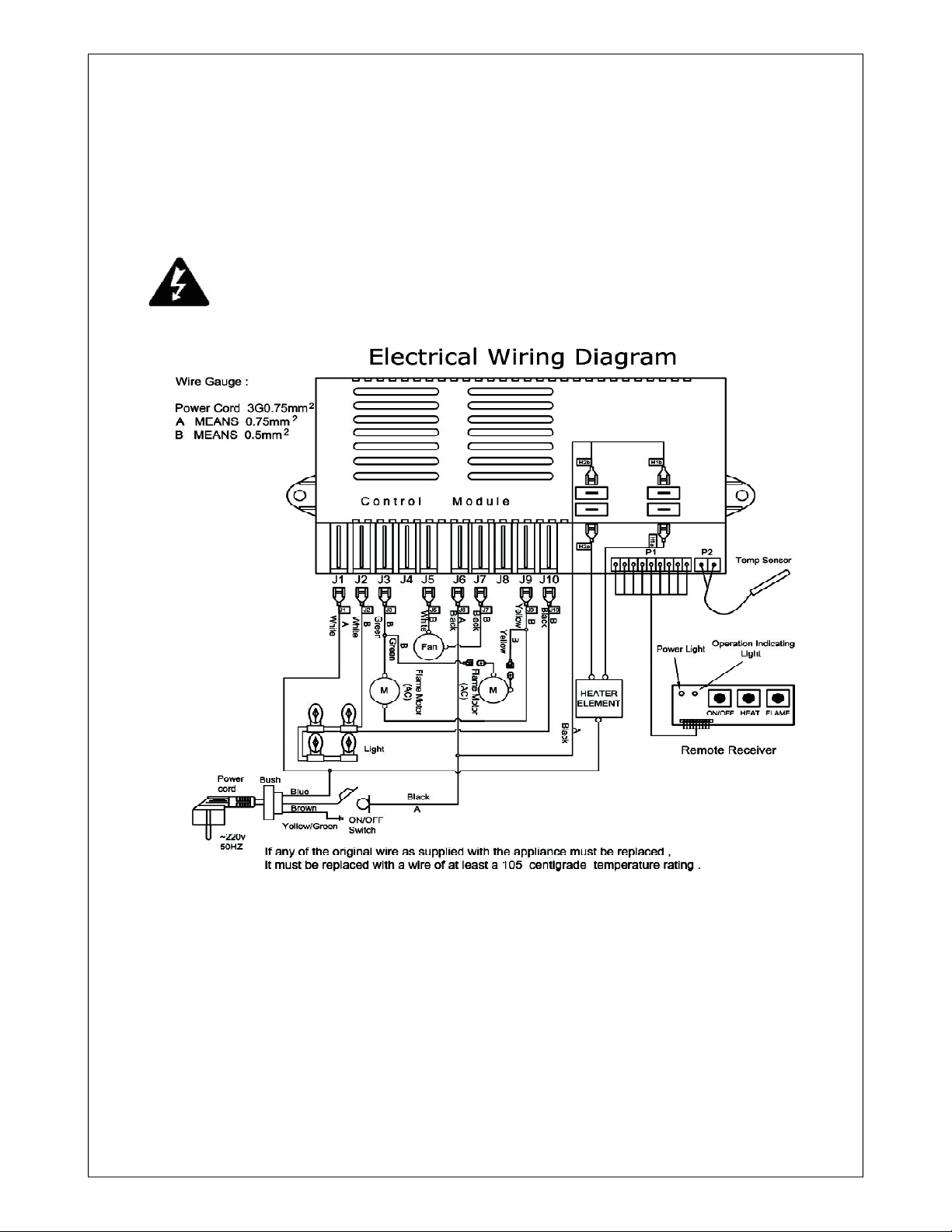

ELECTRICAL WIRING DIAGRAM
SFE33RE
Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in
accordance with national and local codes.
If repairing or replacing any electrical component or wiring, the original
wire routing, color coding and securing location must be followed.
8
7
Operating Instructions
Heater Front View
Before programming your transmitter you
must first insert two “AAA” batteries.
Make sure the main power on/off switch is
“ON” position.
1. The ON/OFF button:
*Note: When Fireplace is first operated,
the default setting will be: brightest
flame, and full heating To turn on Heater,
press the “ON/OFF” button. To turn off
heater,press the “ON/OFF” button again.
2. Flame brightness setting:
There are three settings for flame
brightness: “1”,“2”and “3 (OFF)”.
Press button to decrease the
flame brightness, and button to
increase the flame brightness.
Remote Control Front
3. Heating level setting:
There are three settings for heating level:
“HI”, “LOW”, and “OFF”. Press button
to decrease the Heating level and
button to increase the Heating level.
If set on “HI”, two heating elements will
be approximately 90°F; set on “LOW”,
the set room temperature will be
approximately 70°F.
Manual Operation (without
handheld remote)
Remote Control Back
Press “ON/OFF” button to turn on or off
the fireplace.
Press “HEAT Adjust” button to control
heater.
Press “FLAME ” button to control the
Flame brightness.
8
9
SPECIFICATIONS:
Model: SFE23RE series
Voltage: 220V/50HZ Total Amps: 6.3A
Total Watts: 1380W Heating Ratings: 1200W
Dimensions, Cm (H x W X D)
Fireplace 96.5x100x39.7
Carton 108x105x440
Weight, Kgs
Fireplace 60
Shipping 65
Model: SFE33RE series
Voltage: 220V/50HZ Total Amps: 6.3A
Total Watts: 1380W Heating Ratings: 1200W
Dimensions,Cm (H x W X D)
Fireplace 110 x 134 x 43
Carton 114 x 142 x48
Weight, Kgs
Fireplace 95
Shipping 104
10
9
Replacement Parts
SFE23RE Series
11
10

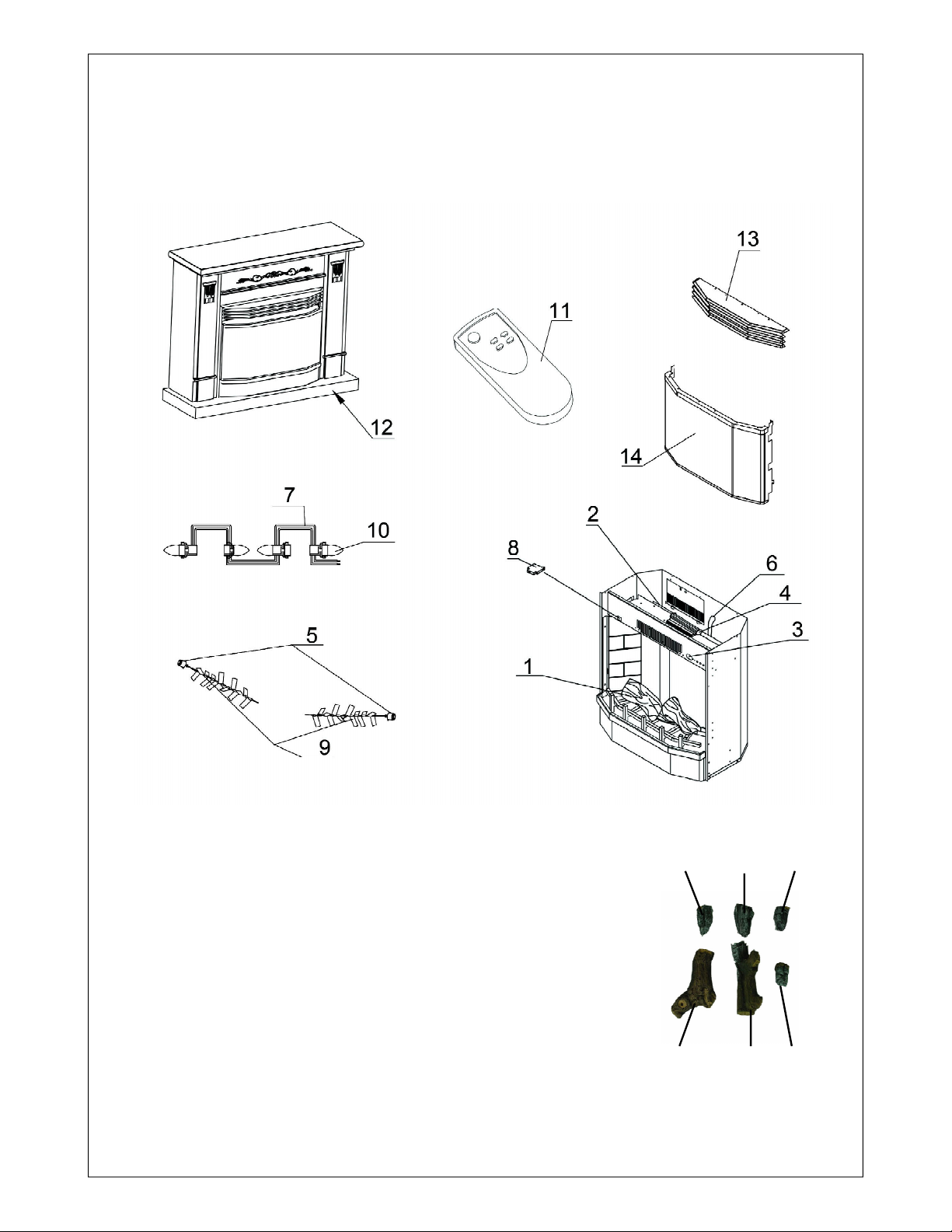

Replacement Parts
SFE33RE Series
11
12
151617
181920
(Logs for SFE33RE)
Replacement Parts List
SFE23RE Series
SFE33RE Series
Part Number
ItemPart Description
SFE23RESFE33RE
1Log SetFE23A400FE33A400
2Control BoxECRMB3-220ECRMB3-220
3ReceiverECRRA1ECRRA1
4Fan Heater AssemblyGL45.L(HFG2212)GL45.L(HFG2212)
5AC MotorFE23A307FE23A307/FE23A307G
6Power Cord w/TerminalNFHL008-RNFHL008-R
Light Bulb Socket w/Wiring
7
Assembly
FE24M306-RFE23A306-R
8Over Current ProtectorFE23A305FE23A305
9 Ember bed generator AssyFE23A207FE33A207
10 Light BulbFE23A308FE23A308
Remote ControlECRTA1ECRTA1
11
Mantel AssyFE23A500-X*FE33A500-X*
12
Louver ASSYFE23A109-AFE33109-A
13
Viewing DoorFE23A130-WFE33A130-W
14
Log 1FE33A403
15
Log 2FE33A404
16
Log 3FE33A405
17
Log 4FE33A406
18
Log 5FE33A407
19
20
Log 6FE33A408
For SFE23RE, -X specify-O(Oak) -C(Chery) -W(White) -DO (Dark Oak)
For SFE33RE, -X specify-O(Oak) -C(Chery) -W(White) -DO (Dark Oak)
12
13
Loading...
