COMPACT L.P.& NATURAL
GAS VENT-FREE STOVE
OWNER’S OPERATION AND INSTALLATION MANUAL
WARNING: If the information in this
manual is not followed exactly,a fire or
explosion may result causing property
damage, personal injury, or loss of life.
QN300RYLA QL300RYLA
QN300RYLA-W QL300RYLA-W
WARNING: Improper installation,
adjustment, alteration, service or maintenance can cause injury or property
damage. Refer to this manual for correct
installation and operational procedures.
For assistance or additional information consult a qualified installer, service
agency, or local gas supplier.
WARNING: This is an unvented
gas-fired heater. It uses air (oxygen)
from the room in which it is installed.
Provisions for adequate combustion and
ventilation air must be provided. Refer
to Air For Combustion and Ventilation
section on page 5 of this manual.
Continental Appliance Inc./U.S. Office
5 Musick 4600 Highlands Parkway S.E.
Irvine Suite# D/E
CA 92618 Smyrna GA 30080
Nanjing PRO-COM Electric Appliance Co.,Ltd.
#6 Chuangye Road,High New Tech.Zone,
Great Bridge Road North,Nanjing,210061,China.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHA T TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not
use any phone in your building.
Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed by a
qualified installer, service agency, or local ga s
supplier.
This appliance may be installed in an
aftermarket*, permanently located manufactured
(mobile) home, where not prohibited by local
codes.This appliance is only for use with the
type of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases.
WA TER V APOR:A BY -PRODUCT OF UNVENTED ROOM
HEA TERS
Water vaporis a by-product of gas combustion.An
unvented room heater produces approximately one
(1)ounce (30)ml
of water for every 1,000BTU’S (.3KW’S) OF gas input
per hour,Refer to papg 7.
TOLL-FREE NUMBER: 1-877-886-5989
Consumer : please retain these instruction
for future use.
Installer:Please leave these instructions with the
consumer.
*Aftermarket: Completion of sale, not for purpose of resale,
from the manufacturer.
1
Table of Contents
Safety information warnings--------------------3
Air for conbustion & Ventilation----------------5
Installation-------------------------------------------7
Operation Heater---------------------------- -----11
Cleaning and Maintenance-------------------- 13
Specification----------------------------------------15
Troubleshooting---------------------------------- 16

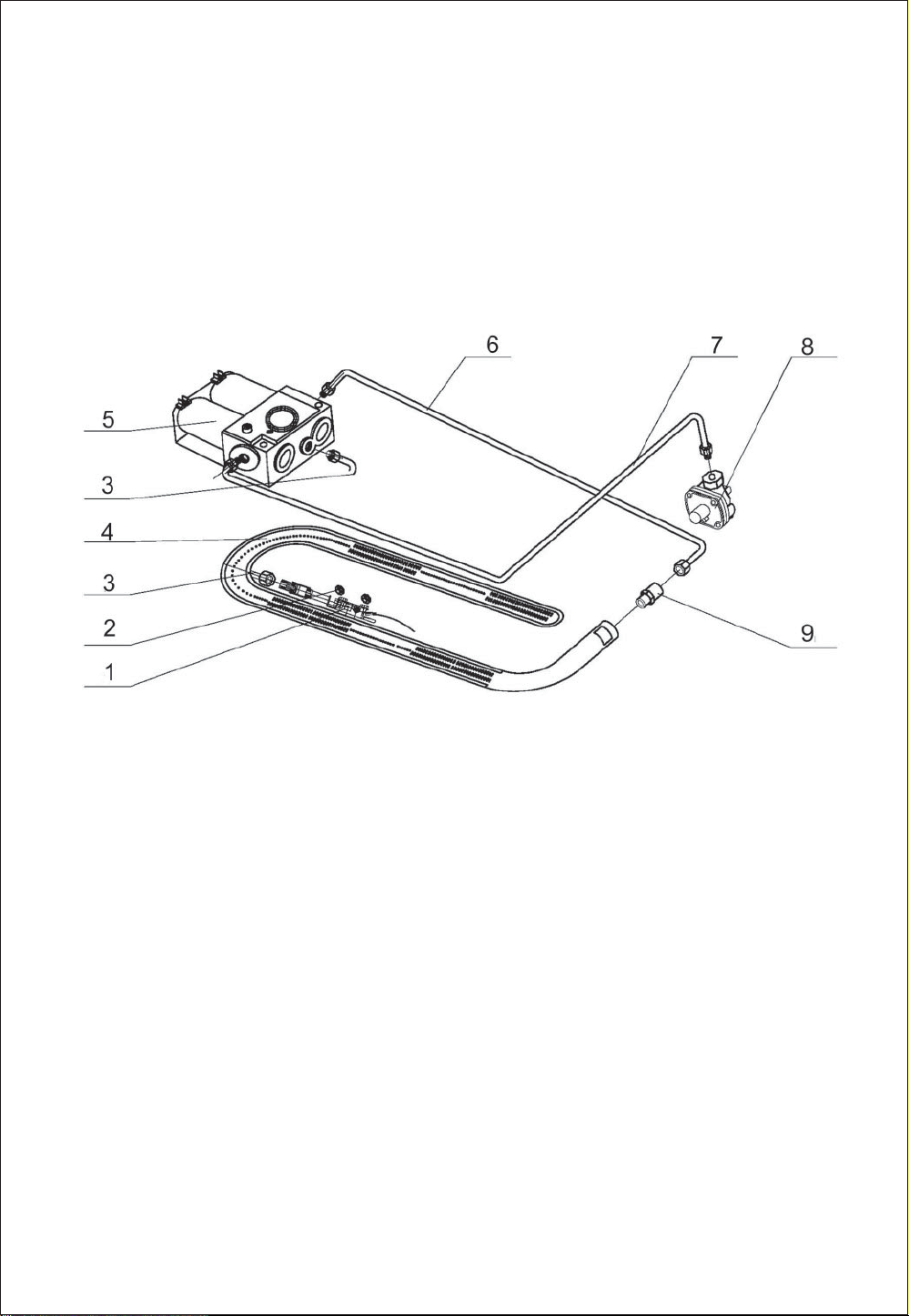

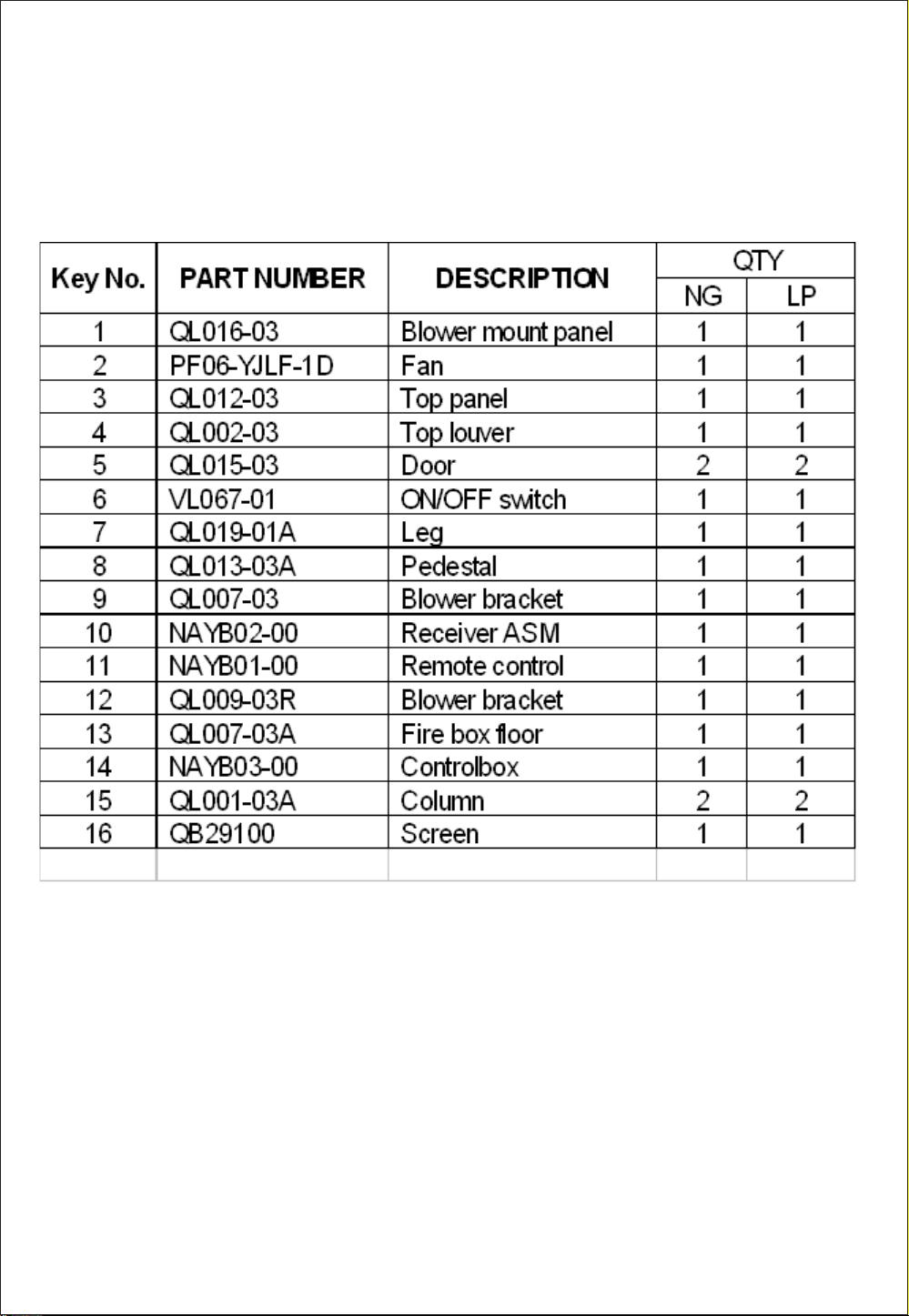

Parts Breakdown & Parts List-----------------18
Log Placing Instructions------------------------22
2
SAFETY INFORMATION WARNINGS
IMPORTANT: Read this
owner’s manual carefully and
completely before trying to
assemble, operate, or service
this heater. Improper use of
this heater can cause serious
injury or death from burns,
fire, explosion, electrical
shock, and carbon monoxide
poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
Carbon Monoxide Poisoning:
Early signs of carbon monoxide
poisoning resemble the flu, with
headaches, dizziness, or nausea.
If you have these signs, the heater
may not be working properly. Get
fresh air at once! Have heater
serviced. Some people are more
affected by carbon monoxide than
others. These include pregnant
women, people with heart or lung
disease, anemia, those under the
influence of alcohol, and those
at high altitudes.
Propane/LP Gas: Propane/LP gas
is odorless. An odor-making agent
is added to Propane/LP gas. The
odor helps you detect a
Propane/LP gas leak. However,
the odor added to Propane/LP gas
can fade. Propane/LP gas may be
present even though no odor
exists.
Natural Gas: Natural gas is odorless.
An odormaking agent is added to
natural gas. The odor helps you
detect a natural gas leak. However, the
odor added to natural gas can
fade. Natural gas may be present
even though no odor exists.
Make certain you read and
understand all warnings. Keep this
manual for reference. It is your guide
to safe and proper operation
of this heater.
WARNING: Do not allow fans to
blow directly into the heater. Avoid any
drafts that alter burner flame patterns.
Ceiling fans can create drafts that
alter burner flame patterns. Altered
burner patterns can cause sooting.
WARNING: Do not use a blower
insert, heat exchanger insert, or other
accessory not approved for use with
this heater.
Due to high temperatures, the
appliance should be located out of
traffic and away from furniture
and draperies.
Do not place clothing or other
flammable material on or near the
appliance. Never place any objects
in the fireplace.
Heater becomes very hot when
running fireplace. Keep children and
adults away from hot surfaces to
avoid burns or clothing ignition.
Fireplace will remain hot for a
time after shutoff. Allow surfaces
to cool before touching.
Carefully supervise young children
when they are in the room with the
fireplace.
You must operate this heater with
the heater screen in place. Make
sure the heater screen is in place
before running heater.
Keep the appliance area clear and
free from combustible materials,
gasoline, and other flammable
vapors and liquids.
1. This appliance is only for use
with the type of gas indicated
on the rating plate. This
appliance is not convertible for
use with other gases.
2. Do not place Propane/LP
supply tank(s) inside
structure. Locate Propane/LP
supply tank(s) outdoors.
3. If you smell gas
Shut off gas supply.
Do not try to light any appliance.
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
If you cannot reach your gas
supplier, call the fire department.
4. This heater shall not be installed
in a bedroom or bathroom.
5. Do not use this heater as a
wood-burning heater. Use only
the logs provided with the heater.
6. Do not add extra logs or ornaments
such as pine cones, vermiculite, or
rock wool.Using these added items
can cause sooting. Do not add lava
rock around base. Rock and debris
could fall into the control area of
heater. After servicing, always
replace screen before operating
heater.
any
7. You must operate this heater with
the heater screen in place. Make
sure heater screen is in place
before running heater.
8. This heater is designed to be
smokeless. If logs ever appear to
smoke, turn heater off and call a
qualified service person. Note:
During initial operation, slight
smoking could occur due to log
curing and heater burning
manufacturing residues.
9. To prevent the creation of soot,
follow the instructions in Cleaning
and Maintenance
WARNING: Any change to
this fireplace or its controls can
be dangerous.
3
SAFETY INFORMATION
Continued
.
10. Before using furniture polish, wax,
carpet cleaner, or similar products,
turn heater off. If heated, the
vapors from these products may
create a white powder residue
within burner box or on adjacent
walls or furniture.
11. This heater needs fresh air
ventilation to run properly. This
heater has an Oxygen Depletion
Sensing (ODS) safety shutoff
system. The ODS shuts down the
heater if not enough fresh air is
available. See Air for Combustion
and Ventilation, pages 5through 6.
If heater keeps shutting off, see
Troubleshooting, pages 16
through 17.
12. Do not run heater:
Where flammable liquids or vapors
are used or stored.
Under dusty conditions.
13.Do not use this heater to cook
food or burn paper or other objects.
14. Do not use heater if any part has
been under water. lmmediately call
a qualified service technician to
inspect the room heater and to
replace any part of the control
system and any gas control which
has been under water.
PRODUCT IDENTIFICATION
15. Turn off and unplug heater and let
cool before servicing. Only a
qualified service person should
service and repair heater.
16. Operating heater above elevations
of 4,500 feet could cause pilot
outage.
17. Do not operate heater if any log is
broken. Do not operate heater if a
log is chipped (dime-sized or
larger).
18. To prevent performance problems,
do not use Propane/LP fuel tank of
less than 100 lbs. capacity.
PRODUCT FEATURES
SAFETY PILOT
This heater has a pilot with an
Oxygen Depletion Sensing (ODS)
safety shutoff system. The ODS/pilot
is a required feature for vent-free
room heaters. The ODS/pilot shuts off
the heater if there is not enough
fresh air.
Remote control SYSTEM
This fireplace has a remote transimitter.This system requires three
batteries, and provides electric
power outlet to operate.
LOCAL CODES
lnstall and use heater with care.
Follow all local codes. In the
absence of local codes, use the
latest edition of The National Fuel
Gas Code, ANSZ 223.1, also known
as NFPA 54*.
*Available from:
American National Standards
lnstitute, lnc.
1430 Broadway
New York, NY 10018
National Fire Protection
Association, lnc.
Batterymarch Park
Quincy. MA 02269
This heater is designed for vent-free
operation. State and local codes in
some areas prohibit the use of
vent-free heaters.
UNPACKING
1. Remove top inner pack.
2. Tilt carton so that stove is upright.
3. Remove protective side packaging.
4. Slide stove out of carton.
5. Remove protective plastic wrap.
6. Remove two self-tapping screws
on the screw , then lift and
pulling forward.
7. Remove log set by cutting plastic
ties.
8. Carefully unwrap log.
9. Check for any shipping damage. If
stove or log is damaged, promptly
inform dealer where you bought
stove.
Stove Cabinet
Screen
Log
Heater Control
Figure1- Vent Free LP/NG Gas Stove
4
AIR FOR COMBUSTION AND VENTILATION
WARNING: This heater
shall not be installed in a confined
space or unusually tight construction unless provisions are
provided for adequate combustion and ventilation air. Read the
following instructions to insure
proper fresh air for this and other
fuel-burning appliances in your
home.
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from
National Fuel Gas Code, NFPA 54/
ANSZ 223.1,Section 5.3, Air for
Combustion and Ventilation.
All spaces in homes fall into one of
the three following ventilation
classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 5 through 6
will help you classify your space and
provide adequate ventilation.
Confined and Unconfined Space
The National Fuel Gas Code, ANS
Z223.1 defines a confined space as a
space whose volume is less than 50
cubic feet per 1,000 Btu per hour
3
(4.8 m
input rating of all appliances installed
in that space and an unconfining
space as a space whose volume is
not less than 50 cubic feet per 1,000
Btu per hour (4.8 m
aggregate input rating of all appliances
installed in that space. Rooms
communicating directly with the space
in which the appliances are installed*,
through openings not furnished with
doors, are considered a part of the
unconfined space.
This heater shall not be installed in
a confined space or unusually tight
construction unless provisions are
provided for adequate combustion
and ventilation air.
* Adjoining rooms are communicating
only if there are doorless passageways or ventilation grills between
them.
per kw) of the aggregate
3
per kw) of the
Unusually Tight Construction
The air that leaks around doors and
windows may provide enough fresh
air for combustion and ventilation.
However, in buildings of unusually tight
construction, you must provide
additional fresh air.
Unusually tight construction is
defined as construction where:
a) walls and ceilings exposed to the
outside atmosphere have a
continuous water vapor retarder
with a rating of one perm (6
per pa-sec-m
openings gasketed or sealed
b) weather stripping has been added
on openable windows and doors
and
c) caulking or sealants are applied to
areas such as joints around window
and door frames, between sole
plates and floors, between
wall-ceiling joints, between wall
panels, at penetrations for plumbing,
electrical, and gas lines, and at
other openings.
If your home meets all of the three
criteria above, you must provide
additional fresh air. See Ventilation Air
From Outdoors.
If your home does not meet all of the
three criteria above, proceed to
Determining Fresh-Air Flow For
Heater Location.
2
) or less with
×10
-11
kg
and
DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION
Determining if You Have a Confined or Unconfined Space
Use this worksheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways
or ventilation grills between the rooms.
1. Determine the volume of the space (length
Length
Example: Space size 20ft. (length)
If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these
rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.
(volume of space)÷50 cu. ft.=(Maximum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space)÷50 cu.ft.=51.2 or 51,200(maximum Btu/Hr the space can support)
Width×Height= cu.ft. (volume of space)
×
16ft.(width)×8ft. (ceiling height)=2560cu. ft. (volume of space)
×
width×height).
×
5
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater
Gas water heater*
Gas furnace
Vented gas heater
Gas heater logs
Other gas appliances* +
Total =
*Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and
vents to the outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.
Btu/Hr (maximum the space can support)
Btu/Hr (actual amount of Btu/Hr used)
Example : 51,200 Btu/Hr(maximum the space can support)
56,000 Btu/Hr(actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/Hr used is more than the
maximum Btu/Hr the space can support.
You must provide additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined
space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation Air From
Inside Building.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors .
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an
unconfined space. You will need no additional fresh air ventilation.
WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined
space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one
of the methods described in the National Fuel Gas Code, ANS Z223.1, Section 5.3 or applicable local codes.
Btu/Hr
Btu/Hr
Btu/Hr
Btu/Hr
Btu/Hr
Btu/Hr
Btu/Hr
Example:
Gas water heater 30,000 Btu/Hr
Vent-free heater
Total = 56,000 Btu/Hr
+ 26,000 Btu/Hr
Ventilation Air From lnside Building
This fresh air would come from an adjoining unconfined
space. When ventilating to an adjoining unconfined
space, you must provide two permanent openings: one
within 12
on the wall connecting the two spaces (see options 1
and 2, Figure 2). You can also remove door into
adjoining room (see option 3, Figure 2). Follow the
National Fuel Gas Code. NFPA 54/ANS Z223.1, Section 5.3, Air for Combustion and Ventilation for re-
quired size of ventilation grills or ducts.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts.
You must provide two permanent openings: one within
12
these items directly to the outdoors or spaces open to the
outdoors. These spaces include attics and crawl spaces.
Follow the National Fuel Gas Code, NFPA 54/ANS
Z223.1, Section 5.3, Air for Combustion and Ventilation
for required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet or outlet
air into attic if attic has a thermostat-controlled power vent.
Heated air entering the attic will activate the power vent.
" of the ceiling and one within 12" of the floor
" of the ceiling and one within 12" of the floor. Connect
WARNING: Rework worksheet, adding
the space of the adjoining unconfined
space. The combined spaces must have
enough fresh air to supply all appliances in
both spaces.
Figure 2 -Ventilation Air from Inside Building
outlet
Figure 3 -Ventilation Air from Outdoors
6
WA TER VAPOR:A BY-PRODUCT OF
UNVENTED ROOM HEATERS
Water vapor is by-product of gas
combustion.an unvented room
heater prodrces approximately one
(1) ounce (30ml) of water for every 1,
000BTU’s (.3kw’s) of gas input per
hour.
Unvented room heaters are recommended as supplemtal heat (a
room) rather that a primary heat
source(an entire house) in most
supplemental heat applications,the
water vapor does not create a
problem ,in most applications the
water vapor enhances the low
humidity atmosphers experienced
during cold weather.
The following steps will help insure
that water vapor does not become a
problem.
1. Besure the heater is sized properly for the application,including
ample combustion air and circulation of the air.
2.If high humidity is experienced, a
dehumidifier may be used to help
lower the water vapor content of the
air.
3.Do not use an unvented room
heater as the primary heat source.
INSTALLATION
12
12
WARNING: A qualified service
person must install heater. Follow
all local codes.
WARNING: Never install the
heater
in a bedroom or bathroom
in a recreational vehicle
where curtains, furniture, clothing,
or other flammable objects are less
than 42 inches from the front, top, or
sides of the heater
in high traffic areas
in windy or drafty areas
WARNING: Maintain the
minimum clearances. If you can,
provide greater clearances from
floor, ceiling, and adjoining side and
back walls.
Figure 4 -Minimum Clearance to Wall and Ceiling
CAUTION: This heater creates
warm air currents. These currents
move heat to wall surfaces next to
heater. Installing heater next to vinyl
or cloth wall coverings or operating
heater where impurities (such as
tobacco smoke, aromatic candles,
cleaning fluids, oil or kerosene lamps,
etc.) in the air exist, may discolor
walls.
IMPORTANT: Vent-free heaters add
moisture to the air. Although this is
beneficial, installing heater in rooms
without enough ventilation air may
cause mildew to form from too much
moisture. See Air for Combustion and
Ventilation, pages 5 through 6.
7
CHECK GAS TYPE
Be sure your gas supply is right for
your heater. Otherwise, call dealer
where you bought the heater for proper
type heater.
CLEARANCES TO COMBUSTIBLES
(Vent-Free Operation Only)
Carefully follow the instructions below.
This stove is a freestanding unit
designed to set directly on the floor.
IMPORTANT: You must maintain
minimum wall and ceiling clearances
during installation. The minimum
clearances are shown in Figure 4.
Measure from outermost point of stove
top.
Minimum Wall and Ceiling Clearances
(see Figure 4)
A. Clearances from outermost point
of stove top to any combustible side
wall should not be less than 24
inches.
B. Clearances from outermost point of
stove top to any combustible back
wall should not be less than 10
inches (lncludes corner
installations).
C. Clearances from the stove top to
the ceiling should not be less than
48 inches.
CONNECTING TO GAS
SUPPLY
WARNING: A qualified service person must connect heater
to gas supply. Follow all local
codes.
CAUTION: Never connect
heater directly to the gas supply.
This heater requires an external
regulator (not supplied). lnstall the
external regulator between the heater
and gas supply.
The installer must supply an external regulator.
The external regulator will reduce incoming gas
pressure. You must reduce incoming gas pressure
to rating
incoming gas pressure, heater regulator damage
could occur. lnstall external regulator with the vent
pointing down as shown in Figure 6. Pointing the
vent down protects it from freezing rain or sleet.
Figure 5 -Gas Regulator Location and Gas
Line Access Into Stove Cabinet
inches of water. If you do not reduce
Propane/LP
Supply Tank
Figure 6 -External Regulator With
Vent Pointing Down
NG Models:
5”-10.5” W.C.
Gas supplier provides external regulator for natural gas.
INST ALLATION ITEMS NEEDED
Before installing heater, make sure
you have the items listed below.
piping (check local codes)
sealant (resistant to propane/LP gas)
equipment shutoff valve*
test gauge connection*
sediment trap
tee joint
pipe wrench
flexible gas hose.(check local codes)
*A CSA design-certified equipment
shutoff valve with 1/8" NPT tap is
an acceptable alternative to test
gauge connection. Purchase the
optional CSA design-certified
equipment shutoff valve from your

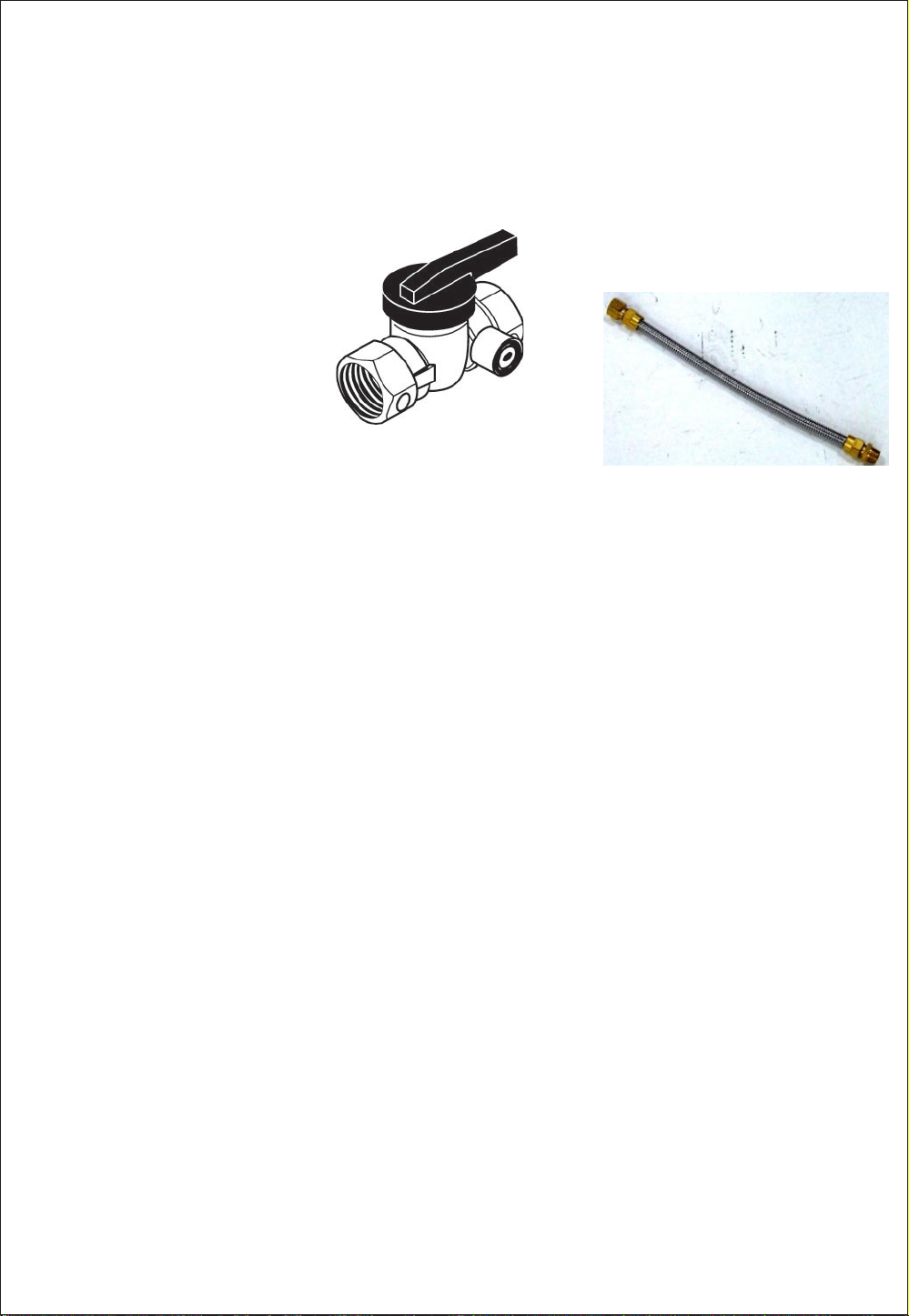

dealer. See Accessories.
purchase
Figure 7 -Gas Connection
* Purchase the optional CSA design-certified equipment shutoff valve
from your dealer. See Accessories.
** Minimum inlet pressure for purpose of input adjustment.
8
WARNING: Never connect
E
t
Propane/LP
Supply Tank
Extemal Regulotor
heater to private (non-utility) gas
wells. This gas is commonly known
as wellhead gas.
CAUTION: Use only new, black
iron or steel pipe. Internally-tinned
copper tubing may be used in
certain areas. Check your local
codes. Use pipe of 1/2
greater to allow proper volume gas
to heater. If pipe is too small, undue
loss of pressure will occur.
Installation must include an equipment shutoff valve, union, and
plugged 1/8
tap within reach for test gauge hook
up. NPT tap must be upstream
from heater (see Figure 7).
IMPORTANT: Install equipment
shutoff valve in an accessible
location. The equipment shutoff
valve is for turning on or shutting
off the gas to the appliance. Apply
pipe joint sealant lightly to male
threads.This will prevent excess
sealant from going into pipe. Excess
sealant in pipe could result in
clogged heater valves.
CAUTION: Use pipe joint
sealant that is resistant to gas
(PROPANE or NG).
" NPT tap. Locate NPT
" diameter or
CAUTION: Avoid damage to
regulator. Hold gas regulator with
wrench when connecting into gas
piping and/or fittings.
CHECKING GAS
CONNECTIONS
WARNING: Test all gas piping
and connections for leaks after
installing or servicing. Correct all
leaks at once.
WARNING: Never use an
open flame to check for a leak.
Apply a mixture of liquid soap and
water to all joints. Bubbles forming
show a leak. Correct all leaks at
once.
CAUTION: Make sure external
regulator has been installed between gas supply and heater. See
guidelines under Connecting to Gas
Supply.
Figure 8 -Equipment Shutoff Valve
Pressure Testing Gas
Supply Piping System
Test Pressures In Excess Of 1/2
PSIG(3.5kPa)
1. Disconnect heater with its
appliance main gas valve (control
valve) and equipment shutoff valve
from gas supply piping system.
Pressures in excess of 1/2 PSIG
will damage heater regulator.
2. Cap off open end of gas pipe
where equipment shutoff valve
was connected.
3. Pressurize supply piping system
by either using compressed air or
opening gas supply tank valve.
4. Check all joints of gas supply
piping system. Apply mixture of
liquid soap and water to gas
joints. Bubbles forming show a
leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment
shutoff valve to gas supply. Check
reconnected fittings for leaks.
Pressure Testing Heater
Gas Connections
1. Open equipment shutoff valve
(see Figure 8).
We recommend that you install a
sediment trap in supply line as shown
in Figure 7. Locate sediment trap
where it is within reach for cleaning.
Install in piping system between fuel
supply and heater. Locate sediment
trap where trapped matter is not likely
to freeze. A sediment trap traps
moisture and contaminants. This
keeps them from going into heater
controls. If sediment trap is not
installed or is installed incorrectly,
heater may not run properly.
quipment Shu
Figure 9.1 -Checking Gas Joints
9
2. Open gas supply tank valve.
3. Make sure control knob of heater is
in the OFF position.
4. Check all joints from equipment
shutoff valve to control valve
(LP GAS see Figure 9.1 NATURAL
GAS see Figure 9.2). Apply
mixture of liquid soap and water
to gas joints. Bubbles forming
show a leak.
5. Correct all leaks at once.
6. Light heater (see Operating
Heater). Check all other internal
joints for leaks.
7. Turn off heater (see To Turn Off
Gas Appliance).
Test Pressures Equal To or
Less Than 1/2 PSIG(3.5 kPa)
1. Close equipment shutoff valve
(see Figure 8).
2. Pressurize supply piping system
by either using compressed air or
opening natural supply tank
valve.
3. Check all joints from gas meter to
equipment shutoff valve(see
Figure 9). Apply mixture of liquid
soap and water to gas joints.
Bubbles forming show a leak.
4. Correct all leaks at once.
WARNING: Failure to position
the parts in accordance with these
diagrams or failure to use only parts
specifically approved with this heater
may result in property damage or
personal injury.
CAUTION: After installation
and periodically thereafter, check to
ensure that no flame comes in
contact with any log. With the heater
set to High, check to see if flames
contact any log. If so, reposition logs
according to the log installation
instructions in this manual. Flames
contacting logs will create soot.
Figure 10 -Installing Log Set
It is very important to install the logs
exactly as instructed. Do not modify
logs. Only use logs supplied with
heater.
Place log set on grate to fit as
illustrated in Figure 10.
Make sure log sits flat on firebox
floor (see Figure 10).
IMPORTANT: Make sure log does
not cover any burner ports (see Figure 11).
Also, see log placing instructions.
Figure 9.2 -Checking Gas Joints
Figure 1 1 -Installing Log Set (T op View)
10
OPERATING HEATER
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not
follow these instructions exactly, a
fire or explosion may result causing
property damage, personal injury or
loss of life.
A. This appliance has a pilot which
must be lighted by control system,
When lighting the pilot, follow
these instructions exactly.
B. BEFORE LIGHTING smell all
around the appliance area for
gas. Be sure to smell next to the
floor because some gas is
heavier than air and will settle
on the floor.
WHAT T O DO IF YOU SMELL GAS
SEE WARNING in Page 1 for proper
instructiors.
C. Use only your hand to push in
control knob. Never use tools. If the
the appli ance could not operate , don't
try to repair it, Call a qualified service
technician or gas supplier.Forced or attempted re-pair may result in a fire or
explosion.
D. Do not use this appliance if any
part has been under water. Immediately call a qualified service technician to inspect the appliance and to
replace any part of the control system
and any gas control which has been
under water.
TO TURN OFF GAS TO APPLIANCE
Shut off heater
1. Press the IGN/OFF button of
transmitter.
2.Set the Switch on OFF location.(See
Figure12-2)
Shutting off burner only( pilot stay lit)
1.press the BURNER to set flame OFF
select
Figure 12-1 Emergency Button
location
If you didn’t receive or mis-place your
remote transimitter,you can press the
emergency button by a pitch rod to
operate remote automatically on or off
(see fig 12-2)
Figure 12-2 On/Off Switch
OPERATING INSTRUTION OF
REMOTE-CONTROLLED BUNER
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information,
page 2.
2. Make sure equipment shutoff
valve is fully open.
NOTICE: During initial operation of new
will give off a paper-burning smell.
Orange flame will also be present.
Open a window to vent smell. This
will only last a few hours.
CAUTION: Do not try to adjust
heating levels by using the
equipment shutoff valve.
Fig 13 Front of the Transmitter
fireplace, burning logs
11
OPERATING
HEATER
Continued
Fig 14 Back of the Transmitter
OPERATIONS OF
REMOTE TRANSMITTER
1.Install three AAA SIZE batteries in the battery holder.
The initial start-up on the LCD is: SET TEMP
is 77°F, ROOM TEMP is 77°F, clock is AM12:
00, burner is on “OFF” select, and fan is on
“AUTO” select. Divide Points of hour and
minute are flashing (i.e. the timer is operating).
Fig 25 Initial start-up on the LCD
2.Clock setting: Press CLOCK button on the
remote transmitter panel to select item (hour,
minute). The selected item is flashing. Press
¡ø¡ø
oo
rr
¨‹¨‹
¡ø
o
r
¨‹to change to the correct actual hour
¡ø¡ø
oo
rr
¨‹¨‹
¡ø¡ø
oo
rr
¨‹¨‹
tt
(s); Press
rect minute(s), then press CLOCK button
again, time setting is finished.
3. When in operation, point the remote transmitter to the remote receiver on the burner in
a maximum distance of 20 feet without any
obstruction between them.
¡ø
¡ø¡ø
oo
o
r
¨‹
t
o change to the cor-
oo
rr
¨‹¨‹
tt
oo
Fig16 Control board
OPERATIONS OF
BURNER
1.Plug-in 110V electrical outlet, you will
hear a high pitch sound and power light
(red) on the front will be lit that indicates
that the burner is ready to be operated.
Before plugging in the outlet make sure that
the appliance is connected to the gas
supply, then continue to the next step.
2.Point directly the remote transmitter to the
burner. Press IGN/OFF button, the electric
spark starts igniting the pilot and operation
light (green) on the front will be lit. Wait five
(5) minutes to clear out any air. If you
smell gas. STOP! Please check the gas
connection.
There are three selections: “AUTO” “MAN”
and “OFF”
a.auto select of main burner:
Press BURNER button, the flame is
¡ø¡ø
on “AUTO” select. Press
temperature. If the room temperature is two
degree lower than the set temperature on
the remote, the main burner will turn on
until the surrouding temperature is two
degree higher than the set temperature.
Once it reaches temperature on the
remoter, the main burner will automatically
shut off.
Fig17 “AUTO” select
¡ø or
¡ø¡ø
¨‹¨‹
¨‹to set
¨‹¨‹
(Note: on the auto select of main
burner, the main burner does not
respond imm-ediately to the set temperature until about one minute later.)
b.manual select of main
burner:
Press BURNER button, the flame is
on “MAN” select. At this selection, the
main burner will keep working no matter
what the temperature is set at. If there is
a need to shut off the main burner, just
press the “BURNER” button to make the
burner on the “OFF” select.
c.shut off the main burner:
the main burner is on “OFF” selection,.
The main burner will shut off.
OPERATIONS OF
TIMING
1.Auto on:
when the burner is in a state of
readiness. Transmitter and burner is off.
¡ø¡ø
Press TIMER button. Then press
change to the scheduled time, then press
the TIMER button again, the TIMER starts
timing and the TIMER is flashing and the
operation light(green) begin flashing.
When the timer goes on the scheduled
time, the burner opens automatically.
¡ø or
¡ø¡ø
¨‹¨‹
¨‹
¨‹¨‹
2.Auto off:
when the burner is in operation, press
¡ø¡ø
TIMER button. Then press
change to the scheduled time, then press
the TIMER button again, the TIMER starts
timing and the TIMER is flashing and the
operation light begin flashing. When the
timer goes on the scheduled time, the
burner closes automatically.(See Fig 14)
¡ø or
¡ø¡ø
¨‹¨‹
¨‹ to
¨‹¨‹
OPERATIONS OF
TURN-OFF
1.Manual turn-off: when the heater is in
operation, press the IGN/OFF button to
shut off the heater.
2.Auto turn-off: refer to the second step
of “Operations of Timing”
12
3.After completion of the abovementioned two steps, the transmitter
is kept in a state of readiness. If the
appliance doesn’t working for a
period time, just pull out the plug
from the 110V electrical outlet.
OPERATIONS OF
KEY-PRESS LOCKING
1.Key press locking:
when the burner is in operation or the
transmitter is in a state of readiness,
just press LOCK button on the
operating
panel, there will be a “ ” symbol on
the LCD. If any button is pressed
now, the burner will not react at all.
2.Key-press unlocking:
when the burner is in a state of key-
¨‹¨‹
press locking, first press
press LOCK button to unlock it (Child
proof-See Fig17)
¨‹ , then
¨‹¨‹
OPERATIONS OF
FAN
There are three selections: “AUTO”
“MAN” and “OFF”.When pushing the
“FAN” button on the “AUTO” select,
the fan will be controlled by the
thermostat on the fan blower unit. On
the “MAN” select, the fan will be kept
in operation.To stop the operation,
push the “FAN”button to “OFF”select.
(See Fig17)
Figure 19 -Incorrect Pilot Flame
Pattern
BURNER FLAME PATTERN
Figure 20 shows a correct burner
flame pattern. Figure 21 shows an
incorrect burner flame pattern. If
burner flame is incorrect:
Turn heater off (see TO TURN
OFF GAS TO APPLIANCE)
See troubleshooting
Figure 20-Correct Flame Pattern
with Control Knob Set to High Flame
sensing bulb from the clip, then disconnect the wires to free to control
module from its mounting location .
Note: Do not confuse the mark on
the each wire.
2. Remove two screws and hex nuts,
take out the control module. When installing , reverse the steps above.
(See Figure 22 and Figure 26)
Figure 22- Control Model
DISCONNECT FAN
1. Remove screws from the fan
bracket panel , pull the fan bracket
panel out to remove. Then disconnect two wires free to fan.
2. Mark or tag each wire removed
for its exact reconnection. Remove
the four screws from the fan .when
installing , reverse the steps above.
(See Figure 23 and Figure 26)
INSPECTING BURNERS
Check pilot flame pattern and
burner flame patterns often.
PILOT FLAME PATTERN
Figure 18 shows a correct pilot
flame pattern. Figure 19 shows an
incorrect pilot flame pattern. The
incorrect pilot flame is not touching
the thermocouple.This will cause the
thermocouple to cool. When the
thermocouple cools, the heater
will shut down. If pilot flame pattern
is incorrect, as shown in Figure 19.
Turn heater off (see TO TURN
OFF GAS TO APPLIANCE)
see troubleshooting
Figure 18 -Correct Pilot Flame
Pattern
Figure 21 -Incorrect Flame Pattern
with Control Knob Set to High Flame
CLEANING AND
MAINTENANCE
WARNING: Disconnect power be-
fore attempting any maintenance or
cleaning to reduce the risk of fire , electric shook or personal injury. Turn off
heater and let cool before cleaning.
CAUTION:
disconnection
controls
improper and dangerous operation.
Verify proper operation after servicing.
DISCONNECT WIRNG OR CONTROL
MODULE
1. Remove screws from the rear
control panel , take out thermostat
Label all wires prior to
when servicing
.
Wiring errors can cause
13
Figure 23- Fan
CLEANING BURNER INJECTOR
HOLDER AND PILOT AIR INLET HOLE
CAUTION: You must keep
control areas, burner, and
circulating air passageways of
heater clean. Inspect these
areas of heater before each
use. Have heater inspected
yearly by a qualified service person.
Heater may need more
frequent cleaning due to
excessive lint from carpeting,
bedding material, pet hair, etc.
The primary air inlet holes allow the
proper amount of air to mix with the
gas. This provides a clean burning
flame. Keep these holes clear of dust,
dirt, lint, and pet hair. Clean these air
inlet holes prior to each heating season.
Blocked air holes will create soot. We
recommend that you clean the unit
every three months during operation
and have heater inspected yearly by a
qualified service person.
We also recommend that you keep
the burner tube and pilot assembly
clean and free of dust and dirt. To
clean these parts we recommend
using compressed air no greater
than 30 PSI. Your local computer
store, hardware store, or home
center may carry compressed air in
a can. You can use a vacuum
cleaner in the blow position. If
using compressed air in a can,
please follow the directions on the
can. If you don't follow directions
on the can, you could damage the
pilot assembly.
1. Shut off the unit, including the
pilot. Allow the unit to cool for
at least thirty minutes.
2. Inspect burner, pilot and
primary air inlet holes on
injector holder for dust and dirt
(See Figure 24).
3. Blow air through the
ports/slots and holes in the
burner.
4. Check the injector holder
located at the end of the
burner tube again. Remove
any large particles of dust, dirt,
lint, or pet hair with a soft cloth
or vacuum cleaner nozzle.
5. Blow air into the primary air
holes on the injector holder.
6. In case any large clumps of
dust have now been pushed
into the burner repeat steps 3
and 4.

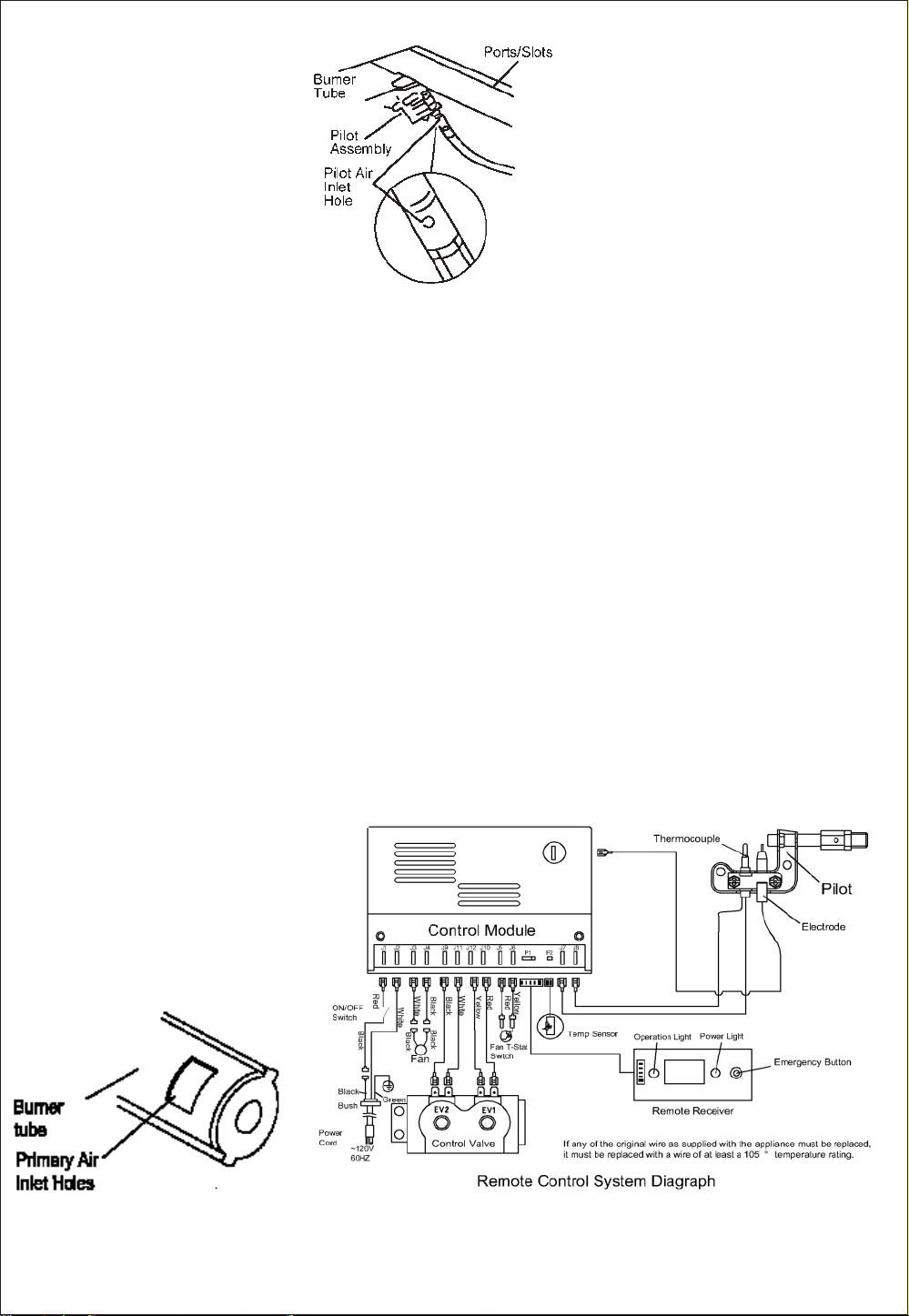

Clean the pilot assembly also. A
yellow tip on the pilot flame
indicates dust and dirt in the pilot
assembly. There is a small pilot air
inlet hole about two inches from
where the pilot flame comes out of
the pilot assembly (see Figure 25).
With the unit off, lightly blow air
through the air inlet hole. You may
blow through a drinking straw if
compressed air is not available.
Burner
Figure 25-Pilot Inlet Air Hole
MAIN BURNER
Periodically inspect all burner flame
holes with the heater running. All
slotted burner flame holes should
be open with yellow flame present. All
round burner flame holes should be
open with a small blue flame
present. Some burner flame holes
may become blocked by debris or
rust, with no flame present. If so,
turn off heater and let cool. Either
remove blockage or replace burner.
Blocked burner flame holes will
create soot.
CABINET
Air Passageways
Use a vacuum cleaner or
pressurized air to clean.
Exterior
Use a soft cloth dampened with a
mild soap and water mixture. Wipe
the cabinet to remove dust.
LOGS
If you remove logs for cleaning,
refer to Installing Logs to properly
replace logs.
Replace logs if broken or chipped
(dimesized or larger).
REPLACEMENT PARTS NOTE:
Use only original replacement
parts. This will protect your warranty
coverage for parts replaced under
warranty.
PARTS UNDER W ARRANTY
Contact authorized dealers of this
product. If they can't supply original
replacement part(s) call the number
on the back of manual. when
contacting your dealer or PRO-COM,
have ready:
Your name
Your address
Model and serial numbers
of your heater
How heater was malfunctioning
Type of gas used (propane/LP or
NG)
Figure 24 -Injector Holder on Outlet
Burner Tube
Figure 26-
14
Purchase date
Usually, we will ask you to
return the defective part to the
factory.
Warranty card.
PARTS NOT UNDER
WARRANTY
Contact authorized dealers of this
product or Parts Central. If they can’t
supply original replacement part(s)
call PRO-COM’s toll-free number on
the front page.
ACCESSORIES
Purchase these heater accessories
from your local dealer or Parts
Central. This part is not currently
available from PRO-COM.
EQUIPMENT SHUTOFF V ALVE-
Equipment shutoff valve with 1/8"
NPT tap.
FLEXILBE HOSE
Flexibe gas hose is used for connecting the heater to gas supply.
the flex hose must approved by CSA .
SPECIFICATIONS
QL300RYLA QN300R YLA
QL300RYLA-W QN300R YLA-W
Btu(Variable)
Gas Type LP Gas Natural Gas
Ignition Automatic Automatic
Manifold Pressure 8"W.C. 3"W.C.
Inlet Gas Pressure
(In. of water)*
Maximum 14" 10.5"
Minimum 11" 5"
Dimensions, Inches (H×W×D)
Heater 25 4/5"×32 1/4” ×13" 25 4/5"×32 1/4” ×13"
Carton 25 1/8"×34 1/8” ×12 7/8” 25 1/8"×34 1/8” ×12 7/8”
Weight, lbs
Stove 74 74
Shipping 83 83
voltage 120 120
watt 32 32
*For purposes of input adjustment
15
TROUBLESHOOTING
WARNING:Make sure that power
is turn off before proceeding....
OBSERVED PROBLEM POSSIBLE CAUSE
No spark when press in ignition button
When pressing the button of ignitor
button is pressed, there is spark at
ODS/pilot but no ignition
WARNING: T urn off and let cool
before servicing. Only a qualified
service person should service and
repair fireplace.
1. No power to heater
2. No battery in transmitter or battery
isn’t correctly assembly
1. Gas supply turned off or equipment shut off valve closed
2. Air in gas lines when installed.
3. Depleted gas supply
4. ODS/pilot is clogged
5. Gas regulator setting is not correct
6. Pilot electrude position is not
correct
7. Wire is not correct or loosen
8 Gas valve is damage
CAUTION: Never use a wire,
needle, or similar object to clean
ODS/pilot. This can damage ODS/
pilot unit.
REMEDY
1. Check the electric power
2. Place or replace the battery.
1. Turn on gas supply or open
equipment shutoff valve
2
Press ON/OFF button again
2.
until air is removed .
3. Contact local propane/LP gas
company
4 Clean ODS/pilot (see Cleaning
and
Maintenance,page 13 ) or replace
ODS/pilot assembly
5. Replace gas control
6. Replace Pilot
7. Check the wine and make wine
correct.
8. Replace gas valve
ODS/pilot lights but flame is
continuous igniting and the main
burner couldn’t be lit.
Burner does not light after ODS/pilot
is lit
1. Thermocouple connection loose
at control board
2. Pilot flame not touching
thermcouple which allows thermocouple to cool, causing pilot
flame to go out. This problem
could be caused by one or both of
the following
A) Low gas pressure
B) Dirty or partially clogged
ODS/ pilot
3. Thermocouple damaged
4. Control valve damaged
1. Burner orifice clogged
2. Inlet gas pressure is too low
3. Burner orifice diameter is too
small
4. Thermocouple leads discon-
nected or improperly connected
5. Burners will not come in
remote position
1. Hand tighten until snug, then
tighten 1/4 turn more.
2. A) Contact local propane/LP gas
company.
B) Clean ODS/pilot (see Cleaning
and Maintenance, page 13) or
replace
ODS/pilot assembly
3. Replace thermocouple
4. Replace control valve
1.Clean burner (see Cleaning
and Maintenance, page 13) or
replace burner orifice.
2. Contact local propane/LP
gas company
3. Replace burner orifice
4. Reconnect leads (see wiring
diagram)
5. Replace battery in transmitter
and receiver
16
TROUBLESHOOTING
Continued
OBSERVED PROBLEM
Delayed ignition burner
Burner backfiring during combustion
Slight smoke or odor during initial
operation
Dark residue on logs or inside of
fireplace
Heater produces a clicking/ticking
noise just after burner is lit or
shut off
POSSIBLE CAUSE
1. Manifold pressure is too low
2. Burner orifice clogged
1. Damaged burner
2. Gas regulator defective
1. Residues from manufacturing
processes
2. Not enough air
3. Gas regulator defective
1. Improper log placement
2. Air holes at burner inlet blocked
3. Burner flame holes blocked
1. Metal expanding while heating
or contracting while cooling
REMEDY
1. Contact local gas company
2. Clean burner (see Cleaning and
Maintenance, page 13)
1. Clean burner orifice (see
Cleaning and Maintenance, page
13)
2. Replace gas regulator
1. Problem will stop after a few
hours of operation
2. Check burner for dirt and debris.
If found, clean burner (see
Cleaning and Maintenance, page
13)
3. Replace gas regulator
1. Properly locate logs (see installing
logs, page 26)
2. Clean out air holes at burner inlet.
Periodically repeat as needed.
3. Remove blockage or replace burner
1. This is common with most
heaters. If noise is excessive,
contact qualified service person
17
ILLUSTRATED
PARTS BREAKDOWN
QL300RYLA
QN300RYLA
QL300RYLA-W
QN300RYLA-W
18
PARTS LIST
QL300RYLA
QN300RYLA
QL300RYLA-W
QN300RYLA-W
19
ILLUSTRATED
PARTS BREAKDOWN
QL300RYLA
QN300RYLA
QL300RYLA-W
QN300RYLA-W
20
PARTS LIST
QL300RYLA
QN300RYLA
QL300RYLA-W
QN300RYLA-W
21
PLACING INSTRUCTION
Follow the procedures below and the instruction drawings to put log sets in
place to the gas stove(indoor vent-free).
THE LOG’S PACKAGE IS
LOCATED INSIDE THE UNIT
THEN REMOVE SCREEN AND TAKE
OUT THE LOG’S PACKAGE
FIRST REMOVE TWO TOP SCREWS
FROM SCREEN
BOTTOM PANEL
NOTICE: THE CORRECT POSITION OF THE LOGS SHOULD NOT IMPINGE ON THE FLAME.
22
Q SERIES LOG SET
INSTALLATION INSTRUCTIONS
23
INSTALLATION INSTRUCTIONS FOR LOG SETS
1. All logs
FIG(1)
FIG(2)
STEP 1: Install the log 1 on the left rear angle iron. see FIG(2)
FIG(3)
FIG(4)
STEP 2: Install the log 2 on the right rear angle iron. see FIG(3)
STEP 3: Install the log 3 on the front angle iron. See FIG(4).
1
24
STEP 4: Insert the pinhole on the upper part of log 4 into the pin on
the left side of log 1. Place the lower part of log 4 on the flat roof at
the left side of log 3 See FIG(5).
FIG(5)
FIG(6)
STEP 4: Insert the pinhole on the upper part of log 5 into the pin on
the log 2. Place the lower part of log 5 on the flat roof at the left side
of log 3 . See FIG(6).
25
22
Loading...
