Procom FBD400RTCC-M-HC/MO, FBD400TCC-M-HC/MO Owner's Operation And Installation Manual

VENT-FREE GAS SYSTEM
OWNER'S OPERATION
AND INSTALLATION
MANUAL
MODELS
FBD400RTCC-M-HC/MO
FBD400TCC-M-HC/MO
®
WARNING: If the information in this manual is not
followed exactly, a re or explosion may result causing property damage, personal injury or loss of life.
— Do not store or use gasoline or other ammable va-
pors and liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re department.
Installation and service must be performed by a quali­ed installer, service agency or the gas supplier.
WARNING: This appliance is equipped for natural and propane/LP gas. Field conversion is not permitted other than between natural or propane.LP gases.
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-866-573-0674, 8:00 am - 4:30 pm CST,
Monday through Friday or email customerservice@usaprocom.com
www.usaprocom.com
200020-01A2
TABLE OF CONTENTS
Safety ........................................................ 3
Specications ............................................ 5
Qualied Installing Agency ........................ 5
Product Features ....................................... 5
Product Identication ................................. 6
Unpacking.................................................. 6
Local Codes............................................... 6
Water Vapor: A By-Product Of
Unvented Room Heaters ..................... 7
Air For Combustion and Ventilation ........... 7
Installation ............................................... 10
Operation ................................................. 18
Inspecting Burners................................... 24
Care And Maintenance ............................ 25
Troubleshooting ....................................... 27
Parts ........................................................ 30
Replacement Parts .................................. 32
Accessories ............................................. 32
Service Hints ........................................... 33
Technical Service..................................... 33
Warranty .................................................. 36
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This is an unvented gas-red heater. It uses air (oxygen) from the room in which it is installed. Provisions for ad­equate combustion and ventilation air must be provided.
Refer to Air for Combustion and Ventilation section on
page 7 of this manual.
WARNING: Improper installation, adjustment, al-
teration, service or maintenance can cause injury or property damage. Refer to this manual for correct in­stallation and operational procedures. For assistance or additional information consult a qualied installer, service agency or the gas supplier.
This appliance may be installed in an aftermarket,* per­manently located, manufactured (mobile) home, where not prohibited by local codes.
This appliance is only for use with propane or natural gas. This appliance is equipped with a simple means to switch between propane and natural gas. Field conver­sion by any other means including the use of a kit is not permitted.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer.
SAVE THIS BOOK
www.usaprocom.com
3200020-01A
WARNING: Any change to
this heater or its controls can
be dangerous.
WARNING: Do not use a
blower insert, heat exchange insert or other accessory not ap­proved for use with this heater.
WARNING: Do not allow fans
to blow directly into the heater. Avoid any drafts that alter burner ame pattern including ceiling fans. Altered burner patterns can cause sooting.
WARNING: Do not place clothing or other flammable material on or near the appli­ance. Never place any objects in the heater.
WARNING: Due to high tem­peratures, the appliance should be located out of trafc and away from furniture and draperies.
WARNING: Heater becomes very hot when running. Keep
children and adults away from
hot surfaces to avoid burns or clothing ignition. Heater will re­main hot for a time after shutoff. Allow surfaces to cool before touching.
WARNING: Carefully super­vise young children when they are in the room with the heater.
WARNING: Make sure a re­place screen is in place before running heater.
SAFETY
IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, op­erate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock and carbon monoxide poisoning. Failure
to follow these instructions will
void the warranty.
Only a qualied installer, service agent, or local gas supplier may install and service this product.
WARNING: Keep the appli-
ance area clear and free from
combustible materials, gasoline, and other ammable vapors and
liquids.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.
DANGER: Carbon monoxide
poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs
of carbon monoxide poisoning resemble the u, with headaches, dizziness or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people are more affected by carbon monoxide than oth­ers. These include pregnant women, people with heart or lung disease or anemia, those under the inuence of alcohol and those at high altitudes.
Natural And Propane/LP Gas: Natural and Propane/LP gas are odorless. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.
www.usaprocom.com
200020-01A4
1. Do not place Propane/LP supply tank(s) inside any structure. Propane/LP supply tank(s) must be placed outdoors.
2. This heater should not be installed in a bedroom or bathroom.
3. This heater needs fresh air ventilation to run properly. This heater has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the heater if not enough fresh air is available. See Air for Combustion and Ventilation, pages 7 through 9. If heater keeps shutting off, see Troubleshooting, page 27.
4. Keep all air openings in front and bottom of heater clear and free of debris. This will ensure enough air for proper combustion.
5. If heater shuts off, do not relight until you have provided fresh, outside air. If heater keeps shutting off, have it serviced.
6. Do not run heater:
• Where ammable liquids or vapors are
used or stored.
• Under dusty conditions.
7. Before using furniture polish, wax, carpet cleaner, or similar products, turn heater off. If heated, the vapors from these prod­ucts may create a white powder residue within burner box or on adjacent walls or furniture.
8. Always run heater with control knob at PI­LOT/IGN, LOW or HIGH locked positions. never set control knob between locked positions. Poor combustion and higher levels of carbon monoxide may result.
9. Do not use heater if any part has been under water. Immediately call a qualied service technician to inspect the room heater and to replace any part of the control system and any gas control which has been under water.
SAFETY
10. Turn off and unplug heater and let cool before servicing. Only a qualied service person should service and repair heater.
11. Operating heater above elevations of 4,500 feet could cause pilot outage.
12. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lbs. capacity.
13. Do not use this heater as a wood-burning heater. Use only the logs provided with the heater.
14. To prevent the creation of soot, follow the instructions under Care and Maintenance page 23.
15. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool. Using these added items can cause soot­ing. Do not add lava rock around base. Rock and debris could fall into the control area of heater. After servicing, always replace screen before operating heater.
16. This log heater is designed to be smoke­less. If logs ever appear to be smoking, turn off heater and call a qualied service technician. NOTE: During initial operating,
slight smoking could occur due to log cur­ing and heater burning off manufacturing residues.
17. Solid fuels should not be burned in replace in which a vent-free log set is installed. Do not use this heater to cook food or burn paper or other objects.
18. Do not use this heater if any log is broken. Do not operate heater if a log is chipped (dime-size or larger).
www.usaprocom.com
5200020-01A
SPECIFICATIONS
MODELS FBD400TCC-M-HC/MO
Gas Type Natural Propane/LP
Maximum Input Rating 32,000 BTU/Hr 32,000 BTU/Hr
Minimum Input Rating 14,500 BTU/Hr 24,500 BTU/Hr
Regulator Pressure Setting 4" W.C. 9" W.C.
Inlet Gas Pressure*
(inches of water)
Max. 10.5" W.C. Max. 14" W.C.
Min. 5" W.C. Min. 11" W.C.
MODELS FBD400RTCC-M-HC/MO
Gas Type Natural Propane/LP
Maximum Input Rating 32,000 BTU/Hr 32,000 BTU/Hr
Minimum Input Rating N/A N/A
Regulator Pressure Setting 4" W.C. 9" W.C.
Inlet Gas Pressure*
(inches of water)
Max. 10.5" W.C. Max. 14" W.C.
Min. 5" W.C. Min. 11" W.C.
* For purposes of input adjustment.
ALL MODELS
Ignition Electronic Piezo Ignitor Heater Dimensions (H x W x D) 29.5" x 29.1" x 15.6" Carton Dimensions (H x W x D) 31.1" x 31.5" x 18.1"
Stove Weight 69.5 lbs.
Shipping Weight 79.5 lbs.
QUALIFIED INSTALLING AGENCY
Only a qualied agency should install and replace gas piping, gas utilization equipment or accessories, and repair and equipment ser­vicing. The term “qualied agency” means any individual, rm, corporation, or company that either in person or through a representative is engaged in and is responsible for:
a) Installing, testing, or replacing gas piping
or
b) Connecting, installing, testing, repairing,
or servicing equipment; that is experienced in such work; that is familiar with all precau­tions required; and that has complied with all the requirement of the authority having jurisdiction.
PRODUCT FEATURES
SAFETY PILOT
This heater has a pilot with an Oxygen Deple­tion Sensing (ODS) safety shutoff system. The ODS/pilot shuts off the heater if there is not enough fresh air.
PIEZO IGNITION SYSTEM
This heater is equipped with an electronic piezo control system. This system requires AAA batteries (provided).
THERMOSTAT HEAT CONTROL
The control automatically cycles the burner on and off to maintain a desired room tem-
perature.
2 GAS OPTIONS AVAILABLE
Your heater is equipped to operate on either Propane/LP or Natural gas. The heater is shipped from the factory ready for connect­ing to Propane/LP. The heater can easily be changed to Natural gas by having your quali­ed installer follow the instructions on page 11 and the markings on the heater.
www.usaprocom.com
200020-01A6
Figure 1 - Vent-Free Fireplace Insert
Hood
Screen
Logs
Heater Controls (Inside Panel)
Install and use heater with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code, ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
1 Batterymarch Park
Quincy, MA 02269-9101
UNPACKING
State of Massachusetts: The installation must be made by a licensed plumber or gas tter in the Commonwealth of Mas­sachusetts.
Sellers of unvented propane or natural gas-red supplemental room heaters shall provide to each purchaser a copy of 527 CMR 30 upon sale of the unit.
In the State of Massachusetts the gas cock must be a T-handle type. The State of Massachusetts requires that a exible appliance connector cannot exceed three feet in length.
1. Remove top inner pack.
2. Tilt carton so that heater is upright.
3. Remove protective side packaging.
4. Slide heater out of carton. 5 Remove protective plastic wrap.
6. Hold the screen, lift, and pull forward.
7. Remove log set by cutting plastic ties.
8. Carefully unwrap log.
9. Check for any shipping damage. If heater or log is damaged, promptly inform your dealer where you bought the heater.
LOCAL CODES
PRODUCT IDENTIFICATION
www.usaprocom.com
7200020-01A
WATER VAPOR: A BY-PRODUCT OF
UNVENTED ROOM HEATERS
Water vapor is a by-product of gas combus­tion. An unvented room heater produces ap­proximately one (1) ounce (30 mL) of water for every 1,000 BTUs (0.3 KWs) of gas input per hour. Unvented room heaters are recom­mended as supplemental heat (a room) rather than a primary heat source (an entire house). In most supplemental heat applications, the water vapor does not create a problem. In most applications, the water vapor enhances the low humidity atmosphere experienced during cold weather.
The following steps will help ensure that water vapor does not become a problem.
1. Be sure the heater is sized properly for the application, including ample combustion air and circulation air.
2. If high humidity is experienced, a dehu­midier may be used to help lower the water vapor content of the air.
3. Do not use an unvented room heater as the primary heat source.
AIR FOR COMBUSTION AND VENTILATION
WARNING: This heater shall
not be installed in a conned space or unusually tight construc­tion unless provisions are provid­ed for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.
Today’s homes are built more energy efcient than ever. New materials, increased insulation and new construction methods help reduce
heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible. While it is good to make your home energy efcient, your home needs to breathe. Fresh air must enter your home. All fuel-burning ap­pliances need fresh air for proper combustion and ventilation. Exhaust fans, replaces, clothes dryers and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuel-burning appliances.
PROVIDING ADEQUATE VENTILATION
The following are excerpts from National Fuel Gas Code, ANSI Z223.1/NFPA 54, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 7 through 9 will help you classify your space and provide adequate ventilation.
www.usaprocom.com
200020-01A8
DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION
Determining if You Have a Conned or Unconned Space
3. Add the Btu/Hr of all fuel burning appli­ances in the space.
Vent-free heater _________ Btu/Hr Gas water heater* _________ Btu/Hr Gas furnace _________ Btu/Hr Vented gas heater _________ Btu/Hr Gas replace logs _________ Btu/Hr Other gas appliances*+ _______ Btu/Hr Total = ________ Btu/Hr * Do not include direct-vent gas appli-
ances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.
Example:
Gas water heater __________ Btu/Hr Vent-free heater + _________ Btu/Hr Total = _________ Btu/Hr
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/ Hr used.
_______Btu/Hr (maximum can support) _______Btu/Hr (actual amount used) Example: 51,200 Btu/Hr (maximum the
space can support)
56,000 Btu/Hr (actual amount
of Btu/Hr used)
AIR FOR COMBUSTION AND VENTILATION
30,000
26,000 56,000
Use this work sheet to determine if you have a conned or unconned space.
Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height =__________
cu. ft. (volume of space)
Example: Space size 20 ft. (6.1 m)
(length) x 16 ft. (4.88 m) (width) x 8 ft. (2.44 m) (ceiling height) = 2560 cu. ft. (72.49 m3) (volume of space)
If additional ventilation to adjoining room
is supplied with grills or openings, add the volume of these rooms to the total volume of the space.
2. Multiply the space volume by 20 to deter­mine the maximum Btu/Hr the space can support.
________(volume of space) x 20 =
(Maximum Btu/Hr the space can support)
Example: 2560 cu. ft. (72.49 m3) (volume
of space) x 20 = 51,200 (maximum Btu/ Hr the space can support)
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of un­usually tight construction, you must provide additional fresh air.
Unusually tight construction is dened as construction where: a. walls and ceilings exposed to the outside
atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10
-11
kg per pa-sec-m2) or less with
openings gasketed or sealed and
b. weather stripping has been added on
openable windows and doors and
c. caulking or sealants are applied to areas
such as joints around window and door frames, between sole plates and oors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, elec-
trical and gas lines and at other openings. If your home meets all of these three criteria, you must provide additional fresh air. See Ventilation Air From Outdoors, page 9.
If your home does not meet all of the three criteria above, proceed to Determining Fresh-
Air Flow For Heater Location.
Conned and Unconned Space
The National Fuel Gas Code, ANSI Z223.1/ NFPA 54 denes a conned space as a space
whose volume is less than 50 cubic feet per 1,000 Btu/hr (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconned space as a space whose volume is not less than 50 cubic feet per 1,000 Btu/hr (4.8 m3 per kw) of the aggregate
input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconned space.
* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.
www.usaprocom.com
9200020-01A
VENTILATION AIR
AIR FOR COMBUSTION AND VENTILATION
Outlet Air
Ventilated Attic
Outlet Air
Inlet Air
Inlet Air
Ventilated
Crawl Space
To
Crawl
Space
To Attic
Figure 2 - Ventilation Air from Inside
Building
Figure 3 - Ventilation Air from Outdoors
Or
Remove Door into Adjoining
Room, Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills Into Adjoining
Room,
Option 1
12"
12"
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconned space. When ventilating to an adjoining unconned space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the oor on the wall connecting the two spaces (see options 1 and 2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2). Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Air for Combustion and Ventilation for required size of ventilation
grills or ducts.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must provide two perma­nent openings: one within 12" of the ceiling and one within 12" of the oor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for Combustion and Ventilation for required size
of ventilation grills or ducts. IMPORTANT: Do not provide openings
for inlet or outlet air into attic if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent. Rework worksheet, adding the space of the adjoining unconned space. The combined spaces must have enough fresh air to supply all appliances in both spaces.
The space in the above example is a conned space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can sup­port. You must provide additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space
of an adjoining room. If the extra space provides an unconned space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation Air
From Inside Building.
B. Vent room directly to the outdoors. See
Ventilation Air From Outdoors.
C. Install a lower Btu/Hr heater, if lower Btu/
Hr size makes room unconned. If the ac­tual Btu/Hr used is less than the maximum
Btu/Hr the space can support, the space is an unconned space. You will need no additional fresh air ventilation.
WARNING: If the area in which
the heater may be operated does not meet the required volume for indoor combustion air, combus­tion and ventilation air shall be provided by one of the methods described in the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, the International Fuel Gas Code, or applicable local codes.
www.usaprocom.com
200020-01A10
INSTALLATION
NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your pri­mary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.
WARNING: A qualied ser­vice person must install heater. Follow all local codes.
WARNING: Before installing in a solid fuel burning replace, the chimney ue and rebox must be cleaned of soot, creo­sote, ashes and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. A dirty chimney ue may create and distribute soot within the house. Inspect chimney ue and rebox for damage. If dam­aged, repair ue before operat­ing heater.
WARNING: Seal any fresh
air vents or ash clean-out doors located on oor or wall of re­place. If not, drafting may cause pilot outage or sooting. Use a heat-resistant sealant. Do not seal chimney ue damper.
WARNING: Never install the
heater
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture, clothing, or other ammable objects are less than 42" from the front, top, or sides of the heater.
• in high trafc areas
• in windy or drafty areas
CAUTION: This heater cre­ates warm air currents. These currents move heat to wall sur­faces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as to­bacco smoke, aromatic candles, cleaning uids, oil or kerosene lamps, etc.) in the air exist, may discolor walls or cause odors.
This rebox can not be installed in a built-in replace. This rebox may only be installed in a Pro­Com Heating, Inc. mantel acces­sory approved for this product.
IMPORTANT: Vent-free heaters add moisture to the air. Although this is benecial, installing heater in rooms without enough ventilation air may cause mildew to form too much moisture. See Air for Combustion and Ventilation, pages 6 through 8.
CHECK GAS TYPE
Be sure your gas supply is right for your heat­er. Otherwise, call dealer where you bought the heater for proper type heater.
www.usaprocom.com
11200020-01A
NG
LP
Left Side of HeaterBack of Heater
NG
LP
Gas Inlet Gas esté
NG
LP
Back Side of Heater
INSTALLATION
GAS SELECTION
This appliance is factory preset for propane/LP gas.
No changes are required for
connecting to propane/LP.
Only a qualified installer or service technician can perform gas selection and connecting to gas supply.
CAUTION: Two gas line in-
stallations at the same time are
prohibited. The access plate to the simple switching means shall not be opened while the heater is in operation.
CAUTION: To avoid gas leakage at the inlet of regulator, a qualied installer or service technician must use supplied hex plug with sealant.
WARNING: Do not attempt to access or change the setting of the fuel selection means.
Access to and adjustment of the fuel selection means must only be performed by a qualied service person when connecting this appliance to a specied fuel supply at the time of installation.
Change of the selector setting to other than the fuel type specied at the time of installa­tion could damage this appliance and render it inoperable.
The installer shall replace the access cover before completing the installation and operat­ing this appliance.
For changing from propane to
natural gas supply:
1. Remove bottom screw from cover plate located on back side of heater (see Figure
4). Rotate to expose fuel selection device.
2. For NATURAL GAS, press in knob using a at screwdriver with a blade with thick­ness of a quarter and turn knob clockwise
until the knob locks into the NG position (see Figure 5). Fuel selection device must be locked in the NG position. Do not operate heater between locked positions!
3. Rotate and close cover over fuel selection device and reinstall screws.
4. Remove hex plug (with wrench provided) from natural gas inlet of regulator (see Figure 5). Install gas line into NG inlet of regulator. Use thread sealant to assure there are no leaks.

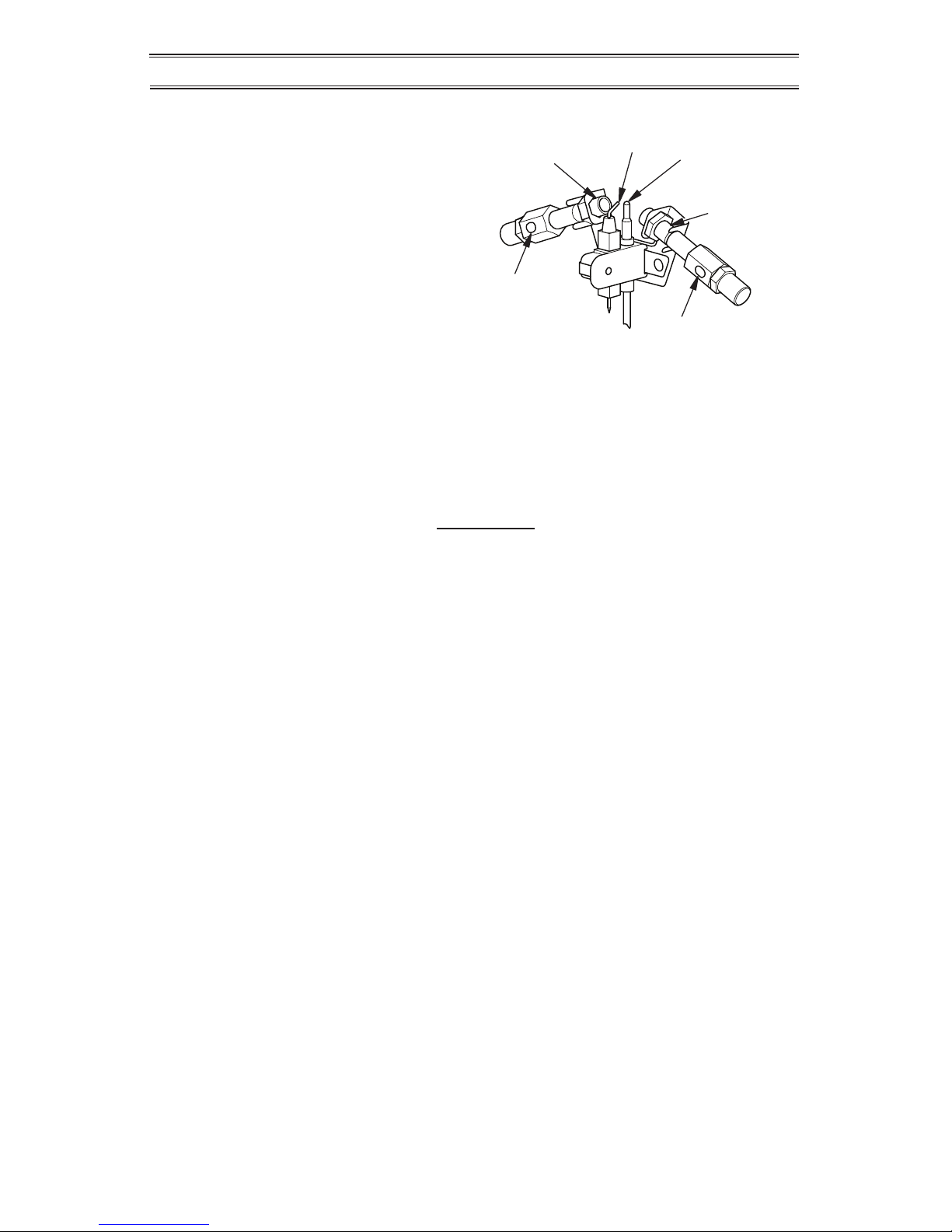

Figure 4 - Gas Control Locations
Figure 5 - Settings for Natural Gas
Selection
Cover Plate for Fuel Selection Device
Gas Regulator Inlet Connections
Fuel Selector Knob
Gas Connection Fitting
Hex Plug
Loading...
+ 25 hidden pages
