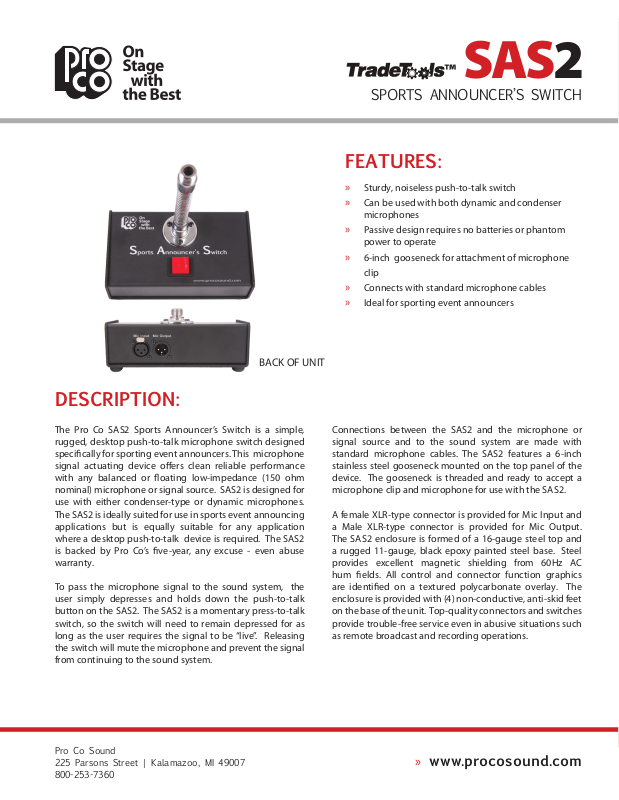

BACK OF UNIT
SAS2
SPORTS ANNOUNCER’S SWITCH
FEATURES:
» Sturdy, noiseless push-to-talk switch
» Can be used with both dynamic and condenser
microphones
» Passive design requires no batteries or phantom
power to operate
» 6-inch gooseneck for attachment of microphone
clip
» Connects with standard microphone cables
» Ideal for sporting event announcers
DESCRIPTION:
The Pro Co SAS2 Sports Announcer’s Switch is a simple,
rugged, desktop push-to-talk microphone switch designed
specically for sporting event announcers. This microphone
signal actuating device oers clean reliable performance
with any balanced or oating low-impedance (150 ohm
nominal) microphone or signal source. SAS2 is designed for
use with either condenser-type or dynamic microphones.
The SAS2 is ideally suited for use in sports event announcing
applications but is equally suitable for any application
where a desktop push-to-talk device is required. The SAS2
is backed by Pro Co’s ve-year, any excuse - even abuse
warranty.
To pass the microphone signal to the sound system, the
user simply depresses and holds down the push-to-talk
button on the SAS2. The SAS2 is a momentary press-to-talk
switch, so the switch will need to remain depressed for as
long as the user requires the signal to be “live”. Releasing
the switch will mute the microphone and prevent the signal
from continuing to the sound system.
Connections between the SAS2 and the microphone or
signal source and to the sound system are made with
standard microphone cables. The SAS2 features a 6-inch
stainless steel gooseneck mounted on the top panel of the
device. The gooseneck is threaded and ready to accept a
microphone clip and microphone for use with the SAS2.
A female XLR-type connector is provided for Mic Input and
a Male XLR-type connector is provided for Mic Output.
The SAS2 enclosure is formed of a 16-gauge steel top and
a rugged 11-gauge, black epoxy painted steel base. Steel
provides excellent magnetic shielding from 60Hz AC
hum elds. All control and connector function graphics
are identied on a textured polycarbonate overlay. The
enclosure is provided with (4) non-conductive, anti-skid feet
on the base of the unit. Top-quality connectors and switches
provide trouble-free service even in abusive situations such
as remote broadcast and recording operations.
Pro Co Sound
225 Parsons Street | Kalamazoo, MI 49007
800-253-7360
» www.procosound.com
ENGINEERING SPECIFICATIONS:
The microphone signal momentary push-to-talk unit shall be suitable for the noiseless muting of
any balanced or oating low impedance (150 ohm nominal) microphone or similar signal source.
There shall be one (1) 3-pin female XLR-type connector for input from the source. There shall be (1)
3-pin male XLR-type connector for the output. The unit shall be suitable for the use of condenser
microphones and dynamic microphones. There shall be (1) momentary push button switch suitable
for either hand or foot operation. The switch shall be single pole, single throw, and used to allow the
microphone signal to pass from input to output. The muting circuit shall consist of a normally closed
switch that connects pin 2 to pin 3, eectively muting the microphone signal. Activating the switch
removes the “short” between pins 2 and 3 and allows the michrophone signal to pass to the output.
The electronic components shall be wired to provide adequate pop suppression and sucient
bypass impedance, to allow noiseless operation with no signicant signal degradation.
The enclosure shall be constructed of a 16-gauge steel top and a black epoxy texture painted
11-gauge steel base. The control and connector functions shall be identied by a textured
polycarbonate adhesive overlay that is xed to the top. The top of the unit shall slope from rear
to front. The enclosure shall be provided with a threaded base suitable for the attachment of a
exible “gooseneck” microphone stand mounted to the top of the enclosure. The enclosure shall
be provided with (4) four nonconductive, non-skid feet on the base of the unit. The dimensions of
the unit shall be approximately 4.062” L x 6.75” W x 1.687” H at the front sloping up to 2.250” H at the
rear of the unit. (103.2mm L x 171.5mm W x 42.8/57.2mm H). These dimensions do not include the
microphone stand.
The unit shall include one (1) 6-inch , exible “gooseneck ” microphone stand that can be xed to the
base mounted to the enclosure and is also threaded to accept a microphone clip holder.
The microphone signal momentary push-to-talk unit shall be a Pro Co Sports Announcer’s Switch 2
(SAS2).
CONTROLS:
MIC INPUT: Female 3-pin XLR-type connector accepts input
from any balanced or oating low impedance (150
ohm nominal) microphone or similar signal source.
DIRECT OUT: Male 3-pin XLR-type connector provides output to
sound system input.
PRO CO MODEL: SAS2 DIMENSIONS ................. 7.00” W x 4.00” D x 2.38” H
177.8 mm W x 101.6 mm D x 60.5mm H
WEIGHT ................2.50 lb
1.38 kg
SHIPPING WEIGHT ................ 3.00 lb
1.94 kg
S (PIN 1)
H+ (PIN 2)
C- (PIN 3)
S (PIN 1)
H+ (PIN 2)
C- (PIN 3)
ACTIVATION SWITCH: Momentary, SPST (single pole, single throw) switch
shorts pin 2 and pin 3 of the XLR connectors
together to produce the muting eect. Depressing
the switch momentarily removes the short and allows
the microphone signal to pass to the output. The
signal can pass as long as ther switch remains
depressed.
TOP VIEW
INPUT (XLRF)
S1
OUTPUT (XLRM)
FRONT VIEW
Other TradeTools™ Mic Muting and Switching Products from Pro Co
CDPB “Panic Button” Microphone A/B Switch
CDPM “Power Mute” Selectable Momentary or Latching Switch
CDSO “Sign O” Latching Mic On/Mic O Switch
CDSS “Short Stop” Momentary Microphone Muting Switch
SAS1 “Sports Announcer’s Switch” Push-to-Talk Mic Switch
SAS2 “Sports Announcer’s Switch” with Gooseneck
SAS3 “Sports Announcer’s Switch” with Wired Gooseneck
Pro Co Sound
225 Parsons Street | Kalamazoo, MI 49007
800-253-7360
Plus
A/V Interface Devices
Direct Boxes
Headphone Junction Boxes
Portable Audio Player (Computer & MP3 Player) Interface
Line Output Isolation Transformer Unit
Line Level Splitter
Microphone Combiner
Microphone Splitters
Reamping Box
. . . plus our full line of audio cabling, snakes!
SIDE VIEW
» www.procosound.com
SAS2-01 Rev. 09/10
