Page 1
14 Research Drive Bethel, CT 06801 U.S.A.
PX15000919
Page 1 of 2
Zn / MnO2
KEY FEATURES
▪ Reliable Performance
▪ Excellent resistance to corrosion
▪ Designed to meet all major quality, safety
and environmental standards:
o Safety: IEC 60086-5
o ANSI C 18.1M, Part-2
o EU Battery Directive
o Quality: ISO 14001 and 9001, Duracell World
Class Continuous Improvement Program
TYPICAL APPLICATIONS
▪ Medical Devices
▪ Security Cameras
▪ Soap Dispensers
▪ Electronic Door Locks
▪ Window Blinds/Shades
Procell Professional batteries
Berkshire Corporate Park
Phone: 1-800-544-5454
(Toll-free)
www.procell.com
ELECTRICAL CHARACTERISTICS
▪ Nominal capacity (25 mA Cont., .8V cut-off)
3,112 mAh
▪ Typical Voltage (at + 20 °C)
1.5 V
▪ AC Impedance @ 1kHz
68 mΩ
PHYSICAL CHARACTERISTICS
▪ Typical weight
24.3 g (0.9 oz)
▪ Typical volume
8.4 cm₃ (0.5 in₃)
▪ Terminals
Flat
OPERATING & STORAGE CONDITIONS
▪ Operating temperature range
-20°C to 54°C
(-4°F to 130°F)
should be clean, cool, dry and
ventilated)
5°C to 30°C
(41°F to 86° F)
Dimensions shown are IEC standards
Delivered capacity is dependent on the applied load, operating
temperature and cut-off voltage. Please refer to the charts and
discharge data shown for examples of the energy/service life that the
battery will provide for various load conditions.
This data is subject to change. Performance information is typical.
Contact Duracell for the latest information.

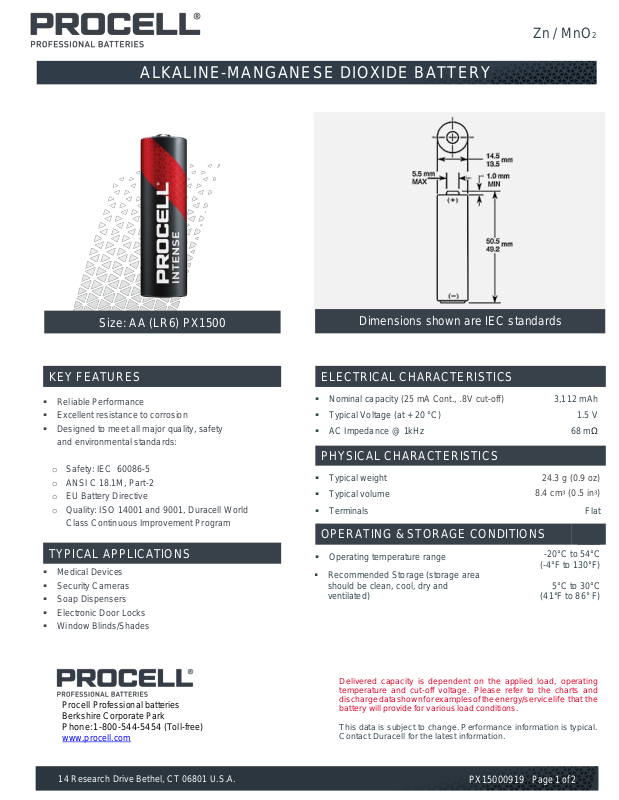

Size: AA (LR6) PX1500
ALKALINE-MANGANESE DIOXIDE BATTERY
Page 2
14 Research Drive Bethel, CT 06801 U.S.A.
PX15000919
Page 2 of 2
Zn / MnO2
Procell Professional batteries
Berkshire Corporate Park
Phone: 1-800-544-5454
(Toll-free)
www.procell.com
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
0.00 0.25 0.50 0.75 1.00 1.25 1.50 1.75
Voltage [V]
Service Hours
Constant Current
750 mA
1000 mA
1250 mA
TYPICAL PERFORMANCE
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
0 1 2 3 4 5 6 7 8
Voltage [V]
Service Hours
Constant Current - 250 mA
21°C/70°F
0*C
-10°C
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14
Voltage [V]
Service Hours
Constant Power
200 mW
600 mW
1000 Mw
1500 mW
Delivered capacity is dependent on the applied load, operating
temperature and cut-off voltage. Please refer to the charts and
discharge data shown for examples of the energy/service life that the
battery will provide for various load conditions.
This data is subject to change. Performance information is typical.
Contact Duracell for the latest information.
