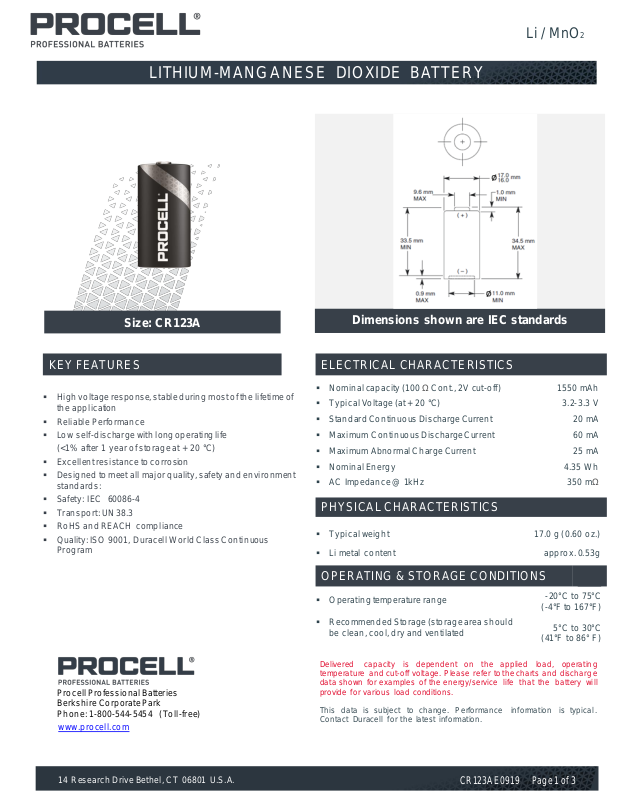

Page 1
14 Research Drive Bethel, CT 06801 U.S.A.
CR123AE0919 Page 1 of 3
Li / MnO2
Mn0
2
KEY FEATURES
▪ High voltage response, stable during most of the lifetime of
the application
▪ Reliable Performance
▪ Low self-discharge with long operating life
(<1% after 1 year of storage at + 20 °C)
▪ Excellent resistance to corrosion
▪ Designed to meet all major quality, safety and environment
standards:
▪ Safety: IEC 60086-4
▪ Transport: UN 38.3
▪ RoHS and REACH compliance
▪ Quality: ISO 9001, Duracell World Class Continuous
Program
Procell Professional Batteries
Berkshire Corporate Park
Phone: 1-800-544-5454 (Toll-free)
www.procell.com
ELECTRICAL CHARACTERISTICS
▪ Nominal capacity (100 Ω Cont., 2V cut-off)
1550 mAh
▪ Typical Voltage (at + 20 °C)
3.2-3.3 V
▪ Standard Continuous Discharge Current
20 mA
▪ Maximum Continuous Discharge Current
60 mA
▪ Maximum Abnormal Charge Current
25 mA
▪ Nominal Energy
4.35 Wh
▪ AC Impedance @ 1kHz
350 mΩ
PHYSICAL CHARACTERISTICS
▪ Typical weight
17.0 g (0.60 oz.)
▪ Li metal content
approx. 0.53g
OPERATING & STORAGE CONDITIONS
▪ Operating temperature range
-20°C to 75°C
(-4°F to 167°F)
▪ Recommended Storage (storage area should
be clean, cool, dry and ventilated
5°C to 30°C
(41°F to 86° F)
Dimensions shown are IEC standards
Delivered capacity is dependent on the applied load, operating
temperature and cut-off voltage. Please refer to the charts and discharg e
data shown for examples of the energy/service life that the battery will
provide for various load conditions.
This data is subject to change. Performance information is typical.
Contact Duracell for the latest information.
Size: CR123A
LITHIUM-MANGANESE DIOXIDE BATTERY
Page 2
14 Research Drive Bethel, CT 06801 U.S.A.
CR123AE0919 Page 2 of 3
Li / MnO2
Mn0
2
LOREM IPSUM DOLOR SIT AMET
Procell Professional Batteries
Berkshire Corporate Park
Phone: 1-800-544-5454 (Toll-free)
www.procell.com
Delivered capacity is dependent on the applied load, operating
temperature and cut-off voltage. Please refer to the charts and discharge
data shown for examples of the energy/service life that the battery will
provide for various load conditions.
This data is subject to change. Performance information is typical.
Contact Duracell for the latest information.

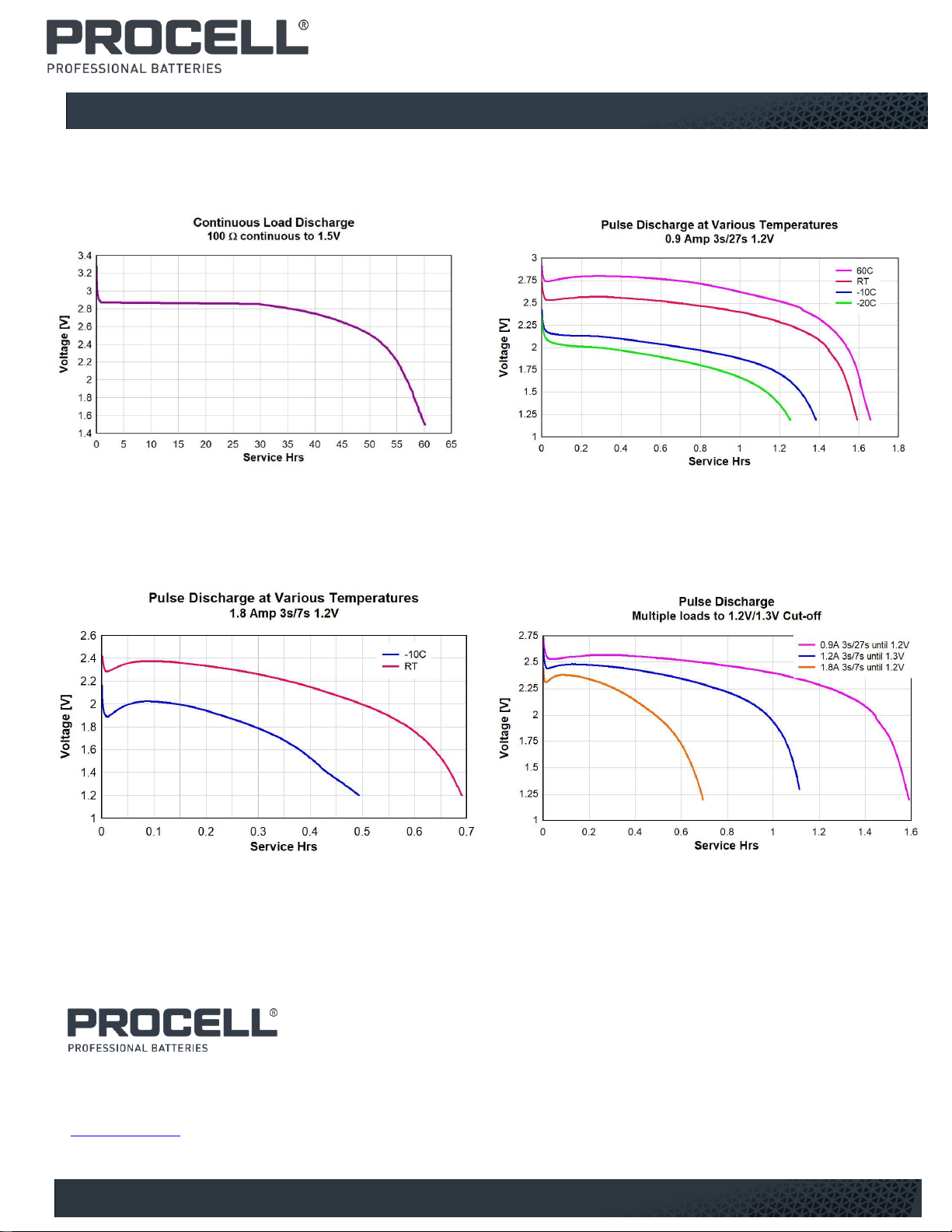

TYPICAL PERFORMANCE
Page 3
14 Research Drive Bethel, CT 06801 U.S.A.
CR123AE0919 Page 3 of 3
Li / MnO2
Mn0
2
▪ Cameras
▪ Security devices (sensors, monitoring cameras)
▪ Smoke Detectors
▪ Wireless Sensors
▪ Door locks
▪ High Intensity Flashlights
▪ Laser Sights
▪ Fire, explosion and burn hazard
▪ Do not recharge, short circuit, crush, disassemble, heat
above 100 °C (212 °F), incinerate, or expose contents to
water
Test
Test designation
Observation
A
Altitude
Pass
B
Thermal cycling
Pass
C
Vibration
Pass
D
Shock
Pass
E
External short circuit
Pass
F
Impact
Pass
G
Crush
Pass
H
Forced discharge
Pass
I
Abnormal charging
Pass
J
Free fall
Pass
K
Thermal Abuse
Pass
Procell Professional Batteries
Berkshire Corporate Park
Phone: 1-800-544-5454 (Toll-free)
www.procell.com
WARNING
Delivered capacity is dependent on the applied load, operating
temperature and cut-off voltage. Please refer to the charts and discharge
data shown for examples of the energy/service life that the battery will
provide for various load conditions.
This data is subject to change. Performance information is typical.
Contact Duracell for the latest information.
TYPICAL APPLICATIONS
60086-4 © IEC:2007 EDITION 3.0
