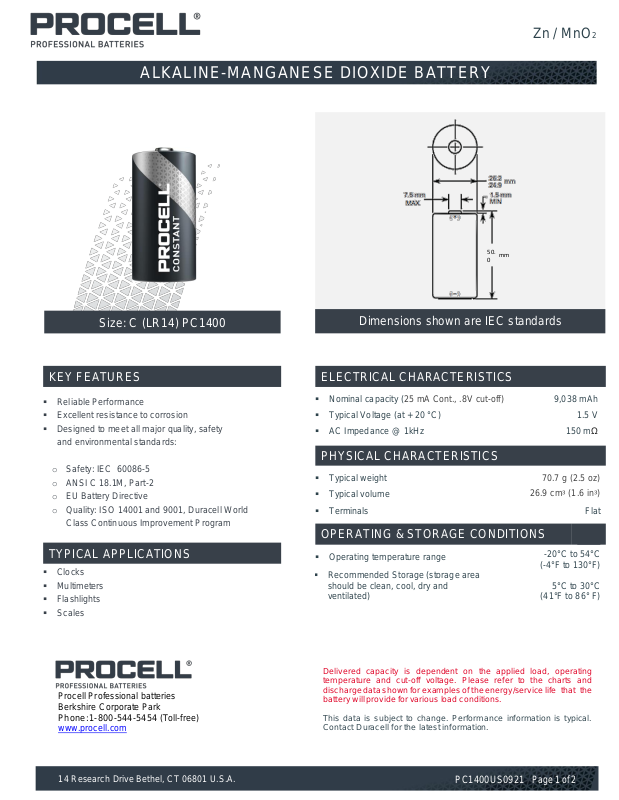

Page 1
14 Research Drive Bethel, CT 06801 U.S.A.
PC1400US0921
Page 1 of 2
Zn / MnO2
KEY FEATURES
▪ Reliable Performance
▪ Excellent resistance to corrosion
▪ Designed to meet all major quality, safety
and environmental standards:
o Safety: IEC 60086-5
o ANSI C 18.1M, Part-2
o EU Battery Directive
o Quality: ISO 14001 and 9001, Duracell World
Class Continuous Improvement Program
TYPICAL APPLICATIONS
▪ Clocks
▪ Multimeters
▪ Flashlights
▪ Scales
Procell Professional batteries
Berkshire Corporate Park
Phone: 1-800-544-5454
(Toll-free)
www.procell.com
ELECTRICAL CHARACTERISTICS
▪ Nominal capacity (25 mA Cont., .8V cut-off)
9,038 mAh
▪ Typical Voltage (at + 20 °C)
1.5 V
▪ AC Impedance @ 1kHz
150 mΩ
PHYSICAL CHARACTERISTICS
▪ Typical weight
70.7 g (2.5 oz)
▪ Typical volume
26.9 cm₃ (1.6 in₃)
▪ Terminals
Flat
OPERATING & STORAGE CONDITIONS
▪ Operating temperature range
-20°C to 54°C
(-4°F to 130°F)
should be clean, cool, dry and
ventilated)
5°C to 30°C
(41°F to 86° F)
Dimensions shown are IEC standards
Size: C (LR14) PC1400
ALKALINE-MANGANESE DIOXIDE BATTERY
Delivered capacity is dependent on the applied load, operating
temperature and cut-off voltage. Please refer to the charts and
discharge data shown for examples of the energy/service life that the
battery will provide for various load conditions.
This data is subject to change. Performance information is typical.
Contact Duracell for the latest information.
50.
0
mm
Page 2
14 Research Drive Bethel, CT 06801 U.S.A.
PC1400US0921
Page 2 of 2
Zn / MnO2
Procell Professional batteries
Berkshire Corporate Park
Phone: 1-800-544-5454
(Toll-free)
www.procell.com

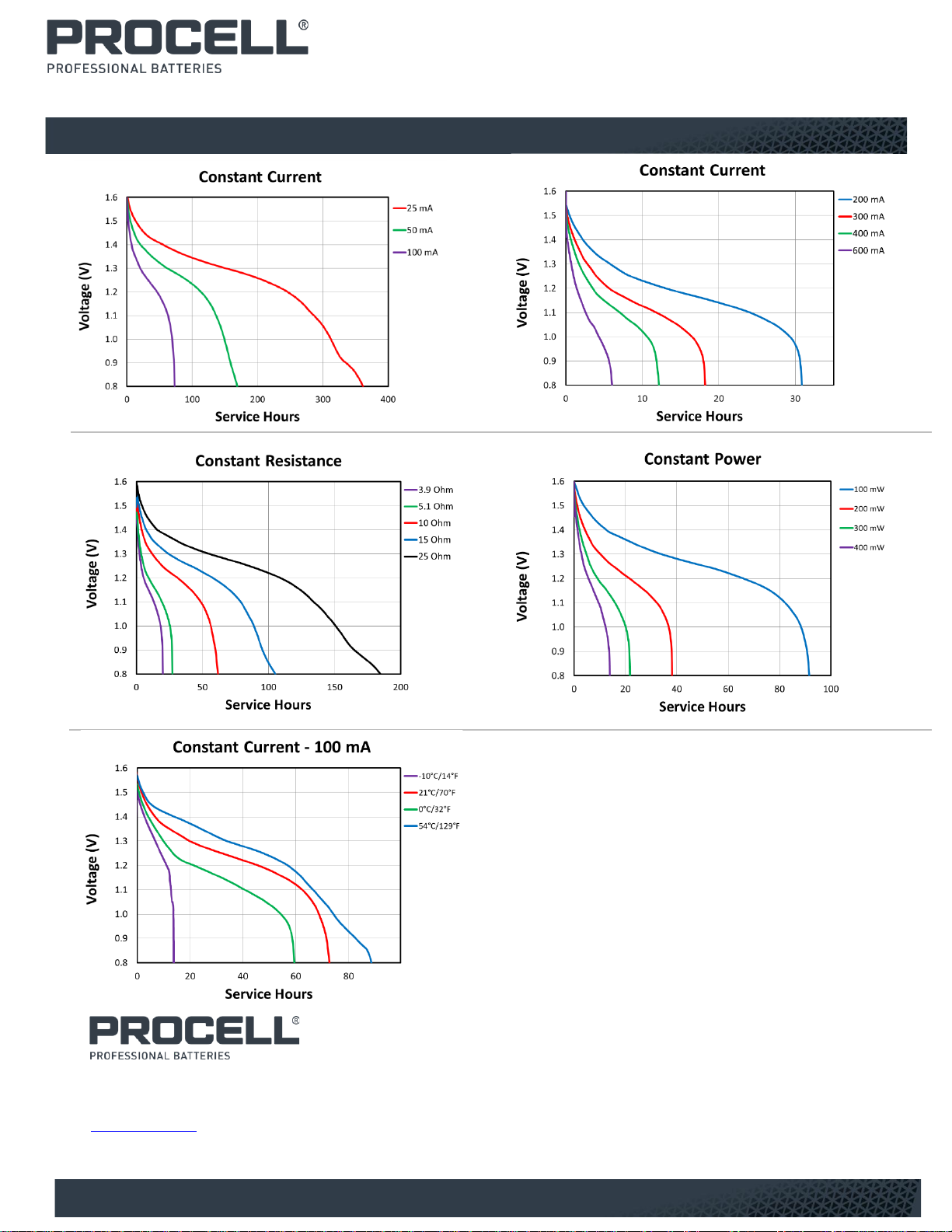

TYPICAL PERFORMANCE
Delivered capacity is dependent on the applied load, operating
temperature and cut-off voltage. Please refer to the charts and
discharge data shown for examples of the energy/service life that the
battery will provide for various load conditions.
This data is subject to change. Performance information is typical.
Contact Duracell for the latest information.
