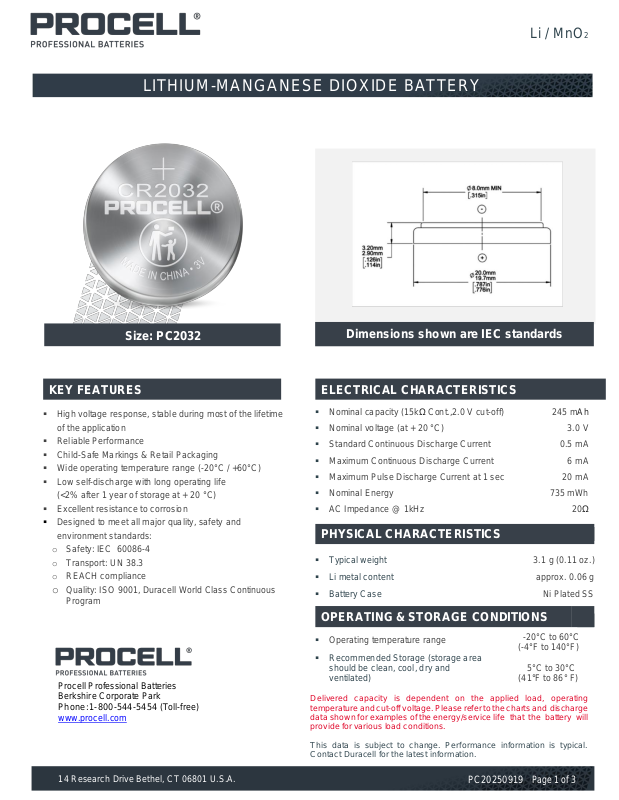

Page 1
14 Research Drive Bethel, CT 06801 U.S.A.
PC20250919
Page 1 of 3
Li / MnO2
KEY FEATURES
▪ High voltage response, stable during most of the lifetime
of the application
▪ Reliable Performance
▪ Child-Safe Markings & Retail Packaging
▪ Wide operating temperature range (-20°C / +60°C)
▪ Low self-discharge with long operating life
(<2% after 1 year of storage at + 20 °C)
▪ Excellent resistance to corrosion
▪ Designed to meet all major quality, safety and
environment standards:
o Safety: IEC 60086-4
o Transport: UN 38.3
o REACH compliance
o Quality: ISO 9001, Duracell World Class Continuous
Program
Procell Professional Batteries
Berkshire Corporate Park
Phone: 1-800-544-5454
(Toll-free)
www.procell.com
ELECTRICAL CHARACTERISTICS
▪ Nominal capacity (15kΩ Cont.,2.0 V cut-off)
245 mAh
▪ Nominal voltage (at + 20 °C)
3.0 V
▪ Standard Continuous Discharge Current
0.5 mA
▪ Maximum Continuous Discharge Current
6 mA
▪ Maximum Pulse Discharge Current at 1 sec
20 mA
▪ Nominal Energy
735 mWh
▪ AC Impedance @ 1kHz
20Ω
PHYSICAL CHARACTERISTICS
▪ Typical weight
3.1 g (0.11 oz.)
▪ Li metal content
approx. 0.06 g
▪ Battery Case
Ni Plated SS
OPERATING & STORAGE CONDITIONS
▪ Operating temperature range
-20°C to 60°C
(-4°F to 140°F)
▪ Recommended Storage (storage area
should be clean, cool, dry and
ventilated)
5°C to 30°C
(41°F to 86° F)
Dimensions shown are IEC standards
Size: PC2032
LITHIUM-MANGANESE DIOXIDE BATTERY
Delivered capacity is dependent on the applied load, operating
temperature and cut-off voltage. Please refer to the charts and discharge
data shown for examples of the energy/service life that the battery will
provide for various load conditions.
This data is subject to change. Performance information is typical.
Contact Duracell for the latest information.
Page 2
14 Research Drive Bethel, CT 06801 U.S.A.
PC20250919
Page 2 of 3
Li / MnO2
LOREM IPSUM DOLOR SIT AMET
Procell Professional Batteries
Berkshire Corporate Park
Phone: 1-800-544-5454
(Toll-free)
www.procell.com
TYPICAL PERFORMANCE
Delivered capacity is dependent on the applied load, operating
temperature and cut-off voltage. Please refer to the charts and
discharge data shown for examples of the energy/service life that the
battery will provide for various load conditions.
This data is subject to change. Performance information is typical.
Contact Duracell for the latest information.
Page 3
14 Research Drive Bethel, CT 06801 U.S.A.
PC20250919
Page 3 of 3
Li / MnO2
TYPICAL APPLICATIONS
▪ Medical devices
▪ Security devices
▪ Fitness devices
▪ Watches
▪ Calculators
▪ Wireless sensors
▪ Toys
▪ Key-Fobs &Trackers
TYPICAL APPLICATIONS
▪ Fire, explosion and burn hazard
▪ Do not recharge, short circuit, crush, disassemble, expose to heat
above 100 °C (212 °F), incinerate, or expose contents to water
WARNING
WARNING! KEEP BATTERIES AWAY FROM
CHILDREN!
Test
Test designation
Observation
A
Altitude
Pass
B
Thermal cycling
Pass
C
Vibration
Pass
D
Shock
Pass
E
External short circuit
Pass
F
Impact
Pass
G
Crush
Pass
H
Forced discharge
Pass
I
Abnormal charging
Pass
J
Free fall
Pass
K
Thermal Abuse
Pass
▪ Always keep your batteries away from children to prevent
swallowing.
▪ If ingestion does occur, however, be aware that initial symptoms
may be similar to other childhood illnesses such as coughing,
drooling and discomfort.
▪ Battery ingestion hotline (860-498-8666)
Procell Professional Batteries
Berkshire Corporate Park
Phone: 1-800-544-5454
(Toll-free)
www.procell.com
Delivered capacity is dependent on the applied load, operating
temperature and cut-off voltage. Please refer to the charts and
discharge data shown for examples of the energy/service life that the
battery will provide for various load conditions.
This data is subject to change. Performance information is typical.
Contact Duracell for the latest information.
