ProBoat UL 19 Hydroplane Owner's Manual

Owners Manual • Bedienungsanleitung
Manuel de l’utilisateur • Manuale dell’utente

PRB08028

UL 19 Hydroplane

30-INCH BRUSHLESS RTR

2

EN

UL 19 Hydroplane

As the user of this product, you are solely responsible for
operating in a manner that does not endanger yourself
and others or result in damage to the product or the
property of others.

• When handling and/or transporting your boat, always
pick up the boat from the sides, keeping all moving
parts pointed away from you.

• Always keep a safe distance in all directions around
your model to avoid collisions or injury. This model
is controlled by a radio signal subject to interference
from many sources outside your control.
Interference can cause momentary loss of control.

• Always operate your model in open spaces away
from full-size vehicles, traffic and people.

• Always carefully follow the directions and warnings
for this and any optional support equipment
(chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything
electrical out of the reach of children.

• Always avoid water exposure to all equipment not
specifically designed and protected for this purpose.
Moisture causes damage to unprotected electronics.

• Never place any portion of the model in your mouth
as it could cause serious injury or even death.

• Never operate your model with low transmitter
batteries.

NOTICE

MEANING OF SPECIAL LANGUAGE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby,
LLC. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product.

The following terms are used throughout the product literature to indicate various levels of potential harm when
operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no
possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a
possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage,
and serious injury OR create a high probability of superficial injury.

This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires
some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or
damage to the product or other property. This product is not intended for use by children without direct adult supervision.
Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon
Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow
all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid
damage or serious injury.

Age Recommendation: Not for children under 14 years. This is not a toy.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before

operating. Failure to operate the product correctly can result in damage to the product, personal property and cause

serious injury.

Table of Contents

Water-Resistant Boat with Waterproof Electronics ......... 3

General Precautions ........................................................ 3

Wet Conditions Maintenance .......................................... 3

Specifications .................................................................. 3

Recommended Tools and Materials ................................ 4

Battery Charger ............................................................... 4

Boat Stand Assembly ...................................................... 4

Antenna Tube Installation................................................. 4

Canopy Removal .............................................................. 5

Low Voltage Cutoff (LVC) ................................................. 5

Installing the Battery Packs ............................................. 5

Spektrum DX2E Radio System ........................................ 6

Binding ............................................................................. 7

Getting Started ................................................................ 7

Control Check .................................................................. 8

Testing Your Boat in the Water ........................................8

Boating Tips ..................................................................... 9

Motor Care ...................................................................... 9

When You Are Finished ................................................... 9

After Boating and Maintenance ......................................10

Water Cooling System................................................10

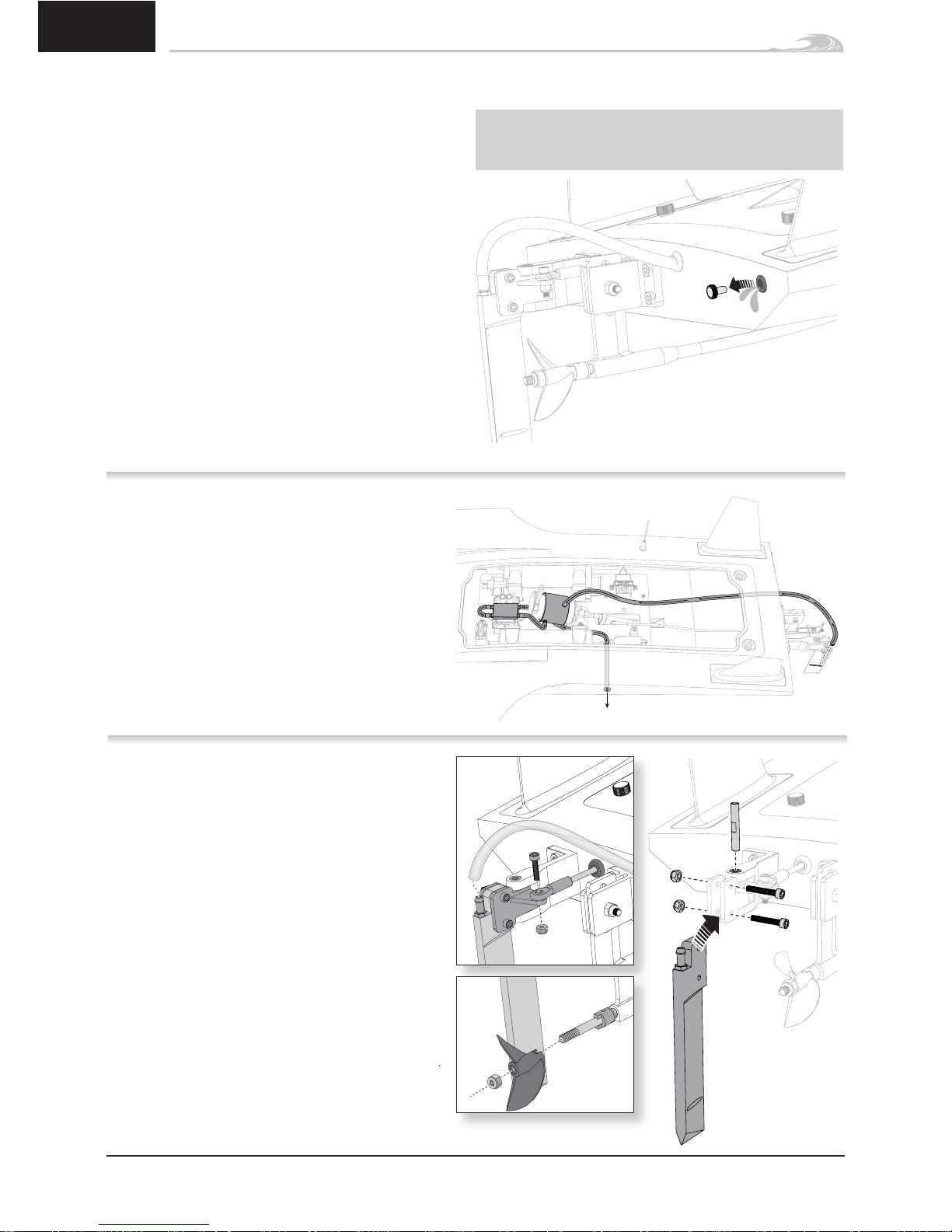

Rudder Service ...........................................................10

Propeller Service ........................................................10

Propeller Strut Depth Adjustment ..............................11

Drivetrain Lubrication .................................................11

Troubleshooting Guide ................................................... 12

Limited Warranty ........................................................... 13

Warranty and Service Contact Information ................... 14

FCC Information ............................................................ 14

IC Information ................................................................ 14

EU Compliance Statement ............................................ 14

Instructions for Disposal of WEEE ................................ 14

Replacement Parts ........................................................ 54

Recommended Parts ..................................................... 54

Optional Parts ................................................................ 55

Safety Precautions and Warnings

3

EN

30-INCH READY-TO-RUN BRUSHLESS BOAT

Your new Horizon Hobby boat has been designed and
built with a combination of waterproof and water-resistant
components to allow you to operate the product in calm,
fresh water conditions.

While the entire boat is highly water-resistant, it is
not completely waterproof and your boat should NOT
be treated like a submarine. The various electronic
components used in the boat, such as the servo(s)
and receiver are waterproof, however, most of the
mechanical components are water-resistant and require
additional maintenance after use.

Metal parts, including the bearings, pins, screws and nuts,
propeller, rudder, rudder mounts, prop struts, as well as
the contacts in the electrical cables, will be susceptible
to corrosion if additional maintenance is not performed
after running in wet conditions. To maximize the long­term performance of your boat and to keep the warranty
intact, the procedures described in the “Wet Conditions
Maintenance” section must be performed regularly.

CAUTION: Failure to exercise caution while using

this product and complying with the following
precautions could result in product malfunction and/or
void the warranty.

Water-Resistant Boat with Waterproof Electronics

General Precautions

• Read the WET CONDITIONS MAINTENANCE
procedures and make sure that you have all the tools
you will need to properly maintain your boat.

• Not all batteries can be used in wet conditions.
Consult the battery manufacturer before use.
Caution should be taken when using Li-Po batteries
in wet conditions.

• Most transmitters are not water-resistant. Consult
your transmitter’s manual or the manufacturer
before operation.

• Never operate your transmitter or boat when
lightning is present.

• Salt water is very conductive and highly corrosive.
If you choose to run your boat in salt water,
immediately rinse the boat in fresh water after each
use. Operating your boat in salt water is at the sole
discretion of the modeler.

Wet Conditions Maintenance

• Drain any water that has collected in the hull by
removing the drain plug or canopy and tilting the
boat in the appropriate direction to drain the water.

CAUTION: Always keep hands, fingers, tools and
any loose or hanging objects away from rotating

parts.

• Remove the battery pack(s) and dry the contacts. If
you have an air compressor or a can of compressed
air, blow out any water that may be inside the
recessed connector housings.

• Remove all moving parts. Dry and lubricate parts
after every 30 minutes of operation or if the boat
becomes submerged.

NOTICE: Never use a pressure washer to clean your boat.

• Use an air compressor or a can of compressed air
to dry the boat and help remove any water that may
have gotten into small crevices or corners.

• Spray the bearings, fasteners and other metal parts
with a water-displacing light oil or lubricant.

• Let the boat air dry before you store it. Water (and
oil) may continue to drip for a few hours.

Specifications

Length 30 in (762mm)
Height 6 in (152.4mm)
Transmitter DX2E (SPM2330)
Receiver SR310 3-CH Sport Receiver

(SPMSR310)

Hull Material Fiberglass
Motor 2000Kv 6-Pole 3650

Marine Motor (DYNM3831)
ESC 120A Brushless Marine ESC

2-6S (DYNM3875)
Servo 3KG, Plastic Gear Servo,

WP, 23T (SPMS603)
Tip: 4 AA batteries (sold separately) are

required to operate the boat and transmitter.

6 in

(152.4mm)

30 in (762mm)

Antenna Tube Installation

1. Carefully feed the end of the receiver antenna through the grommet
inside the hull.

2. Pull the antenna wire out of the grommet toward the outside of the boat,
then slide the antenna through the antenna tube.

3. Insert the tube into the grommet, then fit the cap onto the tube.

4. Slide the clear 20mm waterproof sleeve over the grommet and hull and
install the tube into the sleeve.

The antenna must be installed above the boat's waterline to get the best
reception of your transmitter's signal.

NOTICE: Do not cut or kink the receiver antenna or damage may result.

Boat Stand Assembly

1. Attach the side stand pieces to the end pieces as
shown.

2. Use medium CA or epoxy adhesive to secure the
side stand to the ends.

3. Allow the adhesive to dry before placing your boat
on the stand.

Choose a charger designed to charge the recommended
Dynamite® Reaction® HD7.6V 5000mAh 2S 50C LiPo
Hardcase: EC5 battery or the Dynamite® Reaction® HD

11.4V 5000mAh 3S 50C LiPo,Hardcase: EC5 battery. We
recommend the Dynamite® Passport™ Ultra 100W AC/

DC Touch battery charger (DYNC3000). Refer to your
charger manual for charging instructions and safety
information.

NOTICE: Never charge a battery in the boat or damage
may result.

Battery Charger

4

EN

UL 19 Hydroplane

Product Inspection

Carefully remove the boat and radio transmitter from the box.
Inspect the boat for damage. If your product is damaged, please
contact the hobby shop where you purchased your boat, or
contact Horizon Hobby Product Support. Refer to the Warranty
and Service Contact Information section for more info.

Recommended Tools and Materials

• Needle nose pliers

• Paper towel

• Rubbing alcohol

• Open-end wrench: 10mm (2)

• Nut driver: 4mm, 7mm, 8mm

• Phillips screwdriver: #1

• Hex wrench: 1.5mm, 2mm, 2.5mm, 3mm

• Clear tape (DYNM0102)

• Pro Boat® Marine Grease and Gun (DYNE4200)

• Hook and Loop Tape Set, WP 4pcs (DYNK0300)

Canopy Removal

1. Loosen the 4 screws located at each
corner of the canopy.

2. Remove the canopy from the hull
starting with the 2 rear screws. Ensure
that the 4 screws have disengaged
from their bases before carefully lifting
the canopy.

Low Voltage Cutoff (LVC)

Discharging a Li-Po battery below 3V per cell may
damage your battery.The included ESC protects the boat
battery from over-discharge using Low Voltage Cutoff
(LVC). Before the battery voltage decreases too much,
LVC removes power supplied to the motor. Once LVC is
reached, power to the boat decreases. Immediately bring
your boat back to shore for safe landing.

Disconnect and remove the Li-Po battery from the boat
after use to prevent trickle discharge. When ESC has
engaged full-LVC (no motor control), the receiver still
receives full power and is able to control the rudder.

Do not leave the power switch on or battery connected
to the ESC because this will cause battery discharge
below LVC. If you are finished running the boat, charge
your Li-Po battery to half capacity before storage. During
storage, make sure the battery charge does not fall below
3V per cell. LVC does not prevent the battery from over­discharge during storage.

NOTICE: Repeated operation after LVC will damage
the battery.

Tip: Monitor your boat battery's voltage before and
after boating by using a Li-Po Cell Voltage Checker
(DYN4071, sold separately).

Installing the Battery Packs

1. Install the 2 battery packs on the left and right
sides of the boat hull. Secure the batteries with the
included hook and loop straps. When running your
boat in rough water, use Waterproof Hook and Loop
Tape (DYNK0300) between the batteries and the
battery tray to secure the batteries more fully.

Tip: Start with the batteries as far forward as possible,
moving them 1/4 inch at a time toward the bow until
your boat reaches maximum speed.

2. Connect each battery pack to the ESC power
connectors.

X2

X2

5

EN

30-INCH READY-TO-RUN BRUSHLESS BOAT

6

EN

UL 19 Hydroplane

Spektrum DX2E Radio System

Transmitter Battery Installation

This transmitter requires 4 AA batteries.

1. Remove the battery cover from the transmitter.

2. Install the batteries as shown.

3. Install the battery cover.

CAUTION: If using rechargeable batteries,

charge only rechargeable batteries. Charging non­rechargeable batteries may cause the batteries to burst,
resulting in injury to persons and/or damage to property.

CAUTION: Risk of explosion if battery is replaced
by an incorrect type. Dispose of used batteries

according to national regulations.

STEERING WHEEL

Controls
steering.
Right and
Left steering
with ST.
REV Switch
on N (see
ST. REV switch).

BATTERY LEVEL

INDICATOR

Solid Green: Battery

voltage is good (above 4V).
Flashing Green: Battery

voltage is critically low
(below 4V). Replace
batteries.

THROTTLE TRIGGER

Controls power to motor for forward
or reverse (see TH. REV switch).

Stop Reverse

(when TH.
REV switch
on N).

Forward
(when TH.
REV switch on N).

POWER SWITCH

Power on
or off the
transmitter.

ST TRIM

Adjust to make the boat drive straight
with no input at the steering wheel.

TH TRIM

Adjusts the neutral
point of the electronic
speed control.

REVERSE SWITCH

Allows you to change the
direction of steering (ST. REV) and
throttle (TH. REV) controls (default
settings are “N” for steering and
“R” for throttle).

ST RATE

Adjusts the amount the rudder
moves when the steering wheel
is turned left or right.

BIND

BUTTON

Puts transmitter
into Bind Mode.

The included transmitter and receiver are bound at
the factory. If you need to rebind, follow the instructions

below.

1. Ensure the transmitter and vehicle are both powered
OFF.

2. Install the bind plug in the BIND/battery port of the
receiver.

3. Power ON the vehicle. The receiver LED will blink.

4. Stand approximately 8–12 feet (2.4–3.7m) from the
vehicle. With the steering wheel and throttle trigger
in the failsafe positions (neutral), press and hold
the bind button and power ON the transmitter. The
transmitter's green LED will blink after 3 seconds,
indicating it is in bind mode.

5. Release the bind button when the green LED flashes.
Continue holding failsafe positions until the binding
process is complete.

6. The receiver LED will glow solid when the transmitter
and receiver are bound.

7. Power OFF the vehicle, then the transmitter.

8. Remove the bind plug and store it in a convenient
place.

The receiver will be bound to the transmitter until
another bind process is completed.

If you encounter problems, obey binding instructions
and refer to the troubleshooting guide for other
instructions. If needed, contact the appropriate Horizon
Product Support office.

NOTICE: Do not attempt to bind the transmitter and
receiver if there are other compatible transmitters in
bind mode within 400 feet. Doing so may result in
unexpected binding.

Failsafe

In the unlikely event that the radio connection is lost
during use, the receiver will drive the servos to their pre­programmed failsafe positions as set during Binding.

If the receiver is powered on before powering on the
transmitter, the receiver will enter this failsafe mode.
When the transmitter is powered on, normal control is
resumed.

IMPORTANT: Failsafe activates only in the event
that signal is lost from the transmitter. Failsafe will
NOT activate in the event that receiver battery power
decreases below the recommended minimums or
power to the receiver is lost.

Getting Started

1. Power on the transmitter.

2. Connect the two batteries to the
EC5™ connectors on the ESC.

3. Power on the ESC switch. The
ESC arming tones will sound.

4. Test the transmitter’s control of
the boat with the boat on the
display stand.

Binding

7

EN

30-INCH READY-TO-RUN BRUSHLESS BOAT

2

3

1

X2

4

Tip: Before placing your boat in the water, secure
the canopy on the hull. Apply clear tape (DYNM0102)
around the canopy seam, if desired.

1. Carefully place the boat in the water.

2. Operate the boat at slow speeds near the shoreline.
Avoid objects in the water at all times. When the
boat is moving forward, ensure water flows out of
the coolant outlet. Remove any blockage from the
rudder inlet and coolant system or the motor and ESC
(electronic speed control) may overheat.

3. Once you are comfortable operating the boat at slow
speeds, it is safe to operate the boat farther from the
shore.

4. If the boat does not go straight, adjust the steering
trim dial on the transmitter.

Tip: If you are using excessive steering trim on your
transmitter to make the boat drive straight, return the
trim to neutral and mechanically center the rudder. To
do this, use a 1.5mm hex driver to loosen the set screw
holding the push rod to the servo. Adjust the linkage in
or out of the brass barrel until the rudder is centered.
Tighten the set screw using a 1.5mm hex driver.

5. Bring the boat back to shore when you notice the
boat starting to lose speed.

6. Power off the ESC and disconnect the battery packs.

7. Allow the motor, ESC and battery packs to cool before
charging the batteries or operating the boat again.

NOTICE: Always power OFF the receiver before
powering OFF the transmitter. If the transmitter is
powered OFF before the receiver, the receiver will
enter failsafe mode.

Testing Your Boat in the Water

Control Check

IMPORTANT: Perform a control check at the beginning

of each boating session, after repair or after installation of
new batteries.

Ensure the receiver antenna is extended properly and all
batteries are fully charged.

1. Power ON the transmitter and the boat. Do not

install the boat canopy.

2. Place the boat securely on the boat stand.

NOTICE: Do not operate the engine without water
cooling circulation or damage may result.

3. Check steering and throttle on the transmitter.

8

EN

UL 19 Hydroplane

When running your boat for the first time, we
recommend calm wind and water conditions so that you
can learn how the boat responds to your control.

Maximum speeds are only achieved when the water
conditions are smooth and there is little wind. A sharp
turn, wind or waves can turn over a boat when it is
moving quickly. Always pilot your boat for the wind and
water conditions so that the boat does not turn over.

Consult local laws and ordinances before choosing a
location to pilot your boat.

Avoid boating near:

• watercraft

• people (swimming areas, fishing areas)

• stationary objects

• waves, wakes

• rapidly moving water

• wildlife

• floating debris

• overhanging trees

• vegetation

If the propeller and rudder are blocked with debris or
vegetation, remove the boat from the water and remove
the debris before continuing operation.

When making turns, decrease the throttle to reduce the
probability of flipping the boat over. If necessary, adjust
your steering input to decrease sensitivity.

Never operate your boat in less than 12 inches (30.5 cm)
of water.

If you need to retrieve your boat from the water, use
fishing equipment or another boat.

NOTICE: When running at full speed in choppy waters,
the prop may exit and re-enter the water repeatedly and
very quickly, subjecting the propeller and flex shaft to
some stress. Frequent stress may damage the propeller
and flex shaft.

CAUTION: Never operate your boat in extreme
temperatures or turbulent water.

CAUTION: Never attempt to retrieve a downed
boat by swimming.

When You Are Finished

1. Power off the receiver.

2. Power off the transmitter.

3. Disconnect and remove the batteries
from the boat.

Tip: Always remove the canopy before
storage or moisture may allow mold and
mildew to grow in the boat.

Motor Care

• Prolong motor life by preventing overheating
conditions. Undue motor wear results from frequent
turns, stops and starts, pushing objects, boating in
rough water or vegetation and boating continuously at
high speed.

• Over-temperature protection is installed on the ESC to
prevent circuit damage, but cannot protect the motor
from excessive physical resistance.

X2

2

3

1

Boating Tips

9

EN

30-INCH READY-TO-RUN BRUSHLESS BOAT

Rudder Service

1. Disconnect the water tube from the rudder.

2. Remove the nut, screw and linkage from the rudder
arm.

3. Turn the rudder and loosen the set screw from
the rudder pin.

4. Turn over the boat and lightly tap the rudder to
remove the pin.

5. Assemble in reverse order.

Propeller Service

1. Use an 8mm nut driver (DYN2805) to loosen the
nut from the driveshaft. To secure the propeller
while loosening the nut, hold the propeller.

2. Remove the nut and propeller from the driveshaft.

3. Assemble in reverse order. Correctly align the
propeller with the drive dog on the driveshaft.

• Drain water from inside the hull using the drain plug

• Fully dry the inside and outside of the boat, including

the water cooling lines and jacket around the motor.
Remove the hatch before storing your boat

• Repair any damage or wear to the boat

• Lubricate the flex shaft using Pro Boat Marine Grease

(DYNE4200)

• Make note of lessons learned from the trimming of
your boat, including water and wind conditions

Tip: The hook and loop strips in the boat retain water.
To dry them, press on them with a dry cloth.

NOTICE: When you are finished boating, never leave the
boat in direct sunlight or in a hot, enclosed area such as a
car. Doing so can damage the boat.

Water Cooling System

If water does not stream out of the water outlets
while the boat is moving forward, immediately
return the boat to shore and clean any obstructions
or remove kinks from the water cooling lines/
system.

1. Disassemble and clean the water cooling system
to remove blockage and prevent overheating.

2. Replace damaged parts.

After Boating and Maintenance

10

EN

UL 19 Hydroplane

Propeller Strut Depth Adjustment

Raising the propeller strut increases speed but
decreases handling.

Lowering the propeller strut increases stability but
decreases speed.

1. Use a 3 mm hex driver and 7mm open-end wrench
to loosen the propeller strut bolt.

2. Slide the strut up or down to change the angle of
the propeller in relation to the hull.

3. Once desired strut depth is achieved, tighten the
nuts and bolts.

Drivetrain Lubrication

Always replace the drivetrain parts when they are
damaged or show visible wear or injury and damage may
result.

Lubricating the flex shaft is vital to the life of the
drivetrain. The lubricant also acts as a water seal, keeping
water from entering the hull through the stuffing tube.

Lubricate the flex shaft and propeller strut after every 30
minutes of operation.

1. Inside the hull, use 2 10mm open-end wrenches to
loosen the collet nut from the flex shaft.

2. Slide the flex shaft out from the stuffing tube and
drive strut at the rear of the boat.

Tip: Use paper or cloth to touch the flex shaft and other
lubricated parts.

3. Wipe the old lubricant and material from the flex
shaft.

Tip: Use motor spray (DYN5500) to break down the
grease buildup.

4. Lubricate the full length of the flex shaft assembly
up to the drive dog using Pro Boat Marine Grease
(DYNE4200). Also apply grease to the collet threads.

5. Carefully reinstall the flex shaft in the drive strut,
stuffing tube and collet. If the flex shaft is difficult to
remove from (or install into) the collet, rotate the flex
shaft to the right while pulling it from (or inserting it
into) the collet.

NOTICE: Do not rotate the flex shaft to the left inside
the coupler.

Ensure there is a 2mm gap between the drive strut and
drive dog to allow for flex shaft shrinkage under load.

NOTICE: Running the boat in saltwater could cause some
parts to corrode. If you run the boat in saltwater, rinse it
thoroughly in freshwater after each use and lubricate the
drive system.

NOTICE: Because of its corrosive effects, running RC
boats in saltwater is at the discretion of the modeler.

11

EN

30-INCH READY-TO-RUN BRUSHLESS BOAT

Problem Possible Cause Solution

Boat will not respond
to throttle but responds
to other controls

Throttle channel is reversed Reverse throttle channel on transmitter

Extra noise or extra
vibration

Damaged propeller, shaft or motor Replace damaged parts
Propeller is out of balance Balance or replace propeller

Reduced runtime or boat
underpowered

Boat battery charge is low Completely recharge battery
Boat battery is damaged Replace boat battery and follow battery instructions
Blocking or friction on shaft or propeller Disassemble, lubricate and correctly align parts

Boat conditions may be too cold

Make sure the battery is warm (above 10º C

[50º F]) before use
Battery capacity may be too low for conditions Replace battery or use a larger capacity battery
Too little lubrication on driveshaft Fully lubricate driveshaft
Vegetation or other obstacles block

the propeller

Remove vegetation or obstacles from propeller

Boat will not Bind
(during binding) to
transmitter

Transmitter is too near boat during binding
process

Move powered transmitter a few feet from boat,

disconnect and reconnect battery to boat
Boat or transmitter is too close to large

metal object, wireless source or another
transmitter

Move the boat and transmitter to another location

and attempt binding again

Another compatible transmitter in bind
mode within range of the receiver

Power off all compatible transmitters except the one

you are trying to bind
Boat battery/transmitter battery charge is

too low

Replace/recharge batteries

ESC switch is off Power on ESC switch

Boat will not connect
(after binding) to
transmitter

Transmitter is too near boat during
connecting process

Move powered transmitter a few feet from boat,

disconnect and reconnect battery to boat
Boat or transmitter is too close to large

metal object, wireless source or another
transmitter

Move boat or transmitter to another location and

attempt to connect again

Boat battery/transmitter battery charge is
too low

Replace/recharge batteries

ESC switch is off Power on ESC switch

Boat tends to dive in the
water or takes on water

The boat hull is not completely closed

Dry out the boat and ensure the hatch is fully closed

on the hull before returning the boat

to the water
Center of gravity is too far forward Move batteries back in the hull

Controls reversed Transmitter settings are reversed

Do the Control Direction Test and adjust controls on

transmitter appropriately

Motor overheats Blocked water cooler lines Clean, unkink or replace water lines

Motor power pulses
then motor loses power

ESC uses default soft Low Voltage Cutoff
(LVC)

Recharge boat battery or replace battery that is no

longer performing
Weather conditions might be too cold Postpone until weather is warmer
Battery is old, worn out or damaged Replace battery

Boat moves forward or
backward without input
from user

Throttle trim on transmitter not centered Adjust throttle trim to center (12 o'clock)

Boat does not drive
straight

Steering trim on transmitter not centered Adjust steering trim so vehicle drives straight

No steering or lack of
steering

Steering rate not adjusted correctly

Adjusts steering rate (ST RATE) knob on

transmitter to desired steering throw
Servo failed Contact Horizon Product Support

No throttle or lack of
throttle

ESC failed Contact Horizon Product Support
Motor failed Contact Horizon Product Support

ESC emits a continues
tone when powered on

Throttle trim not centered Center throttle trim on transmitter

Troubleshooting Guide

12

EN

UL 19 Hydroplane

Limited Warranty

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original
purchaser that the product purchased (the “Product”) will be
free from defects in materials and workmanship at the date
of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i)
cosmetic damage, (ii) damage due to acts of God, accident,
misuse, abuse, negligence, commercial use, or due to
improper use, installation, operation or maintenance, (iii)
modification of or to any part of the Product, (iv) attempted
service by anyone other than a Horizon Hobby authorized
service center, (v) Product not purchased from an authorized
Horizon dealer, or (vi) Product not compliant with applicable
technical regulations or (vii) use that violates any applicable
laws, rules, or regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON
MAKES NO OTHER WARRANTY OR REPRESENTATION,
AND HEREBY DISCLAIMS ANY AND ALL IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION,
THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE PURCHASER ACKNOWLEDGES THAT
THEY ALONE HAVE DETERMINED THAT THE PRODUCT
WILL SUITABLY MEET THE REQUIREMENTS OF THE
PURCHASER’S INTENDED USE.

Purchaser’s Remedy

Horizon’s sole obligation and purchaser’s sole and exclusive
remedy shall be that Horizon will, at its option, either (i)
service, or (ii) replace, any Product determined by Horizon to
be defective. Horizon reserves the right to inspect any and all
Product(s) involved in a warranty claim. Service or replacement
decisions are at the sole discretion of Horizon. Proof of
purchase is required for all warranty claims. SERVICE OR
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS
THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL,
INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES,
LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL
LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH
CLAIM IS BASED IN CONTRACT, WARRANTY, TORT,
NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY
OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. Further, in
no event shall the liability of Horizon exceed the individual
price of the Product on which liability is asserted. As Horizon
has no control over use, setup, final assembly, modification
or misuse, no liability shall be assumed nor accepted for
any resulting damage or injury. By the act of use, setup or
assembly, the user accepts all resulting liability. If you as
the purchaser or user are not prepared to accept the liability
associated with the use of the Product, purchaser is advised
to return the Product immediately in new and unused
condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to
conflict of law principals). This warranty gives you specific
legal rights, and you may also have other rights which vary
from state to state. Horizon reserves the right to change or
modify this warranty at any time without notice.

WARRANTY SERVICES
Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide
warranty support or service. Once assembly, setup or use of
the Product has been started, you must contact your local

distributor or Horizon directly. This will enable Horizon to
better answer your questions and service you in the event that
you may need any assistance. For questions or assistance,
please visit our website at www.horizonhobby.com, submit a
Product Support Inquiry, or call the toll free telephone number
referenced in the Warranty and Service Contact Information
section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is
compliant in the country you live and use the Product in,
please use the Horizon Online Service Request submission
process found on our website or call Horizon to obtain a
Return Merchandise Authorization (RMA) number. Pack
the Product securely using a shipping carton. Please note
that original boxes may be included, but are not designed to
withstand the rigors of shipping without additional protection.
Ship via a carrier that provides tracking and insurance for
lost or damaged parcels, as Horizon is not responsible for
merchandise until it arrives and is accepted at our facility.
An Online Service Request is available at http://www.
horizonhobby.com/content/service-center_render-service­center. If you do not have internet access, please contact
Horizon Product Support to obtain a RMA number along with
instructions for submitting your product for service. When
calling Horizon, you will be asked to provide your complete
name, street address, email address and phone number
where you can be reached during business hours. When
sending product into Horizon, please include your RMA
number, a list of the included items, and a brief summary
of the problem. A copy of your original sales receipt must
be included for warranty consideration. Be sure your name,
address, and RMA number are clearly written on the outside
of the shipping carton.

NOTICE: Do not ship Li-Po batteries to Horizon. If you
have any issue with a Li-Po battery, please contact the
appropriate Horizon Product Support office.

Warranty Requirements

For Warranty consideration, you must include your original
sales receipt verifying the proof-of-purchase date. Provided
warranty conditions have been met, your Product will be
serviced or replaced free of charge. Service or replacement
decisions are at the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service
will be completed and payment will be required without
notification or estimate of the expense unless the expense
exceeds 50% of the retail purchase cost. By submitting
the item for service you are agreeing to payment of the
service without notification. Service estimates are available
upon request. You must include this request with your item
submitted for service. Non-warranty service estimates will
be billed a minimum of ½ hour of labor. In addition you will
be billed for return freight. Horizon accepts money orders
and cashier’s checks, as well as Visa, MasterCard, American
Express, and Discover cards. By submitting any item to
Horizon for service, you are agreeing to Horizon’s Terms and
Conditions found on our website http://www.horizonhobby.
com/content/service-center_render-service-center.

ATTENTION: Horizon service is limited to Product
compliant in the country of use and ownership.
If received, a non-compliant Product will not be
serviced. Further, the sender will be responsible
for arranging return shipment of the un-serviced
Product, through a carrier of the sender’s choice
and at the sender’s expense. Horizon will hold
non-compliant Product for a period of 60 days from
notification, after which it will be discarded.

10/15

13

EN

30-INCH READY-TO-RUN BRUSHLESS BOAT

Country of

Purchase

Horizon Hobby Contact Information Address

United States of

America

Horizon Service Center

(Repairs and Repair Requests)

servicecenter.horizonhobby.

com/RequestForm/

4105 Fieldstone Rd

Champaign, Illinois, 61822 USA

Horizon Product Support

(Product Technical Assistance)

productsupport@

horizonhobby.com

877-504-0233

Sales

[e-mail]

800-338-4639

EU

Horizon Technischer Service [e-mail]

Hanskampring 9

D 22885 Barsbüttel, Germany

Sales: Horizon Hobby GmbH [phone]

Warranty and Service Contact Information

EU Compliance Statement: Horizon

Hobby, LLC hereby declares that this product
is in compliance with the essential requirements and
other relevant provisions of the R&TTE, EMC, and LVD
Directives.

A copy of the EU Declaration of Conformity is available
online at: http://www.horizonhobby.com/content/

support-render-compliance.

Instructions for Disposal of WEEE by
Users in the European Union

This product must not be disposed of with other
waste. Instead, it is the user’s responsibility to dispose of
their waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and
electronic equipment. The separate collection and recycling
of your waste equipment at the time of disposal will help to
conserve natural resources and ensure that it is recycled in
a manner that protects human health and the environment.
For more information about where you can drop off your
waste equipment for recycling, please contact your local city
office, your household waste disposal service or where you
purchased the product.

FCC Information

This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

This product contains a radio transmitter with wireless
technology which has been tested and found to be
compliant with the applicable regulations governing
a radio transmitter in the 2.400GHz to 2.4835GHz
frequency range.

IC Information

This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including
interference that may cause undesired operation of the
device.

Antenna Separation Distance

When operating your
Spektrum transmitter,
please be sure to maintain
a separation distance of at
least 5 cm between your
body (excluding fingers,
hands, wrists, ankles and
feet) and the antenna to
meet RF exposure safety requirements as determined by
FCC regulations.

The following illustrations show the approximate 5 cm RF
exposure area and typical hand placement when operating
your Spektrum transmitter.

14

EN

UL 19 Hydroplane

54

IT

UL 19 Hydroplane

Part # English Deutsch Français Italiano

DYNM3831

3650 6 Pole Marine
Motor 2000Kv

3650 6-poliger Bootsmotor
2000 kV

Moteur 3650 6 Pôles
Marine 2000Kv

Motore marino 6 poli 3650
2000 Kv

PRB281053

Hull: UL 19 30-inch
Hydroplane: RTR

Rumpf: UL 19
76-cm-Wasserflugzeug: RTR

Hydroplane UL 19 30-inch
RTR - Coque

Scafo: idroplano UL 19
30’’ RTR

PRB281055

Vertical Fins: UL 19
30-inch Hydroplane: RTR

Vertikale Lamellen: UL 19
76-cm-Wasserflugzeug: RTR

Hydroplane UL 19 30-inch
RTR - Dérives

Pinne verticali: idroplano
UL 19 30’’ RTR

PRB281056

Rudder: UL 19 30-inch
Hydroplane: RTR

Seitenruder: UL 19
76-cm-Wasserflugzeug: RTR

Hydroplane UL 19 30-inch
RTR - Gouvernail

Timone: idroplano UL 19
30’’ RTR

PRB281057

Turn Fin: UL 19 30-inch
Hydroplane: RTR

Wendeflosse: UL 19
76-cm-Wasserflugzeug: RTR

Hydroplane UL 19 30-inch
RTR - Stabilisateur latéral

Deriva orientabile:
idroplano UL 19 30’’ RTR

PRB282046

Flex Shaft: UL 19
30-inch Hydroplane: RTR

Flexwelle: UL 19
76-cm-Wasserflugzeug: RTR

Hydroplane UL 19 30-inch
RTR - Flexible

Albero di trasmissione
flessibile: idroplano UL 19
30’’ RTR

PRB282047

Propeller: UL 19 30-inch
Hydroplane 1.7 x 1.6

Propeller: UL 19 76-cm­Wasserflugzeug 1,7 x 1,6

Hydroplane UL 19 30-inch
RTR - Hélice 1,7 x 1,6

Elica: idroplano UL 19 30’’
1,7 x 1,6

PRB285000

ProBoat Break-away
screw, nylon

ProBoat Abbrechschraube,
Nylon

Écrou de sécurité en nylon
Pro Boat

Vite sganciabile ProBoat,
nylon

PRB286047

Prop Strut: UL 19
30-inch Hydroplane: RTR

Propellerstrebe: UL 19
76-cm-Wasserflugzeug: RTR

Hydroplane UL 19 30-inch
RTR - Chaise d’hélice

Supporto esterno asse
dell’elica: idroplano UL 19
30’’ RTR

PRB286048

Rudder Pushrod Set: UL
19 30-inch Hydroplane:
RTR

Rudergestängesatz: UL 19
76-cm-Wasserflugzeug: RTR

Hydroplane UL 19 30-inch
RTR - Tringlerie de
gouvernail

Set aste di comando
timone: idroplano UL 19
30’’ RTR

SPM2330

DX2E 2Ch DSMR
Surface Radio w/SR310

DX2E 2Ch DSMR Funkgerät
mit SR310

Émetteur DX2E 2 voies
DSMR avec SR310

Radio di superficie DX2E 2
canali DSMR con SR310

SPMSR310

SR310 3-CH Sport
Receiver

SR310 3-CH Sportempfänger

Récepteur Sport SR310 3
voies

Sport SR310 3 canali

Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio

Part # English Deutsch Français Italiano

DYN2801 Nut Driver: 4mm Mutterndreher: 4mm Tournevis p/écrou: 4mm Cacciavite a bussola: 4 mm

DYN2803 Nut Driver: 5.5mm Mutterndreher: 5,5mm Tournevis p/écrou: 5,5mm Cacciavite a bussola: 5,5 mm

DYN2805 Nut Driver: 8mm Mutterndreher: 8mm Tournevis p/écrou: 8mm Cacciavite a bussola: 8 mm

DYN2819

5 pc Metric Hex Driver
Assortment

5-teiliges metrisches
Inbusschlüssel-Set

Assortiment de 5 tournevis
hexagonaux métriques (5pcs)

Set 5 pz. chiavi a brugola
metriche

DYNB3855EC

Reaction HD7.6V
5000mAh 2S 50C LiPo
Hardcase: EC5

Reaction HD 7,6 V 5000 mAh
2S 50C Li-Po, Etui: EC5

Batterie Li-Po Reaction
HD 2S 7,6V 5000mA 50C,
boitier rigide avec prise EC5

Batteria LiPo hardcase
Reaction HD 50C 2S 7,6 V
5000 mAh: EC5

DYNB3856EC

Reaction HD 11.4V
5000mAh 3S 50C
LiPo,Hardcase: EC5

Reaction HD 11,4 V 5000 mAh
3S 50C Li-Po, Etui: EC5

Batterie Li-Po Reaction HD
3S 11,4V 5000mA 50C,
boitier rigide avec prise EC5

Batteria LiPo hardcase
Reaction HD 50C 3S 11,4 V
5000 mAh: EC5

DYNC0031

EC5 Device Charge Lead,
12AWG

EC5 Geräteladekabel, 12AWG

Câble de charge EC5,
12AWG

Cavo caricabatteria EC5,
12AWG

DYNC3005

Passport Duo 400W Dual
AC/DC Touch Charger

Passport Duo 400 W Duales
AC/DC-Touch-Ladegerät

Chargeur Passport Duo
400W AC/DC, écran tactile

Caricabatteria AC/DC
Passport Duo 400 W con
touch screen

DYN4071 Li-Po Cell Voltage Checker Li-Po-Zelle Spannungsprüfer

Testeur de tension
d’élément Li-Po

Strumento controllo
voltaggio batterie LiPo

DYNE4200

Grease Gun with Marine
Grease 5 oz

Fettpresse mit Marine Grease
142 g (5 oz)

Pistolet avec graisse marine
140g

Pistola sparagrasso con
grasso marino 5 oz

DYNK0300

Hook and Loop Tape Set,
Waterproof 75x25mm
4pcs

Klettbandsatz, Wasserfest
75 x 25 mm, 4 Stück

Adhésif auto-agrippant
75x25mm (4pcs)

Nastro a strappo,
waterproof, 75 x 25 mm
4 pz.

DYNM0102

Clear Flexible Marine Tape
(18M)

Transparentes, flexibles
Marine Tape (18 m)

Adhésif Marin transparent
flexible (18M)

Nastro marino flessibile
trasparente (18 m.)

DYNS3005

Dynamite LED Program
Card

Dynamite LED-Programmkarte

Carte de programmation à
DELs pour bateau

Scheda di programmazione
LED Dynamite

Recommended Parts / Empfohlene Teile / Pièces recommandées / Pezzi consigliati

55

IT

30-INCH READY-TO-RUN BRUSHLESS BOAT

Part # English Deutsch Français Italiano

DYNB3810EC

Reaction HD 7.4V
5000mAh 2S 50C LiPo,
Hardcase: EC5

Reaction 7,4 V 5000 mAh 2S
50C Li-Po, Etui: EC5

Batterie Reaction Li-Po 2S 7,4V
5000mA 50C, boitier rigide
avec prise EC5

Batteria LiPo hardcase
Reaction HD 50C 2S 7,4 V
5000 mAh: EC5

DYNB3811EC

Reaction HD 11.1V
5000mAh 3S 50C LiPo,
Hardcase:EC5

Reaction HD 11,1 V 5000
mAh 3S 50C Li-Po, Etui: EC5

Batterie Reaction Li-Po 3S
11,1V 5000mA 50C, boitier
rigide avec prise EC5

Batteria LiPo hardcase
Reaction HD 50C 3S 11,1 V
5000 mAh: EC5

DYNC0028

EC5 Battery Series
Harness, 10ga

Kabelbaum für EC5
Akkureihe, 10ga

Cordon EC5 pour branchement
en série, 10ga

Cavi batteria EC5, 10ga

DYNC3000

Passport Ultra 100W
ACDC Touch Battery
Charger

Passport Ultra 100 W AC/DC­Touch-Akkuladegerät

Chargeur Passport Ultra 100W
ACDC écran tactile

Caricabatteria AC/DC
Passport Ultra 100 W con
touch screen

DYN4401 GPS Speed Meter GPS-Tachometer Tachymètre GPS Tachimetro GPS

DYNE4201 Marine Grease 5 oz Marine Grease 142 g (5 oz) Graisse marine 140g Grasso marino 5 oz

DYNT0502 Start Up Tool Set: Pro Boat

Anfänger-Werkzeugsatz: Pro
Boat

Proboat - Set d’outils de
démarrage

Set attrezzi: Pro Boat

PRB282027

Left Propeller: Zelos
36-inch Catamaran

1.4x1.65

Linker Propeller Zelos 91-cm
Katamaran 1,4 x 1,65

Zelos 36 Twin Catamaran BL ­Hélice gauche 1,4 x 1,65

Elica sinistra: catamarano
Zelos 36’’ 1,4 x 1,65

SPMS605 9KG Servo, WP, Metal, 23T 9KG Servo, WP, Metallf, 23T

Servo 9Kg à pignons
métalliques, étanche, tête 23T

Servo 9 kg., waterproof,
metallo, 23T

SPMMR4000

MR4000 DSMR 4 Ch
Marine Receiver

MR4000 DSMR 4 Ch
Bootsempfänger

Récepteur MR4000 4 voies
marin

Ricevente marina MR4000
DSMR 4 canali

SPMSS6250

S6250 High Torque, HV
Dig Servo

S6250 Digitaler HV-Servo mit
hoher Drehzahl

Servo S6250 Digital HV, couple
élevé

Servo digitale HV S6250 high
torque

Optional Parts / Diverse Teile / Pièces optionnelles / Pezzi opzionali

53738
Created: 02/2017
©2017 Horizon Hobby LLC.
Pro Boat, the Pro Boat logo, DSMR, EC5, Dynamite, Reaction, Passport and the Horizon Hobby logo
are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with
permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of
their respective owners. Patents pending.
