Pro Boat PRB2000 User Manual

INSTRUCTION MANUAL

Overall Length. . . . . . . . . . . . . . . . . . . . . . 611/

Hull Length . . . . . . . . . . . . . . . . . . . . . . . . . 55"

Beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

/4"

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . 14.5 lb

Speed . . . . . . . . . . . . . . . . . . . . . . . . . . 35 mph

Engine. . . . . . . . . . . . . . . . Zenoah G-23 Marine

Propeller . . . . . . . . . . . . . . . . . . . . . Prather 270

Radio System . . . . . . . . . . . . . . . . JR XR3 (FM)

Table of C on tents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Suggested Field Equipment and Supplies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Contents of Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

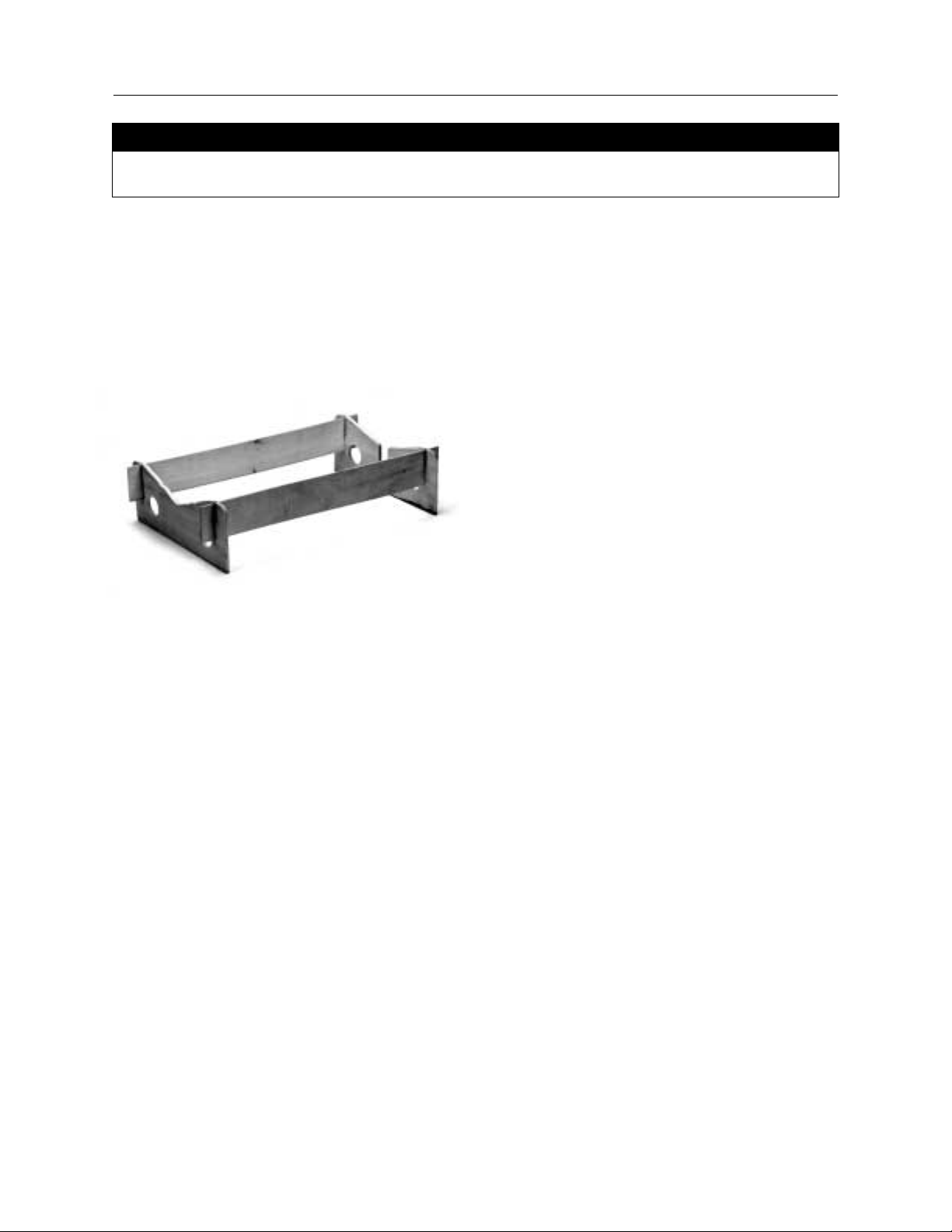

Section 1: Building the Boat Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Section 2: Installing the Receiver and Transmitter Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Section 3: Fuel/Oil Mixture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Section 4: Range Checking the XR3 Radio System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Section 5: Starting the Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Section 6: Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Section 7: Performance Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Section 8: Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

THE SHOCKWAVE

INTRODUCTION

Thank you for purchasing the ProBoat ShockWave. It’s important that you read and follow this instruction manual carefully and run your boat responsibly. With proper care and maintenance, you will be able to enjoy your ShockWave for many years to come.

Carefully unpack your new ShockWave and examine the boat and its contents. The kit contains one ShockWave and one JR XR3 Radio System transmitter. All you need to supply is 12 “AA” batteries and gas and oil.

If you find any damage or there are missing items, immediately notify the place of purchase.

WARNING

This boat is not a toy! It is a high performance R/C model boat. If operated in a careless or reckless manner, the ShockWave is capable of inflicting serious injury to people and property.

IMPORTANT-SAFETY INFORMATION — PLEASE READ

You are responsible for the safe operation of your R/C boat. Do not take risks that endanger you or others. When operating the boat in the water, stay clear of people, full-size boats, stationary objects, and wildlife. Also, watch for fishing

lines that can get tangled in the propeller. It is preferable to operate your ShockWave in low wake, low wind conditions and in areas free of people, objects, and wildlife.

Before operating your model, make sure your frequency is clear. If someone else is operating on the same frequency, both models could go out of control, possibly causing damage to the models, as well as others.

If at any time while operating your R/C model you sense any abnormal function, end your operation immediately. Do not operate your ShockWave again until you are certain the problem has been corrected.

Check all of the hardware, muffler, and propeller for security before and after each time you run your ShockWave. Always keep clear of the propeller when the engine is running. Thoroughly read all Zenoah safety and operating instructions and JR operating instructions included with this boat before operating

your ShockWave.

SERVICE CENTER INFORMATION

If you have any questions regarding the ShockWave, please contact: Horizon Service Center 4105 Fieldstone Road Champaign, IL 61822 217-355-9511 or 1-877-504-0233

http://www.horizonhobby.com

Contents of ShockWave Kit

Suggested Field Equipment and Supplies

5/32 Allen wrench 3/32 Allen wrench 5/64 Allen wrench 9/64 Allen wrench Large adjustable wrench Small adjustable wrench Small tube of heavy grease Threadlock (blue) Small tube of clear silicone sealer

CA or epoxy Glass cleaner Clean rags or towels Gasoline and oil mixture in an appropriate container Fuel bulb or funnel for filling the fuel tank Hangar 9 Ratio-Rite Cup (HAN3101) for perfect measuring of

oil/gas mixtures “AA” Alkaline Batteries (12) Clear 3M tape

Although your ShockWave comes fully assembled and ready for action, you will need a few tools to keep it running in top form. We recommend that you have in your field kit the following items:
