Pro Boat PRB08007 User Manual

24-INCH BRUSHLESS RTR CATAMARAN

BlackjackTM 24

PRB08007

Owners Manual • Bedienungsanleitung
Manuel de l'utilisateur • Manuale dell'utente

Blackjack 24

EN

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date
product literature, visit http://www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language

NOTICE

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility

of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious
injury OR create a high probability of superficial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate
the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires some basic mechanical
ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This
product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in
any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It
is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and
avoid damage or serious injury.

WARNING AGAINST COUNTERFEIT PRODUCTS

Thank you for purchasing a genuine Spektrum product. Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high­quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance
of counterfeit products or products claiming compatibility with DSM or Spektrum.

Age Recommendation: Not for children under 14 years. This is not a toy.

Safety Precautions and Warnings

As the user of this product, you are solely responsible for
operating in a manner that does not endanger yourself and
others or result in damage to the product or the property of
others.

• When handling and/or transporting your boat, always
pick up the boat from the front, keeping all moving parts
pointed away from you.

• Always keep a safe distance in all directions around
your model to avoid collisions or injury. This model is
controlled by a radio signal subject to interference from
many sources outside your control. Interference can
cause momentary loss of control.

• Always operate your model in open spaces away from
full-size vehicles, traffic and people.

• Always carefully follow the directions and warnings
for this and any optional support equipment (chargers,
rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything
electrical out of the reach of children.

• Always avoid water exposure to all equipment not
specifically designed and protected for this purpose.
Moisture causes damage to unprotected electronics.

• Never place any portion of the model in your mouth
as it could cause serious injury or even death.

• Never operate your model with low transmitter batteries.

Table of Contents

Water-resistant Boat with Waterproof Electronics .......... 3

Introduction ..................................................................... 4

Specifications .................................................................. 4

Recommended Tools and Materials ................................ 4

Product Inspection........................................................... 4

Transmitter Controls ........................................................ 5

Transmitter Battery Installation ....................................... 5

Battery Charger ............................................................... 5

Antenna Tube Installation................................................. 6

Installing the Battery Pack ............................................... 6

Low Voltage Cutoff (LVC) ................................................. 7

Battery Chemistry ........................................................... 7

Getting Started ................................................................ 7

Range Check ................................................................... 8

Testing Your Boat in the Water ........................................ 8

Boating Tips .................................................................... 9

2

When you are Finished.................................................... 9

After Boating and Maintenance ......................................10

Binding ..........................................................................10

Failsafe ..........................................................................10

Motor Care .....................................................................10

Water Cooling System .................................................... 11

Rudder Service ...............................................................11

Propeller Service ............................................................11

Prop Angle Adjustment ..................................................11

Drivetrain Lubrication..................................................... 12

Troubleshooting Guide ................................................... 13

Limited Warranty ........................................................... 14

Warranty and Service Contact Information ................... 15

Compliance Information for the European Union .......... 16

Replacement Parts ........................................................ 62

Optional Parts ................................................................ 62

Blackjack 24

Water-resistant Boat with Waterproof Electronics

EN

Your new Horizon Hobby boat has been designed and built with a combination of waterproof and water-resistant
components to allow you to operate the product in calm, fresh water conditions.

While the entire boat is highly water-resistant, it is not completely waterproof and your boat should NOT be treated like
a submarine. The various electronic components used in the boat, such as the Electronic Speed Control (ESC), servo(s)
and receiver are waterproof, however, most of the mechanical components are water-resistant and require additional
maintenance after use.

Metal parts, including the bearings, pins, screws and nuts, propeller, rudder, rudder mounts, prop struts, as well as
the contacts in the electrical cables, will be susceptible to corrosion if additional maintenance is not performed after
running in wet conditions. To maximize the long-term performance of your boat and to keep the warranty intact, the
procedures described in the “Wet Conditions Maintenance” section below must be performed regularly.

CAUTION: Failure to exercise caution while using this product and complying with the following precautions
could result in product malfunction and/or void the warranty.

General Precautions

• Read through the wet conditions maintenance
procedures and make sure that you have all the tools
you will need to properly maintain your boat.

• Not all batteries can be used in wet conditions.
Consult the battery manufacturer before use. Caution
should be taken when using Li-Po batteries in wet
conditions.

• Most transmitters are not water-resistant. Consult
your transmitter’s manual or the manufacturer before
operation.

• Never operate your transmitter or boat where
lightning may be present.

• Salt water is very conductive and highly corrosive.
If you choose to run your boat in salt water,
immediately rinse the boat in fresh water after every
use. Operating your boat in salt water is at the sole
discretion of the modeler.

• Even minimal water contact can reduce the life of
your motor if it has not been certified as water­resistant or waterproof. If the motor becomes
excessively wet, apply very light throttle until the
water is mostly removed from the motor. Running a
wet motor at high speeds may rapidly damage the
motor.

• Driving in wet conditions can reduce the life of the
motor. The additional resistance of operating in water
causes excess strain.

Wet Conditions Maintenance

• Drain any water that has collected in the hull by
removing the drain plug or canopy and tilting the boat
in the appropriate direction to drain the water.

CAUTION: Always keep hands, fingers, tools and
any loose or hanging objects away from rotating

parts.

• Remove the battery pack(s) and disconnect the
ESC and motor. Dry the contacts. If you have an air
compressor or a can of compressed air, blow out
any water that may be inside the recessed connector
housings.

• Remove the flex shaft and all moving parts. Dry and
lubricate parts after every 30 minutes of operation or
if the boat becomes submerged.

NOTICE: Never use a pressure washer to clean
your boat.

• Use an air compressor or a can of compressed air
to dry the boat and help remove any water that may
have gotten into small crevices or corners.

• Spray the bearings, fasteners and other metal parts
with a water-displacing light oil or lubricant. Do not
spray the motor.

• Let the boat air dry before you store it. Water (and oil)
may continue to drip for a few hours.

3

Blackjack 24

EN

Introduction

Pro Boat® RC models look as good as they perform. Our boats, which include everything from scale sailboats to
fully licensed powerboats, exceed expectations and provide years of radio control fun and excitement. Whether your
passion leads you towards the pure serenity of sailing or the all-out speed of a Deep-V, Pro Boat models fit your taste,
budget and lifestyle. You can count on us to be available any time you need help—the brand is backed by Horizon
Hobby, one of the world’s largest distributors of hobby-grade RC products. The Pro Boat brand will help you turn your
boating passion into a reality, whether you’re new to the hobby or an old pro.

Please read this manual for operation and maintenance instructions.

Register your boat online at www.proboatmodels.com.

Specifications

Length 24 in (609mm)

Beam (width) 8.75 in (222.2mm)

Hull Material Plastic

Motor Dynamite

Marine

ESC Dynamite 30-amp brushless,
water-cooled

Transmitter ECX® 2.4GHz Transmitter

Receiver ECX 2.4GHz Receiver,

Water Proof

Batteries 4 AA batteries (sold
separately) are required to
operate the transmitter.

A battery (sold separately) is required to operate the boat.
The ESC will operate with 2–3 Cell (7.4V–11.1V) Li-Po or
6–9 Cell (7.2V–10.8V) Ni-MH/Ni-Cd batteries.

®

2000Kv,

8.75 in

(222.2mm)

24 in (609mm)

Recommended Tools and Materials

• Needle nose pliers

• Paper towel

• Rubbing alcohol

• Open-end wrench: 10mm (2)

• Nut driver: 4mm, 5.5mm, 8mm

• Phillips screwdriver: #1

• Hex wrench: 1.5mm, 2mm, 2.5mm, 3mm

• Clear tape (DYNM0102)

• Pro Boat® Marine Grease and Gun

• Hook and Loop Tape Set, WP 4pcs

4

Product Inspection

Carefully remove the boat and radio transmitter from the
box. Inspect the boat for damage.
If you find damage is present, please contact the retailer
where you purchased your boat.

Blackjack 24

Transmitter Controls

CAUTION: If using rechargeable batteries, charge only rechargeable batteries. Charging
non-rechargeable batteries may cause the batteries to burst, resulting
in injury to persons and/or damage to property.

ACHTUNG: Wenn Sie wiederaufladbare Akkus verwenden, laden Sie nur diese.
Das Laden von nicht wiederaufladbaren Batterien kann die Batterien zur Explosion

bringen, was Körperverletzung und Sachbeschädigung zur Folge haben kann.

EN

Battery Level Indicator

Solid Red and Green:
Battery voltage is
good (above 4V).

Solid Red: Battery
voltage is critically low
(below 4V). Replace
transmitter batteries.

Throttle Dual Rate

Adjusts the maximum
amount of throttle the
vehicle can be given

Steering Dual Rate

Adjusts the amount
the rudder moves
when the steering
wheel is turned
left or right

Throttle Trim

Adjusts the neutral
point of the electronic
speed control

Steering Trim

Adjust to make
the vehicle drive
straight with
no input at the
steering wheel

Reverse Switch

Allows you to change the direction of
steering (ST. REV) and throttle (TH. REV)
controls (Ensure proper function with a
radio system test).

Power Switch

Power on or off the transmitter

Steering Wheel

Control steering.
Right and Left
steering

Throttle Trigger

Forward

Stop

Reverse

Controls power
to the motor
for forward
or reverse

Transmitter Battery Installation

Battery Charger

Choose a charger designed to charge the recomended
battery. We recommend either the Dynamite Prophet™
Sport Plus 50W AC/DC Charger or the Dynamite Prophet
Sport Duo 2 X 50W charger. Refer to your charger
manual for charging instructions and safety information.

This transmitter requires 4 AA batteries.

1. Remove the battery cover from
the transmitter.

2. Install the batteries as shown.

3. Install the battery cover.

CAUTION: If using rechargeable batteries, charge

only rechargeable batteries. Charging non-recharge­able batteries may cause the batteries to burst, resulting
in injury to persons and/or damage to property.

NOTICE: Never charge a battery in the boat or damage
may result.

5

Blackjack 24

EN

Antenna Tube Installation

Install the receiver antenna in the tube as shown.

Keep the end of the antenna above the boat’s
waterline to get the best transmitter reception.
Apply clear tape (DYNM0102), if desired.

Installing the Battery Pack

1. Loosen the 2 screws on the rear of the canopy.

2. Carefully lift the rear of the canopy and pull back to

disengage the 2 front pins from the hull.

NOTICE: Do not cut or kink the
receiver antenna or damage may
result.

3. Install the battery in the compartment. Secure it with
the hook and loop straps. If running your boat in
rougher water conditions, the use of Waterproof Hook
and Loop Tape (DYNK0300) may also be needed to
fully secure the battery.

4. Connect the battery pack to the ESC power
connector.

Tip: Move the packs forward or back to adjust the
center of gravity for your boat. Move the packs toward
the bow so the bow rides lower in the water. Move
the packs away from the bow so that the bow rides
higher in the water.

6

Blackjack 24

Low Voltage Cutoff (LVC)

EN

Discharging a Li-Po battery below 3V per cell may
damage your battery.The included ESC protects the boat
battery from over-discharge using Low Voltage Cutoff
(LVC). Before the battery charge decreases too much,
LVC removes power supplied to the motor. Power to
the motor pulses, showing that some battery power is
reserved for boat control and safe landing.

Disconnect and remove the Li-Po battery from the boat
after use to prevent trickle discharge. Charge your Li-Po
battery to about half capacity before storage. During
storage, make sure the battery charge does not fall below
3V per cell. LVC does not prevent the battery from over­discharge during storage.

NOTICE: Repeated operation to LVC will damage the
battery.

Tip: Monitor your boat battery's voltage before and
after boating by using a Li-Po Cell Voltage Checker
(DYN4071, sold separately).

Battery Chemistry

The ESC comes from the factory in Li-Po Mode. To
change battery chemistry:

1. Keep the throttle at neutral and power ON the ESC.

2. Press and hold the Battery Chemistry Button on the

power switch for 3 seconds. The LED flashes the
current battery chemistry (red = Ni-MH or Ni-Cd,
green = Li-Po).

3. Continue holding the Battery Chemistry Button
for another 6 seconds. The ESC changes battery
chemistry and the LED flashes the new battery
chemistry.

4. Power OFF the ESC. The ESC saves the setting until
it is changed.

Battery Chemistry
Button

On/Off Switch

1

2

Getting Started

1. Power on the transmitter. Ensure the throttle is not
reversed and the throttle trim is neutral.

2. Connect the battery to the ESC.

3. Power on the ESC switch. The ESC automatically

calibrates the throttle range after 3 seconds, if the
throttle is neutral and untouched. A beep will sound,
indicating battery chemistry and cell count:

• 1 beep: Ni-MH or Ni-Cd

• 2 beeps: 2S Li-Po

• 3 beeps: 3S Li-Po

One short beep will sound when the ESC is ready
to run.

4. Test the transmitter’s control of the boat with the
boat on the display stand.

3

4

7

Blackjack 24

EN

Range Check

IMPORTANT: Perform a range check at the beginning

of each boating session, after repair or after installation
of new batteries.

Ensure the receiver antenna is extended properly and all
batteries are fully charged.

1. With the radio system powered on and connected,
walk away from your boat 90 feet (32 m).

2. Have an assistant remain with the boat to check for
proper control movement of the rudder in response to
your transmitter input.

3. If everything appears to be operating correctly,
prepare to operate the boat in the water.

NOTICE: Do not operate the motor without water
cooling circulation or damage may result.

Testing Your Boat in the Water

Tip: Before placing your boat in the water, secure the

canopy on the hull. Apply clear tape (DYNM0102), if
desired.

1. Carefully place the boat in the water.

2. Operate the boat at slow speeds near the shoreline.

Avoid objects in the water at all times. When the
boat is moving forward, ensure water flows out of
the coolant outlet. Remove any blockage from the
rudder inlet and coolant system or the motor and ESC
(electronic speed control) may overheat.

3. Once you are comfortable operating the boat at slow

speeds, it is safe to operate the boat farther from the
shore.

4. If the boat does not go straight, adjust the steering

trim dial on the transmitter.

5. Bring the boat back to shore when you notice the
boat starting to lose speed.

6. Power off the ESC and disconnect the battery pack.

7. Allow the motor, ESC and battery packs to cool before

charging the battery or operating the boat again.

NOTICE: Do not turn off the transmitter first or the
receiver may pick up stray signals and run out of
control.

Tip: If you are using too much steering trim on your
transmitter to make the boat drive straight, return the
trim to neutral and mechanically center the rudder.
To do this, remove the ball link from the rudder horn,
then turn the ball link on the linkage threads until the
rudder is properly centered. Use needle-nose pliers or
ball link pliers (RVO1005) to remove or install a link on
a control horn.

8

Blackjack 24

Boating Tips

EN

When running your boat for the first time, we
recommend calm wind and water conditions so that you
can learn how the boat responds to your control.

Maximum speeds are only achieved when the water
conditions are smooth and there is little wind. A sharp
turn, wind or waves can turn over a boat when it is
moving quickly. Always pilot your boat for the wind and
water conditions so that the boat does not turn over.

Consult local laws and ordinances before choosing a
location to pilot your boat.

Avoid boating near:

• watercraft

• people (swimming areas, fishing areas)

• stationary objects

• waves, wakes

• rapidly moving water

• wildlife

• floating debris

• overhanging trees

• vegetation

If the propeller and rudder are blocked with debris or
vegetation, remove the boat from the water and remove
the debris before continuing operation.

When making turns, decrease the throttle to reduce the
probability of flipping the boat over.

Never operate your boat in less than 12 inches (30.5 cm)
of water.

If you need to retrieve your boat from the water, use
fishing equipment or another boat.

NOTICE: When running at full speed in choppy waters,
the prop may exit and re-enter the water repeatedly and
very quickly, subjecting the propeller and flex shaft to
some stress. Frequent stress may damage the propeller
and flex shaft.

CAUTION: Never operate your boat in extreme
temperatures or turbulent water.

CAUTION: Never attempt to retrieve a downed
boat by swimming.

When you are Finished

1. Power off the receiver.

2. Power off the transmitter.

2 31

Tip: Always remove the canopy before storage or

moisture may allow mold and mildew to grow in
the boat.

3. Disconnect and remove the
battery from the boat.

9

Blackjack 24

EN

After Boating and Maintenance

• Drain water from inside the hull using the drain plug

• Fully dry the inside and outside of the boat, including

the water cooling lines and jacket around the motor

• Remove the hatch before storing your boat

• Repair any damage or wear to the boat

• Lubricate the flex shaft using Pro Boat Marine Grease

(PRB0100)

• Make note of lessons learned from the trimming of
your boat, including water and wind conditions

Tip: The hook and loop strips in the boat retain water.
To dry them, press on them with a dry cloth.

NOTICE: When you are finished boating, never leave the
boat in direct sunlight or in a hot, enclosed area such as
a car. Doing so can damage the boat.

Binding

Binding is the process of programming the receiver to
recognize the GUID (Globally Unique Identifier) code of a
single specific transmitter. The included transmitter and
receiver are bound at the factory. If you need to rebind,
follow the instructions below.

1. Power off the transmitter and ESC.

2. Connect a fully charged battery pack to the ESC.

3. Power on the ESC. The RED LED on the ESC flashes.

4. Press the bind button (A) on the receiver.

The RED LED on the ESC flashes rapidly.

5. Power on the transmitter.

6. The RED LED on the ESC turns solid when

the radio system is bound.

You must rebind when binding the
receiver to a different transmitter.

Failsafe

In the unlikely event that the radio connection is lost
during use, the receiver will drive the servos to their pre
programmed failsafe positions (normally no throttle and
straight steering).

A

NOTICE: Do not attempt to bind the transmitter and

receiver if there are other compatible transmitters in
bind mode within 400 feet. Doing so may result in
unexpected binding.

If the receiver is powered on before powering on the
transmitter, the receiver will enter this failsafe mode.
When the transmitter is powered on, normal control is
resumed.

Motor Care

• Prolong motor life by preventing overheating
conditions. Undue motor wear results from frequent
turns, stops and starts, pushing objects, boating in
rough water or vegetation and boating continuously at
high speed.

10

• Over-temperature protection is installed on the ESC to
prevent circuit damage, but cannot protect the motor
from pushing against heavy resistance.

Blackjack 24

Water Cooling System

EN

If water does not stream out of the water outlets while
the boat is moving forward, immediately stop the boat
and clean the obstruction from the water cooling system.

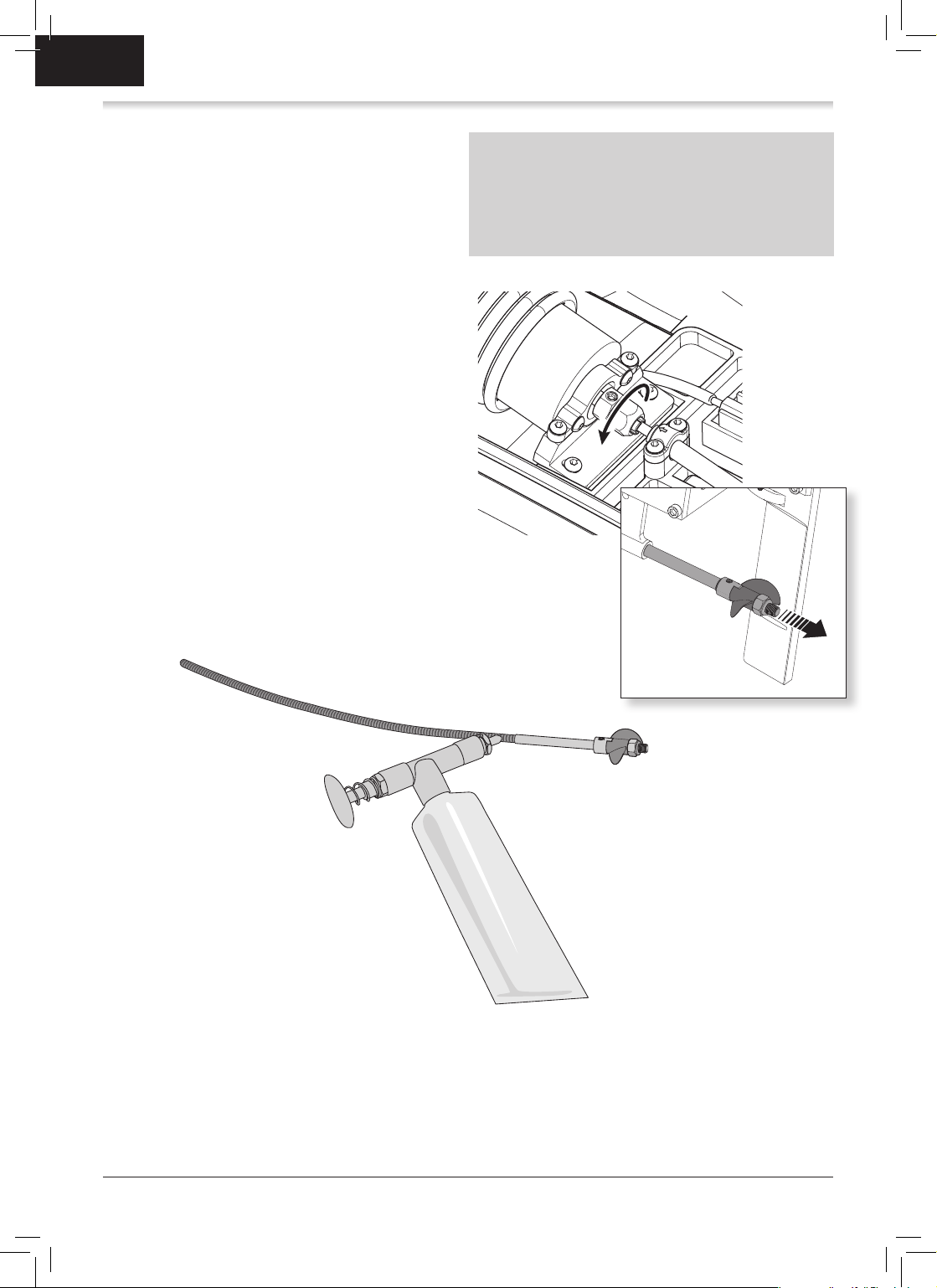

Rudder Service

1. Disconnect the water tube from the rudder.

2. Remove the linkage from the rudder arm with Ball Link

Pliers.

3. Turn the rudder and loosen the set screw from the
rudder pin.

4. Turn over the boat and lightly tap the rudder to
remove the pin.

5. Assemble in reverse order.

1. Disassemble and clean the water cooling system to

remove blockage and prevent overheating.

2. Replace damaged parts.

Propeller Service

1. Use an 8mm nut driver (DYN2805) to loosen the nut
from the driveshaft.

2. Remove the nut and propeller from the driveshaft.

3. Assemble in reverse order. Correctly align the

propeller with the drive dog on the driveshaft.

Prop Angle Adjustment

Raising the drive strut increases speed, but also
decreases steering response and increases cavitation.

Lowering the drive strut increases steering response, but
also increases steering sensitivity and decreases speed.

1. Loosen 2 bolts and 2 nuts from the drive strut on the
rear of the boat.

2. Slide the strut up or down to change the angle of the
propeller in relation to the hull.

3. Adjust as desired and tighten the nut and bolt.

11

Blackjack 24

EN

Drivetrain Lubrication

Always replace the drivetrain parts when they are
damaged or show visible wear or injury and damage may
result.

Lubricating the flex shaft is vital to the life of the
drivetrain. The lubricant also acts as a water seal, keeping
water from entering the hull through the stuffing tube.

Lubricate the flex shaft and all moving parts after every
30 minutes of operation. Lubricate the drive strut after
every 90 minutes of operation.

1. In the hull, use a 10mm open-end wrench to loosen
the collet nut from the flex shaft.

2. Slide the flex shaft out from the stuffing tube and
drive strut at the rear of the boat.

Tip: Use paper or cloth to touch the flex shaft and other
lubricated parts.

3. Wipe the old lubricant and material from the flex
shaft.

4. Lubricate the full length of the flex shaft assembly
up to the drive dog using marine grease (PRB0101 or
PRB0100). Also apply grease to the collet threads.

5. Carefully reinstall the flex shaft in the drive strut,
stuffing tube and collet. If the flex shaft is difficult to
remove or install in the collet, use a flat screwdriver to
spread the grips of the collet.

Ensure there is a 1–2mm gap between the drive strut and
drive dog to allow for flex shaft shrinkage under load.

NOTICE: Running the boat in saltwater could cause some
parts to corrode. If you run the boat in saltwater, rinse it
thoroughly in freshwater after each use and lubricate the
drive system.

NOTICE: Because of its corrosive effects, running RC
boats in saltwater is at the discretion of the modeler.

12

Blackjack 24

Troubleshooting Guide

EN

Problem Possible Cause Solution

Boat will not respond
to throttle but responds
to other controls

Extra noise or extra
vibration

Reduced runtime or
boat underpowered

Boat will not Bind
(during binding) to
transmitter

Boat will not connect
(after binding) to
transmitter

Boat tends to dive in
the water or takes on
water

Boat tends to turn one
direction

Rudder does not move

Throttle channel is reversed Reverse throttle channel on transmitter

Damaged propeller, shaft or motor Replace damaged parts

Propeller is out of balance Balance or replace propeller

Boat battery charge is low Completely recharge battery

Boat battery is damaged

Blocking or friction on shaft or propeller Disassemble, lubricate and correctly align parts

Boat conditions may be too cold

Battery capacity may be too low
for conditions

Drive dog is too near the drive strut

Too little lubrication on flex shaft Fully lubricate flex shaft

Vegetation or other obstacles block
the rudder or propeller

Transmitter is too near boat during
binding process

Boat or transmitter is too close to large
metal object, wireless source or
another transmitter

Another compatible transmitter is
powered on within range of the
receiver

Boat battery/Transmitter battery charge
is too low

ESC switch is off Power on ESC switch

Transmitter is too near boat during
connecting process

Boat or transmitter is too close to large
metal object, wireless source or an­other transmitter

Boat battery/transmitter battery charge
is too low

ESC switch is off Power on ESC switch

The boat hull is not completely closed

Center of gravity is too far forward Move batteries back in the hull

Rudder or rudder trim is not centered

Rudder, linkage or servo damage

Steering servo wire is damaged or
connections are loose

Transmitter is not bound correctly Re-bind

BEC (Battery Elimination Circuit) of the
ESC is damaged

ESC switch is off Power on ESC switch

Replace boat battery and follow
battery instructions

Make sure the battery is warm (above 10º C
(50º F)) before use

Replace battery or use a larger capacity battery

Loosen motor coupling on flex shaft and move
flex shaft a small amount

Remove vegetation or obstacles from rudder or
propeller

Move powered transmitter a few feet from boat,
disconnect and reconnect battery to boat

Move the boat and transmitter to another location
and attempt binding again

Power off all compatible transmitters
except the one you are trying to bind

Replace/recharge batteries

Move powered transmitter a few feet from boat,
disconnect and reconnect battery to boat

Move boat or transmitter to another location and
attempt to connect again

Replace/recharge batteries

Dry out the boat and ensure the hatch is fully
closed on the hull before returning the boat
to the water

Repair rudder or adjust rudder and rudder trim
for straight running when control is at neutral

Replace or repair damaged parts and adjust con­trols

Do a check of steering servo wires and connec­tions, connect or replace as needed

Replace ESC

13

Blackjack 24

EN

Problem Possible Cause Solution

Controls reversed Transmitter settings are reversed

Motor overheats Blocked water cooler tubes Clean or replace water tubes

ESC uses default soft Low Voltage

Motor power pulses
then motor loses power

Cutoff (LVC)

Weather conditions might be too cold Postpone until weather is warmer

Battery is old, worn out or damaged Replace battery

Do the Control Direction Test and adjust controls
on transmitter appropriately

Recharge boat battery or replace battery that is no
longer performing

LIMITED WARRANTY

What this Warranty Covers

Horizon Hobby, LLC (Horizon) warrants to the original
purchaser that the product purchased (the "Product") will
be free from defects in materials and workmanship at the
date of purchase.

What is Not Covered

This warranty is not transferable and does not cover
(i) cosmetic damage, (ii) damage due to acts of God,
accident, misuse, abuse, negligence, commercial
use, or due to improper use, installation, operation or
maintenance, (iii) modification of or to any part of the
Product, (iv) attempted service by anyone other than a
Horizon Hobby authorized service center, (v) Product
not purchased from an authorized Horizon dealer, or (vi)
Product not compliant with applicable technical regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE,
HORIZON MAKES NO OTHER WARRANTY OR
REPRESENTATION, AND HEREBY DISCLAIMS ANY AND
ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT
LIMITATION, THE IMPLIED WARRANTIES OF NON­INFRINGEMENT, MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. THE PURCHASER
ACKNOWLEDGES THAT THEY ALONE HAVE
DETERMINED THAT THE PRODUCT WILL SUITABLY
MEET THE REQUIREMENTS OF THE PURCHASER’S
INTENDED USE.

Purchaser’s Remedy

Horizon’s sole obligation and purchaser’s sole and
exclusive remedy shall be that Horizon will, at its option,
either (i) service, or (ii) replace, any Product determined
by Horizon to be defective. Horizon reserves the right to
inspect any and all Product(s) involved in a warranty claim.
Service or replacement decisions are at the sole discretion
of Horizon. Proof of purchase is required for all warranty
claims. SERVICE OR REPLACEMENT AS PROVIDED
UNDER THIS WARRANTY IS THE PURCHASER’S SOLE
AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL,
INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS OR PRODUCTION OR
COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF
WHETHER SUCH CLAIM IS BASED IN CONTRACT,
WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR
ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. Further, in no event shall the liability of
Horizon exceed the individual price of the Product on
which liability is asserted. As Horizon has no control over
use, setup, final assembly, modification or misuse, no
liability shall be assumed nor accepted for any resulting
damage or injury. By the act of use, setup or assembly, the
user accepts all resulting liability. If you as the purchaser or
user are not prepared to accept the liability associated with
the use of the Product, purchaser is advised to return the
Product immediately in new and unused condition to the
place of purchase.

Law

These terms are governed by Illinois law (without regard to
conflict of law principals). This warranty gives you specific
legal rights, and you may also have other rights which vary
from state to state. Horizon reserves the right to change or
modify this warranty at any time without notice.

WARRANTY SERVICES

Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot
provide warranty support or service. Once assembly, setup
or use of the Product has been started, you must contact
your local distributor or Horizon directly. This will enable
Horizon to better answer your questions and service
you in the event that you may need any assistance. For
questions or assistance, please visit our website at www.
horizonhobby.com, submit a Product Support Inquiry,
or call the toll free telephone number referenced in the
Warranty and Service Contact Information section to speak
with a Product Support representative.

14

Blackjack 24

Inspection or Services

EN

If this Product needs to be inspected or serviced and is
compliant in the country you live and use the Product in,
please use the Horizon Online Service Request submission
process found on our website or call Horizon to obtain a
Return Merchandise Authorization (RMA) number. Pack
the Product securely using a shipping carton. Please note
that original boxes may be included, but are not designed
to withstand the rigors of shipping without additional
protection. Ship via a carrier that provides tracking and
insurance for lost or damaged parcels, as Horizon is not
responsible for merchandise until it arrives and is accepted
at our facility. An Online Service Request is available
at http://www.horizonhobby.com/content/_service­center_render-service-center. If you do not have internet
access, please contact Horizon Product Support to obtain
a RMA number along with instructions for submitting
your product for service. When calling Horizon, you will
be asked to provide your complete name, street address,
email address and phone number where you can be
reached during business hours. When sending product
into Horizon, please include your RMA number, a list of
the included items, and a brief summary of the problem.
A copy of your original sales receipt must be included for
warranty consideration. Be sure your name, address, and
RMA number are clearly written on the outside of the
shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you
have any issue with a LiPo battery, please contact the
appropriate Horizon Product Support office.

Warranty Requirements

For Warranty consideration, you must include your original
sales receipt verifying the proof-of-purchase date. Provided
warranty conditions have been met, your Product will be
serviced or replaced free of charge. Service or replacement
decisions are at the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service
will be completed and payment will be required without
notification or estimate of the expense unless the expense
exceeds 50% of the retail purchase cost. By submitting
the item for service you are agreeing to payment of
the service without notification. Service estimates are
available upon request. You must include this request with
your item submitted for service. Non-warranty service
estimates will be billed a minimum of ½ hour of labor.
In addition you will be billed for return freight. Horizon
accepts money orders and cashier’s checks, as well as
Visa, MasterCard, American Express, and Discover cards.
By submitting any item to Horizon for service, you are
agreeing to Horizon’s Terms and Conditions found on our
website http://www.horizonhobby.com/content/_service­center_render-service-center.

ATTENTION: Horizon service is limited to Product
compliant in the country of use and ownership.

If received, a non-compliant Product will not be
serviced. Further, the sender will be responsible for
arranging return shipment of the un-serviced Product,
through a carrier of the sender’s choice and at the
sender’s expense. Horizon will hold non-compliant
Product for a period of 60 days from notification, after
which it will be discarded.

Warranty and Service Contact Information

Country of

Purchase

United States of

America

United Kingdom

Germany

France

China

Horizon Hobby Contact Information Address

Horizon Service Center

(Repairs and Repair

Requests)

Horizon Product Support

(Product Technical

Assistance)

Sales

Service/Parts/Sales:

Horizon Hobby Limited

Horizon Technischer

Service

Sales: Horizon Hobby

GmbH

Service/Parts/Sales:
Horizon Hobby SAS

Service/Parts/Sales:

Horizon Hobby – China

servicecenter.horizonhobby.

com/RequestForm/

www.quickbase.com/db/

bghj7ey8c?a=

GenNewRecord

888-959-2306

[e-mail]

888-959-2306

[e-mail]

[phone]

[e-mail]

[phone]

[e-mail]

[phone]

[e-mail]

[phone]

4105 Fieldstone Rd

Champaign, Illinois, 61822 USA

Units 1–4 , Ployters Rd, Staple Tye
Harlow, Essex, CM18 7NS, United

Kingdom

Christian-Junge-Straße 1

25337 Elmshorn, Germany

11 Rue Georges Charpak

77127 Lieusaint, France

Room 506, No. 97 Changshou Rd.

Shanghai, China 200060

15

Blackjack 24

EN

FCC Information

This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

This product contains a radio transmitter with wireless
technology which has been tested and found to be
compliant with the applicable regulations governing a
radio transmitter in the 2.400GHz to 2.4835GHz frequency
range.

IC Information

This device complies with Industry Canada licence­exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause
interference, and (2) this device must accept any
interference, including interference that may cause
undesired operation of the device.

Compliance Information for the European Union

Declaration of Conformity

(in accordance with ISO/IEC 17050-1)

HH2014060504U1

Product(s): Blackjack 24 Catamaran BL RTF
Item Number(s): PRB08007C
Equipment class: 1

The object of declaration described above is in conformity
with the requirements of the specifications listed below,
following the provisions of the European R&TTE Directive
1999/5/EC, EMC Directive 2004/108/EC and LVD
Directive 2006/95/EC:

EN 300-328 V1.8.1
EN 301 489-1 V1.9.2: 2012
EN 301 489-17 V2.1.1: 2009

Instructions for Disposal of WEEE by

Users in the European Union

This product must not be disposed of with other waste.
Instead, it is the user’s responsibility to dispose of their
waste equipment by handing it over to a designated
collection point for the recycling of waste electrical
and electronic equipment. The separate collection and
recycling of your waste equipment at the time of disposal
will help to conserve natural resources and ensure that it
is recycled in a manner that protects human health and
the environment. For more information about where you
can drop off your waste equipment for recycling, please
contact your local city office, your household waste
disposal service or where you purchased the product.

EN 62311: 2008
EN 60950-1:2006+A11:2009+A1:2010+A12: 2011

EN 55022:2010 + AC:2011
EN 55024:2010

Signed for and on behalf of:
Horizon Hobby, LLC
Champaign, IL USA
October 27, 2014

Executive Vice President Product Divisions

Horizon Hobby, LLC

16

Mike Dunne
