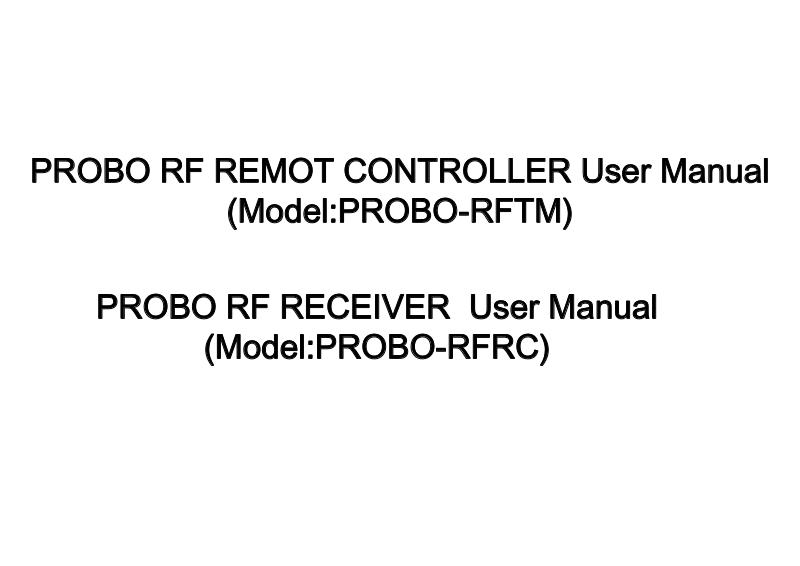

PROBO RF REMOT CONTROLLER User Manual
(Model:PROBO-RFTM)
PROBO RF RECEIVER User Manual
(Model:PROBO-RFRC)
General outline
It is a 2.4 GHZ receiver & send operation that can connect with the robot controller and then
use the remote control to control robot motions.
Product configuration
battery case
RF remotecontroller
RF receiver cover
RF receiver board
power cable
battery cover
How to install a RF receiver board
Install the RF receiver board into the CPU block
and do not separate them.
How to replace batteries and power on
-
RF receiver cover
RF receiver board
* Make sure the RF receiver board is
inserted in the correct direction.
+
-
+
Slide the cover down and put batteries into the controller.
Make sure positive (+) and negative (-) ends in a battery
face the correct direction.
Press the POWER switch to turn the power on,
and the LED light on the front side will flicker
How to pair RF controller with RF receiver
Pairing means you connect your RF controller and RF receiver so that they communicate with each other by signals.
How to initially pair
1
pairing
switch
Flickering light
Pairing Switch
Flickering light
Turn on the RF controller and the
2
Pairing registration is completed
If the LED lights on the receiver and
How to reconnect with the paired robot
3
slowly flickering
Power
slowly flickering
Once the robot is paired with the
CPU block. Press the pairing switch
on the RF receiver. The LED light
will be flickering quickly while
searching for the signal.
controller stay on and no longer
flicker, pairing is completed. Press any
button on the controller to check if
the LED on the receiver is turned on.
controller, its RF receiver is automatically
connected to the registered equipment.
The LED light on the receiver will slowly
be flickering.
Component descriptions
Pairing LED
-Voltage: 3V , Current: 10mA
-Pairing Switch detection Led
Pairing KEY
-Switch for connecting
remote and receiver
Key LED
-Voltage: 3V , Current: 10mA
-In case received data
RF Chip(nRF24l01+)
-SPI Interface up to 1M/bit
-Worldwide 2.4GHz ISM Band operation
-3.3V Voltage operation
Top View
Component descriptions
Button : Button to control forward motion
Button : Button to control backward motion
Button : Button to control turn left motion
Button : Button to control turn right motion
Button : Button to control motion 1
~
Button : Button to control motion 4
Battery LED
-In case need to change battery
Pairing KEY & LED
-Pairing Switch detection Led
-Switch for connecting receiver
Worldwide 2.4GHz ISM Band operation
3.3V Voltage operation
Working LED
-In case sending data
Power Key
-In case Turn On/Off
Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
