Page 1
M10
Manual
M10
Monitor Speaker
Page 2
2
Dear user,
first of all we would like to say a big thank you for your decision
and the confidence you were thus placing in us.
On the following pages you will find important information and
technical instructions regarding the correct usage and care of the
loudspeaker.
Pleae read this manual carefully before initial operation and do
observe all safety instructions.
This manual is an essential part of the product. Please keep the
manual in a safe place for future reference to have it at hand,
should any questions or uncertainties arise.
If you pass on the product to a third party, among other things,
you need to make sure that the manual is enclosed with the
product.
In case you might need additional manuals, we ask you to
contact us.
Contents:
• Symbols....................................... 2
• General Safety and Care Instructions ................. 3
• Description and Use .............................. 4
• Operation on System Amplifiers ..................... 4
• Operating Modes
[1] M10 Fullrange ............................... 5
[2] M10 with Subwoofer .......................... 6
• Drawings / Dimensions ........................... 7
• Technical Specifications........................... 7
• Disposal....................................... 7
• Declaration of Conformity
................. 7
ProAudio Technology GmbH
Gruenstrasse 13
79232 Hugstetten
Germany
Phone: +49 (0) 76 65 / 94 23 23 - 0
Fax: +49 (0) 76 65 / 94 23 23 - 9
[email protected]
www.proaudio-technology.de
Information on the manual:
Manual
M10 Monitor Speaker Version 1.0 ENG
ProAudio Technology Last update January 2015
Copyright © ProAudio Technology GmbH
Items delivered:
• M10 Monitor Speaker
• Manual
Symbols:
Hazardous
voltage
Caution
danger
Strictly
observe
Page 3
M10
3
General Safety Instructions:
Professional loudspeakers can produce harmful sound pressure
levels. SPLs above 95 dB can permanently damage your hearing.
Observe the relevant guidelines regarding working safety and
health protection.
To avoid physical and personal damages due to loudspeakers
dropping or tumbling over, please make sure that the speakers
stand safely on a firm ground.
Vertically stacked loudspeakers must be secured sufficiently with
tension belts against unintentional movement.
Check all cabinets and accessories regularly for wear, especially
the flying rails and the tripod flange. Replace them if necessary.
Make sure that during operation on spacer tubes, no persons will
stand close to the loudspeakers.
Use only accessory parts specified by ProAudio Technology or
original accessory parts from ProAudio Technology.
Loudspeakers always produce a magnetic field. Make sure
that during transport, setup and disassembly and also during
operation of the loudspeakers no objects (such as laptops,
harddisk drives, credit cards and the likes) get close to the
speakers which could become damaged by the magnetic field.
People who have a pacemaker must keep a safety clearance.
The minimum recommended safety clearance is 1 m.
Do not set up the loudspeakers in places where they are
permanently exposed to moisture, dust, dirt or direct sunlight.
Care:
Wipe the surface of loudspeakers only with a damp cloth and
pure water.
In case of heavy pollution, repeat the above procedure several
times if necessary.
Do not use any chemical additives or aggressive detergents, as
these may harm and damage the surfaces.
Page 4
4
Note:
Only one 4-pole cable is
required to connect 2-channel
configurations of several M10 and
SW12 and SW18 subwoofers.
Only one 4-pole cable is required
to connect two e.g. monitor paths
elegantly without additional
reversible cables.
Description:
The M10 is a compact 2-way monitor speaker with a built-in
passive frequency crossover.
It is equipped with a 10“ cone chassis with a water-repellent
coating and a 1“ high-frequency driver.
The directivity characteristic is 60 x 90 degrees (h x v).
This loudspeaker is to be used exclusively with the
ProAudio Technology system amplifiers.
Different setups enable a practice-oriented usage with or without
SW12 and SW18 subwoofers.
Alternatively amplifiers of the Hoellstern DELTA series with built-in
DSP may be used.
Should you have any questions, please contact
ProAudio Technology regarding this subject.
Cabinet:
The cabinet is made of 15 mm birch multiply wood and coated
with a robust 2-component texture paint finish.
Two handles and four stacking feet are standard.
A water-repellent, black acoustic foam has been placed behind
the front grille.
Connection:
The connections are made on the rear side through a total of four
Neutrik NL4 SpeakON sockets which are angled in two directions
by 45 degrees relative to the rear cabinet wall.
Three of the four sockets are wired in parallel with each other.
Pin pair 1 is connected to the speaker chassis.
On the fourth SpeakON socket, which is marked correspondingly
and rotated by 180 degrees, the pins are reversed. Pin pair 2 is
connected to the speaker.
Combinations of M10 and subwoofers, which are fed via a 4pole lead, must be connected only to the non-marked SpeakON
sockets!
Never use the marked SpeakON socket that is arranged rotated
by 180 degrees.
Operation on System Amplifiers:
The amplifier configuration software will display help texts for the
individual loudspeakers. Select a setup which contains the name
“M10“.
On the DELTA6.2-DSP system amplifier a maximum of eight M10
can be driven per channel.
On the DELTA8.4-DSP system amplifier a maximum of four M10
can be driven per channel.
On the DELTA14.4-DSP system amplifier a maximum of eight M10
can be driven per channel.
Details will be shown by the software upon entering the number
of M10 speakers per channel.
Note:
Use the M10 monitor speaker
exclusively on system amplifiers
with the available setups.
Otherwise there will be a risk
of damage and inadequate
performance.
Page 5
M10
5
b
a
DELTA 8.4-DSP
3 41 2
DELTA 8.4-DSP
c
1 2 1
DELTA 8.4-DSP
3 41 2

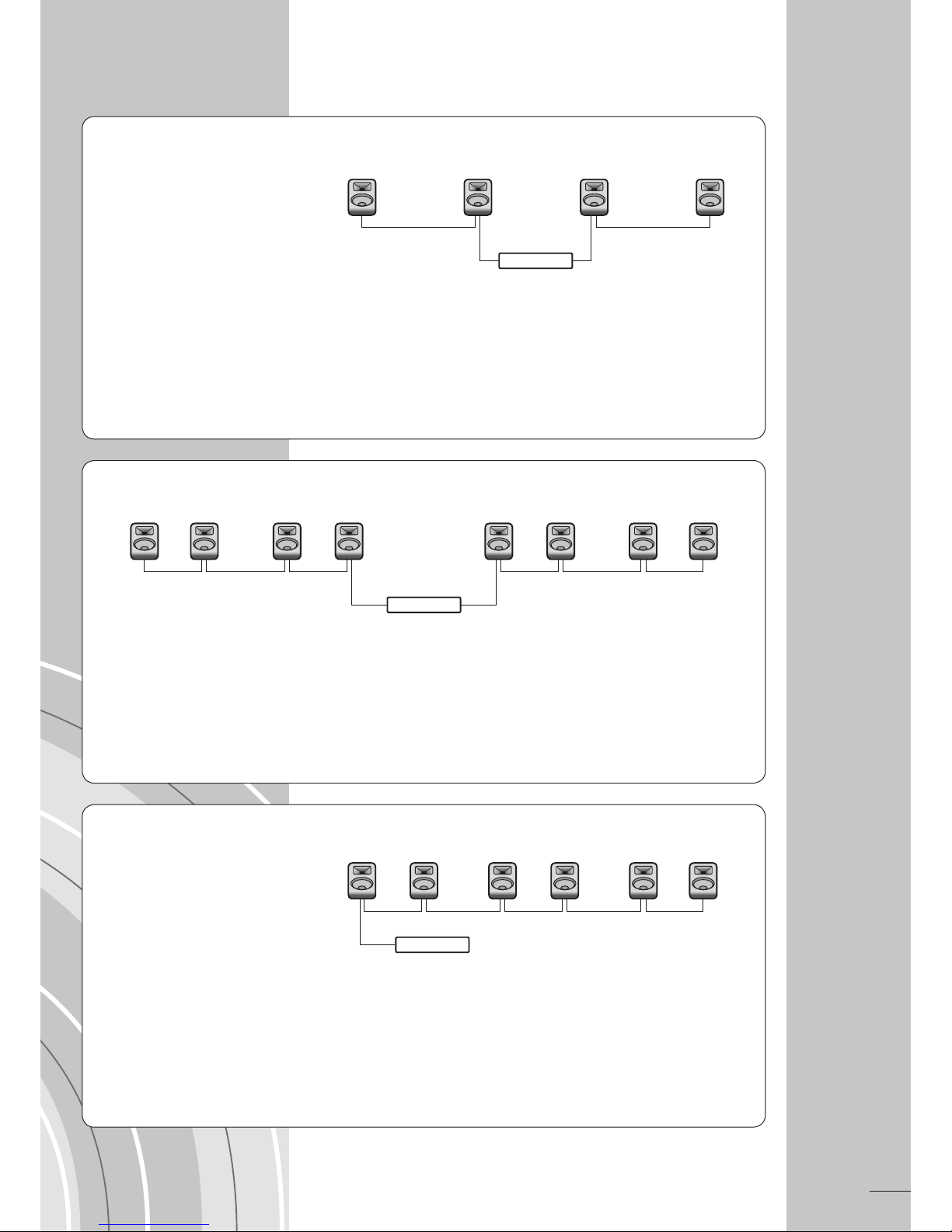

Operation mode 1 : M10 Fullrange
The four loudspeakers are wired using two 4-pole speaker cables.
The connection leads between the loudspeakers must be 4-pole as well.
Each amplifier channel will drive one speaker.
Four amplifier channels will be assigned.
The eight loudspeakers are wired using 4-pole speaker cables.
Each amplifier channel will drive two speakers.
Four amplifier channels will be assigned.
The six loudspeakers are wired using 4-pole speaker cables.
The four speakers (1) and the two speakers (2) will be driven by a dedicated
amplifier channel.
Two amplifier channels will be assigned.
Channels three and four may be used to set up an identical configuration.
Page 6
6
d
2 p
f 1 3 p
f 4
DELTA 8.4-DSP
e
3 / 41 / 2
DELTA 8.4-DSP
f
3 4
1 / 2
DELTA 8.4-DSP

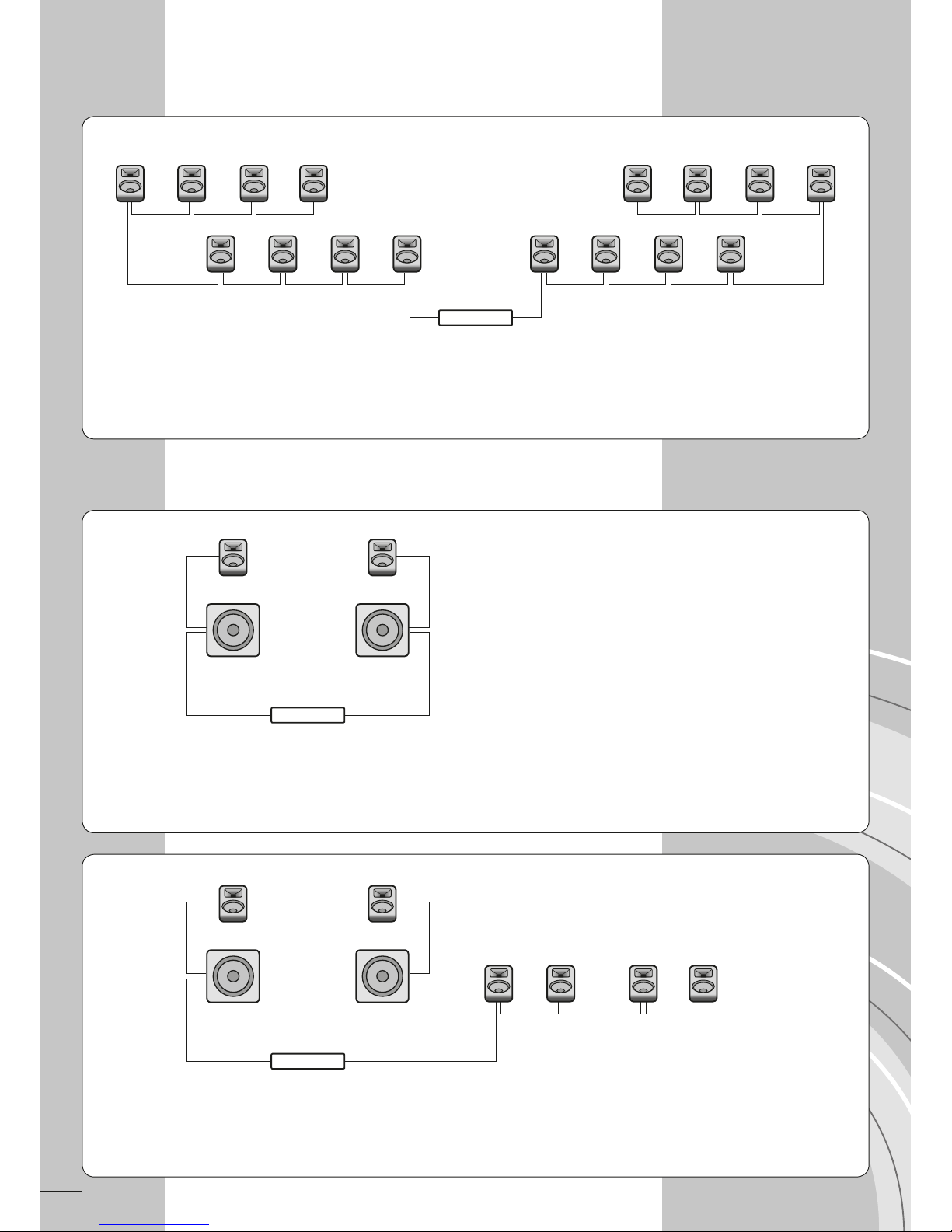

The sixteen loudspeakers are wired using 4-pole speaker cables.
Each amplifier channel will drive four speakers.
Four amplifier channels will be assigned.
One subwoofer and one monitor are connected per side using 4-pole speaker cables.
Each amplifier channel will drive one subwoofer and one monitor in stereo mode.
Four amplifier channels will be assigned.
Operation mode 2 : M10 with Subwoofer
The two subwoofers and the monitors are connected using 4-pole speaker cables.
Each amplifier channel will drive two subwoofers and two monitors.
Four amplifier channels will be assigned.
Page 7
M10
7
290 mm
340 mm
495 mm
Technical Specifications:
Drivers 1 x 10" Neodymium
1 x 1" Neodymium
Power handling (RMS / programme) 300 W / 600 W
Nominal impedance 16 ohms
Frequency response 70 – 22,000 Hz (via system amplifier)
Max. SPL (1 m, free field) 127 dB peak (via system amplifier)
Connections Four SpeakON NL4 on rear side:
• 3 x speaker PIN 1+ / 1–
• 1 x speaker PIN 2+ / 2–
Dimensions (H x W x D) 340 x 290 x 495 mm / 13.4" x 11.4" x 19.5"
Weight 13 kg / 28.6 lbs.
Accessories • CASE-M10 Case for M10
• FB-MT Flying frame – suitable for M10, MT10, MT12
• 5 years warranty
• Made & engineered in Germany
Disposal:
The disposal of electric and electronic appliances must be done independently from domestic waste or public
collecting points. The relevant regulations must be observed and adhered to.
EU Conformity Declaration:
This declaration is valid for the M10 loudspeaker of the manufacturing company ProAudio Technology GmbH.
Included herein are all production items of the same type, as long as they have not been modified
subsequently in structural or electromechanical respect.
It is herewith confirmed that the mentioned products comply with the protection requirements of the relevant
EU directives. If you have any questions, we kindly ask you to get in touch with ProAudio Technology.

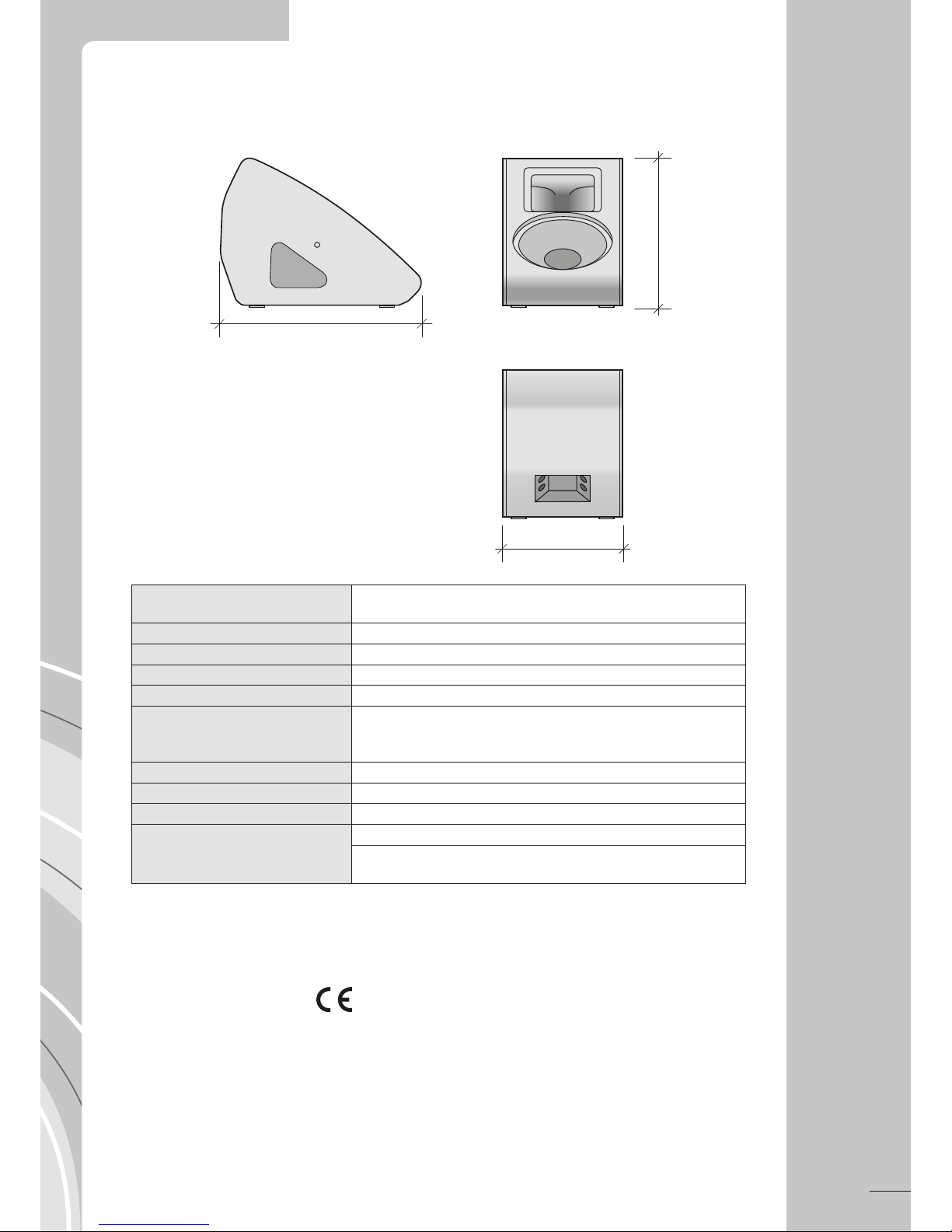

Drawings / Dimensions:
Rear view:
Front view:Side view:
Page 8
M10
ProAudio Technology GmbH
Gruenstrasse 13
79232 Hugstetten
Germany
Phone: +49 (0) 76 65 / 94 23 23 - 0
Fax: +49 (0) 76 65 / 94 23 23 - 9
[email protected]
www.proaudio-technology.de
Manual M10 Monitor Speaker – 2015-01 ENG
