Page 1

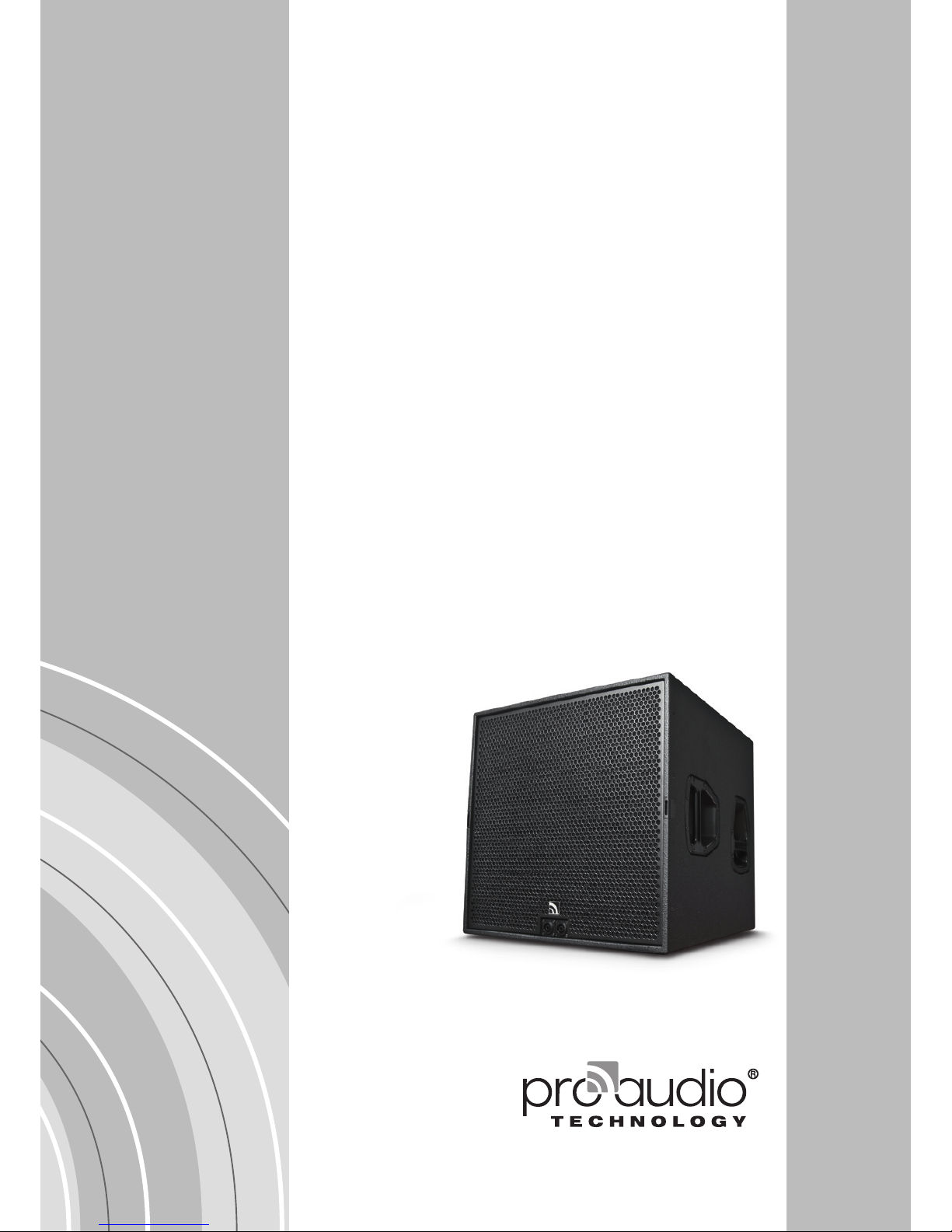

SW18

Manual

SW18

Subwoofer

Page 2

Dear user,

ﬁrst of all we would like to say a big thank you for your decision and the conﬁdence you were thus placing in us.

On the following pages you will ﬁnd important information and technical instructions regarding the correct usage and care of the loudspeaker.

Pleae read this manual carefully before initial operation and do observe all safety instructions.

This manual is an essential part of the product. Please keep the manual in a safe place for future reference to have it at hand, should any questions or uncertainties arise.

If you pass on the product to a third party, among other things, you need to make sure that the manual is enclosed with the product.

In case you might need additional manuals, we ask you to contact us.

ProAudio Technology GmbH

Hermann-Schwer-Strasse 3 78048 Villingen-Schwenningen Germany

Phone: +49 (0) 77 21 / 99 81 96 - 0 Fax: +49 (0) 77 21 / 99 81 96 - 9

[email protected] www.p

roaudio-technology.de

Symbols:

Hazardous

voltage

Caution

danger

Strictly

observe

Information on the manual:

Manual SW18 Subwoofer Version 1.1 ENG

ProAudio Technology Last update November 2012

Items delivered:

• Subwoofer

• Manual

Contents:

• Symbols

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

• General Safety and Care Instructions . . . . . . . . . . . . . . . . . 3

• Description and Use

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

• Operation on System Ampliﬁers . . . . . . . . . . . . . . . . . . . . . 4

• Operating Modes

[1] SW18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

[2] Mixed Operation SW18 and SW28 . . . . . . . . . . . . . . . . 6

[3] Mixed Operation SW18 and SW28 CSA . . . . . . . . . . . . 8

• Drawings / Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

• Technical Speciﬁcations

. . . . . . . . . . . . . . . . . . . . . . . . . . . 11

• Disposal

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

• Declaration of Conformity

. . . . . . . . . . . . . . . . . 11

Page 3

SW18

General Safety Instructions:

Professional loudspeakers can produce harmful sound pressure levels. SPLs above 95 dB can permanently damage your hearing. Observe the relevant guidelines regarding working safety and health protection.

To avoid physical and personal damages due to loudspeakers dropping or tumbling over, please make sure that the speakers stand safely on a ﬁrm ground.

Vertically stacked loudspeakers must be secured sufﬁciently with tension belts against unintentional movement.

Check all cabinets and accessories regularly for wear, especially the ﬂying rails and the tripod ﬂange. Replace them if necessary. Make sure that during operation on spacer tubes, no persons will stand close to the loudspeakers.

Use only accessory parts speciﬁed by ProAudio Technology or original accessory parts from ProAudio Technology.

Loudspeakers always produce a magnetic ﬁeld. Make sure that during transport, setup and disassembly and also during operation of the loudspeakers no objects (such as laptops, harddisk drives, credit cards and the likes) get close to the speakers which could become damaged by the magnetic ﬁeld. People who have a pacemaker must keep a safety clearance.

The minimum recommended safety clearance is 1 m.

Do not set up the loudspeakers in places where they are permanently exposed to moisture, dust, dirt or direct sunlight.

Care:

Wipe the surface of loudspeakers only with a damp cloth and pure water.

In case of heavy pollution, repeat the above procedure several times if necessary.

Do not use any chemical additives or aggressive detergents, as these may harm and damage the surfaces.

Page 4

Note:

Only one 4-pole cable is required to connect 2-channel combinations of several SW18 and tops.

Only one 4-pole cable is required to connect 2-channel sub arrays like e.g. 2 x 4 SW18.

Description:

The SW18 is a compact 18“ bassreﬂex subwoofer for sound systems with an active frequency crossover.

It can be used for all kinds of sound reinforcement, from standalone applications to massive cardioid subwoofer arrays. Large, symmetrically positioned bass reﬂex ports allow a controlled and loss-free low-end reproduction.

Operation is to be made (exclusively) using the ProAudio Technology system ampliﬁers. Two different setups – omnidirectional (front) and cardioid (front and rear) – enable a practice-oriented usage. Alternatively you can also use ampliﬁers of the Hoellstern DELTA series with built-in DSP. If you have any questions regarding this issue, please contact ProAudio Technology.

Cabinet:

The cabinet is made of 15 mm birch multiply wood and coated with a robust two-component texture paint ﬁnish. It is ﬁtted with four recessed handles, an M20 steel ﬂange, two front lid attachments and four stacking feet with matching recesses on the opposite side. Behind the front grille is a layer of black acoustic foam.

Connection:

The connections are made on the rear side through two Neutrik NL4 SpeakON sockets wired in parallel.

Pin pair 1 may be used to hook up tops (slave-through option). Pin pair 2 is connected to the subwoofer chassis.

There are two additional SpeakON connectors on the front side.

Pin pair 1 of the front sockets is connected to the subwoofer chassis. These connectors have been provided for optionally tapping off a second channel with sub arrays or cardioid sub arrays (CSA operation mode). The CSA mode will be explained in detail on the following pages of this manual.

Combinations of SW18 and tops, which are supplied via a 4-pole speaker cable, must only be connected at the rear SpeakON sockets of the SW18 subwoofers!

Never use the SpeakON sockets on the front side.

Operation on System Ampliﬁers:

The ampliﬁer conﬁguration software will display help texts for the individual loudspeakers. Select a setup which contains the name “SW18“. The “CSA“ (Cardioid Sub Array) option must be used for cardioid applications.

On the DELTA8.4-DSP system ampliﬁer up to two SW18 can be driven per channel.

On the DELTA14.4-DSP system ampliﬁer a maximum of four SW18 can be driven per channel.

Details will be shown by the software upon entering the number of SW18 subwoofers per channel.

Note:

Use the SW18 subwoofer only on system ampliﬁers with the available setups. Otherwise there may be a risk of damage and inadequate performance.

Page 5

SW18

FrontFront

Front

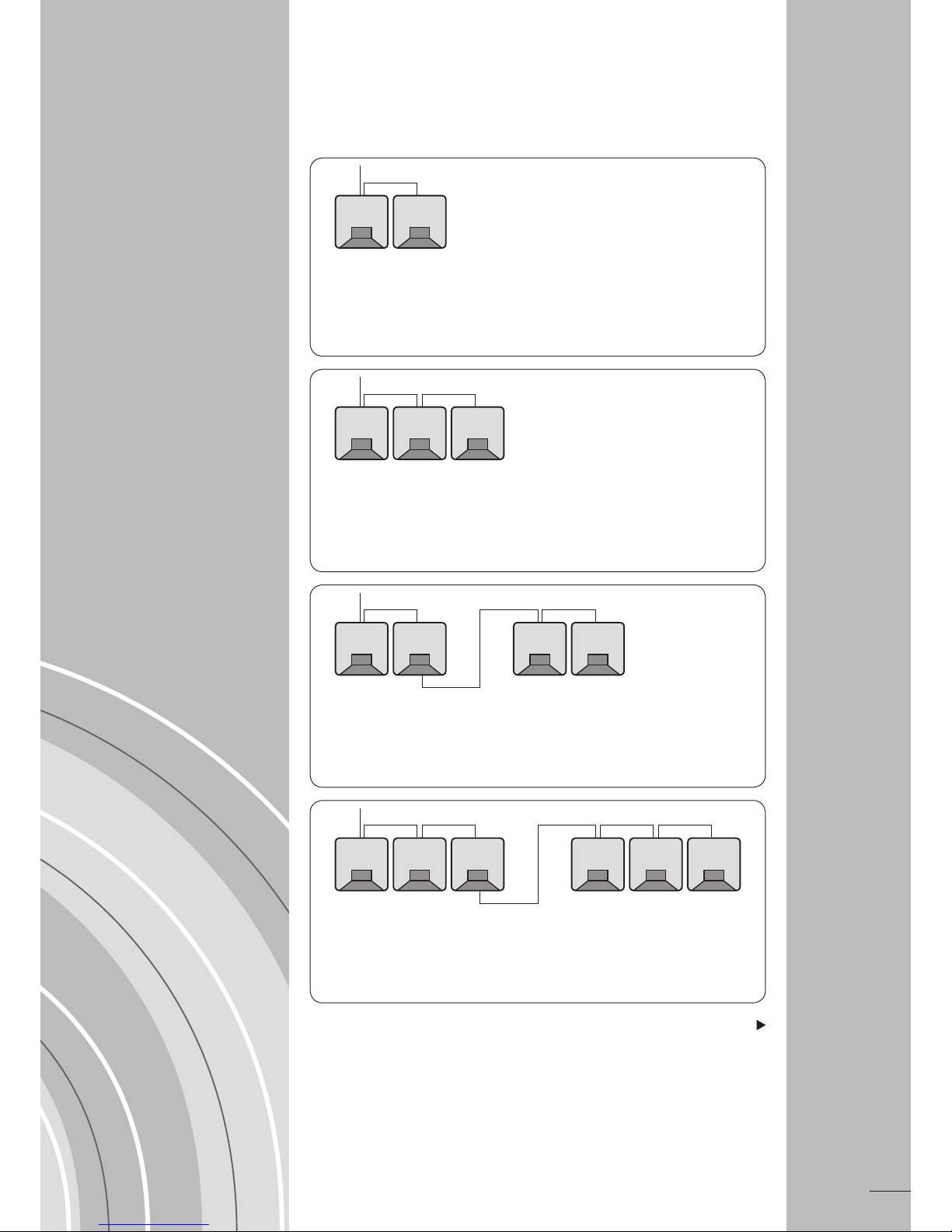

DELTA 8.4-DSP / 14.4-DSP – 2 x 2-pc Sub Array [SW18 – 2 CH]

All four SW18 subwoofers are wired using 4-pole speaker cables. Two subwoofers on either side are each driven by one dedicated ampliﬁer channel. Two ampliﬁer channels will be assigned.

DELTA 14.4-DSP – 2 x 3-pc Sub Array [SW18 - 2 CH]

All six SW18 subwoofers are wired using 4-pole speaker cables. Three subwoofers on either side are each driven by one dedicated ampliﬁer channel.

Two ampliﬁer channels will be assigned.

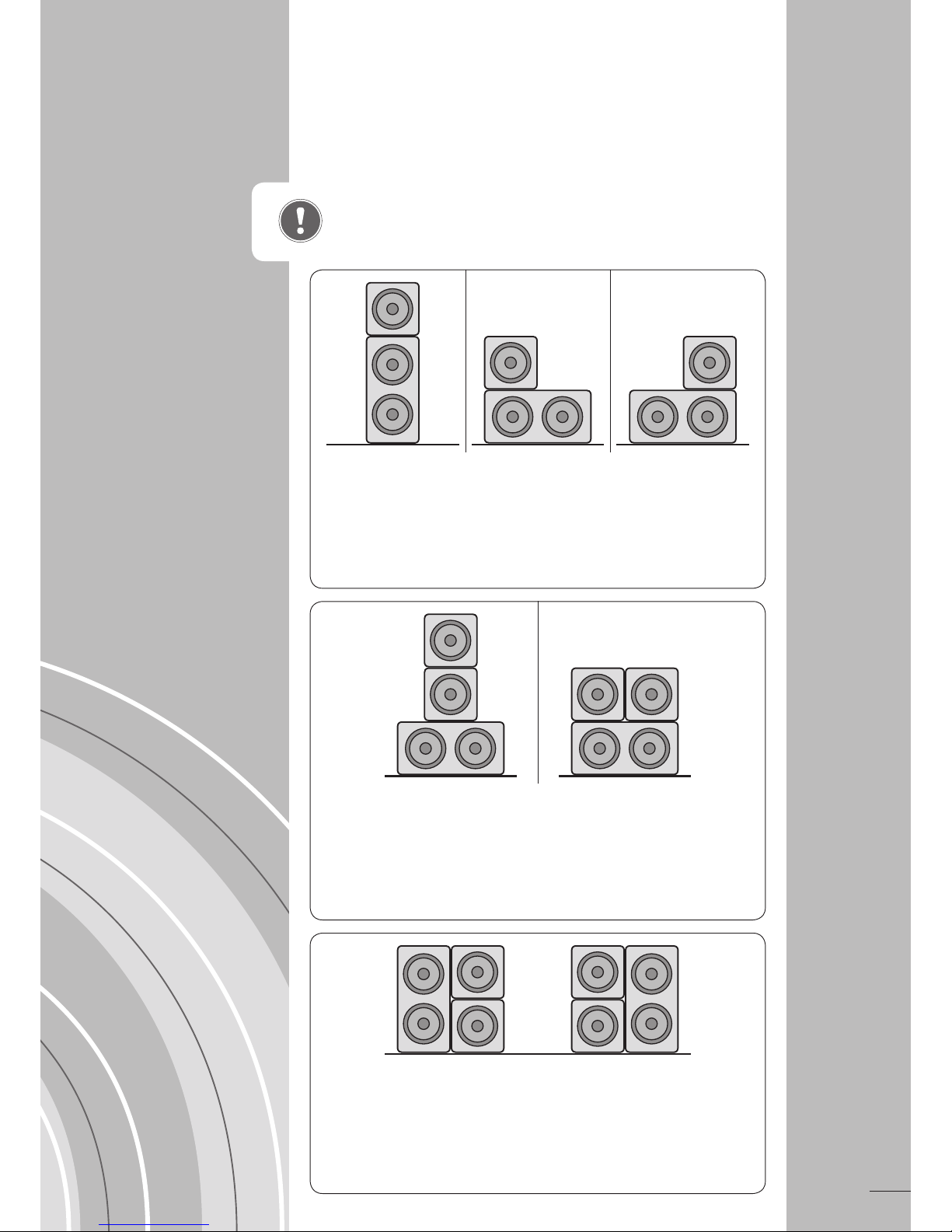

Operating Modes

DELTA 8.4-DSP / 14.4-DSP [SW18]

Both SW18 subwoofers are wired using 4-pole speaker cables.

One ampliﬁer channel will be assigned. Pin pair 1 may be used for tops.

DELTA 14.4-DSP [SW18]

All three SW18 subwoofers are wired using 4-pole speaker cables.

One ampliﬁer channel will be assigned. Pin pair 1 can be used for tops.

[1] SW18:

Page 6

FrontFront

Front Front

Front

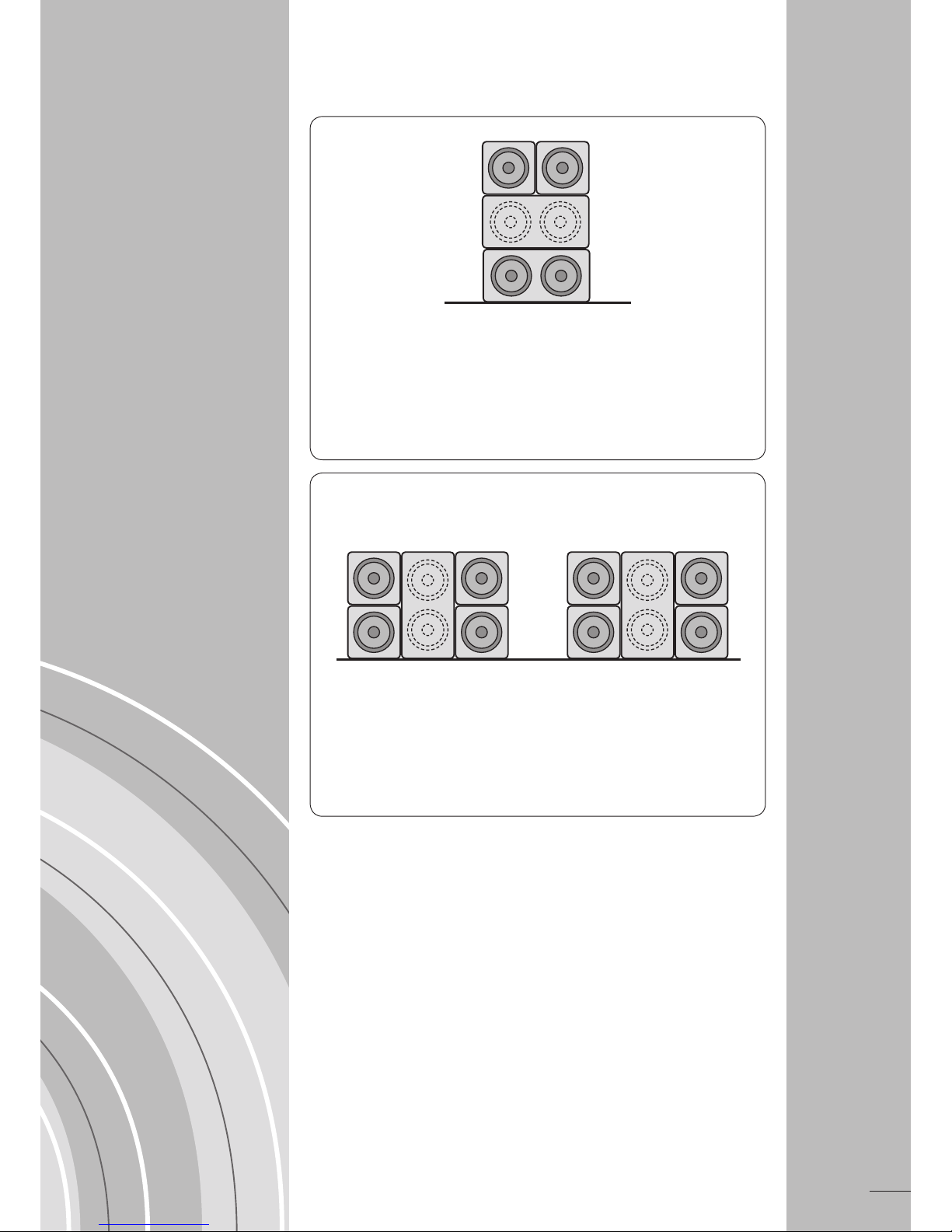

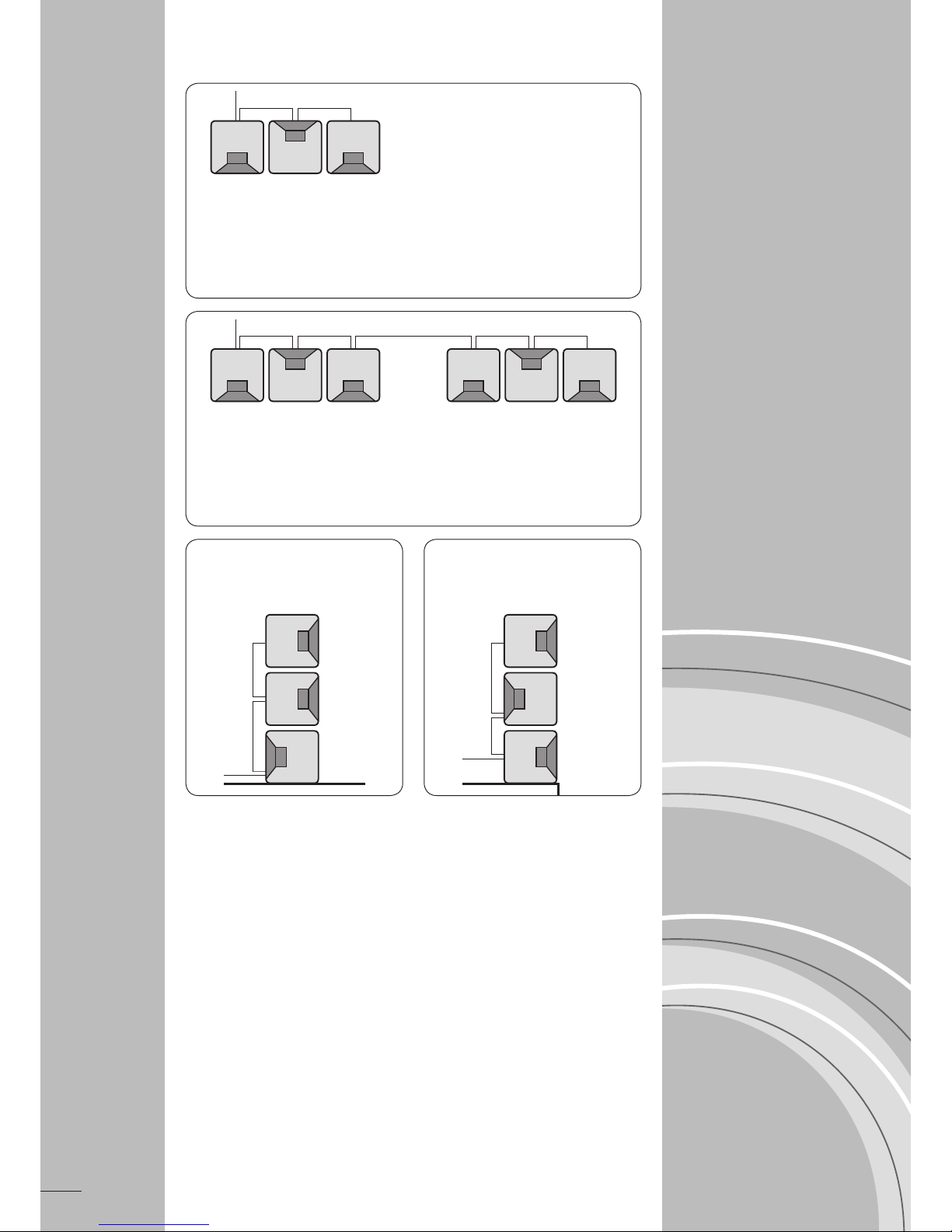

DELTA 14.4-DSP – 2 x 3-pc Cardioid Sub Array [SW18-CSA]

All six SW18 subwoofers are wired using 4-pole speaker cables. The four front- and the two back-ﬁring subwoofers are each driven by one dedicated ampliﬁer channel.

Two ampliﬁer channels will be assigned.

DELTA 8.4-DSP / 14.4-DSP [SW18-CSA] With ground coupling:

DELTA 8.4-DSP / 14.4-DSP [SW18-CSA] Without ground coupling:

DELTA 8.4-DSP/ 14.4-DSP – 1 x 3-pc Cardioid Sub Array [SW18-CSA]

All three SW18 subwoofers are wired using 4-pole speaker cables. The two front-ﬁring subwoofers and the single back-ﬁring subwoofer are each driven by one dedicated ampliﬁer channel.

Two ampliﬁer channels will be assigned.

Page 7

SW18

DELTA8.4-DSP / DELTA14.4-DSP SW18

Both subwoofers are wired using 4-pole speaker cables. On the DELTA8.4-DSP system ampliﬁer two ampliﬁer channels will be assigned.

On the DELTA14.4-DSP system ampliﬁer one ampliﬁer channel may be assigned and pin pair 1 is still free for tops.

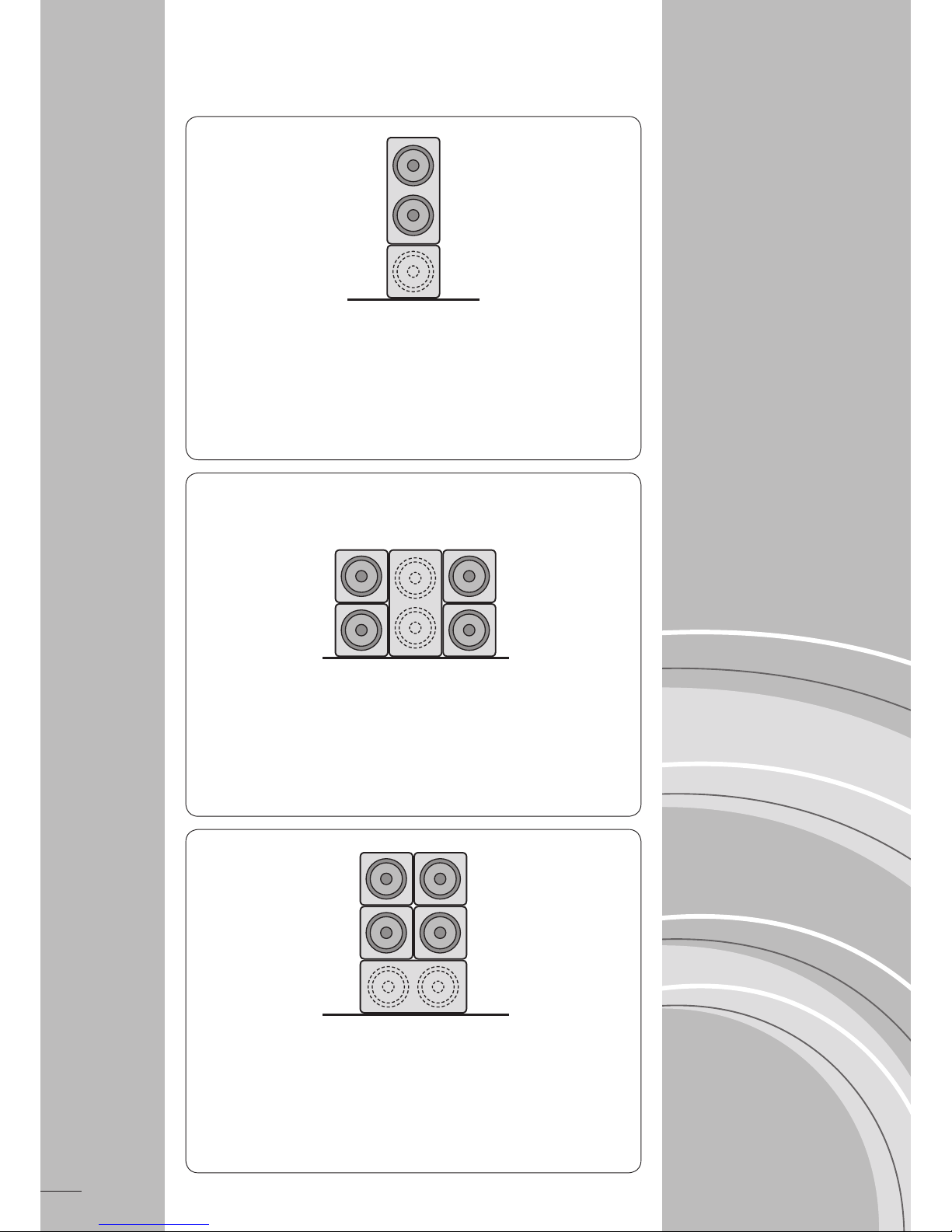

[2] Mixed operation SW18 and SW28:

Under acoustical, mechanical and visual aspects the SW18 is fully compatible to the SW28 subwoofer. Both subwoofers may be combined in any desired conﬁgurations and setup variants. Likewise cardioid sub arrays (CSA) are possible in a mix mode with SW18 / SW28.

The minimum impedance is 2 ohms on the DELTA14.4-DSP system ampliﬁer and 4 ohms on the DELTA8.4-DSP system ampliﬁer.

DELTA8.4-DSP / DELTA14.4-DSP SW18

All three subwoofers are wired using 4-pole speaker cables. On the DELTA8.4-DSP system ampliﬁer two ampliﬁer channels will be assigned.

On the DELTA14.4-DSP system ampliﬁer one ampliﬁer channel may be assigned and pin pair 1 is still free for tops.

DELTA8.4-DSP / DELTA14.4-DSP SW18

Three subwoofers per side are wired using 4-pole speaker cables. On the DELTA8.4-DSP system ampliﬁer four ampliﬁer channels will be assigned.

On the DELTA14.4-DSP system ampliﬁer two ampliﬁer channels may be assigned and pin pair 1 is still free for tops.

Page 8

Front

Rear

Front Rear Front

Front

Rear

[3] Mixed operation SW18 and SW28 CSA:

DELTA8.4-DSP / DELTA14.4-DSP SW18-CSA

Both subwoofers are wired using 4-pole speaker cables. The front-ﬁring SW28 subwoofer and the back-ﬁring SW18 subwoofer are each driven by one dedicated ampliﬁer channel. Two ampliﬁer channels will be assigned.

DELTA14.4-DSP SW18-CSA

All ﬁve subwoofers are wired using 4-pole speaker cables. The four front-ﬁring SW18 subwoofers and the single back-ﬁring SW28 subwoofer are each driven by one dedicated ampliﬁer channel. Two ampliﬁer channels will be assigned.

DELTA14.4-DSP SW18-CSA

With ground coupling

Page 9

SW18

Front Rear

Front Front Rear

Front

Rear

Front

DELTA14.4-DSP SW18-CSA

All four subwoofers are wired using 4-pole speaker cables. The front-ﬁring SW18 and SW28 subwoofers and the single back-ﬁring SW28 subwoofer are each driven by one dedicated ampliﬁer channel. Two ampliﬁer channels will be assigned.

DELTA14.4-DSP SW18-CSA

Five subwoofers on either side are wired using 4-pole speaker cables. The four front-ﬁring SW18 subwoofers and the single back-ﬁring SW28 subwoofer are each driven by one dedicated ampliﬁer channel. Four ampliﬁer channels will be assigned.

Without ground coupling

Page 10

605

585

580

605

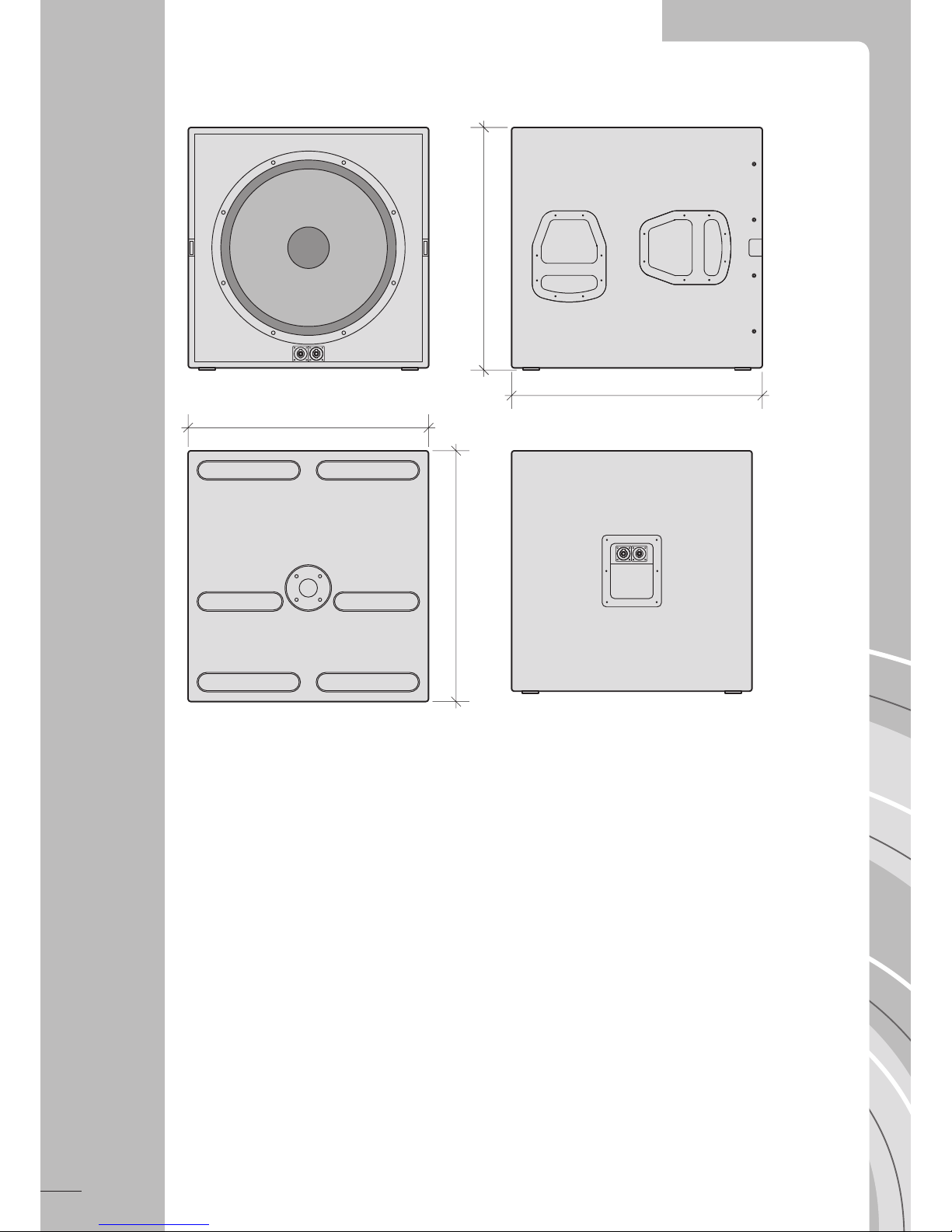

Drawings / Dimensions:

Page 11

SW18

Technical Speciﬁcations:

Drivers 1 x 18” neodymium chassis Power handling (RMS / programme) 1,000 W / 2,000 W Impedance 8 ohms Frequency response 38 – 100 Hz (via system ampliﬁer) Max. SPL (1 m, free ﬁeld) 130 dB peak (via system ampliﬁer) Connections SpeakON sockets:

• 2 x rear: chassis PIN 2+ / 2– and PIN 1+ / 1– parallel

• 2 x front: chassis PIN 1+ / 1– and PIN 2+ / 2– parallel Rear pin assignment:

• PIN 1+ / 1– : optional tap for tops

• PIN 2+ / 2– : 18“ chassis Front pin assignment:

• PIN 1+ / 1– : 18“ chassis

• PIN 2+ / 2– : optional for additional subs Dimensions (H x W x D) 585 x 580 x 605 mm / 23” x 22.8” x 23.8” Weight

35 kg / 77.3 lbs Colour black Accessories • LID-SW18 Front lid w/o wheels

• DOL1-SW18 Front lid w. 100 mm wheels

• COV1-SW18 Protective cover for a single SW18 in combination with DOL1-SW18

• DOL2-SW18 Alu dolly for two SW18, ready-made for outrigger

• COV2-SW18 Protective cover for two SW18 in combination with DOL2-SW18

• OUTR4 Toolfree adjustable outrigger kit for DOL2-SW18 / DOL2-SW28

• DOL-SW1828

Dolly for two SW18 side by side and two SW18 stacked upon each other

• COV-SW1828 Protective cover for SW18 / SW28 in combination with DOL-SW1828

• DSK Spacer tube w. crank

• DELTA 8.4-DSP System ampliﬁer

• DELTA 14.4-DSP System ampliﬁer

•

System patchbay

• System rack

Options • Installation version w/o handles, rubber feet and attachments

• Paint ﬁnish in RAL colours

Disposal:

The disposal of electric and electronic appliances must be done independently from domestic waste or public collecting points. The relevant regulations must be observed and adhered to.

EU Conformity Declaration:

This declaration is valid for the SW18 loudspeaker of the manufacturing company ProAudio Technology GmbH.

Included herein are all production items of the same type, as long as they have not been modiﬁed subsequently in structural or electromechanical respect.

It is herewith conﬁrmed that the mentioned products comply with the protection requirements of the relevant EU directives.

If you have any questions, we kindly ask you to get in touch with ProAudio Technology.

Page 12

SW18

ProAudio Technology GmbH

Hermann-Schwer-Strasse 3 78048 Villingen-Schwenningen Germany

Phone: +49 (0) 77 21 / 99 81 96 - 0 Fax: +49 (0) 77 21 / 99 81 96 - 9

[email protected] www.p

roaudio-technology.de

Manual SW18 Subwoofer – 2012-11 ENG
