Page 1

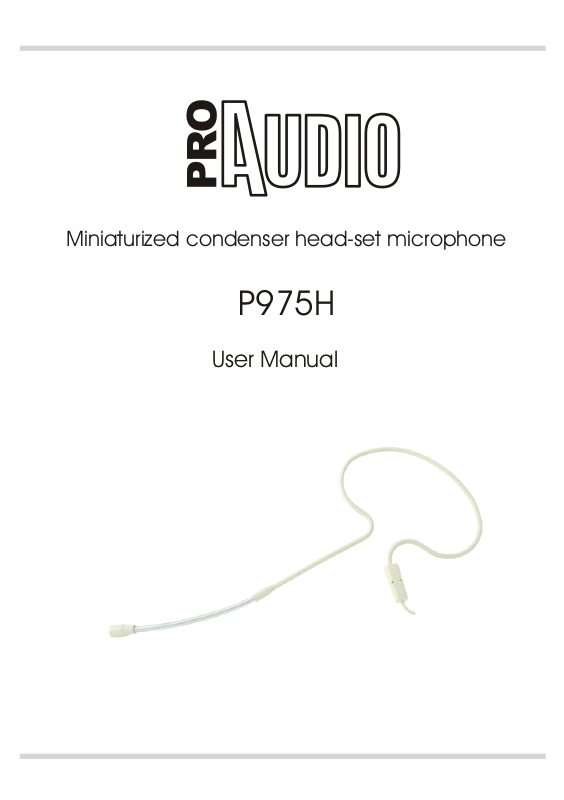

Miniaturized condenser head-set microphone
P975H
User Manual
Page 2
Miniaturized condenser head-set microphone with omnidirectional polar pattern.
Comfortable and functional headset structure with flexible and adjustable arm. The
wide frequency response and the excellent S/N ratio, make this microphone suitable for
professional use. Beige finish. Connection: 4 poles mini XLR. Cable length: 1,2 mt
Miniaturized condenser head-set microphone P975H
PROAUDIO®presents a line of microphones suitable for the different recording situations.
Quality, reliability and above all, precision in the sound recording, are the main features
that make this series an essential reference point for the sound recording professional.
Omnidirectional mini ear-hanging microphone. Ideal for freedom movement such as dancing singing ,
sporty lecturing, compere applications.
Low noise,and high restrain electromagnetic interference,making clearly, accurately sound quality to
reflect the vocal source and perfect duplication
Specifically frequency response, well pick up polar pattern.
Light weight, comfortable wearing Conveniently working with any body-pack or microphone power
supply (1.5-10V D.C powersupply).
Miniaturized condenser head-set microphone P975H
Page 3
Technical parameter :
Polar Pattern
Frequency Response
Max SPL
Omni-Directional
20Hz - 20kHz
130 dB
S/N Ratio
Phantom Power
Output Impedance
Weight
Microphone Frequency Response dB Ref. 1V/Pa
-20
-30
-40
-50
-60
-70
100
50
20
200
500
1k
60 dB
1,5V - 10V DC
1K ±30%
14g
330°
300°
270°
2k
5k
10k
20k
240°
210°
0°
180°
30°
60°
90°
120°
150°
Miniaturized condenser head-set microphone P975H
Page 4
Miniaturized condenser head-set microphone
P975H
Music & Lights Srl Via Appia Km 136.200 - 04020 -Itri (LT) ITALY
Tel:+39 0771 721966 Fax:+39 0771 721977 Web:www.musiclightsitaly.com
