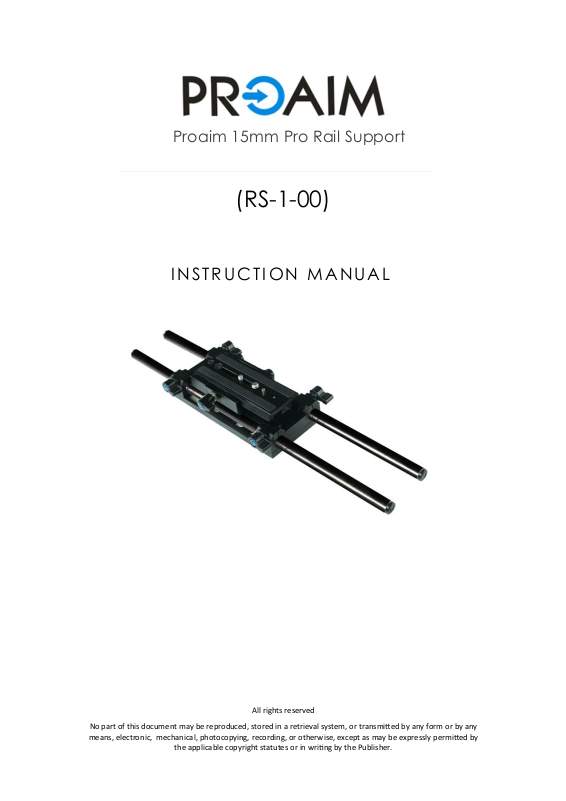

PROAIM RS-1-00 Instruction Manual

Proaim 15mm Pro Rail Support

(RS-1-00)

I NSTRUC TI O N M A N UA L

All rights reserved

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied by

the applicable copyright statutes or in wring by the Publisher.

PROAIM 15mm Pro Rail Support 2

I N TR O D U C TI O N

Proaim 15mm Pro Rail Support is specically designed to work for Follow Focus and long lenses. If

follow focus is used to simplify and enhance the focusing technique, the rod support system along
with quick release and base plate is used to lessen the burden of camera. Rail System help take the
weight o the front of the camera and takes the strain o the lens mount. Also support follow-focus
systems.

W H AT ’s I N TH E B OX

Please inspect the contents of your shipped package to ensure you have received all that is pictured
and listed below.

2x 300mm Female Threaded Rods

2x 150mm Male Threaded Rods

Quick Release with Base Plate

Allen Bolts

Shim Set

L-Key

A S SE M B L IN G Y O U R PR OA I M 15 M M PR O R A I L S U P PO RT

 Camera Mounng: The quick release makes easier to mount the camera on the rail system.

Simply screw-in the camera with the quick release plate and insert it into the quick release
base adapter of the rail system.

PROAIM 15mm Pro Rail Support 3

Shims Set – Height Adjustment: The height of
the camera can be adjusted by adding the
shims.

This kit includes 6 shims (in 1mm, 3mm &
6mm two of each).

S H IM S A P P LI C AT I O N I N ST R U C TI O N S :

If you need to add the shim on it, go through the following steps:

 First remove the quick release adapter

with L-key.

 Then remove the center-adapter by

removing the boom Allen-bolts with
L-key provided.

 And then add shims as per need and

re-assemble it with longer 4x30mm or
4x25mm screws.

PROAIM 15mm Pro Rail Support 4

 The le image shows maximum height 60mm with shim set and the right image shows

minimum height 45mm without shim set.

TH E P R O A I M 1 5 MM P RO R A I L S UP PO R T I S R EA D Y TO U S E

Exclusive of Tripod Stand, Mae Box, Mic & Camera setup

WARRANTY

We oer a one year warranty for our products from the date of purchase.

We will repair or replace your product, free of charge, in the event of a defect in materials or
crasmanship obtained during normal use or handling based on the user manual. Please note that
we will not cover any shipping costs for returning the product to us. If any VAT or import dues are
applied to the return, we will also charge these costs to the customer.
