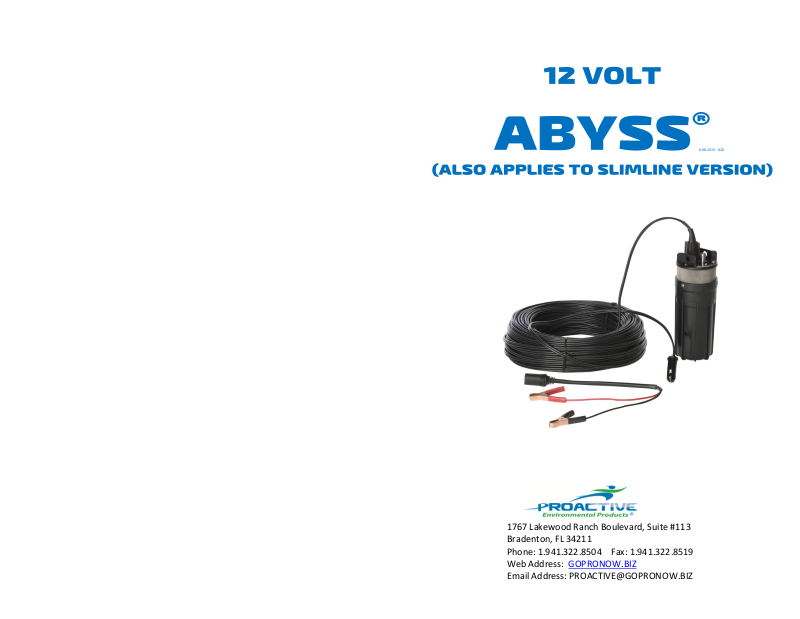

Proactive Abyss P-10380, Abyss Slimline P-10835 Operating Instructions Manual

6.08.2015 #26

1767 Lakewood Ranch Boulevard, Suite #113
Bradenton, FL 34211
Phone: [phone] Fax: [phone]
Web Address: GOPRONOW.BIZ
Email Address: [e-mail]

OPERATING INSTRUCTIONS FOR:

The 12 Volt Abyss® Pump (Item # P-10380)

(also applies to the 12 Volt Abyss® Slimline (Item # P-10835)

SIMPLE TO USE AND EXTREMELY POWERFUL

The

Abyss

(Item # P-10380) is capable of pumping up to 220 feet from ground level to water

level (DTW*). Simply, connect the pump connector to a 12 volt source. This will energize the pump.
Sound Simple? We think so. The

Abyss

is supplied with 230 feet of heavy duty 10 gauge wire,

Alligator battery clamps and a male cigarette plug attached to pump.

Great Benefits of the 12 Volt Abyss

and Abyss Slimline!

The

Abyss

and the

Abyss Slimline

are practically maintenance free! The only part that

may need to be serviced is the replaceable valves (pic#3) every 2,000-3,000 hours or so
(depending on turbidity in the water)

The

Abyss

and the

Abyss Slimline

can run continuously 24 hours a day 7 days a week.

The

Abyss

and the

Abyss Slimline

can run dry.

The

Abyss

and the

Abyss Slimline

10 gauge wire (230 feet of 10 gauge wire comes with

the pump) can be cut down; it will not damage the pump motor and it will increase the volume of
water being discharged.

The

Abyss

and the

Abyss Slimline

can control the flow of water being discharged by simply

using our Low Flow Sampling Controller (Item # PA-10800). You can then sample as low as 40 m/l
per minute.
*With the disposable control flow valve, you can sample as low as 10 m/l per minute!

The

Abyss

is 3.82” OD. It can fit into any schedule 40, 4 inch or larger well, pond, open vat etc.

No need for a cooling shroud. And please note the

Abyss Slimline

is 3.73” OD. It can fit into

any schedule 40 and schedule 80, 4 inch or larger well, pond, open vat etc. No need for a

cooling shroud.

If your pump fails to work-Please follow the trouble shooting guide below.

1. Battery is very low. Check battery level. Must be at least 11 volts minimum.

2. Blown valves or blown motor – need new pump.

3. Make sure all connectors are plugged into correct outlets.

Important Notes:

If you cut the 10 gauge wire lead to meet your desired wire

length then please make sure the polarity is correct!!

*DTW means depth to water

Limited Warranty Information

Products manufactured by Proactive Environmental Products® International LLC are warranted to the original user only to
be free of defects in material and workmanship for a period of 60 days from the date of purchase, provided, however, that if a
motor module is built into, affixed to, or provided with any covered product, then the warranty period for such motor
module shall be limited to Sixty (60) days from the date of purchase. Proactive Environmental Products® International LLC
liability under this warranty shall be limited to repairing or replacing at Proactive Environmental Products® International
LLC option, without charge, F.O.B. Proactive Environmental Products® International LLC factory or authorized service
station, any defective product manufactured by Proactive Environmental Pro ducts® International LLC. Proactive
Environmental Products® International LLC will not be liable for any costs of removal, installation, shipping, transportation,
or any other charges which may arise in connection with a warranty claim. Products which are sold but not manufactured
by Proactive Environmental Products® International LLC are subject to the warranty provided by the manufacturer of said
products and not by Proactive Environmental Products® International LLC warranty. Proactive Environmental Pr oducts®
International LLC shall not be liable under this limited warranty or otherwise for wear and tear items or issues (including,
but not limited to, seals, bearings, wiring, warping, and bending), damage to products caused by abnormal operating
conditions, accident, abuse, negligence, misuse, unauthorized alteration or repair, or if the product was not installed in
accordance with Proactive Environmental Products® International LLC printed installation and operating instructions.

Obtaining Service: To obtain service under this warranty, the d efective product must be returned to the distributor or

dealer from which it was purchased or directly to Proactive Environmental Products® International LLC, subject to an
evaluation fee established by Proactive Environmental Products® International LLC for each defective product, with the
following information: proof of purchase with product serial numbers printed on invoice, installation date, failure date, and
supporting installation data (example: How was it inst alled…was it installed using a solar system.. was it installed using a 12
volt deep cycle marine battery… was it installed using a step-down transformer of some sort?). Unless otherwise provided,
the distributor or dealer will contact Proactive Environmental Products® International LLC for instructions. Any defective
product to be returned for warranty services shall be delivered freight prepaid to Proactive Environmental Products®
International LLC factory or an authorized service station; documentation supporting the warranty claim and/or a Return
Material Authorization must be included if so instructed. Proactive Environmental Products® International LLC requires
that all customers notify the distributor or dealer or Proactive Environmental Products® International LLC, as applicable,
prior to returning a product under the Proactive Environmental Products® International LLC warranty program, and any
such product will only be accepted if it has been thoroughly cleaned and decontaminated and is properly packaged. In the
event a product is returned to the distributor or dealer from which it was purchased or directly to Proactive Environmental
Products® International LLC and the buyer/user does not take return receipt of the product within six (6) months after such

return for warranty service because of buyer’s/user’s failure to communicate, failure to fulfill any warranty obligation, or

otherwise, not including such a failure by Proactive Environmental Products® International LLC, then such product shall
become the sole and exclusive property of Proactive Environmental Products® International LLC and it may sell, dispose of,
or transfer such product at its discretion.

If a product should fail within the warranty specified, please contact your authorized Proact ive Environmental Products®
International LLC Distributor or call Proactive Environmental Products® International LLC direct at 1.941.322.8504.

Should any failure to conform to this warranty appear within the term of initial sale, the manufacturer shall upon notification
thereof and substantiation that the product with replacement parts or accessories has been m aintained, correct such defects
by suitable repair or replacement at its own expense, purchaser being responsible for shipping and handling charges only.
The Proactive Environmental Products® International LLC warranty does not include shipping or an obligation to provide
another unit while the original product is being repaired or replaced. The Proactive Environmental Products® International
LLC warranty does not apply to any product used as rental equipment or contaminated by materials harmful to such
products. The Proactive E nvironmental Products® International LLC warranty does not apply to parts failure due to neglect
in cleaning or unauthorized servicing of the product, nor does it cover failure of a part caused by misuse or inappropriate use
of the product.

Legal Disclaimer: Except for its obligation to replace or repair defective products outlined above, Proactive

Environmental Products® International LLC shall not be liable to buyer, or to anyone claiming under buyer, for any
obligations or liabilities, including, but not limited to, obligations or liabilities arising out of breach of contract or
warranty, negligence or other tort or any theory of strict liability, with respect to the products or Proactive
Environmental Products® International LLC acts or omissions or otherwise, and buyer shall hold harmless and
indemnify Proactive Environmental Products® International LLC for any such claim. The above limited warranty
covers only replacement or repair of defective products at Proactive Environmental Products® International LLC
factory or authorized service station and does not include the cost of field services (including, but not limited to,
travel and living expenses), labor, inspection, removal or installation of new or replacement products, or normal
maintenance. To the fullest extent permitted by law, Proactive Environmental Products® International LLC shall
not, in any event, be liable for incidental, compensatory, exemplary, punitive, consequential, indirect, special or
other damages, including, but not limited to, loss of use, loss of income, loss of profits, loss of time, loss of sales,
injury to persons or property, liability buyer incurs with respect to any other person, or any other type or form of
consequential damage or economic loss.

Some jurisdictions do not allow for the exclusion or limitation of incidental or consequential damages and some jurisdictions
do not allow limitations on how long implied warranties may last. It is the buyer’s responsibility to determine if a certain

jurisdiction’s rules may apply. Therefore, the above limitations or exclusions may not apply to you and it is your

responsibility to determine whether the aforementioned limitations to the limited warranty apply and to the extent such
limitations may apply in your jurisdiction. This warranty gives you specific legal rights and you may also have other rights
which vary from jurisdiction to jurisdiction.

\
