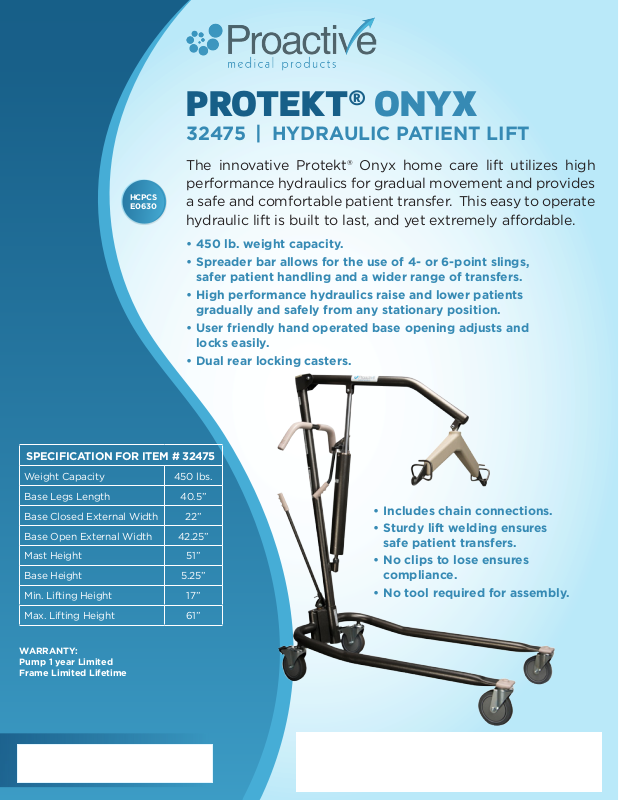

PROTEKT® ONYX

32475 | HYDRAULIC PATIENT LIFT

The innovative Protekt® Onyx home care lift utilizes high
performance hydraulics for gradual movement and provides
a safe and comfortable patient transfer. This easy to operate
hydraulic lift is built to last, and yet extremely aordable.

• 450 lb. weight capacity.

• Spreader bar allows for the use of 4- or 6-point slings,
safer patient handling and a wider range of transfers.

• High performance hydraulics raise and lower patients
gradually and safely from any stationary position.

• User friendly hand operated base opening adjusts and
locks easily.

• Dual rear locking casters.

SPECIFICATION FOR ITEM # 32475

Weight Capacity 450 lbs.

Base Legs Length 40.5”

Base Closed External Width 22”

Base Open External Width 42.25”

Mast Height 51”

Base Height 5.25”

Min. Lifting Height 17”

Max. Lifting Height 61”

WARRANTY:
Pump 1 year Limited
Frame Limited Lifetime

www.proactivemedical.com
[e-mail]

www.proactivemedical.com

• Includes chain connections.

• Sturdy lift welding ensures
safe patient transfers.

• No clips to lose ensures
compliance.

• No tool required for assembly.
