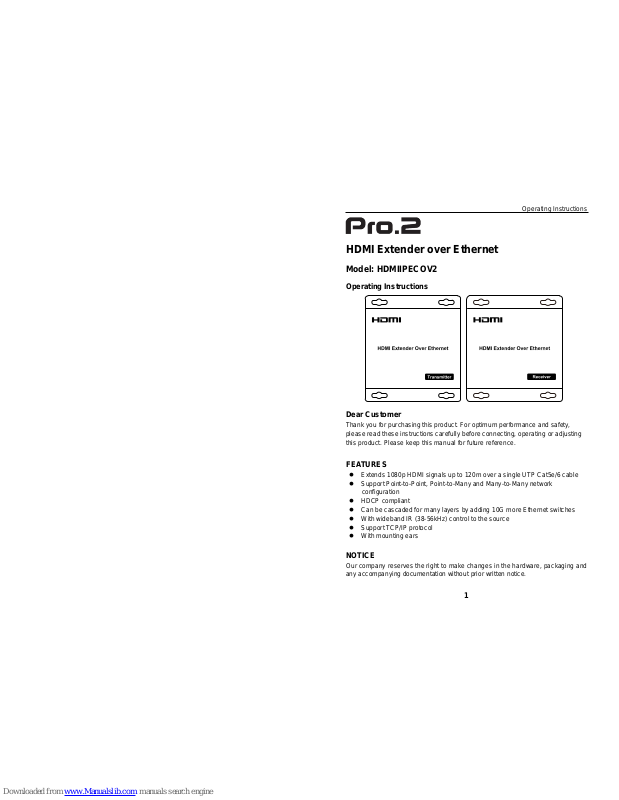

Pro 2 HDMIIPECOV2 Operating Instructions Manual
Operating Instructions
HDMI Extender over Ethernet
Model: HDMIIPECOV2
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions caref ully befor e con nec tin g, operat in g or adjusti ng
this product. Please keep this manual for future reference.
FEATURES
Extends 1080p HDMI signals up to 120m over a single UTP Cat5e/6 cable
Support Point-to-Point, Point-to-Many and Many-to-Many network
configuration
HDCP compliant
Can be cascaded for many layers by adding 10G more Ethernet switches
With wideband IR (38-56kHz) control to the source
Support TCP/IP protocol
With mounting ears
NOTICE
Our company reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
1
Operating Instructions
TABLE OF CONTENTS
Specifications
Package Contents
Panel Descriptions
Connecting and Operating
Typical Appli cation
Maintenance
Product Service
Warranty
SPECIFICATIONS
Note1: Specifications are subject to change without notice. Mass and dimensions
are approximate.
Note2: one TX to many RX or many TX connect to many RX, IP and MAC address
must be different.
PACKING CONTENTS
1) Main Unit. Transmitter & Receiver
2) Power adapter DC 5V/1A x2 PCS
3) IR-TX cable & IR-RX cable
4) Operating Instructions
2
Operating Temperature Range -5 to +35℃(+23 to +95℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Support Video Format DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
Video Output HDMI
Transmission Distance 1080P 8-bit 120m(Maximum) over single CAT5E/6 /24AWG/Solid
Power consumption TX:3watts; RX:3watts((Maximum)
IR Frequency 38kHz-56kHz
Dimension (L×W×H) 103.5x93.5x24.6mm
Net Weight Receiver:220g,Transmitter:220g
TX
Default IP address:192.168.168.55
MAC address:00:0b:78:00:60:01
RX
Default IP address:192.168.168.56
MAC address:00:0b:78:00:60:02
