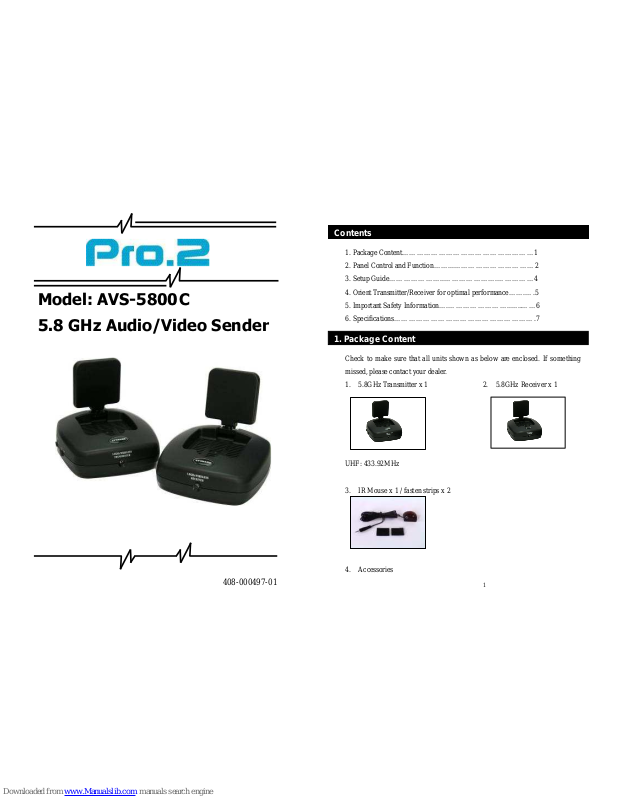

Pro2 AVS-5800 C User Manual
Model: AVS-5800 C
5.8 GHz Audio/Video Sender
1. Package Content………………………………………………1
2. Panel Control and Function……...……………………………2
3. Setup Guide…………………..………………….……………4
4. Orient Transmitter/Receiver for optimal performance…….….5
5. Important Safety Information….……………………..…..……6
6. Specifications………………………………………………….7
Check to make sure that all units shown as below are enclosed. If something
missed, please contact your dealer.
1. 5.8GHz Transmitter x 1 2. 5.8GHz Receiver x 1
UHF: 433.92MHz
3. IR Mouse x 1 / fasten strips x 2
4. Accessories
1. Package Content
1
Contents
408-000497-01
Australia Standard:
(1) Power Adapters (230V) x 2 (2) RCA cable x 2
USA Standard
(1) Power Adapters (120V) x 2 (2) RCA Cable x 2
1. – Channel selection switch to find optimal
reception, the transmitter and
receiver must to be Configured as the same channel.
2A –Remote control LED sends IR rays, to remotely control the source AV
equipment.
2B –Remote control LED receives IR rays from remote controller.
3A – Directional 5.8GHz A/V antenna sends A/V signal from source
equipment.
3B – Directional 5.8GHz A/V antenna receives audio and video signal.
4 – Power on/off switch.
5 – DC power input, connect to power supply. (9v).
6 – IR Mouse output, to remotely control source AV equipment.
7A –Video Jack, (yellow), input from source AV equipment.
7B –Video Jack, (yellow), output to TV.
8A –Audio Jack, Right (red), input from source AV equipment.
8B –Audio Jack, Right (red), output to TV.
9A –Audio Jack, Left (white), input from source AV equipment.
9B –Audio Jack, Left (white), output to TV.
10 –Power LED.
2. Panel Control and Function
3
2
1
4
2A
10
5
7A
8A
9A
6
3A
1
2B
10
5
7B
8B
9B
3B
4
5.8GHz Transmitter
5.8GHz Receiver
