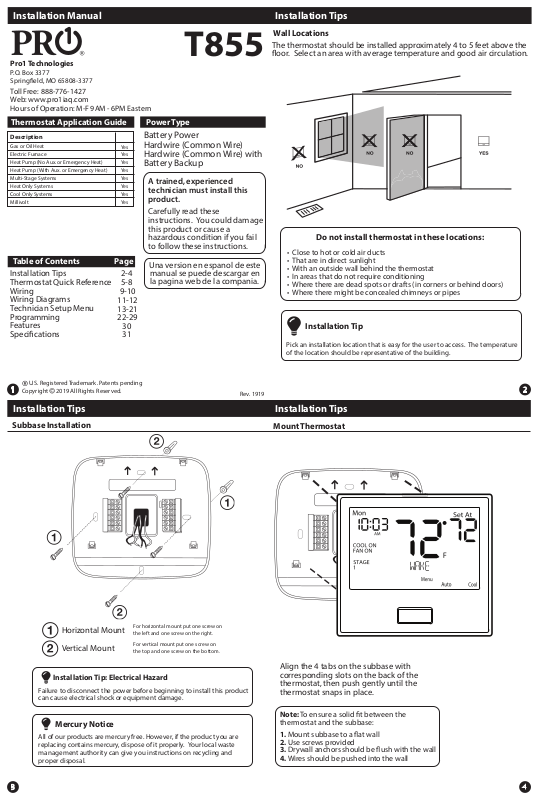

Page 1

Installation Manual

Pro1 Technologies

P.O. Box 3377 Springeld, MO 65808-3377

Toll Free: 888-776-1427 Web: www.pro1iaq.com Hours of Operation: M-F 9AM - 6PM Eastern

T855

Installation Tips

Wall Locations

The thermostat should be installed approximately 4 to 5 feet above the oor. Select an area with average temperature and good air circulation.

Thermostat Application Guide

Description

Gas or Oil Heat

Electric Furnace Heat Pump (No Aux. or Emergency Heat) Heat Pump (With Aux. or Emergency Heat)

Multi-Stage Systems

Heat Only Systems Cool Only Systems

Millivolt

Table of Contents

Page

Installation Tips Thermostat Quick Reference Wiring Wiring Diagrams Technician Setup Menu Programming

11-12 13-21

22-29 Features Specications

Yes Yes Yes

Yes

2-4 5-8

9-10

30 31

Power Type

Battery Power Hardwire (Common Wire) Hardwire (Common Wire) with Battery Backup

A trained, experienced technician must install this product.

Carefully read these instructions. You could damage this product or cause a hazardous condition if you fail to follow these instructions.

Una version en espanol de este

manual se puede descargar en la pagina web de la compania.

Do not install thermostat in these locations:

• Close to hot or cold air ducts

• That are in direct sunlight

• With an outside wall behind the thermostat

• In areas that do not require conditioning

• Where there are dead spots or drafts (in corners or behind doors)

• Where there might be concealed chimneys or pipes

Installation Tip

Pick an installation location that is easy for the user to access. The temperature of the location should be representative of the building.

Installation Tips

Subbase Installation

Rev. 1919

Installation Tips

Mount Thermostat

Horizontal Mount

Vertical Mount

Installation Tip: Electrical Hazard

Failure to disconnect the power before beginning to install this product can cause electrical shock or equipment damage.

For horizontal mount put one screw on the left and one screw on the right.

For vertical mount put one screw on the top and one screw on the bottom.

Mercury Notice

All of our products are mercury free. However, if the product you are replacing contains mercury, dispose of it properly. Your local waste management authority can give you instructions on recycling and proper disposal.

Align the 4 tabs on the subbase with corresponding slots on the back of the thermostat, then push gently until the thermostat snaps in place.

Note: To ensure a solid t between the thermostat and the subbase:

1. Mount subbase to a at wall

2. Use screws provided

3. Drywall anchors should be ush with the wall

4. Wires should be pushed into the wall

Page 2

Thermostat Quick Reference

Battery Installation

Battery installation is recommended even if the thermostat is hardwired (C terminal connected). When the thermostat is hardwired and batteries are installed, the thermostat will activate a compressor delay of 5 minutes when it detects a power outage from the hardwired power supply.

Important:

High quality alkaline batteries are recommended. Rechargeable batteries or low quality batteries do not guarantee a 1-year life span.

To release battery cover press nger bevel on the left side and lift the cover to access batteries.

Getting to know your thermostat

Displays the current room temperature

Time and day of the week

Low Battery Indicator: Replace batteries when this indicator is shown.

Energy Ecient Globe: Indicates ecient setpoint temperature.

Keypad Lockout: Indicates the thermostat is in keypad lockout.

Program Menu Options: Show dierent options during programming.

Program Time Periods - Residential: Uses 4 time periods - WAKE, RETURN,

LEAVE & SLEEP. Commercial: Uses 2 or 4 time periods that appear in the text eld - Occupied & Unoccupied.

Staging Indicators: 1 will appear in the display when rst stage of heat or cool is on. +2 will appear for the second stage of heat. +3 will appear for the third stage of heat.

System Operation Indicators:

If these or the Fan indicator are ashing, it means that the system is in a delay of some type (compressor delay, cooling fan delay, staging delay).

Hold: is displayed when the thermostat program is permanently overridden.

Insert 2 AA Alkaline batteries (included). High quality alkaline batteries are recommended.

Wiring

Caution: Electrical Hazard

Failure to disconnect the power before beginning to install this product can cause electrical shock or equipment damage.

Wiring

If you are replacing a thermostat, make note of the terminal connections on the thermostat that is being replaced. In some cases the wiring connections will not be color coded. For example, the green wire may not be connected to the G terminal.

Loosen the terminal block screws. Insert wires then retighten the terminal block screws.

Place nonammable insulation into

the wall opening to prevent drafts.

Wiring Tips

C Terminal

The C (common wire) terminal does not have to be connected when the thermostat is powered by batteries.

Wire Specications

Use shielded or non-shielded 18-22 gauge thermostat wire.

Simple operating instructions are found on the back of the battery door.

Warning:

All components of the control system and the thermostat installation must conform to Class II circuits per the NEC Code.

Installation Tip

Do not overtighten terminal block screws, as this can damage the terminal block. A damaged terminal block can keep the thermostat from tting on the subbase correctly or cause system operation issues.

Max Torque = 6in-lbs.

Note:

In many heat pump systems with no emergency heat relay, a jumper can be installed between E and W2 to turn thermostat into a single stage control for Emergency Heat Operation.

Setpoint: Displays the user selectable setpoint temperature.

Wiring

Terminal Designations

This thermostat is shipped from the factory to operate a conventional heating and cooling system. This thermostat may also be congured for a heat pump system. See the “heat pump” conguration step on page 14 of this manual to congure the thermostat for heat pump applications.

Terminal

W/E

2 Heat 2 Cool Conventional

System

Transformer power

(cooling)

Transformer power

(heating)

Transformer

common

Reversing valve

/ congerable

terminal

Reversing valve

/ congerable

terminal

Fan relay

First stage

of heat

First stage

of cool

Second stage

of cool

Second stage

of heat

2 Heat 1 Cool

Heat Pump

System

Transformer power

(cooling)

Transformer power

(heating)

Transformer

common

Reversing valve

/ congerable

terminal

Reversing valve

/ congerable

terminal

Fan relay

Emergency Heat

First stage of

heat & cool

N/A

Auxiliary heat

3 Heat 2 Cool

Heat Pump

System

Transformer power

(cooling)

Transformer power

(heating)

Transformer

common

Reversing valve

/ congerable

terminal

Reversing valve

/ congerable

terminal

Fan relay

First stage of

auxiliary heat

First stage of

heat & cool

Second stage

of heat & cool

Secodn stage of

auxiliary heat

Page 3

Thermostat Quick Reference

Getting to know your thermostat

Thermostat Quick Reference

Important

The low battery icon is displayed when the AA battery power is low. Whenever the thermostat detects low battery voltage from the AA batteries, the low battery icon will begin ashing on the screen for 21 days (if the batteries are not changed). If the batteries are not changed 22 days after the thermostat detects low battery voltage, the thermostat screen will only show the ashing battery icon until buttons are pressed. If the batteries are not changed 43 days after the thermostat detects low battery voltage, the thermostat screen will only show the ashing battery icon until buttons are pressed and the set points will oset to 85°F/29°C in cooling and 55°F/13°C in heating. At this stage, set point changes can be made temporarily but, the set points will change back to defaulted values after a 4-hour period. The thermostat will continue to perform this low battery ashing, temperature oset condition until the internal voltage threshold is reached. When the thermostat internal voltage threshold is reached, all relays will be opened and the thermostat will become inoperable until new batteries are installed.

About The Badge

All of our thermostats use the same universal magnetic badge. Visit the company website to learn more about our free private label program.

LCD Display

Glow in the dark light button

Setpoint buttons

Program buttons

Use the bevel on lower ridge

Menu button

Fan button

System button

Magnet in door

Button/battery access door

Battery cover

Gently slide a screwdriver into the bottom edge of the badge. Gently turn the screwdriver counter clockwise. The badge is held on by a magnet in the well of the battery door. The badge should pry o easily. DO NOT USE FORCE.

Wiring Diagrams Wiring Diagrams

Power supply

Factory-installed jumper. Remove only when installing on 2-transformer systems

Typical 2H/2C System: 1 Transformer

RC RH

W/E

W2 Y2

COMPRESSOR

RELAY

HEAT RELAY

FAN RELAY

HEAT RELAY 2

COMPRESSOR

RELAY 2

L1(HOT) L2

Typical Cool-Only System With Fan

Y C

W/E

COMPRESSOR

RELAY

FAN RELAY

L1(HOT) L2

Use either O or B terminals for changeover valve

Optional 24 VAC common connection when thermostat is used in battery power mode

Typical 2H/2C System: 2 Transformer

REMOVE JUMPER

RC RH

Y C

W/E

G W2 Y2

COMPRESSOR

RELAY

FAN RELAY

COMPRESSOR

RELAY 2

HEAT RELAY

HEAT RELAY 2

L1(HOT) L2

Typical Heat Only System With Fan

RC RH

W/E

Y C

HEAT RELAY

FAN RELAY

L1(HOT) L2

Note:

In many systems with no emergency heat relay a jumper can be installed between E and W2.

Typical 3H/2C or 2H/1C Heat Pump System

RC RH

W/E

W2 Y2

Y C

COMPRESSOR

RELAY

EMERGENCY

HEAT RELAY

FAN RELAY

AUXILIARY

HEAT RELAY

COMPRESSOR

RELAY 2

COOL CHANGE

OVER VALVE

HEAT CHANGE

OVER VALVE

L1(HOT) L2

O B

Page 4

Technician Setup MenuTechnician Setup Menu

This thermostat has a technician setup menu for easy installer conguration. To set up the thermostat for your particular application:

1. Press the MENU button.

2. Press and hold the TECH SET button for 3 seconds. This 3 second delay is designed so that homeowners do not accidentally access the installer settings.

3. Congure the installer options as desired using the table below.

Use the or keys to change settings and the NEXT or PREV key to move from one step to another. Note: Only press the DONE key when you want to exit the Technician Setup options.

4. Press the DONE key to exit.

Tech Setup Steps

This feature will ash a reminder

Filter Change

Reminder

Room

Temperature

Calibration

Cooling

Swing

Swing Setting Tip

The second stage will turn on at 2x the swing setting. The second stage will turn o when 1x the swing is reached. For example, if the swing setting is .5 degrees for heating and the thermostat is set at 70˚F, the rst stage will turn on at approximately 69.5˚F. The second stage will turn on at 69˚F. The second stage will turn o at 69.5˚F and the rst will turn o at 70.5˚F. If the third stage is used, it will turn on at 68.5˚F and turn o at approximately 69˚F.

after the elapsed run time to remind the user to change the lter. A setting of “OFF” will disable this feature.

This feature allows the installer to change the calibration of the room temperature display. For example, if the thermostat reads 70˚ and you would like it to read 72˚ then select +2.

The swing setting often called “cycle rate”, “dierential” or “anticipation” is adjustable. A smaller swing setting will cause more frequent cycles and a larger swing setting will cause fewer cycles.

LCD Will Show

FILTER

CALIBRATE

0.5

COOL SWING

Adjustment Options Default

You can adjust the lter change reminder from “OFF” to 2000 hours of runtime in 50 hour increments.

You can adjust the room temperature display to read up to 4˚above or below the factory calibrated reading.

The cooling swing setting is adjustable from 0.2˚ to 2˚. For example: A swing setting of 0.5˚ will turn the cooling on at approximately

0.5˚ above the setpoint and turn the cooling o at approximately 0.5˚ below the setpoint.

OFF

0˚F

0.5˚

Tech Setup Steps Adjustment Options Default

The swing setting often called “cycle rate”, “dierential”, or “anticipation” is adjustable. A

Heating

Swing

PTAC Mode

PTAC Fan

Speeds

(Only displayed if

PTAC mode is ON)

PTAC Medium

Fan Speed

Terminal

(Only displayed if PTAC mode is

ON and PTAC fan

speeds is set to 3)

Heat Pump

smaller swing setting will cause more frequent cycles and a larger swing setting will cause fewer cycles.

This setting allows the thermostat to operate a PTAC. This will allow for multiple fan speeds selectable in the next two tech settings.

This setting allows you to choose the number of fan speeds the thermostat will control.

This setting will select the terminal for medium fan speed operations. The selected terminal cannot be used for reversing valve operations when heat pump is enabled.

When turned on the thermostat will operate a heat pump. EM. Heat will show as an option in the system switch tech setting. Use the and button to adjust.

This setting allows you to select the number of heat stages.

Stages of

Heat

LCD Will Show

0.4

HEAT SWING

PTAC MODE

FAN SPEEDS

MED FAN TERM

HEAT PUMP

HEAT

The heating swing setting is adjustable from 0.2˚ to 2˚. For example: A swing setting of 0.5˚ will turn the heating on at approximately 0.5˚ below the setpoint and turn the heating o at 0.5˚ above the setpoint.

Use the and buttons to select ON/OFF.

Use the and buttons to select , 2 or 3.

1. Speeds: ON, Auto

2. Speeds: Low, High, Auto

3. Speeds: Low, Med, High, Auto

Use the and buttons to select O/B terminals.

OFF congures the thermostat for conventional systems.

ON congures the thermostat for heat pump systems.

Use the and buttons to select 1H, 2H, 3H, 4H.

0.4˚

OFF

STAGES

Technician Setup Menu

Tech Setup Steps

Fresh Air

Terminal

(Only displayed

if fresh air mode

is turned ON.

This setting

cannot be used

with PTAC, three

stages of cool, or economizer

turned on)

Fresh Air

Minutes

Program

Options

Time Periods

(Only displayed if

program optioin is

set to 5d or 7d)

This setting provides the option to select a terminal for Fresh Air damper functions. The selected terminal cannot be used for reversing valve operations when the heat pump setting is turned on.

This setting selects the minimum number of minutes that the fresh air damper will be energized.

You can congure this thermostat to have a 7 day program, a 5+1+1 program or No program.

Note: If 7d is selected, in set schedule you will program all seven days individually.

If 5d is selected, in set schedule you will program Monday – Friday together and Saturday and Sunday individually.

If 0d is selected the thermostat becomes non-programmable and the Set Schedule button goes away

in Menu.

You can congure this thermostat to have 2 or 4 programmable time periods per day.

LCD Will Show

FRESH AIR TRM

FRESH AIR MIN

PROGRAM

TIME PERIODS

Adjustment Options

Use the and buttons to select O/B.

Use the and buttons to select 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55 or 60 minutes.

Use the and button to select 7d for 7 day, 5d for 5+1+1, or 0d for non-programmable.

Use the and buttons to select 4, 2C, or 4C time periods per day.

4: Wake, Leave, Return & Sleep. 2C: time periods are Occupied & Unoccupied. 4C: time periods are Occupied 1, Unoccupied 1, Occupied 2, & Unoccupied 2

Default

Technician Setup Menu

Tech Setup Steps Adjustment Options Default

This feature will start heating and cooling early to bring the building temperature to its programmed

Pro Recovery

Cycle

Minimizer

(Only displayed if

program optioin is

set to 5d or 7d)

setpoint by the beginning of the WAKE, RETURN and OCCUPIED time periods.

This setting maximizes eciency and equipment longevity by increasing the heating and cooling swing settings to 2° during the unoccupied and leave time periods. This will result in signicantly fewer system cycles.

Keypad lockout allows you to congure the thermostat so some or all of the keys don’t function.

Keypad

Lockout

Heat

Setpoint

Limit

Keypad Lockout Note: The selected keypad lockout functionality must be activated after exiting tech setup. If you do not perform this procedure, all keys will function freely. To lock the keypad hold down the and keys for 3 seconds. You will see a lock in the display. To unlock the display hold down the and keys for 3 seconds.

This feature allows you to set a maximum heating setpoint limit. The setpoint temperature cannot be raised above this value.

LCD Will Show

PRO RECOVERY

CYCLE MIN

KEY LOCKOUT

HEAT LIMIT

Use the or key to select on or o.

Use the and buttons to select OFF, BASC, PART, FULL OF - OFF= keypad lockout has been disabled. BA - BASIC = basic keypad lockout locks the menu key. PA - PARTIAL= partial keypad lockout, which locks all the keys except the or setpoint keys. FU - FULL= full keypad lockout, which locks out all the keys.

Use the or key to select the maximum heat setpoint and the minimum cooling setpoint.

OFF

90˚F

Page 5

Technician Setup MenuTechnician Setup Menu

Tech Setup Steps

Stages of

Cool

System Set

Dual Fuel

Auxiliary For

Heat Pump

Electric or Gas

Fan Operation

Satisfy

Setpoint

Staging

(Only displayed

if there are more

than one stage of

heat or cool)

Staging

Delay

(Only displayed

if there are more

than one stage of

heat or cool)

This setting allows you to select the number of cool stages.

You can congure the system switch for the particular application. Heat - O - Cool, Heat - O, Cool - O, Heat - O Cool – Auto.

Note: Emergency Heat is available in heat pump mode only.

This setting allows the system to run Gas, Oil, Propane or any other types of auxiliary heat. The thermostat will default to electric auxiliary heat in heat pump

applications.

Select GAS to have the system control the fan during a call for heat, select Electric to have the thermostat control the fan during a call for heat.

Note: If heat pump is set to “ON” this step will not show, and will default to ELECTRIC.

This feature allows the thermostat to keep multiple stages of heat or cool energized until the setpoint is satised.

This feature allows a delay to occur if an additional stage is needed. This allows the previous stage extra time to satisfy the setpoint.

Note: Will not show if using outdoor sensor with balance point temperature.

LCD Will Show

COOL STAGES

SYSTEM SET

AutoO

Em.Heat

Cool

DUAL FUEL

GAS

FAN SET

SS STAGING

STAGING DELAY

Adjustment Options Default

Use the and buttons to select 1C, 2C.

Use the or buttons until the desired application is ashing. AUTO = (Auto Changeover)

OFF

Use the and buttons to select ON/OFF.

OFF

Use and buttons to change the setting.

GAS

Use the or buttons to turn on of o.

OFF

Use the or key to select OFF, 5, 10, 15, 30, 45, 60, or 90 minutes.

OFF

Tech Setup Steps Adjustment Options DefaultLCD Will Show

This feature allows the installer to select the minimum run

Minimum

Compressor

On Time

Compressor

Short Cycle

Delay

Cooling Fan

Delay

Fresh Air

Mode

(This setting cannot

be used with PTAC,

three stages of

cool, or economizer

turned on)

time for the compressor. For example, a setting of 4 will force the compressor to run for at least 4 minutes every time the compressor turns on, regardless of the room temperature.

The compressor short cycle delay protects the compressor from “short cycling”. This feature will not altlow the compressor to be turned on for 5 minutes after it was last turned o.

The cooling fan delay setting will delay the fan from coming on in cool mode and keep it running after the compressor shuts o for a short time to save energy in some systems.

This feature allows fresh air into a unit for a selectable time period. When Fresh Air Mode is enabled, the fan and the fresh air damper terminal will energize simultaneously.

MIN COMP ON

COMP DELAY

COOL FAN DL

FRESH AIR

You can set the minimum compressor run time to “OFF”, “3”, “4”, or “5” minutes. If 3, 4 or 5 is selected, the compressor will run for at least the selected time before turning o. Use the and buttons to change the setting.

Selecting “ON” will not allow the compressor to be turned on for 5 minutes after the last time the compressor was on. Select “OFF” to remove this delay. Use the and buttons to change the setting.

You can set the cooling fan delay to OFF, 15, 30, 60 or 90 seconds. If 15, 30, 60, or 90 is selected the fan will not turn on for that many seconds when there is a call for cool and will run for that many seconds after satisfying a call for cool.

Use the and buttons to select OFF, OC ON or ON.

OFF: Thermostat does not enable Fresh Air Mode.

OC ON: Fresh Air Mode is enabled during the OCCUPIED, WAKE, RETURN, and SLEEP time periods (It will not bring in fresh air during UNOCCUPIED and LEAVE time periods).

ON: Thermostat will enable Fresh Air Mode for every time periods.

OFF

Technician Setup Menu Technician Setup Menu

Tech Setup Steps Adjustment Options Default

Cool

Setpoint

Limit

˚F or ˚C

12 or 24

This feature allows you to set a minimum cooling setpoint limit. The setpoint temperature cannot be lowered below this value.

This feature allows you to display temperatures in either Fahrenheit or Celsius.

You can select either a 12 or 24 hour clock setting.

Hour Clock

The pre-occupancy fan settings will energize the fan before the occupied time to provide ventila-

Pre

Occupancy

Fan

Display

Light

tion prior to scheduled occupancy time periods. This feature only shows if the technician setup step for time periods is set to 2C or 4C.

Use the and buttons to adjust.

The display light can be congured to stay on all the time or turn on when any key is pressed. There are LOW and HIGH selections for continuous ON selection.

NOTE: The thermostat will need to be hardwired in order for the LOW and HIGH display light functions to work properly. “ALWAYS ON LIT” will alternate in the text eld with “HARDWIRE ONLY” when HIGH is selec ted. These prompts will alternate every three

seconds.

If the thermostat is hardwired this feature will default to LOW.

LCD Will Show

COOL LIMIT

F OR C SET

CLOCK SET

PRE-OCC FAN

ALWAYS ON LIT

HARDWIRE ONLY

Use the or key to select the minimum cooling setpoint.

˚F for Fahrenheit ˚C for Celsius

Use the or key to select 12 or 24 hour clock.

You can select the pre-occupancy fan from OFF, 1, 2, or 3 hours. If 1, 2, or 3 is selected, the fan will turn on that many hours prior to the scheduled occupied time period.

Use the and buttons to select OFF, LOW, or HIGH.

OFF congures the display light to come on when the light key or any button is pressed.

LOW congures the display light to stay on at a low intensity constantly. When a button is pressed, the display light will transition to high intensity.

HIGH congures the display light to remain on at high intensity all the time.

44˚F

˚F

12H

OFF

If Battery Powered

LOW

Hardwired

Tech Setup Steps Adjustment Options Default

This feature allows you to put your phone number in the display. You can choose ON or OFF.

Notes:

Contractor

Call Number

IAQ Mode

Cycle

Contractor Call Number Note

If contractor call number is selected ON, the phone number entered will show in the display if there has been a continuous call for heating or cooling for 24 hours or if the light button is held down for 3 seconds. To remove the phone number from the display, hold the light button down for 3 seconds.

seconds.

This feature will congure the fan to run a selected number of cycles per hour. Note: This mode can be enabled or disabled at anytime during normal operation by selecting IAQ mode with the fan key. Turning this feature on shows IAQ option in fan key.

Notes: This programmable/selectable mode will operate the fan 1-4 cycles per hour, 1-45 minutes per cycle. Once programmed in tech setup, to enable this mode select “IAQ” with the fan key. Disable this mode by selecting

“ON” or “AUTO” with the fan key.

LCD Will Show

PHONE NUMBER

IAQ MODE CYCL

If selected ON, you will see the input screen after pressing NEXT STEP. Use the or button to select the desired number and the FAN or SYSTEM key to move from one character to another. See note below for operation.

Select OFF, 1, 2, 3 or 4 with the or buttons. This sets the number of cycles per hour that the IAQ fan mode will operate.

OFF

Page 6

Technician Setup Menu

Programming

Tech Setup Steps Adjustment Options Default

This allows you to select the minimum number of minutes that the fan will run per IAQ mode cycle. The thermostat will keep track of fan runtime from normal heat and cool operation. If additional fan runtime is needed,

IAQ Minutes

Per Cycle

Humidity

the thermostat will run the fan to satisfy the IAQ mode minutes.

“ON” or “AUTO” with the fan key.

Enables a reminder for the user to change the humidity pad.

Pad

Reminder

Enables a reminder for the user to change the UV light bulb.

UV Lamp Reminder

Enables a reminder for the user to change the IAQ Cell after

IAQ Cell

25,000 hrs.

Reminder

LCD Will Show

IAQ MODE MIN

OFF

HUMIDITY PAD

OFF

UV LAMP

OFF

IAQ CELL

Select 1, 5, 10, 15, 20, 30 or 45 minutes. When IAQ fan mode is enabled, it will ensure the fan runs at least the selected number of minutes per IAQ Mode Cycle. This step will not appear if previous step is set to “OFF”.

Use the or key to select OFF, 600, 1000, 1500, or 2000. These represent hours of heat operation.

Use the or key to select OFF, 1 YR, 2 YR

Use the or buttons to select OFF, or 25 (stands for 25,000 hours).

OFF

Set Time

Follow the steps below to set the day of the week and current time:

1. Press the MENU button.

2. Press SET TIME.

3. Day of the week is ashing. Use the or key to

select the current day of the week.

4. Press NEXT.

5. The current hour is ashing. Use the or key to

select the current hour. When using 12-hour time, make sure the correct a.m. or p.m. choice is selected.

6. Press NEXT.

7. Minutes are now ashing. Use the or key to

select current minutes.

8. Press DONE when completed.

Programming

All our programmable thermostats are shipped with an energy saving default program. You can customize this default program by following the instructions in the set program schedule section starting on page 24.

Your thermostat can be programmed to have each day of the week programmed uniquely (7 days), all the weekdays the same with a separate program for Saturday and a separate program for Sunday (5+1+1), or non-programmable. For the 7-day and 5+1+1 programming modes, there are three time period options.

1. “4” Residential (WAKE, LEAVE, RETURN, SLEEP)

2. “2C” Commercial (OCCUPIED, UNOCCUPIED)

3. “4C” Commercial (OCCUPIED 1, UNOCCUPIED 1, OCCUPIED 2, UNOCCUPIED 2)

This thermostat has a programmable fan feature, which allows you to run the fan continually during any time period.

A Note about IAQ Mode

This programmable/selectable mode will operate the fan 1-4 cycles per hour, 1-45 minutes per cycle. Once programmed in tech setup, to enable this mode select “IAQ” with the fan key. Disable this mode by selecting “ON” or “AUTO” with the fan key.

To customize your 7 day 4 time period Program schedule, follow these steps:

Monday:

1. Select HEAT or COOL with the SYSTEM key. Note: You have to program heat and cool each separately.

2. Press the MENU button (If menu does not appear rst, press RUN SCHED).

3. Press SET SCHED. Note: Monday is displayed and the

WAKE/OCC1 icon is shown. You are now programming the WAKE/OCC1 time period for that day.

4. Time is ashing. Use the or key to make your time selection for that day’s WAKE/OCC1 time period. Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the FAN key.

5. Press NEXT.

6. The setpoint temperature is ashing. Use the or key

to make your setpoint selection for that day’s WAKE/OCC1 period.

7. Press NEXT.

8. Repeat steps 4 through 7 for that day’s LEAVE/UNOCC1 time period, for that day’s RETURN/OCC2 time period, and for that day’s SLEEP/UNOCC2 time period.

Reminders

Once a reminder has been turned on and set, the elapsed time can be checked by navigating to its tech setup step. The elapsed time will then appear in the text eld. It can also be reset at that time by holding down the set time/run sched button for 3 seconds. Resetting an expired reminder can be done without entering tech setup, by holding down the set time/run sched button for 3 seconds from the home screen.

ProgrammingProgramming

Set Program Schedule For Two Time Periods

To customize your 5+1+1 Program schedule, follow these steps:

Weekday:

1. Select HEAT or COOL with the SYSTEM key. Note: You have to program heat and cool each separately.

2. Press the MENU button (If menu does not appear rst, press RUN SCHED).

3. Press SET SCHED. Note: Monday-Friday is displayed and the

OCCUPIED text is shown. You are now programming the OCCUPIED time period for that day.

4. Time is ashing. Use the or key to make your time selection for the weekday OCCUPIED time period. Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the fan key.

5. Press NEXT.

6. The setpoint temperature is ashing. Use the or key

to make your setpoint selection for the weekday OCCUPIED period.

7. Press NEXT.

8. Repeat steps 4 through 7 for the weekday UNOCCUPIED time period.

(OCCUPIED, UNOCCUPIED)

Repeat steps 4 through 8 for the remaining days of the week.

A Note About Auto Changeover:

In Auto you have the ability to switch between Auto Heat or Auto Cool by pressing the system key. This can be done once the current mode has reached its setpoint. For example: if in Auto Heat, the heat setpoint must be satised before the thermostat will allow you to switch to Auto Cool. You can switch out of Auto by holding down the system key. To get back into Auto, you must toggle the system key to Auto.

Saturday:

Repeat steps 4 through 7 for the Saturday OCCUPIED time period and for the Saturday UNOCCUPIED time period.

Sunday:

Repeat steps 4 through 7 for the Sunday OCCUPIED time period, and for the Sunday UNOCCUPIED time period.

Page 7

Programming Programming

Set Program Schedule For Four Time Periods

(WAKE, LEAVE, RETURN, SLEEP or OCCUPIED 1, UNOCCUPIED1, OCCUPIED 2, UNOCCUPIED 2)

To customize your 5+1+1 Program schedule, follow these steps: Weekday:

1. Select HEAT or COOL with the system switch. Note: You have to program heat and cool each separately.

2. Press the MENU button (If menu does not appear rst press RUN SCHED).

3. Press SET SCHED. Note: Monday-Friday is displayed and the

WAKE/OCC1 icon is shown. You are now programming the WAKE/OCC1 time period for the weekday setting.

4. Time is ashing. Use the or key to make your time selection for the weekday WAKE/OCC1 time period. Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the FAN key.

5. Press NEXT.

6. The setpoint temperature is ashing. Use the or key

to make your setpoint selection for the weekday WAKE/OCC1 period.

7. Press NEXT.

8. Repeat steps 4 through 7 for the weekday LEAVE/UNOCC1 time period, for the weekday RETURN/OCC2 time period, and for the weekday SLEEP/UNOCC2 time period.

Day of

the Week

Weekday

Saturday

Events Time

Wake/OCC1

Leave/UNOCC1

Return/OCC2

Sleep/UNOCC2

Occupied

Unoccupied

Wake/OCC1

Leave/UNOCC1

Return/OCC2

Sleep/UNOCC2

Occupied

Unoccupied

Wake/OCC1

Custom Program

Setpoint

Temperature

(HEAT)

Setpoint

Temperature

(COOL)

Saturday:

Repeat steps 4 through 7 for the Saturday WAKE/OCC1 time period, for the Saturday LEAVE/UNOCC1 time period, for the Saturday RETURN/OCC2 time period, and for the Saturday SLEEP/UNOCC2 time period.

Sunday:

Repeat steps 4 through 7 for the Sunday WAKE/OCC1 time period, for the Sunday LEAVE/UNOCC1 time period, for the Sunday RETURN/OCC2 time period, and for the Sunday SLEEP/UNOCC2 time period.

To customize your 7 day 2 time period program schedule, follow these steps:

Monday:

1. Select HEAT or COOL with the SYSTEM key. Note: You have to program heat and cool each seperately.

2. Press the MENU button (If menu does not appear rst press RUN SCHED).

3. Press SET SCHED. Note: Monday is displayed and the

OCCUPIED text is shown. You are now programming the OCCUPIED time period for that day.

4. Time is ashing. Use the or key to make your time selection for that day’s OCCUPIED time period. Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the fan key.

5. Press NEXT.

6. The setpoint temperature is ashing. Use the or key

to make your setpoint selection for that day’s OCCUPIED period.

LeaveUNOCC1

Return/OCC2

Sunday

Sleep/UNOCC2

Occupied

Unoccupied

ProgrammingProgramming

Default Programming

Factory Default Program

Day of

the Week

Weekday

Saturday

Events Time

Wake/OCC1

Leave/UNOCC1

Return/OCC2

Sleep/UNOCC2

Wake/OCC1

Leave/UNOCC1

Return/OCC2

6 AM

8 AM

6 PM

10 PM

6 AM

8 AM

6 PM

Setpoint

Temperature

(HEAT)

70˚F (21˚C)

62˚F (17˚C)

70˚F (21˚C)

62˚F (17˚C)

70˚F (21˚C)

62˚F (17˚C)

70˚F (21˚C)

Setpoint

Temperature

(COOL)

75˚F (24˚C)

83˚F (28˚C)

75˚F (24˚C)

78˚F (26˚C)

75˚F (24˚C)

83˚F (28˚C)

75˚F (24˚C)

7. Press NEXT.

8. Repeat steps 4 through 7 for that day’s UNOCCUPIED

time period.

Repeat steps 4 through 8 for the remaining days of the week.

A Note About Programmable Fan:

The programmable fan feature will run the fan continuously during any time period it is programmed to be on. This is the best way to keep the air circulated and to eliminate hot and cold spots in your building. If using IAQ mode, set fan to IAQ for any time period.

Sunday

Sleep/UNOCC2

Wake/OCC1

LeaveUNOCC1

Return/OCC2

Sleep/UNOCC2

10 PM

6 AM

8 AM

6 PM

10 PM

62˚F (17˚C)

70˚F (21˚C)

62˚F (17˚C)

70˚F (21˚C)

62˚F (17˚C)

78˚F (26˚C)

75˚F (24˚C)

83˚F (28˚C)

75˚F (24˚C)

78˚F (26˚C)

Page 8

FeaturesProgramming

Default Programming

Factory Default Program for 2 Time Periods

Day of

the Week

Events Time

OCCUPIED

8 AM

Setpoint

Temperature

(HEAT)

70˚F (21˚C)

Weekday

UNOCCUPIED

OCCUPIED

6 PM

8 AM

62˚F (17˚C)

70˚F (21˚C)

Saturday

UNOCCUPIED

OCCUPIED

6 PM

8 AM

62˚F (17˚C)

70˚F (21˚C)

Sunday

UNOCCUPIED

You can use the table on the next page to plan your customized program schedule if using 5+1+1.

6 PM

62˚F (17˚C)

Setpoint

Temperature

(COOL)

78˚F (26˚C)

83˚F (28˚C)

78˚F (26˚C)

83˚F (28˚C)

78˚F (26˚C)

83˚F (28˚C)

Filter Change & Other Reminders

If the lter change reminder is enabled, you will see a reminder in the display when your air lter needs changed. The reminder will be shown in the display after your system has run long enough to require an air lter change.

Resetting The Filter Change Reminder: When the reminder is displayed, you should change your air lter and reset the reminder by holding down the 3rd button from the left side of the thermostat for 3 seconds.

This thermostat also has other maintenance reminders (Humidity Pad, UV lamp, and IAQ Cell), that are reset with the same procedure.

Temporary & Permanent Hold Feature

Temporary Hold: The thermostat will display HOLD and RUN SCHED

on the bottom of the screen when you press the or key. If you do nothing, the temperature will remain at this setpoint temporarily for 4 hours. The program setpoint will then replace the temporary setpoint.

Permanent Hold: With a temporary hold set, If you press the HOLD key at the bottom of your screen, you will see HOLD appear below the setpoint temperature in the display. The thermostat will now permanently stay at this setpoint and can be adjusted using the or keys.

To Return To Program: Press the RUN SCHED key at the bottom of the screen to exit temporary and permanent holds.

Page 9

Specications

The display range of temperature ... 41˚F to 95˚F (5˚C to 35˚C)

The control range of temperature.... 44˚F to 90˚F (7˚C to 32˚C)

Load Rating............................................... 1 amp per terminal, 1.5 amp

maximum all terminals combined

Swing (cycle rate or dierential) ...... Heating is adjustable from 0.2˚ to 2.0˚

Cooling is adjustable from 0.2˚ to 2.0˚

Power source ...........................................18 to 30 VAC, NEC Class II, 50/60 Hz

for hardwire Battery power from 2 AA Alkaline batteries

Operating ambient ............................... 32˚F to +105˚F (0˚C to +41˚C)

Operating humidity .............................. 90% non-condensing maximum

Dimensions of thermostat ................. 4.7” W x 4.3” H x 0.9” D
