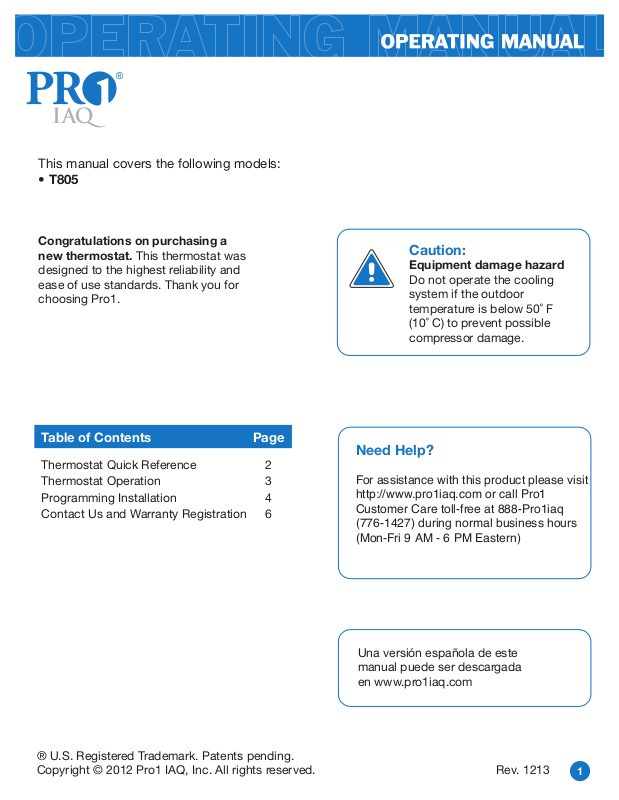

Pro1 T805 Operation manual

Thismanualcoversthefollowingmodels:

• T805

Congratulations on purchasing a
new thermostat.Thisthermostatwas

designedtothehighestreliabilityand
easeofusestandards.Thankyoufor
choosingPro1.

Table of Contents Page

ThermostatQuickReference
ThermostatOperation
ProgrammingInstallation
Contact Us and WarrantyRegistration

2
3
4
6

Caution:

Equipment damage hazard

Donotoperatethecooling
systemiftheoutdoor
temperatureisbelow50˚ F
(10˚ C) to preventpossible
compressordamage.

Need Help?

For assistance with this product please visit
http://www.pro1iaq.com or call Pro1
Customer Care toll-free at 888-Pro1iaq
(776-1427) during normal business hours
(Mon-Fri 9 AM - 6 PM Eastern)

® U.S. RegisteredTrademark.Patentspending.
Copyright © 2012 Pro1IAQ,Inc.Allrightsreserved.

Una versión española de este
manualpuedeserdescargada
enwww.pro1iaq.com

Rev.1213

1

Getting to know your thermostat

THERMOSTAT QUICK REFERENCE

2

1

7

3 4

8

2

Glow in the Dark Light Button

Fan Button

3

System Button

4

Menu Buttons Access Door

5

Temperature Setpoint Buttons

6

Menu Button

7

User Program Buttons

8

LCD

1

Days of the
week and time

6

Programmable

Time Period Icons:
This thermostat has
4 programmable time
periods per day.

Program Menu Options

Shows different options
during programming.

5

Indicates the current
room temperature

Displays the user
selectable setpoint
temperature.

Hold is displayed when
thermostat program is
permanently overridden.

System operation
indicators: The COOL,
HEAT or FAN icon will
display when the COOL,
HEAT or FAN is on.

NOTE: The compressor
delay feature is active if
these icons are flashing.
The compressor will not
turn on until the 5 minute
delay has elapsed.

Low Battery Indicator:
Replace batteries when
this indicator is shown.

Important:

The low battery indicator is displayed
when the AA battery power is low. If the
user fails to replace the battery within
21 days, the thermostat display will only
show the low battery indicator as a final
warning before the thermostat
becomes inoperable. The batteries are
located on the back of the Thermostat.

Battery information

On the back of the thermostat insert

2 AA Alkaline batteries (included).

Pull the thermostat directly away
from the wall to access the batteries.
A firm tug will be required to remove
the thermostat from the subbase
mounted on the wall.

2
