PR Lighting XPar 1012 User Manual

Page 1

XPar 1012

PR-8208

The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference.

PR LIGHTING LTD.

http://www.pr-lighting.com

Page 2

INDEX

1. SAFETY AND WARNINGS……………………………………………………………………………………………

2. INSTUCTIONS………………………………………………………………………………………………………

●CLEANING AND MAINTENANCE ………………………………………………………………………………

●TROUBLESHOOTING………………………………………………………………………………………………

3. APPEARANCE………………………………………………………………………………………………………

4. INSTALLATION ……………………………………………………………………………………………………

●RIGGING ……………………………………………………………………………………………………………

●PLACE A UNIT ON A FLAT SURFACE ……………………………………………………………………………

●INSTALLATION OF THE ACCESSORIES………………………………………………………………………

●TRANSPORTATION…………………………………………………………………………………………………

●POWER CONNECTIONS …………………………………………………………………………………………

●DMX CONTROL CONNECTION…………………………………………………………………………………

●DMX TERMINATOR………………………………………………………………………………………………

5. SETUP AND CONFIGURATION ……………………………………………………………………………………

●FRONT PANEL OPERATION ………………………………………………………………………………………

●DMX START ADDRESS……………………………………………………………………………………………

●STAND-ALONE MODE……………………………………………………………………………………………

●MASTER/SLAVE MODE……………………………………………………………………………………………

6.OPERATION MENU …………………………………………………………………………………………………

7. DMX PROTOCOL …………………………………………………………………………………………………

8.TECHNICAL DATA…………………………………………………………………………………………………

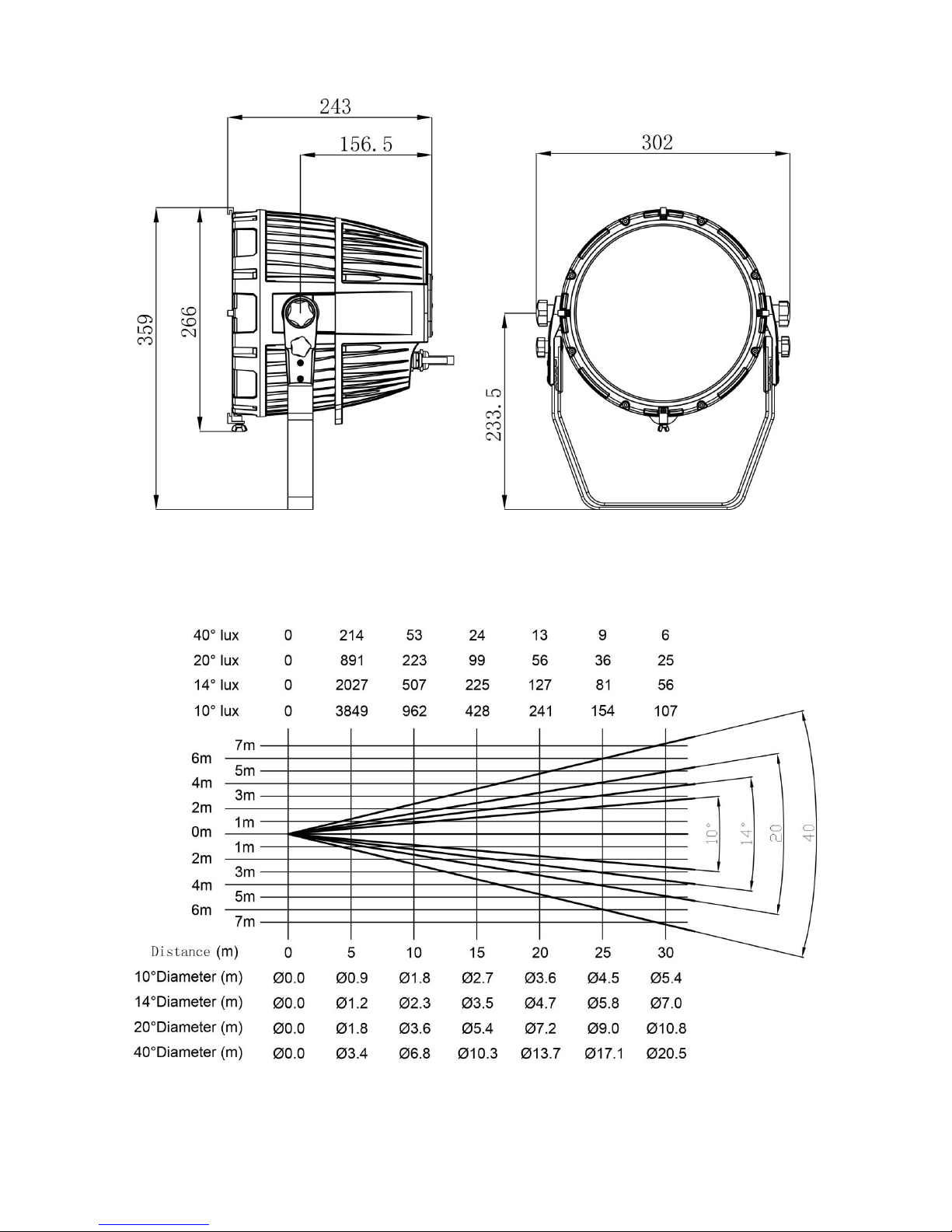

●SIZES………………………………………………………………………………………………………………

● LIGHT OUTPUT …………………………………………………………………………………………………

9.CIRCUIT DIAGRAM AND PCB CONNECTIONS…………………………………………………………………

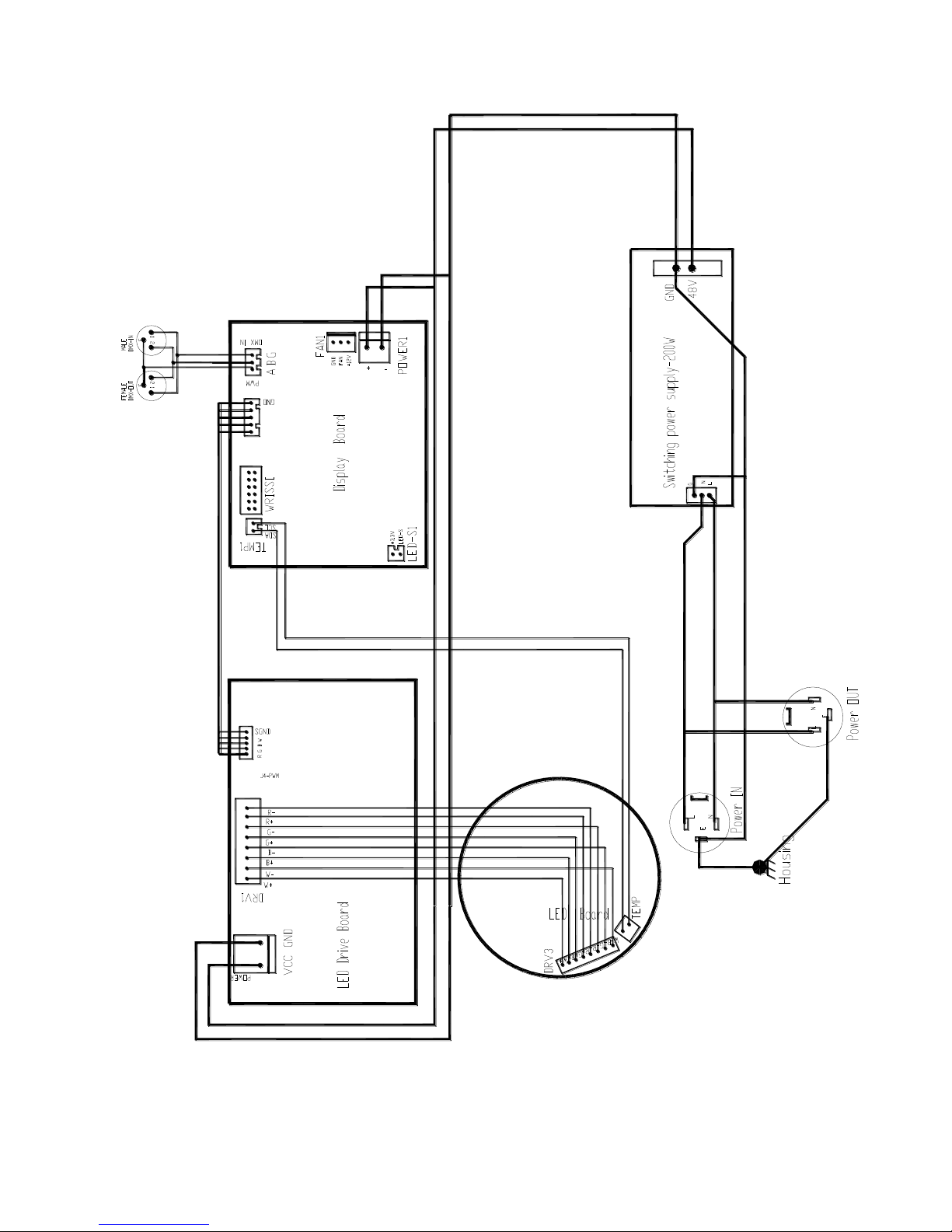

●CIRCUIT DIAGRAM………………………………………………………………………………………………

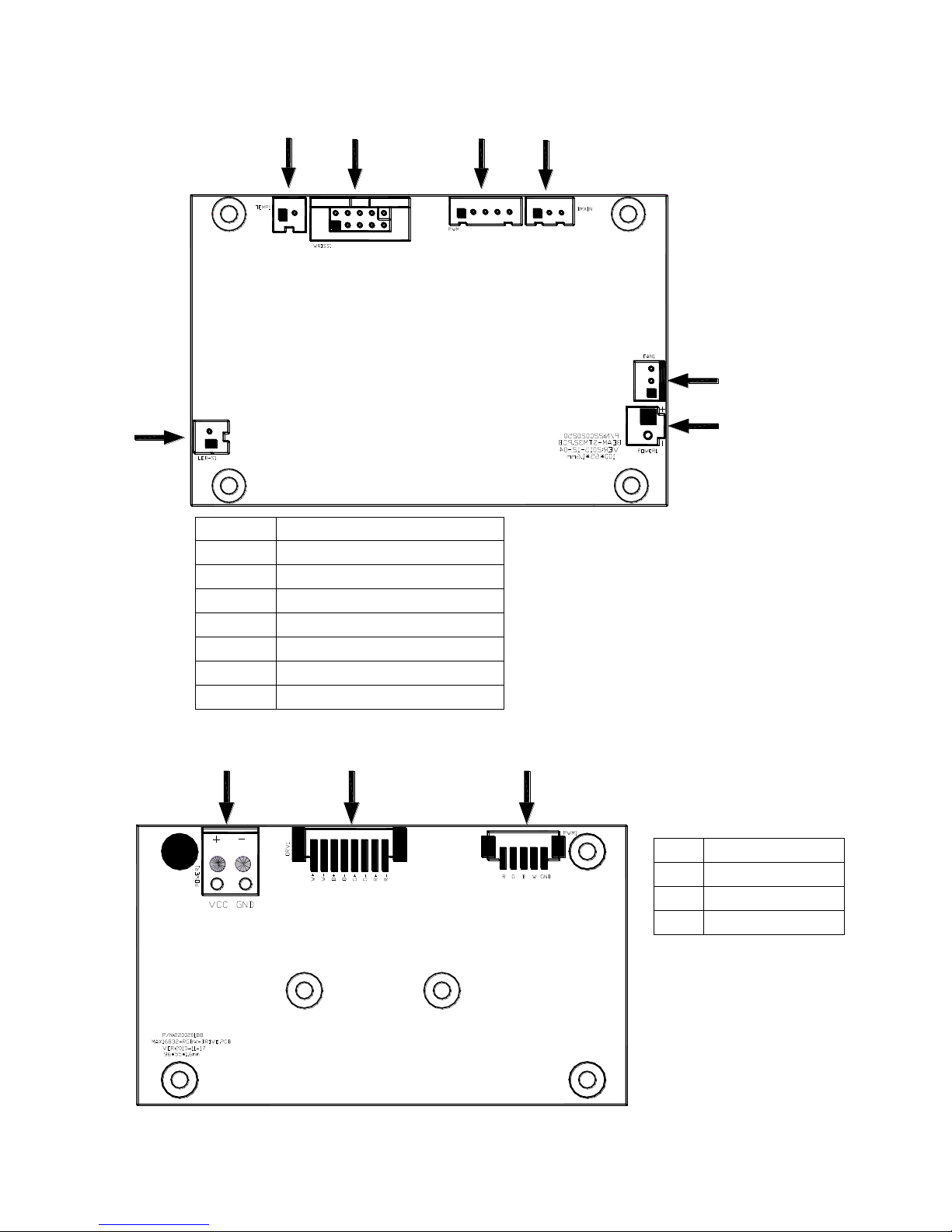

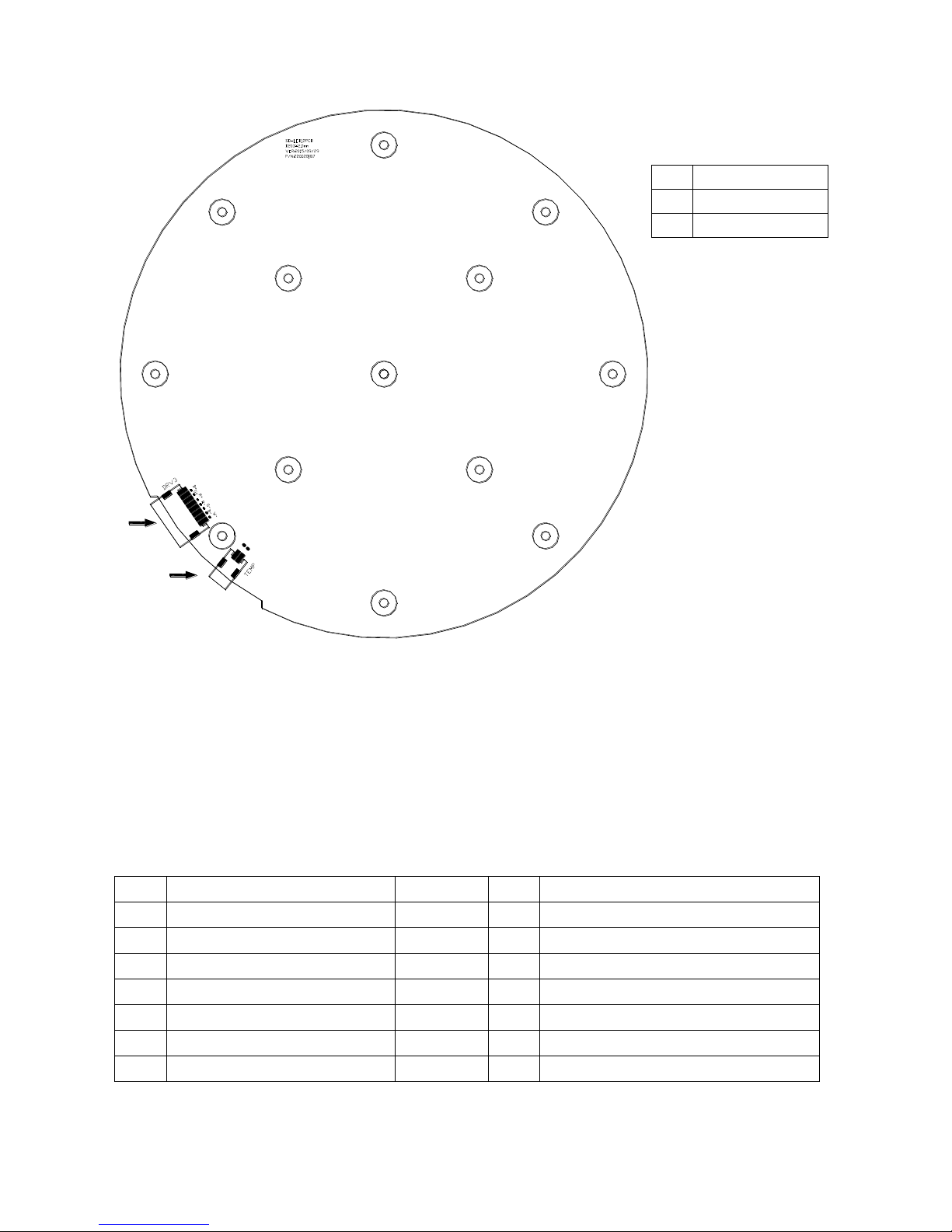

●PCB CONNECTIONS………………………………………………………………………………………………

10.COMPONENT ORDER CODES ……………………………………………………………………………………

1 2 2 3 3 4 5 5 5 6 6 7 7 8 8 8 8 8 9 10 12 13 13 14 14 15 16

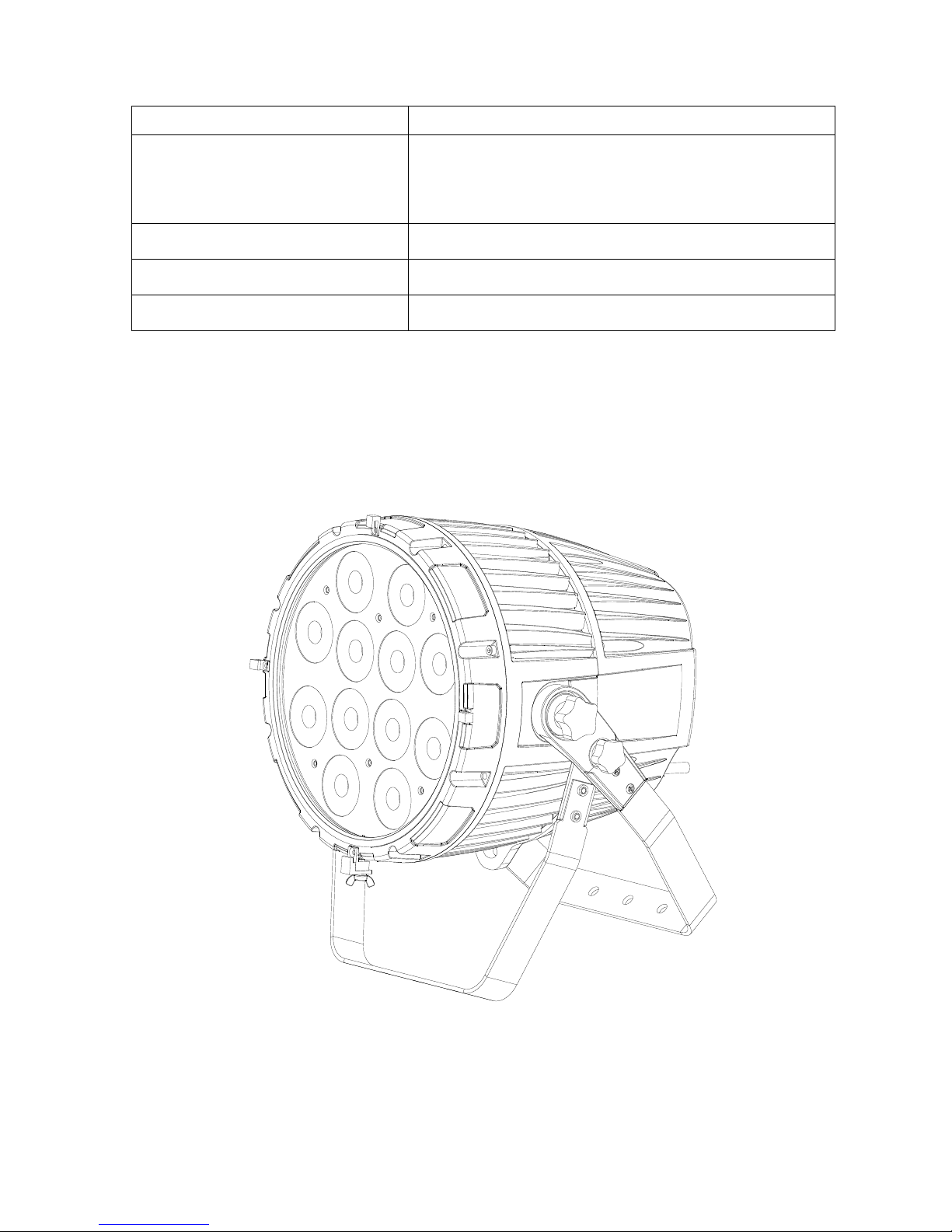

ACCESSORIES

The following items are supplied with the projector and please check:

Name

Quantity

Unit

Remark

G clamps 1 Pc

Power cord

XLR Cable

Pcs

XLR connector

Set

Male and female

Safety cord

User manual

Transparent Cover+ seal+ screws ×6

Set

Optional

Barn Door + Frost panel(Optional)

Set

Optional

Shading barrel

Set

Optional

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice. Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence arising from them. Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the units are in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.

Page 3

1. SAFETY AND WARNINGS

NOTE

Before a projector’s installation, power-on, operation and maintenance, please carefully read

the safety information hereinafter!

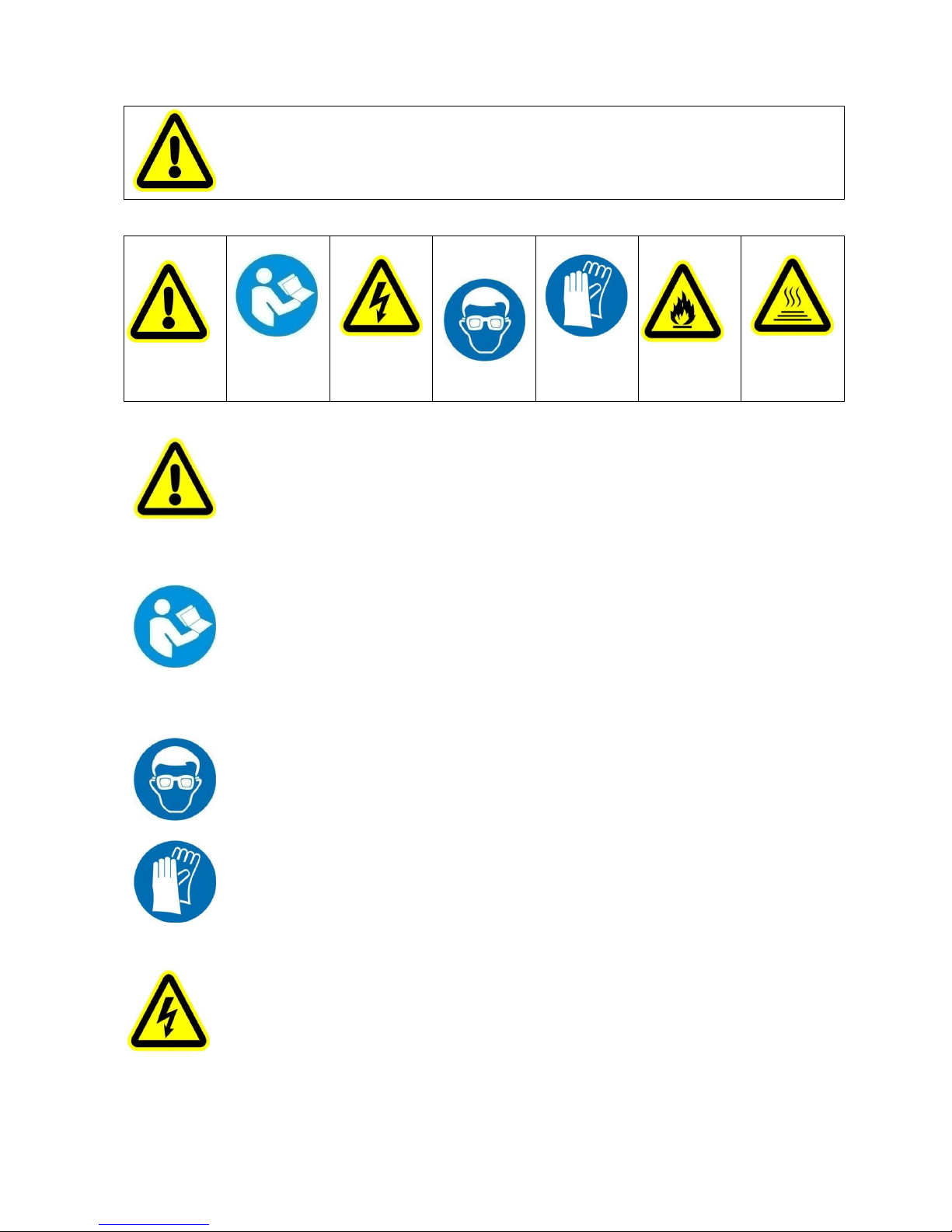

The following safety signs are used in the user manual.

Warning

User

Manual

Electrical

shock

Goggles

Protective

Gloves

Flames

High

Temperature

● When unpacking , check if there is transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use it.

●The manufacture is not responsible for loss caused by the user not following the manual or changing the

projector as he/she likes

●Please be noted that the damage caused by changing the projector at will is not warranted.

● Do not hesitate to contact the dealer or the manufacturer if any questions or advice.

●The unit with lower protection level is only used indoors, for those with IP65, they can be used both indoors and

outdoors.

● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other liquids.

●It’s forbidden to make the unit with lower protection level directly or indirectly contact water or other liquids.

●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while

being operated

●The projector is only intended for installation, operation and maintenance by qualified personnel. And the operation must strictly follow the procedures in the manual

●No repairable parts in the projector and do not open covers for maintenance by yourself.

●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.

●Do not connect this device to any type of dimmer pack

●After lamp switched on, the minimum distance between the projector and illuminated surface is 10m

●lens and other optical parts shall be replaced immediately if they have deformed or been damaged, otherwise the

light output will be compromised.

●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a

projector while covers(housing)are off

●Keep the lamp clean and do not touch it with bare hands.

●While operating it, wear protective items.

●Any electrical connection must be carried out by a qualified person .

●Before installation, please confirm the voltage supplied matches what is required for the projector

●Each projector must be properly earthed and installed as per related electrical standards.

●Do not use power cord with its insulator damaged and connect the power cord with other cables.

●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully or

by pulling the power cable.

●All power cords must conform to related safety and regulations

●While being operated, the projector should not be under rains or in humidity.

●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other electrical parts’ life will be shortened .

Page 4

●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord supplied through the safety cord holes for safety support.

●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from

power mains.

●Under normal temperature, after being stable, the unit’s surface (the surface of the heat sink)temperature

will be 55℃

●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not mean the projector has some defects.

●While operated, do not touch the metallic housing. It is very hot during operation.

●Do not mount the projector directly on inflammable surface.

●Do not project the beam straightly on combustible items and the minimum distance between the projector

and illuminated items is 10m.

●A projector should be installed with good ventilation and the minimum distance between the projector and

walls is 50cm. At the same time, please ensure the fans and air inlets and outlets are workable.

2. INSTRUCTIONS

●CLEANING AND MAINTENANCE

Before the normal use of the unit, its protecting device needs to be periodically checked . For example, check if the fuse is blown up.

If yes, replace it with a fuse with same ratings. Please be noted that it must be a fuse with exactly same ratings.

The unit has over-temperature protection device(if over-temperature, the device will shut off the power supply). Please periodically

check cooling system. The cooling system includes cooling fans, heat sink and other cooling components; please check if the fans run normally. Check if the fans and air vents are free of blockage, making sure air vents are not blocked. The fans need to be cleaned every 15day periodically.

For the units with optical lens, reflector and hot mirror, because of the accumulation of the smoke, oil and dust on the lens, the

light output will be compromised. For the reliable use of the unit, it is very necessary to keep it clean. Internal and external optical lens, glass panels, reflectors and hot mirrors need to be cleaned periodically for the optimized light output.

The unit has water-proof function at some level. Unless it is confirmed by a qualified person for the replacement of some internal

components, dismantlement of it is forbidden. For the unit of this type, if without any cooling fan, just keep it clean. If with fans, please refer descriptions above for cleaning.

Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning

work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean and do not touch optical parts with bare hands.

●Before any maintenance and cleaning, please ensure the project is off the power

●Only qualified person is allowed to do maintenance

●During maintenance and before maintenance, the projector must be off power.

●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens whether

it runs or not

●Do not use alcohol or other organic solvent to clean the housing to avoid damage.

●Do not use any solvent with chemical elements to clean color filters or hot mirror.

Page 5

●TROUBLESHOOTING

PROBLEM

ACTION

The projector doesn’t switch on

 Check the power cord connection.  Power Switch fails or is not connected well, call a professional

technician for repairing and checking.

 Control board is not connected normally, call a professional technician

for repairing and checking .

The project can be turned on, but the LED lamps can’t be on

 LED lamp board is not connected well, call a professional technician for

repairing and checking.

The LED lamps can be on, but not controlled by DMX

 Check DMX Start Address.  Check if XLR cable fails or not.

The brightness decreases obviously

 Ambient temperature is too hot which makes the projector too hot,

please take appropriate ventilation measures.

3. APPEARANCE

Page 6

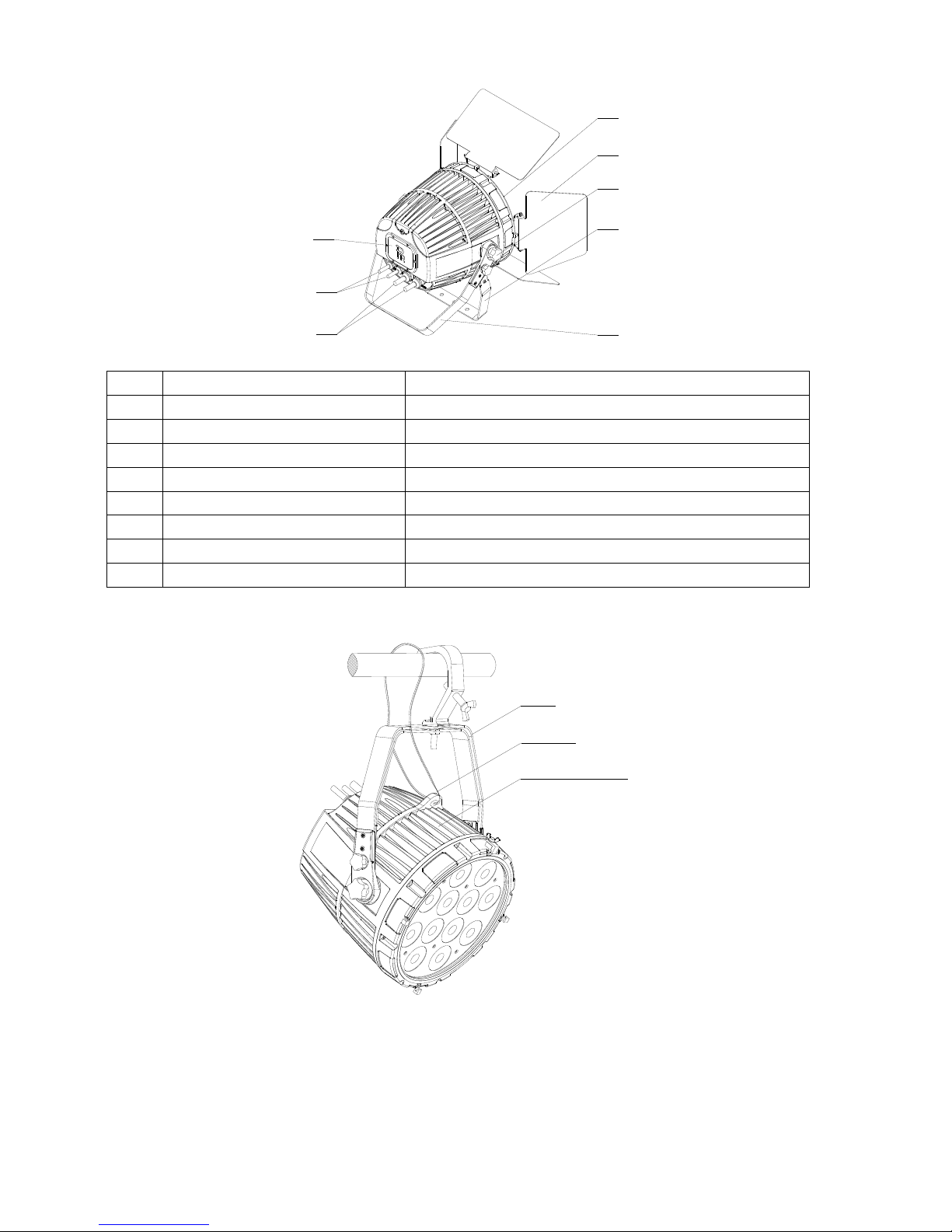

Product’s External Functional Sketch：

NO.

Name

Remarks

Frost panel（Optional）

Other components should be selected if frost panel selected

Barn Door （Optional）

3 Knob

Support

Arm 6

XLR cable

Small

Power Cord

Big

Transparent Display Cover（Optional ）

Used in harsh environment like dusty area or being under water

4. INSTALLATION

吊臂

保险绳

穿过保险绳孔

Arm

Safety cord

Run the safety cord through the hole

Page 7

●RIGGING

Take 1 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) To pass the SAFETY CORD through the HOLES for safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector to is secure and strong enough to support the weight of the unit Loosen the bigger knob and adjust the head’s angle for the effect desired and the tighten it. The installation is completed.

●PLACE A UNIT ON A FLAT SURFACE Before placing a unit on a flat surface, loosen the small knob with the support and make the angle between the arm and the support 60degrees. Tighten the small knob. Loosen he big knob and adjust the angle between the arm and unit as desired and then tighten it.

●INSTALLATION OF THE ACCESSORIES

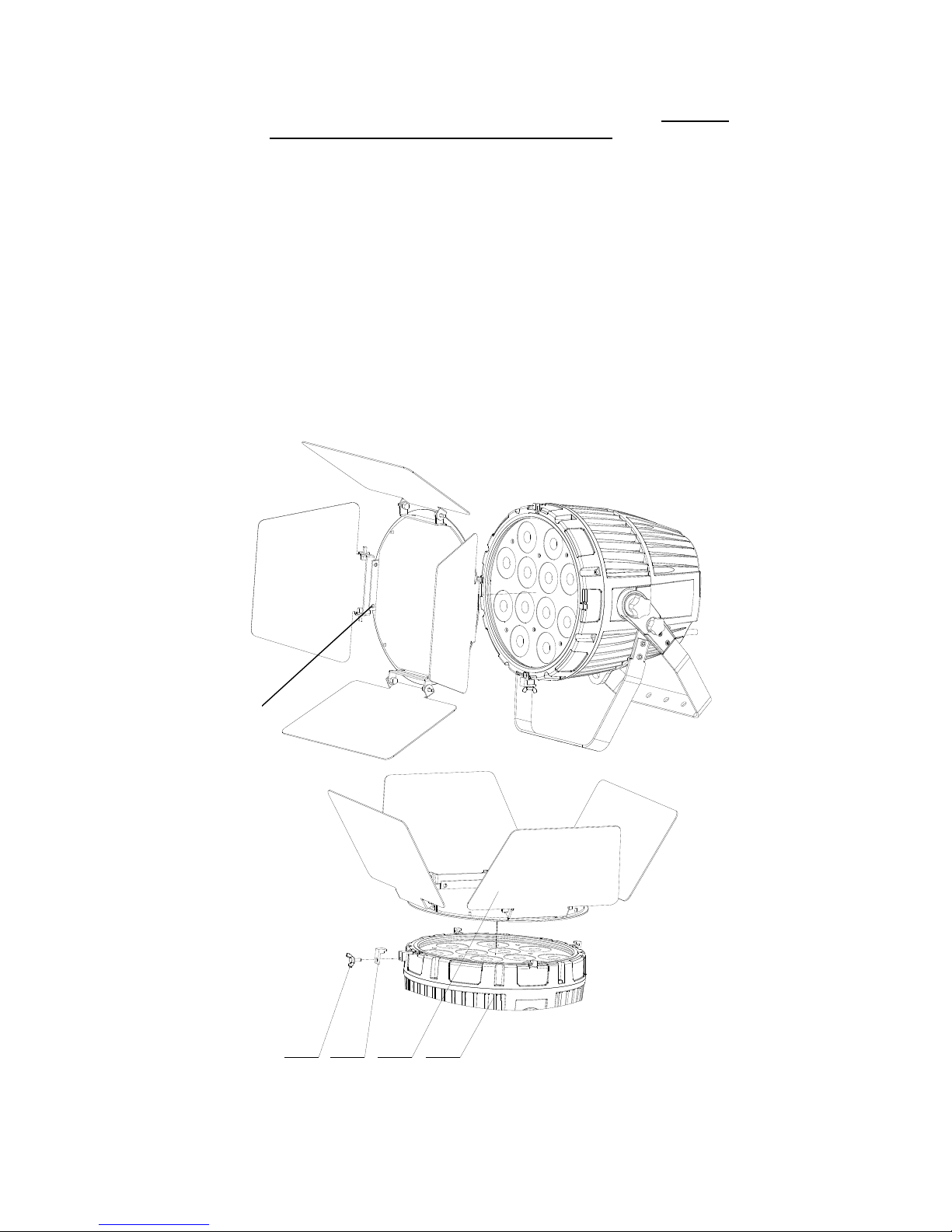

If barn door selected, its installation is illustrated in the diagram below:

Loosen the screw in the shape of a butterfly(1) in the front part of the unit(4), turn the clipping component in the shape of 7 by a little amount, then place the barn door(3). Turn the clipping component backward and tighten the butterfly screws. Run one end of the safety cord through safety cord hole on the unit’s body and the other end of it through the safety cord hole on the bard door to finish the installation of the barn door. Turn the barn door, and open or close the barn door blades to reach the effect desired.

1 2 43

Safety cord hole

Page 8

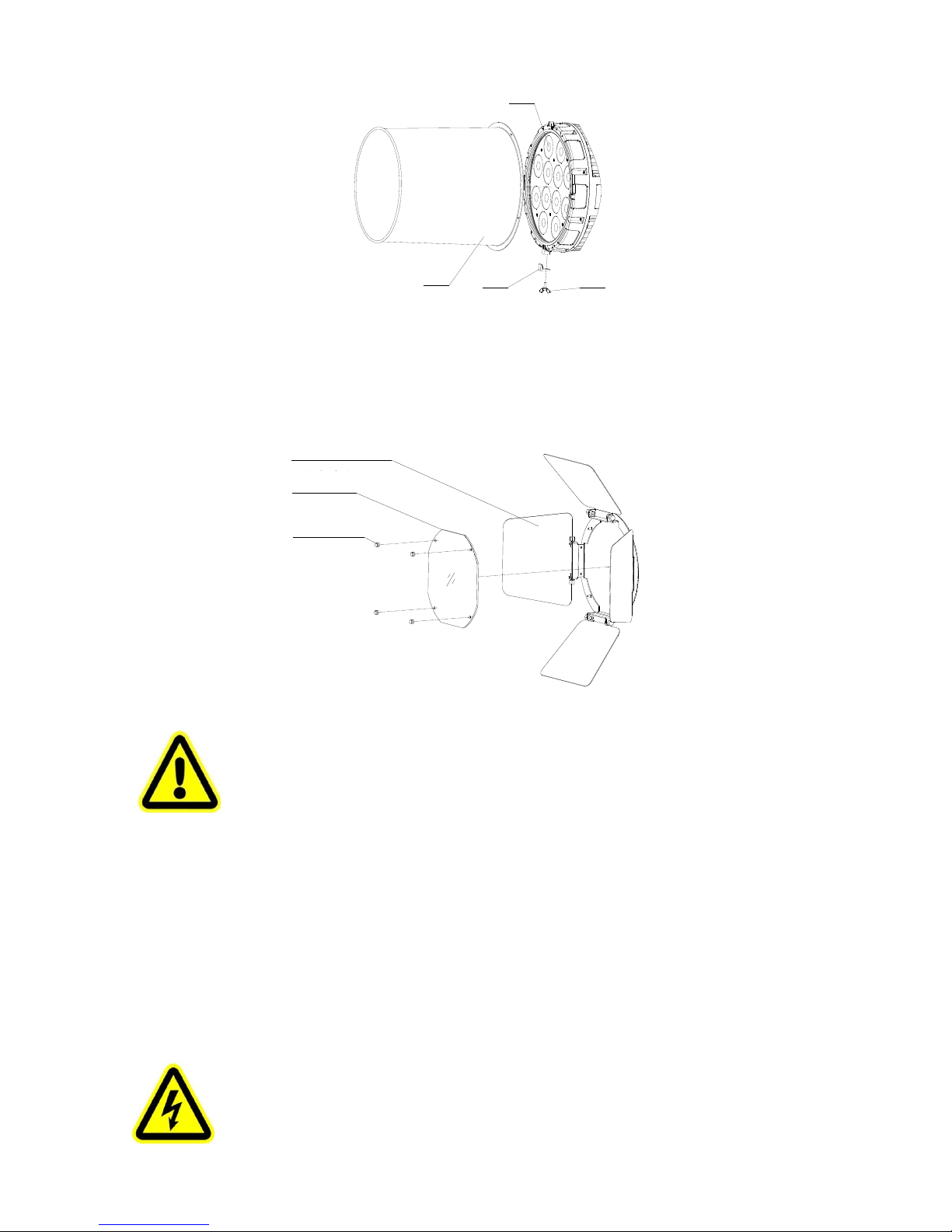

If the Top Hat is selected, Its Installation is illustrated in the diagrams below:

Loosen the screw in the shape of a butterfly(1) in the front part of the unit(4), turn the clipping component(2) in the shape of 7 by a little amount, then place the Top Hat (3). Turn the clipping component(2) backward and tighten the butterfly screws(1). Run one end of the safety cord through safety cord hole on the unit’s body and the other end of it through the safety cord hole on the Top Hat to finish the installation of the Top Hat.

If the frost panel is also selected, it must be used in combination of the barn door. Its Installation and Dismantis illustrated in the diagrams below:

●TRANSPORTATION

Before transportation, tighten both knobs after the arm and support are overlapped.

WARNING:

●The projector MUST be lifted or carried by the HANDLES instead of clamps.

●.For safety the safety cord should afford 10 times the Projector’s weight.

● POWER CONNECTION

Connect the power cord as follows:

L (live) =brown E (earth) =yellow/green N (neutral) =blue

Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each projector be connected with power separately so that they may be individually switched on and off.

Note: If projectors are connected in series, please connect POWERIN port of the 1st projector with the Power Mains, then connect its POWER OUT with POWER IN of the 2nd projector, and so on till all fixtures are connected. If the voltage supplied is 200V-240V, the maximum projectors connected is 8pcs, if it is 100V-120V, the maximum is 4pcs. The diameter of the cores of the wires for the Power in/out cables must be equal or bigger than 2.5mm

2 .

●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in

accordance with the standards concerned.

●If any questions about the electrical installation, do not continue but consult a qualified electrician.

螺母×4

柔光板

遮光板组件

Barn door

Frost Panel

Screw x 4

Page 9

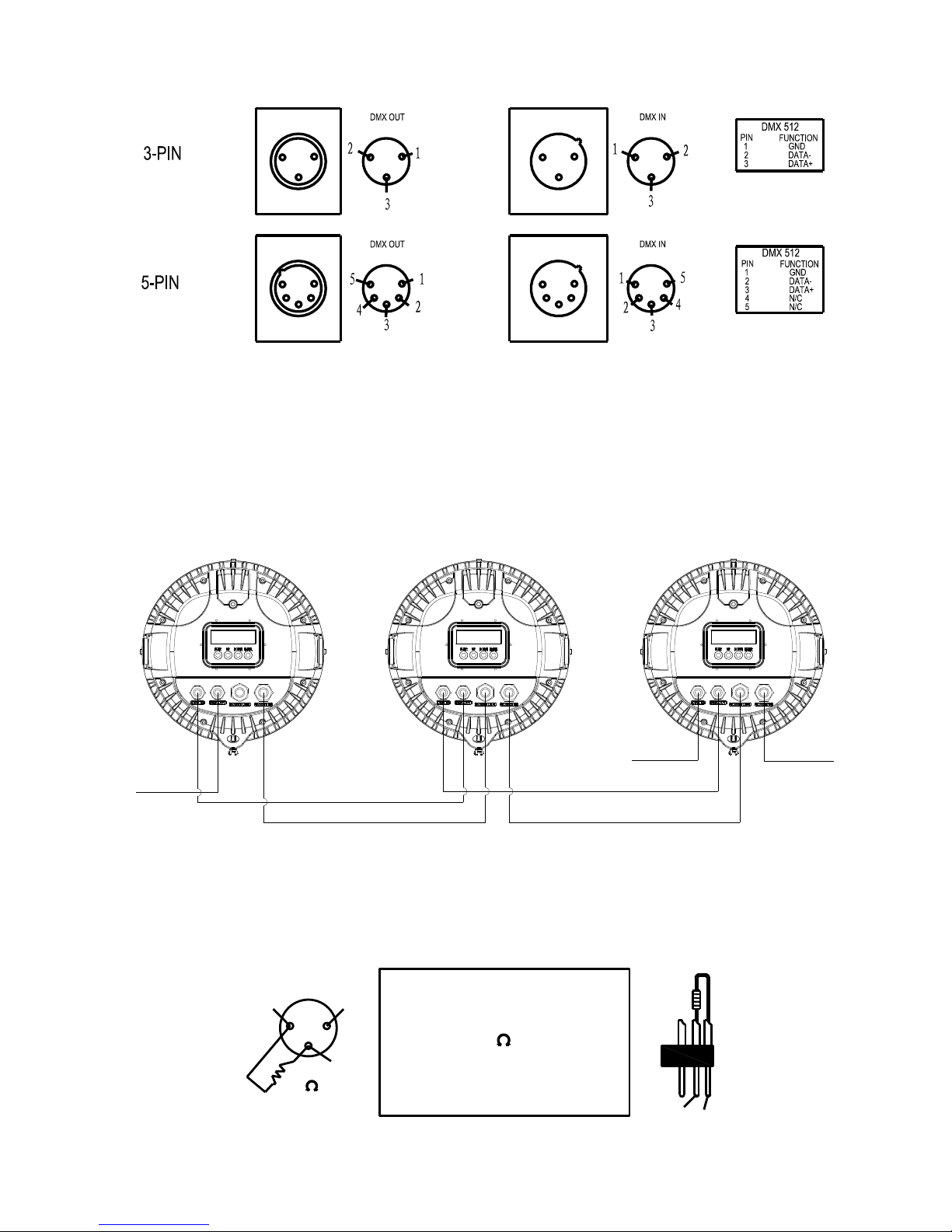

●DMX CONTROL CONNECTION:

Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above. Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets mustn’t be connected in any way other than mentioned in the above figure. The unit accepts digital control signals in protocol DMX512 (1990).

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX

terminator as shown in the figure below.

●DMX TERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. The connections are illustrated below.

接电源

接控制器

接回路插

POWER IN

POWER OUTPOWER OUT

POWER IN

DMX OUT

DMX IN

120

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor across pins 2 and 3 in an XLR plug and insert into the DMX out socket

on the last unit in the chain.

PIN 3

PIN 2

DMX terminator

DMX Controller

Power

Page 10

5. SETUP AND CONFIGURATION

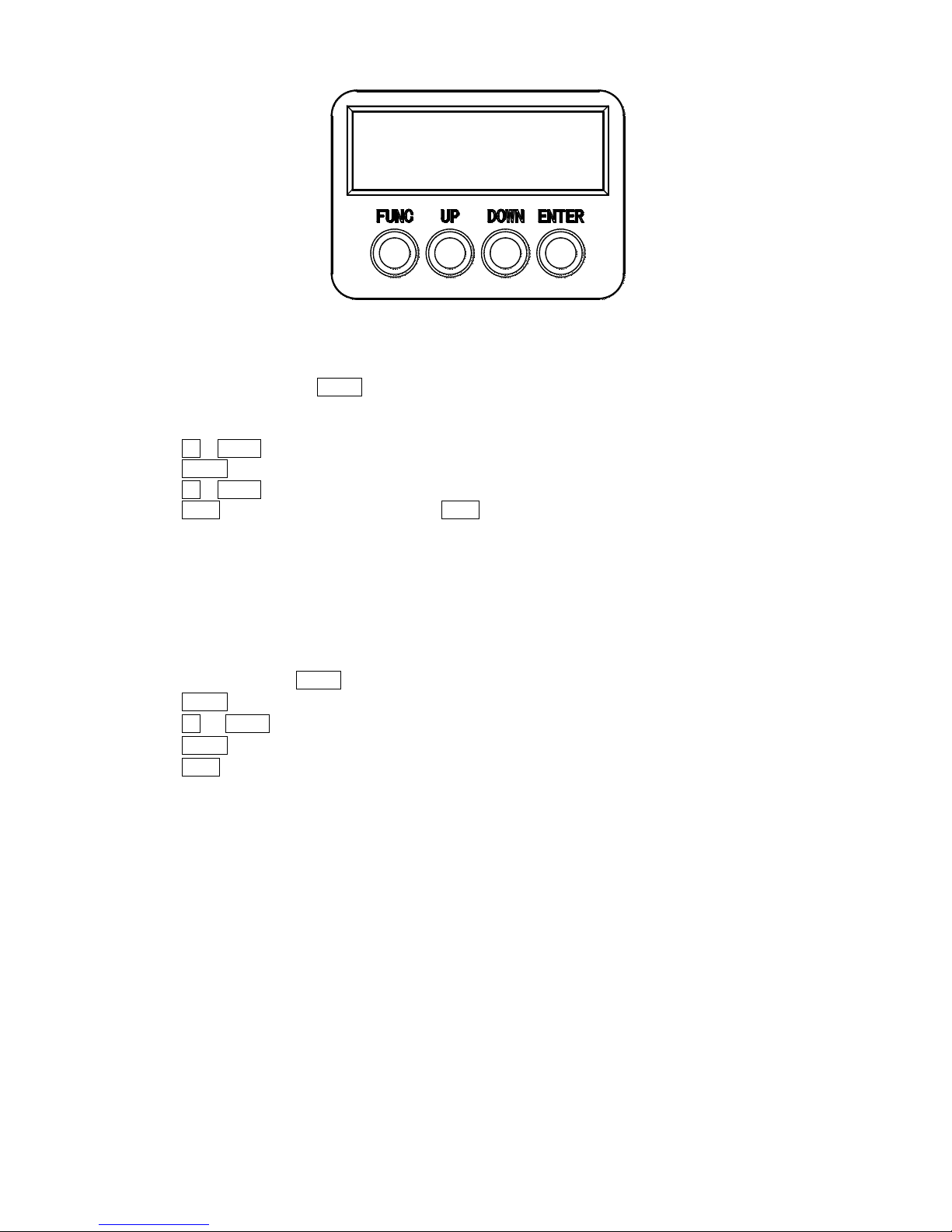

●FRONT PANEL OPERATION

Projector configuration can be set conveniently via push button and LCD display. Launch the projector and press button ENTER for more than 3 seconds to unlock the panel, the LCD will show the function menu of the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the “OPERATION MENU” section. Press button UP or DOWN if you want to browse through the various Setup Options. Press button ENTER to save your settings or enter the submenu. Press button UP or DOWN to change values(plus or minus) Press button FUNC, it will return to the upper menu. If button FUNC not pressed, the default will show display status automatically.

●DMX START ADDRESS

Each Projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller. The Unit has 2 DMX modes. There are standard mode and extended mode. For example standard mode has 6 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 007, No. 3 projector’s address 013, No. 4 projector’s address019, and so on. Launch the projector. Press button ENTER more than 2seconds to unlock panel. Press button ENTER to display DMX address; Press button UP and DOWN, you can set the address; Press button ENTER to confirm; after powered on next time, the default will be last value saved Press button FUNC, it will return to the upper menu .

●STAND-ALONE MODE

Operate the projector without connecting with a controller, enable the master mode through the operation panel, the projector will run in Stand-Alone mode automatically. DMX address can be set at any number within 512.

●MASTER/SLAVE MODE

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,

connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.

Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can be set accordingly.

After Powered on, the group will run in Master/Slave Mode

Page 11

6. OPERATION MENU

1st level menu

2nd level menu

3rd level menu

4th level menu

DMX Address

Standard mode:001 – 507

Extended mode:001-502

Config Settings

DMX Channel Mode

（Default：STD6）

Standard 6

Extended 11

Master/Slave

（Default：Slave）

Slave

Default:Slave

Master

Color Offset

Red

128-255

Green

128-255

Blue

128-255

Language

（Default：English）

English

Default:English

Chinese

Lcd Light Setup

Backlight off 3

minutes after no

button pushed

Off

Display Invert

Yes No

Factory Settings

Yes

Parameter Transm

Yes

Clean Prgra

Yes

Information

LED Temperature

LED temperature

XX℃

Fixture use Time

Fixture time

XXX

Software Ver.

X.X.X

Test Mode

Red

Green

Blue

White

RGB

RWB

RGBW

Operation Mode

DMX Mode

Yes

User Memory

Yes

Preset Memory

（PR01~PR16）

User Progra Edit

（ET01~ET16）

Dimmer

0-255

Strobe

0-255

Red

0-255

Green

0-255

Blue

0-255

White

0-255

Keep Time

000 – 200 (0- 20S)

Note:

1. In one DMX chain, only one unit can be made as the master. Before master works, unplug its XLR cable connected with the

console.

2. The parameters transmitted from the master include after several units are synchronized: DMX channel mode, display

settings(display contrast excluded),operation mode(including user memory).During parameter transmission, set the unit transmitting data as master and others as slave

Page 12

7. DMX PROTOCOL

Standard

mode

Extended

mode

Function

DMX

Description

Dimming

000-255

Linear Dimming 0%-100%

Color Temperature

000

001-255

Linear adjustment

Color Macros

000-016

017-024

White(10000K)

025-032

White(7200K)

033-040

White(5600K)

041-048

White(3200K)

049-056

Cyan

057-064

Yellow

065-072

Magenta

073-080

Red

081-088

Green

089-096

Blue

097-104

Light blue

105-112

Amber

113-120

Orange

121-128

Pink

129-255

Rainbow effect with speed from slow to fast between

Red

000-255

Linear change from light to dark

Green

000-255

Linear change from light to dark

Blue

000-255

Linear change from light to dark

White

000-255

Linear change from light to dark

6 8 Strobe

000-007

008-255

Strobe from slow to fast

Preset memory

000

001-015

Preset memory 1

016-031

Preset memory 2

032-047

Preset memory3

048-063

Preset memory 4

064-079

Preset memory 5

080-095

Preset memory 6

096-111

Preset memory 7

112-127

Preset memory 8

128-143

Preset memory 9

144-159

Preset memory 10

160-175

Preset memory 11

176-191

Preset memory 12

192-207

Preset memory 13

208-223

Preset memory 14

224-239

Preset memory 15

Page 13

240-255

Preset memory 16

User Memory

000

001-015

User Memory1

016-031

User Memory2

032-047

User Memory3

048-063

User Memory4

064-079

User Memory5

080-095

User Memory6

096-111

User Memory7

112-127

User Memory8

128-143

User Memory9

144-159

User Memory10

160-175

User Memory11

176-191

User Memory12

192-207

User Memory13

208-223

User Memory14

224-239

User Memory15

240-255

User Memory16

Preset Memory Speed

000-015

Speed 1, fastest

016-031

Speed 2

032-047

Speed 3

048-063

Speed 4

064-079

Speed 5

080-095

Speed 6

096-111

Speed 7

112-127

Speed 8

128-143

Speed 9

144-159

Speed 10

160-175

Speed 11

176-191

Speed 12

192-207

Speed 13

208-223

Speed 14

224-239

Speed 15

240-255

Speed 16, slowest

Note: DMX channel priority: Preset memory> user memory >Macros>RGBW dimming While higher priority channels are in use, lower priority channels don’t work.

Page 14

8. TECHNICAL DATA

INPUT VOLTAGES: 100V/120V/200V/220V /230V/240V AC，50/60Hz

RATED POWER :130W@220V

LIGHT SOURCE SPECIFICATIONS:

Qty 12pcs of RGBW LED lamp Power Consumption 120 W (12X10W) Manufacturers Rated Lamp Life 50000hours

COLORS

R/G/B/W

DIMMING

Linear Dimming from 0-100%

STROBE

Electronic Strobe 0.5-33FP.S.

BEAM ANGLE

Beam Angle(1/2peak) θ

1/2 ：

14°

(Optional：10°、20°、40°)

CONTROL:

International standard DMX512, 3 pin and 5 pin interfaces 6channels in standard mode and 11channels in extended mode Master/Slave synchronized control Mode 3 operation mode(DMX mode, User Memory Mode, Preset Memory mode) Test Mode

OTHER FUNCTIONS:

LED lamp board temperature and fixture time available in the menus DMX channel mode and settings displayed LCD and inverted display Display backlight automatically shut off after delay Parameters like operation mode and etc. transmitted under synchronization

HOUSING: High tensile cast Aluminum alloy , IP67

NET WEIGHT: 10Kg

OPERATION TEMPERATURE:

-20°C～40°C

Page 15

SIZES:

LIGHT OUTPUT:

Page 16

9. CIRCUIT DIAGRAM AND PCB CONNECTIONS

●CIRCUIT DIAGRAM

Page 17

●PCB CONNECTIONS

Master Board （250020250）

LED Diver（230060213）

98 10

No.

Name

Optical sensor

power supply

Fan

signal input

PWM signal

Wireless board

thermal switch

No.

Name

power supply

LED Driver

PWM signal input

Page 18

LED lamp Board（230060327）：

10.COMPONENT ORDER CODES

No.

Name

Code No.

Qty

Remarks

Power Switch

192010188

2 LED light source

230060327

3 LED Driver Board

230060213

4 LCD master board

230060120

5 Front Glass Panel

080090115

6 Transparent Display Cover

290190109

Optional

Seal for Transparent Display Cover

290019142

Optional

No.

Name

LED Lamp

Thermal Switch

Page 19

Page 20

PR LIGHTING LTD.

1582 Xingye Avenue, Nancun Panyu

Guangzhou, 511442 China

TEL: +86-20-3995 2888

PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted!

P/N: 320020409

Version: 20160518
