PR Lighting XLED 590, XLED 390 PR-8108 User Manual

Page 1

XLED 590

PR-8100

This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

PR LIGHTING LTD.

http://www.pr-lighting.com

Page 2

2/18

INDEX

SAFE USAGE OF THE PROJECTOR 3 INSTALLING THE PROJECTOR 4 POWER SUPPLY – MAINS 4 CONTROL CONNECTIONS 4 DMX TERMINATOR 5 SETUP OPTIONS-PROJECTOR CONFIGURATION 6 TO SET THE DMX START ADDRESS 6 OPERATION MENU 7 DMX PROTOCOL 12 LED INDICATION 13 MAINTENANCE 13 KEEPING THE PROJECTOR CLEAN 13 TROUBLESHOOTING 13 TECHNICAL DATA 14 ELECTRICAL DIAGRAM 16 COMPONENT ORDER CODES 17

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without

notice. Whilst every care is taken in the preparation of this manual we reserve the right to change specifications in the course of

product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence

arising from them.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good

condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the

unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.

ACCESSORIES

These items are packed together with the projector:

Name Quantity Unit Remark G clamps 2 Pcs Ω clamps 2 Pcs Options XLR cable 1 Pc 5-pin plug Safety cord 1 Pc This manual 1 Pc

Page 3

3/18

SAFE USAGE OF THE PROJECTOR

When unpacking and before disposing of the carton, check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus.

The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other liquids.

The projector is not designed or intended to be mounted directly on to inflammable surfaces.

The projector is only intended for installation, operation and maintenance by qualified personnel.

The projector must be installed in a location with adequate ventilation, at least 50cm from adjacent wall surfaces. Be sure that no ventilation slots are blocked.

Do not project the beam onto inflammable surfaces, minimum distance is 5m. 5m

Avoid direct exposure to the light from the lamp. The light is harmful to the eye.

Do not attempt to dismantle and/or modify the projector in any way.

Electrical connection must only be carried out by qualified personnel.

Before installation, ensure that the voltage and frequency of power supply match the power requirements of the projector.

It is essential that each projector is correctly earthed and that electrical installation conforms to all relevant standards.

Do not connect this device to any other types of dimmer apparatus.

Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into contact with other cables. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Keep the optical system clean. Do not touch the LED lens with bare hands.

The projector should always be installed with a secondary safety fixing. On the projector base brink,there is a hole for the safety cord provided. It should be attached as shown in “installing the projector” section.

LED lens shall be changed if they have become visibly damaged to such an extent that their effectiveness is impaired, for

example by cracks or deep scratches.

Exterior surface temperatures of the luminaire after 5 minutes operation is 40℃, when steady state is achieved 50℃.

There is no user serviceable parts inside the projector, do not open the housing and never operate the projector with the covers removed.

Always disconnect from the mains, w hen the device is not in use or before cleaning it or before attempting any mainten ance work !

If you have any questions, don’t hesitate to consult your dealer or manufacturer.

Page 4

4/18

INSTALL THE PROJECTOR

CLAMP

SAFETY CORD

HOLE FOR SAFETY CORD

To pass the SAFETY CORD through this HOLE for safety !

WARNING

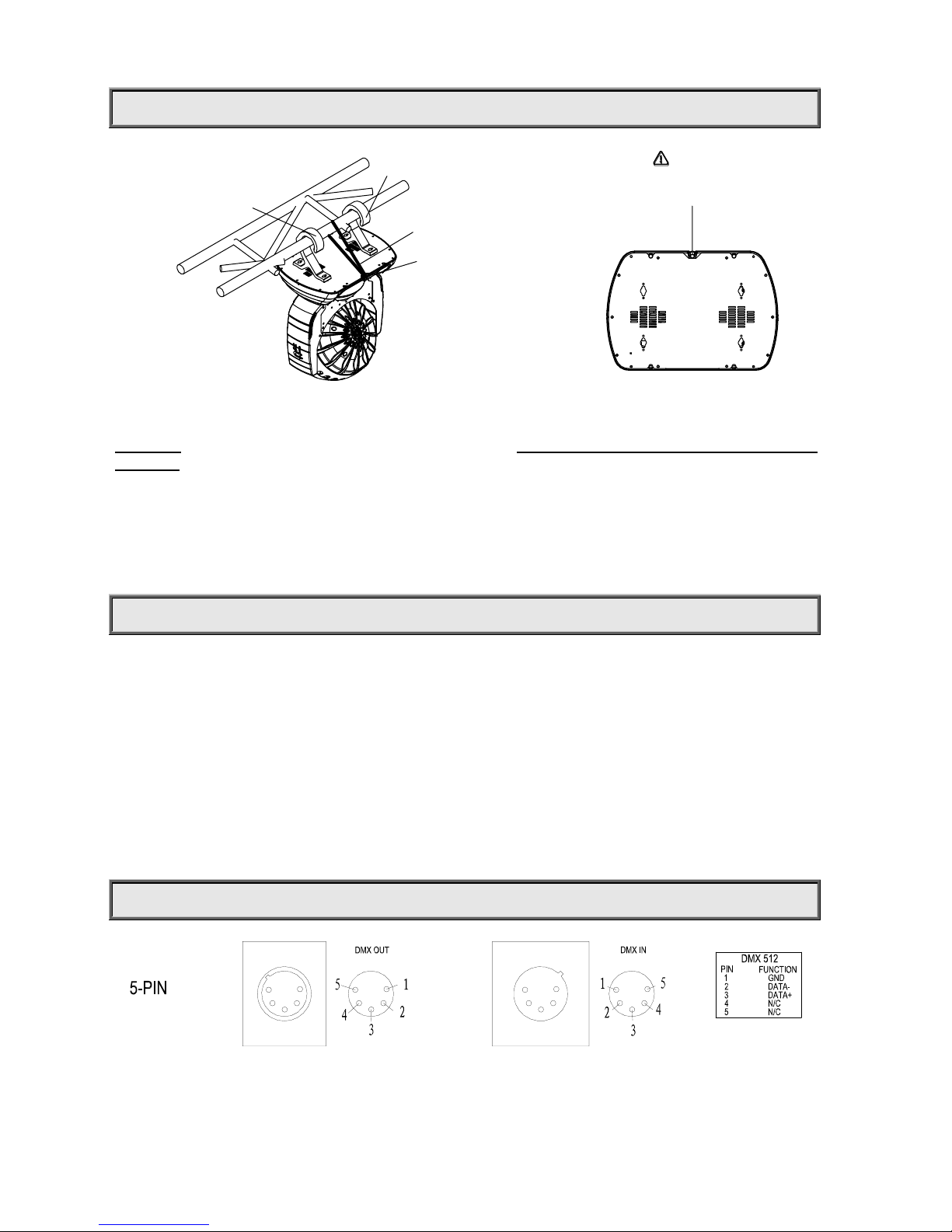

Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the

WARNING

on the bottom side of the fixture base as shown above) To pass the SAFETY CORD through this HOLE

for safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always

ensure that the structure that you are going to mount the projector on is secure and is strong enough to support a weight of XLED 590.

WARNING:

1. The projector MUST NOT be lif ted or carried by the clamps.

2. For safety reasons, the safety cord should afford 10 times of the unit’s weight.

POWER SUPPLY-MAINS

Connect the power cord as follows:

L (live) =brown E (earth) =yellow/green

N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.

IMPORT ANT It is essential that each projector is correctly earthed and the electrical installation conforms to a ll relevant standards.

CONTROL CONNECTION

Connection between the controller and a projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via

Page 5

5/18

cannon 5 pin (which are included with the projector) XLR plugs and sockets. The XLR's are connected as shown in the figure above. Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not connected in any way. The XLED 590 accepts digital control signals in protocol DMX512 (1990).

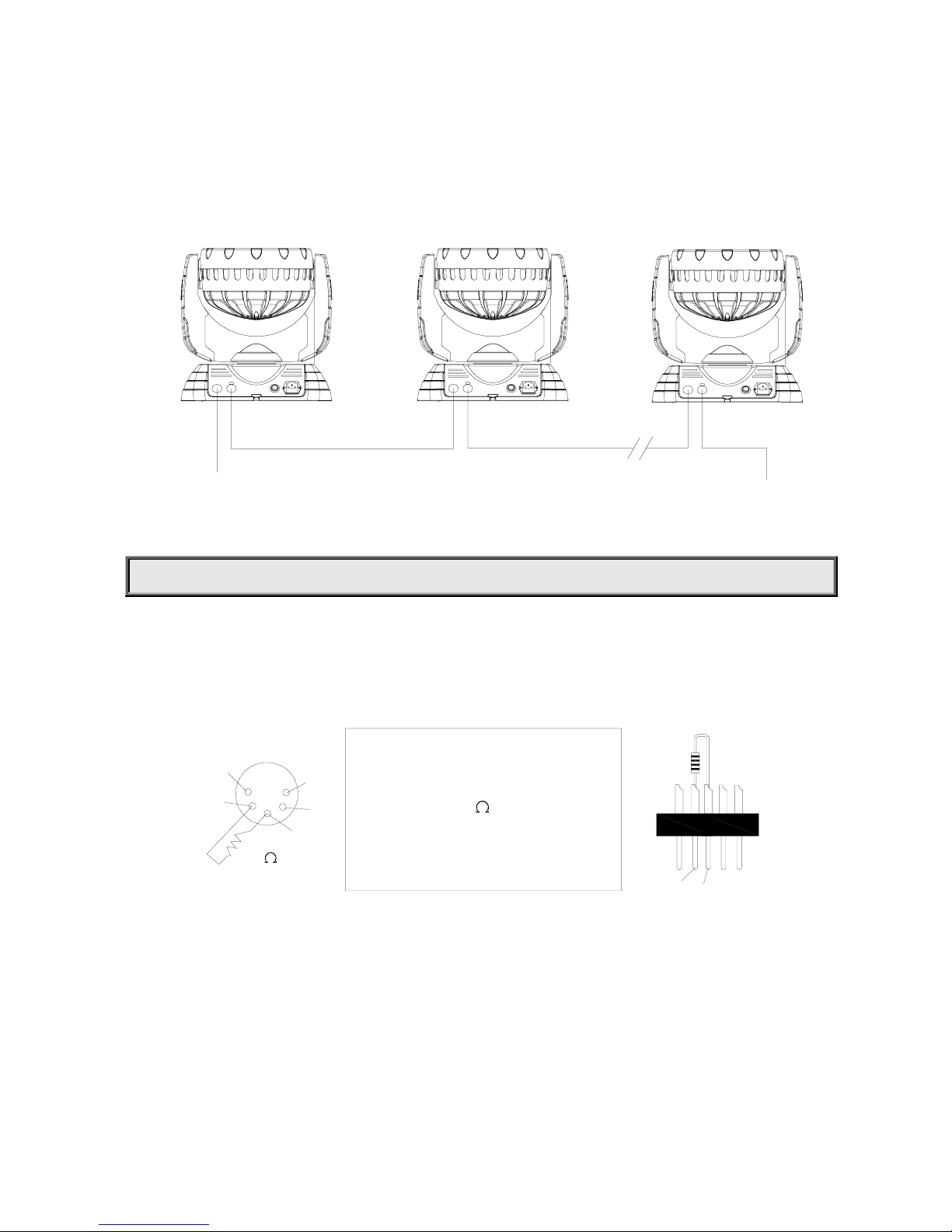

Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input and connect the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown in the figure below.

DMX IN

DMX OUT

DMX IN

DMX OUT

DMX IN

DMX IN FROM CONTROLLER

TERMINATER

DMX TERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. The connections are illustrated below.

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor across pins 2 and 3 in an XLR plug and insert it into the DMX out socket

on the last unit in the chain.

PIN 3

PIN 2

120

Page 6

6/18

SETUP OPTIONS-PROJECTOR CONFIGURATION

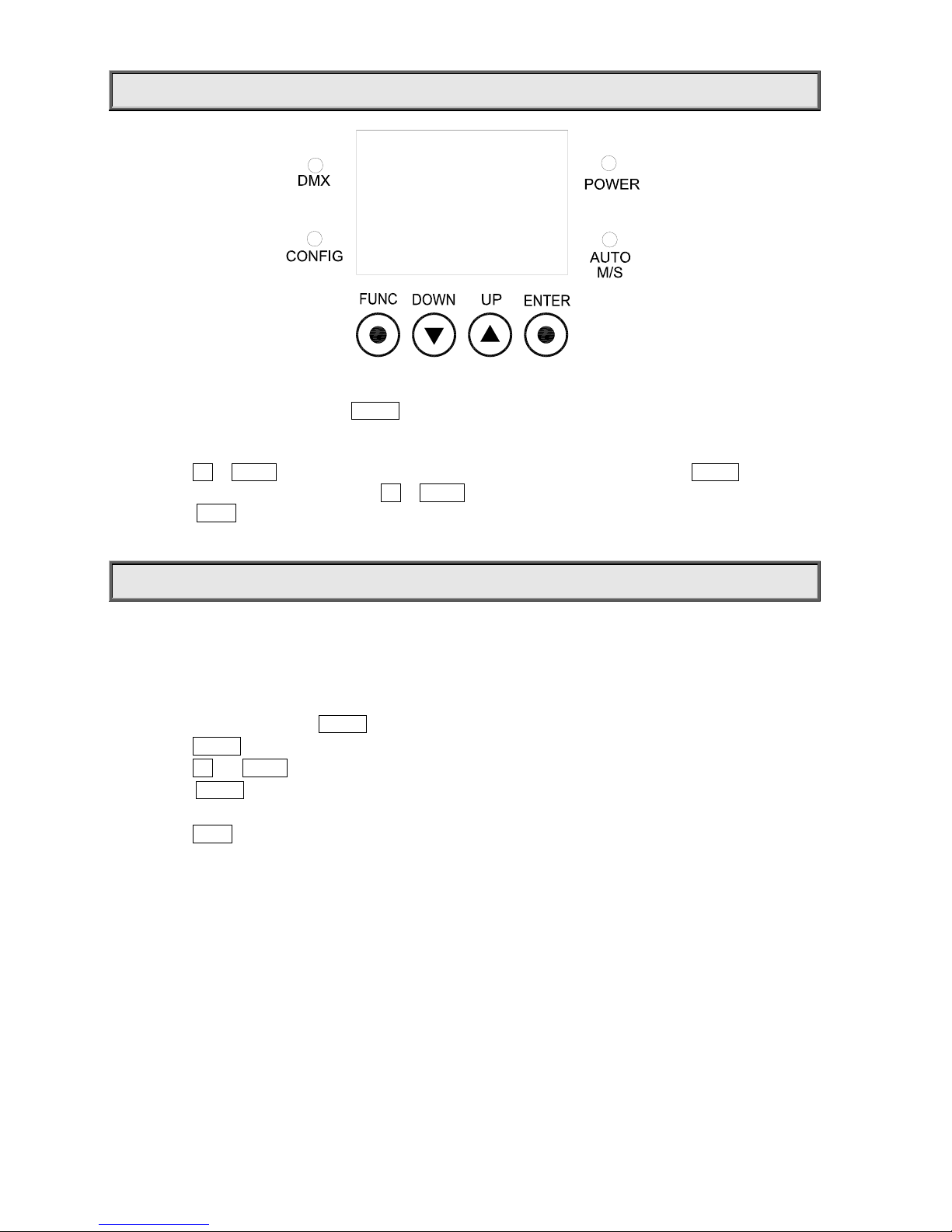

Projector configuration can be set conveniently via push-button switch and LCD display. Turn the projector on and the LCD display will show the DMX address you set and saved last time and it can be reset and saved again as you please. Launch the projector and press button ENTER for more than 5 seconds to unlock the panel, the LCD will show the function menu of the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the “OPERATION MENU” section. Press button UP or DOWN if you want to browse through the various Setup Options. Press button ENTER to save your settings or enter the next menu. Press button UP or DOWN to shift. Press button FUNC , it will return to the upper menu one by one. If you stay for minutes, it will show display status automatically.

TO SET THE DMX START ADDRESS

Each XLED 590 must be given a DMX start address so that the correct projector responds to the correct control signals.

This DMX start address is the channel number from which the projector starts to “listen” to the digital control information

being sent out from the controller. The XLED 590 has 3 DMX modes, which are standard mode, extended mode and

short mode. For example, the standard mode has 13 channels, so set the No. 1 projector’s address 001, No. 2

projector’s address 014, No. 3 projector’s address 027, No. 4 projector’s address 040, and so on. Launch the projector. Press button ENTER for more than 5 seconds to unlock the panel.

Press button ENTER to display DMX Address;

Press button UP and DOWN to set the address;

Press button ENTER to confirm. At the same time, the GREEN LED will flash one time. It means the setting has

been enabled. Press button FUNC, it will return to the upper menu one by one.

Page 7

7/18

OPERATION MENU

1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL 6th LEVEL

PR LIGHTING

DMX Address

PR LIGHTING

DMX Address

XXX

PR LIGHTING

Reset

PR LIGHTING

Reset

Are You Sure

PR LIGHTING

DMX Mode

Standard 16

PR LIGHTING

DMX Mode

Extended 16

PR LIGHTING

DMX Mode

PR LIGHTING

DMX Mode

Short 8

PR LIGHTING When DMX is Lost Normal Time Out

PR LIGHTING

Config Settings

PR LIGHTING

Loss of DMX

PR LIGHTING When DMX is Lost Hold Last Value

PR LIGHTING

Pan DMX Invert

OFF

PR LIGHTING

Pan DMX Invert

PR LIGHTING

Pan DMX Invert

PR LIGHTING

Tilt DMX Invert

OFF

PR LIGHTING Tilt DMX Invert

PR LIGHTING

Tilt DMX Invert

PR LIGHTING

Pan Tilt Swap

OFF

PR LIGHTING

Pan Tilt Swap

PR LIGHTING

Pan Tilt Swap

PR LIGHTING

Dimmer Invert

OFF

PR LIGHTING

Dimmer Invert

PR LIGHTING

Dimmer Invert

PR LIGHTING

Defaults

Off

PR LIGHTING

Option Settings

PR LIGHTING

Defaults

PR LIGHTING

Defaults

Restore Defaults

PR LIGHTING

Display

On Always

PR LIGHTING

Display Mode

PR LIGHTING

Display

Off After Delay

Page 8

8/18

PR LIGHTING

Display Invert

Off

PR LIGHTING

Display Invert

PR LIGHTING

Display Invert

PR LIGHTING

Display Dimming

PR LIGHTING

Disp Dim Level

PR LIGHTING

Display Options

PR LIGHTING

Display Contrast

PR LIGHTING

Display Contrast

PR LIGHTING

LED Hours

PR LIGHTING

LED Hours =

******

PR LIGHTING

Power On Hours

PR LIGHTING

Power On Hours =

******

PR LIGHTING

Driver Board

PR LIGHTING Driver Board =

XX℃

PR LIGHTING

Temperature

PR LIGHTING

Head Sensor

PR LIGHTING

Head Sensor =

XX℃

PR LIGHTING

Software Version

PR LIGHTING

Display Board

PR LIGHTING

Display Board =

*.*.*

PR LIGHTING

View DMX Values

PR LIGHTING

DMX Channel

XXX= XXX

PR LIGHTING

Information

PR LIGHTING

Electronic SN

PR LIGHTING

Electronic SN =

************

PR LIGHTING Factory Setup OFF

PR LIGHTING

Calibration Menu

Red

PR LIGHTING

Calibration Menu

Red

PR LIGHTING

Calibration Menu

Green

PR LIGHTING

Calibration Menu

Green

PR LIGHTING

Factory Setup

PR LIGHTING Factory Setup ON

(Or press buttons UP 、 DOWN and ENTER to enter Calibration Menu)

Calibration Menu

Blue

PR LIGHTING

Calibration Menu

Blue XX

PR LIGHTING Self Test OFF

PR LIGHTING

Test Modes

PR LIGHTING

Self Test

PR LIGHTING Self Test ON

Page 9

9/18

PR LIGHTING

Operation Mode =

DMX Operation

PR LIGHTING

Select Memory

User Memory 1

PR LIGHTING

Select Memory

User Memory 2

PR LIGHTING

Select Memory

Preset Memory 1

PR LIGHTING

Select Memory

Preset Memory 2

PR LIGHTING

Operation Mode =

Master Mode

PR LIGHTING

Select Memory

Preset Memory 3

PR LIGHTING

Select Memory

User Memory 1

PR LIGHTING

Select Memory

User Memory 2

PR LIGHTING

Select Memory

Preset Memory 1

PR LIGHTING

Select Memory

Preset Memory 2

PR LIGHTING

Operation Mode =

Slave Mode

PR LIGHTING

Select Memory

Preset Memory 3

PR LIGHTING

Operation Mode

PR LIGHTING

Operation Mode =

Static Scene

PR LIGHTING

Dimmer

PR LIGHTING

Dimmer

XXX

PR LIGHTING

Color Temp.

PR LIGHTING

Color Temp.

XXX

PR LIGHTING

RGB Macros

PR LIGHTING

RGB Macros

XXX

PR LIGHTING

Red

PR LIGHTING

Red

XXX

PR LIGHTING

Green

PR LIGHTING

Green

XXX

PR LIGHTING

Blue

PR LIGHTING

Blue XXX

PR LIGHTING

Strobe

PR LIGHTING

Strobe

XXX

Page 10

10/18

PR LIGHTING

Pan Coarse

PR LIGHTING

Pan Coarse

XXX

PR LIGHTING

Pan Fine

PR LIGHTING

Pan Fine

XXX

PR LIGHTING

Tilt Coarse

PR LIGHTING

Tilt Coarse

XXX

PR LIGHTING

Tilt Fine

PR LIGHTING

Tilt Fine

XXX

PR LIGHTING

M-Speed

PR LIGHTING

M-Speed

XXX

PR LIGHTING

Delay

PR LIGHTING

Delay

X.XX Seconds

PR LIGHTING

User Memory

PR LIGHTING

Scene

PR LIGHTING

Link To Step

PR LIGHTING

Link To Step

PR LIGHTING

Dimmer

PR LIGHTING

Dimmer

XXX

PR LIGHTING

Color Temp.

PR LIGHTING

Color Temp.

XXX

PR LIGHTING

RGB Macros

PR LIGHTING

RGB Macros

XXX

PR LIGHTING

Red

PR LIGHTING

Red

XXX

PR LIGHTING

Green

PR LIGHTING

Green

XXX

PR LIGHTING

Blue

PR LIGHTING

Blue XXX

PR LIGHTING

Strobe

PR LIGHTING

Strobe

XXX

PR LIGHTING

Pan Coarse

PR LIGHTING

Pan Coarse

XXX

PR LIGHTING

Pan Fine

PR LIGHTING

Pan Fine

XXX

PR LIGHTING

Tilt Coarse

PR LIGHTING

Tilt Coarse

XXX

PR LIGHTING

Tilt Fine

PR LIGHTING

Tilt Fine

XXX

PR LIGHTING

User Memories

PR LIGHTING

Edit User Memory

PR LIGHTING

User Memory

PR LIGHTING

Scene

PR LIGHTING

M-Speed

PR LIGHTING

M-Speed

XXX

Page 11

11/18

PR LIGHTING

Delay

PR LIGHTING

Delay

X.XX Seconds

PR LIGHTING

Link To Step

PR LIGHTING

Link To Step

PR LIGHTING

Dimmer

PR LIGHTING

Dimmer

XXX

PR LIGHTING

Color Temp.

PR LIGHTING

Color Temp.

XXX

PR LIGHTING

RGB Macros

PR LIGHTING

RGB Macros

XXX

PR LIGHTING

Red

PR LIGHTING

Red XXX

PR LIGHTING

Green

PR LIGHTING

Green

XXX

PR LIGHTING

Blue

PR LIGHTING

Blue XXX

PR LIGHTING

Strobe

PR LIGHTING

Strobe

XXX

PR LIGHTING

Pan Coarse

PR LIGHTING

Pan Coarse

XXX

PR LIGHTING

Pan Fine

PR LIGHTING

Pan Fine

XXX

PR LIGHTING

Tilt Coarse

PR LIGHTING

Tilt Coarse

XXX

PR LIGHTING

Tilt Fine

PR LIGHTING

Tilt Fine

XXX

PR LIGHTING

Static Scene

PR LIGHTING

M-Speed

PR LIGHTING

M-Speed

XXX

PR LIGHTING

Reset User

Memory 1

PR LIGHTING

Reset User 1

Unlock 2 3 4

（Press buttons

UP、DOWN and

ENTER）

PR LIGHTING

Reset User

Memory 2

PR LIGHTING

Reset User 2

Unlock 2 3 4

PR LIGHTING

Init User Memory

PR LIGHTING

Reset

Static Scene

PR LIGHTING

Reset Static Scn

Unlock 2 3 4

Page 12

12/18

DMX PROTOCOL

Short

mode

Standard

mode

Extended

mode

FUNCTION DMX DESCRIPTION

1 1 1 Dimmer 000-255 Dimming from dark to light

2 Dimmer 16 Bit 000-255 Dimmer in 16 Bit precision

2 3 Colour Temperature 000-255 Colour temperature adjustment

000-016

The projector functions and controlled

by RGB channels

017-024 White (Colour Temperature 10000K)

025-032 White (Colour Temperature 7200K)

033-040 White (Colour Temperature 5600K)

041-048 White (Colour Temperature 3200K)

049-056 Cyan

057-064 Yellow

065-072 Magenta

073-080 Red

081-088 Green

089-096 Blue

097-104 Aqua

105-112 Amber

113-120 Orange

121-128 Pink

3 4 Macro Channel

129-255 RGB Color Cycle

2 4 5 RED 000-255 Red, dimming from dark to light

6 RED 16Bit 000-255 Red in 16 Bit precision

3 5 7 GREEN 000-255 Green, dimming from dark to light

8 GREEN 16Bit 000-255 Green in 16 Bit precision

4 6 9 BLUE 000-255 Blue, dimming from dark to light

10 BLUE 16Bit 000-255 Blue in 16 Bit precision

000-009 No strobe

5 7 11 Strobe

010-255 Strobe speed from slow to fast

6 8 12 Pan 000-255 Pan rotation from 0° to 540°

9 13 Pan Fine (16Bit) 000-255 Pan rotation in 16 precision

7 10 14 Tilt 000-255 Tilt rotation from 0° to 270°

11 15 Tilt Fine (16Bit) 000-255 Tilt rotation in 16 precision

12 16 Pan & Tilt Speed 000-255 Pan &Tilt speed from fast to slow

000-047

Reserved

048-080 Reset

8 13 17 Control

081-255 Reserved

Page 13

13/18

LED INDICATION

DMX signal OK

Off

No DMX signal

Green

Flash

DMX signal error

Yellow On

Setting the panel

Blue On Power

Red

Slave mode or Running self test mode

Red/Green

Green

Master mode

MAINTENANCE

To prolong the life of the projector, some maintenance work has to be done to ensure the LED optical system in good condition. If the projector does not function, check the fuses on the power socket of the projector, they should only be replaced by fuses of the same specification. Should these be damaged, call a qualified technician before replacement. The projector has thermal protection device that will switch off the projector in case of overheating.Should either of these operate, check that the fans are not blocked, and if they are dirty, clean them before switching on the projector again. Check that the fans are operational, if not, call a qualified technician.

Any maintenance work sh ould only be carried out by qualified tec hnicians.

KEEPING THE PROJECTOR CLEAN

To ensure the reliability of the projector, it should be kept clean. It is recommended that the fans should be cleaned every 15 days. LED lens should also be regularly cleaned to maintain an optimum light output.

Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. A soft cloth and typical glass cleaning products should be used for cleaning. It is recommended to clean the external optics at least once every 20 days.

Do not use any organic solvent, e.g. alcohol, to clean housing of the apparatus.

TROUBLESHOOTING

PROBLEM ACTION

The projector doesn’t switch on ¾ Check the fuse on the power socket.

The lamp comes on but the projector

doesn’t respond to the controller

¾ Make sure that the projector is correctly configurated.

¾ Replace or repair the DMX cable.

The beam appears dim ¾ Check that the optics is clean.

Page 14

VOL T AGES:

TECHNICAL DAT A

100V/120V/200V/220V /230V/240V AC, 50/60Hz

POWER CONSUMPTION:

480W@220V

LED: Type

OSRAM Diamond Dragon

Power consumption 5W Amount

（30R＋30G＋30B）

Manufacturers Rated LED Life 50000 Hours

COLOURS: RGB colour mixing

COLOUR TEMPERATURE CORRECTION: Linearly colour temperature correction

DIMMER: 0-100% linearly adjustable

STROBE:

1~25 F.P.S

HEAD MOVEMENT : Pan 540º, Tilt 270º with auto position correction

BEAM ANGLE:

Projector beam angle:

26° Options: 46° Note: Projector specifications are subject to change according to different projector beam angles.

CONTROL: DMX512, 5 pin interfaces

RDM control protocol 8 channels in short mode, 13 channels in standard mode, and 17 channels in extended mode Master/Slave mode Static scene mode Stand-alone mode Self-test mode

OTHER FUNCTIONS: Adjustable Pan & Tilt speed

14/18

Page 15

15/18

Automatic fan speed adjustment

Auto thermal cut-off

Display Dimming and Contrast adjustment

LEDs and fixture usage time display

DMX 512 channels display

Menu display inversion

HOUSING:

Composite plastic+ die-casting aluminum, IP20

WORK ENVIRONMENT TEMPERATURE:

-20°C~40°C

WEIGHT:

11kg

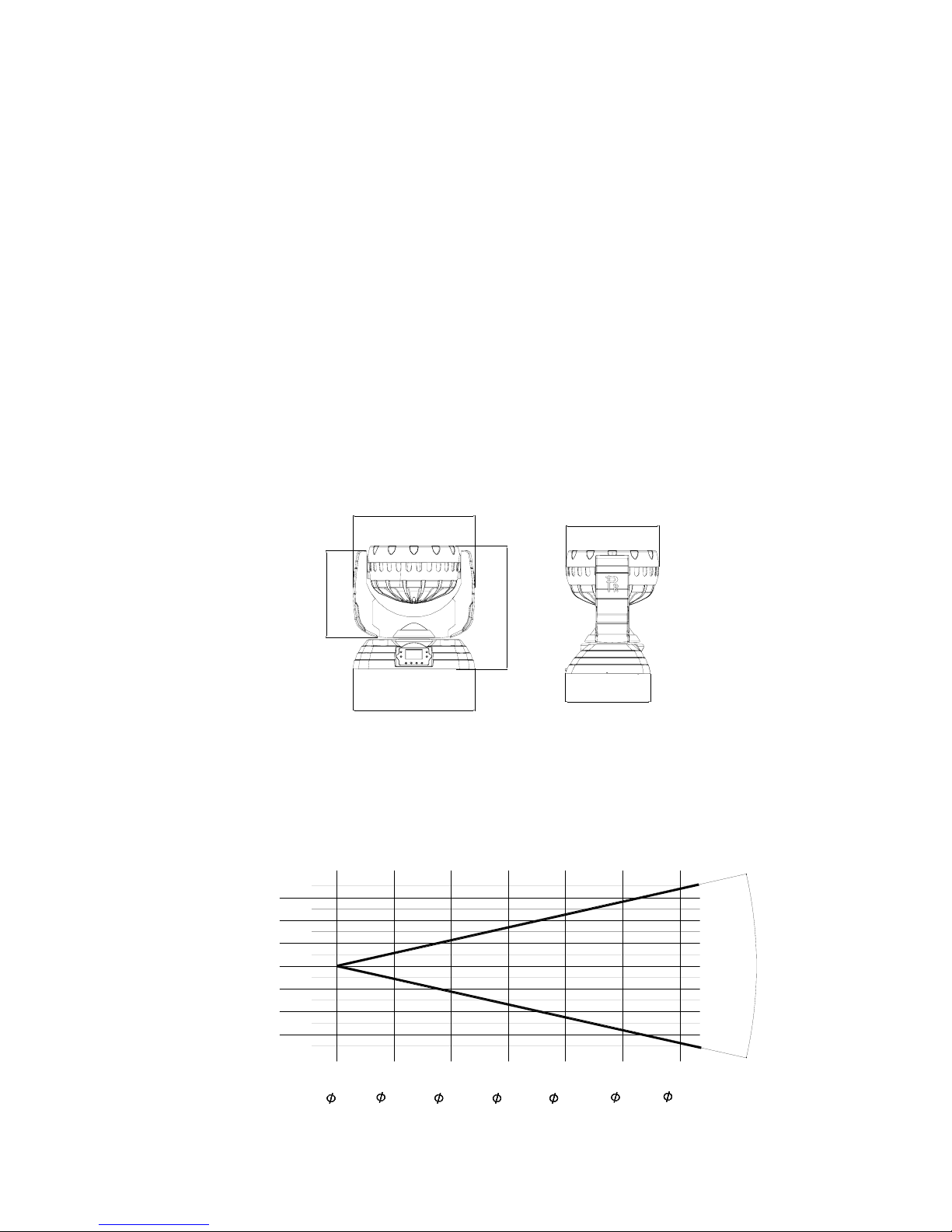

SIZES:

See it below

350

249

353

243

267

LIGHT OUTPUT :

DIAMETER(m)

DISTANCE(m)

0m 5m 10m 15m 20m 25m 30m

26°

2.27

4.55

6.82

9.09

11.36

13.64

26° lux

6079

1520

675

380

243

169

26° lux

1030

257

114

26° lux

3301

825

367

206

132

26° lux

2515

629

279

157

101

(B)

、G、

(R)

(G)

Page 16

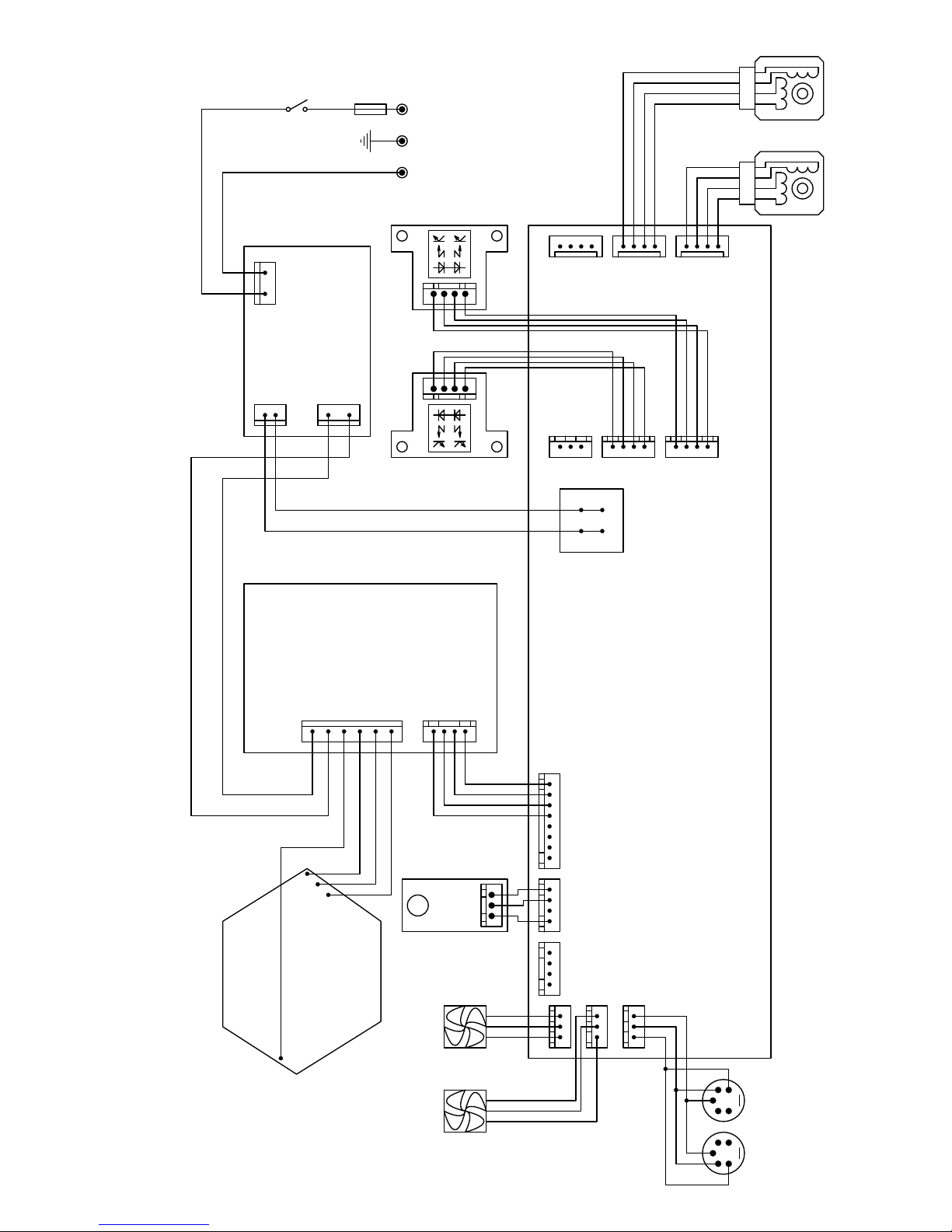

PAN ENCODE

TILT ENCODE

AC INPUT

NL E

View side of no axletree

TILT

B C

View side of no axletree

PAN

B C

V S G

Fuse

VCC GND

PWM

TXD

RXD

A-IN2

A-IN1

DMX

DMX-IN DMX-OUT

VGS2

VCC GND

PWM

VGS

BGR

V+

POWER

GND

ANODE

POWER-SW

VGS2

POWER PCB

LED DRIVE PCB

LED PCB

MAIN PCB

Box Fan Head Fan

GND

+24V

PR-8100-006

T-Input

Head

Page 17

17/18

COMPONENT ORDER CODES

NAME PART NO. QUANTITY REMARK

PAN ROTATION MOTOR 1 TILT ROTATION MOTOR

030040052

23HS0015L

FAN IN BASE 030060060 1 DC24V, 0.14A FAN IN LAMP HEAD 030060061 1 DC24V, 0.22A LENS 070070006 90 LED 150020201 30 Red LED 150020202 30 Green LED 150020204 30 Dark blue POWER STWITCH 190010104 1 AC250V,10A POWER SUPPLY 192010130 1 DC24V/2A LED CONTROL PCB 230020400 1 LED DRIVE PCB 230020402 1 FUSE 270041006 1 5X20,10A PAN DRIVE BELT 290151256 1 HTD330-3M TILT D R I V E B E LT 290151223 1 HTD426-3M-8

Page 18

18/18

PR LIGHTING LTD.

PR New Hi-tech Science Park, 1582 Xingye Avenue

Nancun Panyu, Guangzhou, 511442 China

TEL: +86-20-3995 2888

FAX: +86-20-3995 2330

P/N: 320050005

Last Revision: 20090324
