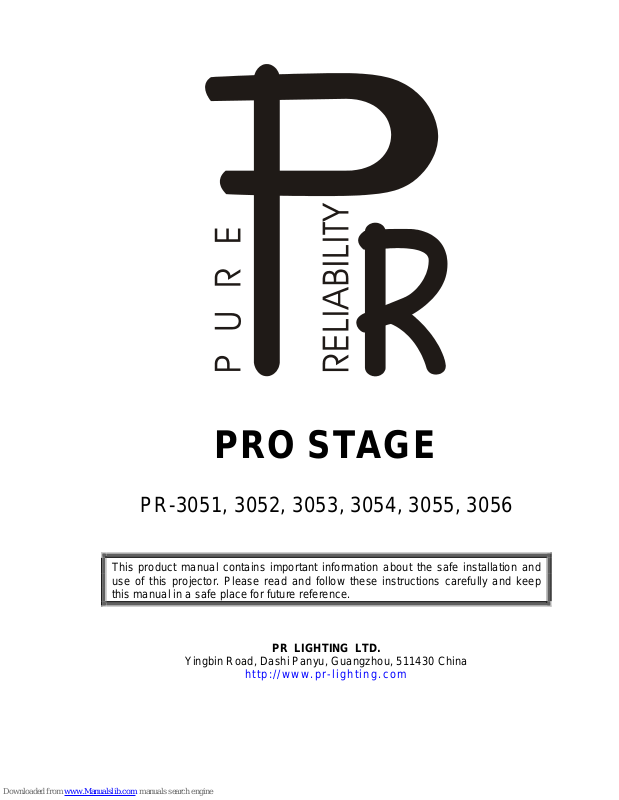

PR Lighting PRO STAGE PR-3051, PRO STAGE PR-3052, PRO STAGE PR-3053, PRO STAGE PR-3054, PRO STAGE PR-3055 User Manual

...

Page 1

PRO STAGE

PR-3051, 3052, 3053, 3054, 3055, 3056

This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

PR LIGHTING LTD.

Yingbin Road, Dashi Panyu, Guangzhou, 511430 China

http://www.pr-lighting.com

Page 2

2/10

Pro Stage manual.doc

TECHNICAL SPECIFICATIONS 3 SAFE USAGE OF THE PROJECTOR 4 INSTALLING THE PROJECTOR 5 FITTING THE LAMP 6 POWER CONNECTIONS 7 KEEPING THE PROJECTOR CLEAN 7 LIGHT OUTPUT 7

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice. Whilst every care is taken in the preparation of this manual we reserve the right to change specifications in the course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence arising from them. Every apparatus has been tested completely and packed properly by the manufacturer. Please make sure the packing and / or the apparatus is in good condition before your installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. But any damage caused by improper use will not be assumed by the manufacturer and / or dealer.

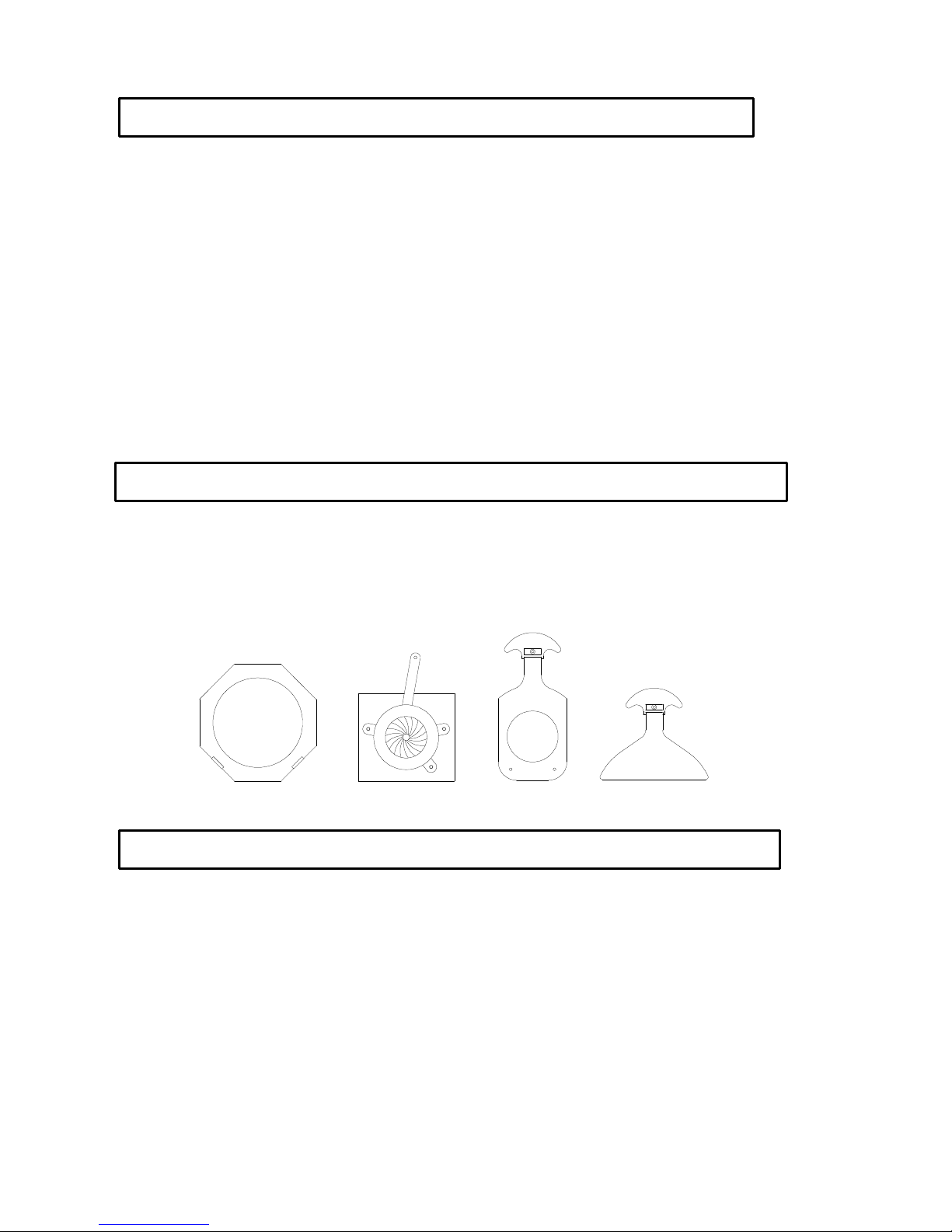

Safety cord (1 PCS) This manual (1 PCS) Colour-filter holder (1 PCS) (Only for 19°, 26°, 36°, 50° projectors) Gobo with holder (1 PCS) Optional: Iris device (1 PCS),

Colour-filter holder Iris device Gobo holder Blade

Thank you for purchasing our products Pro Stage, PR-3051, PR-3052, PR-3053, PR-3054, PR-3055, PR-3056. This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. The Pro Stage is an innovative projector with an elegant housing made from high quality aluminiunalloy with an insulating painting finish. The product complies to CE norms and standards. The unit can be hung easily and safely. The angle of inclination for the projector-body is convenient to be adjusted, and the lens-barrel can be changed easily. The unit uses high qualified reflector with special reflective coating which can reduce the heat energe greatly, so the life of the elements in the projector can be prolonged effectively. Using blades provided you can get various images and using the filter holder provided you can get different colour effects. The lenses of 5°, 10°, 19°, 26°, 36°, 50°

INDEX

INTRODUCTION

ACCESSORIES

Page 3

3/10

Pro Stage manual.doc

have been installed in the different barrels, so you can change the barrels directly for your different applications. The projector is suitable for use in stage, disco, night club or artistic applications.

5° Lens-Barrel

PR-3051

10° Lens-Barrel

PR-3052

19° Lens-Barrel

PR-3053

26° Lens-Barrel

PR-3054

36° Lens-Barrel

PR-3055

50° Lens-Barrel

PR-3056

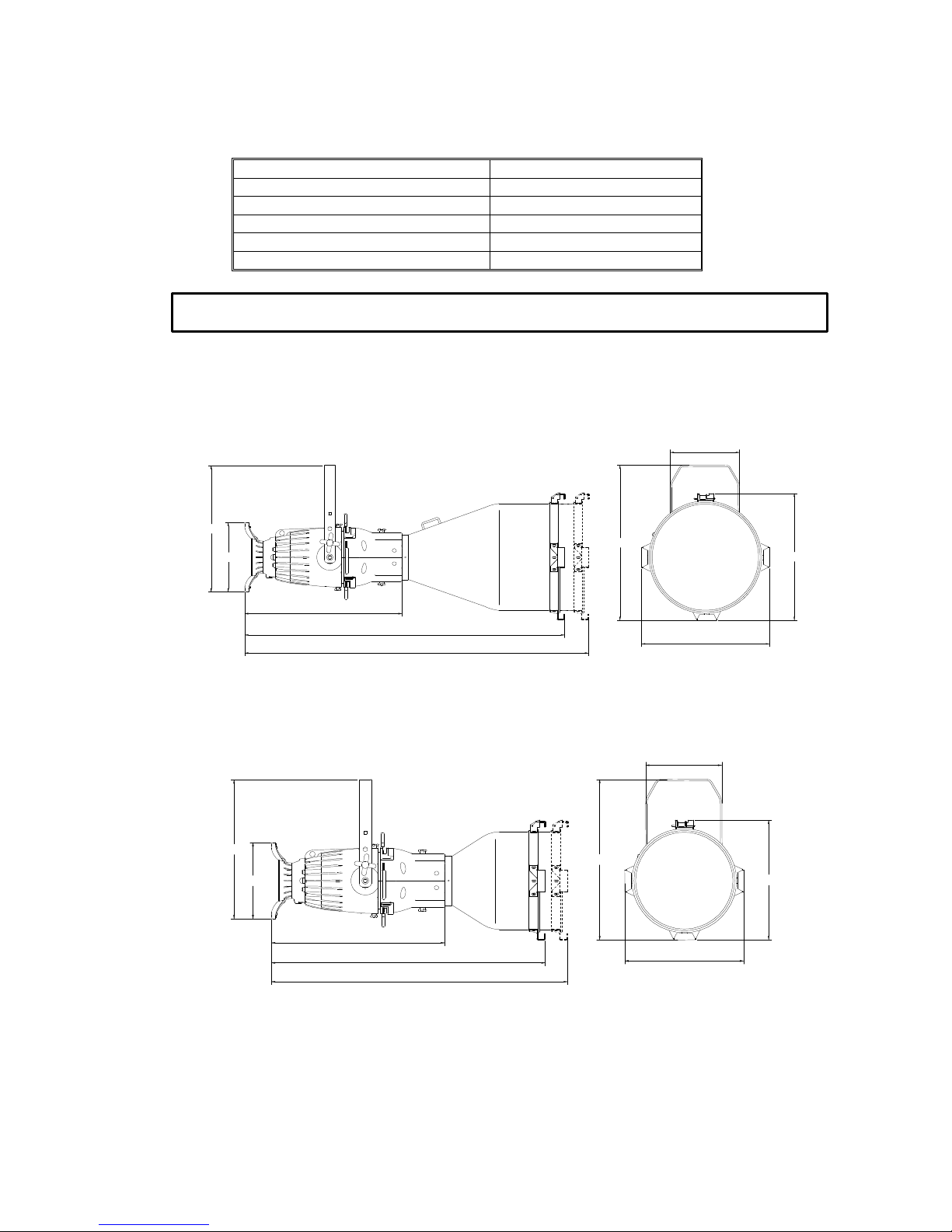

Power supply: 230V AC 50Hz Lamp: GKV 600W （Manufacturers Rated Lamp Life:250 hours）

Socket: G9.5

370

190

930

1000

455

360

455

200

5° Pro Stage, PR-3051, Net Weight: 8.6kg

720

780

455

190

370

310

200

430

10° Pro Stage, PR-3052, Net Weight: 6.8kg

TECHNICAL SPECIFICATIONS

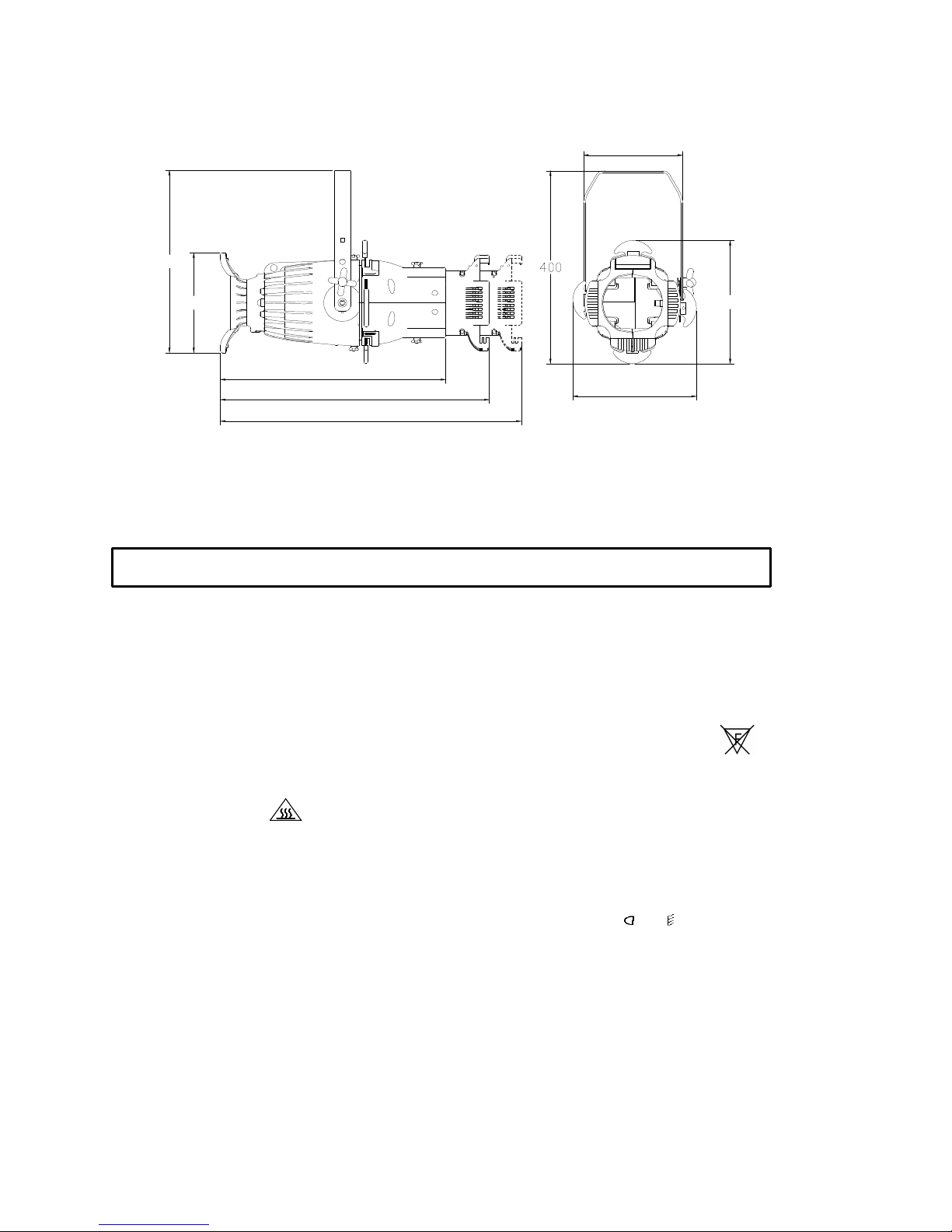

Page 4

4/10

Pro Stage manual.doc

250

200

610

545

455

370

190

19° Pro Stage, PR-3053, Net Weight: 6.8kg 26° Pro Stage, PR-3054, Net Weight: 6.8kg 36° Pro Stage, PR-3055, Net Weight: 6.8kg

° Pro Stage, PR-3056, Net Weight: 6.8kg

When unpacking and before disposing of the package check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. Keep the package well for your possible future transportation.

The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other fluids, or metallic objects.

The projector is not designed or intended to be mounted directly on to inflammable surfaces.

Hot housing surface! It can reach above 200℃! Do not touch the housing of the projector with your hand during operation.

The projector is only intended for installation, operation and maintenance by qualified personnel. The projector must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces. Do not project the beam onto inflammable surfaces, minimum distance is 5m. 5m

Avoid direct exposure to the light from the lamp. The light is harmful to the eye. Do not attempt to dismantle and / or modify the projector in any way. Electrical connection must only be carried out by qualified personnel. It is essential that each projector is correctly earthed and that electrical installation conforms to all

relevant standards.

SAFE USAGE OF THE PROJECTOR

Page 5

5/10

Pro Stage manual.doc

Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the powercord come into contact with other cables. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Keep the lamp and lens clean. Do not touch the lamp-glass and lens with bare hand. Switching the lamp on and off at short intervals will reduce the life of both the lamp and the projector.

Occasional breaks will prolong the life of both the lamp and the projector. Always replace the lamp if it becomes damaged or deformed. Always replace the lens if it becomes cracked or badly scratched. Never run the projector without a lamp and a lens in place.

Always disconnect from the mains, when the device is not in use or before cleaning it or before attempting any maintenance work.

If you have any questions, don’t hesitate to consult your dealer or manufacturer.

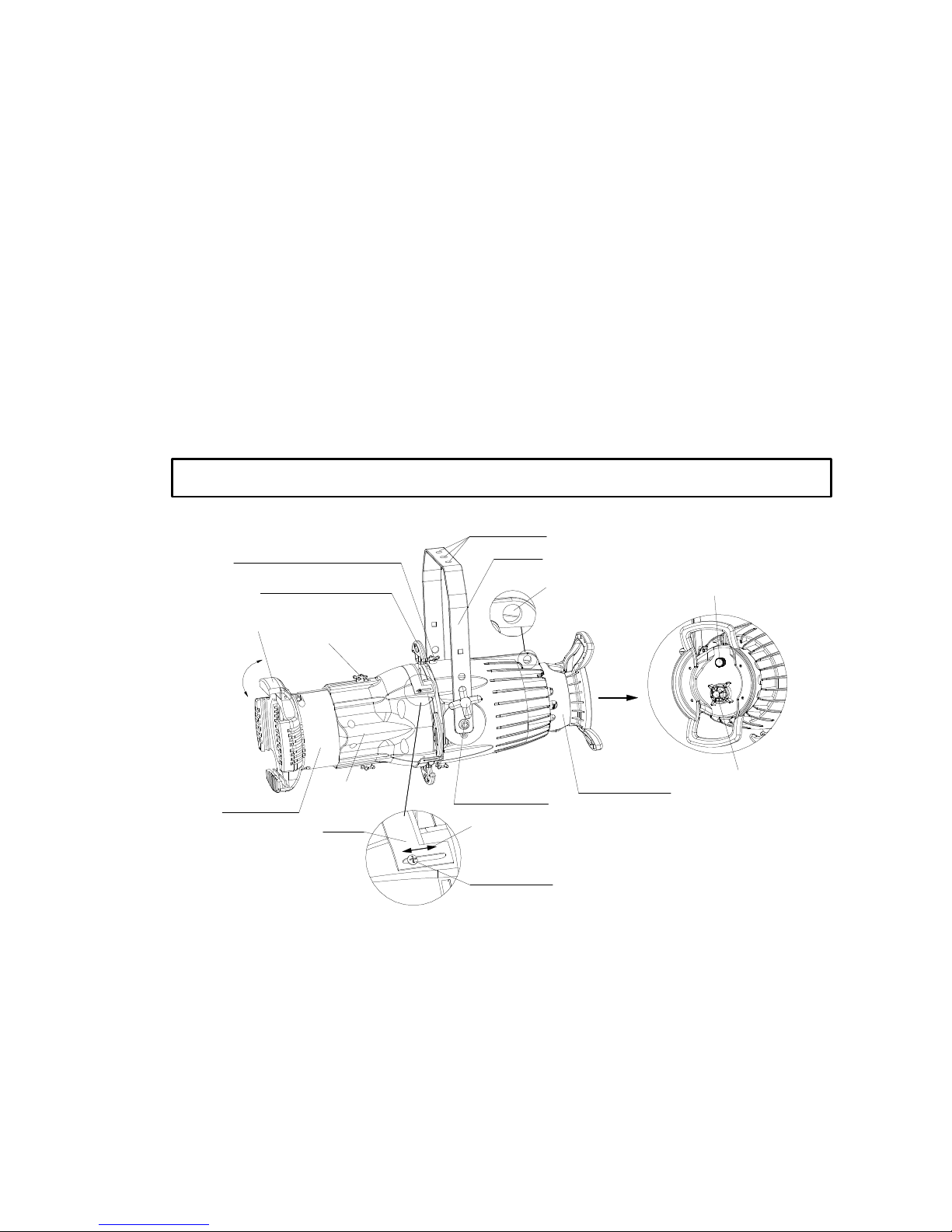

Fixing Holes

Bracket

Lamp Housing

Locking Knob

Hole for Safety Cable

Passing through

Locking Knob for

Lens-Barrel Holder Rotating

Lens-Barrel

Lens-Barrel Locking Knob

Blade or Gobo Holder

Retaining Block for Filter Holder

Lamp Adjustment

Lamp Housing Bolt

Cover

Displacing the cover will appear the slot for inserting the gobo with device

Cover Screw

Lens-Barrel Holder

This unit has been designed to be hung. Hang the unit via its bracket using M12 size bolt(s). When you want to adjust the angle of the body of the projector, you only loosen the locking knob and then adjust the angle of the body. You can change the lens-barrel by loosening 2 lens- barrel locking knobs and rotate the lens-barre by loosening 2 lens-barrel holder rotating knobs. Always ensure that the projector is firmly positioned to avoid vibration and slipping, and always ensure that the structure to which you are attaching the projector is secure and is able to support the weight of each Pro Stage. For safety the unit should have a secondary fixing with a safety cable through the hole on the upper of the unit.

INSTALLING THE PROJECTOR

Page 6

6/10

Pro Stage manual.doc

Important:

Before installation the GKV lamp verify that the GKV lamp you use is suitable for the voltage at your facility. Operating lamps beyond their rated voltage reduces lamp life and can cause premature lamp failure.

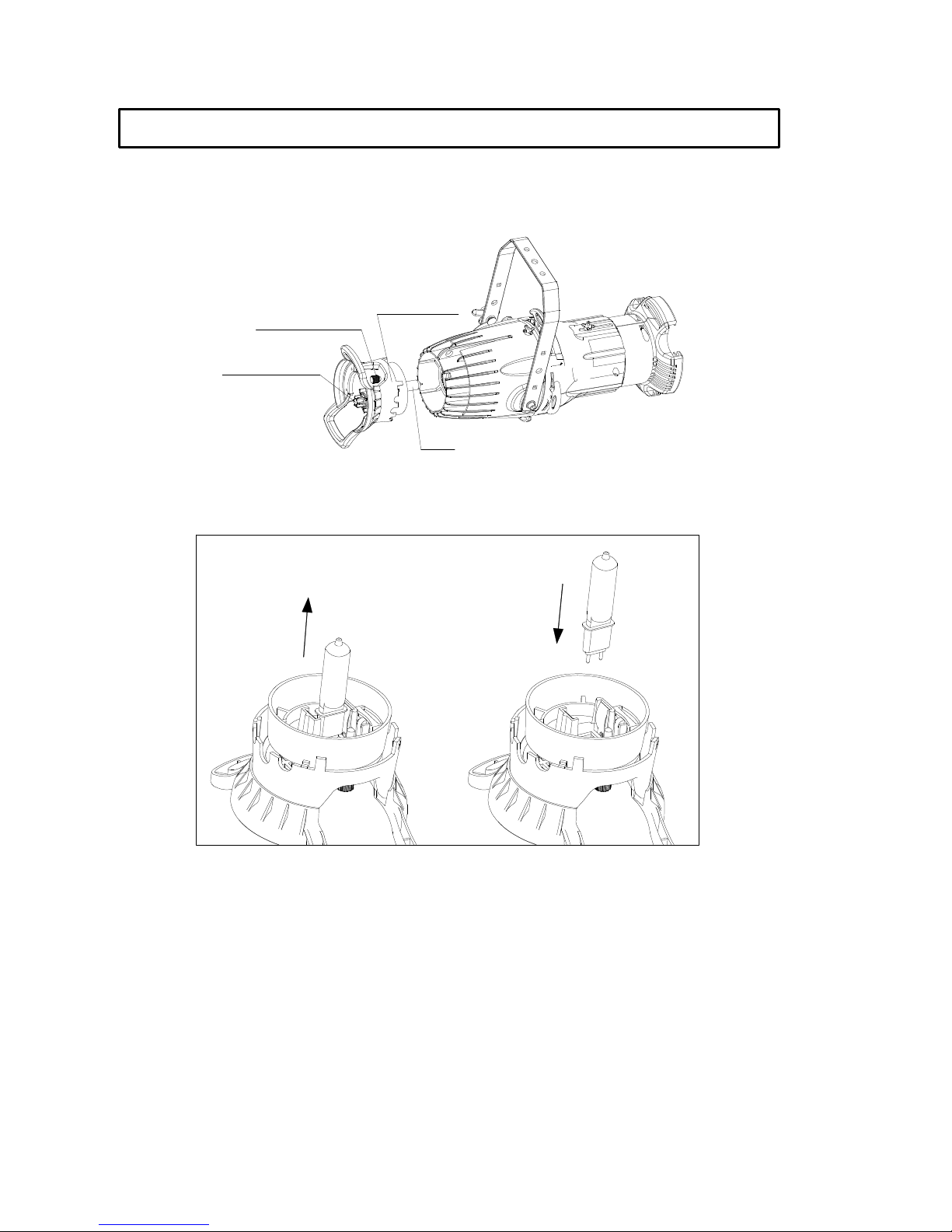

First, loosen the lamp housing bolt and pull the housing straight out from the back of the fixture as shown above.

Holding the lamp with the base push down on the lamp base until the lamp is firmly seated. Make sure that the lamp is fully seated, with the bottom of the lamp heat sink flush to the lamp housing casting.

To reinstall the lamp housing, center it on the reflector and the bolt hole, then tighten the lamp housing bolt to secure the lamp housing in place.

NOTE: To optimize light output it will be necessary to adjust the lamp adjustment. Adjust the lamp in

or out to get a proper focus via rotating the lamp adjustment by hand.

FITTING THE LAMP

Lamp Adjustment

Lamp Housing Bolt

Lamp Housing

Lamp

Page 7

7/10

Pro Stage manual.doc

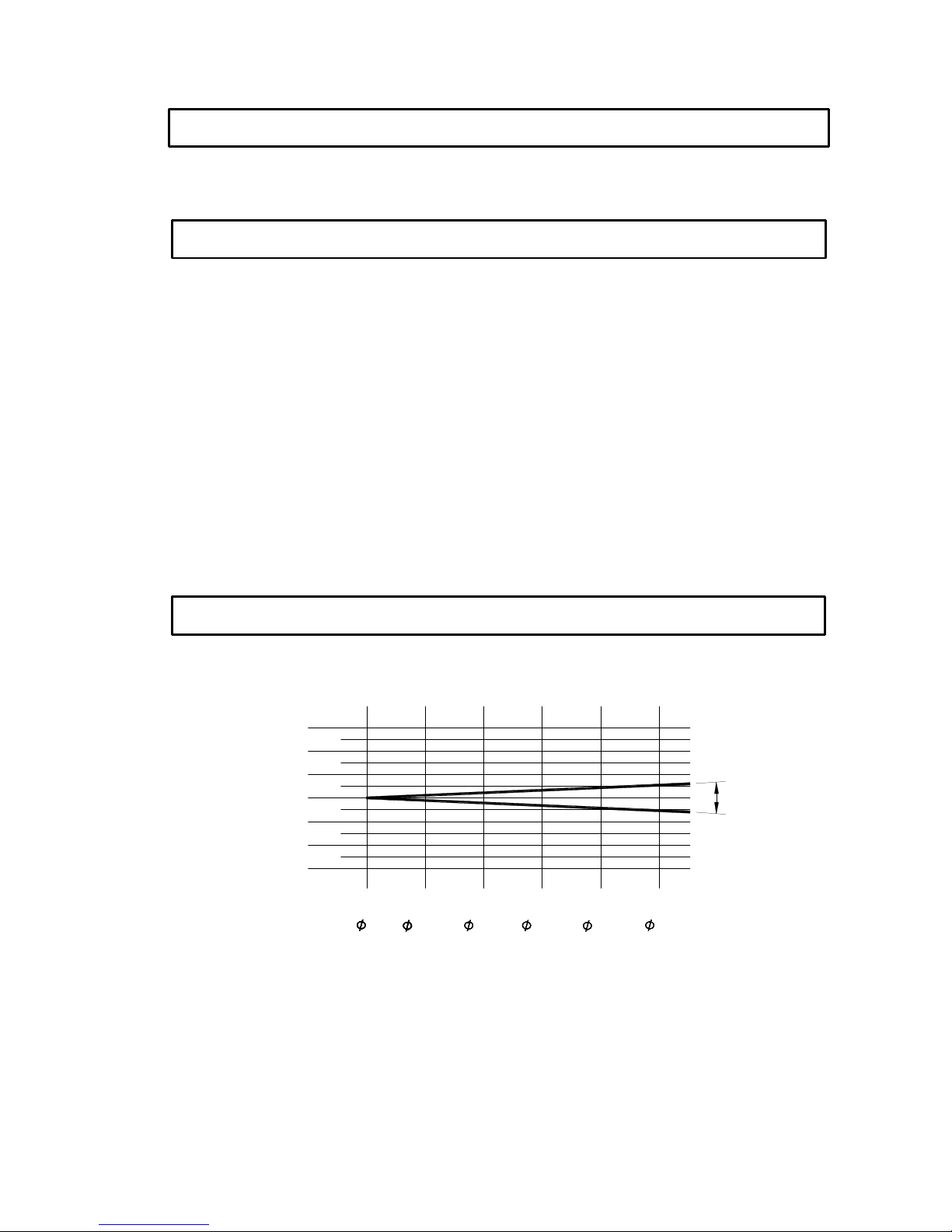

The unit is supplied with a power cord. Should any other connections be required they must be carried out with the following configuration: Earth = Green/Yellow cord.

To ensure the reliability of the projector it should be kept clean. The lens and reflector should be regularly cleaned to maintain an optimum light output.

Do NOT use any glass cleaner or any type of solvent on the reflector. Before cleaning the reflector remove the lens barrel and the barrel holder so you can access the reflector from the front of the fixture. When cleaning the reflector use a damp, clean, soft, lint-free cotton cloth with amild, soapy water solution and gently wipe the reflector, and then remove any soapy water residue with a clean, soft, lint-free cotton cloth dampened with water. Do not use paper towels or harsh materials to

wipe the reflector.

Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. It is recommended to clean the lens at least once every 20 days and clean the reflector at least once every 30 / 60 days.

Do not use any organic solvent, e.g. alcohol, to clean the housing of the projector.

2.1

1.7

1.30.9

0.4

DIAMETER (m)

DISTANCE (m)

100

20 2515

9295 lux37183 lux 1487 lux2323 lux4130 lux

5°

5° Pro Stage, PR-3051

KEEPING THE PROJECTOR CLEAN

POWER CONNECTIONS

LIGHT OUTPUT

Page 8

8/10

Pro Stage manual.doc

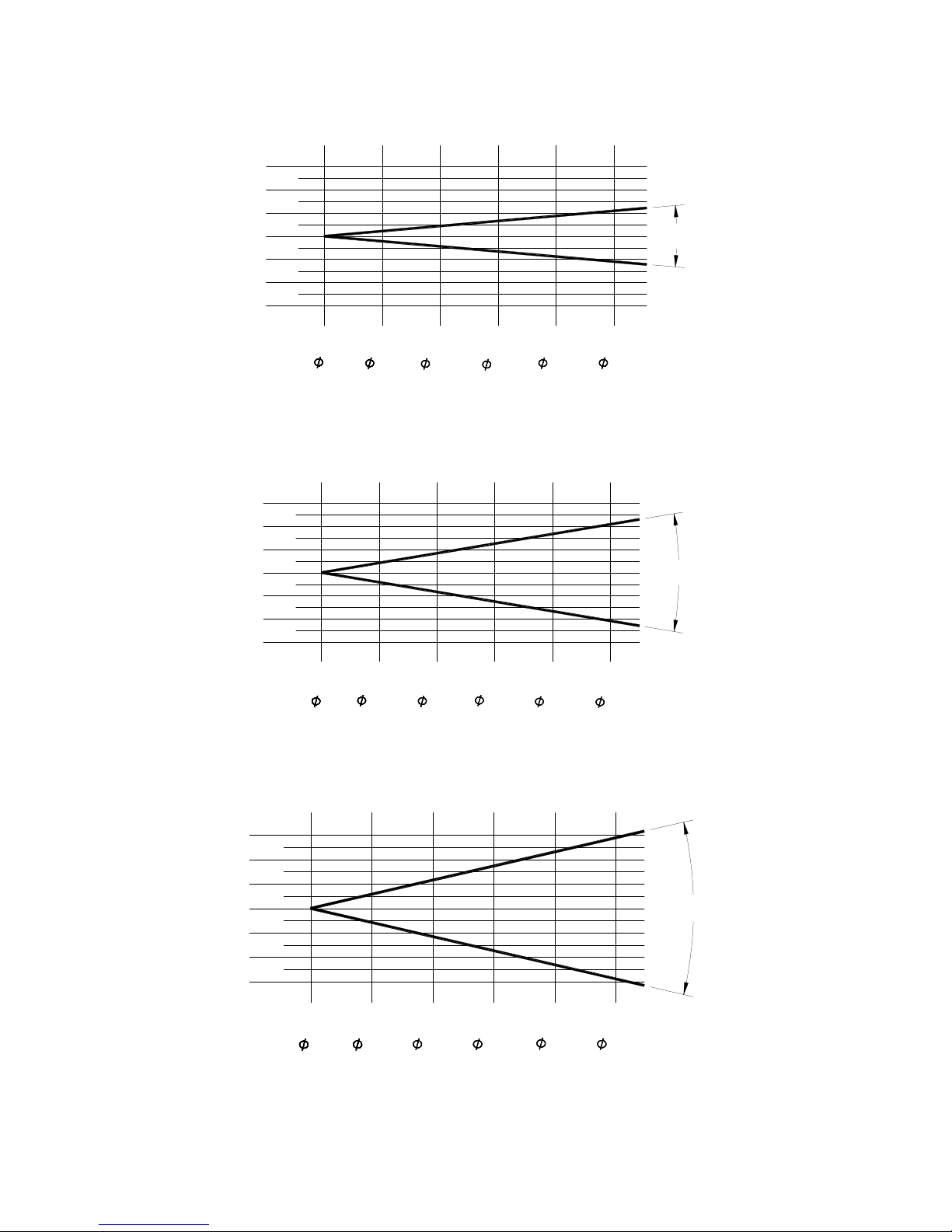

5 10

0.9

1.7

4.4

2515 20

2.6

3.5

22431 lux 5607 lux 896 lux2492 lux 1400 lux

DISTANCE (m)

DIAMETER (m)

10°

10° Pro Stage, PR-3052

5 10

1.7

3.3

8.4

2515 20

5.0 6.7

4524 lux 1128 lux

180 lux500 lux 282 lux

DIAMETER (m)

DISTANCE (m)

19°

19° Pro Stage, PR-3053

168 lux

11.5

3m 5m

0m 2m 4m

4.6

5 10

2.3

15 20

6.9

9.2

5m 3m

1074 lux4296 lux 476 lux 267 lux

DIAMETER (m)

DISTANCE (m)

26°

26° Pro Stage, PR-3054

Page 9

9/10

Pro Stage manual.doc

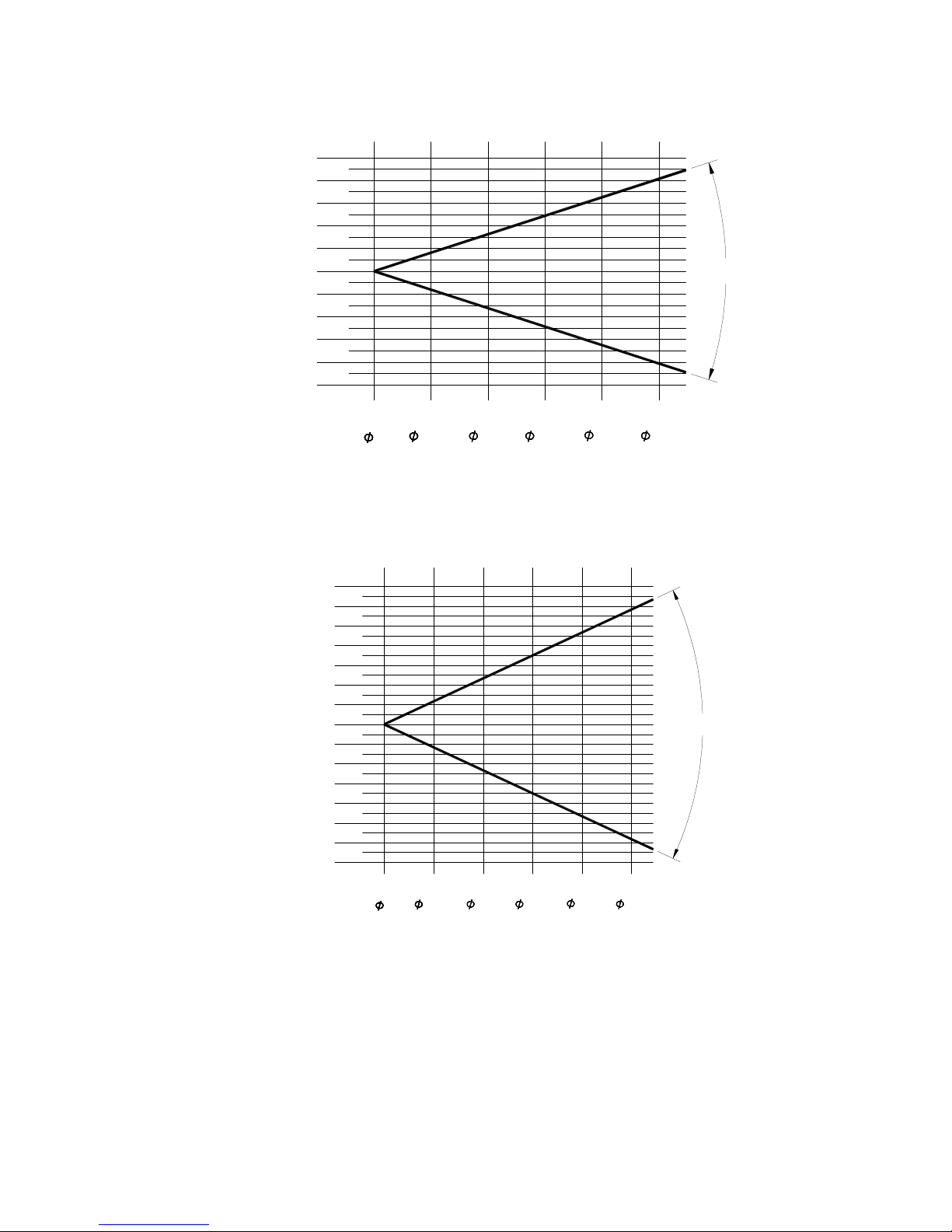

20151050

6.493.24

9.74 13

8m 6m

253 lux 140 lux2280 lux 570 lux

7m 5m

16.2

91 lux

DISTANCE (m) DIAMETER (m)

10m

36°

36° Pro Stage, PR-3055

14m

105

4.66

2015

13.9 18.69.32

13m

11m

14m

12m

10m

12m 10m

5m 3m

13m 11m

504 lux2035 lux 224 lux 127 lux

23.3

81 lux

DISTANCE (m) DIAMETER (m)

50°

50° Pro Stage, PR-3056

Page 10

10/10

Pro Stage manual.doc

PR LIGHTING LTD.

Add: Yingbin Road, Dashi, Panyu, Guangzhou, China

Post-Code：511430

TEL：（020）84781888

FAX：（020）84786023

P/N: 321010066

Last Revision: 27:11:2004
