PR Lighting ARC LED 1054, PR-8808 User Manual

Page 1

ARC LED 1054

PR-8808

The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference.

PR LIGHTING LTD.

http: //www. pr- lig hting. com

1 / 20

Page 2

INDEX

Name

Quantity

Unit Remark

G clamps

2 Pcs

XLR

connector

Set M

ale and female

Safety cord

1 Pc User manual

1 Pc Transparent

Water proof panel + seal+ screws

1 Set Optional for harsh environment installation

1. SAFETY AND WARNINGS

2. INSTUCTIONS

●CLEANING AND MAINTENANCE

●TROUBLESHOOTING

3. APPEARANCE

4. INSTALLATION

●RIGGING

●POWER CONNECTIONS

●DMX CONTROL CONNECTION

●DMX TERMINATOR

5. SETUP AND CONFIGURATION

●FRONT PANEL OPERATION

●DMX START ADDRESS

●DMX WIRELSESS CONTROL

●STAND-ALONE MODE

●MASTER/SLAVE MODE

6.OPERATION MENU

7. DMX PROTOCOL

8. LED INDICATION

9.TECHNICAL DATA

10.CIRCUIT DIAGRAM AND PCB CONNECTIONS

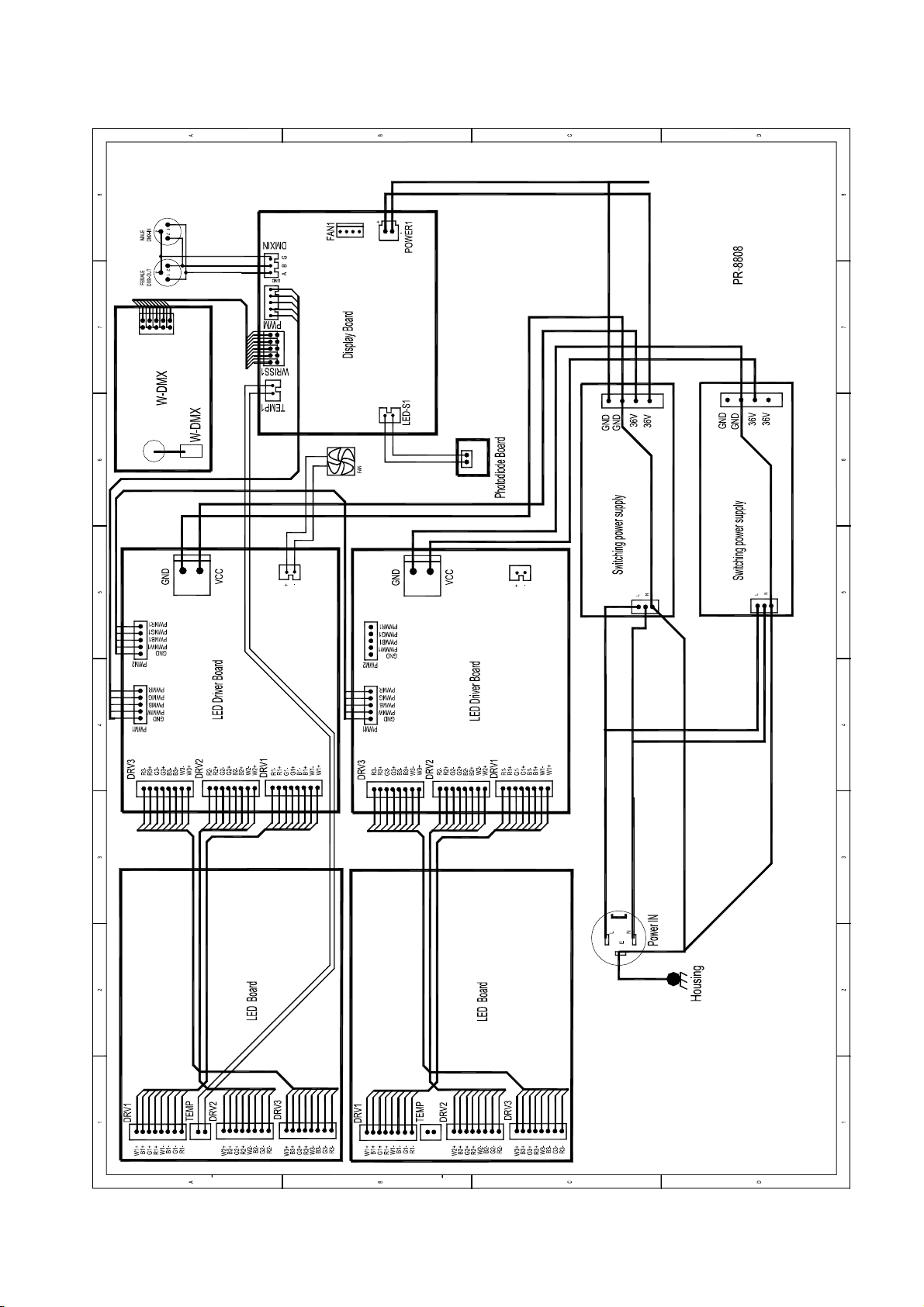

●CIRCUIT DIAGRAM

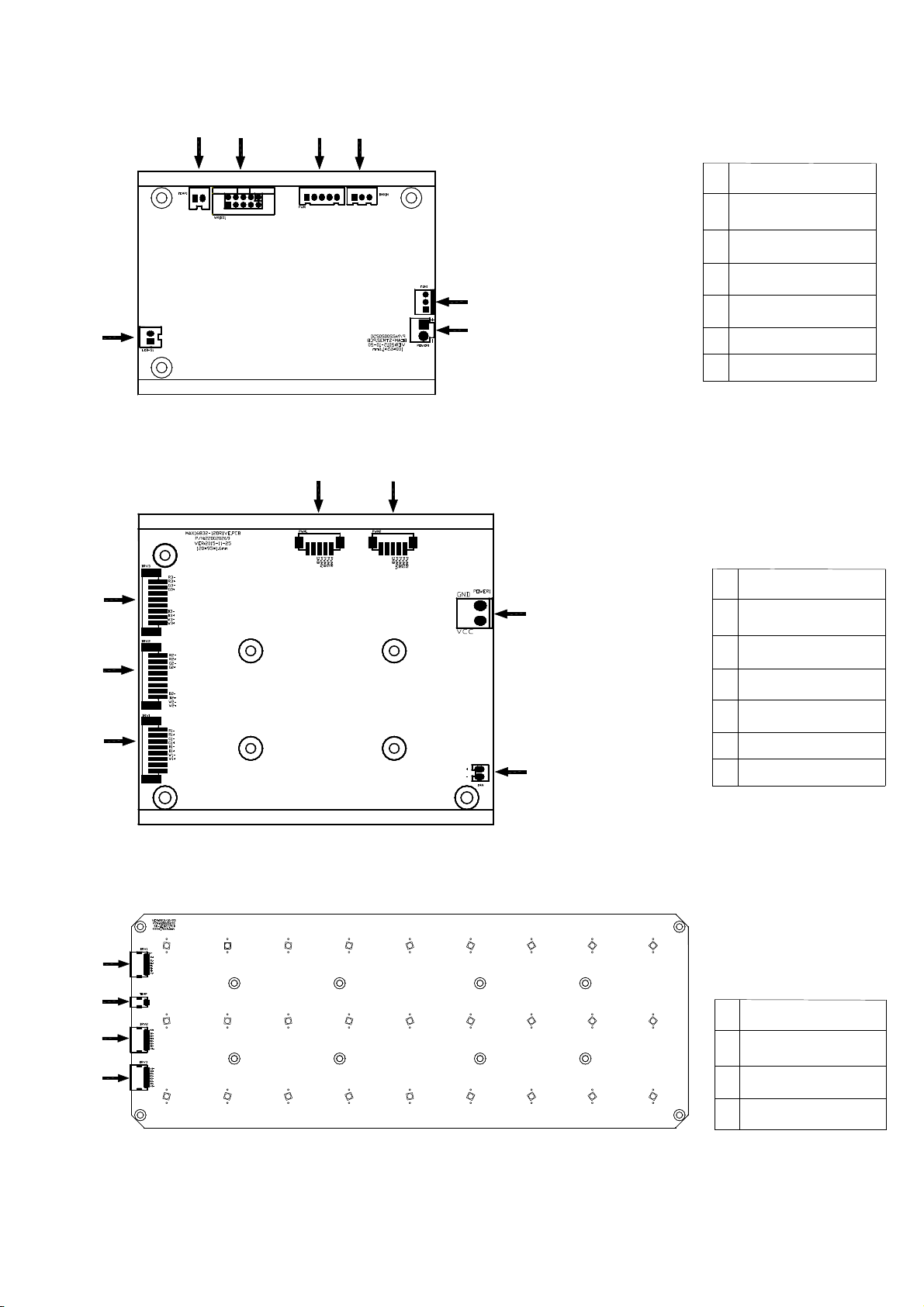

●PCB CONNECTIONS

11.COMPONENT ORDER CODES

ACCESSORIES

The following items are supplied with the projector and please check:

3 4 4 4 5 6 6 6 7 7 8 8 8 8 9 9 10 12 14 14 16 16 17 18

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice. Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence arising from them. Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.

2 / 20

like underwater, dusty area

Page 3

1. SAFETY AND WARNINGS

Before a projector’s installation, power-on, operation and maintenance, please carefully read

the safety information hereinafter!

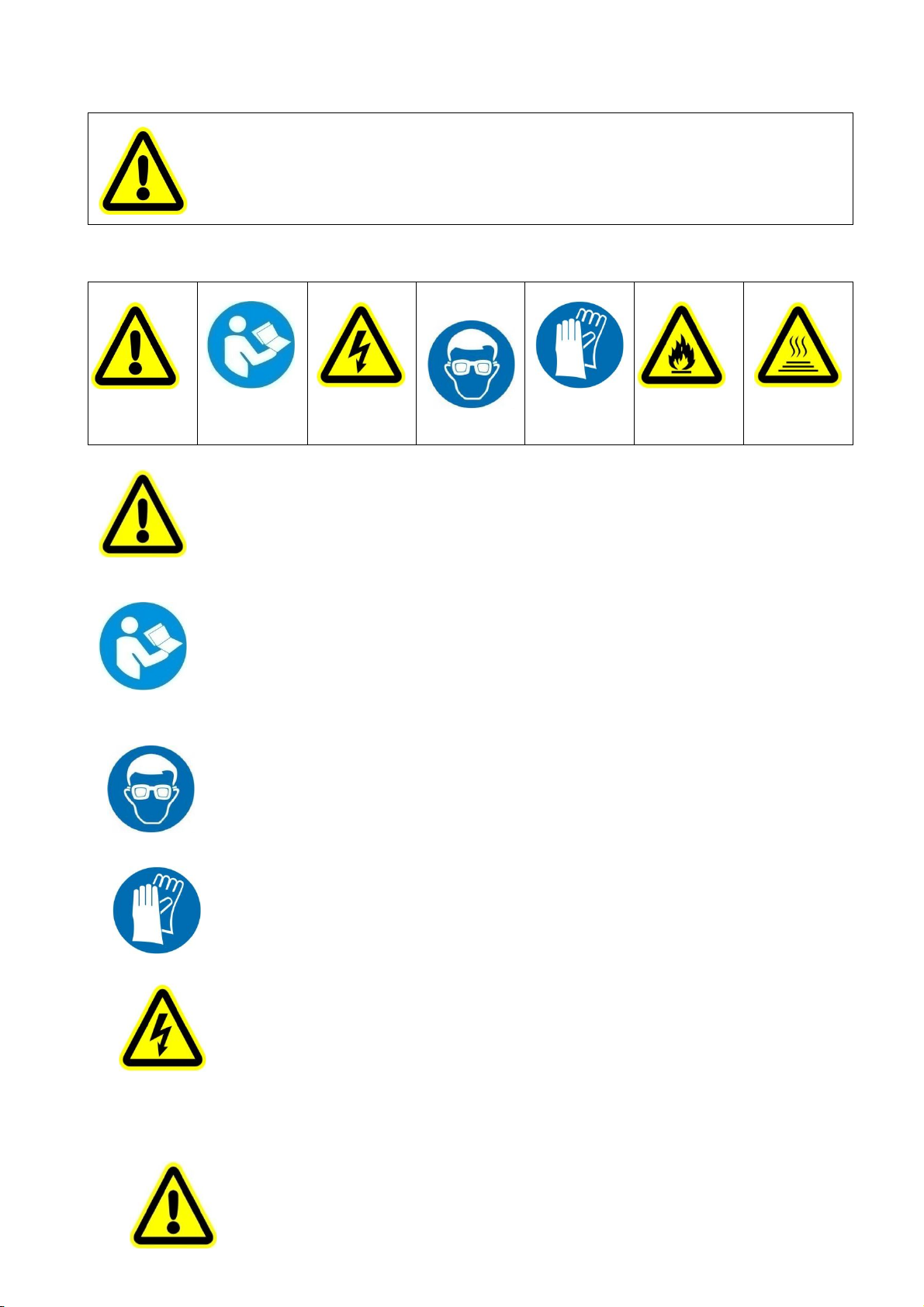

The following safety signs are used in the user manual.

NOTE

Warning

User

Manual

Electrical

shock

Goggles

Protective

Gloves

Flames

● When unpacking , check if there is transportation damage before using the projector. Should there be any

damage caused by transportation, consult your dealer and do not use it.

●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector

as he/she likes

●Please be noted that the damage caused by changing the projector at will is not warranted.

● Do not hesitate to contact the dealer or the manufacturer if any questions or advice.

● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not

allow contact with water or any other liquids.

●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while

being operated

●The projector is only intended for installation, operation and maintenance by qualified personnel. And the

operation must strictly follow the procedures in the manual

●No repairable parts in the projector and do not open covers for maintenance by yourself.

●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.

●Do not connect this device to any type of dimmer pack

●After lamp switched on, the minimum distance between the projector and illuminated surface is 1.5m

●lens and other optical parts shall be replaced immediately if they have deformed or been damaged, otherwise the

light output will be compromised.

●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a

projector while covers(housing)are off

●Keep the lamp clean and do not touch it with bare hands.

●While operating it, wear protective items.

●Any electrical connection must be carried out by a qualified person .

●Before installation, please confirm the voltage supplied matches what is required for the projector

●Each projector must be properly earthed and installed as per related electrical standards.

●Do not use power cord with its insulator damaged and connect the power cord with other cables.

●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully

or by pulling the power cable.

●All power cords must conform to related safety and regulations

●While being operated, the projector should not be under rains or in humidity.

●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other

electrical parts’ life will be shortened .

●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety

High

Temperature

3 / 20

Page 4

cord supplied through the safety cord holes for safety support.

●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from

power mains.

●After running for 5minutes at constant temperature environment, the temperature of the housing of the

projector is 55℃.After stable operation , its temperature is 70℃.

●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not

mean the projector has some defects.

●While operated, do not touch the metallic housing. It is very hot during operation.

●Do not mount the projector directly on inflammable surface.

●Do not project the beam straightly on combustible items and the minimum distance between the

projector and illuminated items is 10m.

●A projector should be installed with good ventilation and the minimum distance between the projector

and walls is 50cm. At the same time, please ensure the fans and air inlets and outlets are workable.

2. INSTRUCTIONS

●CLEANING AND MAINTENANCE

The accumulation of oil, smoke and dust on the lens will compromise the light output. Cleaning a projector is very necessary to

ensure a reliable use of it. Without the permission by a qualified person for internal part replacement, it is forbidden to dismantle a unit.

Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning

work. It’s advised external optical system be cleaned every 20days. Keep lens clean and do not touch optical parts with bare hands.

●Before any maintenance and cleaning, please ensure the project is off the power

●Only qualified person is allowed to do maintenance

●During maintenance and before maintenance, the projector must be off power.

●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens whether it runs or not

●Do not use alcohol or other organic solvent to clean the housing to avoid damage.

●Do not use any solvent with chemical elements to clean color filters or hot mirror.

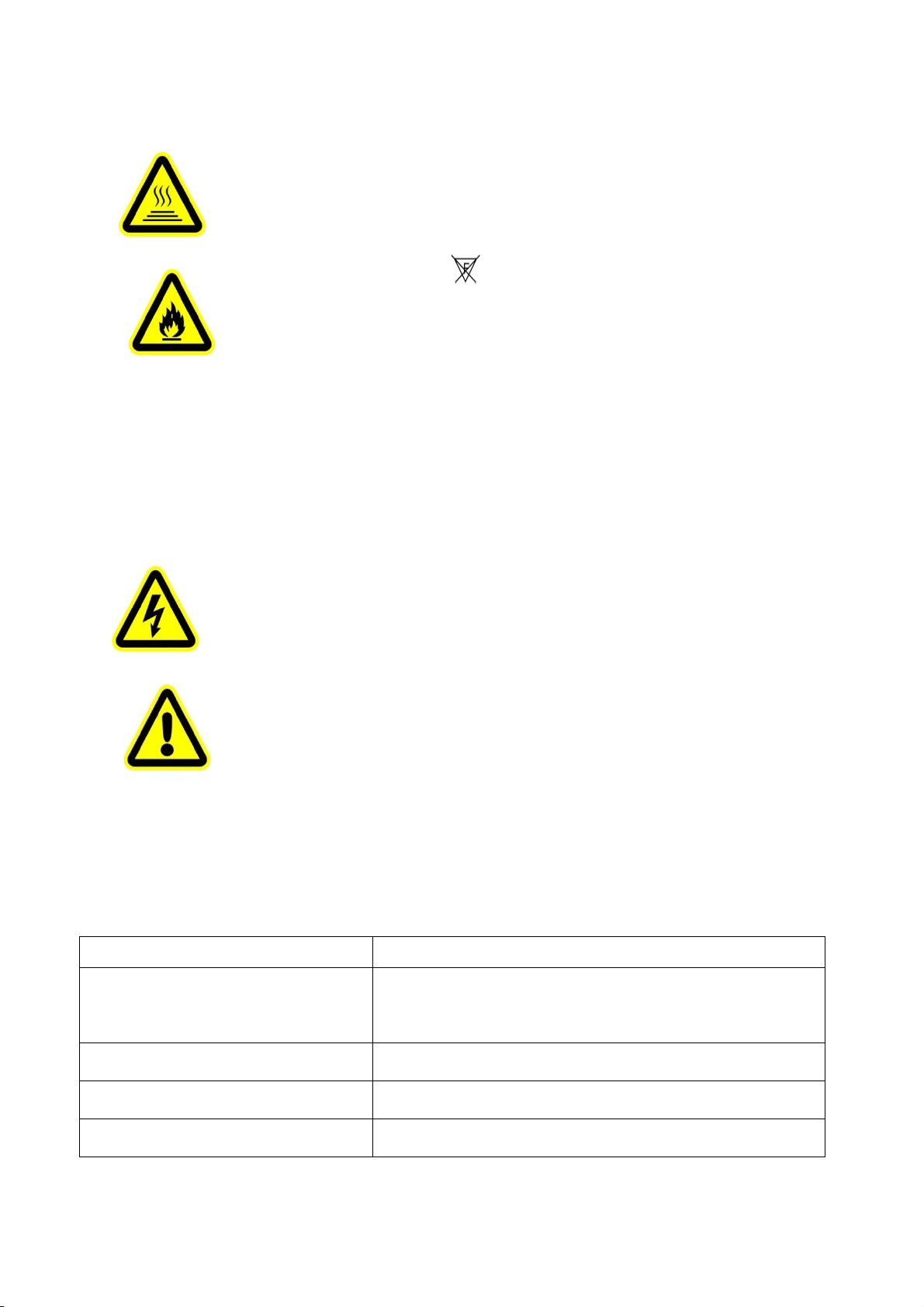

●TROUBLESHOOTING

PROBLEM ACTION

 Check if the power cord is connected well

The projector can’t be switched on

 Power Supply damaged or not connected well, a qualified technician

needed

 Control Board is not connected well and a qualified technician needed

The projector can be switched on, but the LED lamp can’t be turned on and controllable The lamp is on but the projector doesn’t respond to the controller

Beam appears dim, Low in brightness

 LED lamp board is not connected well and a qualified technician needed

 Make sure that the fixture’s start address is right  Replace or repair the XLR signal cable.  Environment is too hot, thus making the projector very hot. Necessary

cooling measures needed

4 / 20

Page 5

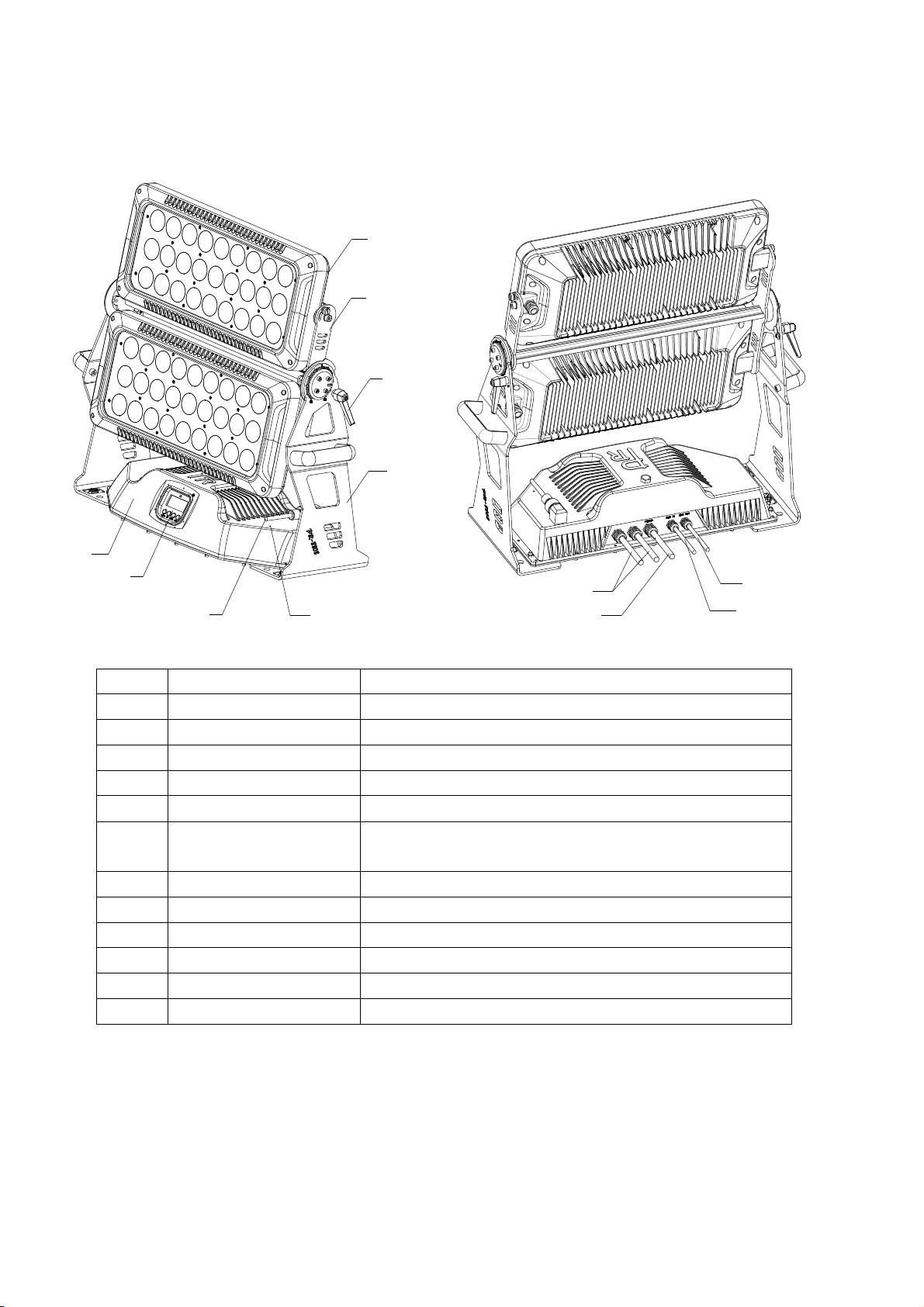

3. APPEARANCE

No. Name Remarks

1 Head 2 Power Supply 3 Arm Support

4 Arm 5 Adjustable knob

6 Front Panel

7 Wireless Antenna 8 Optical Sensor

9 Lamp Driver Board cable Big

10 Power Cord Big

11 XLR cable in Small

12 XLR cable out Small

Transparent waterproof panel for harsh environment and

installation underwater or dusty area

5 / 20

Page 6

4. INSTALLATION

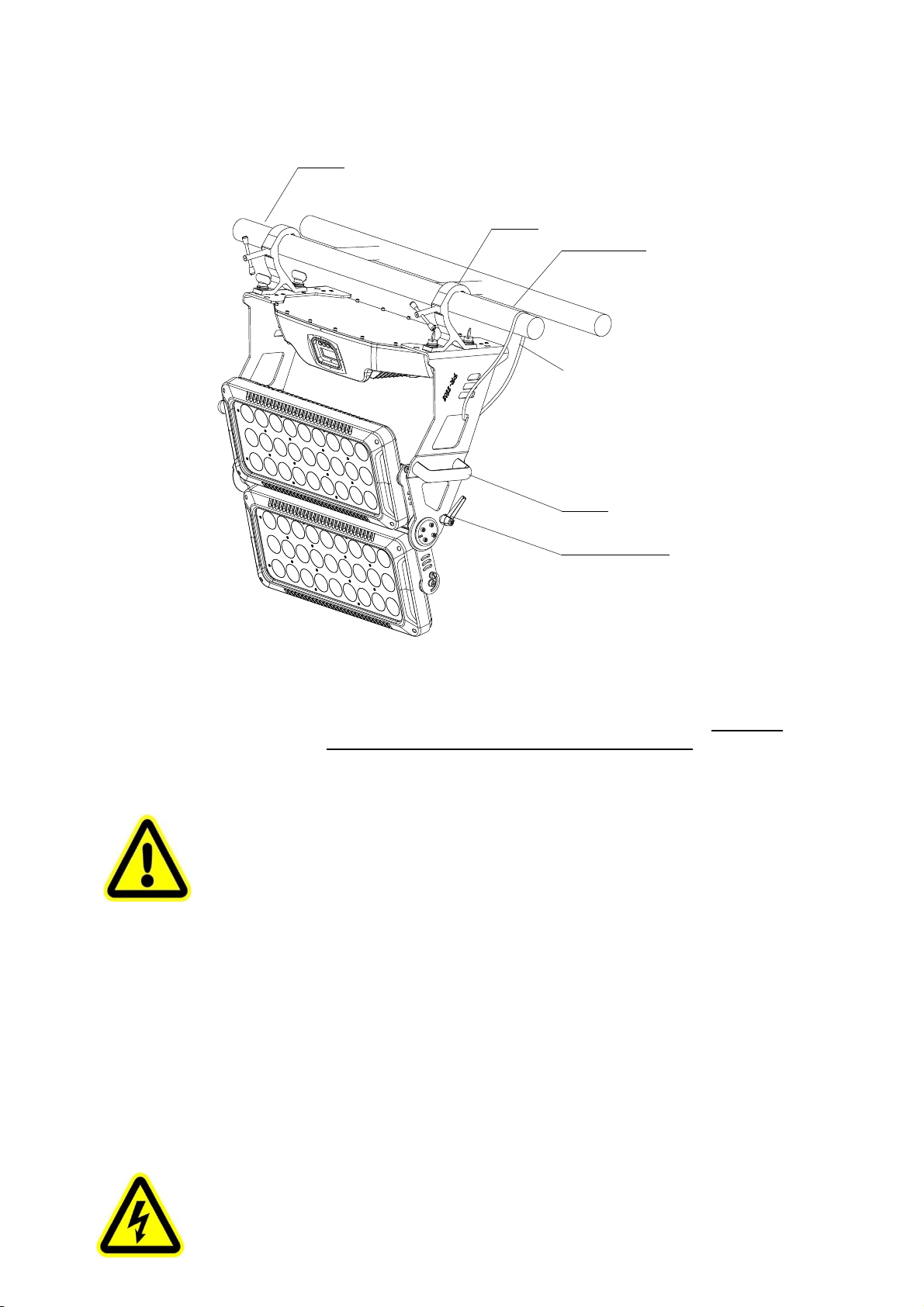

● RIGGING

Clamp

Safety Cord

Warning: please run

the safety cord through

the arm for safety.

Handle

Adjusting Knob

Before moving the unit, lock the adjusting knob.

Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) To pass the SAFETY CORD through the HOLES for safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector to is secure and strong enough to support the weight of a unit.

WARNING:

●The projector MUST be lifted or carried by the HANDLES instead of clamps.

●.For safety the safety cord should afford 10 times the Projector’s weight.

● POWER CONNECTION

Connect the power cord as follows:

L (live) =brown E (earth) =yellow/green N (neutral) =blue

Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each projector be connected with power separately so that they may be individually switched on and off. Note: If projectors are connected in series, please connect POWERIN port of the 1st projector with the Power Mains, then connect its POWER OUT with POWER IN of the 2nd projector, and so on till all fixtures are connected. If the voltage supplied is 200V-240V, the maximum projectors connected is 5pcs, if it is 100V-120V, the maximum is 3pcs. The diameter of the cores of the wires for the Power in/out cables must be equal or bigger than 2.5mm

●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in

6 / 20

2 .

Page 7

accordance with the standards concerned.

●If any questions about the electrical installation, do not continue but consult a qualified electrician.

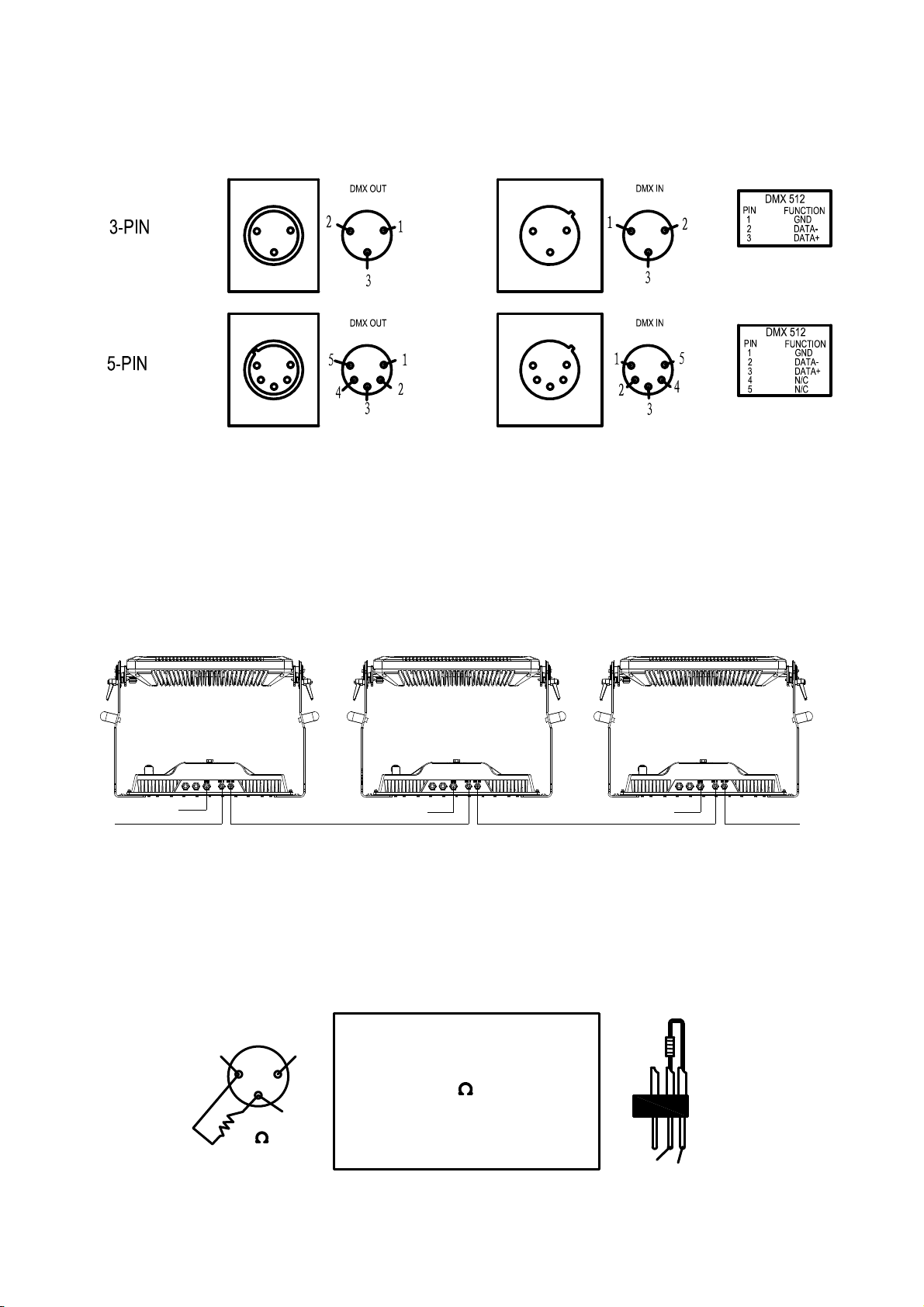

●DMX CONTROL CONNECTION:

Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) or 3 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.

Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets mustn’t be connected in any way other than mentioned in the above figure. The Projector accepts digital control signals in protocol DMX512 (1990).

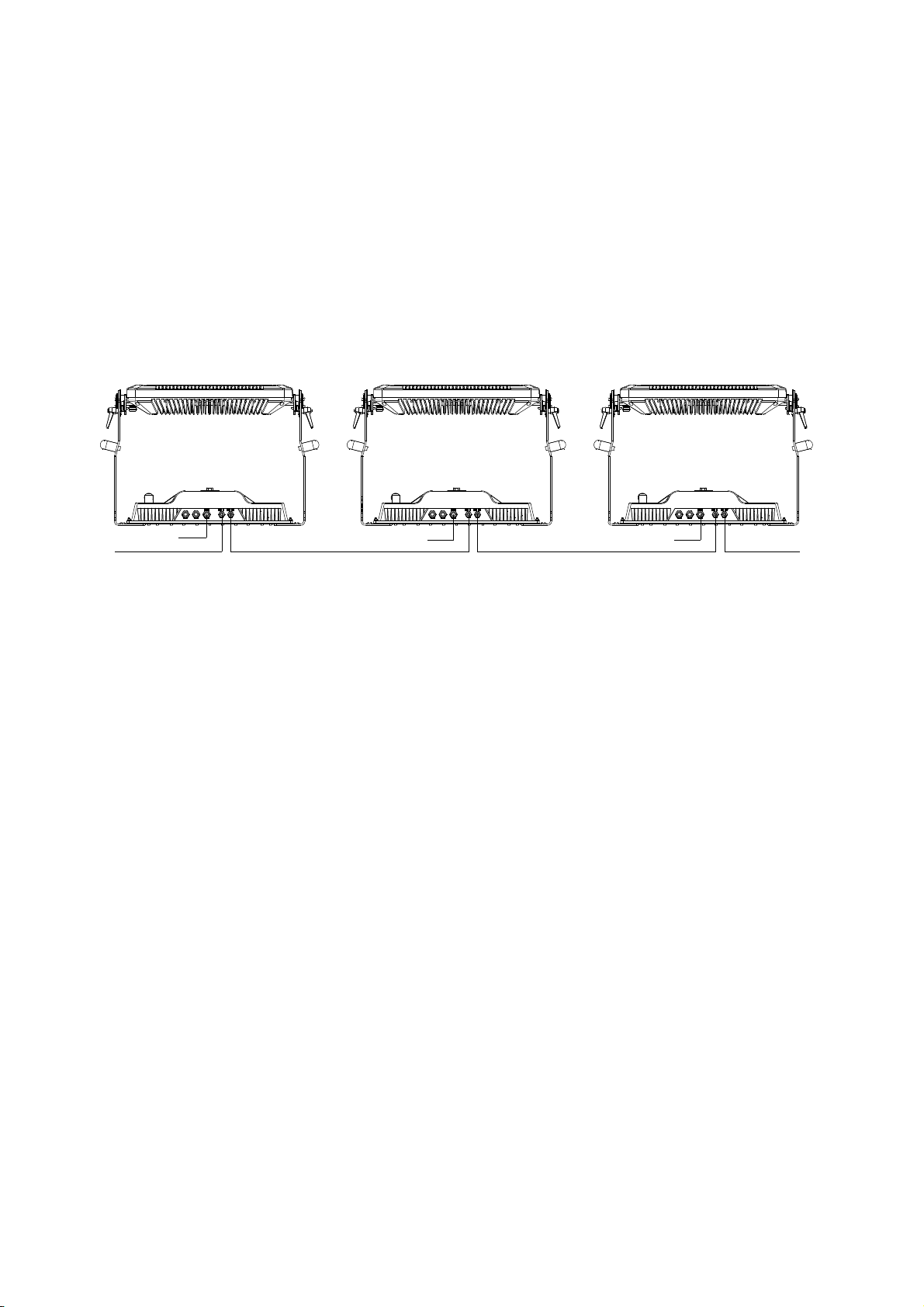

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX terminator as shown in the figure below.

POWER POWER POWER

DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT

●DMX TERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. The connections are illustrated below.

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor

120

across pins 2 and 3 in an XLR plug and insert into the DMX out socket

on the last unit in the chain.

PIN 2

PIN 3

7 / 20

Page 8

5. SETUP AND CONFIGURATION

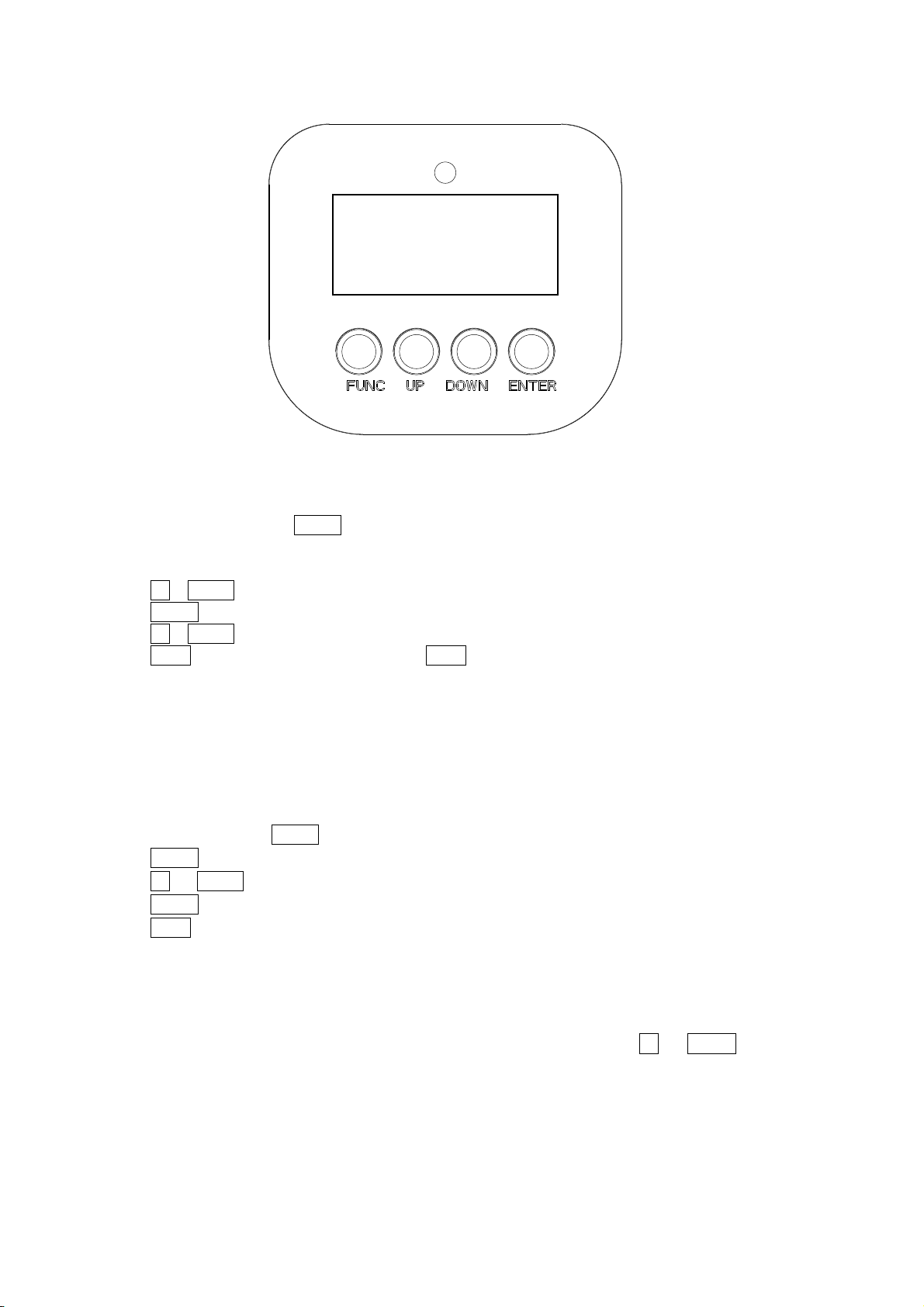

●FRONT PANEL OPERATION

Projector configuration can be set conveniently via push button and LCD display. Launch the projector and press button ENTER for more than 2 seconds to unlock the panel, the LCD will show the function menu of

the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the

“OPERATION MENU” section. Press button UP or DOWN if you want to browse through the various Setup Options. Press button ENTER to save your settings or enter the submenu.

Press button UP or DOWN to change values(plus or minus) Press button FUNC, it will return to the upper menu. If button FUNC not pressed, the default will show display status automatically.

● DMX START ADDRESS

Each Projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start

address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the

controller. The Unit has 2 DMX modes. There are standard mode and extended mode. For example standard mode has 6 channels,

so set the No. 1 projector’s address 001, No. 2 projector’s address 007, No. 3 projector’s address 013, No. 4 projector’s address019,

and so on.

Launch the projector. Press button ENTER more than 2seconds to unlock panel.

Press button ENTER to display DMX address;

Press button UP and DOWN, you can set the address;

Press button ENTER to confirm; after powered on next time, the default will be last value saved

Press button FUNC, it will return to the upper menu

●DMX WIRELESS CONTROL (If the projector has the function)

The projector has wireless control function with wireless receiver module and antenna for remote control.

The setup of it is below:

1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN

2. Select DMX control Mode---- Wireless First (Note: do not select XLR ONLY),then wireless indication in the

front panel will be on, meaning wireless control function is activated.

Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it,

Press “Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns .

8 / 20

Page 9

●STAND-ALONE MODE

Operate the projector without connecting with a controller, enable the master mode through the operation panel, the projector will run in Stand-Alone mode automatically. DMX address can be set at any number within 512.

●MASTER/SLAVE MODE

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First, connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.

Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can be set accordingly.

After Powered on, the group will run in Master/Slave Mode

POWER POWER POWER

DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT

9 / 20

Page 10

6. OPERATION MENU

Slave

Master

Off

XXX

XXXX

X.X.X

1st level menu 2nd level menu 3rd level menu 4th level menu

DMX Address

Config Setup

Standard : 001 – 507

Extended : 001 – 502

DMX Channel Mode

DMX Mode

Unlink Wireless

LED OuptControl

Master Slave

Color Offset

Language Setup

Standard 6

Extended 11

XLR Only

Wireless Only

XLR First

Wireless First

Wireless To XLR

Yes

Brightness

Timer control

Red

Green

Blue

English Chinese

Default：Standard 6

Default：XLR Firs

Default:NO

Default：Slave

128-255

Default：English

INFO

Lcd Light Setup

Display Invert

Factory Setting

Yes

Backlight off 3 minutes

after no button pushed

PRM Transmit Yes

Clean Progra

LED Temperature

Display of Lamp board temperature

Yes

Fixture use Time

Software Ver.

10 / 20

Display of Fixture time

Display of Software Version

Page 11

Red

Green

Blue

White

RGB

RWB

RGBW

DMX Mode

User

Memory

Test Mode

Operation Mode

Timer brightness

Preset Memory

User Progra Edit

（ET01~ET16）

Current time

LED on time

LED off time

LED on by bri. 001-100

LED off by bri. 001-100

Check Brightness 001-101

Yes Yes

Dimmer Strobe

Red 000 - 255

Green 000 - 255

Blue 000 - 255

White

Keep Time

Hour 0-23

Min 0-59

Hour 0-23

Min 0-59

Hour 0-23

Min 0-59

000 - 255 000 - 255

000 - 255

000 – 200 (0- 20S)

Note:

1. In one DMX chain, only one unit can be made as the master. Before master works, unplug its XLR cable

connected with the console.

2. The parameters transmitted from the master include after several units are synchronized: DMX channel mode,

display settings(display contrast excluded),operation mode(including user memory).During parameter transmission, set the unit transmitting data as master and others as slaves

[1] If the unit is set as controlled by the timer, unit-on time is set as t1,unit-of as t2 and current time as t3 If t2>t1, when t1<=t3<t2, the unit is on, otherwise off If t2<t1, when t2<=t3<t1, the unit is off, otherwise on If t2=t1, the unit is on

[2] if the unit is set as controlled by environment brightness: the brightness that turns the unit on is set as b1 and the one that turns it off is b2, the current environment brightness is b3 If b1<=b3<b2, the unit is on, otherwise off , the program has set b3 > =b1 If b1=b2 the unit is on

11 / 20

Page 12

7. DMX PROTOCOL

Standard

mode

Extended

mode

1 1

3 Macro

Color Temperature

2 4

3 5

4 6

5 7

6 8 Strobe

9 Preset memory

Function DMX Description

Dimmer

Red

Green

Blue

White

000-255

000 No

001-255 Color Temperature linear adjustment

000-016

017-024

025-032

033-040

041-048

049-056

057-064

065-072

073-080

081-088

089-096

097-104

105-112

113-120

121-128

129-255

000-255

000-007

008-255

000

001-015

016-031

032-047

048-063

064-079

080-095

096-111

112-127

128-143

144-159

160-175

176-191

192-207

208-223

224-239

Linear Dimming 0%-100%

White(10000K)

White(7200K)

White(5600K)

White(3200K)

Cyan

Yellow

Magenta

Red

Green

Blue

Light blue

Amber

Orange

Pink

Rainbow effect with speed from slow to fast

Linear change from light to dark

Strobe from slow to fast

Preset memory 1

Preset memory 2

Preset memory3

Preset memory 4

Preset memory 5

Preset memory 6

Preset memory 7

Preset memory 8

Preset memory 9

Preset memory 10

Preset memory 11

Preset memory 12

Preset memory 13

Preset memory 14

Preset memory 15

12 / 20

Page 13

240-255

000

001-015

016-031

032-047

048-063

064-079

080-095

096-111

10 User Memory

112-127

128-143

144-159

160-175

176-191

192-207

208-223

224-239

240-255

000-015

016-031

032-047

048-063

064-079

080-095

096-111

112-127

11 Preset Memory Speed

128-143

144-159

160-175

176-191

192-207

208-223

224-239

240-255

Preset memory 16

User Memory1

User Memory2

User Memory3

User Memory4

User Memory5

User Memory6

User Memory7

User Memory8

User Memory9

User Memory10

User Memory11

User Memory12

User Memory13

User Memory14

User Memory15

User Memory16

Speed 1, fastest

Speed 2

Speed 3

Speed 4

Speed 5

Speed 6

Speed 7

Speed 8

Speed 9

Speed 10

Speed 11

Speed 12

Speed 13

Speed 14

Speed 15

Speed 16, slowest

Note: ***DMX channel priority: Preset memory> user memory >Macros>RGBW dimming

***While higher priority channels are in use, lower priority channels don’t work.

13 / 20

Page 14

8. LED INDICATION

On DMX signal OK

Off No DMX signal

On Linked with a transmitter

Off Not linked with any transmitter

Being linked with a transmitter or losing link with it

or without

pcs of LED lamp RGBW

Red LED indication

Blue LED indication

Flash

any wireless signal

Note: Because Red and Blue LED indications are in one, it becomes purple if both are on,

9. TECHNICAL DATA

INPUT VOLTAGES: 100V~240V AC，50/60Hz

RATED POWER :700W@220V

LIGHT SOURCE SPECIFICATIONS:

Qty

Power Consumption 10W

Manufacturers Rated Lamp Life 50000hours

COLORS

RGBW linear color mixing with macros

Linear color temperature adjustment

DIMMING

Linear Dimming from 0-100%

STROBE

Electronic Strobe 0.5-33.FP.S.

BEAM ANGLE

Field Angle(1/10 peak): θ: 78°

Beam Angle(1/2peak) θ

Standard lens: 45° , Optional Lens 11°，15°, 25°

CONTROL:

International DMX512 Signal, 3 pin DMX512 interfaces 6channels in standard mode and 11channels in extended mode Wireless DMX Signal Control

Master/Slave Synchronized Control Mode 3 Operation Modes(DMX Mode, Preset Memory, user Memory) Test Mode

1/2 :

38°

14 / 20

Page 15

OTHER FUNCTIONS:

LED lamp board temperature and fixture time available in the menus

DMX channel mode and settings displayed

LCD and invertible display

Display backlight automatically shut off after delay

Parameters like operation mode and etc. transmitted under synchronization

Environment brightness and timer controllable

HOUSING: High tensile cast Aluminum alloy , IP65

NET WEIGHT: 30Kg

OPERATION TEMPERATURE:

-20°C～40°C

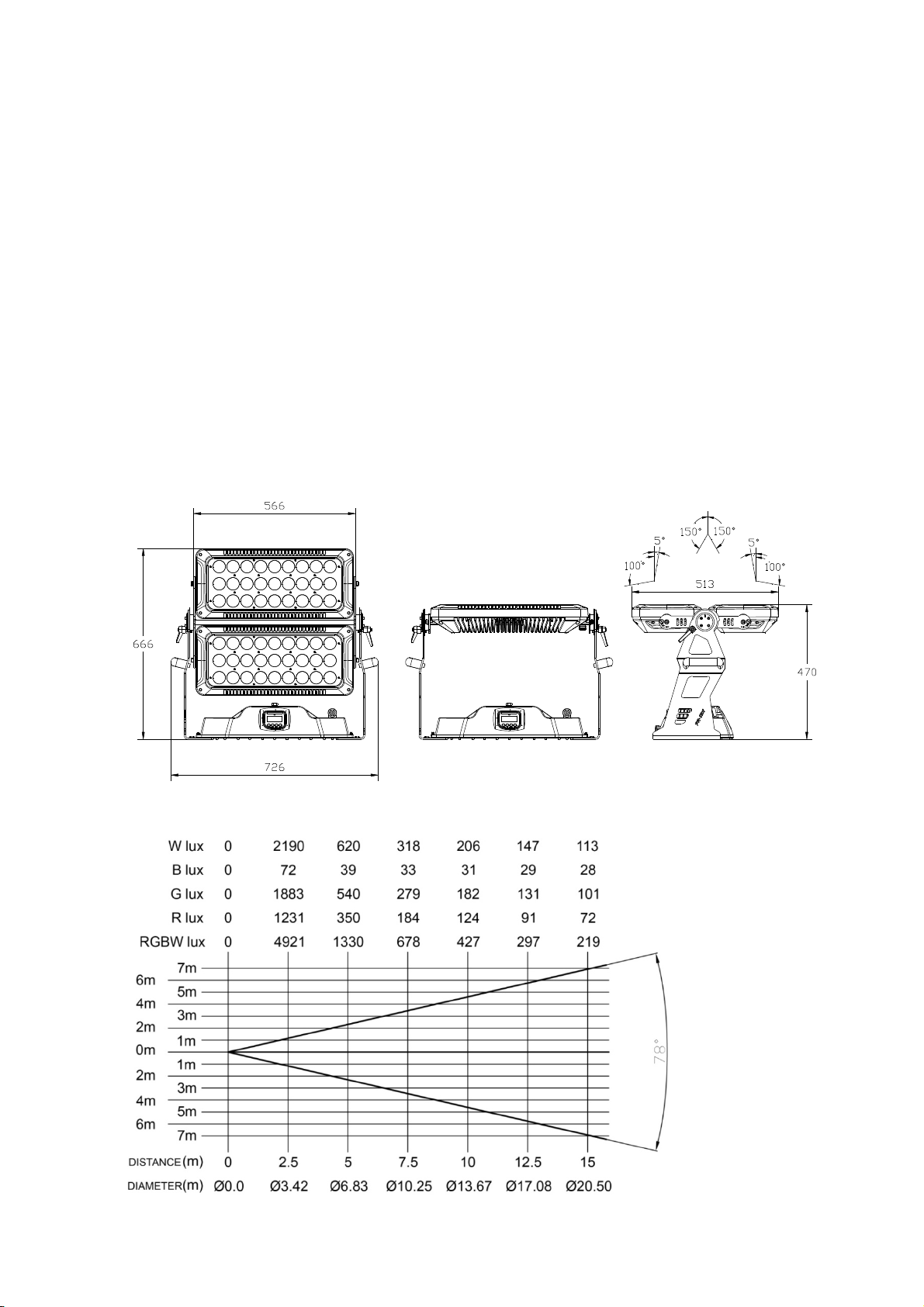

SIZES:

LIGHT OUTPUT (45°lens):

15 / 20

Page 16

10. CIRCUIT DIAGRAM AND PCB CONNECTIONS

●CIRCUIT DIAGRAM

16 / 20

Page 17

●PCB CONNECTIONS

● PR-8806-MASTERBOARD：P/N:220020250

● PR-8806-DRIVER BOARD： P/N:220020269

LED Diver for Group 1

LED Diver for Group 2

LED Diver for Group 3

Fan

Power supply

PWM signal 2

PWM signal 1

● PR-8806-LED LAMP BOARD： P/N:220020270

17 / 20

Optical sensor

Power supply

Fan

Signal input

PWM signal

Wireless board

Thermal switch

LED group 1

Thermal switch

LED group 2

LED group 3

Page 18

11.COMPONENT ORDER CODES

18 19

NAME CODE NO. QTY REMARKS

PR-8806-LENS 071100100 1 25°LENS（OPTIONAL ）

PR-8806-LENS 071100101 1 15°LENS（OPTIONAL ）

PR-8806-LENS 071100102 1 11°LENS（OPTIONAL ）

PR-8806 Lens holder 016083422 1 used for 11°,15°,25° lens

LED PAR LIGHT SIGNAL CABLE 120080030B 1 1.7M ,MALE

LED PAR LIGHT SIGNAL CABLE 120080031B 1 1.7M. FEMALE

LED PAR LIGHT SIGNAL LOOP CABLE 120080032 1 0.3 M ,MALE

LED PAR LIGHT SIGNAL LOOP CABLE 120080033 1 0.3 M. FEMALE

LED ARCHITECTURAL LIGHT POWER

CORD

PR-8806 POWER SWITCH 192010204 1 600W.36V

PR-8806-DRIVER BOARD 230060517 1

PR-8806-MASTERBOARD 230060519 1

PR-8806-LED LAMP BOARD 230060520

TOUGHENED GLASS 080090052

LED ARCHITECTURAL LIGHT, HEAD

SEAL

LED ARCHITECTURAL LIGHT,

CONTROL PANEL SEAL

LED ARCHITECTURAL LIGHT, POWER

SUPPLY BOX SEAL

DC FAN 030060052 1 In the box of Power supply

TRANSPARENT AND WATERPROOF

BOARD PR-8806－TRANSPARENT COVER SEAL 290019141 1

CROSS RECESSED CHEESE HEAD

SCREWS

120080058A 1 1.5M

290260070 1

290260071 1

290260072A 1

290010190 1

250073003 8

SUPPORTING PARTS

18 / 20

Page 19

19 / 20

Page 20

PR LIGHTING LTD.

1582 Xingye Avenue, Nancun Panyu

Guangzhou, 511442 China

TEL: +86-20-3995 2888

PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted!

P/N: 320020389

Version: 20160810

20 / 20
