PR Lighting PR-8242 User Manual

Page 1

PR-8242

BUTTERFLY

This product manual contains important information about the safe installation and use of this product. Please read and follow these instructions carefully before installing and using the product and keep this manual in a safe place for future reference.

PR LIGHTING LTD.

htt p : //www.pr-lighting . com

Page 2

2/24

INDEX

1. SAFETY AND WARNINGS

2. INSTUCTIONS

●CLEANING AND MAINTENANCE

●TROUBLESHOOTING

3. APPEARANCE

4. INSTALLATION

●RIGGING

●POWER CONNECTIONS

●DMX CONTROL CONNECTION

●DMX TERMINATOR

5. SETUP AND CONFIGURATION

●FRONT PANEL OPERATION

●DMX START ADDRESS

●DMX WIRELSESS CONTROL

●STAND-ALONE MODE

●MASTER/SLAVE MODE

6.OPERATION MENU

7. DMX PROTOCOL

8.TECHNICAL DATA

9.CIRCUIT DIAGRAM AND PCB CONNECTIONS

●CIRCUIT DIAGRAM

●PCB CONNECTIONS

10.COMPONENT ORDER CODES

3 4 4 4 5 5 5 6 6 7 7 7 8 8 8 8 9 12 14 17 17 18 22

ACCESSORIES

The following items are supplied with the projector and please check:

Name Quantity Unit Remark

G Clamp 2 Pc XLR connector 1 Pc

Safety Cord 1 Pc

User manual

1 Pc

Power line

1 Pc

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice. Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence arising from them. Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.

Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date

but the light source is not within the warranty.

Page 3

3/24

1. SAFETY AND WARNINGS

NOTE

Before a projector’s installation, power-on, operation and maintenance, please carefully read

the safety information hereinafter!

The following safety signs are used in the user manual.

Warning

User

Manual

Electrical

shock

Goggles

Protective

Gloves

Flames

High

Temperature

● When unpacking , check if there is transportation damage before using the projector. Should there be any

damage caused by transportation, consult your dealer and do not use it.

●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector

as he/she likes

●Please be noted that the damage caused by changing the projector at will is not warranted.

● Do not hesitate to contact the dealer or the manufacturer if any questions or advice.

● The projector is for indoor use only, IP20.

● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not

allow contact with water or any other liquids.

●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while

being operated

●The projector is only intended for installation, operation and maintenance by qualified personnel. And the

operation must strictly follow the procedures in the manual

●No repairable parts in the projector and do not open covers for maintenance by yourself.

●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.

●Do not connect this device to any type of dimmer pack

●After lamp switched on, the minimum distance between the projector and illuminated surface is 5m

●lens and other optical parts shall be replaced immediately if they have deformed or been damaged, otherwise the

light output will be compromised.

●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a

projector while covers(housing)are off

●Keep the lamp clean and do not touch it with bare hands.

●While operating it, wear protective items.

●Any electrical connection must be carried out by a qualified person .

●Before installation, please confirm the voltage supplied matches what is required for the projector

●Each projector must be properly earthed and installed as per related electrical standards.

●Do not use power cord with its insulator damaged and connect the power cord with other cables.

●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully

or by pulling the power cable.

●All power cords must conform to related safety and regulations

●While being operated, the projector should not be under rains or in humidity.

●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other

electrical parts’ life will be shortened .

●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety

cord supplied through the safety cord holes for safety support.

Page 4

4/24

●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from

power mains.

●After running for 30minutes, the temperature of the housing of the projector is 45 .After stable operation , ℃

its temperature is 60 .℃

●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not

mean the projector has some defects.

●Do not mount the projector directly on inflammable surface.

●Do not project the beam straightly on combustible items and the minimum distance between the

projector and illuminated items is 10m.

●A projector should be installed with good ventilation and the minimum distance between the projector

and walls is 50cm. At the same time, please ensure the fans and air inlets and outlets are workable.

2. INSTRUCTIONS

●CLEANING AND MAINTENANCE

If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the

projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved, restart the projector.

The accumulation of oil, smoke and dust on the lens will compromise the light output. Cleaning a projector is very necessary to

ensure a reliable use of it. Cooling fans need to be cleaned every 15days. Internal lens, reflector and hot mirror need to be cleaned periodically to optimize light output.

Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning

work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean and do not touch optical parts with bare hands.

●Before any maintenance and cleaning, please ensure the project is off the power

●Only qualified person is allowed to do maintenance

●During maintenance and before maintenance, the projector must be off power.

●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens whether it runs or not

●Do not use alcohol or other organic solvent to clean the housing to avoid damage.

●Do not use any solvent with chemical elements to clean color filters or hot mirror.

●TROUBLESHOOTING

PROBLEM ACTION

The projector doesn’t switch on

 Check the fuse on the power socket.  Check the lamp.

The LED lamp is on but the projector doesn’t respond to the controller

 Make sure that the fixture’s start address is right  Replace or repair the XLR signal cable.

The projector functions intermittently  Make sure the fan is working well or fans and their shields are not blocked

Beam appears dim, Low in brightness

 Make sure the lamp is within its lifespan  Remove dust or grease from the lenses.

The project image appears to have a halo  Carefully clean the lamp, optical lenses and other components.

Heavily Defective Beam

 Check if lens are in good condition(not cracked)  Clean dust or grease on the lens.

Page 5

5/24

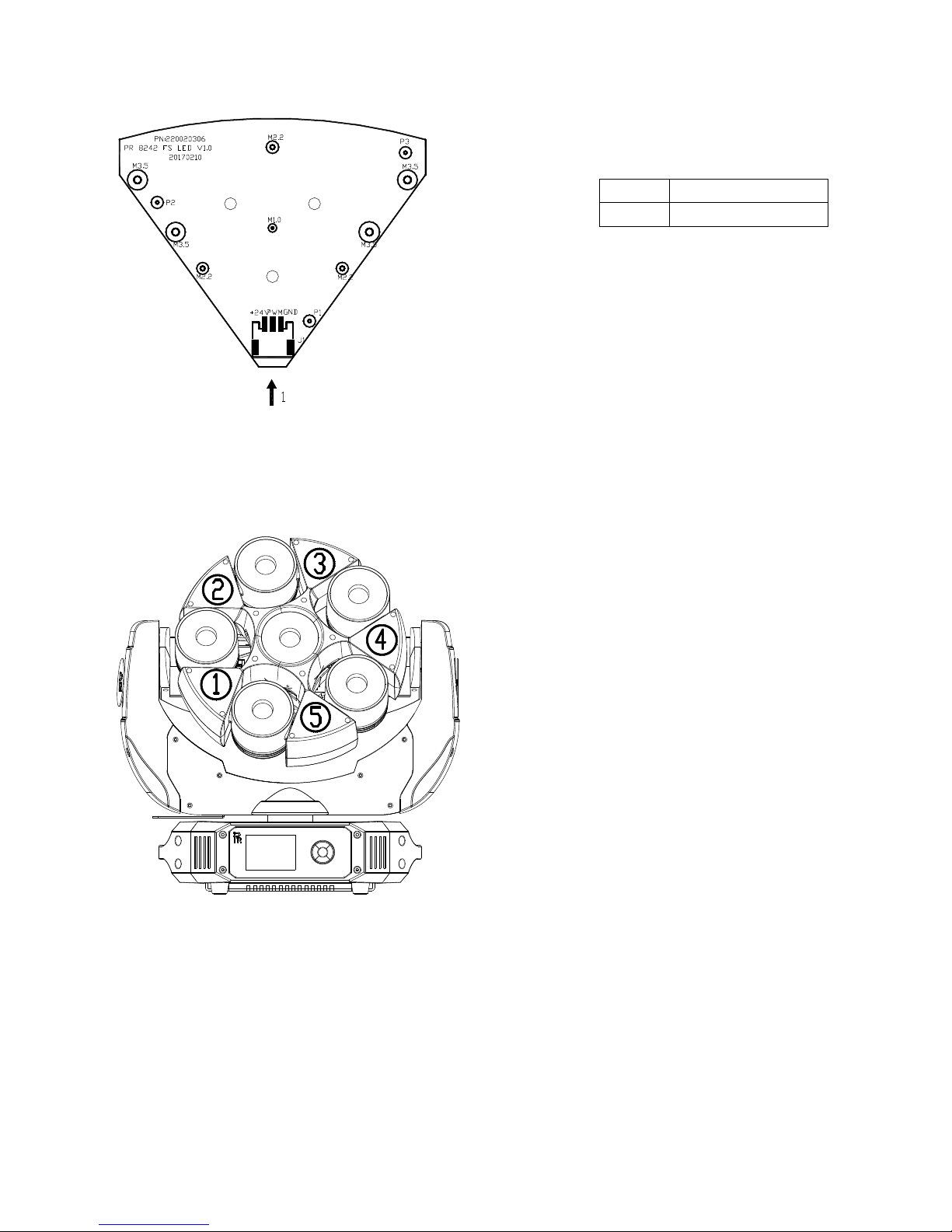

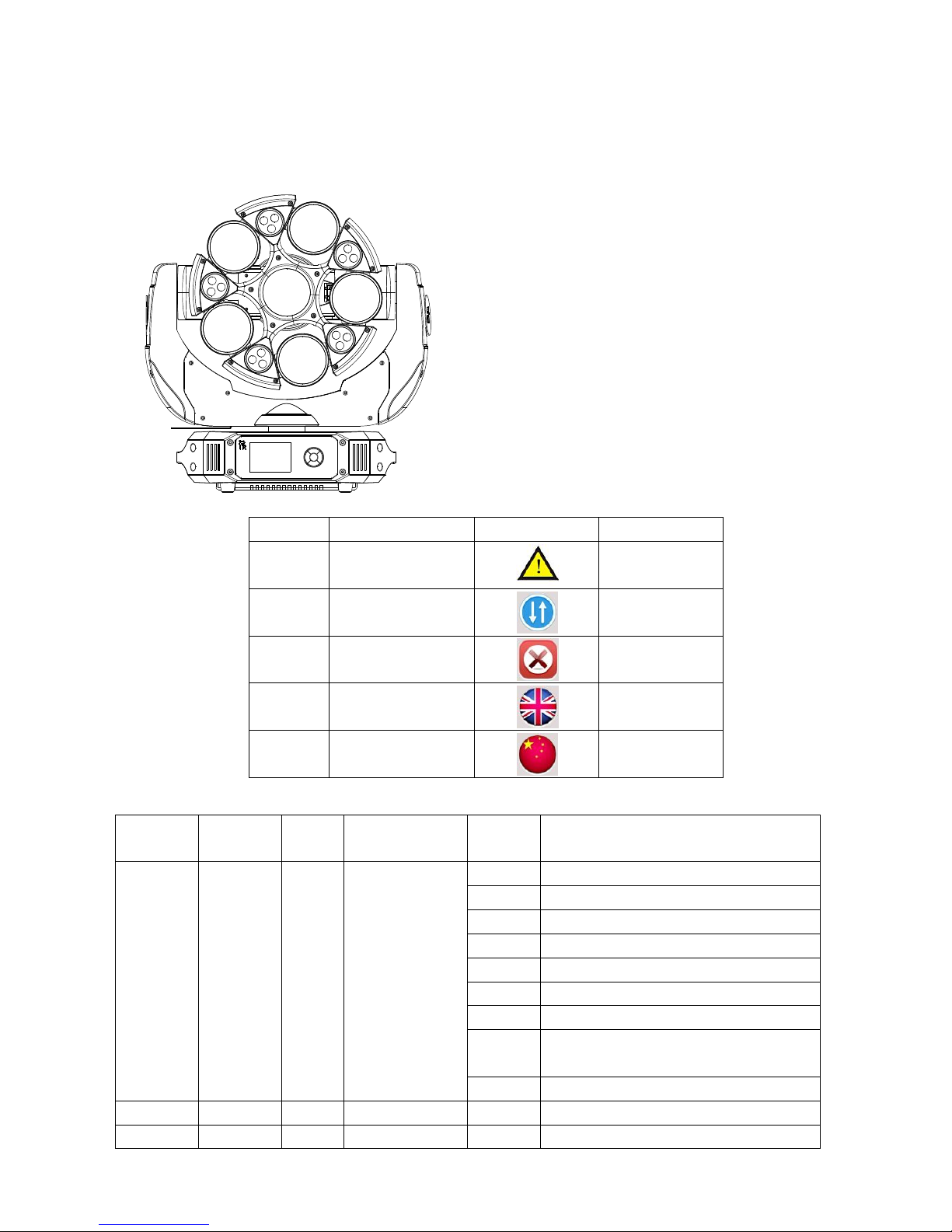

3. APPEARANCE

Note:

1. The combination of the five small heads is called “Head”;

2. Each of the small heads in the head is called ”Small Head”;

4. INSTALLATION

● RIGGING

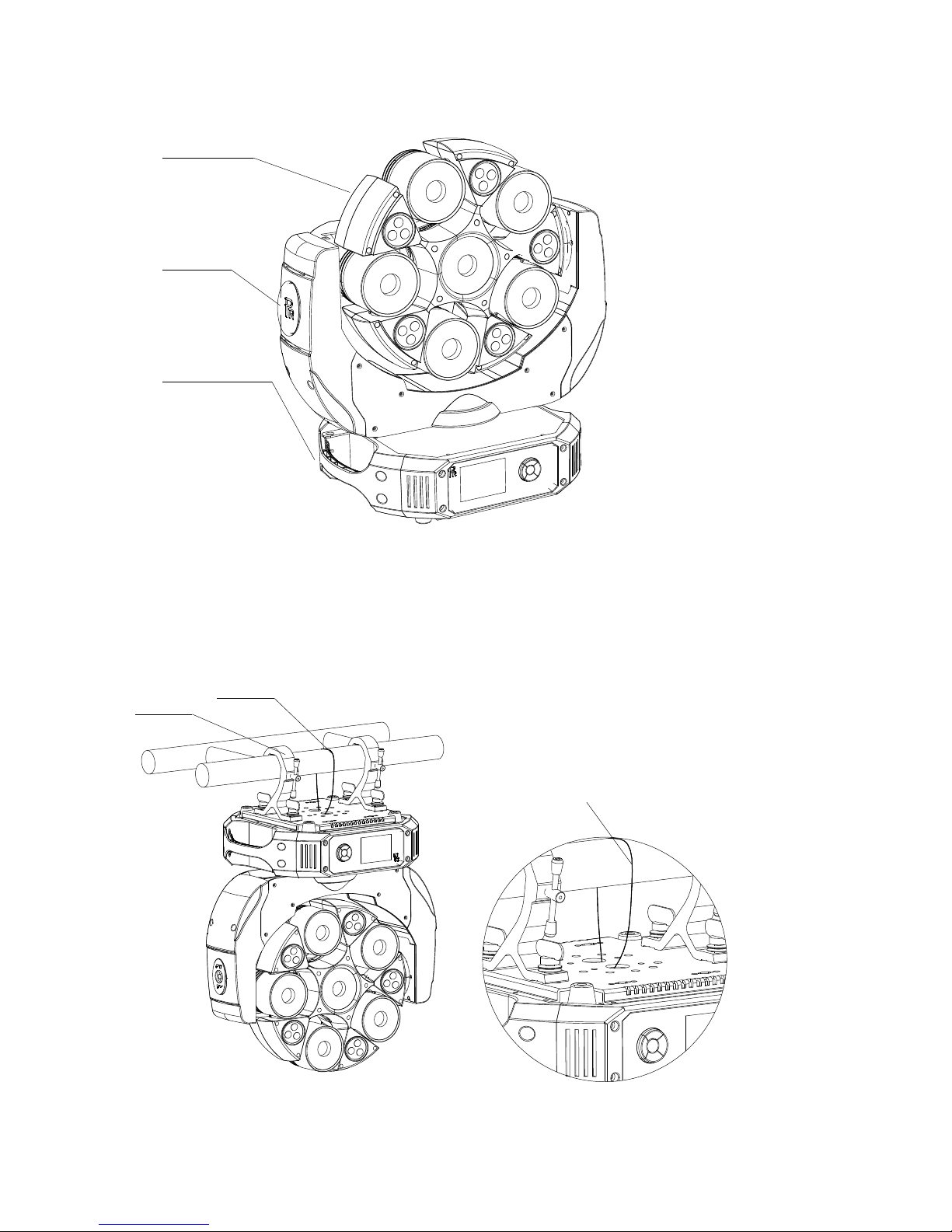

Take 2 clamp and 1 the safety cord out from the package and mount 1 clamp on the BOTTOM of fixture with 2 retainers attached to the clamp. Hang the fixture on the steel truss and fasten the retainers attached to the clamp. Always ensure that the location that you are

HEAD

YOKE

BASE BOX

Clamp

Safety cord

Warning:

For safety,please run the

safety cord thought the two holes

Page 6

6/24

going to mount the unit is secure and is strong enough to support the weight of the unit (See the WARNING as shown above) To pass SAFETY CORD through the SAFETY HOLE on the back cover of the base of the fixture for safety! Always ensure that the

unit is firmly anchored to avoid vibration and slipping whilst functioning.

WARNING:

●The projector MUST be lifted or carried by the HANDLES instead of clamps.

●.For safety the safety cord should afford 10 times the Projector’s weight.

● POWER CONNECTION

Connect the power cord as follows:

L (live) =brown E (earth) =yellow/green N (neutral) =blue

Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each projector be connected with power separately so that they may be individually switched on and off.

Note: If projectors are connected in series, please connect POWERIN port of the 1st projector with the Power Mains, then connect its POWER OUT with POWER IN of the 2nd projector, and so on till all fixtures are connected. If the voltage supplied is 200V-240V, the maximum projectors connected is 8pcs, if it is 100V-120V, the maximum is 4pcs. The diameter of the cores of the wires for the Power in/out cables must be equal or bigger than 2.5mm

2 .

●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in

accordance with the standards concerned.

●If any questions about the electrical installation, do not continue but consult a qualified electrician.

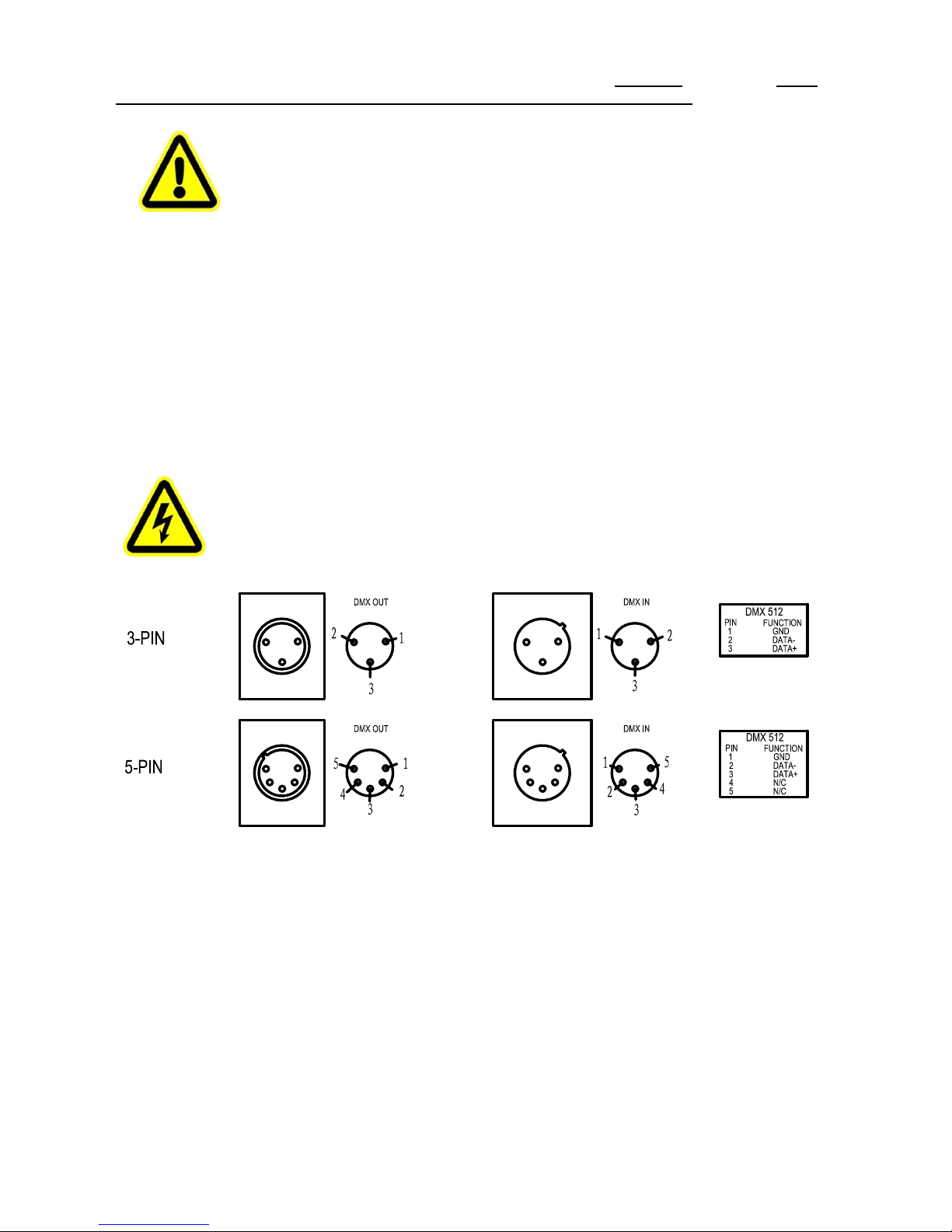

●DMX CONTROL CONNECTION

Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.

Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol DMX512 (1990).

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX terminator as shown in the figure below.

Page 7

7/24

●DMX TERMINATOR

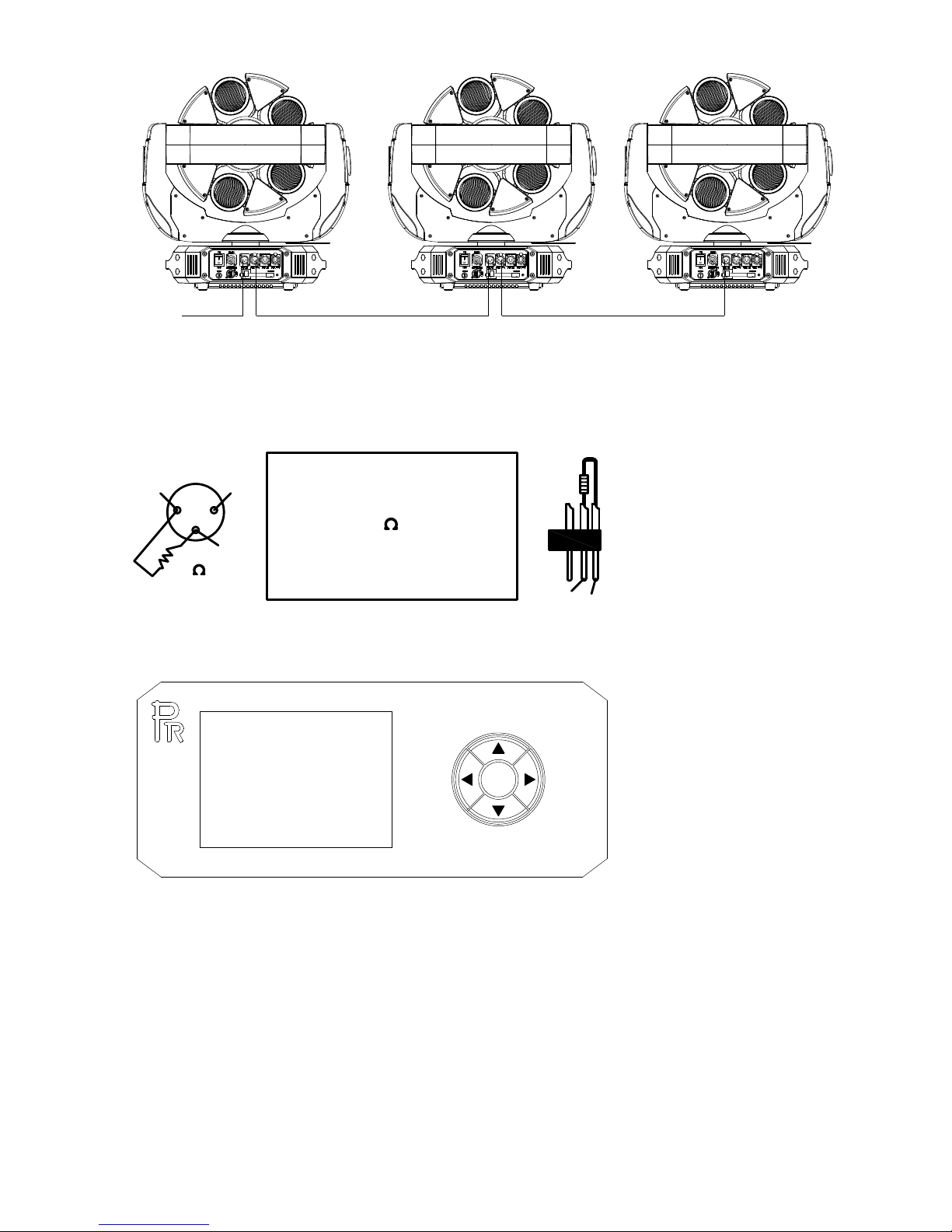

In the Controller mode, at the last projector in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. The connections are illustrated below.

5. SETUP AND CONFIGURATION

●Front Panel Operation

Projector configuration can be set conveniently via push buttons and color touch screen.

To browse through or change the projector ’s settings, touch the white area of the touch screen or press OK button for more than 3s(Only powered by the battery, pressing the OK button will turn on the display) , then the screen will display the projector ’s function menus. Each main menu has its sub-menus. And each menu stands for special function. For the details, please see the following:

1. To set or browse through the functions via the icon interface, push the buttons on the left and right or touch the icon with the

desired function.

2. While at 2nd,3rd and 4th level of menus, the left key is for ESCAPE, but the right key won’t work, and OK key is used for

ENTER. Press OK key to save the changes or enter into the sub menus. Press UP or DOWN keys to change the numbers(minus or plus). Or touch the option needed for change.

DMX TERMINATOR

DMX INPUT

DMX OUTPUT

DMX INPUT

DMX OUTPUT

120

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor across pins 2 and 3 in an XLR plug and insert into the DMX out socket

on the last unit in the chain.

PIN 3

PIN 2

Page 8

8/24

Press the left key or touch the X icon on top-right to go back to the upper level menu. If no action, the system will automatically go back to initial display status.

Shortcut keys:: with the graphic display, its top shows the projector ’s name . There are 3 shortcut keys to change between Chinese and English languages, invert the display and go back to the upper level menu.

● DMX START ADDRESS

If many projector s are controlled by the controller, each projector should be set with a start address to receive signals sent by the

controller and respond to it. The projector have 3 DMX modes. There are standard mode, extended mode and short mode, For

example standard mode has 29 channels, so set the No. 1 Projector ’s address 001, No. 2 Projector ’s address 030, No. 3 Projector ’s

address 059 and so on.

Switch on the Projector . Press OK key more than 3 seconds to unlock panel.

Select DMX Address icon and press OK key or touch the icon directly on the display and select DMX address at the 2nd level menu

for the address setting. Press UP or DOWN keys or touch <<、>> displayed for the DMX address desired.

Press OK key to confirm.

Press the left key to go back to the upper level menu.

●DMX WIRELESS CONTROL (If the projector has the function)

The projector has wireless control function with wireless receiver module and antenna for remote control.

The setup of it is below:

1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN

2. Select DMX control Mode---- Wireless First (Note: do not select XLR ONLY),then wireless indication in the

front panel will be on, meaning wireless control function is activated.

Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it,

Press “Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns .

●STAND-ALONE MODE

Operate the projector without connecting with a controller, enable the master mode through the operation panel, the projector will run in Stand-Alone mode automatically. DMX address can be set at any number within 512.

●MASTER/SLAVE MODE

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First, connect the first projector ’s DMX output to the second projector ’s DMX input using XLR-XLR control cable and then connect the second projector ’s DMX output to the third projector ’s DMX input, and so on until all projector are connected in this way. Eventually connect the last projector ’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.

Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can be set accordingly.

After Powered on, the group will run in Master/Slave Mode

Page 9

9/24

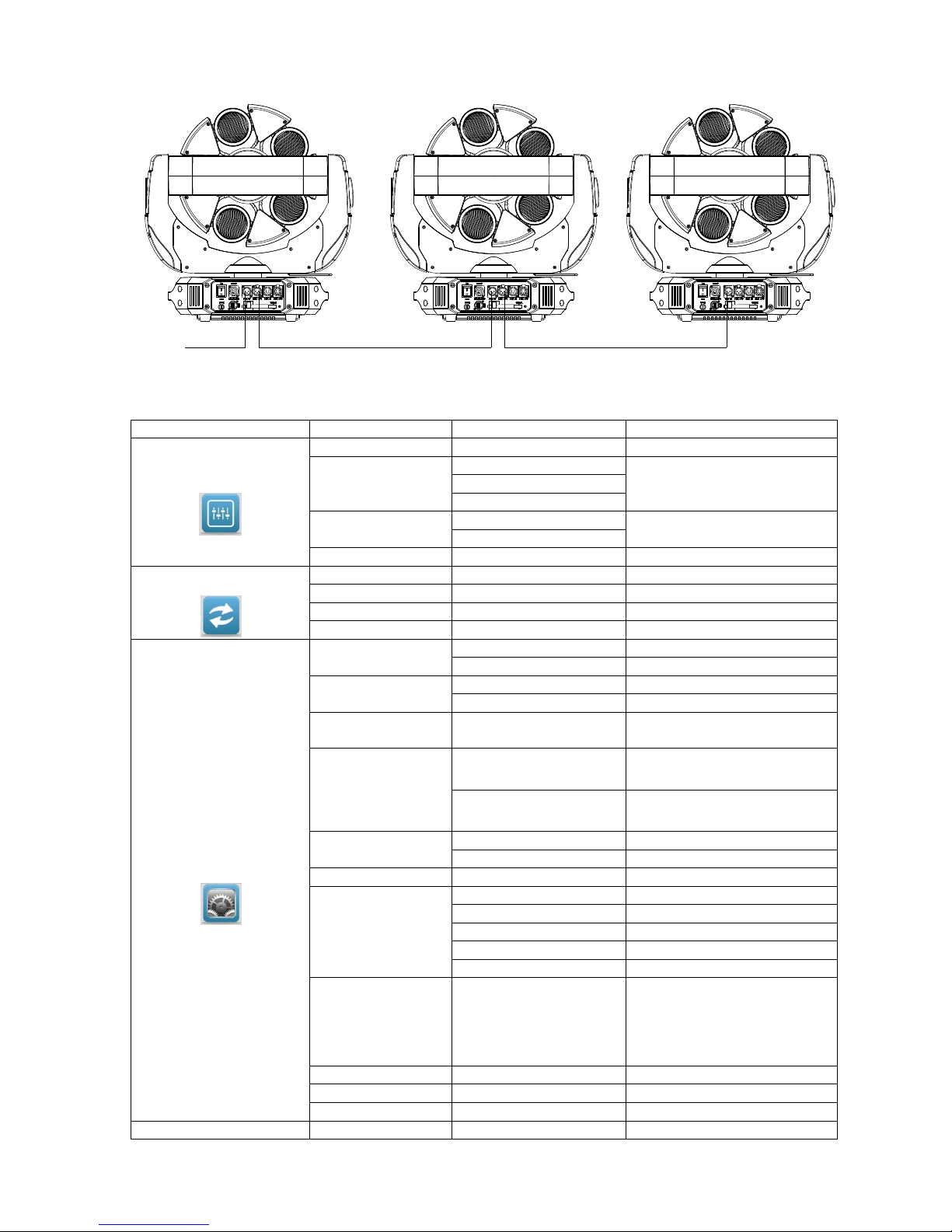

6. OPERATION MENU

1st

level menu

2nd

level menu

3rd

level menu

4th

level menu

DMX Settings

DMX Address

000 -

512

Channel Mode

Standard

Extended

Short

DMX Lost

Black

Out

Hold Last

View DMX Values

Reset

Pan/Tilt Reset

Continuous

Head Reset

ALL Reset

Config Settings

MasterSlave

Master

Slave

Display Mode

On Always

Off After Delay

LCD Dimming

1 - 10

Display Invert

Normal

Inverted

Language

English

Chinese

Calibrate

DMX Signal

(only for the

projectors required

for wireless control

function)

XLR First

XLR Only

Wireless Only

Wireless First

Wireless To XLR

Un-Link Wireless

(only for the

projectors required

for wireless control

function

)

Factory Setting

PRM Transmit

clean Progra

Option Settings

Pan DMX Invert

OFF

DMX TERMINATOR

DMX INPUT

DMX OUTPUT

SLAVE SLAVE MASTER

DMX INPUT

DMX OUTPUT

Page 10

10/24

Tilt DMX Invert

OFF ON

Pan Tilt Swap

OFF ON

Offset (motor and color offset)

Pan

-127 ~ 127

Tilt

-127 ~ 127

Pan Run Offset

-127 ~ 127

Head 1 Offset

-127 ~ 127

Head 2 Offset

-127 ~ 127

Head 3 Offset

-127 ~ 127

Head 4 Offset

-127 ~ 127

Head 5 Offset

-127 ~ 127

Red Offset

128-255 Green Offset

128-255 Blue Offset

128-255 Time Clean

Defaults

Motor and Color offset not restored

Information

Total Hours

Temperature

Display Board

Pan and Tilt

V.C.

LED 1

LED 2

LED 3

LED 4

LED 5

LED 6

Software Version

Display Board

Driver Board 1

Driver Board 2

Driver Board 3

Driver Board 4

Driver Board 5

Driver Board 6

Pan and Tilt

V.C.

Electronic SN

Status Inform.

Pan Encoder

Pan sensor

Pan Over Temp.

Pan Fault

Tilt Encoder

Tilt sensor

Tilt Over Temp.

Tilt Fault

PanRun Encoder

Pan Run Sensor

Pan Run Over Temp.

Pan Run Fault

Head 1 Sensor Head 2 Sensor Head 3 Sensor Head 4 Sensor Head 5 Sensor

LED1 Temperat.

Page 11

11/24

LED2 Temperat. LED3 Temperat. LED4 Temperat. LED5 Temperat.

LED6 Temperat.

Test Modes

Auto Test

Manual Test

Shutter

000-255 Dimmer

000-255 LED1

000-255 LED2

000-255 Head 1

000-255 LED3

000-255 Head 2

000-255 LED4

000-255 Head 3

000-255 LED 5

000-255 Head 4

000-255 LED 6

000-255 LED1 Strobe

000-255 LED2 Strobe

000-255 LED3 Strobe

000-255 LED4 Strobe

000-255 LED5 Strobe

000-255 Head 5

000-255 X Run

000-255 Pan 000-255 Tilt 000-255

Operation Mode

DMX Mode

User Memory

Preset Memory

Static Scene1-16

(Each scene has 23

steps )

Shutter

000-255 Dimmer

000-255 LED 1

000-255 LED 2

000-255 Head 1

000-255 LED 3

000-255 Head 2

000-255 LED 4

000-255 Head 3

000-255 LED 5

000-255 Head 4

000-255 LED6

000-255 Str.1 000-255 Str.2 000-255 Str.3 000-255 Str.4 000-255 Str.5 000-255 Head 5

000-255 X Run

000-255 Pan 000-255 Tilt 000-255 XY Sp

000-255 HeadS

000-255 Keep T

000-255(0- 20S)

Page 12

12/24

Note:

1). When multiple projectors’ work together in synchronous control state, Parameters can be transmitted from the master projector to the slave projector such as DMX channel mode, Display setting status and operation mode ( User memory data is include ).

2). Those receiving parameters will be automatically set as Slave Mode. If DMX signal is available, the color of DMX address displayed will be red, otherwise black.

3). After reset after power on, the control panel can be used. The 6 LEDs of the projector is shown below:

4). LOGO：

NO. Names Logo Remark

1 Warning

2 Display Invert

3 Exit

4 English

5 Chinese

7. DMX PROTOCOL

Short Standard

Extend

function

DMX

Value

Description

1 1

1 Strobe

000-007

008-127

Strobe from slow to fast

128-135

136-177

Fast closing and slow opening

178-185

186-227

Fast opening and slow closing

228-235

236-249

Random Strobe(any of the small heads at

random)

250-255

2 2 2

Dimmer 000-255

Linear Dimmer from dark to bright

3 3 3

Color Temperature

000 NO

LED6

LED2

LED3

LED4

LED5

LED1

Page 13

13/24

001-255

Linear CT Change from High to Low

4 4 4

Colors

000-007

008- 255

Fading Rainbow from fast to slow

5 5 5

Color Macro

000

001-255

255 colors

6 6 6

LED 1 Red

000-255
