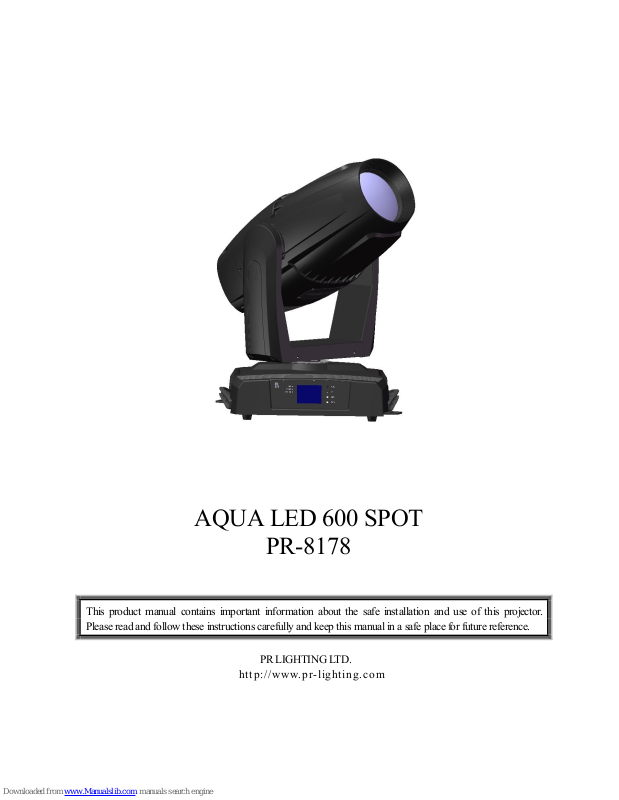

Page 1
AQUA LED 600 SPOT
PR-8178
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
htt p://w ww.pr-lighting.co m
Page 2
2/30
INDEX
1. SAFETY AND WARNINGS
2. INSTUCTIONS
●CLEANING AND MAINTENANCE
●LUBRICATION
●TROUBLESHOOTING

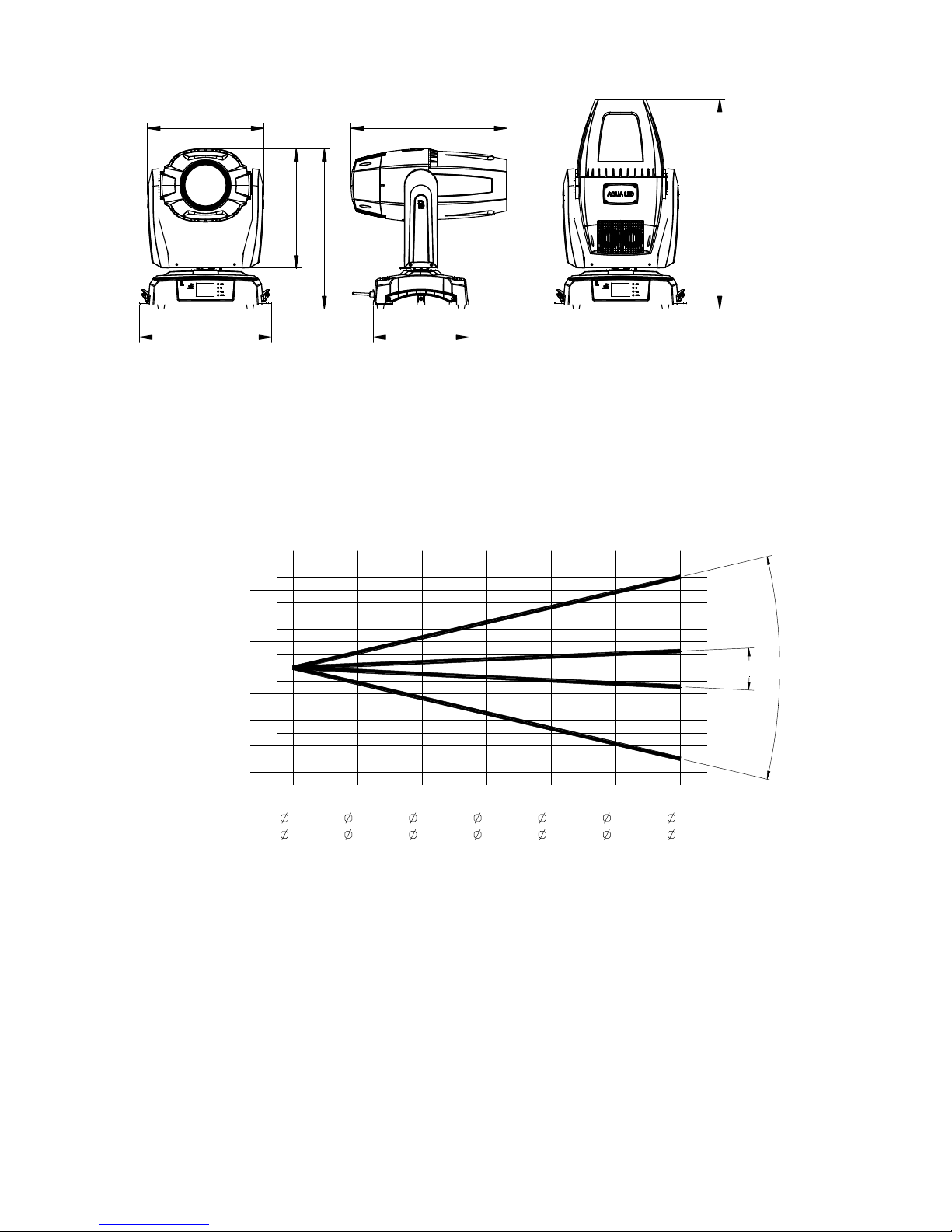

3. APPEARANCE
4. INSTALLATION
●RIGGING
●POWER CONNECTIONS
●DMX CONTROL CONNECTION
●DMX TERMINATOR
●GOBO REPLACEMENT
5. SETUP AND CONFIGURATION
●FRONT PANEL OPERATION
●DMX START ADDRESS
●DMX WIRELSESS CONTROL
●STAND-ALONE MODE
●MASTER/SLAVE MODE
6.OPERATION MENU
7. DMX PROTOCOL
8. LED INDICATION
9.TECHNICAL DATA
10.CIRCUIT DIAGRAM AND PCB CONNECTIONS

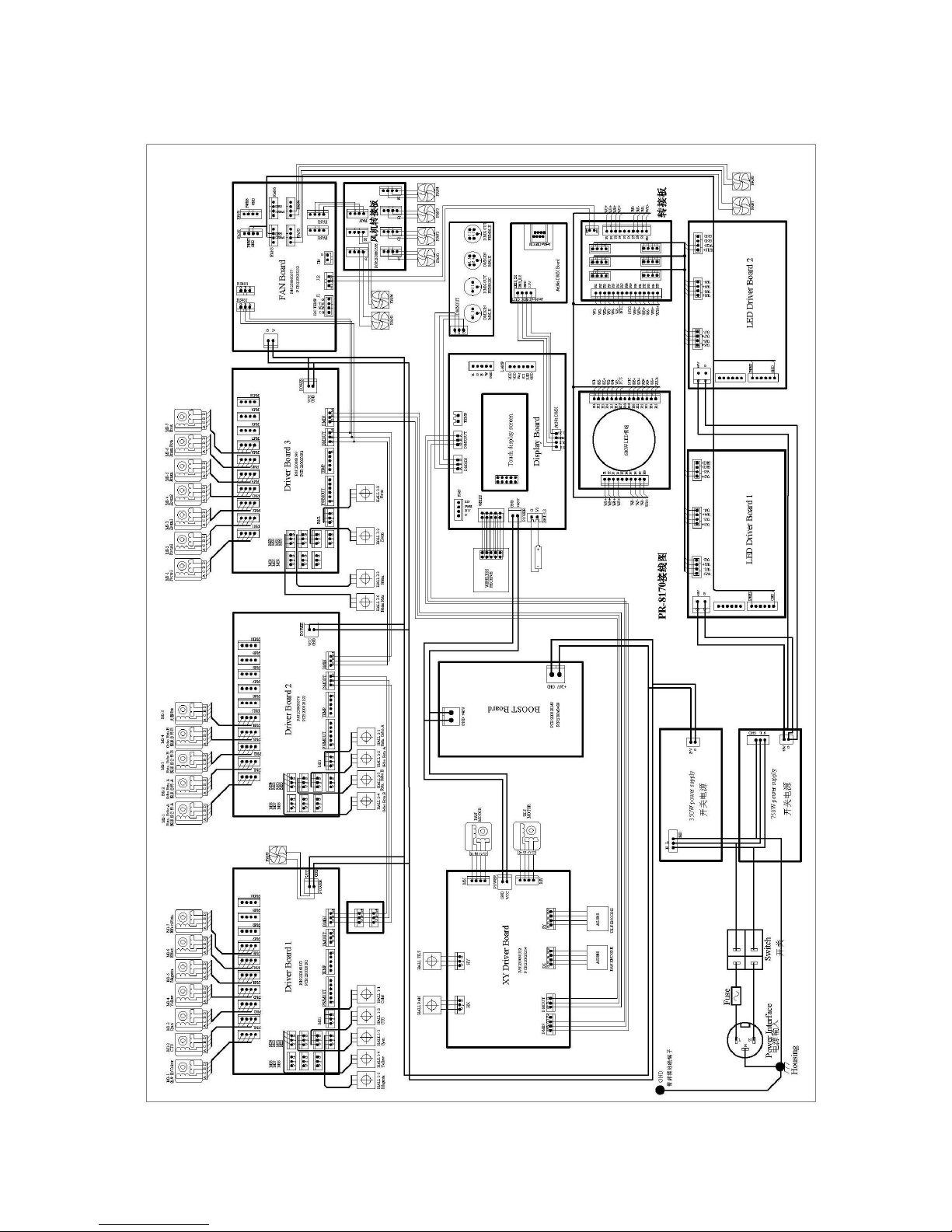

●CIRCUIT DIAGRAM

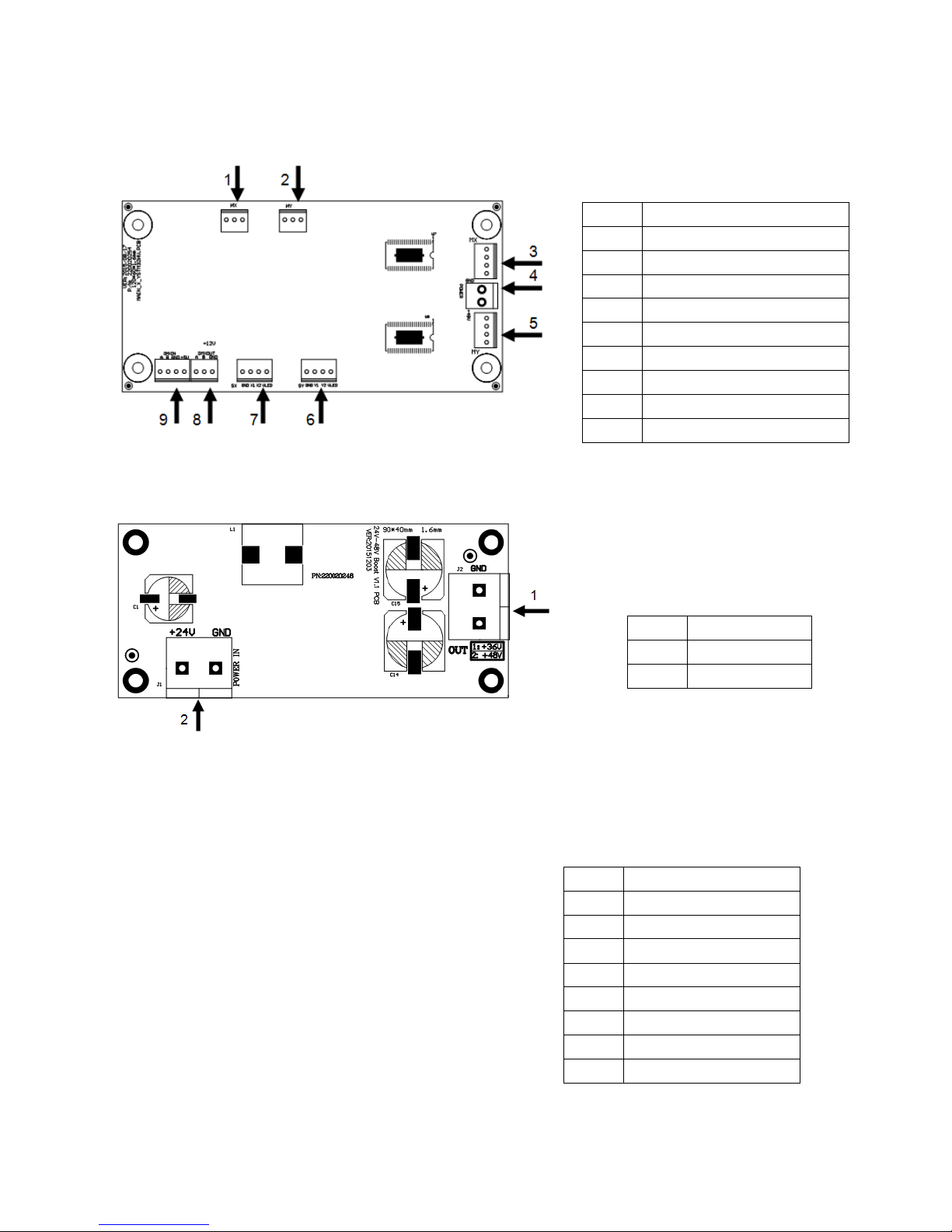

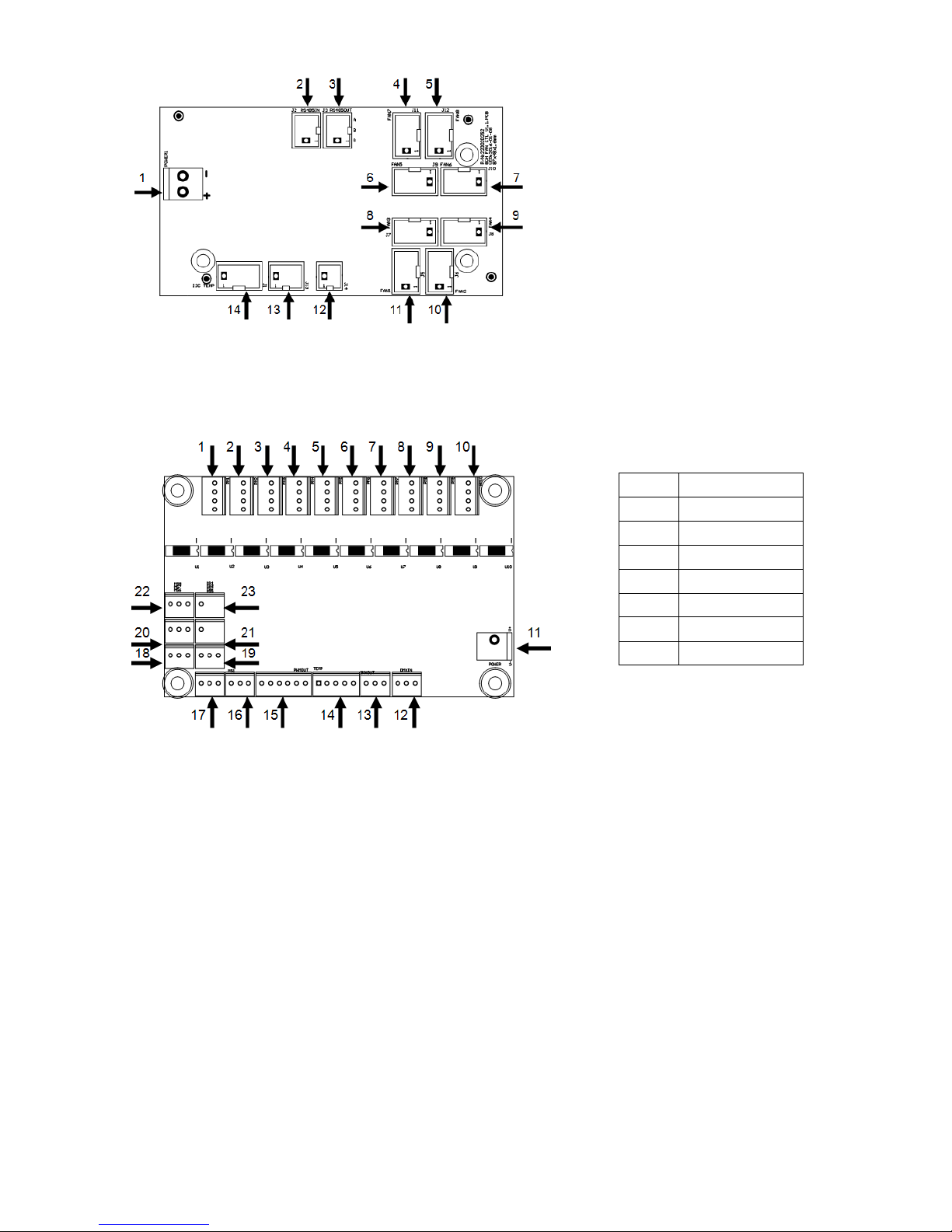

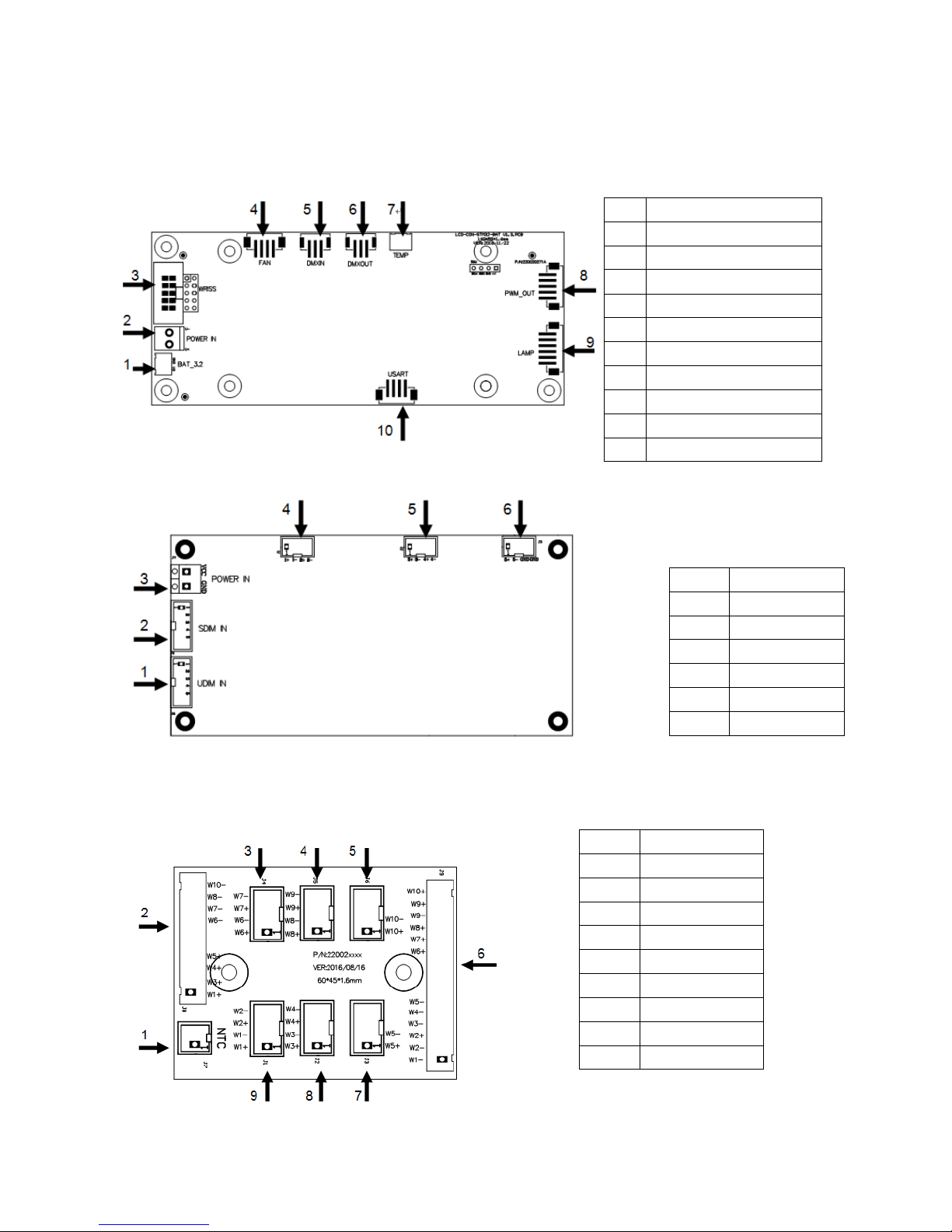

●PCB CONNECTIONS
11.COMPONENT ORDER CODES
3
4
4
4
5
5
5
5
6
7
7
8
8
8
9
9
9
9
10
16
20
21
24
24
25
28
ACCESSORIES
The following items are supplied with the projector and please check:
Name Quantity Unit Remark
G clamps 2 Pcs Optional
XLR cable 1 Pc With socket and plug
Safety cord 2 Pcs
User manual 1 Pc
Ω clamps 2 Pcs
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change
without notice. Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the
course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any
consequence arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are
in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer and
do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.
Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from
the delivery date but the light source is not within the warranty.
Page 3
3/30
1. SAFETY AND WARNINGS
NOTE
Before a projector’s installation, power-on, operation and maintenance, please carefully read
the safety information hereinafter!
The following safety signs are used in the user manual.
Warning
User
Manual
Electrical
shock
Goggles
Protective
Gloves
Flames
High
Temperature
● When unpacking , check if there is transportation damage before using the projector. Should there be any
damage caused by transportation, consult your dealer and do not use it.
●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector
as he/she likes
●Please be noted that the damage caused by changing the projector at will is not warranted.
● Do not hesitate to contact the dealer or the manufacturer if any questions or advice.
● The projector is for indoor and outdoor use, IP65.
● Keep this unit away from excessive heat and places harsher than IP 65. Do not allow the contact with any
corrosive liquids.
●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while
being operated
●The projector is only intended for installation, operation and maintenance by qualified personnel. And the
operation must strictly follow the procedures in the manual
●No repairable parts in the projector and do not open covers for maintenance by yourself.
●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.
●Do not connect this device to any type of dimmer pack
●After lamp switched on, the minimum distance between the projector and illuminated surface is 5m
●lens and other optical parts shall be replaced immediately if they have deformed or been damaged, otherwise the
light output will be compromised.
●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a
projector while covers(housing)are off
●Keep the lamp clean and do not touch it with bare hands.
●While operating it, wear protective items.
●Any electrical connection must be carried out by a qualified person .
●Before installation, please confirm the voltage supplied matches what is required for the projector
●Each projector must be properly earthed and installed as per related electrical standards.
●Do not use power cord with its insulator damaged and connect the power cord with other cables.
●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully
or by pulling the power cable.
●All power cords must conform to related safety and regulations
●While being operated, the projector should not be under rains or in humidity.
●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other
electrical parts’ life will be shortened .
Page 4
4/30
●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety
cord supplied through the safety cord holes for safety support.
●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from
power mains.
●After running for 30minutes, the temperature of the housing of the projector is 45℃.After stable operation ,
its temperature is 60℃.
●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not
mean the projector has some defects.
●Do not mount the projector directly on inflammable surface.
●Do not project the beam straightly on combustible items and the minimum distance between the
projector and illuminated items is 10m.
●A projector should be installed with good ventilation and the minimum distance between the projector
and walls is 50cm. At the same time, please ensure the fans and air inlets and outlets are workable.
2. INSTRUCTIONS
●CLEANING AND MAINTENANCE
If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the
projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the
projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved,
restart the projector.
The accumulation of oil, smoke and dust on the lens will compromise the light output. Cleaning a projector is very necessary to
ensure a reliable use of it. Cooling fans need to be cleaned every 15days. Internal lens, reflector and hot mirror need to be cleaned
periodically to optimize light output.
Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning
work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean
and do not touch optical parts with bare hands.
●Before any maintenance and cleaning, please ensure the project is off the power
●Only qualified person is allowed to do maintenance
●During maintenance and before maintenance, the projector must be off power.
●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens whether
it runs or not
●Do not use alcohol or other organic solvent to clean the housing to avoid damage.
●Do not use any solvent with chemical elements to clean color filters or hot mirror.
●LUBRICATION
To ensure smooth movement of gobos and zoom and focus lens, it’s advised rotators’ bearings and 2 sliding bars for zoom and
focus lens be lubricated every 2 months. High quality and high temperature lubricant/grease is advised..
Page 5
5/30

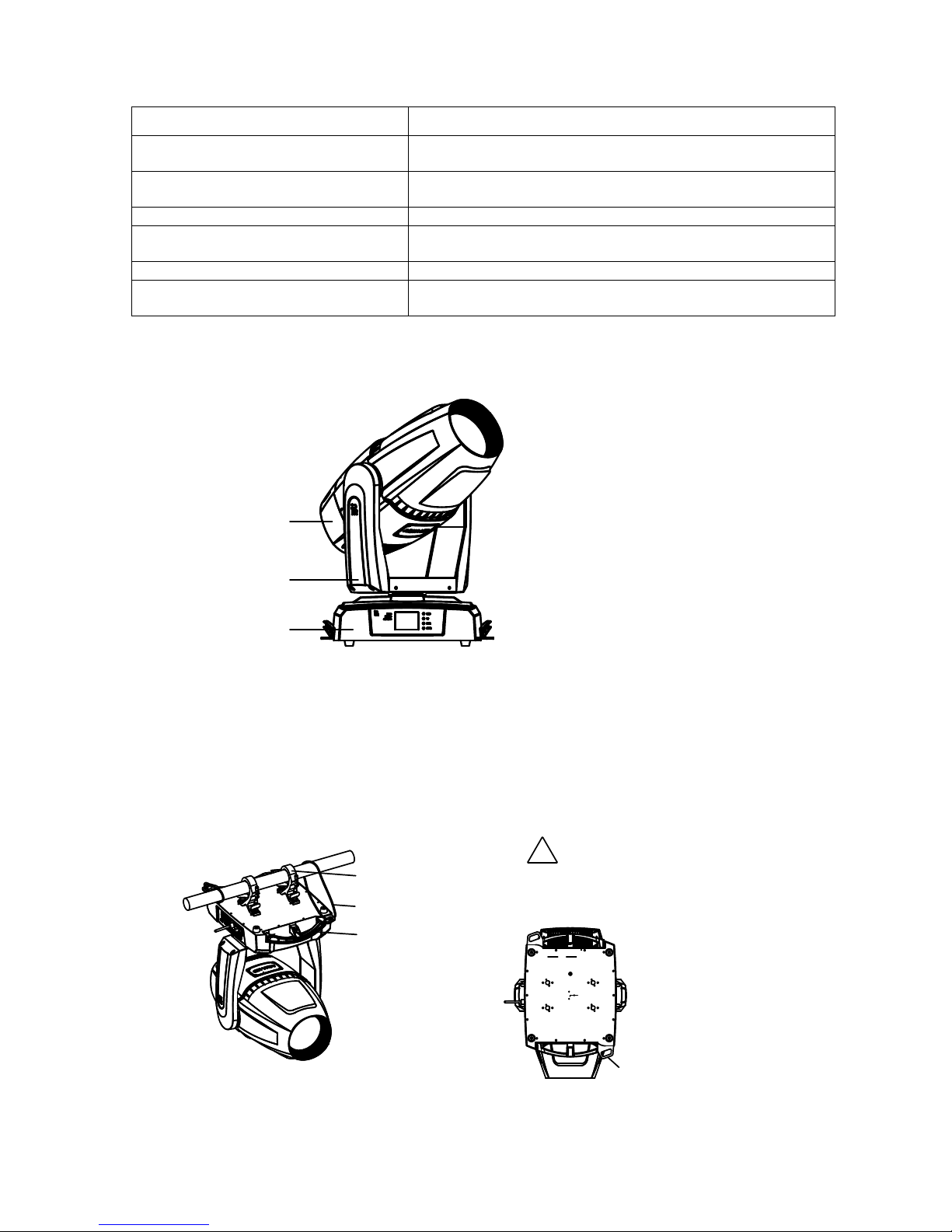

Head
Yoke
Base
Warning
Please run the safety
cord through both safety
cordholes for safety
!
Safety cord hole
Safety cord
Clamp
Handle
●TROUBLESHOOTING
PROBLEM ACTION
The projector doesn’t switch on
Check the fuse on the power socket.
Check the lamp.
The lamp is on but the projector doesn’t respond
to the controller
Make sure that the fixture’s start address is right
Replace or repair the XLR signal cable.
The projector functions intermittently Make sure the fan is working well or fans and their shields are not blocked
Beam appears dim, Low in brightness
Make sure the lamp is within its lifespan
Remove dust or grease from the lenses.
The project image appears to have a halo Carefully clean the lamp, optical lenses and other components.
Heavily Defective Beam
Check if lens are in good condition(not cracked)
Clean dust or grease on the lens.
3. APPEARANCE
4. INSTALLATION
● RIGGING
Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a
projector with power while it is locked
Page 6
6/30
Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to
each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of
the base as shown above) Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.
Always ensure that the structure that you are going to mount the projector is secure and is strong enough to support the weight of the
fixture.
WARNING:
●The projector MUST be lifted or carried by the HANDLES instead of clamps.
●.For safety the safety cord should afford 10 times the Projector’s weight.
● POWER CONNECTION
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each
projector be connected with power separately so that they may be individually switched on and off.
●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in
accordance with the standards concerned.
●If any questions about the electrical installation, do not continue but consult a qualified electrician.

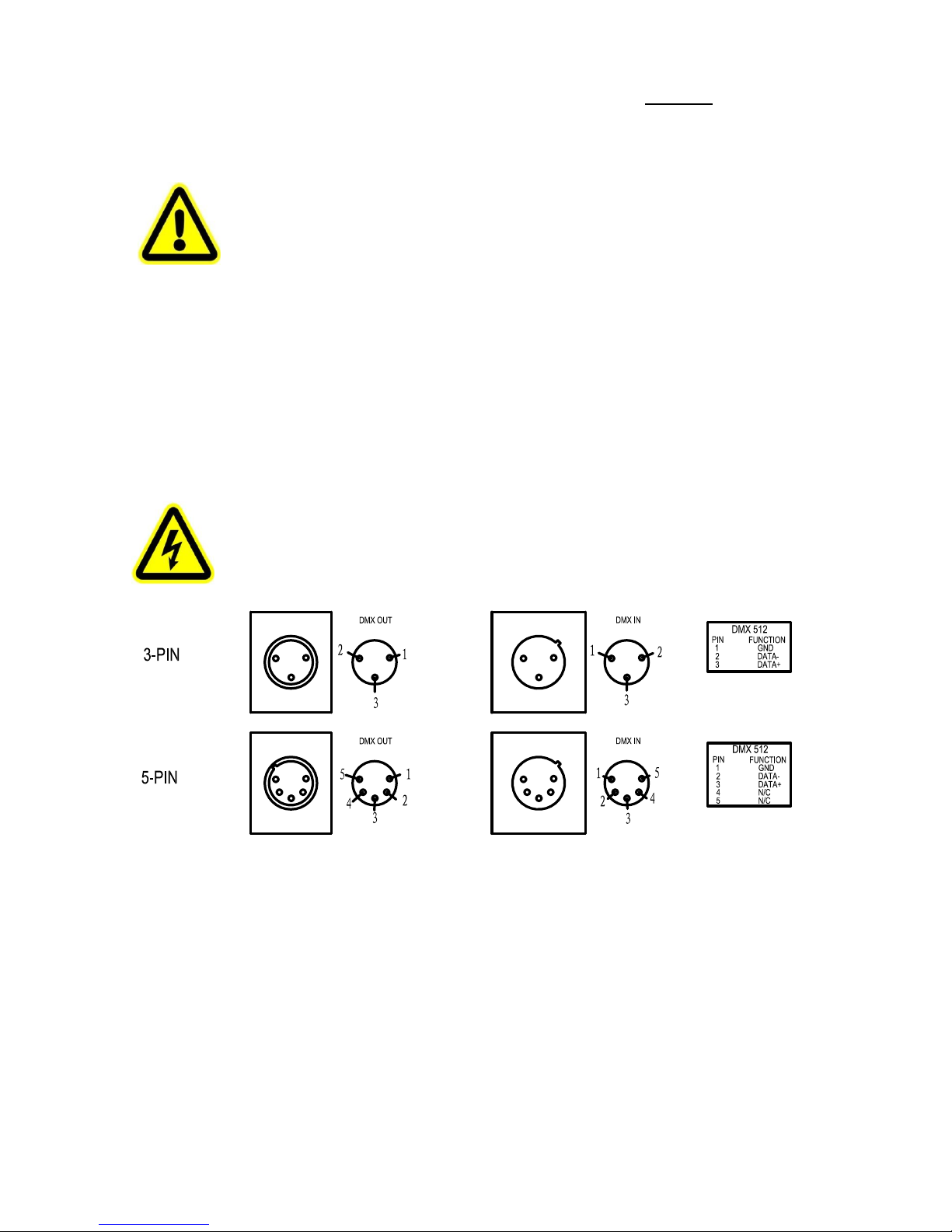

●DMX CONTROL CONNECTION
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with
each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the
projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets
mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol
DMX512 (1990).
Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second
fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX
terminator as shown in the figure below.
Page 7
7/30

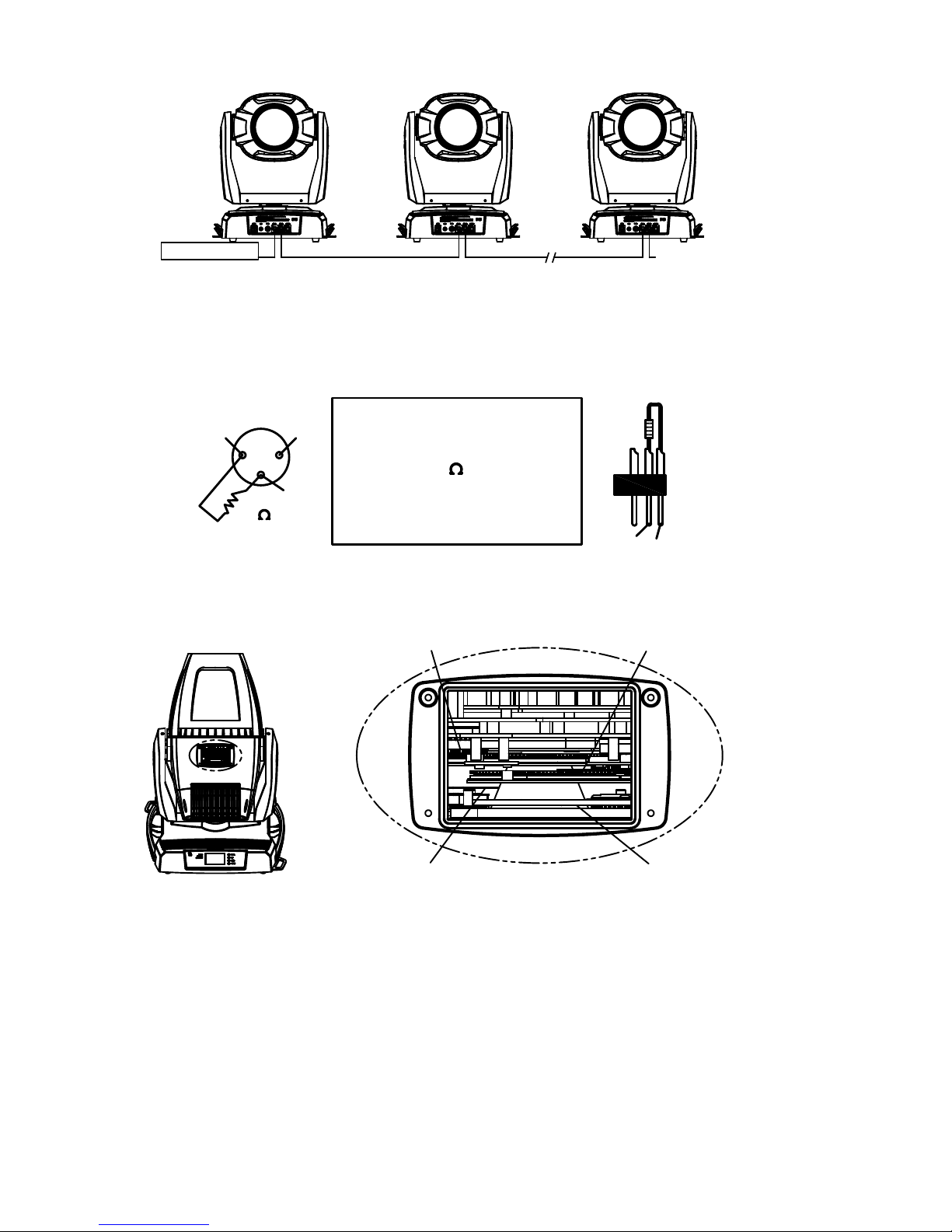

Input InputOutput
DMX Controller
DMX512
DMX Terminator
Input Output
NO.1 NO.2 NO.n

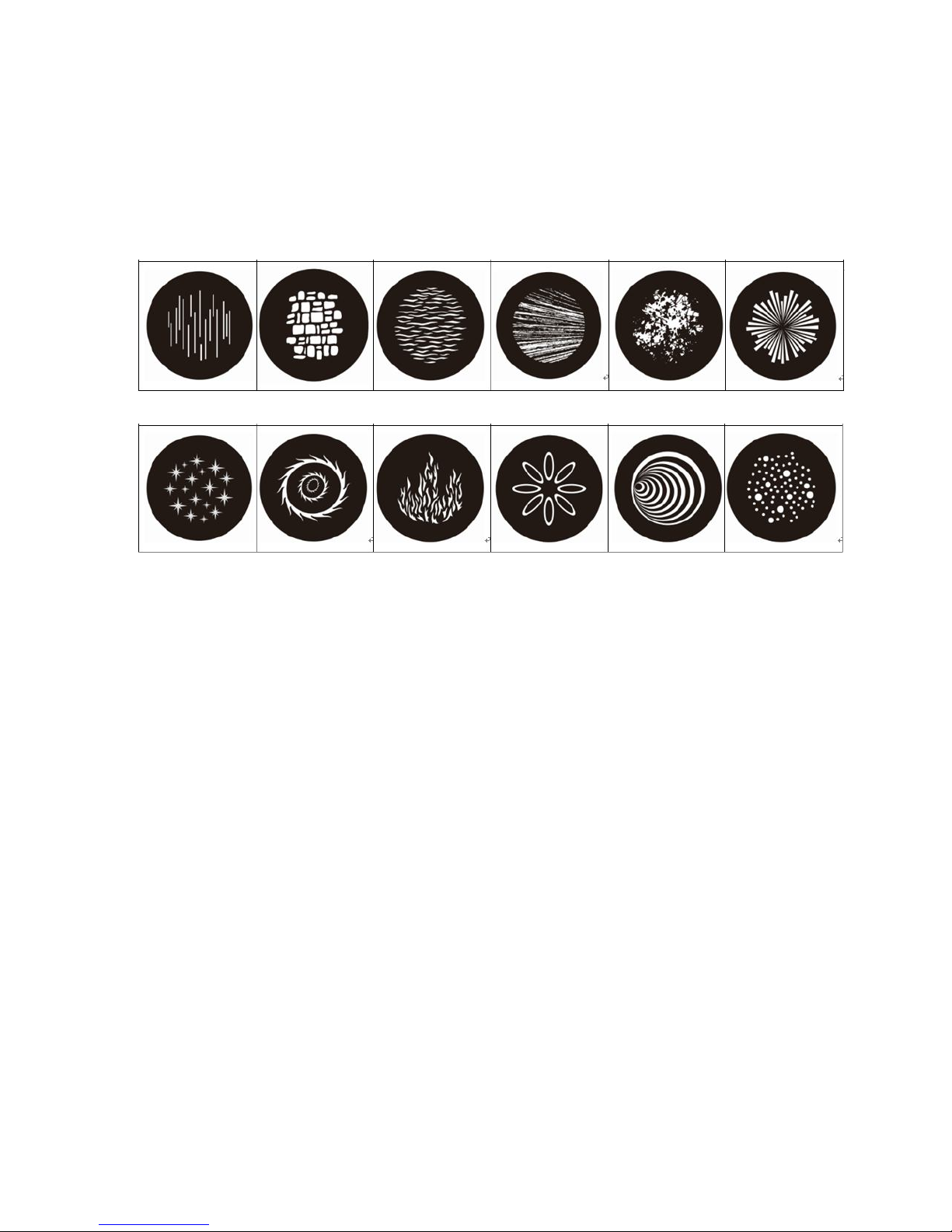

Gobo wheel1Gobo wheel2
Metal effect
wheel

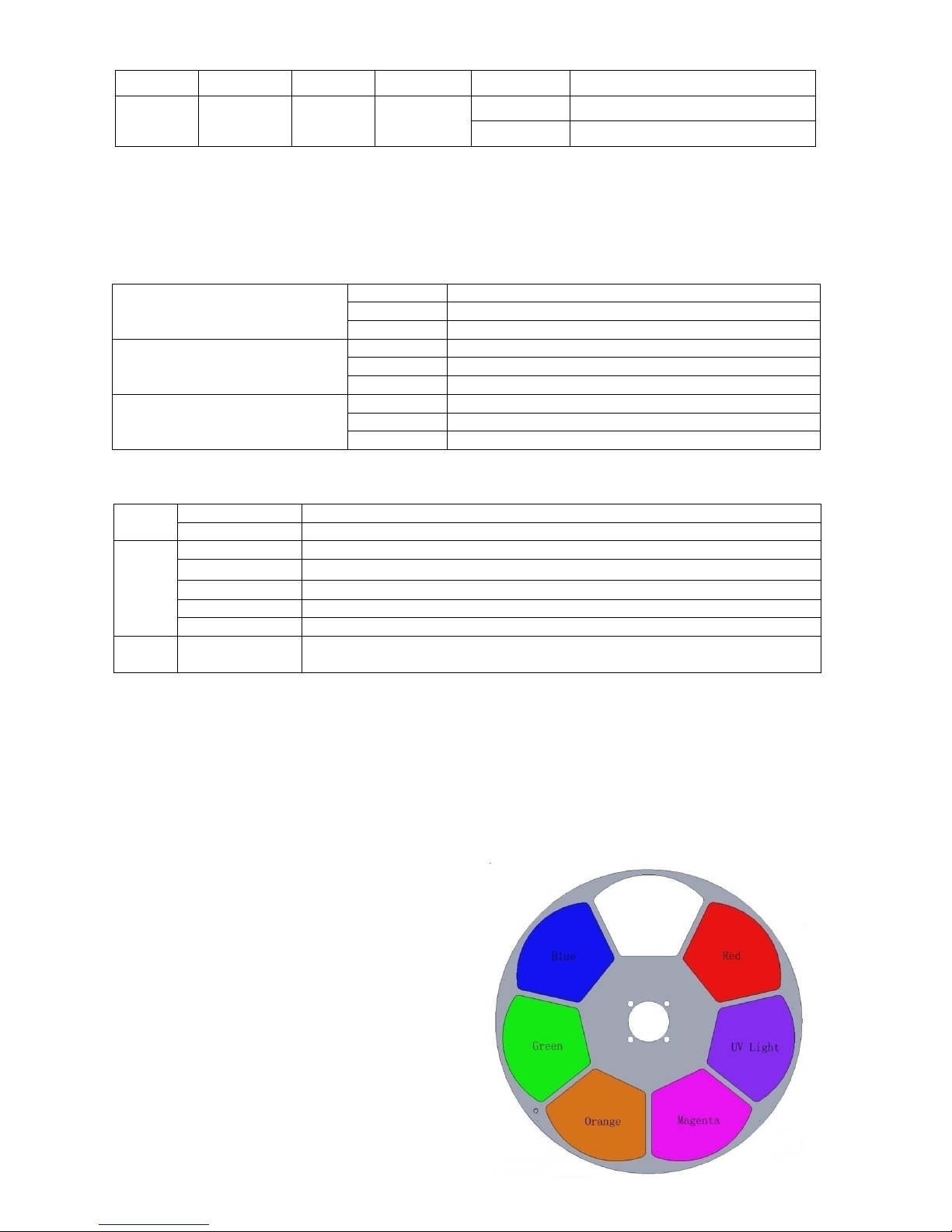

Color wheel
●DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged
into the output socket on the last projector in the chain. The connections are illustrated below.
● REPLACEMENT OF GOBOS
2
1
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2
Page 8
8/30
Lock the tilt and unfasten 4 inner hexagon screws in the small cover of the head. Open the cover and you’ll see the structures as the
figures above.
For the replacement of color filters, use the fingers to remove the filters and place new ones.
For the rotating gobos: remove the rotator by hand; remove the gobo after the tightening spring for the gobo is taken out. Place a new
gobo in the rotator and put back the spring. And ensure the spring is into the narrow end of the rotator, i.e., inner ring of the rotator. At
last, use a proper tool to pull the tightening clip and put the rotator back to the wheel with the help of the other hand.
Note: Do not touch the color filters ,glass gobos with bare hand. There must be soft and clean paper or cloth between the hand and the
glass gobo. Tighten the 6 fast fit screws after the cover is put back. Unlock the Tilt.
DANGER!
Before replacement of gobos, the projector must be off the power.
5. SETUP AND CONFIGURATION

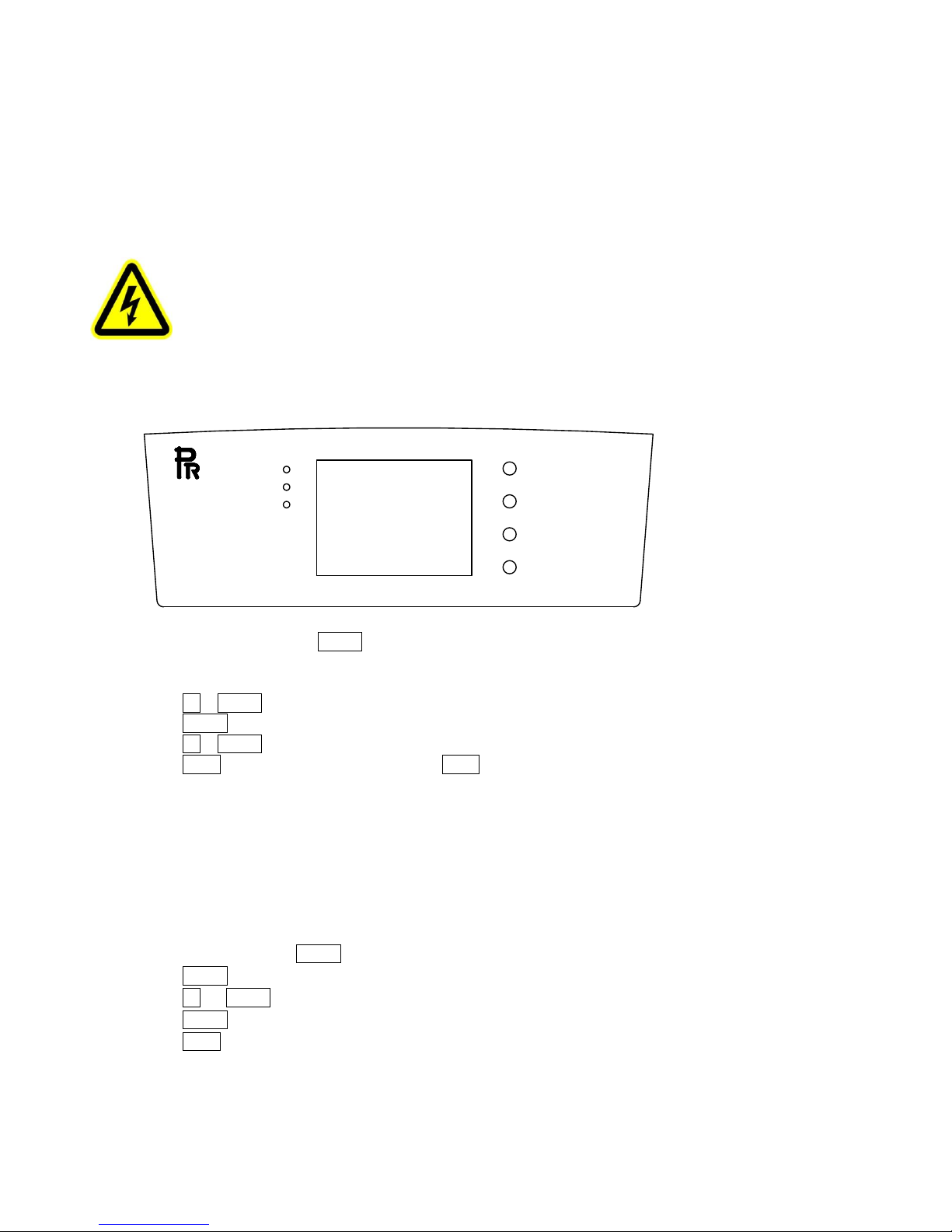

●FRONT PANEL OPERATION
DMX
W-DMX
ETHERNET
FUNC
UP
DOWN
ENTER
Projector configuration can be set conveniently via push buttons and touch screen.
Launch the projector and press button ENTER for more than 5 seconds to unlock the panel, the LCD will show the function menu of
the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the
“OPERATION MENU” section.
Press button UP or DOWN if you want to browse through the various Setup Options.
Press button ENTER to save your settings or enter the submenu.
Press button UP or DOWN to change values(plus or minus)
Press button FUNC, it will return to the upper menu. If button FUNC not pressed, the default will show display status automatically.
● DMX START ADDRESS
Each projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start
address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the
controller. The projector has 3 DMX modes. There are short, standard and extended modes. For example standard mode has
31channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 032, No. 3 projector’s address 063, No. 4 projector’s
address094, and so on.
Launch the projector. Press button ENTER more than 2seconds to unlock panel.
Press button ENTER to display DMX address;
Press button UP and DOWN, you can set the address;
Press button ENTER to confirm; after powered on next time, the default will be last value saved
Press button FUNC, it will return to the upper menu
.

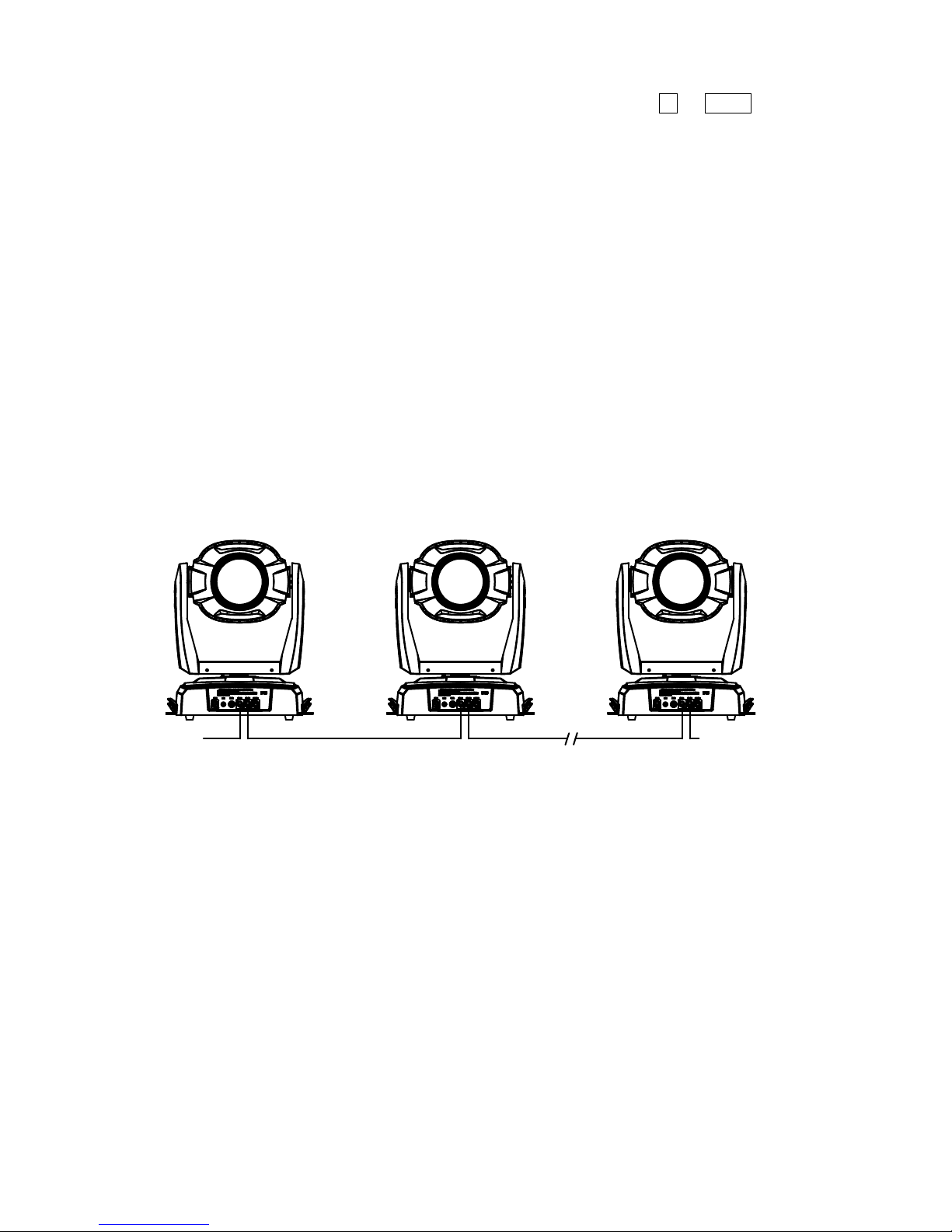

●DMX WIRELESS CONTROL (If the projector has the function)
The projector has wireless control function with wireless receiver module and antenna for remote control.
Page 9
9/30
Input Input InputOutput Output
DMX Terminator
Master Slave Slave
The setup of it is below:
1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN
2. Select DMX control Mode---- Wireless First (Note: do not select XLR ONLY),then wireless indication in the
front panel will be on, meaning wireless control function is activated.
Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it,
Press “Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns .
●STAND-ALONE MODE
Operate the projector without connecting with a controller, enable the master mode through the operation panel, the
projector will run in Stand-Alone mode automatically.
DMX address can be set at any number within 512.
●MASTER/SLAVE MODE
Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,
connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second
fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the
last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.
Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can
be set accordingly.
After Powered on, the group will run in Master/Slave Mode
Page 10
10/30
6. OPERATION MENU
1st level Menu 2nd level menu 3rd level menu 4th level menu
PortSet
DMX Address Set
1-512
Universe Set
0-5120
IP Address Set
IP1 0-255
IP2 0-255
IP3 0-255
IP4 0-255
Subnet Mask Set
Subnet Mask1 0-255
Subnet Mask 2 0-255
Subnet Mask 3 0-255
Subnet Mask 4 0-255
Gateway IP Set
Gateway IP1 0-255
Gateway IP2 0-255
Gateway IP3 0-255
Gateway IP4 0-255
Reset
Are you Sure
Config Set
DMX mode
Standard 31
Short 25
Extended 38
Loss of DMX
（Default：Normal Time Out）
Normal Time Out
Hold Last Value
signal Select
（Default：XLR First, Wireless Optional）
XLR First
XLR Only
Wireless Only
Wireless First
Wireless to XLR
Page 11
11/30
Master/Slave
（Default：Slave）
Slave
Master
Display Mode
（Default：Off After Delay）
Off After Delay
On Always
Display Contrast
（Default：16）
1-31
Pan Amend
0-255
Tilt Amend 0-255
Unlink Wireless
Yes
Reset Lamp Hours
Yes
Reset User Data
Yes
Reset Option Set
Yes
Factory Settings
Yes
Parameter Transm
Yes
Touch Regulate Yes
Option Set
Color Positions
（Default：Step）
Step
Linear
Pan DMX Invert
（Default：Off）
Off
On
Tilt DMX Invert
（Default：Off）
Off
On
Pan Tilt Swap
（Default：Off）
Off
On
Dimmer Invert
（Default：Off）
Off
On
Iris Invert
（Default：Off）
Off
On
CYM Invert
（Default：Off）
Off
On
CTO Invert
（Default：Off）
Off
On
Zoom Invert
（Default：Off）
Off
On
Page 12
12/30
Info
Power On Hours XXX
Software Version
Main Board XXX
Pan & Tilt XXX
Driver 1 XXX
Driver 2 XXX
Driver 3 XXX
Fan Board X.X.X
Temperature
Head Sensor XX
XX
Main Board XX XX
Pan & Tilt XX XX
Driver 1 XX
Driver 2 XX
Driver 3 XX
Fan Board X.X.
View DMX Value Channel 1=0
Electronic SN=XXXXX
RDM Device Lable Version XX
Sensor Error View
X Optocoupler Ok/Er
Y Optocoupler Ok/Er
X Hall Ok/Er
Y Hall Ok/Er
Color Hall Ok/Er
CTO Hall Ok/Er
Cyan Hall Ok/Er
Yellow Hall Ok/Er
Magent Hall Ok/Er
R- gobo1 Hall Ok/Er
Gobo- R1 Hall Ok/Er
R- gobo2 Hall Ok/Er
Gobo- R2 Hall Ok/Er
Focus Hall Ok/Er
Zoom Hall Ok/Er
Prism Hall Ok/Er
Page 13
13/30
Prism-R Hall OK/Er
Test Mode
Self Test Yes
Strobe
Open
Strobe1
Strobe2
Colour Wheel
White
Color1
Color2
Color3
Color4
Color5
Color6
Rotation
ReverseRotation
Iris
White
Iris 1
Iris 2
Iris 3
Rotating gobo1
White
R1-gobo1
R1-gobo2
R1-gobo3
R1-gobo4
R1-gobo5
R1-gobo6
Rotating
Reverse Rotating
R1G shake1
R1G shake2
R1G shake3
R1G shake4
R1G shake5
Page 14
14/30
R1G shake6
Gobo Rotating1
Stop
Rotating
Reverse Rotating
Rotating gobo2
White
R2-gobo1
R2-gobo2
R2-gobo3
R2-gobo4
R2-gobo5
R2-gobo6
Rotating
Reverse Rotating
R2G shake1
R2G shake2
R2G shake3
R2G shake4
R2G shake5
R2G shake6
Gobo Rotating2
Stop
Rotating
Reverse Rotating
Prism
NO
Have
Prism Rotating
Stop
Rotating
Reverse Rotating
Effect
No
Have
Effect Rotation
Stop
Rotating
Reverse Rotating
Frost
No
Page 15
15/30
Have
Dimming 0-255
Cyan 0-255
Yellow 0-255
Magenta 0-255
CTO 0-255
Focus 0-255
Zoom 0-255
Pan Location 0-255
Tilt Location 0-255
Pan & Tilt Speed 0-255
OperationMode
DMX Operation
Preset Memory
User Memory
Static Scene1-Static Scene16
CH1 Strobe
0-255
CH2 Diming
0-255
CH3 Dim Speed
0-255
CH4 CYM Maco
0-255
CH5 Cyan
0-255
CH6 Yellow 0-255
CH7 Magenta 0-255
CH8 CTO 0-255
CH9 Colour Wheel
0-255
CH10 Iris
0-255
CH11 Iris Maco
0-255
CH12 Rotating gobo1
0-255
CH13 Gobo Rotating1 0-255
CH14 Rotating gobo2
0-255
CH15 Gobo Rotating2 0-255
CH16 Prism 0-255
CH17 Prism Rotating 0-255
CH18 Effect 0-255
Page 16
16/30
CH19 Effect Rotating
0-255
CH20 Frost 0-255
CH21 Focus
0-255
CH22 Zoom
0-255
CH23 Pan Location 0-255
CH24 Titl Location
0-255
CH25 X&Y Speed
0-255
CH26 Keep Time
0-255 X*40mS
Remark:
1. In the synchronous control of multiple projectors parameters can be transmitted from the master including: DMX mode,
display setting, operation mode(user memory);
2. all projectors Accepting parameters will automatically be set to slave mode.

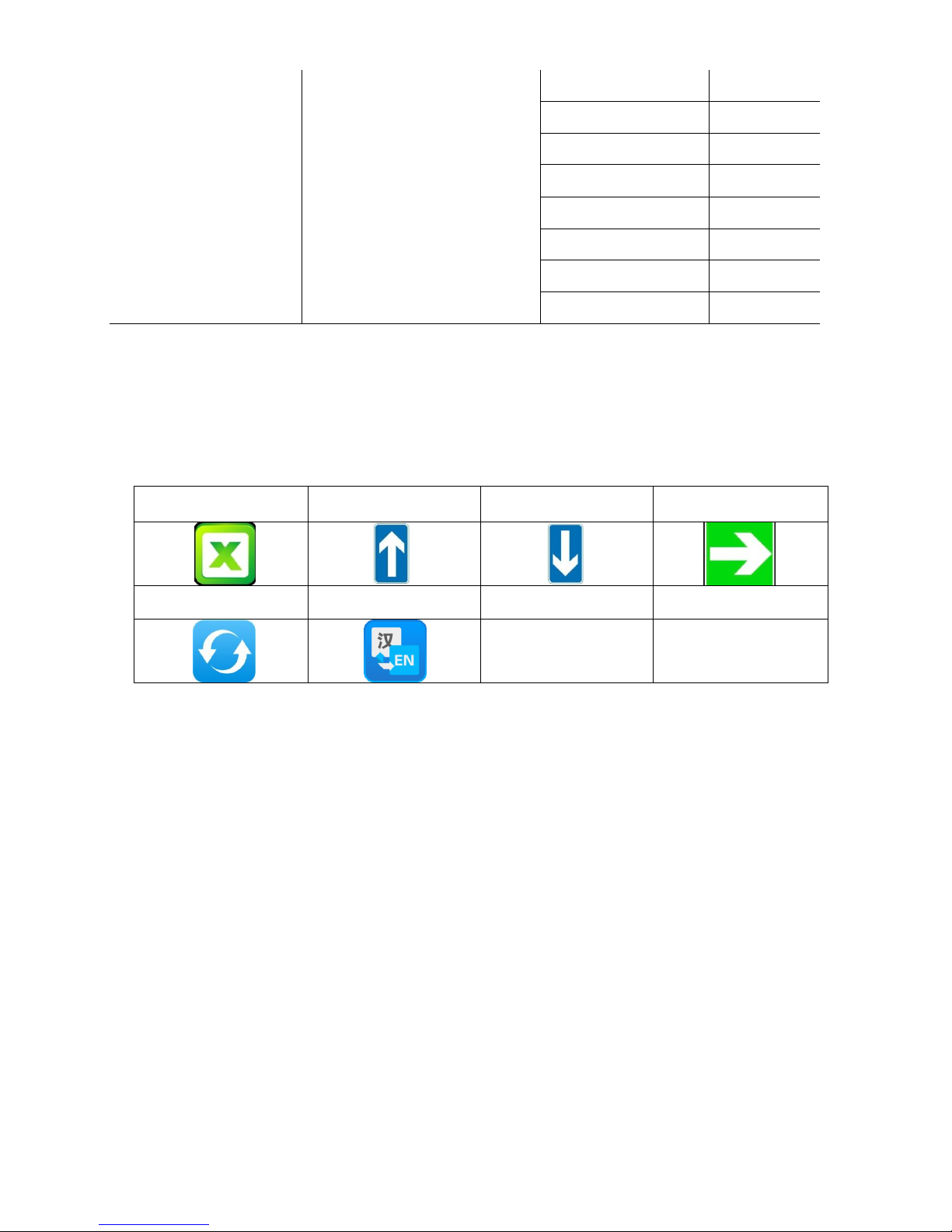

The descriptions of other icons：
Escape Page Up/ Increase Number
Page Down/Decrease
Number
Enter
Display Inversion Chinese/English
Page 17
17/30
7. DMX PROTOCOL
Short
Mode
Standard
mode
Extended
Mode
Function DMX Value
Description
1 1 1 Strobe
000 No
001-127 Pulse Strobe from slow to fast
128-255 Strobe from slow to fast
2 2 2 Dimmer 000-255
Linear dimmer from dark to bright
（0-100%）
3 3 Dimmer Fine
000-255 Dimmer in 16 Bit
3 4 4
Dimmer
Speed
000-255 From slow to fast
4 5 5 CYM Macro
000-016 White
017-035 Yellow＋Magenta ＝ Red
036-054 Yellow
055-073 Yellow ＋ Cyan ＝ Green
074-092 Cyan
093-110 Cyan ＋Magenta＝ Blue
111-128 Magenta
129-255 CMY color mixing from slow to fast
5 6 6 CYM-Cyan 000-255 Linear Cyan from light to dark
7
CYM-Cyan
Fine
000-255 Cyan in 16 bit
6 7 8 CYM-Yellow
000-255 Linear Yellow from light to dark
9
CYM-Yellow
Fine
000-255 Yellow in 16 bit
7 8 10 CYM-Magenta 000-255 Linear Magenta from light to dark
11
CYM-Magent
a
Fine
000-255 Magenta in 16 bit
8 9 12 CTO
000-255 Linear CTO from light to dark
13 CTO Fine
000-255 CTO in 16 bit
9 10 14 Color Wheel
000-010 White
011-019 White/color1
020-028 Color1
029-037 Color 1/color 2
038-046 Color 2
047-055 Color 2/Color 3
056-064 Color 3
065-073 Color 3/color 4
074-082 Color 4
083-091 Color 4/Color 5
092-100 Color 5
Page 18
18/30
101-109 Color 5/Color 6
110-118 Color 6
119-127 Color 6/White
128-191
Forward rainbow effect from slow to
fast
192-255 Reverse rainbow effect from slow to fast
10 11 15 Iris 000-255 Linear Iris from big to small
16 Iris Fine 000-255 Iris in 16 Bit
11 12 17 Iris Macro
000-010 No Iris Macro
011-072
Iris Macro 1:From big to small（speed
from slow to fast
）
073-136
Iris Macro 2:From small to big
（
speed from slow to fast
）
137-206
Iris Macro 3: Iris ramp up from slow to
fast
207-214 Iris Macro 4
215-222 Iris Macro 5
223-230 Iris Macro 6
231-255 Fully Open
12 13 18
Rotating
Gobo Wheel
1
000-018 White
019-036 Gobo1
037-054 Gobo 2
055-073 Gobo 3
074-091 Gobo 4
092-109 Gobo 5
110-127 Gobo 6
128-156 Forward rotation from slow to fast
157-185 Reverse rotation from slow to fast
186-196 Gobo1 shake from slow to fast
197-208 Gobo2 shake from slow to fast
209-220 Gobo3 shake from slow to fast
221-232 Gobo4 shake from slow to fast
233-244 Gobo5 shake from slow to fast
245-255 Gobo6 shake from slow to fast
13 14 19
Gobo rotation
1
000-127 Gobo Indexing （0～ 540degres）
128 Stop
129-188 Forward rotation from slow to fast
189-195 Stop
196-255 Reverse rotation from slow to fast
15 20
Gobo rotation
1 Fine
000-255 Gobo Rotation 1 in 16 bit
14 16 21
Rotating
Gobo Wheel
000-018 White
019-036 Gobo1
Page 19
19/30
2
037-054 Gobo 2
055-073 Gobo 3
074-091 Gobo 4
092-109 Gobo 5
110-127 Gobo 6
128-156 Forward rotation from slow to fast
157-185 Reverse rotation from slow to fast
186-196 Gobo1 shake from slow to fast
197-208 Gobo2 shake from slow to fast
209-220 Gobo3 shake from slow to fast
221-232 Gobo4 shake from slow to fast
233-244 Gobo5 shake from slow to fast
245-255 Gobo6 shake from slow to fast
15 17 22
Gobo rotation
2
000-127 Gobo Indexing （0～ 540degres）
128 Stop
129-188 Forward rotation from slow to fast
189-195 Stop
196-255 Reverse rotation from slow to fast
18 23
Gobo rotation
2 Fine
000-255 Gobo Rotation 2 in 16 bit
16 19 24 Prism
000-016 White
017-255 Prism In
17 20 25 Prism rotation
000-127 Prism Indexing
128 Stop
129-191 Forward rotation from slow to fast
192 Stop
193-255 Reverse rotation from slow to fast
18 21 26
Metal Effect
Wheel
000-020 No
021-255 Slow rotation of the wheel
19 22 27
Metal Effect
Wheel
Rotation
000-127 Forward rotation from slow to fast
128-255 Reverse rotation from slow to fast
20 23 28 Frost 000-255 Linear Frost
21 24 29 Focus 000-255 Linear Focus(-100%)
30 Focus Fine 000-255 Focus in 16 Bit
22 25 31 Zoom 000-255 Linear Zoom(0-100%)
32 Zoom Fine 000-255 Zoom in 16 Bit
23 26 33 Pan 000-255 Pan Rotation
27 34 Pan Fine 000-255 Pan in 16 bit
24 28 35 Tilt 000-255 Tilt Rotation
29 36 Tilt Fine 000-255 Tilt in 16 Bit
30 37
Pan & Tilt
000-255 Pan and Tilt speed from fast to slow
Page 20
20/30
speed
25 31 38 Control
000-047 Reserved
048-255 Reset (Stop for 5S)
Note:
1. The DMX channel priority from high to low: Focus, Zoom, Prism, Frost;
2. While the higher priority DMX channels are in use, lower ones won’t work;
8. LED INDICATION
Green
On DMX signal OK
Off No DMX signal
Flash DMX signal error
Blue
On Wireless Signal OK
Off Not linked with any
wireless transmitter
Flash Being unlinked with or linked with a wireless transmitter
Red
ON Art-Net Signal OK
Off No
Art-Net signal
Flash
Bad
Art-Net signal
Descriptions of the signs on the top right of the screen
□■
□□
S Slave
M
Master
□□
□■
D DMX512 Mode
I Preset Memory
U User Memory
T
Test Mode
P
Operation on Preset Memory Mode
■□
■□
s Magnet Sensor Error
9. TECHNICAL DATA
VOLTAGES:
100V~240V AC，50/60Hz
POWER CONSUMPTION:
750W
LIGHT SOURCE:
POWER 600W
Color Temperature 7000K
78
Manufacturers Rated Lamp Life 20000hrs
2000
COLOR S:
CMY linear color mixing system with Macros
1color wheel:6 exchangeable colors + white
Half-color and variable speed and bi-directional rainbow effect
Linear/Step color changing is available
Page 21
21/30
CTO
0-100% linear CTO system
GOBOS:
2 rotating gobo wheels: each has 6 exchangeable gobos+ white, metal or glass gobos
Bi-directional rotation with variable speeds, indexing function, shaking
At variable speeds, Bi-directional scrolling at variable speeds
Rotating gobo wheel1:
Rotating gobo wheel2:
Gobo’s outer size: 37.5mm
Image size: 26mm
PRISM
1 4-facet prism, bi-directional rotation with variable speeds with indexing function(Optional: Color 4-facet prism)
FROST FILTER
0-100% linearly adjustable by DMX
EFFECT WHEEL
1 exchangeable graphic effect wheel, bi-directional rotation with variable speeds
FOCUS
0~100% Linear adjustment by DMX
DIMMING
0~100% linear adjustment
IRIS
5~100% linear adjustment
With Macros
STROBE
Electronic strobe,0.3-25 F.P.S.
Page 22
22/30
MOVEMENT
Pan 0~540° Tilt 0~270° , with auto-positioning correction
BEAM ANGLE
Linear Zoom: 8°～ 56°, with 16 bit control
CONTROL
International standard DMX512 signal, 3 pin and 5 pin interfaces
RDM Protocol
ART-Net protocol
25 channels in short mode,31 channels in standard mode, 38channles in extended mode
Stand-alone mode
Self test mode
OTHER FUNCTIONS:
Adjustable Pan & Tilt speed
Pan and Tilt Invert
Fixture time available
Pure color touch screen, English/Chinese menus, brightness and contrast adjustable
Fault analyzing sensor system
Built-in rechargeable battery for some settings via control panel
Version number display
Input signal isolated
Modular structure for easy maintenance
Art-Net interface
DMX 512 wireless receiver
Optional DMX 512 wireless transmitter
HOUSING:
High strength extruding aluminum+ High temperature ABS, IP65
WEIGHT:
50Kg
Page 23
23/30
SIZES:
533
647
483
469 630
386
846
LIGHT OUTPUT:
4m
12m
14m
10m
6m
2m
8m
0m
4m
8m
2m
6m
10m
12m
14m
16m
16m
DISTANCE(m)
8°DIAMETER(m)
56°DIAMETER(m)
0m
0
0
10m
1.42
4.94
15m
2.14
9.87
20m
2.85
14.81
25m
3.56
19.75 24.69
30m
4.27
29.62
8°lux
56°lux
5m
0.71
56°
37613
1065
9403
266
4179
118
2351
67
1505
43
1045
30
8°
Page 24
24/30
10. CIRCUIT DIAGRAM AND PCB CONNECTIONS
●CIRCUIT DIAGRAM
Page 25
25/30
●PCB CONNECTIONS
Master Board of PR-8178
LED Drive r Board of PR-8178
Adaptor board for LED module of PR-8178
No Name
1 Battery
2 Power
3 Wireless
4 Fan
5 Signal Input
6 Signal Output
7 Thermal Sensor（Reserved）
8 PWM Output
9 Lamp Striking signal output
10 Art-Net
No Name
1 PWM Dimming
2 FET Dimming
3 Power
4 Driver Output
5 Driver Output
6 Driver Output
No Name
1 NTC Module
2 LED Module
3 LED Driver
4 LED Driver
5 LED Driver
6 LED Module
7 LED Driver
8 LED Drive
9 LED Driver
Page 26
26/30
Pan and Tilt Board of PR-8178
Voltage Increasing Board of PR-8178
8 channel fan control board of PR-8178
No Name
1 Hall Sensor for Pan
2 Hall Sensor for Tilt
3 Pan Motor
4 Power
5 Tilt Motor
6 Tilt Encoder
7 Pan Encoder
8 Signal Output
9 Signal Input
No Name
1 48V output
2 24V Input
No Name
1 Power
2 Signal In
3 Signal Out
4-7 PWM Output
8-11 Fan Speed Control
12 Reserved
13 Interface for NTC moduel
14 Reserved
Page 27
27/30
10 Channel Motor Driver Board of PR-8178
No. Name
1-10 Motor Driver
11 Power
12 Signal In
13 Signal Out
14 Thermal Sensor
15 PWM Output
16-23 Hall Sensor
Page 28
28/30
11. COMPONENT ORDER CODES
NAME CODE NUMBER QTY REMARK
POWER SWITCH 192010206 1 A350e-24P
POWER SWITCH 192010207 1 RSP-750-48
LED ENGINE MODULE 150020305 1
LED ENGINE MODULE FAN 030060109 2 MGT9224MB-W32-IP68
COLOR WHEEL FAN 030040098 1 AB0524HB-DOF
BASE FAN 030060064 1 RBH7530B2
LED DRIVER BOARD FAN 030060084 4 MGA6024YB-O10
LENS FAN 030060050 AD0824UB-A71GL
PAN BELT
290151430
1
TILT BELT 1 HTD-459-3M-12
FOCUS MOTOR
030040213A 2
ZOOM MOTOR
030040154A 2
PRISM IN/OUT MOTOR 030040253 1
PRISM ROTATION MOTOR 030040203 1
FROST
MOTOR
030040073 1
ROTATING GOBO WHEEL 1#
MOTOR
030040215A
1
GOBO ROTATION 1# MOTOR 1
ROTATING GOBO WHEEL 2#
MOTOR
1
GOBO ROTATION 2# MOTOR 1
IRIS MOTOR
030040244 1
EFFECT WHEEL
IN/OUT
MOTOR
030040236
030040131
1
EFFECT WHEEL ROTATING
MOTOR
1
COLOR WHEEL MOTOR
1
CYM MOTOR
030040211A
3
CTO MOTOR
1
PAN MOTOR
030040252
1
TILT MOTOR
1
CONTROL BOARD 230060593 1
PAN AND TILT BOARD
230060583
2
POWER BOARD 230060489 1
ART-NET BOARD 230060572 1
LED ENGINE MODULE DRIVER
BOARD
230060554 2
FAN BOARD 230060577 1
MOTOR DRIVER BOARD1 230020574 1
MOTOR DRIVER BOARD2 230060576 1
MOTOR DRIVER BOARD3 230060549 1
Page 29
29/30
Page 30
30/30
PR LIGHTING LTD.
1582 Xingye Avenue, Nancun Panyu
Guangzhou, 511442 China
TEL: +86-20-3995 2888
FAX: +86-20-3995 2330
P/N: 320020460
Version: 20170312
Loading...
