Page 1
XRLED 300 Spot
PR-8157
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
Page 2
INDEX
SAFE USAGE OF THE PROJECTOR……………………………………………………………………………… 3
INSTALLING THE PROJECTOR…………………………………………………………………………………... 4
POWER SUPPLY – MAINS………………………………………………………………………………………… 4
CONTROL CONNECTIONS………………………………………………………………………………………. 5
DMX TERMINATOR………………………………………………………………………………………………. 5
SETUP OPTIONS-PROJECTOR CONFIGURATION……………………………………………………………… 6
TO SET THE DMX START ADDRESS…………………………………………………………………………….. 6
STAND-ALONE MODE……………………………………………………………………………………………. 7
MASTER/SLAVE MODE…………………………………………………………………………………………... 7
OPERATION MENU……………………………………………………………………………………………….. 8
REPLACING GOBOS……………………………………………………………………………………………… 10
DMX PROTOCOL………………………………………………………………………………………………….. 11
INDICATION OF LED DIGITAL TUBE……………………………………………………………………………. 14
MAINTENANCE…………………………………………………………………………………………………… 14
LUBRICATION……………………………………………………………………………………………………… 14
KEEPING THE PROJECTOR CLEAN……………………………………………………………………………… 14
TROUBLESHOOTING……………………………………………………………………………………………… 15

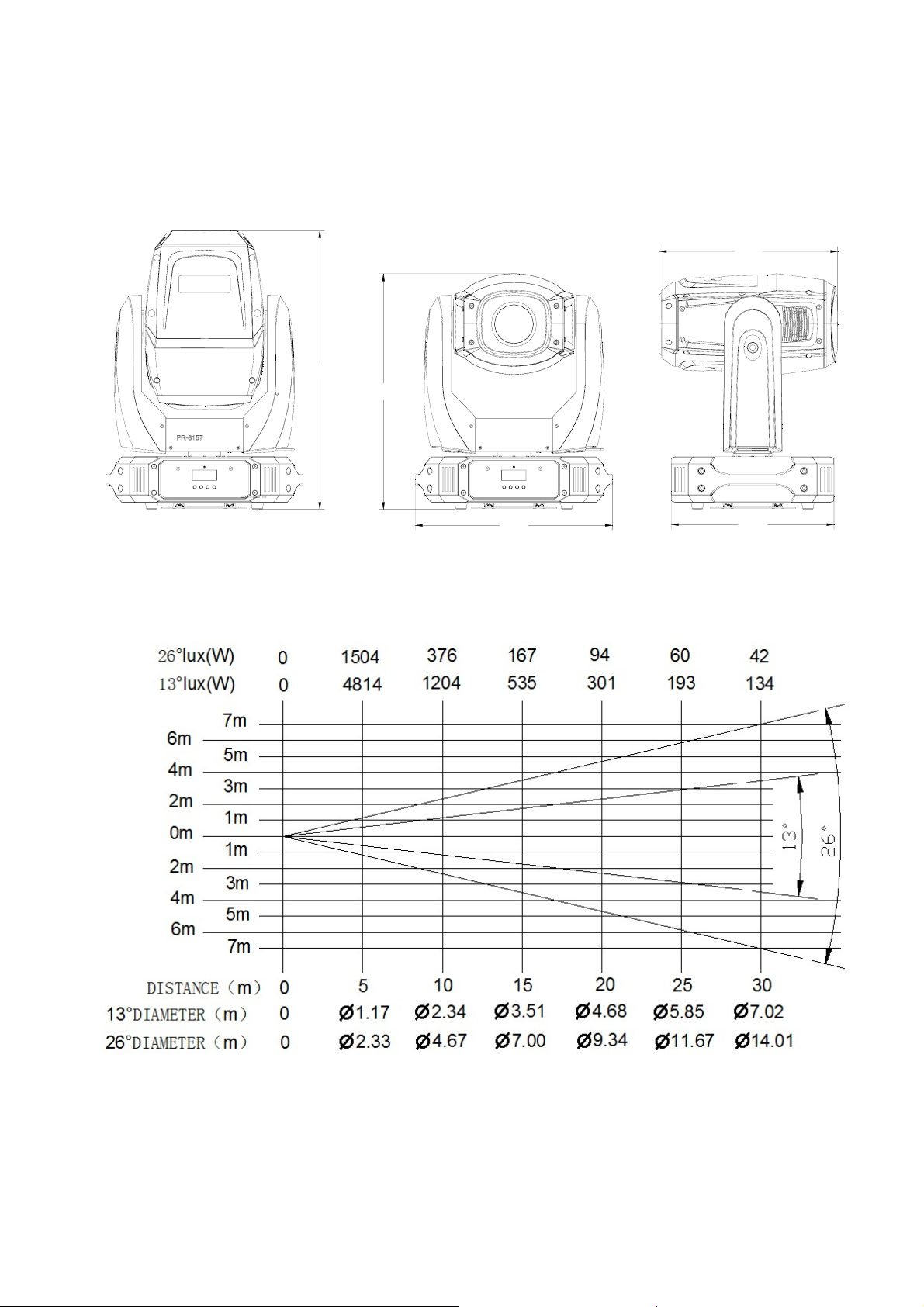

TECHNICAL DATA…………………………………………………………………………………………………. 15

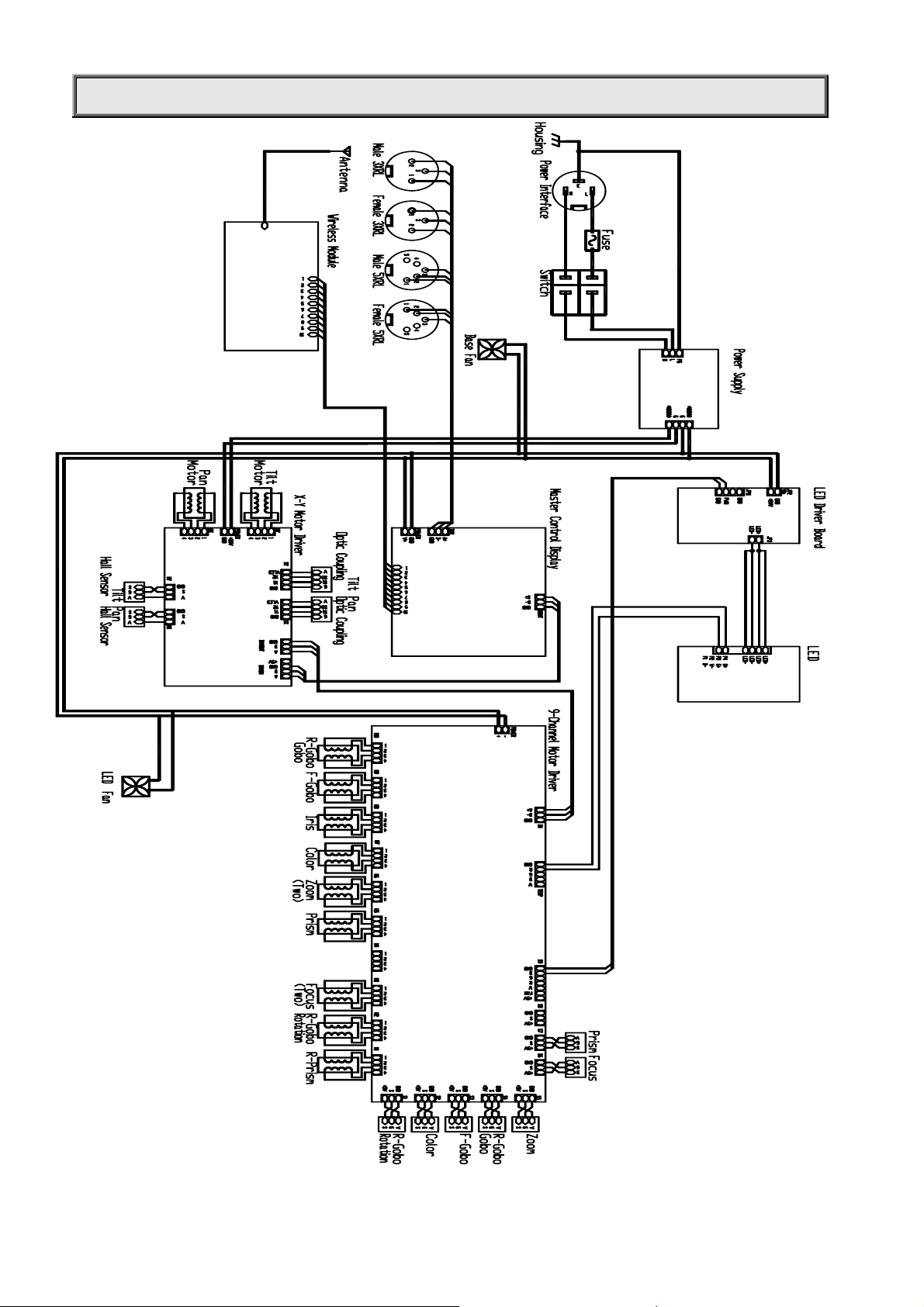

ELECTRICAL DIAGRAM………………………………………………………………………………………….. 18
COMPONENT ORDER CODES……………………………………………………………………………………. 19
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to
change without notice. Whilst every care is taken in the preparation of this manual we reserve the right to change
specifications in the course of product improvement. The publishers cannot be held responsible for the accuracy of the
information herein, or any consequence arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the
unit are in good condition before installation and use. Should there be any damage caused by transportation, consult
your dealer and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer and
/ or dealer.
ACCESSORIES
These items are packed together with the projector:
Name Quantity Unit Remark
G clamps 2 Pcs
XLR connector
Safety cord 1 Pc
This manual 1 Pc
Ω clamps 2 Pcs Optional
2 Pcs
2/20
Without cable
Page 3
SAFE USAGE OF THE PROJECTOR
When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there
be any damage caused by transportation, consult your dealer and do not use the apparatus.
The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture, excessive heat,
humidity and dust. Do not allow contact with water or any other liquids.
The projector is only intended for installation, operation and maintenance by qualified personnel.
The projector must be installed in a location with adequate ventilation, at least 50cm from adjacent wall surfaces. Be sure that no
ventilation slots are blocked.
Do not project the beam onto inflammable surfaces, minimum distance is 1.3m.
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle and/or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into contact with other cables.
Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
The projector should always be installed with a secondary safety fixing. A safety cord is supplied for this; it should be attached as
shown in “installing the projector” section.
Shields and lens shall be changed if they have become visibly damaged to such an extent than their effectiveness is impaired, for
example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 45℃, when steady state is achieved 50℃,
There is no user serviceable parts inside the projector, do not open the housing and never operate the projector with the covers
removed.
1.3m
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
Always disconnection from Power before a device’s installation ,cleaning and maintenance !
3/20
Page 4
INSTALL THE PROJECTOR
Clamp
Safety cord
Handle

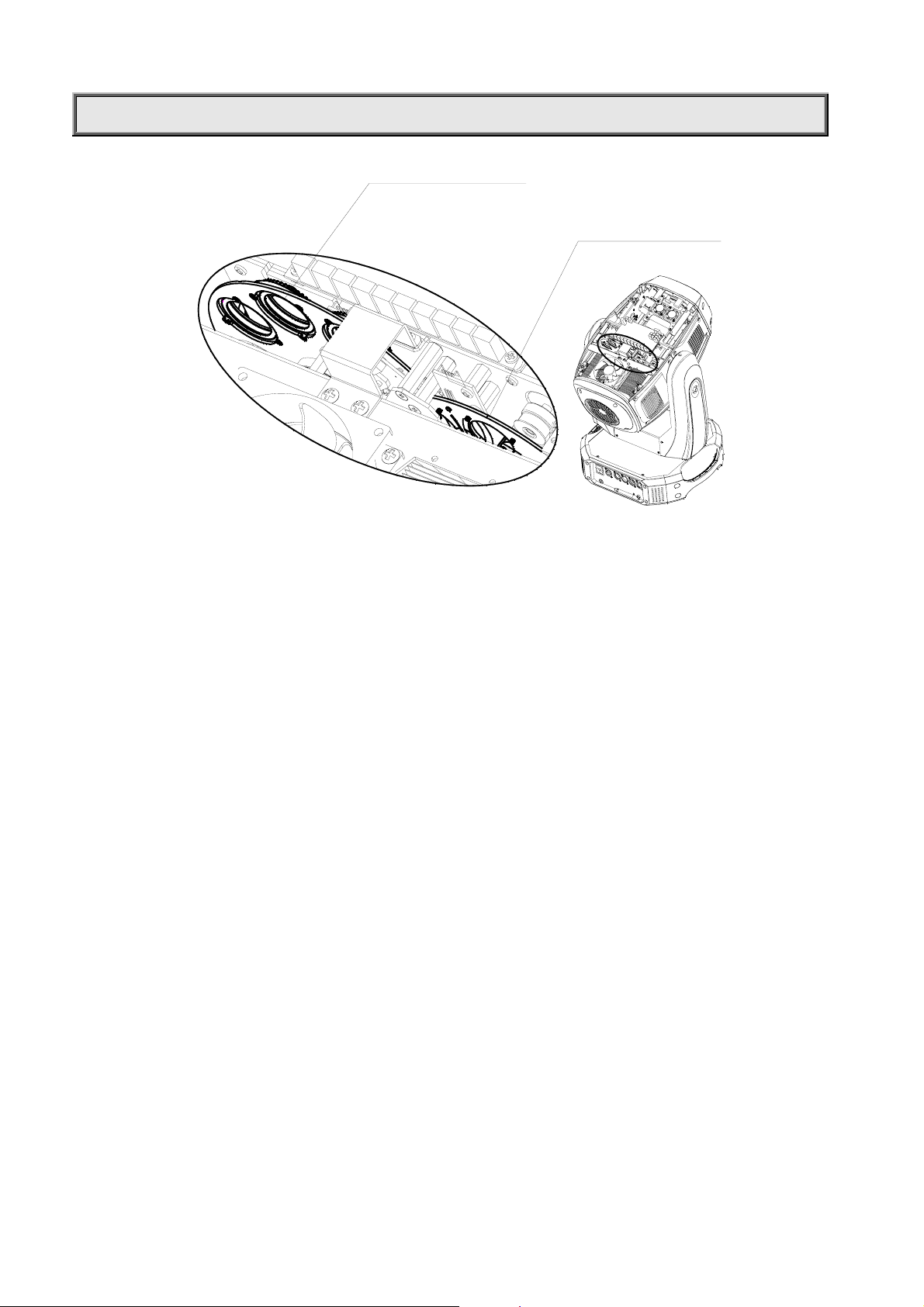

Please run the safety
cord thyough a safety
cord hole for safety
Safety cord hold
Operation menu
Warning

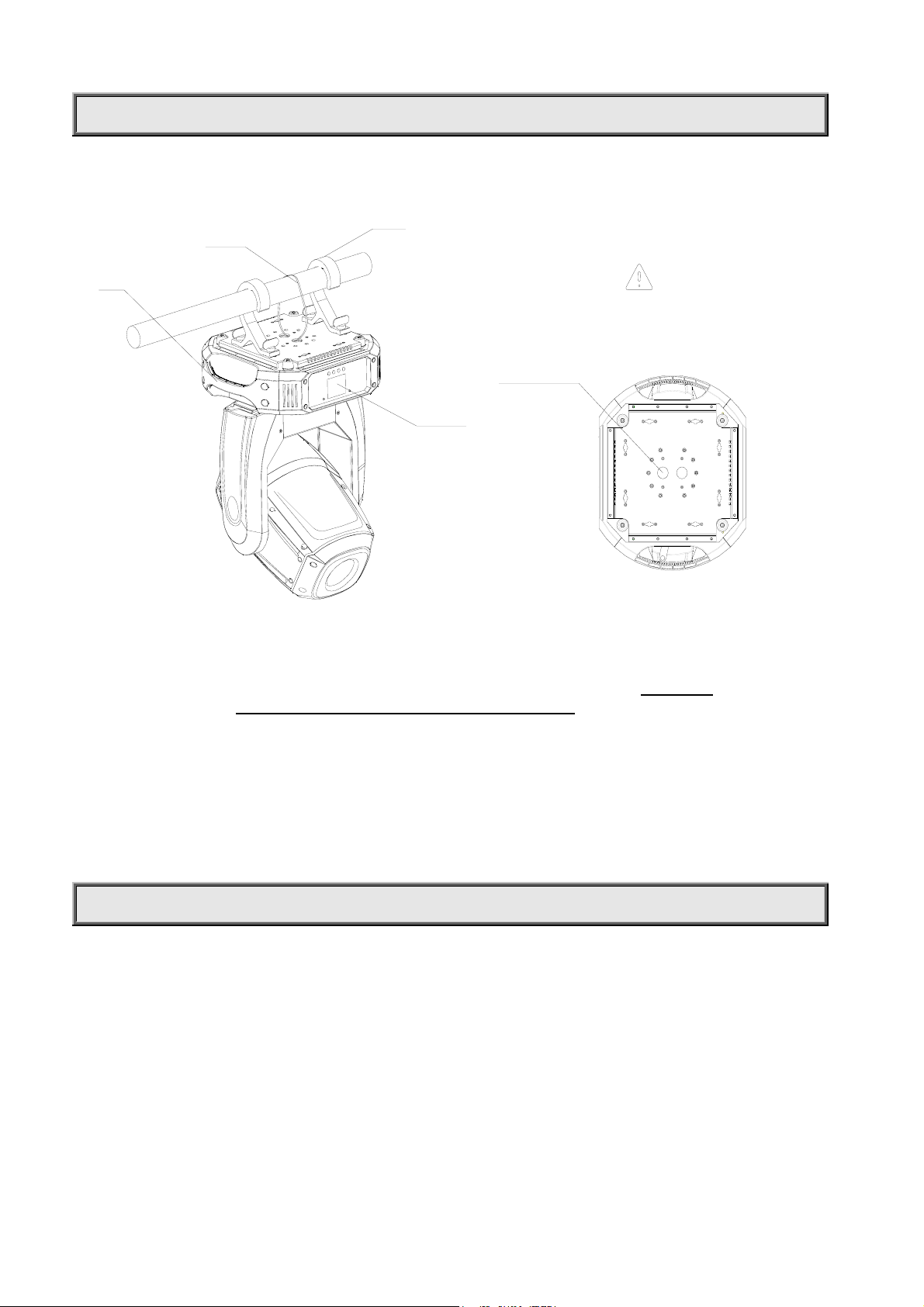

Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to
each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING
the base as shown above) To pass SAFETY CORD through 1 HOLE for safety!
anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector
is secure and is strong enough to support a weight of each projector.
WARNING:
1. A device MUST be lifted or carried by its HANDLES instead of clamps.
2. For safety the safety cord should afford 10 times the unit’s weight.
Always ensure that the projector is firmly
on the underside of
POWER SUPPLY-MAINS
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel
of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.
IMPORT ANT
It is essential that each projector is correctly earthed and the electrical installation conforms to all relevant standards.
4/20
Page 5
CONTROL CONNECTION

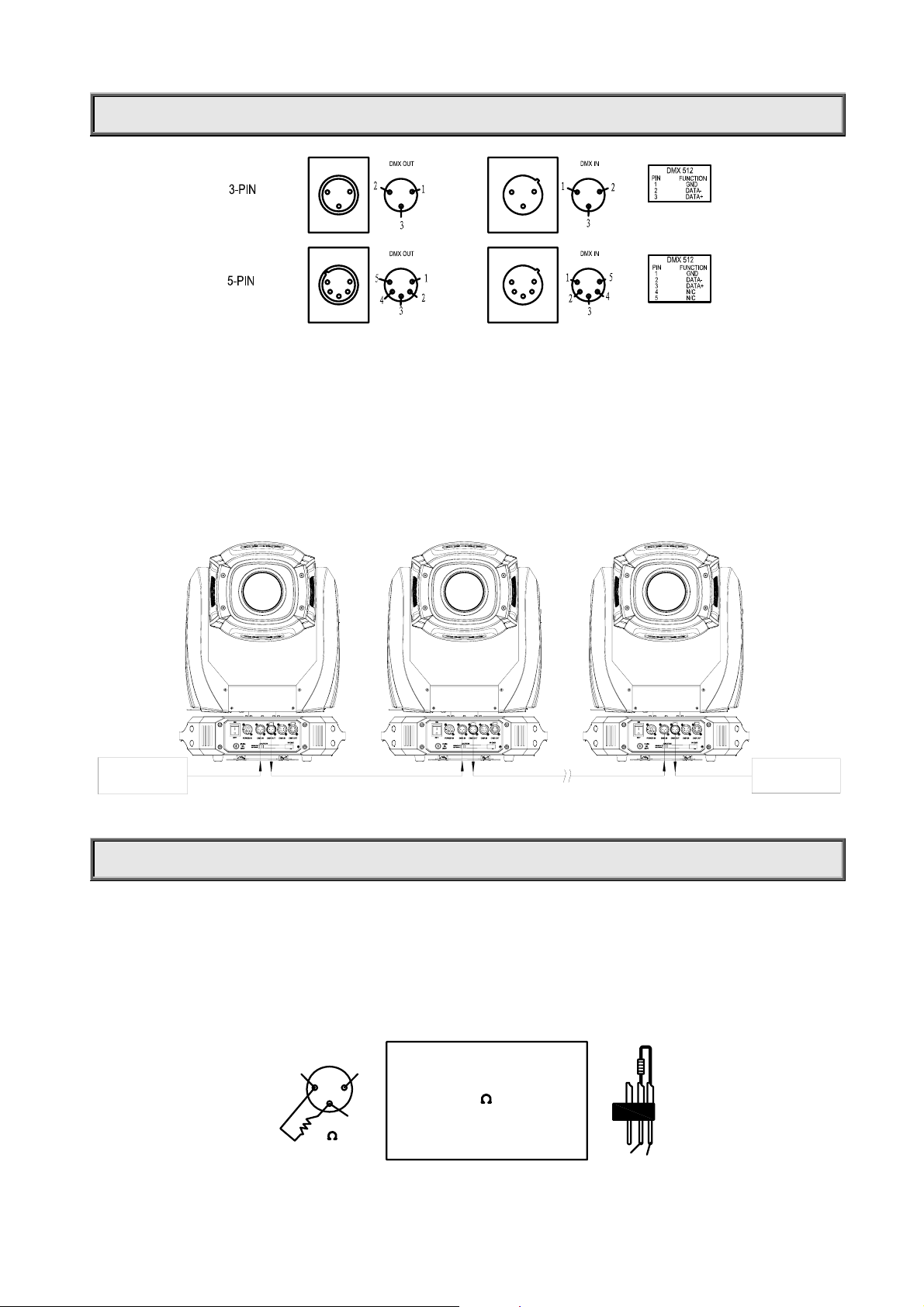

Connection between controller and projector and between one projector and another must be made with a 2 core-screened cable, with
each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 5 pin (which are included with the
projector) or 3 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not
connected in any way. The projector accepts digital control signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input and connect
the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown in the figure below.
NO.1 NO.2 NO.n
DMX
controller
Input Output Input Output Input Output
XLR
terminator
DMX512
DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged
into the output socket on the last projector in the chain. The connections are illustrated below.
2
120
1
3
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
5/20
PIN 2
PIN 3
Page 6
SETUP OPTIONS-PROJECTOR CONFIGURATION

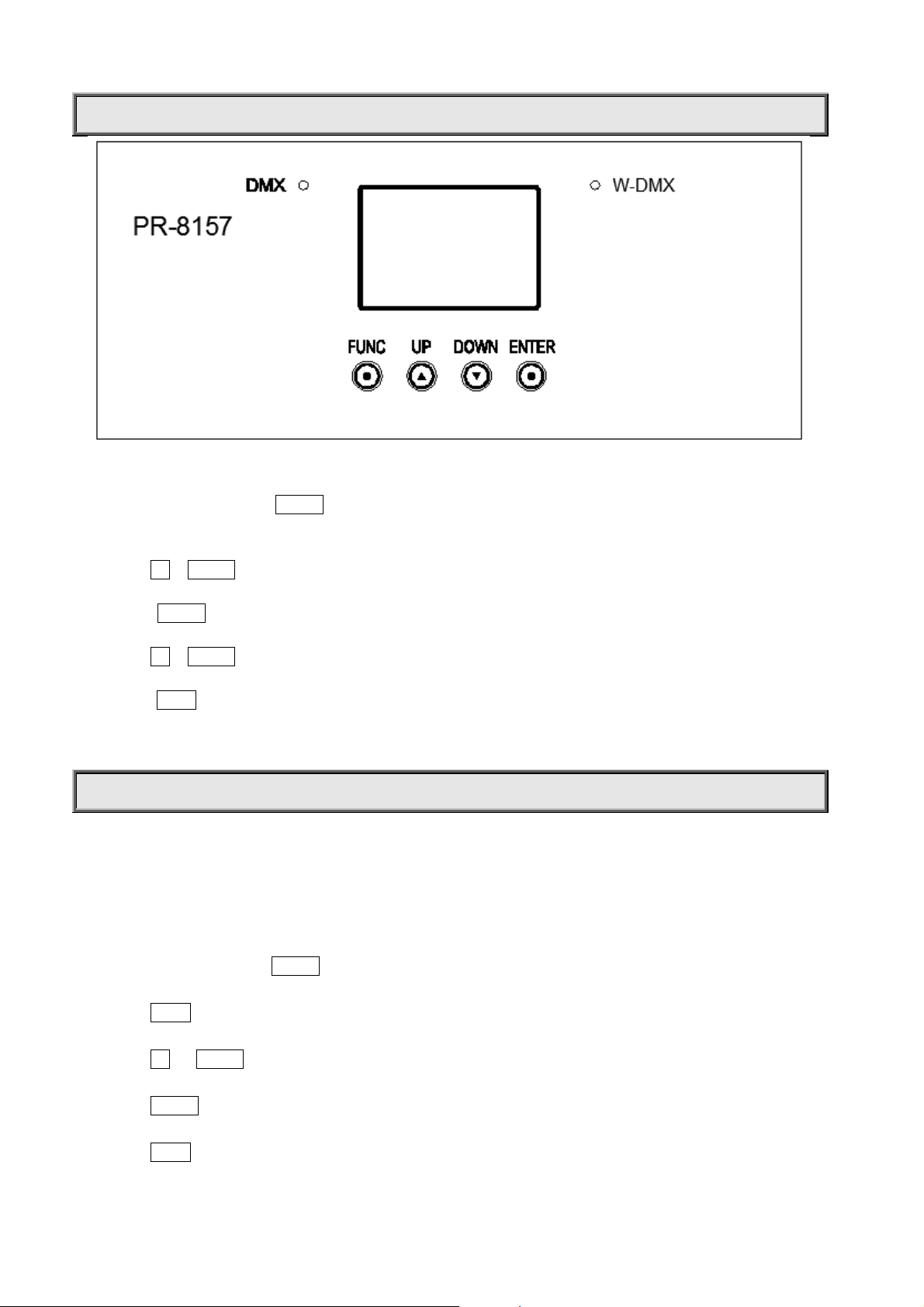

A device configuration can be set conveniently via pressbutton switch and LCD display.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel, LED display shows functional menus which have
their own sub-menus for designated functions, the below is the details
Press button UP or DOWN if you want to browse through the various Setup Options.
Press button ENTER to save your settings or enter the next menu.
Press button UP or DOWN to shift.
Press button FUNC, it will return to the upper menu one by one. If you stay for minutes defaulted will show display status
automatically.
TO SET THE DMX START ADDRESS
Each projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start
address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the
controller. The fixture have 3 DMX modes. There are standard mode, extended mode and short mode. For example standard mode
has 20 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 021, No. 3 projector’s address 041, No. 4
projector’s address 061, and so on.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel.
Press button FUNC to display DMX address;
Press button UP and DOWN, you can set the address;
Press button ENTER to confirm, after powered next time, the last saved settings will be showed.
Press button FUNC, it will return to the upper menu one by one.
6/20
Page 7
STAND-ALONE MODE
Operate the projector without connecting a controller, enable the master mode in the operation panel, the projector
will run in Stand-Alone mode automatically.
DMX address can be set without limitations.
MASTER/SLAVE MODE

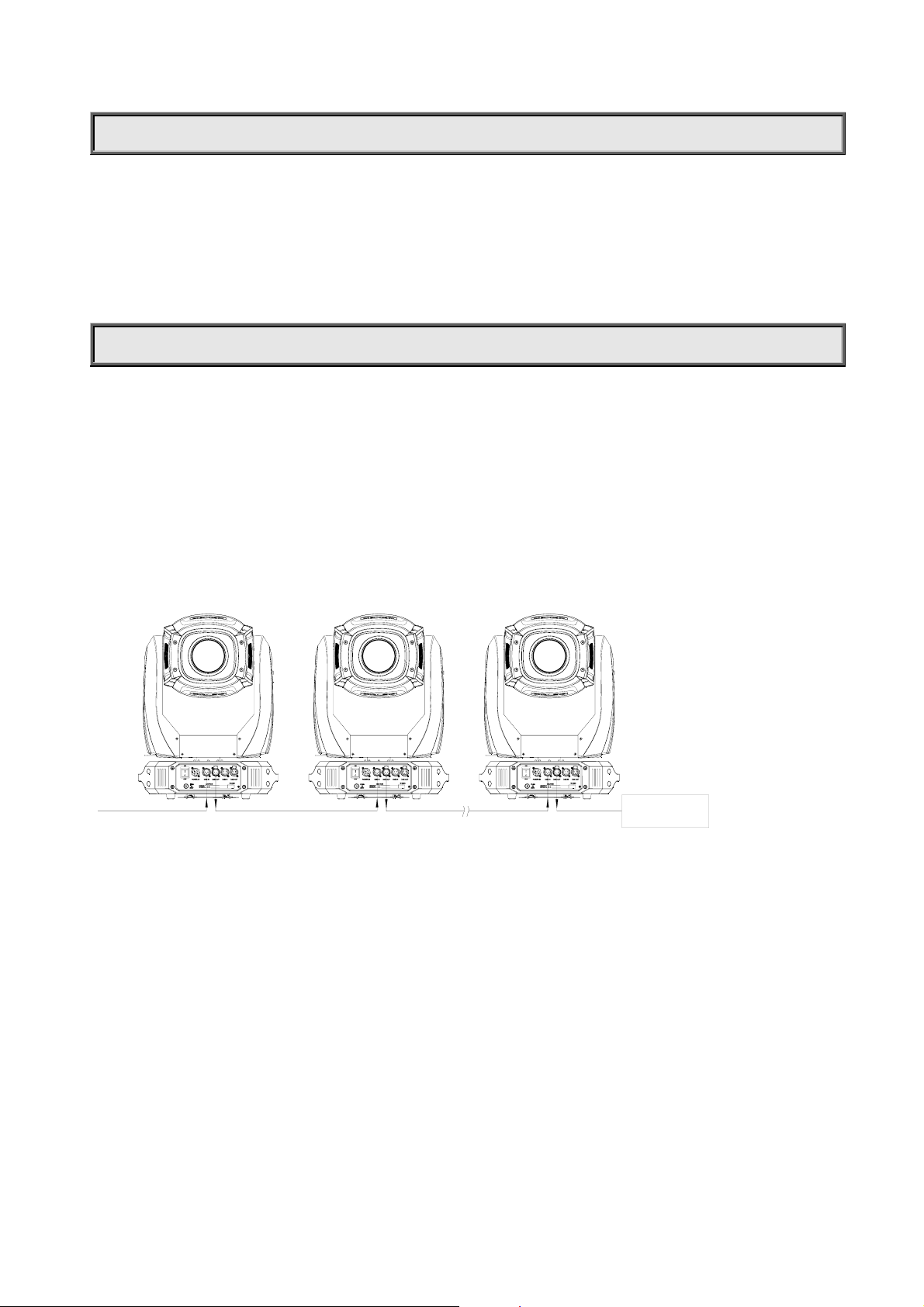

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. Select one
projector as the master with setting options at any mode of master’s modes enabled and make the other projectors as
the slaves with setting options slave mode enabled and their DMX start address “001”.
Using XLR-XLR cables, Connect the first fixture’s output to the second fixture’s input, and connect the second fixture’s output to the
third fixture’s input and connect the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as
shown in the figure below.
After powered, the groupwill run in synchronous Master/Slave Mode.
Master Slave Slave
Input Output Input Output Input Output
XLR
Terminator
7/20
Page 8
OPERATION MENU
1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL
DMX Address
Reset Are You Sure
（
（
Config Settings
（
Information
T est Mode
XXX
（1~499）
DMX Mode
Default is：Standard）
Pan Tilt Swap
（
Default is：OFF）
Pan&Tilt Invert
Default is：OFF）
（
Wireless Mode
Default is：XLR First）
Unlink Wireless YES
MasterSlaveSelec
Default is：slave）
FactorySettings
ParameterTransm
Display Options
Power On Hours XXXX
SoftwareVersion X.X.X
Self Test
Manual Test
8/20
Standard 20
Short 15
Extended24
OFF
ON
OFF
ON
XLR First
XLR Only
Wireless Only
Wireless First
WirelessT o XLR
Slave
Master
YES
YES
Language
Display Mode
Display Reverse
DisplayContrast
YES
Lamp LED
Colour Wheel
IRIS
F-Gobo wheel
English / Chs
Off After Delay / On Always
OFF / ON
0~18
OFF
On
White
Colour 1 –Colour8
Rotation
Stop rotating
ReverseRotation
No
Effect 1
Effect 2
Effect 3
NO Gobo
Gobo 1 - Gobo 7
Rotation
Page 9
Reverse Rotation
Shake 1 ~ 6
NO Gobo
Gobo 1 - Gobo 7
Operation Mode
Static Scene 1～16
DMX Operation
DMX
Preset Memory
UserProcess
Rotating Gobo
Gobo rotation
PrismSet
PrismRotate
Focus
Zoom
Pan Location 0-255
Tilt Location 0-255
Pan&Tilt Speed 0-255
CH1 Strobe
CH2 Dimmer
CH3 Colour Wheel
CH4 Iris
CH5 F-Gobo wheel
CH6 R-Gobo
CH7 Gobo-R
CH8 Prism Set
CH9 PrismRotate 0-255
CH10 Focus
CH11 Zoom
CH12PanLocation 0-255
CH13TiltLocatio
CH14 Keep Time
Rotation
Reverse Rotation
Shake 1 ~ 6
Stop rotating
Rotation
ReverseRotation
NO
Have
Stop
Rotation
ReverseRotation
0-255
Linearly focusing
0-255
Linearly Zoom
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0~25
Remark:
1. In the synchronous control of multiple projectors parameters can be transmitted from the master including: DMX mode,
display setting, operation mode(user memory data included);
2. All projectors Accepting parameters will automatically be set to slave mode.
\
9/20
Page 10
REPLACING GOBOS
Rotating Gobo Wheel
Fixed Gobo Wheel
Disconnect the fixture from power. Carefully lift off the cover by undoing the 4 fast-fit screws.
Before the replacement of fixed gobos, take leaf spring out using finger, push the gobos out carefully and insert new gobos.
For rotating gobos: take rotating gobo wheel out by hand, push gobos out after pulling out leaf springs. Insert new gobos into gobo
holders, then insert leaf spring back and make sure it is in narrow ring groove in the holder, i.e. internal ring groove in the holder, then
flatten it. At last, use appropriate tool to push tightening spring back, then put the holder back into the wheel by another hand.
Note: If the gobo is a glass one, it should be touched with glabrous, clean and soft tissue or cloth matted between hand and glass
instead of with bare hand.
Close the rear cover and fasten 4 fast-fit screws.
10/20
Page 11
DMX PROTOCOL
Short
mode
1 1 1 Strobe
2 2 2 Dimmer
3 Dimmer Fine
Standard
mode
Extended
mode
FUNCTION DMX DESCRIPTION
000-015
016-255
000-255
000-255
000-015
black
Strobe speed from slow to fast
Dimming from dark to light (0-100%)
Dimmer in 16 Bit precision
White
016-031
0320-47
048-063
0640-79
3 3 4 Color Wheel
4 4 5
6
Iris
Iris Fine
080-095
096-111
112-127
128-143
144-175
176-223
224-255
000-207
208-223
224-239
240-255
000-255
000-015
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Rotation(From Slow to Fast)
Stop at White
Reverse Rotation(From Slow to Fast)
From big to Small
Iris effect 1
Iris effect 2
Iris effect 3
Iris in 16 Bit precision
White
5 5 7
Fixed Gobo
Wheel
11/20
016-031
032-047
048-063
064-079
080-095
096-111
112-127
128-143
144-159
160-175
176-191
192-207
208-223
224-239
Gobo1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Rotation from slow to fast
Reverse rotation from slow to fast
Gobo shake 1 from fast to slow
Gobo shake 2 from fast to slow
Gobo shake 3 from fast to slow
Gobo shake 4 from fast to slow
Gobo shake 5 from fast to slow
Page 12
240-255
e
t
t
Gobo shake 6 from fast to slow
6 6 8
Rotating Gobo
Wheel
000-015
016-031
032-047
048-063
064-079
080-095
096-111
112-127
128-143
144-159
160-175
176-191
192-207
208-223
224-239
240-255
000-207
white
Gobo1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Rotation speed from slow to fast
Reverse rotation from slow to fast
Gobo shake 1 from fast to slow
Gobo shake 2 from fast to slow
Gobo shake 3 from fast to slow
Gobo shake 4 from fast to slow
Gobo shake 5 from fast to slow
Gobo shake 6 from fast to slow
0~540°indexable
7 7 9
8 10
8 9 11
9 10 12
10 11 13
14
11 12 15
16
12 13 17
14 18
13
14
18 22
15 19
16 20
17 21
Gobo rotation
Gobo rotation
Fin
Prism
Prism rotation
Focus
Focus Fine
Zoom
Zoom Fine
Pan
Pan Fine
Pan unlimited
rotation
Tilt
Tilt Fine
Tilt Shake
12/20
208-223
224-239
240-255
000-255
000-019
020-255
000-063
064-127
128-191
192-255
000-255
000-255
000-255
000-255
000-255
000-255
000-127
128-191
192-255
000-255
000-255
000
Gobo rotation from slow to fast
Stop rotating
Reverse rotation from slow to fast
Gobo rotation in 16 Bit precision
White
Prism
Stop rotating
Prism rotation from slow to fast
Stop rotating
Reverse rotation from slow to fast
Linearly focusing
Focus in 16 precision
Linearly focusing
Focus in 16 precision
Pan rotation 0°~ 540°
Pan rotation in 16 precision
No
Pan forward unlimited rotation from slow
to Fas
Pan reverse unlimited rotation from slow
to Fas
Tilt rotation 0°~270°
Tilt rotation in 16 precision
invalid
Page 13
001-009
Effect 1(speed from fast to slow)
010-019
020-029
030-039
040-049
050-059
060-069
070-079
080-089
090-099
100-109
110-119
120-129
130-139
140-149
150-159
160-169
170-179
Effect 2(speed from fast to slow)
Effect 3(speed from fast to slow)
Effect 4(speed from fast to slow)
Effect 5(speed from fast to slow)
Effect 6(speed from fast to slow)
Effect 7(speed from fast to slow)
Effect 8(speed from fast to slow)
Effect 9(speed from fast to slow)
Effect 10(speed from fast to slow)
Effect 11(speed from fast to slow)
Effect 12(speed from fast to slow)
Effect 13(speed from fast to slow)
Effect 14(speed from fast to slow)
Effect 15(speed from fast to slow)
Effect 16(speed from fast to slow)
Effect 17(speed from fast to slow)
Effect 18(speed from fast to slow)
19 23
15
20 24
Pan & tilt speed
Control
13/20
180-189
190-199
200-209
210-219
220-229
230-239
240-255
000-255
000-049
050-255
Effect 19(speed from fast to slow)
Effect 20(speed from fast to slow)
Effect 21(speed from fast to slow)
Effect 22(speed from fast to slow)
Effect 23(speed from fast to slow)
Effect 24(speed from fast to slow)
Effect 25(speed from fast to slow)
Pan & tilt speed from fast to slow
Reserved
Reset
Page 14
INDICATION OF LED DIGITAL TUBE
LED Indications：
Green Indication
Blue Indication
Explanations for logo on top-right of the LCD display：
S Slave
M Master
D DMX512 Mode
I Preset Memory
U User’s Memory
T Test Memory
Lock Logo
ON DMX Signal OK
OFF NO DMX Signal
ON Wireless DMX Signal ava ilable
Off Not linked to any transmitte r
Flash Lose link with a transmitter or being linked with one
Buttons are Locked, buttons are unlocked and lock logo disappears after “Enter”
button pressed more than 3 seconds
MAINTENANCE
If the projector does not function, check the fuses on the power socket of the projector, they should only be replaced by fuses of the
same specification. Should these be damaged call a qualified technician before replacement. The projector has thermal protection
device that will switch off the projector in case of overheating, should either of these operate, check that the fans are not blocked, and if
they are dirty clean them before switching on the projector again. Check that the fans are operational, if not call a qualified technician.
Any maintenance work should only be carried out by qualified technicians.
LUBRICATION
To ensure the continuous rotation of the rotating gobos and linear motion of the lens for focusing, it is recommended that the bearings
for the rotating gobos and the 2 shafts for the focusing lens holder be lubricated periodically, preferably every two months. Use only
high quality, high-temperature resistant grease instead of any type of oil. When lubricating
the bearings, a syringe with a fine needle is the easiest way to introduce the grease to the bearings around each gobo.
KEEPING THE PROJECTOR CLEAN
To ensure the reliability of the projector it should be kept clean. It is recommended that the fans should be cleaned every 15 days. The
lens and dichroic colour filters should also be regularly cleaned to maintain an optimum light output.
solvent on dichroic colour filters.
Do NOT use any type of
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or particularly dirty surroundings can
cause greater accumulation of dirt on the unit’s optics. A soft cloth and typical glass cleaning products should be used in cleaning. It is
recommended to clean the external optics at least once every 20 days and clean the internal optics at least once every 30 / 60 days.
Do not use any organic solvent, e.g. alcohol, to clean the reflector mirror, dichroic colour filters or housing of the apparatus.
14/20
Page 15
TROUBLESHOOTING
PROBLEM ACTION
The projector doesn’t switch on
The lamp comes on but the projector doesn’t
respond to the controller
The projector only functions intermittently ¾ Make sure the fan is working and not dirty.
Defective projection
The project image appears to have a halo
The beam appears dim
¾ Check the fuse on the power socket.
¾ Replace the lamp.
¾ Make sure that the projector is correctly configurated.
¾ Replace or repair the DMX cable.
¾ Check the lenses are not broken.
¾ Remove dust or grease from the lenses.
¾ Make sure the lamp is installed correctly.
¾ Carefully clean the optical group lenses and the projector components.
¾ Check the optics is clean.
¾ Replace with a new lamp of the specified type and rating.
TECHNICAL DATA
VOLT AGES:
100V/120V/200V/220V/230V/240V AC，50/60Hz
POWER CONSUMPTION:
240W@220V
LIGHT SOURCE:
LED Lamp White Module
CT:8000K±500K
CRI:76
COLOURS:
1color wheel: 8 colors +white
With variable speed bi-directional rainbow effect
Step/linear colour changing is available
GOBOS:
1 Rotating gobo wheel:
7interchangeable gobos+ white ,glass or metal gobos can be fixed
Indexable , bi-directionally rotatable and Wheel Scrolling at variable speeds, shakable at variable speeds
15/20
Page 16
1 Fixed gobo wheel :
7 interchangeable gobos+ white
bi-directional wheel scrolling at variable speeds, shaking at variable speeds
Gobo diameter: Φ24mm
Gobo image diameter: Φ20mm
PRISM:
1x3 facet prism, bi-directionally rotatable at variable speeds
Iris:
Linearly adjusted with Macro
FOCUS:
linearly focusing controlled by DMX
DIMMER:
0-100% linearly adjustable
STROBE:
Electronic strobe, 0.3~20 F.P.S
HEAD MOVEMENT :
Pan continuous rotation, Tilt 0 º ~270º with auto position correction
Swap and Invert functions of Pan and Tilt
BEAM ANGLE:
13°～26°linear adjustment
CONTROL:
DMX512, 3 pin, 5 pin interfaces
15channels in short mode, 20channels in standard mode, and 24channels in extended mode.
Master/slave mode
Stand-alone mode
Self-test mode
OTHER FUNCTIONS:
Adjustable Pan & Tilt speed
Fixture usage time display
Software version display
DMX512 wireless Function
Optional DMX512 wireless Transmitter
HOUSING:
High Temperature Composite plastic, IP20
16/20
Page 17
WEIGHT :
19.2Kg
SIZES:
XRLED
581
371
491
LIGHT OUTPUT :
411
339
17/20
Page 18
ELECTRICAL DIAGRAM
18/20
Page 19
COMPONENT ORDER CODES
NAME PART NO. QUANTITY REMARK
300W POWER SUPPLY
150W LIGHT SOURCE
FUSE 270041037 1
TILT BELT
PAN BELT
HEAD BOTTOM FAN
BASE FAN
PAN MOTOR 030040229 1
TILT MOTOR
CONSTANT CURRENT SUPPLY
PAN/TILT DRIVE PCB 230060224 1
MOTOR DRIVE PCB
DISPLAY PCB
192010168 1
150020271 1
290151339 1
290151218
030060035 1
030069005 1
030040207 1
192010167 1
230060225 1
230060223 1
1
19/20
Page 20
PR LIGHTING LTD.
1582 Xingye Avenue, Nancun Panyu
Guangzhou, 511442 China
TEL: +86-20-3995 2888
FAX: +86-20-3995 2330
P/N: 320020187
Version: 20140725
20/20
Loading...
