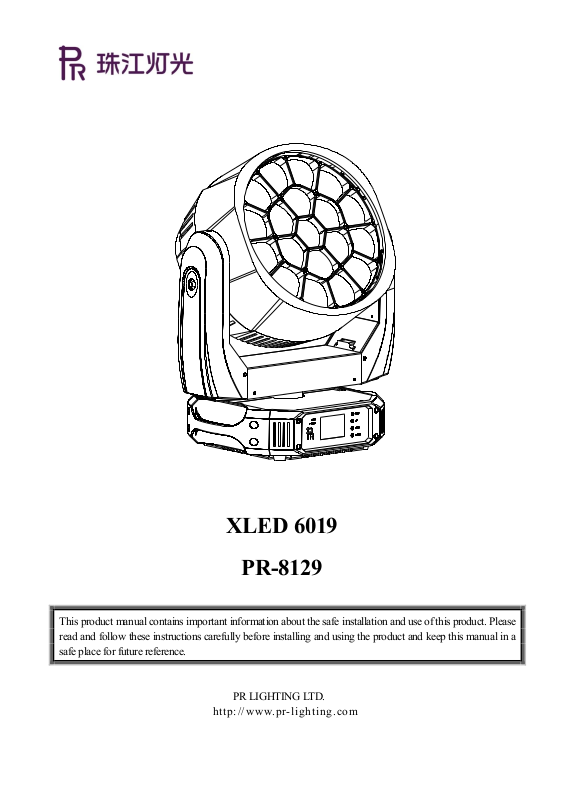

Page 1
XLED 6019
PR-8129
This product manual contains important information about the safe installation and use of this product. Please
read and follow these instructions carefully before installing and using the product and keep this manual in a
safe place for future reference.
PR LIGHTING LTD.
http: //www. pr- lig hting. com
Page 2
INDEX
1. SAFETY AND WARNINGS
2. INSTUCTIONS
●CLEANING AND MAINTENANCE
●TROUBLESHOOTING
3. APPEARANCE
4. INSTALLATION
●RIGGING
●POWER CONNECTIONS
●DMX CONTROL CONNECTION
●DMX TERMINATOR
5. SETUP AND CONFIGURATION
●FRONT PANEL OPERATION
●DMX START ADDRESS
●DMX WIRELSESS CONTROL
●STAND-ALONE MODE
●MASTER/SLAVE MODE
6.OPERATION MENU
7. DMX PROTOCOL
8 LED INDICATION
9 ERROR MESSAGES
10.TECHNICAL DATA
11.CIRCUIT DIAGRAM AND PCB CONNECTIONS

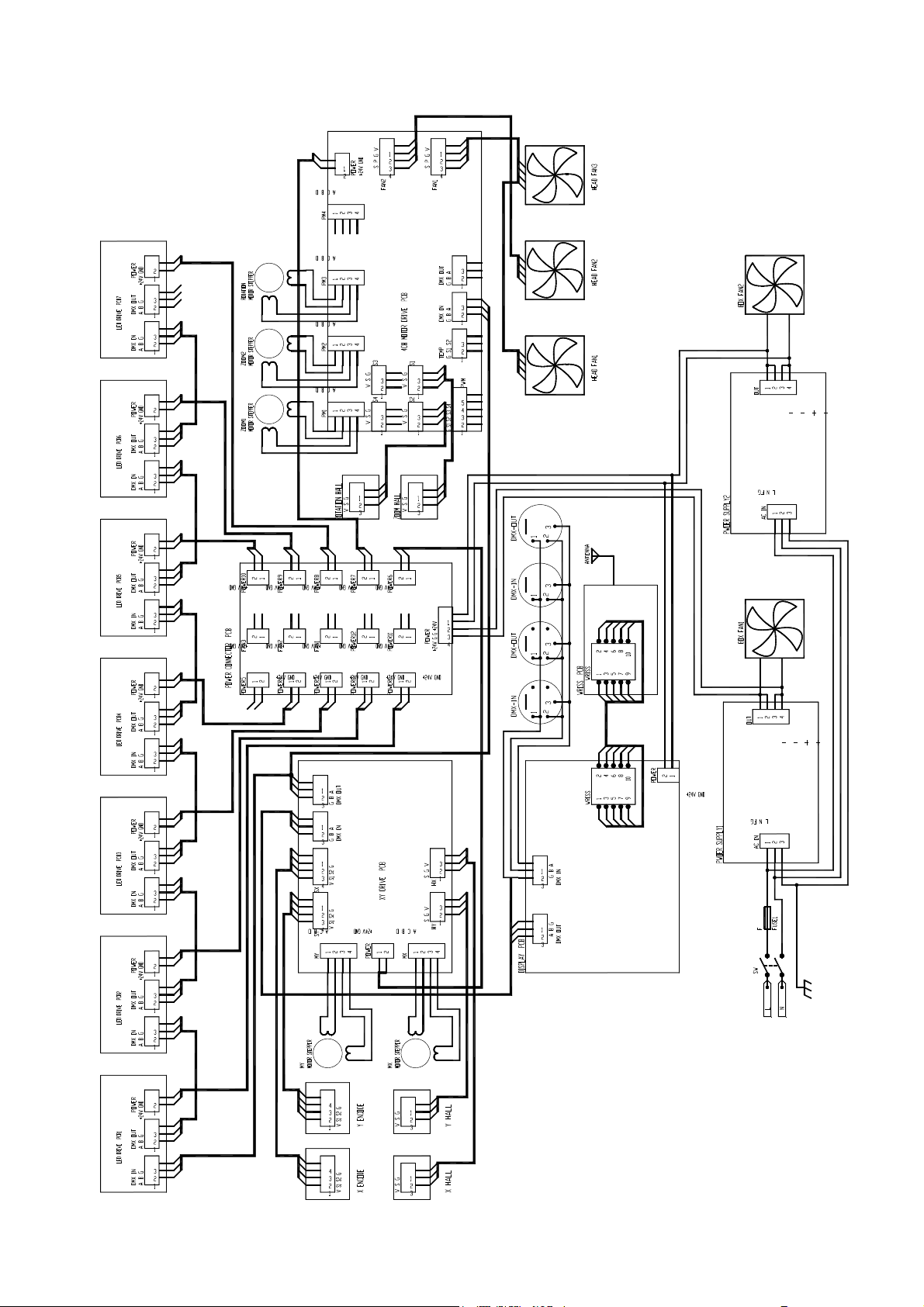

●CIRCUIT DIAGRAM

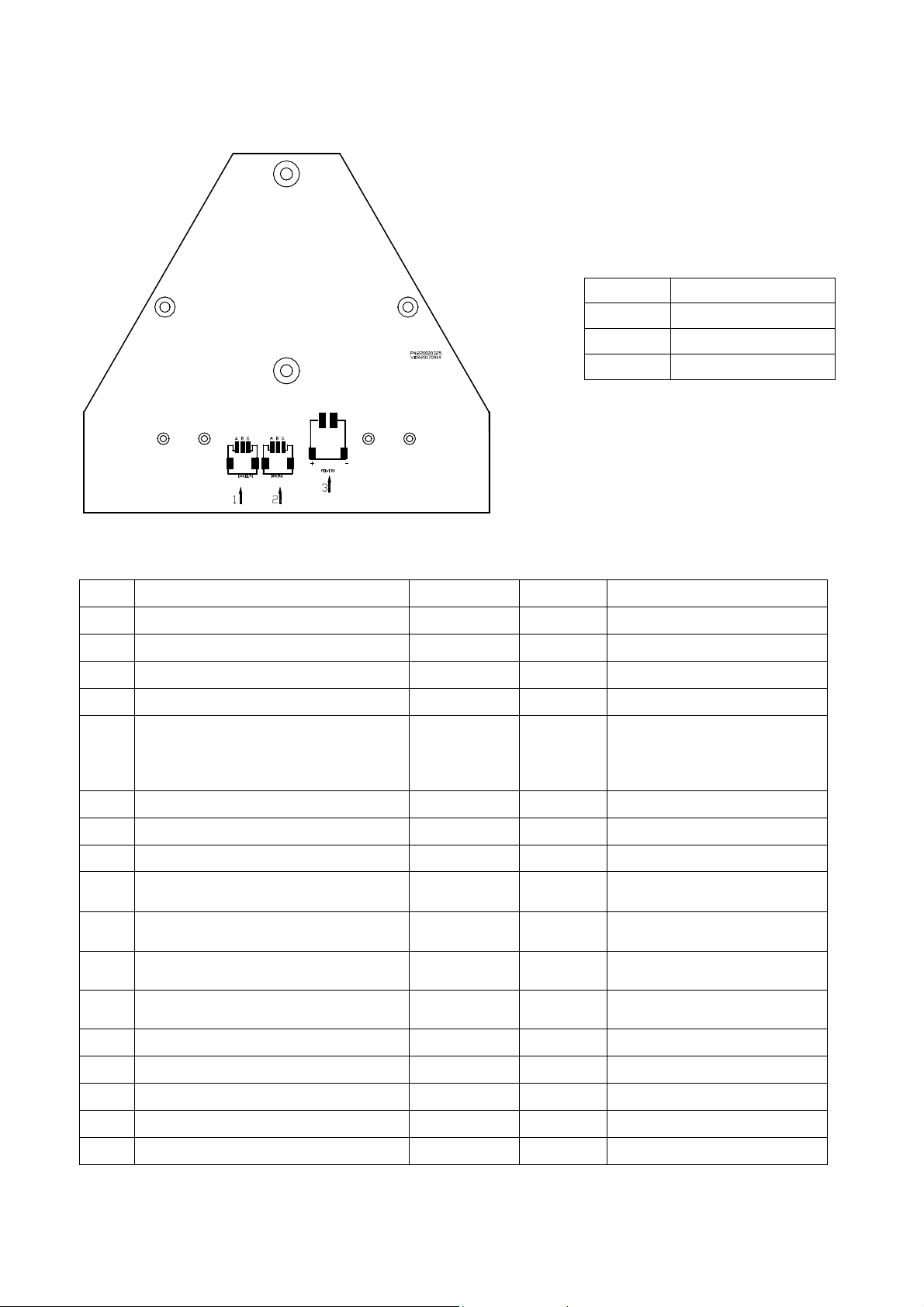

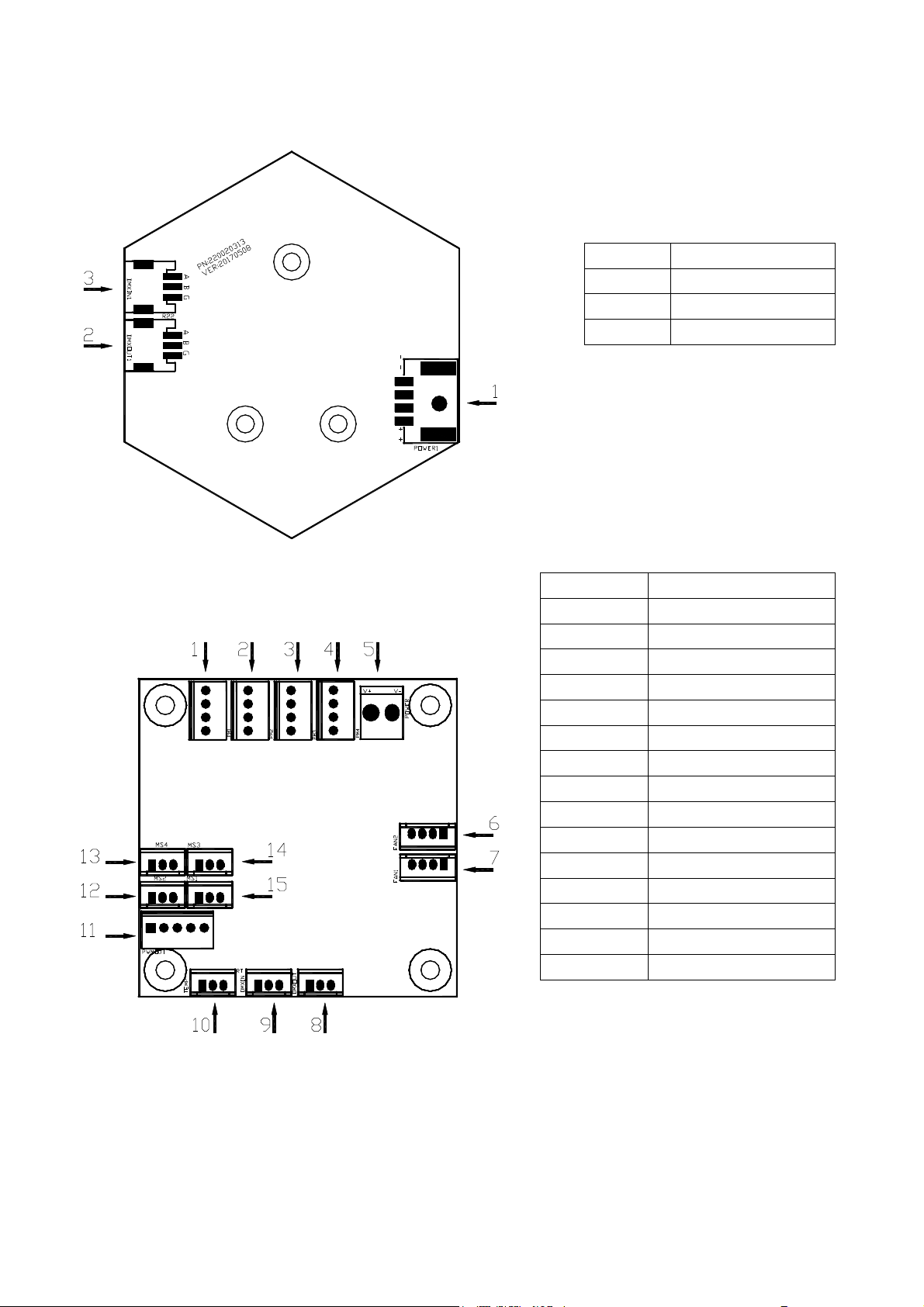

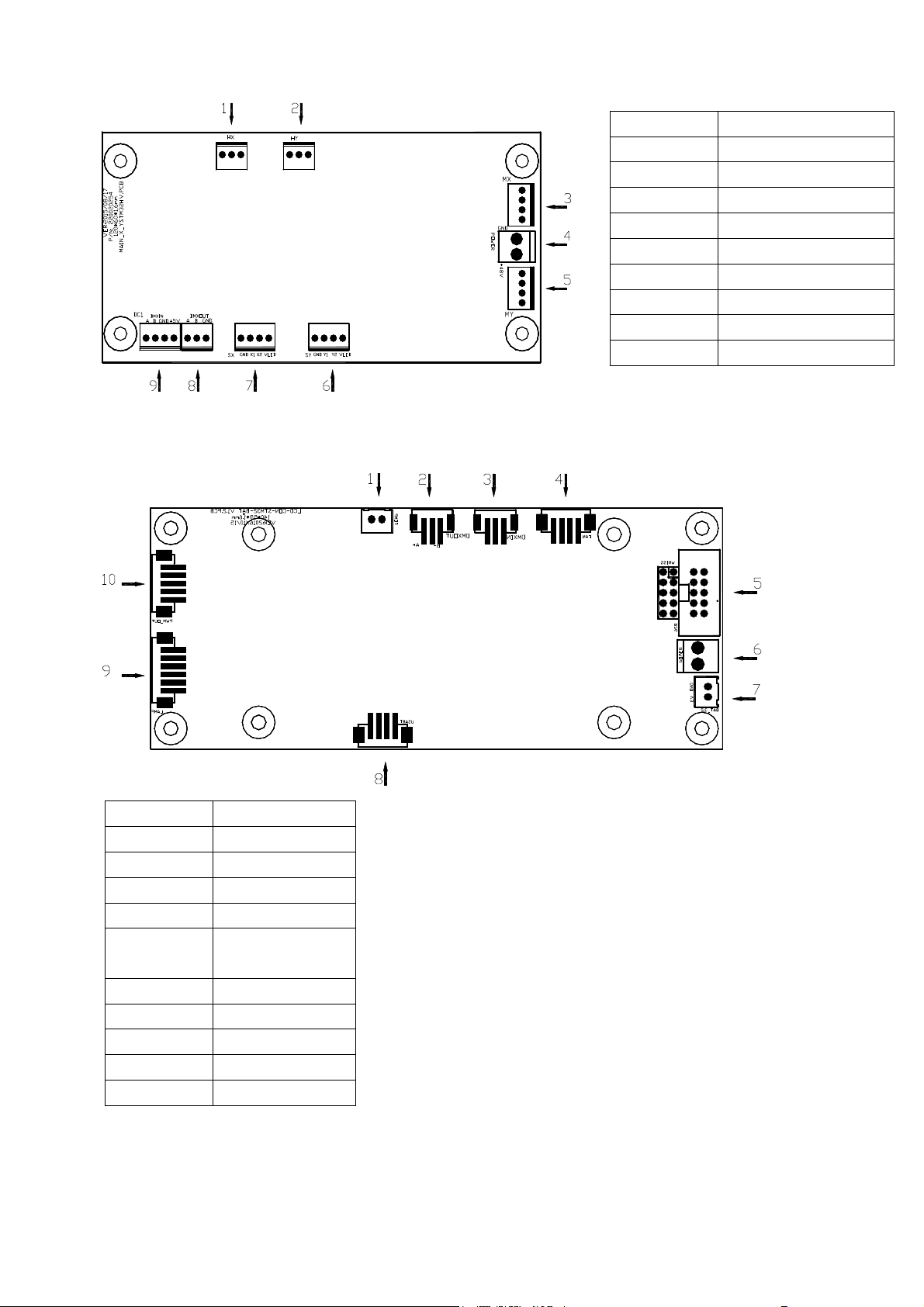

●PCB CONNECTIONS
12.COMPONENT ORDER CODES
ACCESSORIES
The following items are supplied with the projector and please check:
Name Quantity Unit Remark
Clamp 2 Pc
Safety Cord 1 Pc
User manual
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to
change without notice. Whilst every care is taken in the preparation of the manual we reserve the right to change
specifications in the course of product improvement. The publishers cannot be held responsible for the accuracy of the
information herein, or any consequence arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit
are in good condition before installation and use. Should there be any damage caused by transportation, consult your
dealer and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer and / or
dealer.
1 Pc
1
2
2
2
3
3
3
4
4
5
5
5
5
6
6
6
7
11
13
13
14
17
17
18
20
Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date
but the light source is not within the warranty.
Any future technical change in the user manual won’t be with any notice.
Page 3
1. SAFETY AND WARNINGS
Before a projector’s installation, power-on, operation and maintenance, please carefully read
the safety information hereinafter!

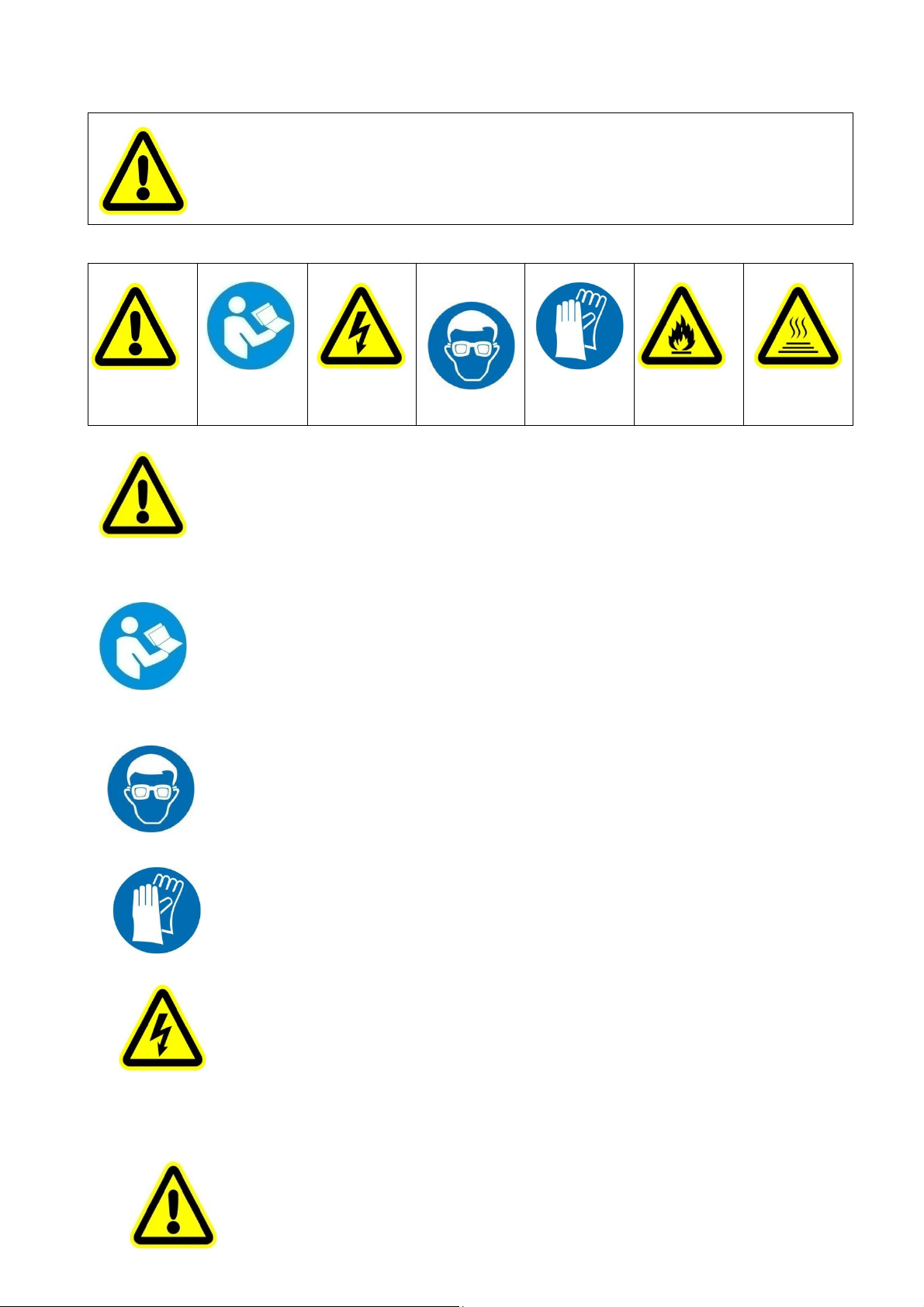

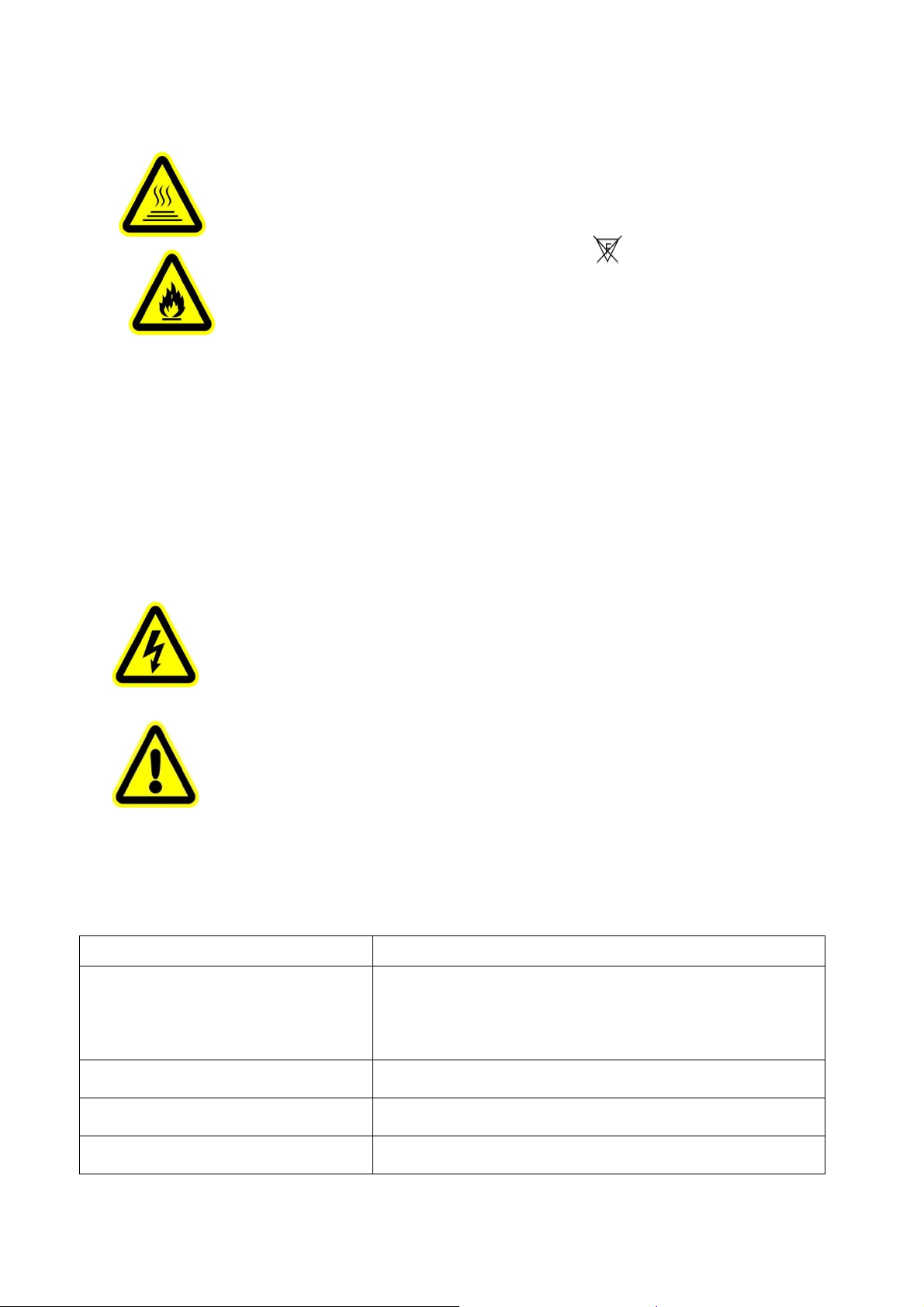

The following safety signs are used in the user manual.
NOTE
Warning
User
Manual
Electrical
shock
Goggles
Protective
Gloves
Flames
● When unpacking , check if there is transportation damage before using the projector. Should there be any
damage caused by transportation, consult your dealer and do not use it.
●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector
as he/she likes
●Please be noted that the damage caused by changing the projector at will is not warranted.
● Do not hesitate to contact the dealer or the manufacturer if any questions or advice.
● The projector is for indoor use only, IP20.
● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not
allow contact with water or any other liquids.
●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while
being operated
●The projector is only intended for installation, operation and maintenance by qualified personnel. And the
operation must strictly follow the procedures in the manual
●No repairable parts in the projector and do not open covers for maintenance by yourself.
●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.
●Do not connect this device to any type of dimmer pack
●After lamp switched on, the minimum distance between the projector and illuminated surface is 10m
●lens and other optical parts shall be replaced immediately if they have deformed or been damaged, otherwise the
light output will be compromised.
●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a
projector while covers(housing)are off
●Keep the lamp clean and do not touch it with bare hands.
●While operating it, wear protective items.
●Any electrical connection must be carried out by a qualified person .
●Before installation, please confirm the voltage supplied matches what is required for the projector
●Each projector must be properly earthed and installed as per related electrical standards.
●Do not use power cord with its insulator damaged and connect the power cord with other cables.
●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully
or by pulling the power cable.
●All power cords must conform to related safety and regulations
●While being operated, the projector should not be under rains or in humidity.
●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other
electrical parts’ life will be shortened .
●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety
High
Temperature
1
Page 4
cord supplied through the safety cord holes for safety support.
●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from
power mains.
●After running for 30minutes, the temperature of the housing of the projector is 55 .After stable operation , ℃
its temperature is 50 .℃
●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not
mean the projector has some defects.
●Do not mount the projector directly on inflammable surface.
●Do not project the beam straightly on combustible items and the minimum distance between the
projector and illuminated items is 10m.
●A projector should be installed with good ventilation and the minimum distance between the projector
and walls is 50cm. At the same time, please ensure the fans and air inlets and outlets are workable.
2. INSTRUCTIONS
●CLEANING AND MAINTENANCE
If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the
projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the
projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved,
restart the projector.
The accumulation of oil, smoke and dust on the lens will compromise the light output. Cleaning a projector is very necessary to
ensure a reliable use of it. Cooling fans need to be cleaned every 15days. Internal lens, reflector and hot mirror need to be cleaned
periodically to optimize light output.
Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning
work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean
and do not touch optical parts with bare hands.
●Before any maintenance and cleaning, please ensure the project is off the power
●Only qualified person is allowed to do maintenance
●During maintenance and before maintenance, the projector must be off power.
●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via
front lens whether it runs or not
●Do not use alcohol or other organic solvent to clean the housing to avoid damage.
●Do not use any solvent with chemical elements to clean color filters or hot mirror.
●TROUBLESHOOTING
PROBLEM ACTION
Check the power cord connection
Power Switch fails or is not connected well, call a professional
The projector doesn’t switch on
The project can be turned on, but the LED lamps
can’t be on
The LED lamps can be on, but not controlled
by DMX
The brightness decreases obviously
technician for repairing and checking
Control board is not connected normally, call a professional technician
for repairing and checking ,
LED lamp board is not connected well, call a professional technician for
repairing and checking
Check DMX Start Address
Check if XLR cable fails or not
Ambient temperature is too hot which makes the projector too hot,
please take appropriate ventilation measures
2
Page 5

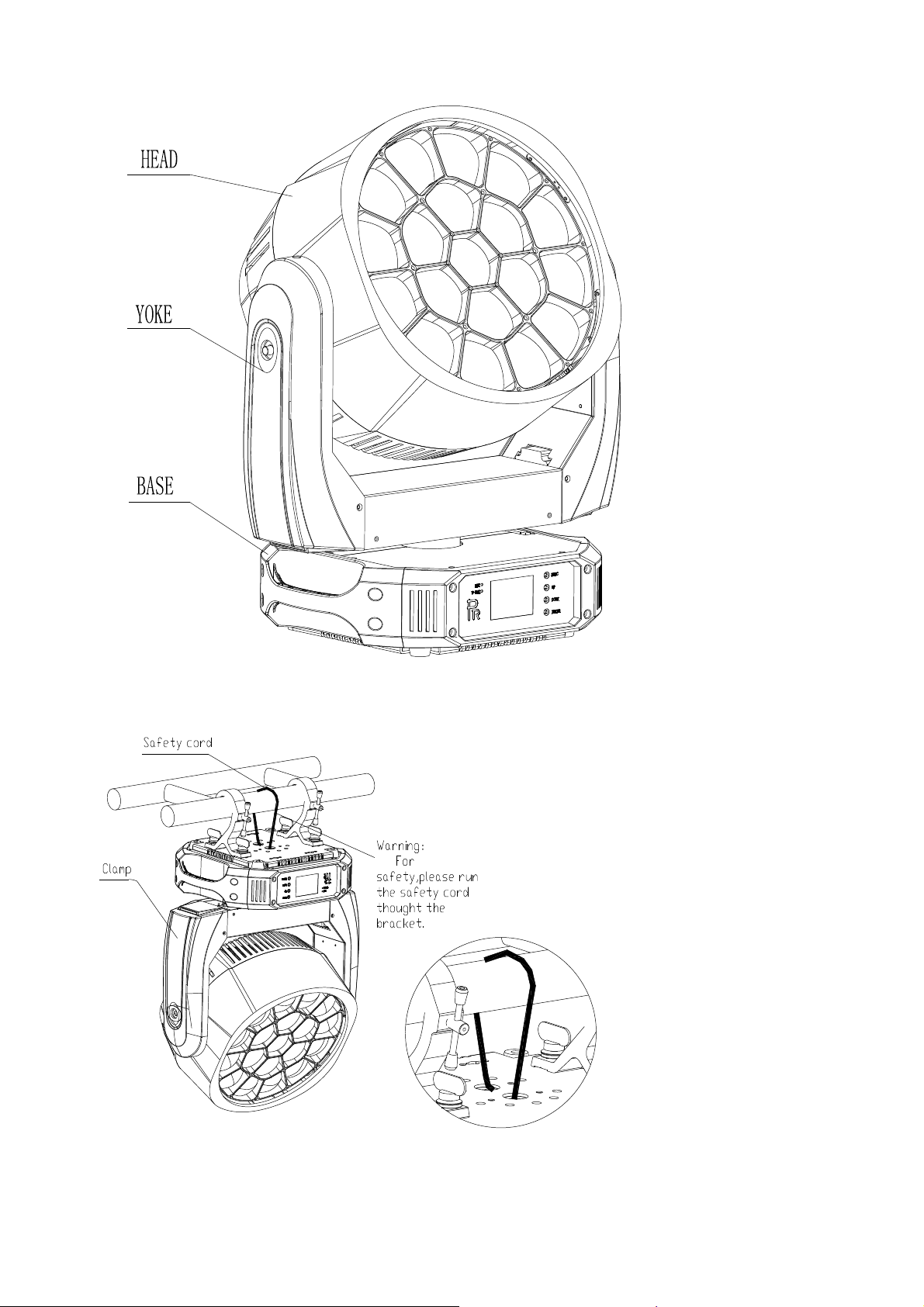

3. APPEARANCE
4. INSTALLATION
● RIGGING
While transportation of the fixture, please lock both Pan and Tilt well; Before the use of the fixture, please unlock both. It’s forbidden
to run the fixture while it’s locked.
Take 2clamp and 1 the safety cord out from the package and mount 1 clamp on the BOTTOM of fixture with 2 retainers attached to
3
Page 6
the clamp. Hang the fixture on the steel truss and fasten the retainers attached to the clamp. Always ensure that the location that you are
going to mount the unit is secure and is strong enough to support the weight of the unit (See the WARNING as shown above) To pass
SAFETY CORD through the SAFETY HOLE on the back cover of the base of the fixture for safety! Always ensure that the
unit is firmly anchored to avoid vibration and slipping whilst functioning.
WARNING:
●The projector MUST be lifted or carried by the HANDLES instead of clamps.
●.For safety the safety cord should afford 10 times the Projector’s weight.
● POWER CONNECTION
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each
projector be connected with power separately so that they may be individually switched on and off.
Note: If projectors are connected in series, please connect POWERIN port of the 1st projector with the Power Mains, then
connect its POWER OUT with POWER IN of the 2nd projector, and so on till all fixtures are connected. If the voltage supplied
is 200V-240V, the maximum projectors connected is 8pcs, if it is 100V-120V, the maximum is 4pcs. The diameter of the cores
of the wires for the Power in/out cables must be equal or bigger than 2.5mm
●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in
accordance with the standards concerned.
●If any questions about the electrical installation, do not continue but consult a qualified electrician.

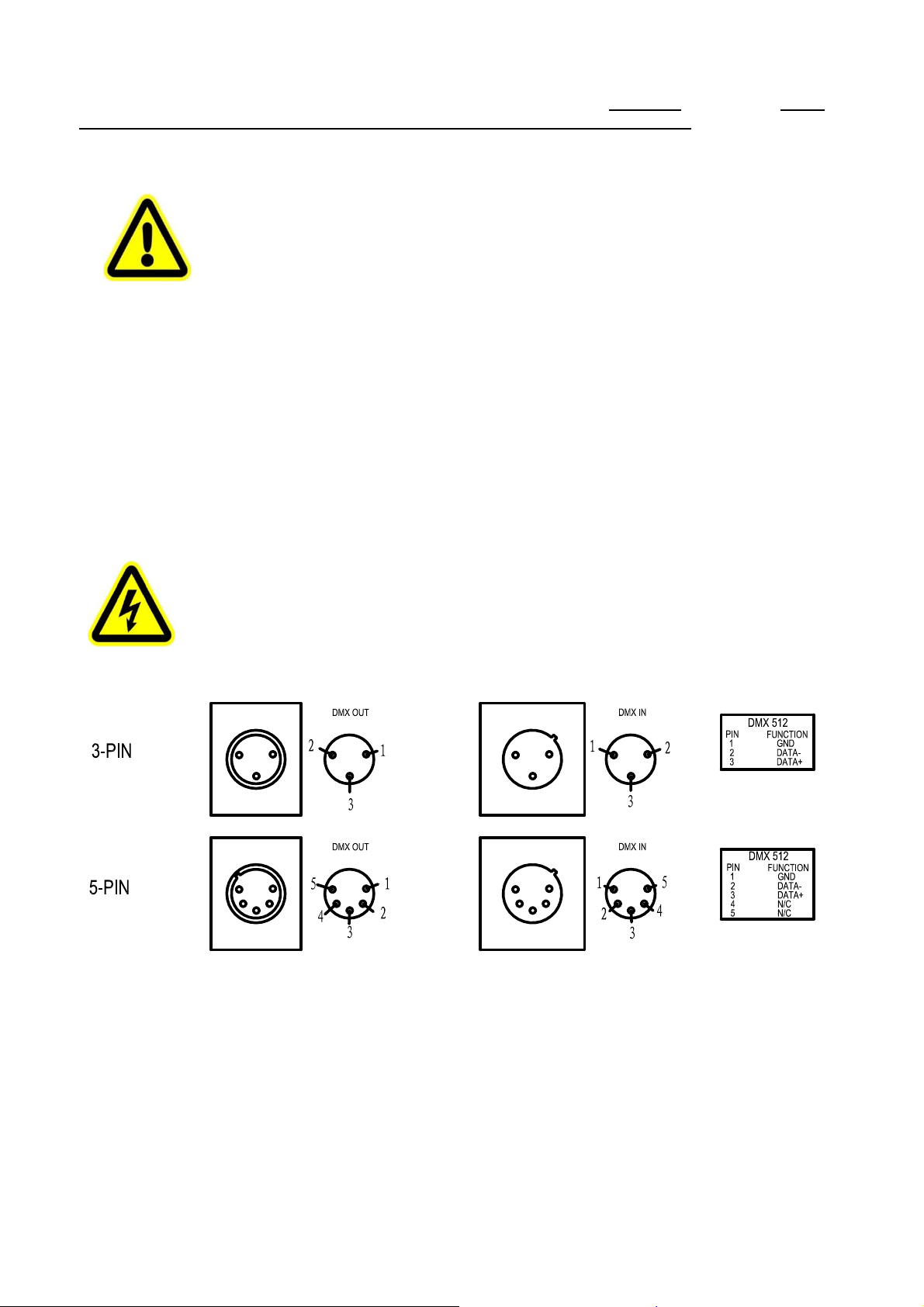

●DMX CONTROL CONNECTION
2 .
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with
each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the
projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets
mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol
DMX512 (1990).

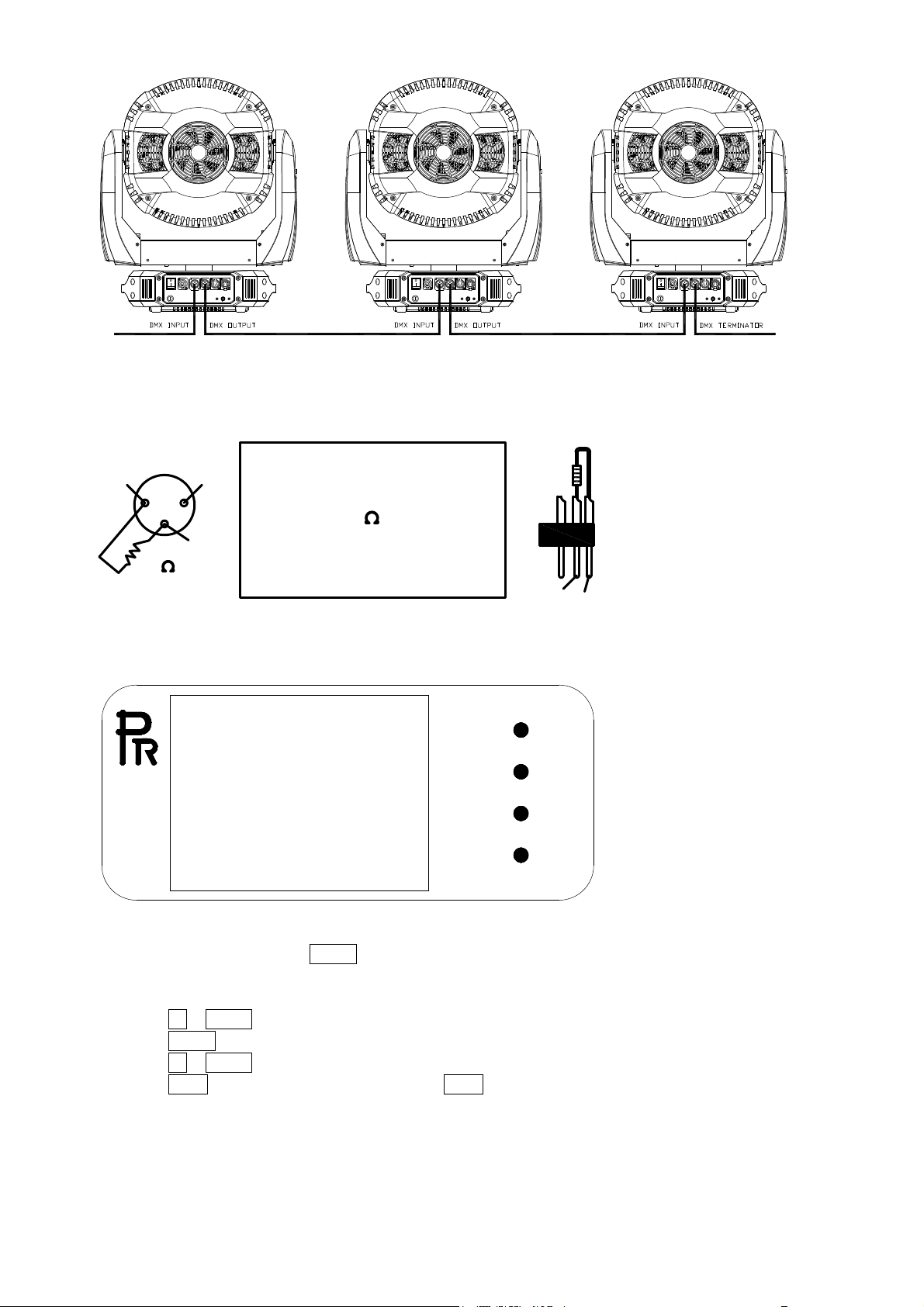

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second
fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX
terminator as shown in the figure below.
4
Page 7
●DMX TERMINATOR
In the Controller mode, at the last projector in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged
into the output socket on the last projector in the chain. The connections are illustrated below.
2
1
CONNECTION
Connect a 120 (OHM) resistor
DMX TERMINATOR
3
120
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 2
PIN 3
5. SETUP AND CONFIGURATION
●FRONT PANEL OPERATION
FUNC
UP
DOWN
ENTER
Projector configuration can be set conveniently via push button and the touch screen.
Launch the projector and press button ENTER for more than 3seconds to unlock the panel, the display will show the function menu of
the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the
“OPERATION MENU” section.
Press button UP or DOWN if you want to browse through the various Setup Options.
Press button ENTER to save your settings or enter the submenu.
Press button UP or DOWN to change values(plus or minus)
Press button FUNC, it will return to the upper menu. If button FUNC not pressed, the default will show display status automatically.
● DMX START ADDRESS
If many projector s are controlled by the controller, each projector should be set with a start address to receive signals sent by the
controller and respond to it. The projector have 3 DMX modes. There are short mode, standard mode and extended mode. For
example standard mode has 18channels, so set the No. 1 Projector ’s address 001, No. 2 Projector ’s address 019, No. 3 Projector ’s
5
Page 8
address 037 and so on.
Launch the projector. Press button ENTER more than 2seconds to unlock panel.
Press button ENTER to display DMX address;
Press button UP and DOWN, you can set the address;
Press button ENTER to confirm; after powered on next time, the default will be last value saved
Press button FUNC, it will return to the upper menu
●DMX WIRELESS CONTROL (Optional)
The projector has the optional wireless control function. With wireless receiver module and antenna, it can achieve remote control.
The setup of it is below:
1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN
2. Select DMX control Mode---- Wireless First (Note: do not select XLR ONLY),then wireless indication in the
front panel will be on, meaning wireless control function is activated.
Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it,
Press “Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns .
●STAND-ALONE MODE
Operate the projector without connecting with a controller, enable the master mode through the operation panel, the
projector will run in Stand-Alone mode automatically.
DMX address can be set at any number within 512.

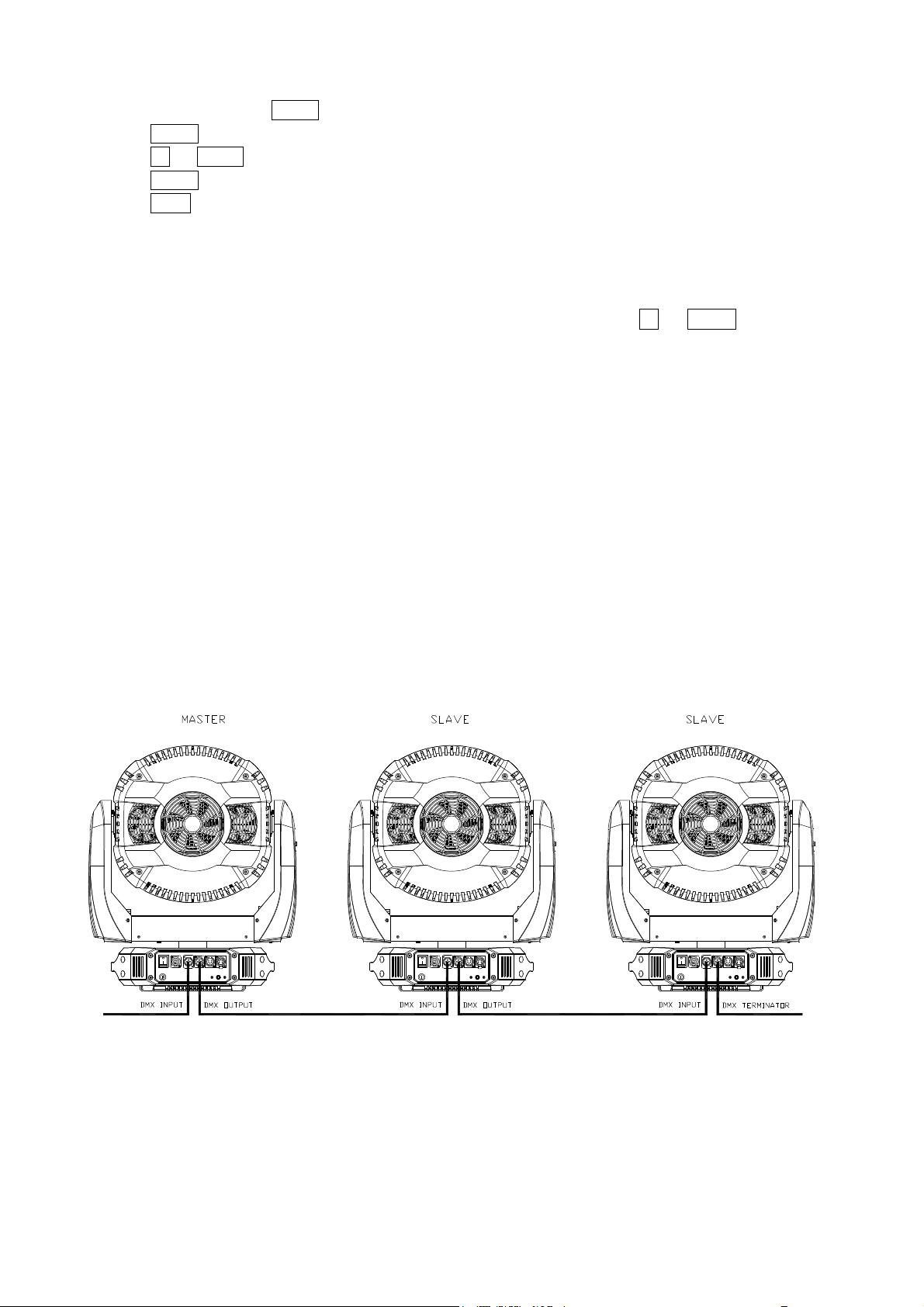

●MASTER/SLAVE MODE
Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,
connect the first projector ’s DMX output to the second projector ’s DMX input using XLR-XLR control cable and then connect the
second projector ’s DMX output to the third projector ’s DMX input, and so on until all projector are connected in this way. Eventually
connect the last projector ’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.
Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can
be set accordingly.
After Powered on, the group will run in Master/Slave Mode
6
Page 9
6. OPERATION MENU
1st level menu 2nd level menu 3rd level menu 4th level menu
Portset
Reset Are You Sure
1-494
DMX Mode
Loss of DMX
Wireless Mode
Standard 19
EXTENDED92
Normal Time Out
Hold Last Value
XLR First
XLR Only
Wireless Only
Wireless First
WirelessTo XLR
Config Set
Slave
Master/Slave
Master
OffAfterDelay
Display Mode
On Always
DisplayContrast
Pan amend
Tilt amend
Unlink Wireless YES
ResetUserData YES
ResetOptionSet YES
FactorySettings
XX
1-31
XXX
1-127
XXX
1-127
YES
ParameterTransm YES
7
Page 10
Touch Regulate YES
Option Set
Off
Pan DMX Invert
On
Off
Tilt DMX Invert
On
Off
Pan Tilt Swap
On
Power On Hours XXXX
MainBoard X.X.X
Pan&Tilt X.X.X
Software Version
Driver 1 X.X.X
Driver 2 X.X.X
Info
Temperature
View DMX Values
Electronic SN
RDM Device Lable
Fan Board X.X.X
Touch Board
Display Board
Pan and Tilt
Driver 1
Driver 2
Driver 3
Channel XXX=XXX
SN=XXXXXXXXXXXX
Version X.X
X opto Error
Sensor Errorview
Y opto Error
X Hall Error
8
Page 11
Y Hall Error
MEMS ralves
Self test Yes
Strobe
Lens-RHall Error
Zoom Hall Error
Out-X
Out-Y
Out-Z
Open
Strobe 1
Strobe 2
All off
Red
Test mode
Green
Blue
Lamp
White
Yellow
Cyan
Purple
All on
Stop Rotating
Lens Rotating
Rotating
Reverse Rotating
Zoom 0-255
Pan Location 0-255
Tilt Location 0-255
9
Page 12
Pan&Tilt Speed 0-255
Operatio Mode
DMX Operation
Preset Memory
User Memory
0-255
Strobe 0-255
Dim 0-255
Dim Speed 0-255
CTC 0-255
Move Effec 0-255
Color Maco 0-255
Red 0-255
Green 0-255
Blue 0-255
White 0-255
Zoom 0-255
Lens Rotation 0-255
Pan Location 0-255
Tilt Location 0-255
P&T Speed 0-255
Keep time 0-255
Remark:
1. In the synchronous control of multiple projectors parameters can be transmitted from the master including: DMX mode,
display setting, operation mode(user memory);
2. all projectors Accepting parameters will automatically be set to slave mode.
Specifications for the SIGN on the top right:
S: Slave M:Master
D:DMX512 I: Preset Memory
U:User Memory T: Test Mode
The sign of LOCK:: All keys are locked, Press Enter key for more than 3s to unlock the keys with the sign of LOCK
disappearing
10
Page 13
7. DMX PROTOCOL
Standard
Mode
1
2 2
3
3 4
4 5
5 6
Extended
Mode
1
Strobe
Dimmer 000-255 Linear Dimmer from dark to bright
Dimmer in 16 bit 000-255 Dimmer in 16 bit precision
Dimmer Speed 000-255 From slow to fast
Color Temperature
Animation Effect
6 7 Color Macros
8 Area 1 Red
9
10
11
12
13
14
7
15
16
17
18
19
20
21
22
Area 2 Red
Area3 Red
Area 4 Red
Area 5 Red
Area 6 Red
Area 7 Red
Area 8 Red
Area 9 Red
Area 10 Red
Area 11 Red
Area 12 Red
Area 13 Red
Area 14 Red
Area 15 Red
Function
DMX
Value
Description
000 No
001-127 Pulse Strobe from slow to fast
128-255 Strobe from slow to fast
000 No
001-255
000
001-255
000
Linear CT change from low to high
No
Animation Effect
No
001-015 Color Temperature 3200K
016-031
032-047
048-063
064-079
080-095
096-111
112-127
128-143
144-159
160-175
176-191
192-207
208-223
224-255
Color Temperature 5600K
Color Temperature 7200K
Color Temperature 10000K
Red
Green
Blue
Red &Green
Green & Blue
Red &Blue
Red &White
Green & White
Blue &White
Red & Green & Blue & White
Rainbow effect from slow to fast
000-255 Area 1 linear change from dark to bright
000-255 Area 2linear change from dark to bright
000-255 Area 3linear change from dark to bright
000-255 Area 4linear change from dark to bright
000-255 Area 5linear change from dark to bright
000-255 Area 6linear change from dark to bright
000-255 Area 7linear change from dark to bright
000-255 Area 8linear change from dark to bright
000-255 Area 9linear change from dark to bright
000-255 Area 10linear change from dark to bright
000-255 Area 11linear change from dark to bright
000-255 Area 12linear change from dark to bright
000-255 Area 13linear change from dark to bright
000-255 Area 14linear change from dark to bright
000-255 Area1 5linear change from dark to bright
11
Page 14
8
9
10
23
24
25
26
Area 16 Red
Area 17 Red
Area 18Red
Area 19 Red
27 Area 1 Green
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
Area 2 Green
Area3 Green
Area 4 Green
Area 5 Green
Area 6 Green
Area 7 Green
Area 8 Green
Area 9 Green
Area 10 Green
Area 11 Green
Area 12 Green
Area 13 Green
Area 14 Green
Area 15 Green
Area 16 Green
Area 17 Green
Area 18 Green
Area 19 Green
46 Area 1 Blue
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
Area 2 Blue
Area3 Blue
Area 4 Blue
Area 5 Blue
Area 6 Blue
Area 7 Blue
Area 8 Blue
Area 9 Blue
Area 10 Blue
Area 11 Blue
Area 12 Blue
Area 13 Blue
Area 14 Blue
Area 15 Blue
Area 16 Blue
Area 17 Blue
Area 18 Blue
Area 19 Blue
65 Area 1 White
66
Area 2 White
000-255 Area 16linear change from dark to bright
000-255 Area 17linear change from dark to bright
000-255 Area 18linear change from dark to bright
000-255 Area 19linear change from dark to bright
000-255 Area 1 linear change from dark to bright
000-255 Area 2linear change from dark to bright
000-255 Area 3linear change from dark to bright
000-255 Area 4linear change from dark to bright
000-255 Area 5linear change from dark to bright
000-255 Area 6linear change from dark to bright
000-255 Area 7linear change from dark to bright
000-255 Area 8linear change from dark to bright
000-255 Area 9linear change from dark to bright
000-255 Area 10linear change from dark to bright
000-255 Area 11linear change from dark to bright
000-255 Area 12linear change from dark to bright
000-255 Area 13linear change from dark to bright
000-255 Area 14linear change from dark to bright
000-255 Area1 5linear change from dark to bright
000-255 Area 16linear change from dark to bright
000-255 Area 17linear change from dark to bright
000-255 Area 18linear change from dark to bright
000-255 Area 19linear change from dark to bright
000-255 Area 1 linear change from dark to bright
000-255 Area 2linear change from dark to bright
000-255 Area 3linear change from dark to bright
000-255 Area 4linear change from dark to bright
000-255 Area 5linear change from dark to bright
000-255 Area 6linear change from dark to bright
000-255 Area 7linear change from dark to bright
000-255 Area 8linear change from dark to bright
000-255 Area 9linear change from dark to bright
000-255 Area 10linear change from dark to bright
000-255 Area 11linear change from dark to bright
000-255 Area 12linear change from dark to bright
000-255 Area 13linear change from dark to bright
000-255 Area 14linear change from dark to bright
000-255 Area1 5linear change from dark to bright
000-255 Area 16linear change from dark to bright
000-255 Area 17linear change from dark to bright
000-255 Area 18linear change from dark to bright
000-255 Area 19linear change from dark to bright
000-255 Area 1 linear change from dark to bright
000-255 Area 2linear change from dark to bright
12
Page 15
67
On DMX
signal
OK Off No DMX signal
Flash
DMX
signal error
Being linked with a transmitter or being
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
Area3 White
Area 4 White
Area 5 White
Area 6 White
Area 7 White
Area 8 White
Area 9 White
Area 10 White
Area 11 White
Area 12 White
Area 13 White
Area 14 White
Area 15 White
Area 16 White
Area 17 White
Area 18 White
Area 19 White
000-255 Area 3linear change from dark to bright
000-255 Area 4linear change from dark to bright
000-255 Area 5linear change from dark to bright
000-255 Area 6linear change from dark to bright
000-255 Area 7linear change from dark to bright
000-255 Area 8linear change from dark to bright
000-255 Area 9linear change from dark to bright
000-255 Area 10linear change from dark to bright
000-255 Area 11linear change from dark to bright
000-255 Area 12linear change from dark to bright
000-255 Area 13linear change from dark to bright
000-255 Area 14linear change from dark to bright
000-255 Area1 5linear change from dark to bright
000-255 Area 16linear change from dark to bright
000-255 Area 17linear change from dark to bright
000-255 Area 18linear change from dark to bright
000-255 Area 19linear change from dark to bright
11 84 Zoom 000-255 Linear zoom
12 85 Zoom Fine 000-255 Zoom in 16 bit precision
000-063
064-127
13 86 Front Lens Panel Rotation
128-191
192-255
Stop
Forward rotation from slow to fast
Stop
Backward rotation from slow to fast
14 87 Pan 000-255 Pan 0-540 degrees
15 88 Pan in 16 bit 000-255 Pan in 16 bit
16 89 Tilt 000-255 Tilt 0-270 degrees
17 90 Tilt in 16 bit 000-255 Tilt in 16 bit
18 91 Pan and Tilt Speed 000-255 Pan & Tilt speed from fast to slow
000-049 Reserved
19 92 Control Function
050-255 Reset
8. LED INDICATION
DMX LED Indication
W-DMX LED Indication
9. ERROR MESSAGES
WARNING
FanBoardNoSignal
Fan 1 Error
Fan 2 Error
Fan 3 Error
The lamp can be turned on only after the above mentioned 3 fan errors disappear.
On No wireless DMX signal
Off Not linked with any wireless transmitter
Flash
13
unlinked with a transmitter
Page 16
10. TECHNICAL DATA
VOLTAGES
100V~240V AC,50/60Hz
POWER CONSUMPTION
1400W@220V
LIGHT SOURCE
LED: OSRAMS: 60W RGBW LED(SMT), Four in One
Power: 60W,19pcs
Color temperature: Linear change from 2700K to 10000K
Rated life 50000hrs
COLORS
Linear RGBW ,color mixing with unlimited colors, macros
DIMMER
0-100% linearly adjustable
STROBE:
Electronic strobe:0-25 F.P.S.( Pulse Strobe Macro)
OTHER EFFECTS:
Rainbow, Wash, Beam, Profile, Effect Modes(Kaleidoscope, Swirl), multiple macros
ROTATION
Pan 0-540 degrees, Tilt 0-180 degrees with auto-positioning , Bi-directional and continual rotation for the front lens panel

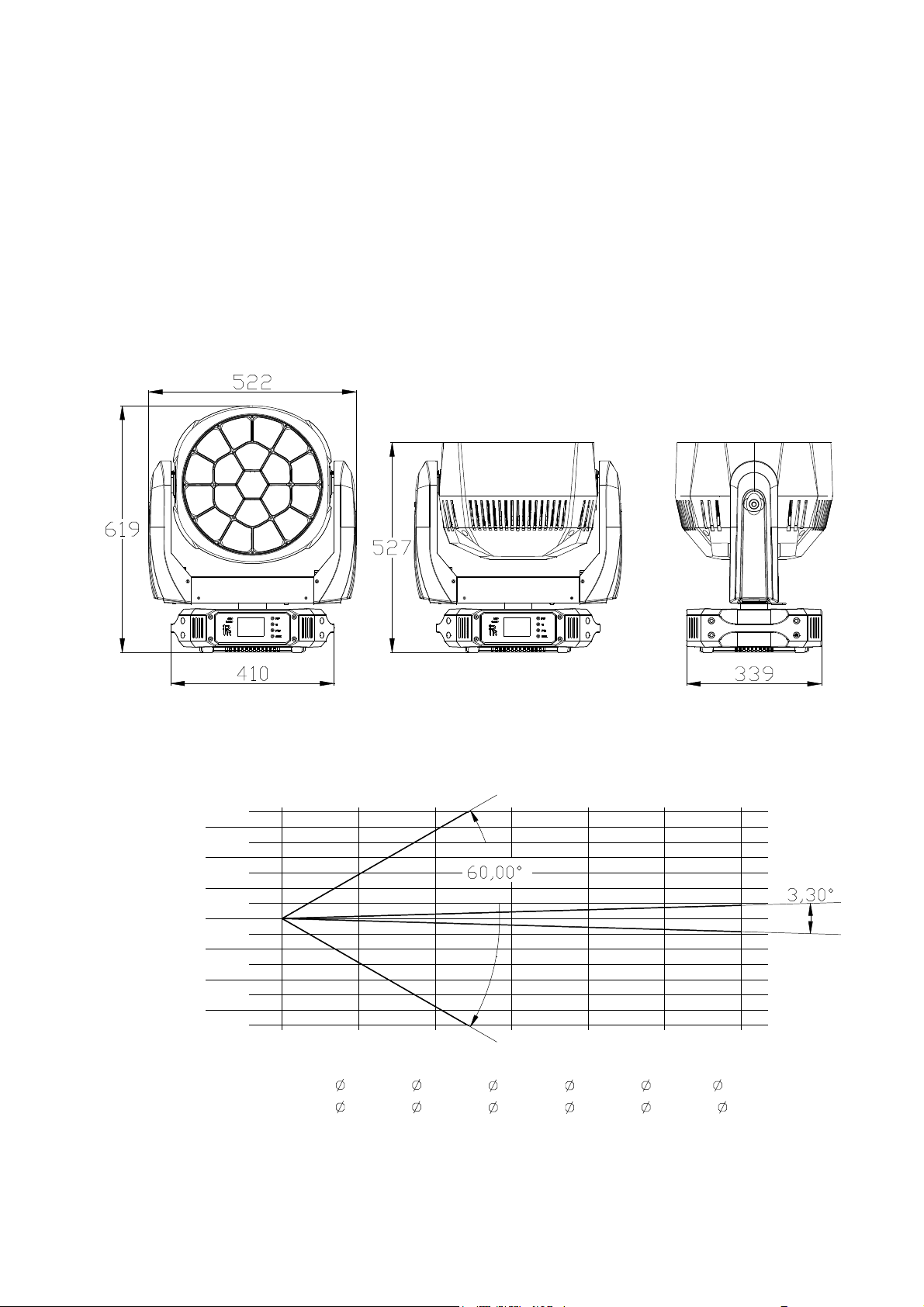

BEAM ANGLE
Beam angle(1/2 peak) θ
: Linear Zoom 3.3°～ 60°
1/2
CONTROL:
International Standard DMX512 signal, 5 pin DMX512 interfaces
19channels in standard mode, and 92 channels in extended mode.
Master/slave mode
Stand-alone mode, Preset mode, Self test mode, static Scene mode
OTHER FUNCTIONS:
Pixel Control
Bi-directional and continual rotation of the front lens panel
Color touch screen and its brightness adjustable
Wireless Control(Optional)
Pan and Tilt Speed adjustable and Pan and Tilt can be inverted
Firmware upgraded via DMX interface and XLR cable,
Over temperature protection
14
Page 17
Total hours, DMX channel number, software versions are displayed and display inversion
HOUSING:
High temperature engineering-plastic, IP20
WEIGHT:
29.5Kg
AMBIENT TEMPERATURE
Maximum ambient temperature: 40 °C
SIZES:
LIGHT OUTPUT :
3.3 °lux
60 °lux
3m
2m
3m
2m
3m
2m
0m
1m
1m
2m
3m
4m
5m
6m
7m
DISTANCE (m)
60°DIAMETER (m)
3.3°DIAMETER (m)
472413 118103 52490 29526 18897 131230
6666 1667 741 417 267 1850
0
0
0
2 4
1.99 3.99
0.12 0.24
6 8 10
5.98 7.97 9.96
0.36 0.48
0.60 0.72
12
11.96
15
Page 18

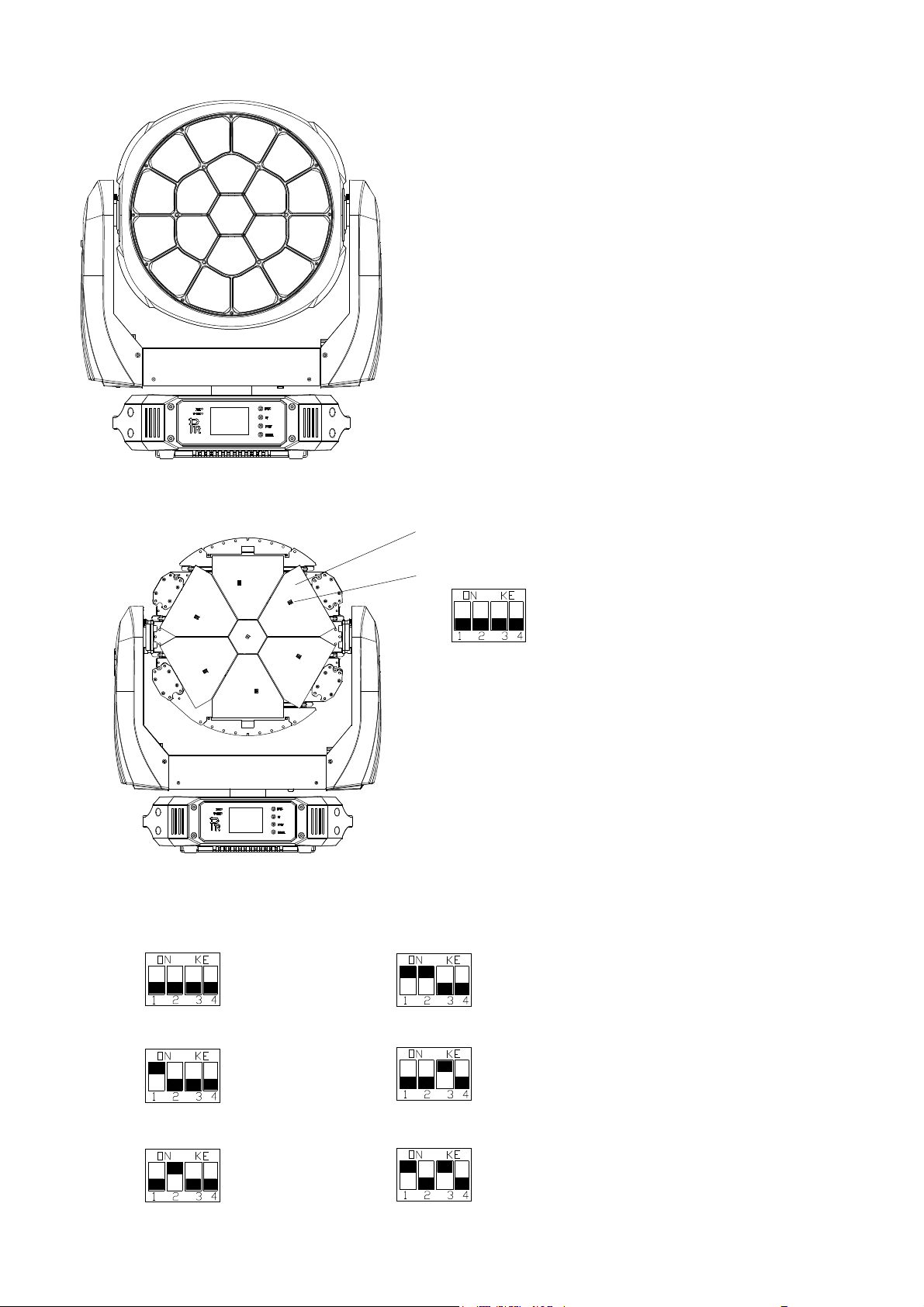

The illustration of LED lamp area distribution
14
13
15
1716
18
6
5
7
19
1
8
4
2
1.LED lamp area from area1 to area19
2.The illustration is the initial status of
the projector after reset.
3
12
9
11 10
The initial status of the projector after reset.
LED lamp board distribution：1～6
DIP switch distribution.:1～6
⑤
②
⑥
①
The illustration of the
initial status of DIP
switch.
④
④
③
Set the DIP switches on their respective lamp
boards as per the following illustrations:
①
②
③
⑤
⑥
16
Page 19
11. CIRCUIT DIAGRAM AND PCB CONNECTIONS
●CIRCUIT DIAGRAM
17
Page 20
●PCB CONNECTIONS
1. 1-channel LED Driver Control Board of PR-8129
No Name
1 Power Input
2 DMX Signal output
3 DMX Signal Input
2. Motor driver board of PR-8129
No Name
1 Motor output
2
3
4
5
6 Fan1
7 Fan2
8 DMX Signal output
9 DMX signal input
10 Thermal sensor input
11 DMX output
12 MS2 magnet sensor
13 MS4 magnet sensor
14 MS3 magnet sensor
15 MS1 magnet sensor
.
4
18
Page 21
3. Pan and Tilt board of PR-8129
4. Master board of PR-8129
No Name
1 X magnet sensor
2 Y magnet sensor
3 X motor output
4 Power input
5 Y motor output
6 Y opt-coupler sensor
7 X opt-coupler sensor
8 DMX Signal input
9 DMX Signal output
No Name
1 Thermal sensor
2 DMX Signal output
3 DMX Signal input
4 Fan
5
6 Power input
7 Battery
8 USART port
9 Lamp control port
10 PWM output
Wireless DMX
signal port
19
Page 22
5. 3 channel LED driver board of PR-8129
OF PR
-
8129
OF PR
-
8129
PR-8129
4 CHANNEL MOTOR DRIVER
12. COMPONENT ORDER CODES
NO
NAME PART NO. QTY REMARKS
No Name
1 DMX Signal output
2 DMX Signal input
3 Power input
1
STEPPING MOTOR
2
STEPPING MOTOR
3
STEPPING MOTOR
4
PWM SPEED ADJUSTABLE FAN
5
FAN
6
FAN(SNON) TAIWAN/NANHAI
7
POWER SWITCH
8
FUSE HOLDER
1 CHANNEL LED DRIVER BOARD
9
3 CHANNEL LED DRIVER BOARD
10
POWER ADAPTOR BOARD OF
11
12
BOARD OF PR-8129
13 PAN AND TILT BOARD OF PR-8129
14 MAIN BOARD OF PR-8129
15 FUSE
16 GATES/UNITA BELT
17 BELT
030040248 1
030040256 4
030040264 2
030060074A 2
030060111 1
030069005 2
192010211 2
210080152 1
230060693 1
230060694 6
230060791 1
230060795 1
230060811 1
230060818 1
270041044 1
290151327 1
290151415A 1
20
14HY5201-14W-100
17HDC1217Y-110NE
24HED4002-28M
AD09224HB257900
PFC0252B1-E01C-QB9 24V
0.45A 4400 转 120 × 120 ×
25mm 建准
EB60252S1-000C-999
A700a-24P
R3-44 C15A 250VAC
6.35×31.8mm 250V 15A
558-3M-9
654-3M-9
Page 23
21
Page 24
PR LIGHTING LTD.
1582 Xingye Avenue, Nancun Panyu
Guangzhou, 511442 China
TEL: +86-20-3995 2888
FAX: +86-20-3995 2330
P/N: 320020521
Version: 20171104
22
Loading...
