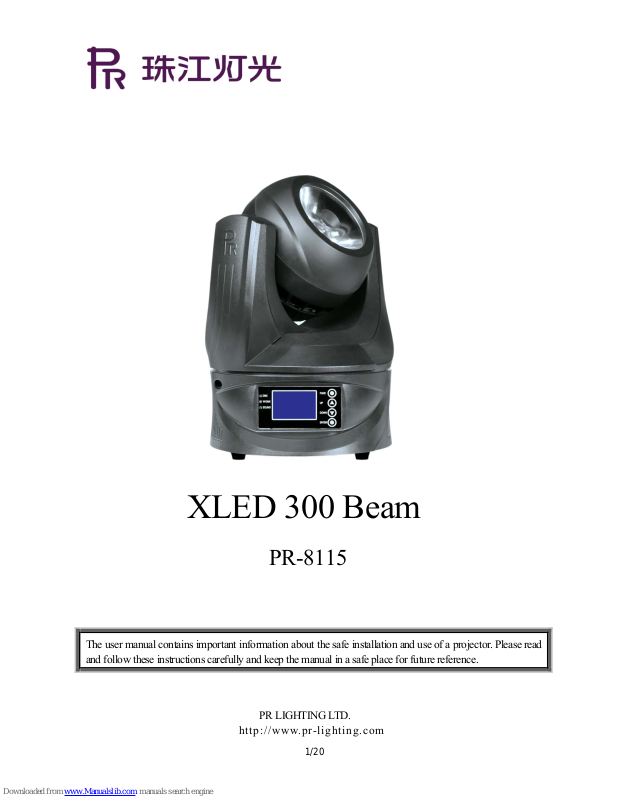

XLED 300 Beam
PR-8115
The user manual contains important information about the safe installation and use of a projector. Please read
and follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
Page 2
XLR connector 1 Set Male and female
2/20
INDEX
1.
SAFETY AND WARNINGS
…………………………………………………………………………………
2.
INSTUCTIONS
……………………………………………………………………………………………
●
CLEANING AND MAINTENANCE
………………………………………………………………………
●
TROUBLESHOOTING
………………………………………………………………………………………
3. APPEARANCE
………………………………………………………………………………………………
4. INSTALLATION
………………………………………………………………………………………………
●
RIGGING
……………………………………………………………………………………………………
●
POWER CONNECTIONS …………………………………………………………………………………
●
DMX CONTROL CONNECTIONs
…………………………………………………………………………
●
DMX TERMINATOR
…………………………………………………………………………………………
5. SETUP AND CONFIGURATION
……………………………………………………………………………
●
FRONT PANEL OPERATION
………………………………………………………………………………
●
DMX START ADDRESS
……………………………………………………………………………………
●
DMX WIRELSESS CONTROL
………………………………………………………………………………
●
STAND-ALONE MODE ……………………………………………………………………………………
●
MASTER/SLAVE MODE
……………………………………………………………………………………
●
AUDIO CONTROL
…………………………………………………………………………………………
6.OPERATION MENU
…………………………………………………………………………………………
7. DMX PROTOCOL
……………………………………………………………………………………………
8. LED INDICATION
……………………………………………………………………………………………
9.
TECHNICAL DATA
……………………………………………………………………………………………
10.CIRCUIT DIAGRAM AND PCB CONNECTIONS
…………………………………………………………
●CIRCUIT DIAGRAM
………………………………………………………………………………………
●PCB CONNECTIONS
………………………………………………………………………………………
11.COMPONENT ORDER CODES
……………………………………………………………………………
3
4
4
5
5
6
6
6
7
7
8
8
8
9
9
9
9
10
12
13
13
16
16
17
19
ACCESSORIES
The following items are supplied with the projector and please check:
Name Quantity Unit Remark
G clamps 1 Pc
Safety cord 1 Pc
User manual 1 Pc
Ω clamps 1 Pc Optional
Wireless Module 1 Set (Optional)
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice. Whilst
every care is taken in the preparation of the manual we reserve the right to change specifications in the course of product improvement. The
publishers cannot be held responsible for the accuracy of the information herein, or any consequence arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good condition
before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the unit. Any damage caused
by improper use will not be assumed by the manufacturer and / or dealer.
Page 3
3/20
1. SAFETY AND W ARNINGS
NOTE
Before a pr ojector’ s installat ion, power -on , operation and maintenanc e, please car efully r ead
the safety information hereinafter!
The following safety signs are used in the user manual.
Warning
User
Manual
Electrical
shock
Goggles
Protective
Gloves
Flames
High
Temperature
●
When unpacking , check if there is transportation damage before using the projector . Should there be any
damage caused by transportation, consult your dealer and do not use it.
●
The manufacture is not responsible for loss caused by the user not following the manual or changing the projector
as he/she likes
●
Please be noted that the damage caused by changing the projector at will is not warranted.
●
Do not hesitate to contact the dealer or the manufacturer if any questions or advice.
●
The projector is for indoor use only, IP20.
●
Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not
allow contact with water or any other liquids.
●
The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while
being operated
●
The projector is only intended for installation, operation and maintenance by qualified personnel. And the
operation must strictly follow the procedures in the manual
●
No repairable parts in the projector and do not open covers for maintenance by yourself.
●
Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.
●
Do not connect this device to any type of dimmer pack
●
After lamp switched on, the minimum distance between the projector and illuminated surface is 1.5m
●
lens and other optical parts shall be replaced immediately if they have deformed or been damaged, otherwise
the light output will be compromised.
●
Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a
projector while covers(housing)are off
●
Keep the lamp clean and do not touch it with bare hands.
●
While operating it, wear protective items.
●
Any electrical connection must be carried out by a qualified person .
●
Before installation, please confirm the voltage supplied matches what is required for the projector
●
Each projector must be properly earthed and installed as per related electrical standards.
●
Do not use power cord with its insulator damaged and connect the power cord with other cables.
●
If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully
or by pulling the power cable.
●
All power cords must conform to related safety and regulations
●While being operated, the projector should not be under rains or in humidity.
●
Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other
electrical parts’ life will be shortened .
Page 4
4/20
●
There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety
cord supplied through the safety cord holes for safety support.
●
Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from
power mains.
●
After running for 30minutes, the temperature of the housing of the projector is 45℃.After stable
operation , its temperature is
60
℃.
●
While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does
not mean the projector has some defects.
●Do not mount the projector directly on inflammable surface.
●
Do not project the beam straightly on combustible items and the minimum distance between the
projector and illuminated items is 1.3m.
●
A projector should be installed with good ventilation and the minimum distance between the projector
and walls is 50cm. At the same time, please ensure the fans and air inlets and outlets are workable.
2. INSTRUCTIONS
●
CLEANING AND MAINTENANCE
If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the
projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the
projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved,
restart the projector.
The accumulation of oil, smoke and dust on the lens will compromise the light output. Cleaning a projector is very necessary to
ensure a reliable use of it. Cooling fans need to be cleaned every 15days. Internal lens, reflector and hot mirror need to be cleaned
periodically to optimize light output.
Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning
work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean
and do not touch optical parts with bare hands.
●
Before any maintenance and cleaning, please ensure the project is off the power
●
Only qualified person is allowed to do maintenance
●
During maintenance and before maintenance, the projector must be off power.
●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens
whether it runs or not
●
Do not use alcohol or other organic solvent to clean the housing to avoid damage.
●
Do not use any solvent with chemical elements to clean color filters or hot mirror.
Page 5
5/20
●
TROUBLESHOOTING
PROBLEM ACTION
The projector doesn’t switch on
¾ Check the fuse on the power socket.
¾ Check the lamp.
The lamp is on but the projector doesn’t respond
to the controller
¾ Make sure that the fixture’s start address is right
¾ Replace or repair the XLR signal cable.
The projector functions intermittently ¾ Make sure the fan is working well or fans and their shields are not blocked
Beam appears dim, Low in brightness
¾ Make sure the lamp is within its lifespan
¾ Remove dust or grease from the lenses.
The project image appears to have a halo ¾ Carefully clean the lamp, optical lenses and other components.
Heavily Defective Beam
¾ Check if lens are in good condition(not cracked)
¾ Clean dust or grease on the lens.

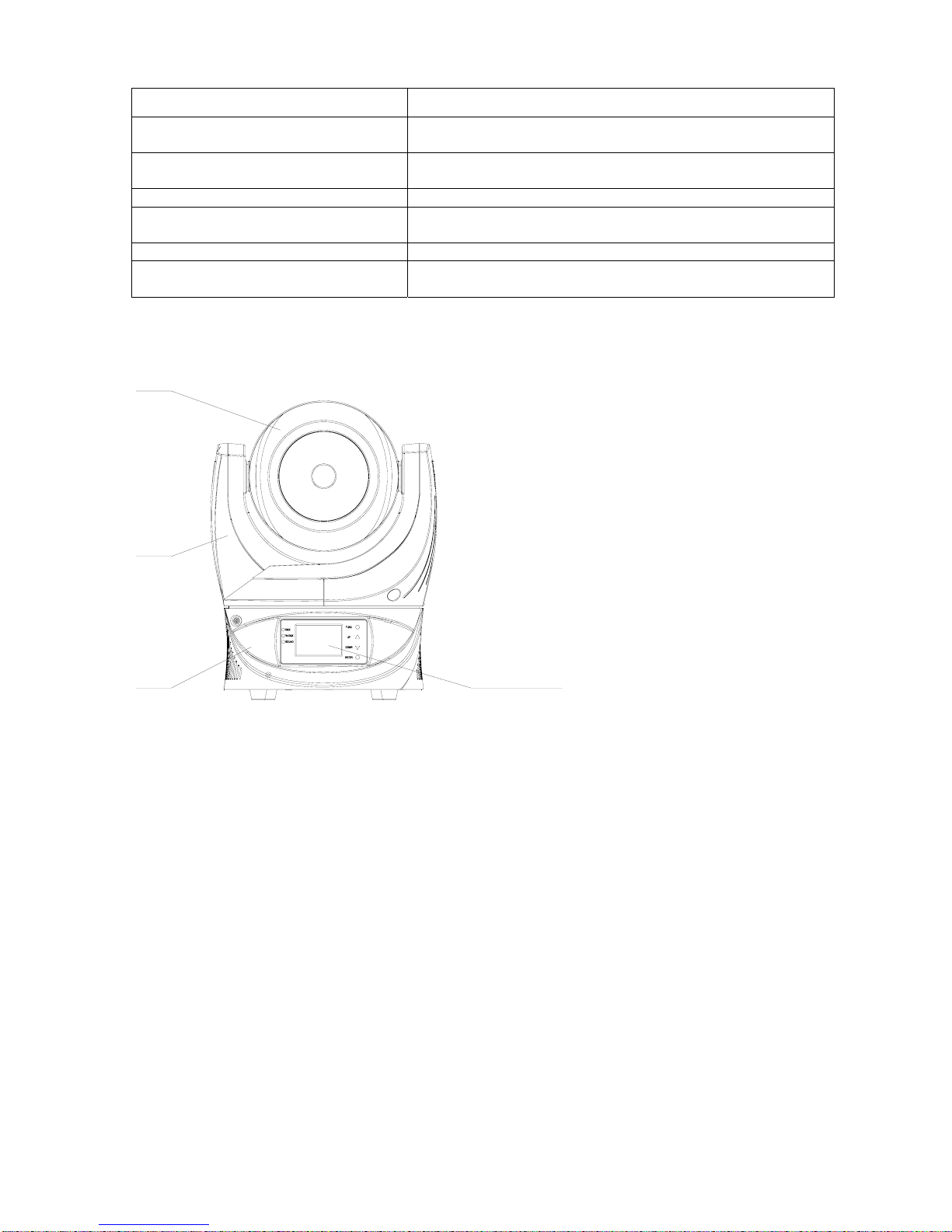

3. APPEARANCE
Head
Arm
Base Control Panel
Page 6
6/20
4. INSTALLATION
●
RIGGING

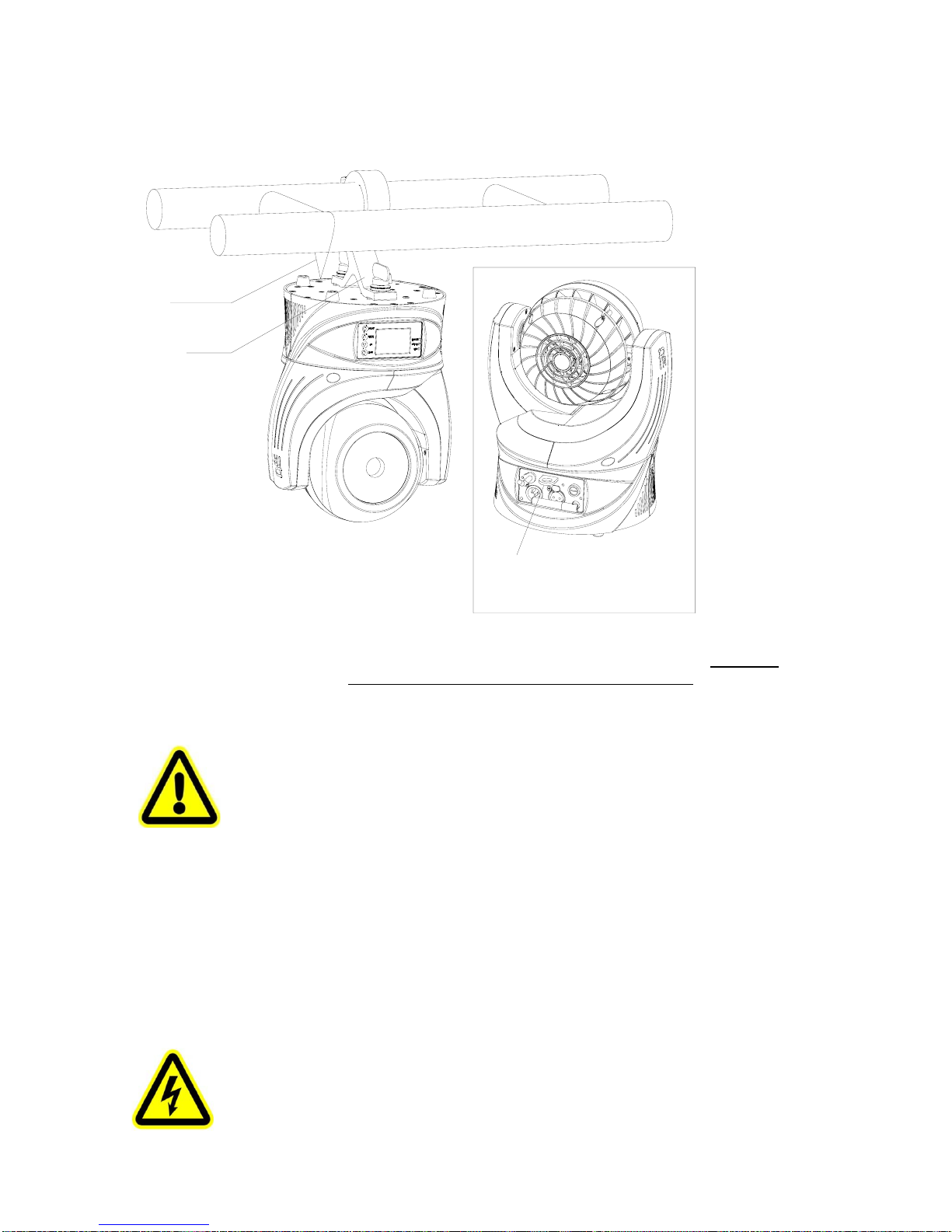

Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a
projector with power while it is locked
Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached
to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the
underside of the base as shown above) T o pass the SAFETY CORD through the HOLES for safety! Always ensure that the
projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going
to mount the projector to is secure and strong enough to support the weight of a XR 1000 Framing
WARNING:
●
The projector MUST be lifted or carried by the HANDLES instead of clamps.
●
.For safety the safety cord should afford 10 times the Projector’s weight.
●
POWER CONNECTION
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each
projector be connected with power separately so that they may be individually switched on and off.
●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in
accordance with the standards concerned.
●
If any questions about the electrical installation, do not continue but consult a qualified electrician.
Safety Cord
WARNING：
Please run the safety cord through
safety hole and make sure that the
cord is property secured.
Clamp
Page 7
7/20
●

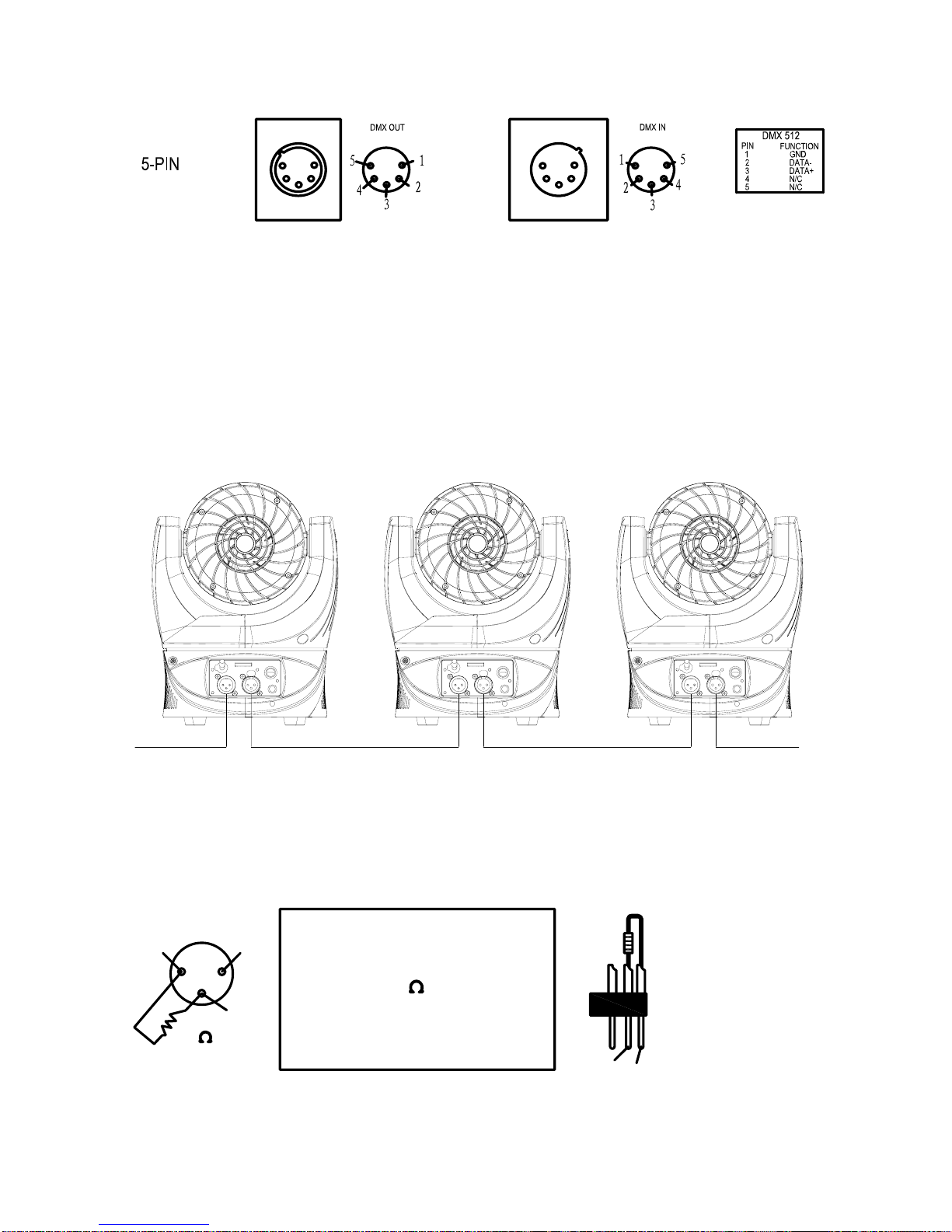

DMX CONTROL CONNECTION:
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with
each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the
projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets
mustn’t be connected in any way other than mentioned in the above figure. The XR330BWS accepts digital control signals in protocol
DMX512 (1990).
Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second
fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX
terminator as shown in the figure below.
●
DMX TERMINAT OR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged
into the output socket on the last projector in the chain. The connections are illustrated below.
DMX OUT
NO.1
DMX IN DMX OUT DMX IN
TERMINATOR
NO.2 NO.n
DMX IN FROM
CONTROLLER
2
1
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2
Page 8
8/20
5. SETUP AND CONFIGURA TION
●

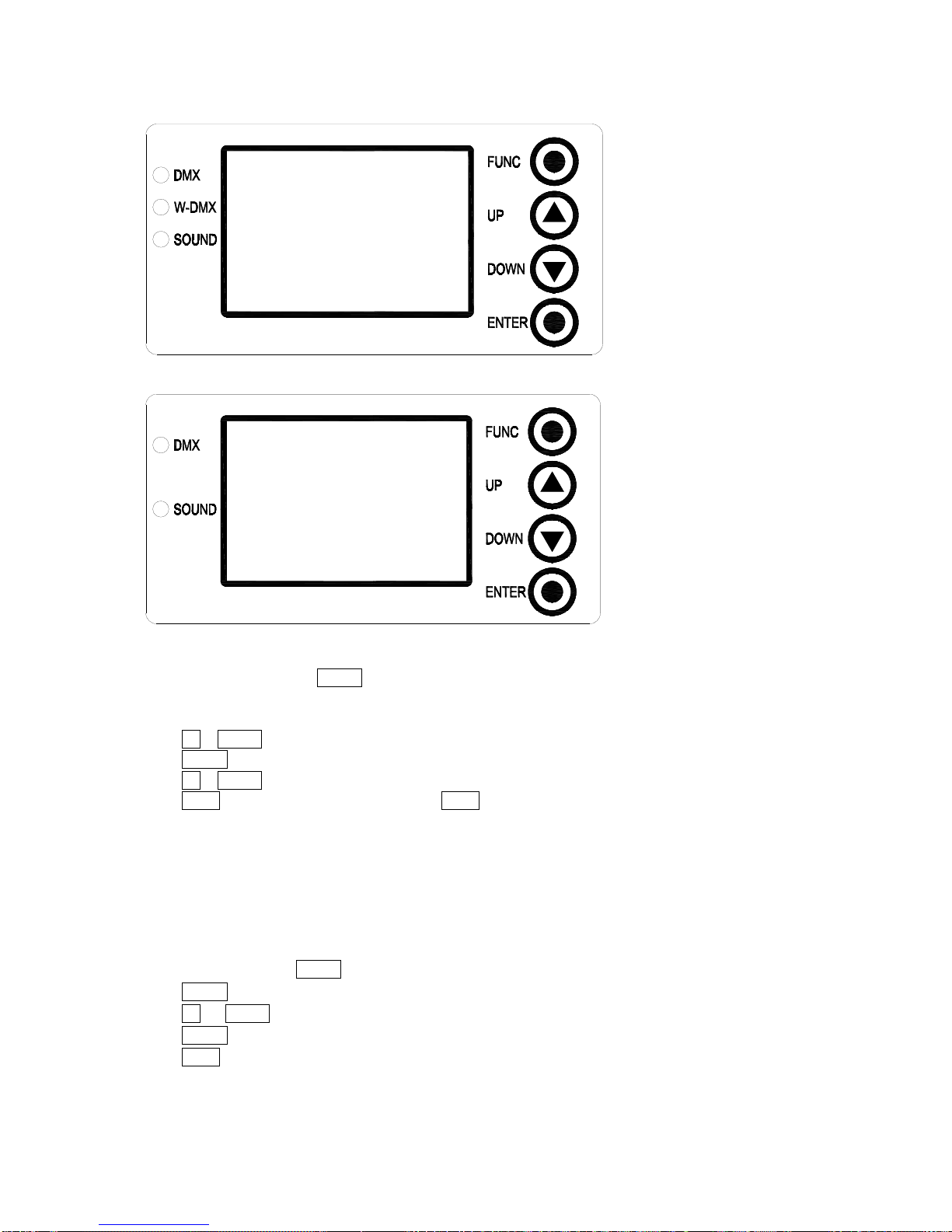

Front Panel Operation
Front Panel with Wireless Control Function
Front Panel without Wireless Control Function
Projector configuration can be set conveniently via push button and LCD display.
Launch the projector and press button ENTER for more than 2 seconds to unlock the panel, the LCD will show the function menu of
the projector, each main menu has its submenus and each submenu has a specific fu nction. For detai ls, please see th e
“OPERATION MENU” section.
Press button UP or DOWN if you want to browse through the various Setup Options.
Press button ENTER to save your settings or enter the submenu.
Press button UP or DOWN to change values(plus or minus)
Press button FUNC, it will return to the upper menu. If button FUNC not pressed, the default will show display status automatically.
●
DMX START ADDRESS
Each Projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX
start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the
controller. The Unit has 2 DMX modes. There are standard mode and extended mode. For example standard mode has 18 channels,
so set the No. 1 projector’s address 001, No. 2 projector’s address 019, No. 3 projector’s address 037, No. 4 projector’s address056,
and so on.
Launch the projector. Press button ENTER more than 2seconds to unlock panel.
Press button ENTER to display DMX address;
Press button UP and DOWN, you can set the address;
Press button ENTER to confirm; after powered on next time, the default will be last value saved
Press button FUNC, it will return to the upper menu
.
Page 9
9/20
●
DMX WIRELESS CONTROL (If the projector has the function)
The projector has wireless control function with wireless receiver module and antenna for remote control.
The setup of it is below:
1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of
UP and DOWN
2.
Select DMX control Mode---- Wire les s Fi rst (Note: do not select XLR ONLY),then wireless indication in the
front panel will be on, meaning wireless control function is activated.
Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it,
Press “Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns .
●
ST AND-ALONE MODE
Operate the projector without connecting with a controller, enable the master mode through the operation panel, the
projector will run in Stand-Alone mode automatically.
DMX address can be set at any number within 512.
●
MASTER/SLA VE MODE

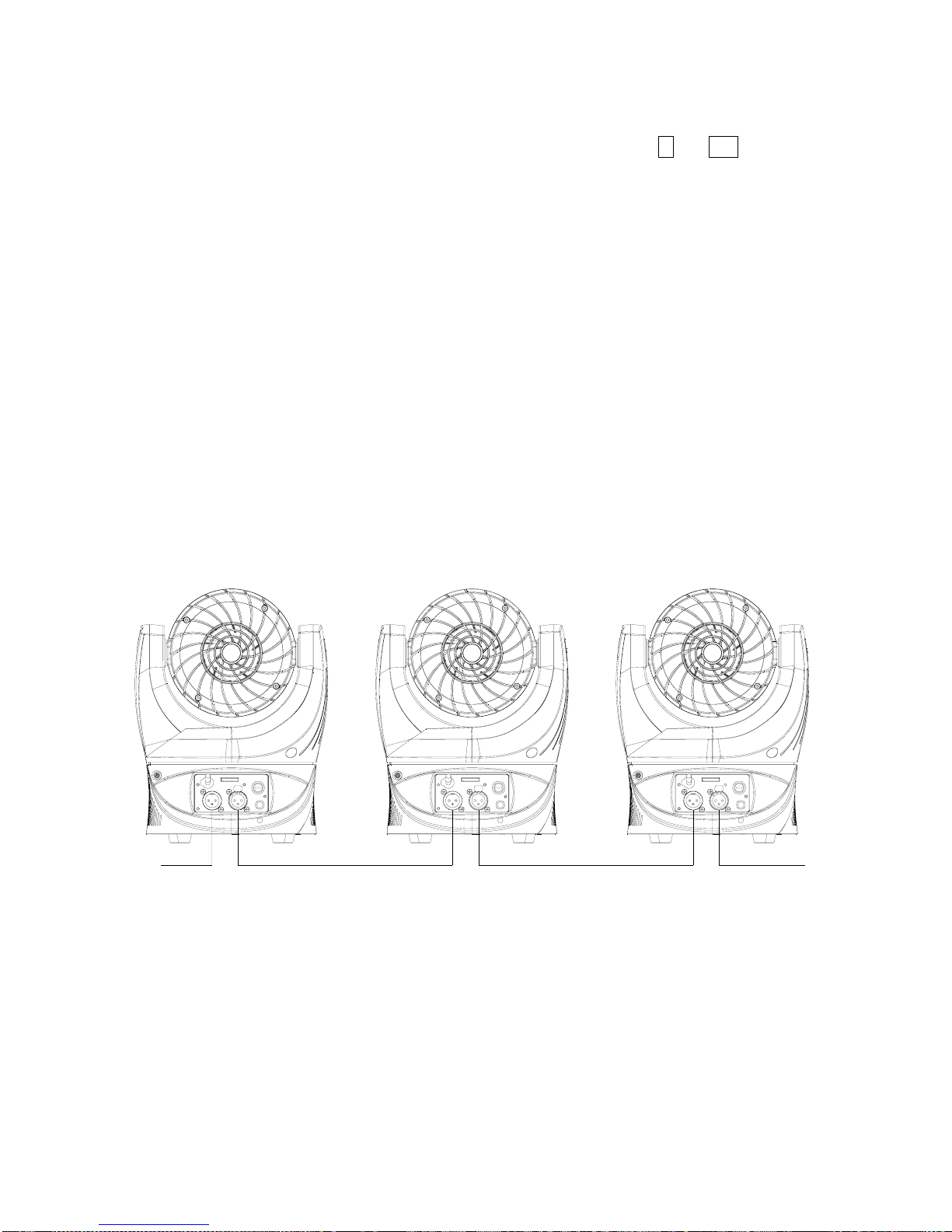

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,
connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second
fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the
last fixture’s DMX output to a DMX terminator. Set 1
st
projector as the master and others are Slaves.
Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can
be set accordingly.
After Powered on, the group will run in Master/Slave Mode
●
AUDIO CONTROL
Select audio control under operation mode and set audio sensitivity(0-100) in the parameter settings based on different application
environment.
Note: If multiple projectors are connected in series, only master’s sound control works.
DMX OUT
MASTER SLAVE SLAVE
DMX IN DMX OUT DMX INDMX IN
TERMINATOR
Page 10
10/20
6. OPERATION MENU
1st level menu 2nd level menu 3rd level menu 4th level menu
DMX Address
Standard：1~495
Extended ：1~491
Reset Are You Sure
Config Set
DMX Mode
（Default：Standard 18）
Standard 18
Extended 22
Loss of DMX
（Default: Normal Ti me Out）
Normal Time Out
Hold Last Value
Wireless Mode
（Default：XLR First）
XLR First
XLR Only
Wireless Only
Wireless First
Wireless T o XLR
Master/Slave
（Default：Slave）
Slave
Master
Display Mode
（Default：Off After Delay）
Off After Delay
On Always
Display Reverse
（Default：Off）
Off
On
Language
（Default：English）
English
Chinese
Sound Level
(Default:50)
1～100
Display Contrast
(Default:16)
0-31
Unlink Wireless YES
Reset User Data YES
Reset Option Set YES
Factory Settings YES
Parameter Transm YES
Option Set
Pan DMX Invert
（Default：Off）
Off
On
Tilt DMX Invert
（Default：Off）
Off
On
Pan Tilt Swap
（Default：Off）
Off
On
Pan Angle Range
（Default：360 degree）
360 degree
720 degree
Information
Power On Hours XXXX
Software Version
Main Board X.X.X
Pan&Tilt X.X.X
LED Driver X.X.X
Temperature
Head Sensor XX
Main Board XX
Pan&Tilt XX
LED Driver XX
View DMX Values Channel XXX=XXX
Electronic SN SN=XXXXXXXXXXXX
RDM Device Lable Version X.X.X
Sensor Error View
X Opto Ok/Er
Y Opto Ok/Er
X Hall Ok/Er
Page 11
11/20
Y Hall Ok/Er
T est Mode
Self Test YES
Lamp
OFF
Red
Green
Blue
White
R&G
G&B
R&B
R&G&B
ON
Pan Location 0-255
Pan Rotaing 0-255
0-127Stop
128-191Forward
Rotation from slow to
fast
192-255 Reverse
Rotation from slow to
fast
Tilt Location 0-255
Tilt Rotaing 0-255
0-127Stop
128-191Forward
Rotation from slow to
fast
192-255 Reverse
Rotation from slow to
fast
Pan & Tilt Speed 0-255
Operation Mode
DMX Operation
Preset Memory
User Memory
Sound Operation
Static Scene 1～16
CH1 Strobe 0-255
CH2 Dim 0-255
CH3 Dim Speed 0-255
CH4 Red 0-255
CH5 Green 0-255
CH6 Blue 0-255
CH7 White 0-255
CH8 Pan Location 0-255
CH9 Pan Rotaing 0-255
CH10 Tilt Location 0-255
CH11 Tilt Rotaing 0-255
CH12 P&T Speed 0-255
CH13 Keep Time 0-255 X*40mS
Note:
1. In one DMX chain, only one unit can be made as the master. Before master works, unplug its XLR cable
connected with the console.
2. The parameters transmitted from the master include after several units are synchronized: DMX channel mode,
display settings(display contrast excluded),operation mode(including user memory).During parameter transmission,
set the unit transmitting data as master and others as slaves
3. The contents marked with * apply only if the unit has wireless control function.
Page 12
5 ColorTemperature
2 2 Dimmer 000-255 Linear Dimming 0%-100%
12/20
7. DMX PROTOCOL
Standard
mode
Extended
mode
Function DMX Description
1 1 Strobe
000 No
001-127 Pulse strobe from slow to fast
128-255 Strobe from slow to fast
3 Dimming fine 000-255 Dimming in 16 bit
4 4 Dimming Speed 000-255 Dimming from slow to fast
5
000 No
001-255 CT linear adjustment from low to high
6 6 Color Macros
000 No
001-015 3200K
016-031 5600K
032-047 7200K
048-063 10000K
064-079 Red
080-095 Green
096-111 Blue
112-127 Yellow
128-143 Cyan
144-159 Magenta
160-175 Red +White
176-191 Green +White
192-207 Blue + White
208-223 White
224-255 Rainbow effect（speed from slow to fast between 224 and 255）
7 7 Red 000-255 Linear change from light to dark
8 Red fine 000-255 Red in 16 bit
8 9 Green 000-255 Linear change from light to dark
10 Green fine 000-255 Green in 16 bit
9 11 Blue 000-255 Linear change from light to dark
12 Blue fine 000-255 Blue in 16 bit
10 13 White 000-255 Linear change from light to dark
14 White Fine 000-255 White in 16 bit
11 15 Pan Indexing 000-255 Pan Indexing (0~360°)
12 16 Pan Indexing Fine 000-255 Pan Indexing in 16 bit
13 17 Pan Rotation
000-127 Stop
128-191 Reverse Rotation from slow to fast
192-255 Forward Rotation from slow to fast
14 18 Tilt Indexing 000-255 Tilt Indexing 0~270°
15 19 Tilt Indexing Fine 000-255 Tilt Indexing in 16 bit
16 20 Tilt Rotation
000-127 Stop
128-191 Reverse Rotation from slow to fast
192-255 Forward Rotation from slow to fast
17 21 Pan and Tilt Speed 000-255 Pan and Tilt speeds from fast to slow
18 22 Control
000-048 Reserve
049-255 Reset
Note: DMX channel priority: Color macros>single color dimming and CT ; Pan continuous rotation>Pan Indexing
Tilt continuous rotation>Tilt Indexing
Page 13
Linear dimming 0%-100%
set memory for strobe effect) Electronic strobe 0-25 F.P.S.(Pre
BEAM ANGLE:
STROBE:
DIMMER:
COLOR TEMPERATURE:
Manufacturers Rated Lamp Life 50000 hours
OSTAR Stage LE RTDUW S2WP
13/20
8. LED INDICATION
DMX indication
On DMX signal OK
Off No DMX signal
Flash DMX signal error
W-DMX indication
On Linked with a transmitter
Off Not linked with any transmitter
Flash
Being linked with a transmitter or losing link with it or without
any wireless signal
Sound control indication
On Sound Control OK
Off Sound Control Off
Explanations for the signs on top right of the display：
S Slave
M Master
D DMX 512 Mode
I Reset memory
V Sound Control
U User memory
T Test Mode
Lock sign
Buttons locked, press ENTER for more than 3s to unlock th e buttons with lock
sign disappearing
9. TECHNICAL DATA
INPUT VOL T AGES: 100V~240V AC，50/60Hz
RA TED POWER :120W@220V
LIGHT SOURCE SPECIFICATIONS:
OSRAM
Power Consumption 60W(RGBW 4 in 1)
COLORS:
RGBW linear color mixing with macros
Color temperature linear adjustment from low to high
Beam Angle(1/2 peak):
4.7°
Page 14
Over temperature protection
Fixture time, DMX 512 channel display, software version display and display invert
Advanced RDM function
DMX 512 wireless control
Sound control
Touch buttons ,LCD display with brightness and contrast adjustable
Tilt: 270° and endless rotation;
Pan: 720°or 360° and endless rotation;
DMX512, 3-pin and 5-pin interfaces
14/20
CONTROL:
18channels in standard mode and 22channels in extended mode
Master/Slave Mode
Stand Alone Mode, Preset Memory, Test Mode and Single Scene Mode
OTHER FUNCTIONS:
HOUSING: High temperature ABS, IP20
NET WEIGHT : 4.5Kg
OPERA TION TEMPERA TURE:
-20°C～40°C
Page 15
15/20
297
224
279
150

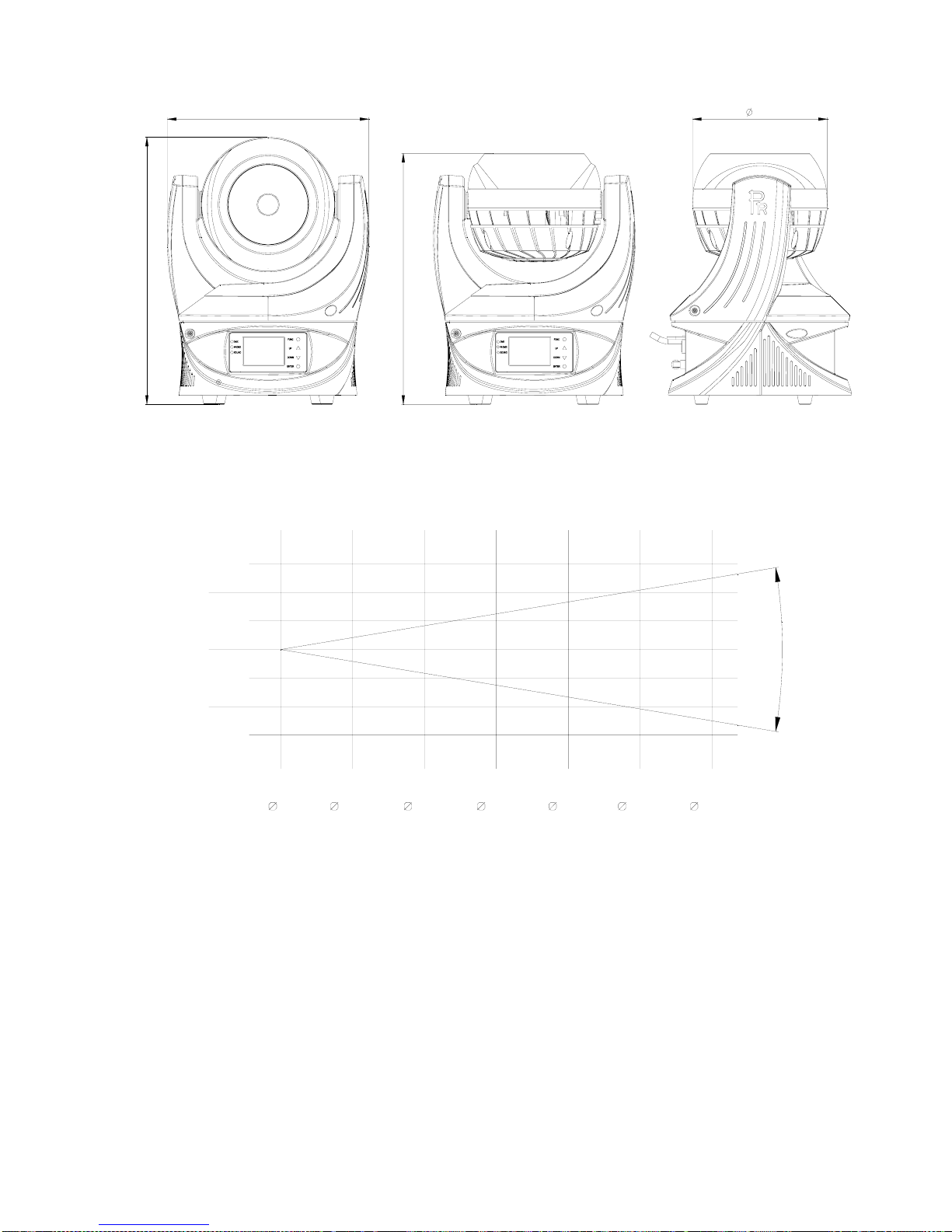

SIZES:
LIGHT OUTPUT :
0.5m
1.5m
DIAMETER(m)
DISTANCE(m)
1.5m
1m
0.5m
1m
0m
0m
5m
10m 15m 20m 25m 30m
17224838868915516204
4.7°(1/2)lux
2.492.081.661.250.830.420
0
4.7°
Page 16
16/20

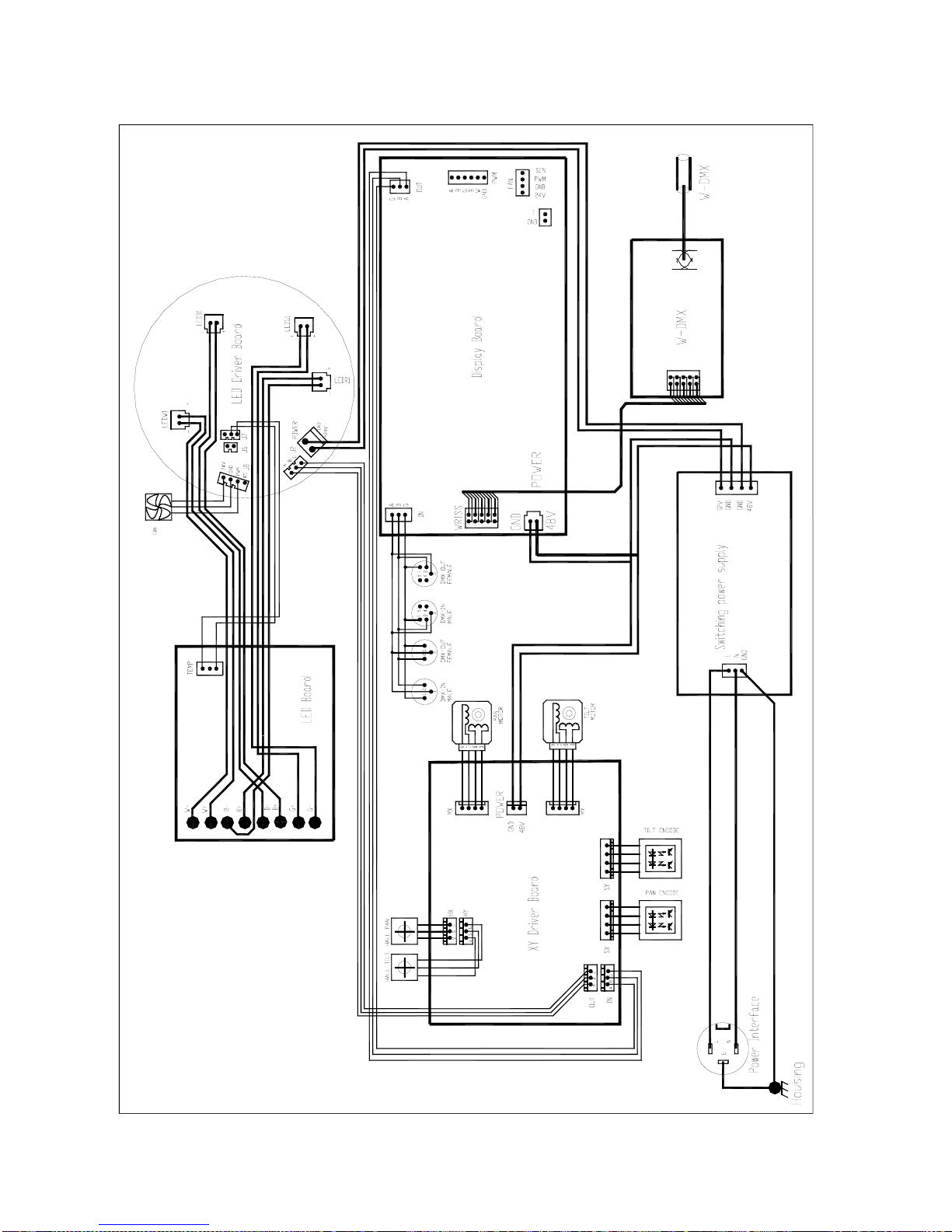

10. CIRCUIT DIAGRAM AND PCB CONNECTIONS
●
CIRCUIT DIAGRAM
Page 17
17/20
●

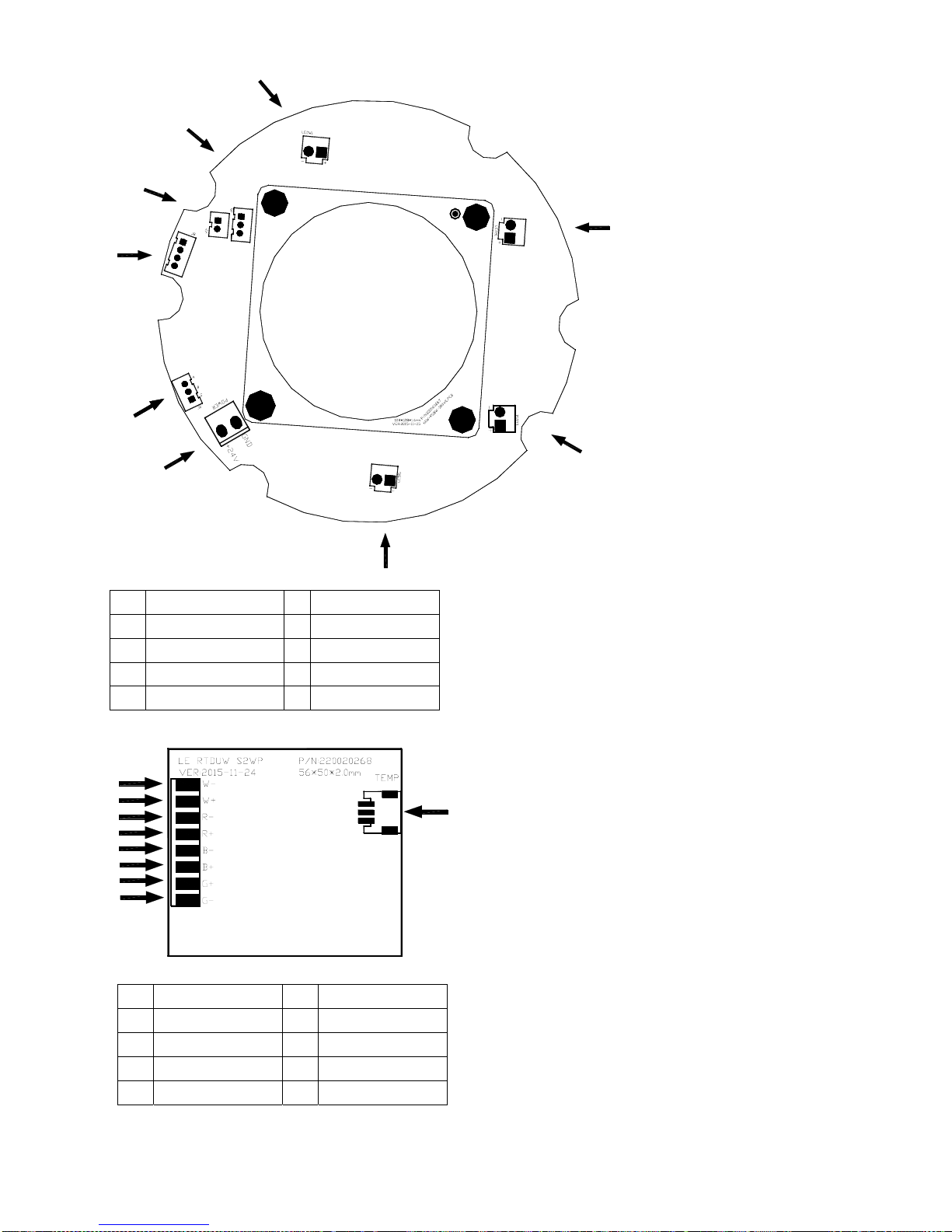

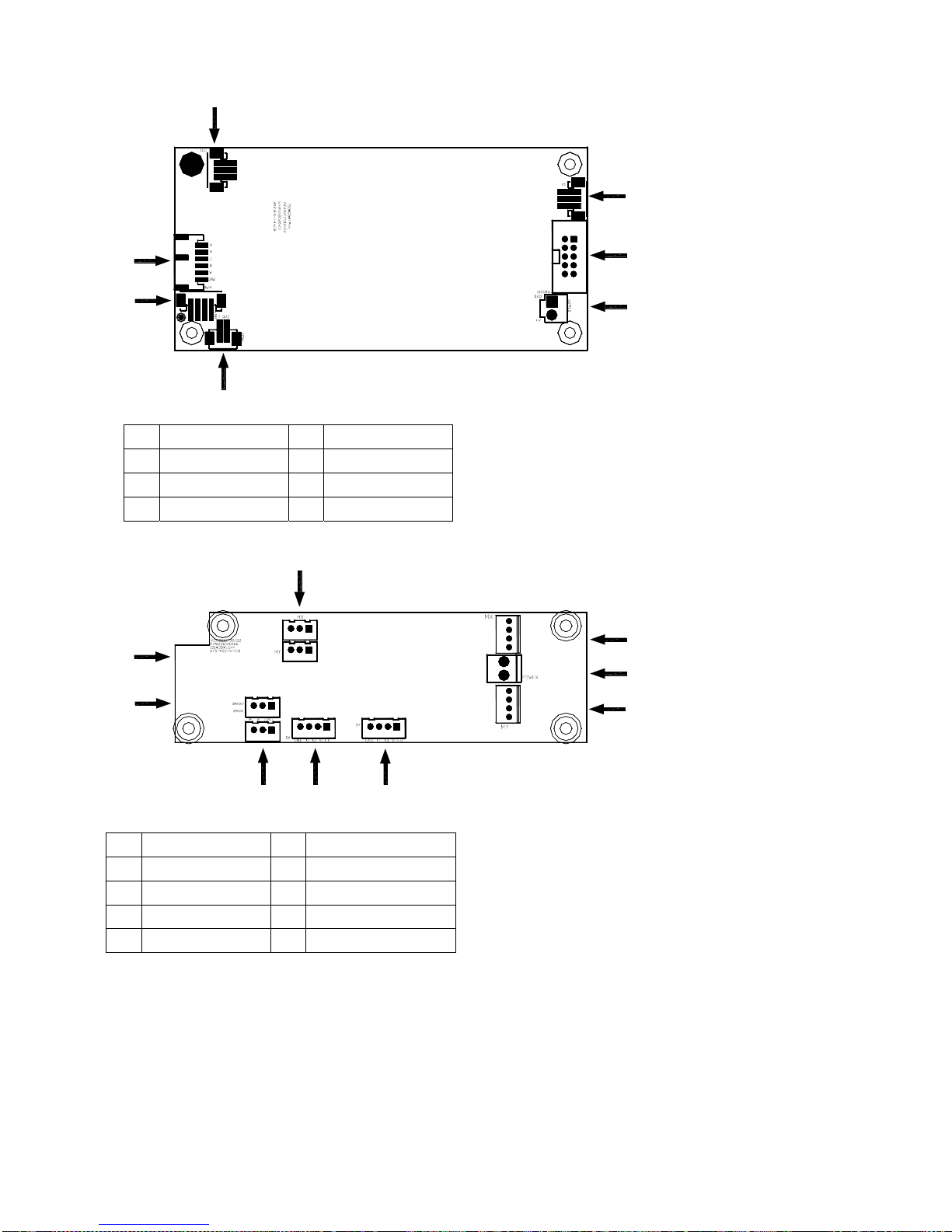

PCB CONNECTIONS
1
2
3
4
5
6
7
2
3
5
6
7
8
9
4
1
1 Signal Output 5 Power
2 PWM output 6 Wireless
3 Fan 7 Signal input
4 Thermal Switch
1 Pan Encoder 6 Tilt Magnet Sensor
2 Tilt Encoder 7 Tilt Motor
3 Signal Output 8 Power
4 Signal input 9 Pan Motor
5 Pan Magnet Sensor
Page 18
18/20
4
7
8
9
5
6
3
2
1
1
2
3
4
5
6
7
8
9
1 LED Lamp White 6 Power
2 Thermal Resisitor 7 LED Lamp Red
3 8 LED Lamp Green
4 Fan 9 LED Lamp Blue
5 Signal Input
1 LED Lamp White(-) 6 LED Lamp Blue(+)
2 LED Lamp White(+) 7 LED Lamp Green(-)
3 LED Lamp Red(-) 8 LED Lamp Green(+)
4 LED Lamp Red (+) 9 Thermal Switch
5 LED Lamp Blue(-)
Page 19
19/20
11. COMPONENT ORDER CODES
NO Name Code Number Qty Remarks
1
Power Switch 192010180A 1
2
Lens 070070059 1 φ94×55mm
3
Fuse 270041037 1 φ5.2×20mm 250V 3.15A
4
Pan & Tilt Belt 290151337 2 HTD-297-3M
5
7020 Fan 030060087 1 MGT7012HB-W20
6
4010 Fan 030060093 1 HA4010V4-000C-999
7
Pan & Tilt Motors 030040175 2 42×42×38-φ5×19
8
LCD Display 230060505 1
9
Pan & Tilt Driver 230060507 1
10
LED Driver 230060509 1
11
LED lamp board 230060510 1
12
Wireless Antenna W006512
1
Optional
13 Wireless Receiver board W006511
1
Optional
Page 20
20/20
PR LIGHTING LTD.
1582 Xingye Avenue, Nancun Pany
Guangzhou, 511442 China
TEL: +86-20-3995 2888
PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products.
Counterfeiting Will be Prosecuted!
P/N: 320020391
Version: 20151201 (Preliminary）
Loading...
