PR Lighting PR-6000 Spot User Manual

Page 1

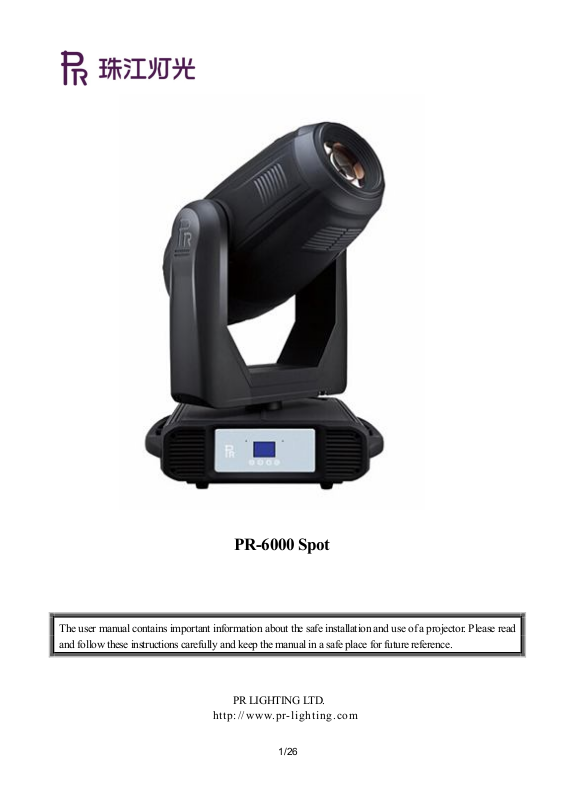

PR-6000 Spot

The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference.

PR LIGHTING LTD.

http: //www. pr- lig hting. com

1/26

Page 2

INDEX

Name

Quantity

Unit Remark

G clamp

Pcs

XLR

Connector

Set With Male and female sockets

Safety

cord 2 Pc

Spare

Gobo

4 pc User manual

1 Pc Ω clamp

Pcs Optional

1. SAFETY AND WARNINGS

2. INSTUCTIONS

●CLEANING AND MAINTENANCE

●LUBRICATION

●TROUBLESHOOTING

3. APPEARANCE

4. INSTALLATION

●RIGGING

●POWER CONNECTIONS

●DMX CONTROL CONNECTIONs

●DMX TERMINATOR

●ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP

●GOBO/COLOR FILTER REPLACEMENT

5. SETUP AND CONFIGURATION

●FRONT PANEL OPERATION

●DMX START ADDRESS

●DMX WIRELSESS CONTROL

●STAND-ALONE MODE

●MASTER/SLAVE MODE

6.OPERATION MENU

7. DMX PROTOCOL

8. LED INDICATION

9. ERROR MESSAGE

10.TECHNICAL DATA

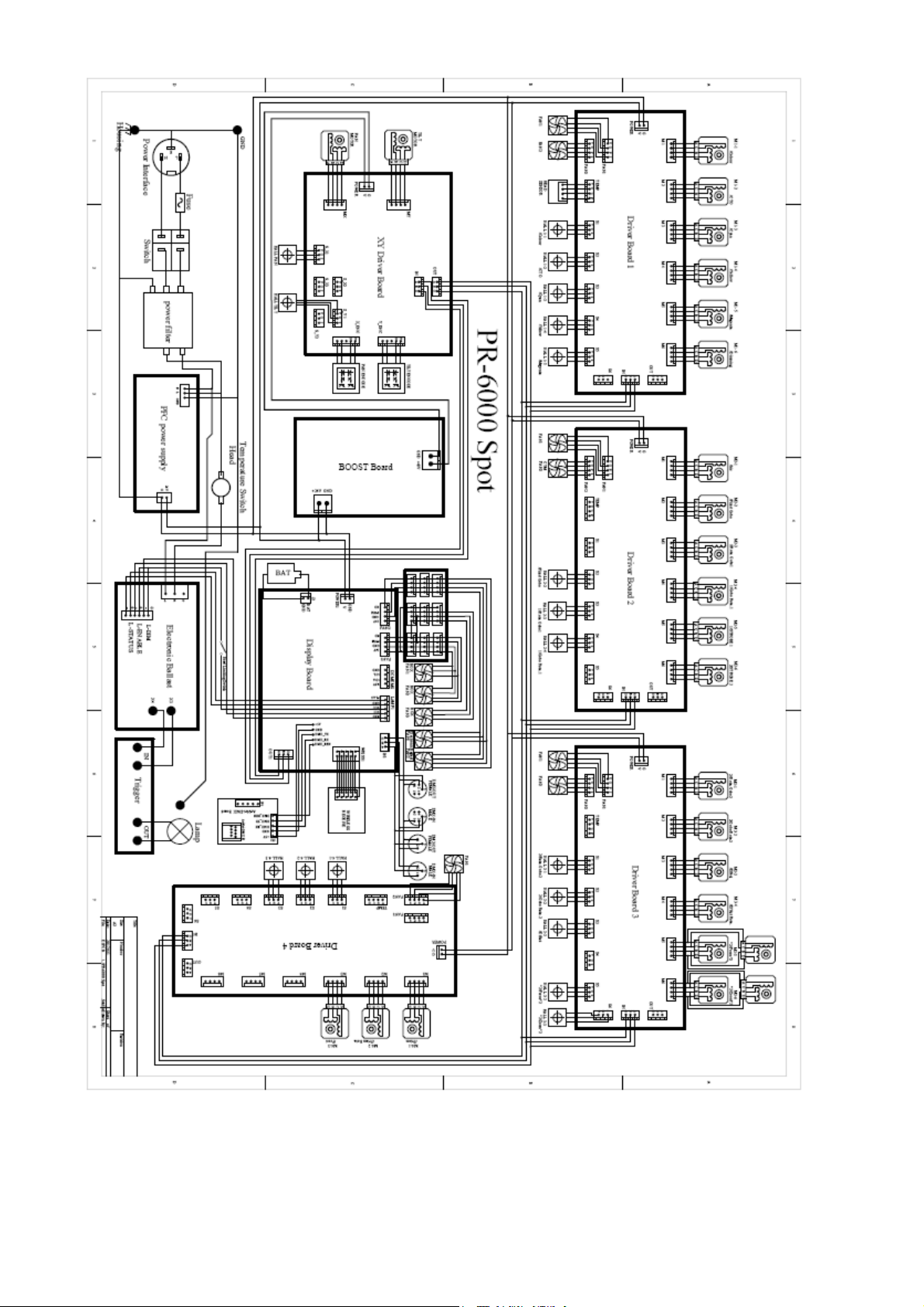

11.CIRCUIT DIAGRAM AND PCB CONNECTIONS

●CIRCUIT DIAGRAM

12.COMPONENT ORDER CODES

ACCESSORIES

The following items are supplied with the projector and please check:

3 4 4 4 4 5 5 5 6 7 7 8 9 10 10 10 10 10 10 11 16 19 19 20 25 24 25

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice. Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence arising from them. Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.

2/26

Page 3

1. SAFETY AND WARNINGS

Before a projector’s installation, power-on, operation and maintenance, please carefully read

the safety information hereinafter!

The following safety signs are used in the user manual.

NOTE

Warning

User

Manual

Electrical

shock

Goggles

Protective

Gloves

Flames

● When unpacking , check if there is transportation damage before using the projector. Should there be any

damage caused by transportation, consult your dealer and do not use it.

●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector

as he/she likes

●Please be noted that the damage caused by changing the projector at will is not warranted.

● Do not hesitate to contact the dealer or the manufacturer if any questions or advice.

● The projector is for indoor use only, IP20.

● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not

allow contact with water or any other liquids.

●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while

being operated

●The projector is only intended for installation, operation and maintenance by qualified personnel. And the

operation must strictly follow the procedures in the manual

●No repairable parts in the projector and do not open covers for maintenance by yourself.

●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.

●Do not connect this device to any type of dimmer pack

●After lamp switched on, the minimum distance between the projector and illuminated surface is 10m

●lens and other optical parts shall be replaced immediately if they have deformed or been damaged, otherwise the

light output will be compromised.

●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a

projector while covers(housing)are off

●Keep the lamp clean and do not touch it with bare hands.

●While operating it, wear protective items.

●Any electrical connection must be carried out by a qualified person .

●Before installation, please confirm the voltage supplied matches what is required for the projector

●Each projector must be properly earthed and installed as per related electrical standards.

●Do not use power cord with its insulator damaged and connect the power cord with other cables.

●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully

or by pulling the power cable.

●All power cords must conform to related safety and regulations

●While being operated, the projector should not be under rains or in humidity.

●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other

electrical parts’ life will be shortened .

High

Temperature

3/26

Page 4

●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety

cord supplied through the safety cord holes for safety support.

●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from

power mains.

●After running for 30minutes, the temperature of the housing of the projector is 45 .After stable operation , ℃

its temperature is 60 .℃

●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not

mean the projector has some defects.

●Do not mount the projector directly on inflammable surface.

●Do not project the beam straightly on combustible items and the minimum distance between the

projector and illuminated items is 10m.

●A projector should be installed with good ventilation and the minimum distance between the projector

and walls is 50cm. At the same time, please ensure the fans and air inlets and outlets are workable.

2. INSTRUCTIONS

●CLEANING AND MAINTENANCE

If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the

projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved, restart the projector.

The accumulation of oil, smoke and dust on the lens will compromise the light output. Cleaning a projector is very necessary to

ensure a reliable use of it. Cooling fans need to be cleaned every 15days. Internal lens, reflector and hot mirror need to be cleaned periodically to optimize light output.

Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning

work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean and do not touch optical parts with bare hands.

●Before any maintenance and cleaning, please ensure the project is off the power

●Only qualified person is allowed to do maintenance

●During maintenance and before maintenance, the projector must be off power.

●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens whether it runs or not

●Do not use alcohol or other organic solvent to clean the housing to avoid damage.

●Do not use any solvent with chemical elements to clean color filters or hot mirror.

●LUBRICATION

To ensure smooth movement of gobos and zoom and focus lens, it’s advised rotators’ bearings and 2 sliding bars for zoom and focus lens be lubricated every 2 months. High quality and high temperature lubricant/grease is advised..

4/26

Page 5

●TROUBLESHOOTING

PROBLEM ACTION

The projector doesn’t switch on

The lamp is on but the projector doesn’t respond to the controller

 Check the fuse on the power socket.  Check the lamp.  Make sure that the fixture’s start address is right  Replace or repair the XLR signal cable.

The projector functions intermittently  Make sure the fan is working well or fans and their shields are not blocked

Beam appears dim, Low in brightness

 Make sure the lamp is within its lifespan  Remove dust or grease from the lenses.

The project image appears to have a halo  Carefully clean the lamp, optical lenses and other components.

Heavily Defective Beam

 Check if lens are in good condition(not cracked)  Clean dust or grease on the lens.

3. APPEARANCE

4. INSTALLATION

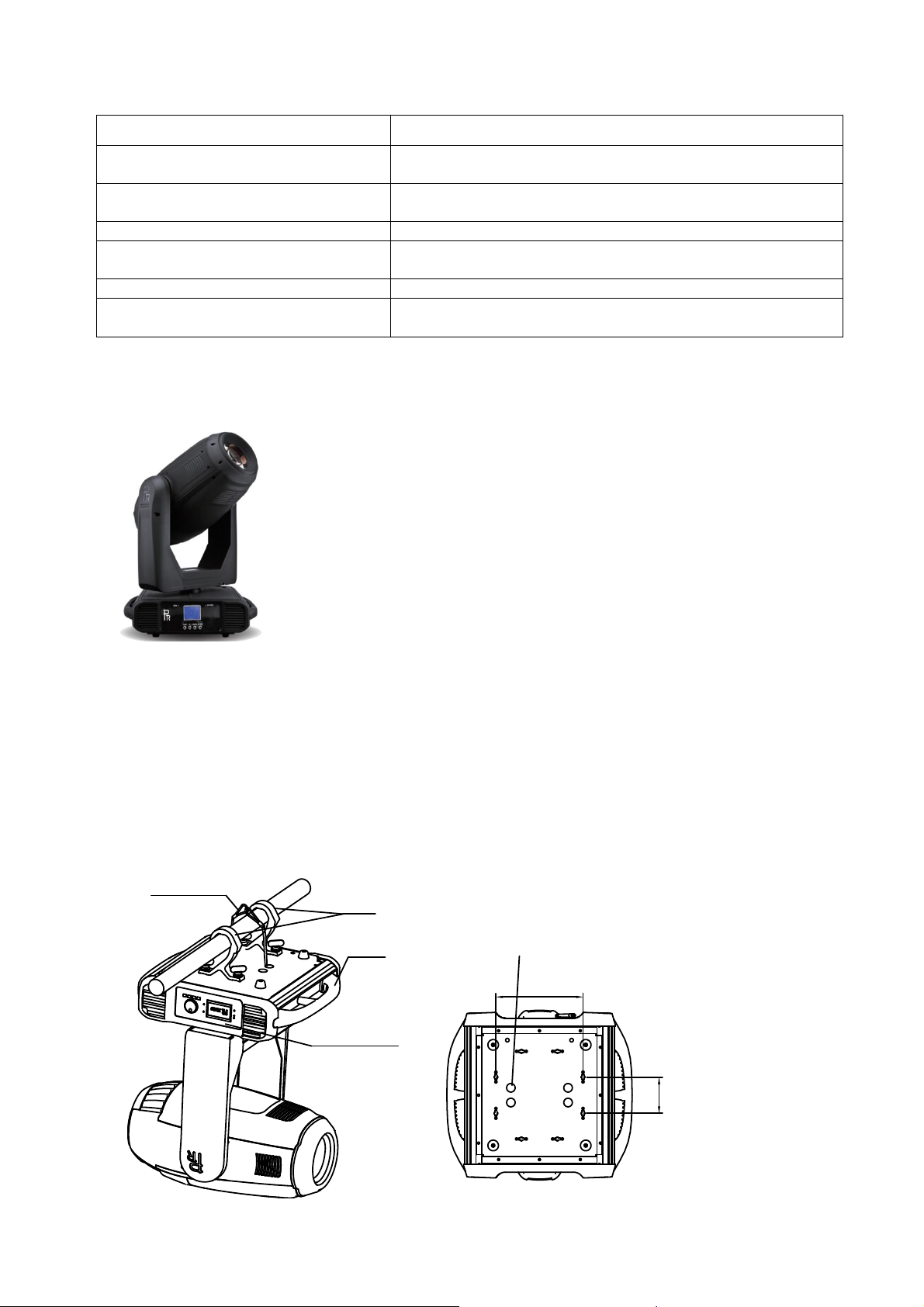

●RIGGING

Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a projector with power while it is locked

SAFETY CORD

CLAMP

HANDLE

CONTROL PANEL

WARNING

To pass 2 SAFETY CORDS

through 4 HOLES for safety!

257

106

5/26

Page 6

Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) To pass the SAFETY CORD through the HOLES for safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector to is secure and strong enough to support the weight of the unit.

WARNING:

●The projector MUST be lifted or carried by the HANDLES instead of clamps.

●.For safety the safety cord should afford 10 times the Projector’s weight.

● POWER CONNECTION

Connect the power cord as follows:

L (live) =brown E (earth) =yellow/green N (neutral) =blue

Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each projector be connected with power separately so that they may be individually switched on and off.

Note: If projectors are connected in series, please connect POWERIN port of the 1st projector with the Power Mains, then connect its POWER OUT with POWER IN of the 2nd projector, and so on till all fixtures are connected. If the voltage supplied is 200V-240V, the maximum projectors connected is 8pcs, if it is 100V-120V, the maximum is 4pcs. The diameter of the cores of the wires for the Power in/out cables must be equal or bigger than 2.5mm

2 .

●The earth wire(yellow/green) must be connected to the ground. And electrical

connection must be in accordance with the standards concerned.

●If any questions about the electrical installation, do not continue but consult a

qualified electrician.

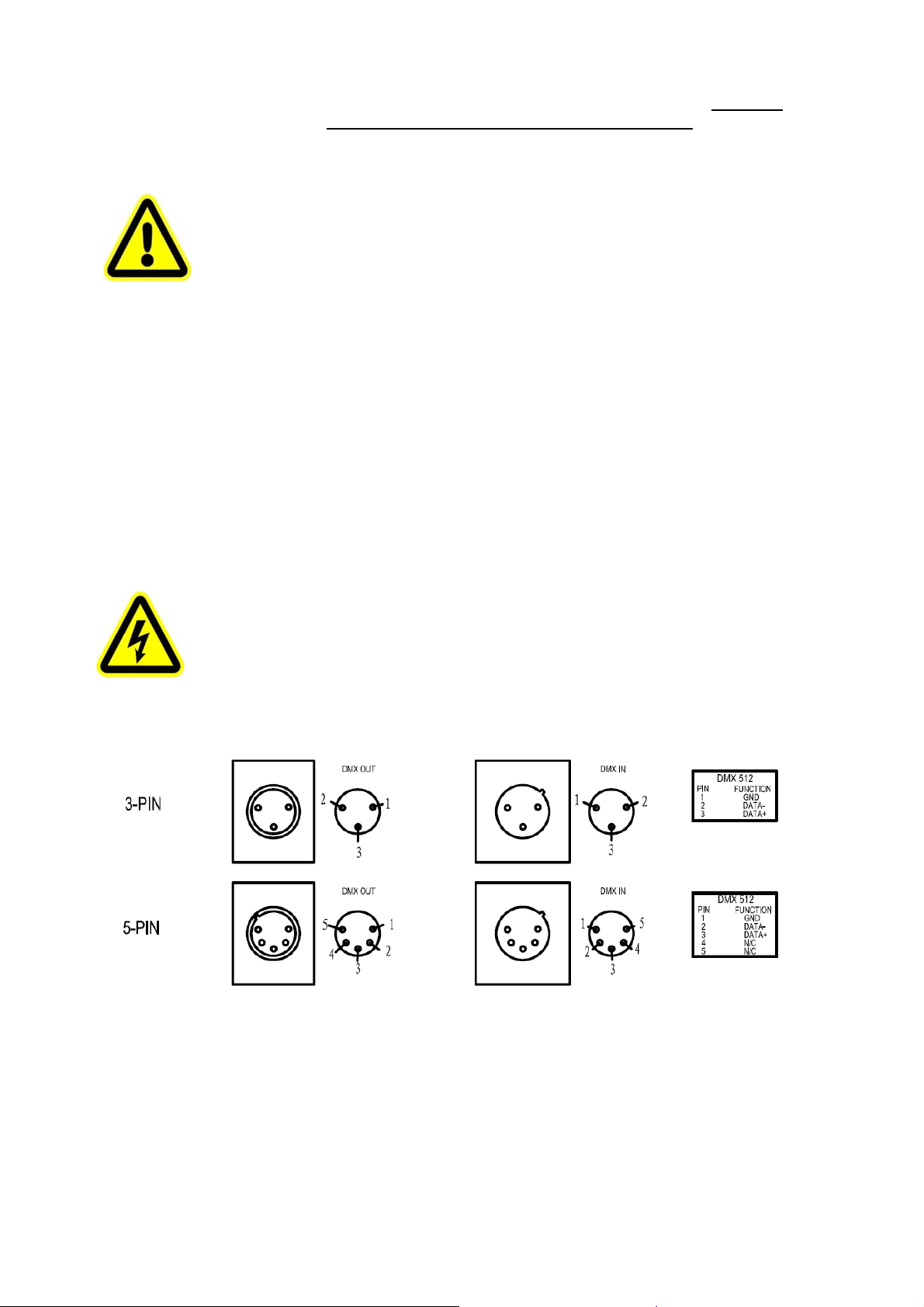

●DMX CONTROL CONNECTION:

Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.

Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets mustn’t be connected in any way other than mentioned in the above figure. The XR330BWS accepts digital control signals in protocol DMX512 (1990).

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX terminator as shown in the figure below.

6/26

Page 7

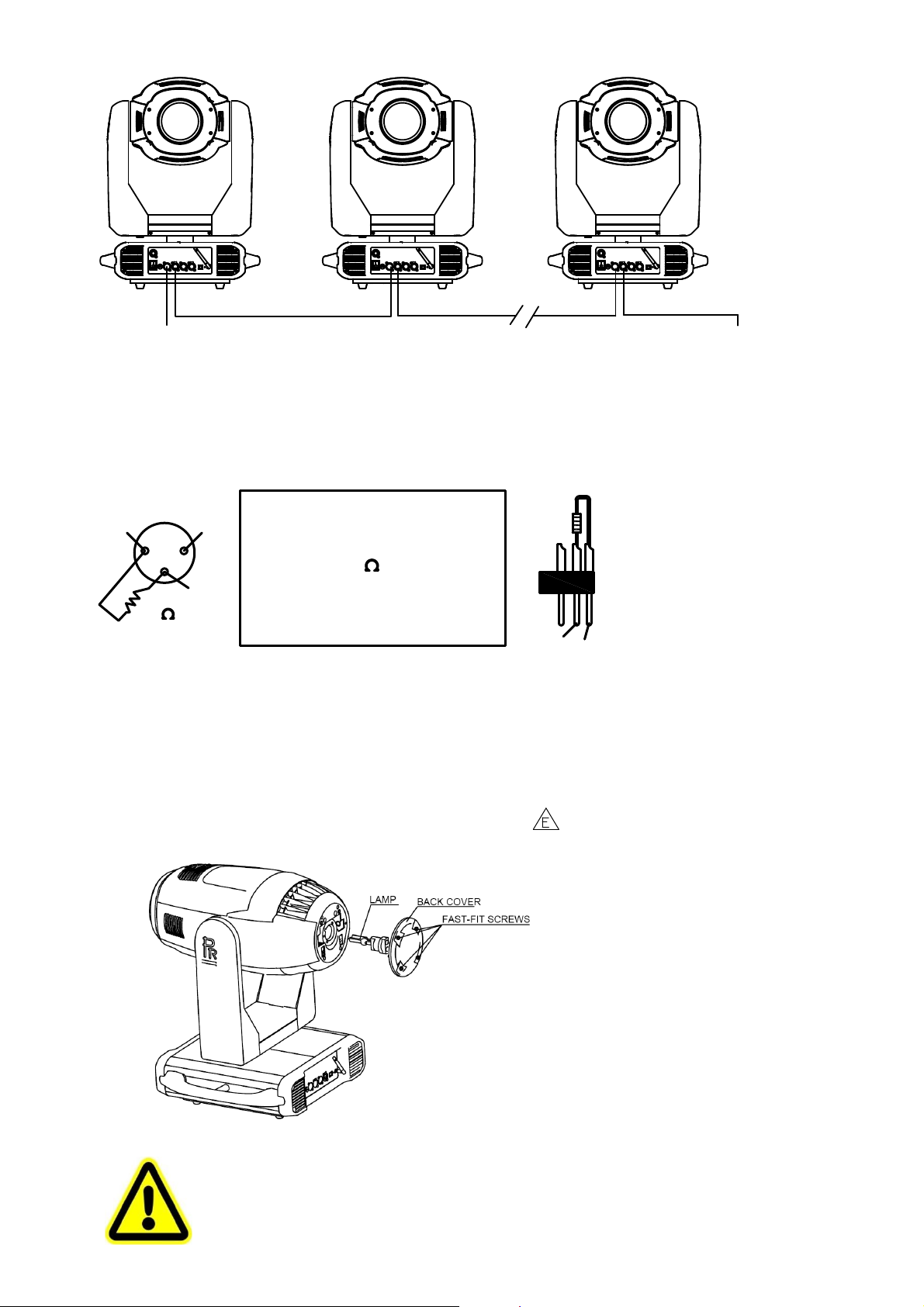

DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT

TO CONTROLLER

TO TERMINATER

●DMX TERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. The connections are illustrated below.

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor

120

across pins 2 and 3 in an XLR plug and insert into the DMX out socket

on the last unit in the chain.

PIN 2

PIN 3

● ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP

Before installation/replacement/alignment of a lamp, disconnect the unit from the power and let it cool first. Lock Tilt in the figure below and open the lamp cover after its 4 screws are loosened. After removal of the lamp cover, take out the lamp while the 2 screws at both ends of the lamp are loosened. Insert a new lamp. Note: while placing a new lamp, do not touch the burner of the lamp with bare hands, otherwise the light output will be compromised. Fasten the 4 fast-fit screws after the lamp cover is on

Important: The unit uses high voltage discharge lamp with external igniter( ). While using the lamp, please carefully read

“INSTRUCTIONS” packed with the lamp.

●Don’t touch the internal surface of the reflector and the burner of the lamp with bare hands so as not to

impair the beam output. While lamp’s installation, do not damage the metal wire around the burner.

●Please read "Instructions " enclosed with the lamp

●Do operate the projector while adjusting the lamp

7/26

Page 8

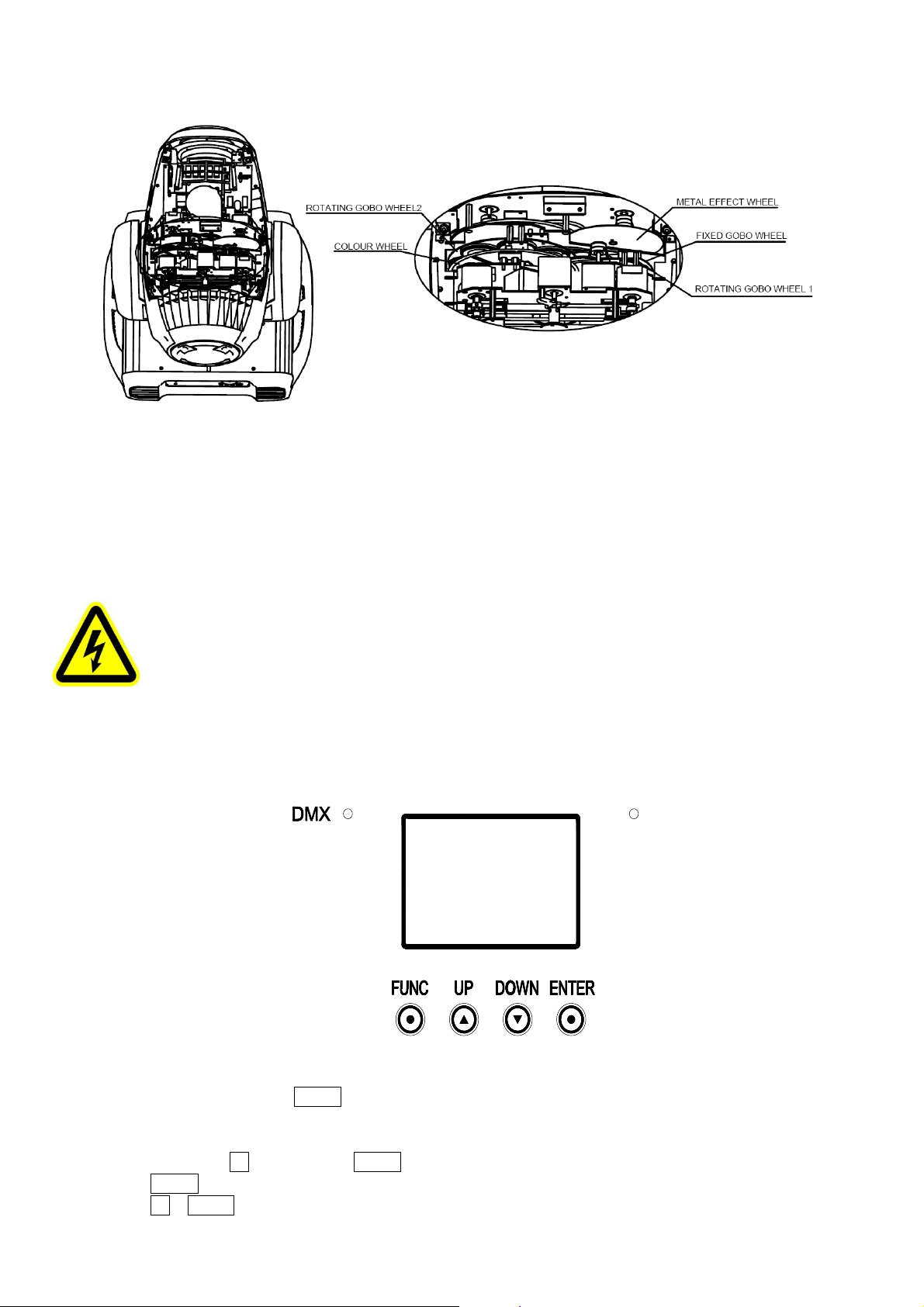

●GOBO REPLACEMENT

Lock the tilt and loosen the 6 fast-fit screws on the upper cover ,After removing the cover, you will see the structures as the figure below. Before replacing a gobo on the fixed gobo wheel, use your finger to remove the spring tightening it and take the old one out with due care. At last put the new into the wheel. To replace a gobo on the rotating gobo wheel: take the rotator from the wheel, take the gobo out from the rotator by removing the tightening spring. Put the new gobo back to the rotator, then tighten it with the spring. Please ensure the spring is in the narrow location of the rotator, which is the internal ring of it and flatten it. At last, pull up the spring strip using proper tool and put the rotator back to the wheel with the assistance by another hand. Note: Do not touch the glass gobo with bare hand. Place clean and soft paper or cloth between hand and glass gobos. Tighten 6 fast-fit screws after the cover is on. Unlock the tilt.

DANGER!

Before replacement of gobos, the projector must be off the power.

5. SETUP AND CONFIGURATION

●Front Panel Operation

W-DMX

Projector configuration can be set conveniently via push button and LCD display. Launch the projector and press button ENTER for more than 5 seconds to unlock the panel, the LCD will show the function menu of

the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the

“OPERATION MENU” section. Rotate the knob clockwise UP or anti- clockwise DOWN if you want to browse through the various Setup Options. Press button ENTER to save your settings or enter the submenu.

Press button UP or DOWN to change values(plus or minus)

8/26

Page 9

Press button FUNC, it will return to the upper menu. If button FUNC not pressed, the default will show display status automatically. Shortcut key: Press UP and DOWN buttons together to invert the screen; Press DOWN and ENTER together to change

between English and Chinese menus.

● DMX START ADDRESS

Each unit must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start

address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the

controller. The unit has 3 DMX modes. There are standard mode ,short mode and extended mode. For example standard mode has 31

channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 032, No. 3 projector’s address 063, No. 4 projector’s

address074, and so on.

Launch the projector. Press button ENTER more than 5seconds to unlock panel.

Press button ENTER to display DMX address;

Press button UP and DOWN, you can set the address;

Press button ENTER to confirm; after powered on next time, the default will be last value saved

Press button FUNC, it will return to the upper menu

●DMX WIRELESS CONTROL (If the projector has the function)

The projector has wireless control function with wireless receiver module and antenna for remote control.

The setup of it is below:

1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN

2. Select DMX control Mode---- Wireless First (Note: do not select XLR ONLY),then wireless indication in the

front panel will be on, meaning wireless control function is activated.

Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it,

Press “Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns .

●STAND-ALONE MODE

Operate the projector without connecting with a controller, enable the master mode through the operation panel, the projector will run in Stand-Alone mode automatically. DMX address can be set at any number within 512.

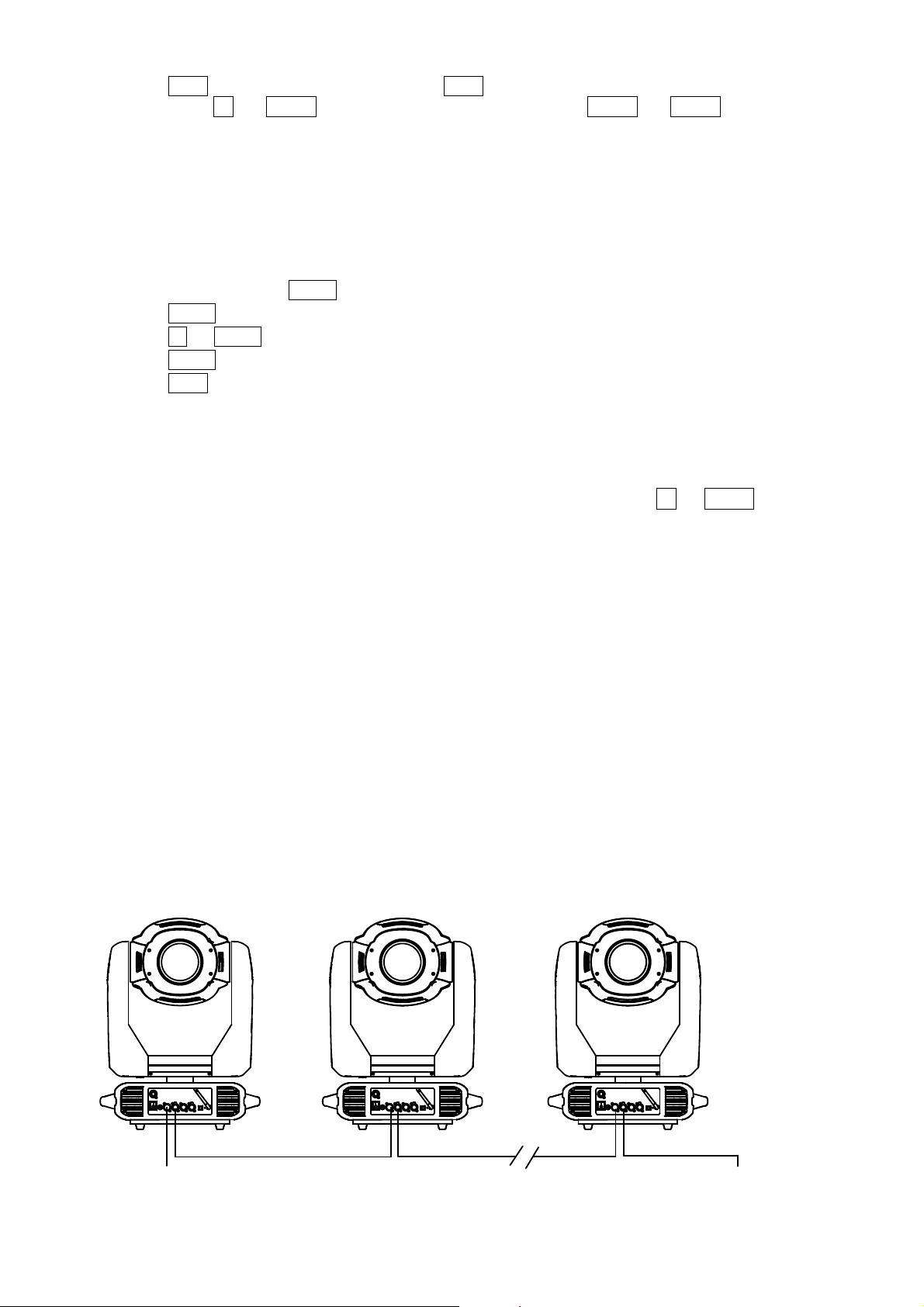

●MASTER/SLAVE MODE

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First, connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.

Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can be set accordingly.

After Powered on, the group will run in Master/Slave Mode

DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT

TO CONTROLLER

9/26

TO TERMINATER

Page 10

When DMX is Lost

Factory Settings

sub-menu)

6. OPERATION MENU

First Menu Secondary Menu Third Menu Fourth Menu

PR Lighting

PR-6000 Spot

DMX Address=XXX

DMX Address

Reset

(Default: Standard 16 )

(Default: By Control Channel)

Config Settings

XXX

Reset

Are You Sure

DMX Mode

Lamp Control

Standard 16

Extended 16

Short 8

Lamp Control

By Control Channel

Lamp Control

By Power On

Lamp Control

By DMX Present

Option Settings

Loss of DMX

(Default: Normal time out)

(Press button

DOWN/UP/ENTER at the

same time to enter the

Color Positions

(Default: Step)

F-Gobo Positions

(Default: Step)

Pan DMX Invert

(Default: Off)

Tilt DMX Invert

(Default: Off)

Pan Tilt Swap (Default: Off)

Dimmer Invert

(Default: Off)

Iris Invert

(Default: Off)

Zoom Invert

(Default: Off)

When DMX is Lost

Normal time out

Hold Last Value

Fixture type

(WARNING：Never change the fixture type or the system

will be damaged!)

Color Positions

STEPPED

Color Positions

LINEAR

F-Gobo Positions

STEPPED

F-Gobo Positions

LINEAR

Pan DMX Invert

OFF

Pan DMX Invert

Tilt DMX Invert

OFF

Tilt DMX Invert

Pan Tilt Swap

OFF

Pan Tilt Swap

Dimmer Invert

OFF

Dimmer Invert

Iris Invert

OFF

Iris Invert

Zoom Invert

OFF

Zoom Invert

10/26

Page 11

CMY Invert

OFF

(Default: Off)

CTO Invert

(Default: Off)

Defaults

(Default: Off)

Display Mode

Display Invert

CMY Invert

OFF

CMY Invert

CTO Invert

Defaults

OFF

Defaults

Restore Defaults

Display On Always

Display After Delay

Display Invert

Off

Display Invert

Min

Display Options

Display Dimming

Information

Full

Display Contrast XX(1-21)

Language=

Display Language

Lamp Hours XX )

Total Hours XX

Temperature

English

Language=

Chinese

Display Board

11/26

Display Board=

XXX

Page 12

Software Version

View DMX Values

Electronic SN

RDM Device Label

Pan Encoder

Driver Board 1

Driver Board 2

Driver Board 3

Driver Board 4

Pan and Tilt Board

Head Sensor

Display Board

Driver Board 1

Driver Board 2

Driver Board 3

Driver Board 4

Pan and Tilt Board

DMX Channel

1=XXX Electronic SN= ************

RDM Device Label

ANSI E1.20 RDM

Version 1.0

Pan Encoder

Wiring Normal

Pan Err 0

Count 0

Driver Board1 =

XXX

Driver Board2=

XXX

Driver Board3=

XXX

Driver Board4=

XXX

Pan and Tilt Board=

XXX

Head Sensor =

XXX Display Board System=XXX

Boot=XXX

Driver Board 1

System=XXX

Boot=XXX

Driver Board 2

System=XXX

Boot=XXX

Driver Board 3

System=XXX

Boot=XXX

Driver Board 4

System=XXX

Boot=XXX

Pan Tilt Board

System=XXX

Boot=XXX

Tilt Encoder

Driver Faults

12/26

Tilt Encoder

Wiring Normal

Pan Err 0

Count 0

X Over Temp 0

Y Over Temp 0

X Fault 0

Y Fault 0

Page 13

Self Test

Select Memory

User Memory1

-2

Select Memory

R Gobo

Wheel

R Gobo

Rotate L

R Gobo 2

R Prism In

R Prism

Test Mode

Lamp Manual Control

Factory Setup

Self Test

Lamp Status

Turn Lamp On

Factory Setup

OFF

Factory Setup

OFF

S=X C=X

Lamp On/Off

Wireless Options

(Only for the projectors

requested for Wireless

Control)

Operation Mode

User Memories

Turn Lamp Off

Wireless Mode

Un-Link Wireless

DMX Operation

Master Mode

Slave Mode

Static Scene

Edit User Memory User Memory1-2

Wireless Mode

XLR First

Wireless Mode

Wireless Only

Wireless Mode

XLR Only

Wireless Mode

Wireless to XLR

Wireless Mode

Wireless Only

Really Un-Link

Enter=Yes

User Memory1-2

Dimmer Low XX

CMY Macro XX

Color Wheel XX

Scene 1-200

Shutter XX

Dimmer XX

Cyan XX

Yellow XX

Magenta XX

CTO XX

Iris XX

Iris Macro XX

Fixed Gobo XX

Rotate

13/26

Wheel

Rotate

Out

Rotate

Effects In Out XX

Effects Rotate XX

Frost XX

Page 14

Shutter

Dimmer

CMY

Color

Iris

Macro

Fixed

R Gobo

Rotate

R Gobo

2 Wheel

R Gobo

R Prism

Effects

Rotate

Pan

Tilt

Coarse

M-Spee

Link to

Reset

2 3 4

Dimmer

Focus XX

Zoom XX

Pan Coarse XX

Pan Fine XX

Tilt Coarse XX

Tilt Fine XX

M-Speed XX

Delay S

Link to Step XX

Static Scene

Low

Macro

Cyan XX

Yellow

Magenta

CTO XX

Wheel

Iris XX

Gobo

Wheel

Rotate L

2 Rotate

In Out

Rotate

In Out

Init User Memory Reset User1

14/26

Frost

Focus

Zoom

Coarse

Pan Fine

Tilt Fine

Delay

Step

User1

Unlock

Page 15

Reset User2

Reset

2 3 4

Reset

017-035 Yellow

Magenta

Red 036-054 Yellow

055-073 Yellow

Cyan

Green

093-110 Cyan

Magenta

Purple

111-128 Magenta

129-255 CYM

color mixing from slow to fast

Fine

000-255

Reset Static Scene

User2

Unlock

Static

Scene

Unlock

2 3 4

Note:

1. The parameters transmitted from the mater if multiple units are synchronized include: DMX channel mode ,Display

setting, operation mode including user memory

2. The unit which receives the parameters sent is automatically set as the Slave

7. DMX PROTOCOL

Short

Mode

Standard

Mode

Extended

mode

Function DMX Description

000-010 Close

011-025 Open

1 1 1

Strobe

026-225 Strobe from slow to fast

226-246 Strobe Macro

247-255 Open

2 2 2 Dimmer

000-003 Close 004-255 Linear Dimming （0-100%）

3 3 Dimmer Fine 000-255 Dimming in 16 Bit

000-016 White

＋

＝

＋

3 4 4

CYM Macro

074-092 Cyan

＋

＝

4 5 5 CYM-Cyan 000-255 Cyan Linear adjustment(0%-100%)

6 CYM-Cyan Fine

000-255 Cyan in 16 Bit

5 6 7 CYM-Yellow 000-255 Yellow Linear adjustment (0%-100%)

CYM-Yellow

Fine

000-255 Yellow in 16 Bit

6 7 9 CYM-Magenta 000-255 Magenta Linear adjustment (0%-100%)

7 8 11 CTO

12 CTO Fine

CYM-Magenta

000-255 Magenta in 16 Bit

000-255

CT Linear adjustment from low to high

CT in 16 Bit 000-008 White

009-015 White/Color1

8 9 13

Colour Wheel

016-023 Color 1

024-030 Color1/Color2

031-038 Color 2

039-045 Color2/Color3

15/26

Page 16

046-053 Color 3

fast

fast 9 10 14 Iris 000-255 Linear adjustment (0%

100%)

Iris Fine

000-010 No

from slow to fast

slow to fast

207-214 Iris Effect

4 215-222 Iris Effect 5

223-230 Iris

Effect 6

231-255 Iris fully open

000-016 White

017-032 Gobo1

033-048 Gobo2

049-064 Gobo3

065-080 Gobo4

081-096 Gobo5

097-112 Gobo6

113-127 Gobo7

128-149 Forward Rotation from slow

to fast

150-171 Reverse Rotation from slow to fast

172-183 Gobo1 shakes from slow to fast

184-195 Gobo2 shakes from slow to fast

196-207 Gobo3shakes from slow to fast

208-219 Gobo4shakes from slow to fast

220-231 Gobo5 shakes

from slow to fast

232-243 Gobo6shakes from slow to fast

244-255 Gobo7shakes from slow to fast

000-018 White

019-036 Gobo1

037-054 Gobo2

055-073 Gobo3

074-091 Gobo4

092-109 Gobo5

110-127 Gobo6

054-060 Color3/Color4

061-068 Color 4

069-075 Color4/Color5

076-083 Color 5

084-090 Color5/Color6

091-098 Color 6

099-105 Color6/Color7

106-113 Color 7

114-120 Color7/white

121-127 White

128-191

Forward Rainbow effect from slow to

10 11 16

Iris Macro

192-255

000-255 Iris in 16 bit

011-072

073-136

137-206

Reverse Rainbow effect from slow to

Macro 1: from big to small with speed

Macro 2:from small to big with speed from slow to fast Macro 3: Iris from Open to Close from

11 12 17

12 13 18

Fixed Gobo

Wheel

Rotating Gobo

Wheel 1

16/26

Page 17

128-156 Forward Rotation from slow to fast

157-185 Reverse Rotation from slow to fast

186-196 Gobo1 shakes from slow to fast

197-208 Gobo2 shakes from slow to fast

209-220 Gobo3shakes from slow to fast

221-232 Gobo4shakes from slow to fast

233-244 Gobo5 shakes from slow to fast

000-127 Gobo Indexing

540°）

128 Stop 129-188 Forward Rotation from slow to fast

196-255 Reverse Rotation from slow to fast

Fine

019-036 Gobo1

037-054 Gobo2

055-073 Gobo3

092-109 Gobo5

110-127 Gobo6

128-156 Forward Rotation from slow to fast

186-196 Gobo1 shakes from slow to fast

197-208 Gobo2 shakes from slow to fast

209-220 Gobo3shakes from slow to fast

233-244 Gobo5 shakes from slow to fast

245-255 Gobo6shakes from slow to fast

000-127 Gobo Indexing

540°）

129-188 Forward Rotation from slow to fast

189-195 Stop 196-255 Reverse Rotation from slow to fast

Fine

000-016 Open

017-255 3 facet

Prism In

000-127 Prism Indexing

128 Stop 129-191 Forward Rotation from slow to fast

192 Stop 193-255 Reverse Rotation from slow to fast

000-020 No 021-255 Slow Rotation

Rotation

000-127 Forward Rotation from slow to fast

Frost

21 24 29

000-255 Linear Focusing

245-255 Gobo6shakes from slow to fast

（0°～

13 14 19

15 20

14 16 21

15 17 22

Gobo rotation 1

Rotating Gobo

Wheel 2

Gobo rotation 2

189-195 Stop

000-255 Gobo Rotation1 in 16 bit

000-018 White

074-091 Gobo4

157-185 Reverse Rotation from slow to fast

221-232 Gobo4shakes from slow to fast

（0°～

128 Stop

18 23

16 19 24

17 20 25

18 21 26

19 22 27

20 23 28

Gobo rotation 2

Prism

Prism rotation

Effect Wheel

000-255 Gobo Rotation2 in 16 bit

128-255 Reverse Rotation from slow to fast

000-255 Frost Linearly In

17/26

Page 18

Focus

Focus Fine

Zoom Fine

Pan

Pan Fine

Tilt

Tilt Fine

speed

048-080

Reset

081-112

Reserved

113-144

Lamp off

10S）

169-200 Decrease Ballast Power

201-223

Reserved

224-255

Lamp on

Off

Flash

Off

Flash

000-255 Focusing in 16 bit

22 25 31

23 26 33

27 34

24 28 35

29 36

30 37

25 31 38

Zoom

Pan & Tilt

Control

000-255 Linear Zooming

000-255 Zooming in 16 bit

000-255 Pan Rotation

000-255 Tilt in 16 Bit

000-255 Tilt Rotation

000-255 Tilt in 16 Bit

000-255 Pan & Tilt Speeds from fast to slow

000-047 Reserved

（

145-168 Reserved

Remark:

If you intend to turn on/off the lamp via the last channel of the controller, don’t attempt to push the channel to value 224-255 immediately after turning it off, or push the slide bar to value 224-255 to wait it cooling. Under these 2 circumstances, the lamp can not be turned on. The right operation is: turn it off---cool down---push the slide bar to turn it on.

8. LED INDICATION

DMX signal OK

Green

Blue

(Only for the projectors requested for Wireless Control)

No DMX signal DMX signal error Wireless signal OK Not connection to any transmitter Lost contact with the transmitter or linking transmitter

9. ERROR MESSAGE

The Fixture can detect any errors during the reset and may show errors below:

18/26

Page 19

Sensor Err S1-M1

Color Wheel Error（Driver Board1 motor1 ）

Sensor Err S1-M2

Sensor Err S1-M3

Sensor Err S1-M4 Yellow Error（Driver Board1 motor4）

Sensor Err S1-M5 Magenta Error（Driver Board1 motor5）

Sensor Err S2-M2

Sensor Err S2-M3

Sensor Err S2-M4

Sensor Err S3-M1

Sensor Err S3-M2

Sensor Err S3-M3

Sensor Err S3-M4

Sensor Err S3-M5

Sensor Err S3-M6

Sensor Err S4-M1

Sensor Err S4-M2 Prism Rotation Error（Driver Board4 motor2）

Sensor Err S4-M3 Frost Error（Driver Board4 motor3）

CTO error （Driver Board1 motor2）

Cyan Error（Driver Board1 motor3）

Fixed Gobo Wheel Error（Driver Board2 motor2）

Rotating Gobo Wheel1 Error（Driver Board2 motor3）

Gobo1 Rotation（Driver Board2motor4）

Rotating Gobo Wheel2Error（Driver Board3 motor1）

Gobo2 Rotation（Driver Board3 motor2）

Effect Wheel In/Out Error（Driver Board3 motor3）

Effect Wheel Rotation Error（Driver Board3 motor4）

Focus Error（Driver Board3 motor5）

Zoom Error（Driver Board3 motor6）

Prism Error（Driver Board4 motor1）

10. TECHNICAL DATA

INPUT VOLTAGES

200V/220V/230V/240V AC，50/60Hz

POWER COSUMPTION

2300W@220V

19/26

Page 20

LAMP

PHILIPS MSR GOLD TM 2000/1 FastFit

Color Temperature

Ceramic Stand

Manufacturers Rated Lamp Life 750hours

5800K

Single ended

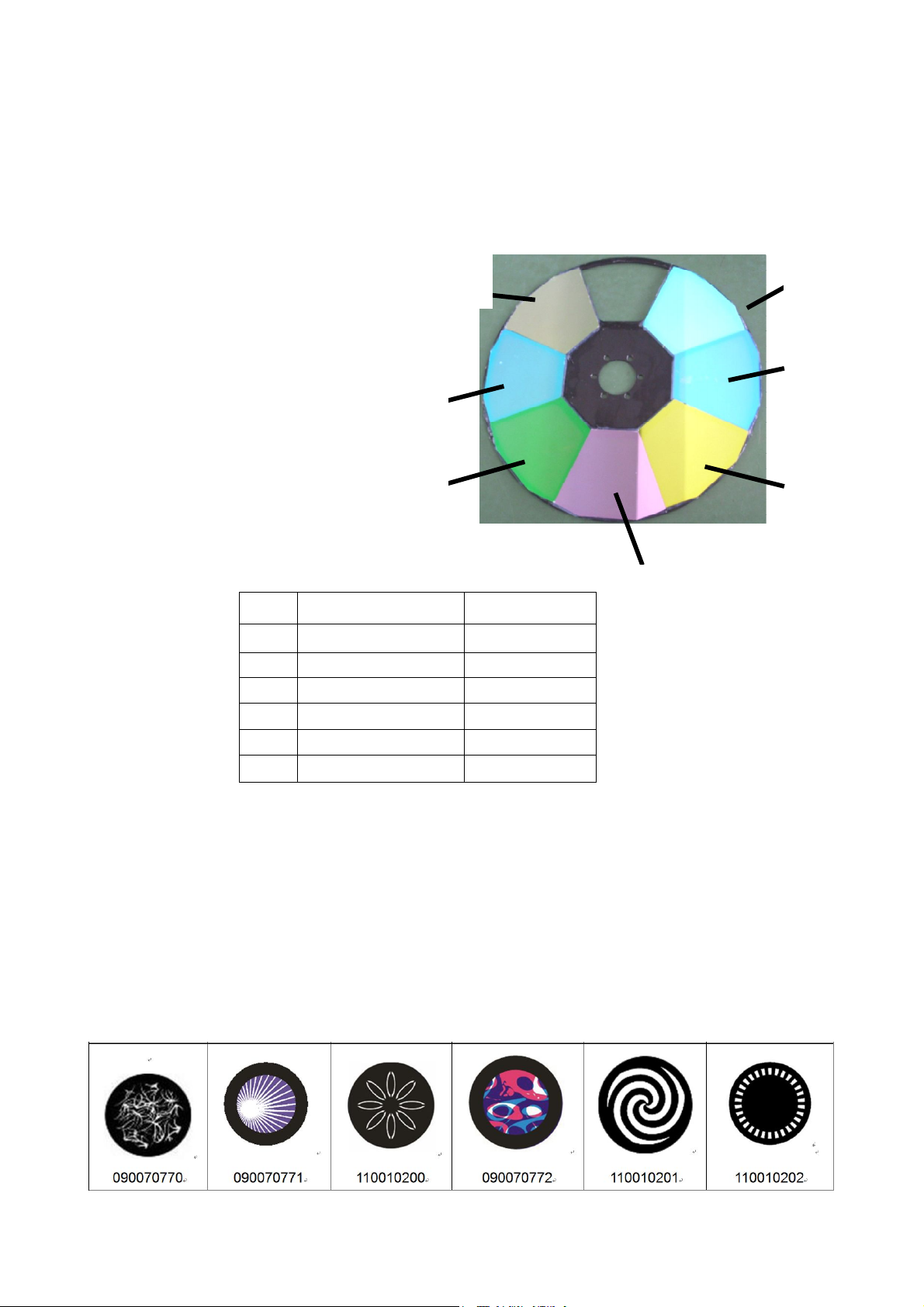

COLORS

CMY linear mixing system with macros

1 color wheel: 7colors+ open, half color effect

Rainbow effect with bi-directional and variable speeds

Stepping/linear color changing

090070046A

Orange

090070047A

090070045A

Pink

1 090070041A Red 620±5NM

090070041A

Red

090070044A

Yellow

090070043A

Blue

090070042A

Green

2 090070044A Blue 540±5NM

3 090070043A Yellow 500±5NM 4 090070042A Pink 510/545±5NM

5 090070045A Green 490/585±5NM

6 090070046A Orange 600±5NM

7 090070047A UV 460/690±5NM

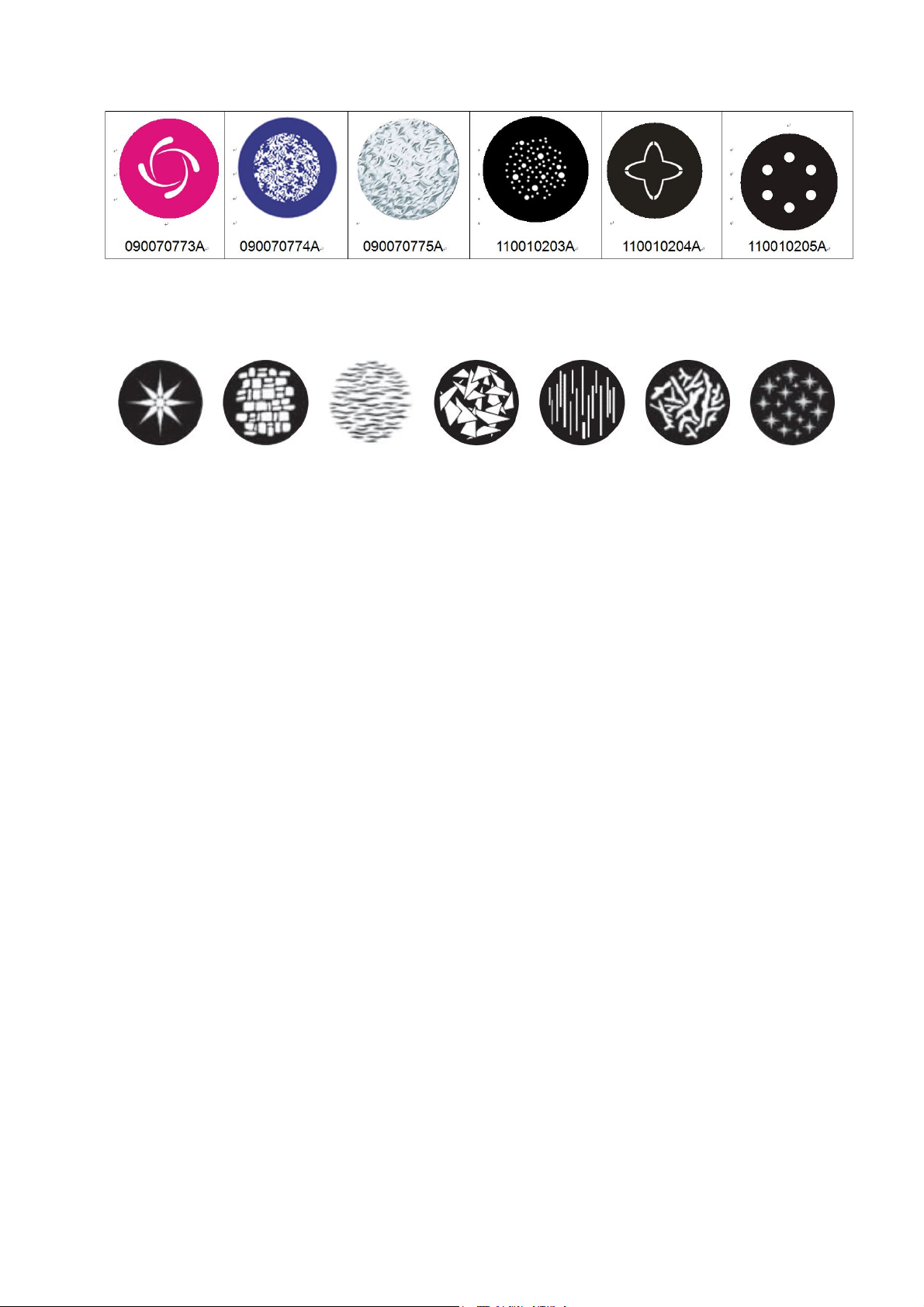

GOBOS

2 rotating gobo wheel:

6 replaceable gobos+ open, glass or metal gobo

Bi-directional rotation with variable speeds

With indexing function

Gobo shake effect with variable speeds

Bi-directional Scrolling with Variable Speeds

Rotating Gobo Wheel 1

20/26

Page 21

Rotating gobo Wheel2

1 fixed gob wheel:

7 replaceable gobos+ open

Gobo shake effect with variable speeds, bi-directional scrolling with variable speeds

Gobo outer size: 36.3mm

Gobo image size: 26mm

PRISM

1pc of 3-facet prism , Bi-directional rotation with variable speeds and indexing function

FROST

1pc frost filter, linear frost effect

IRIS

5-100% linear adjustment with macros

EFFECT WHEEL

1pc, replaceable, bi-directional rotation with variable speeds

FOCUS

DMX linear Focusing

ZOOM

DMX linear zooming

DIMMER

0-100% Linear adjustment

STROBE

Double shutter blades, 0.3~25 F.P.S

HEAD MOVEMENT

Pan 540º, Tilt 270º with auto position correction

21/26

Page 22

BEAM ANGLE

linear zoom 7.3°～ 68°with 16 bit function

CONTROL

DMX512, 3 pins and 5 pins interfaces RMD control protocol 25channels in short mode, 31channels in standard mode and 38channels in extended mode

Self-test mode

OTHER FUNCTIONS

Adjustable Pan & Tilt speed

Lamp and Total hours displayed

LCD English and Chinese Display with Contrast and brightness adjustable

Energy saving ballast

Built-in sensor diagnostic system

Built-in Chargeable battery and menu setting without power mains

Input signal isolation

Modular Structure for easy maintenance

Ethernet Interface

DMX512 wirless reciever

Optional DMX512 Transmitter

HOUSING

High temperature ABS, IP20

NET WEIGHT

45Kg

AMBIENT TEMPERATURE

-20°C～40°C

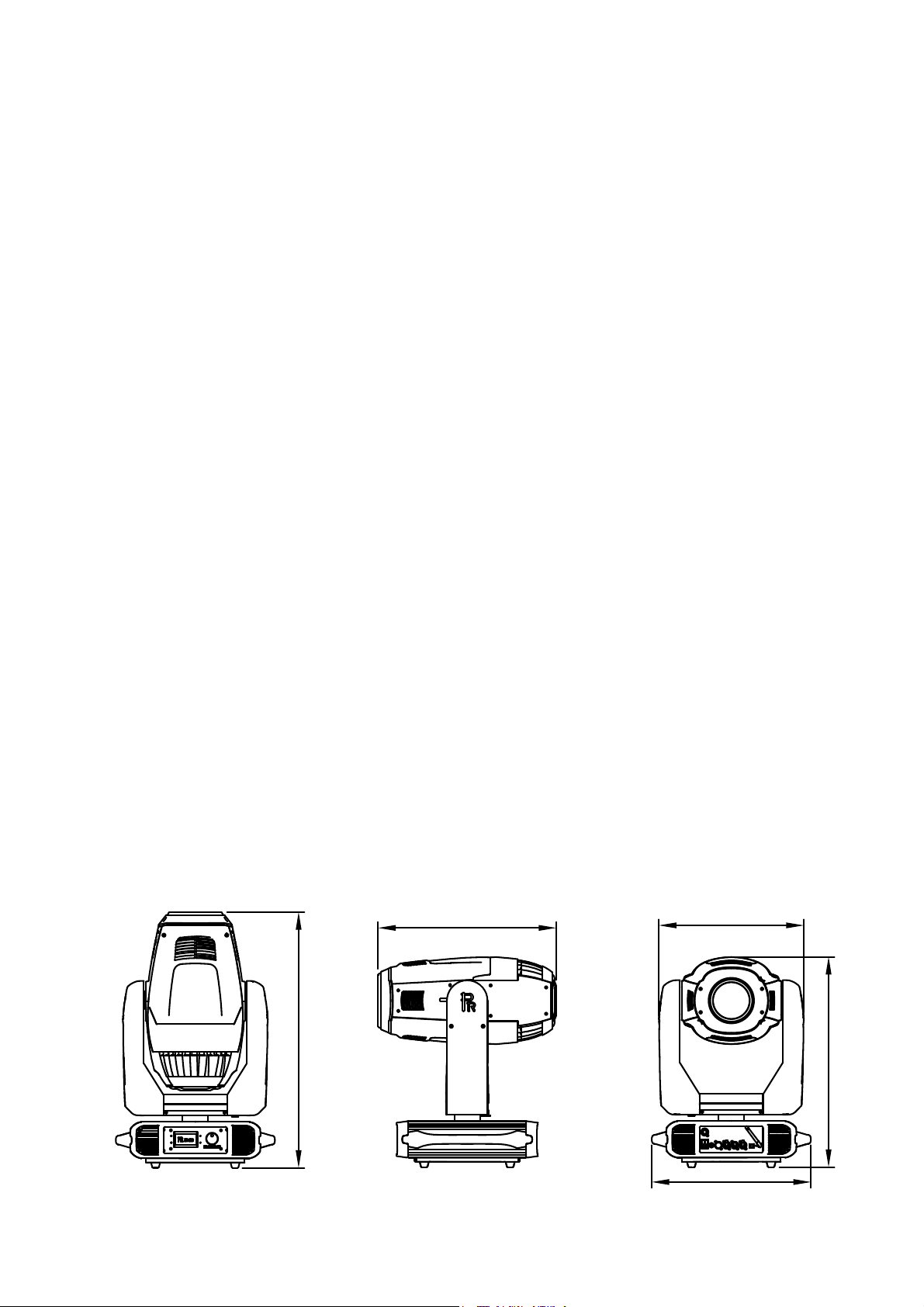

SIZES

609

873

495

544

717

22/26

Page 23

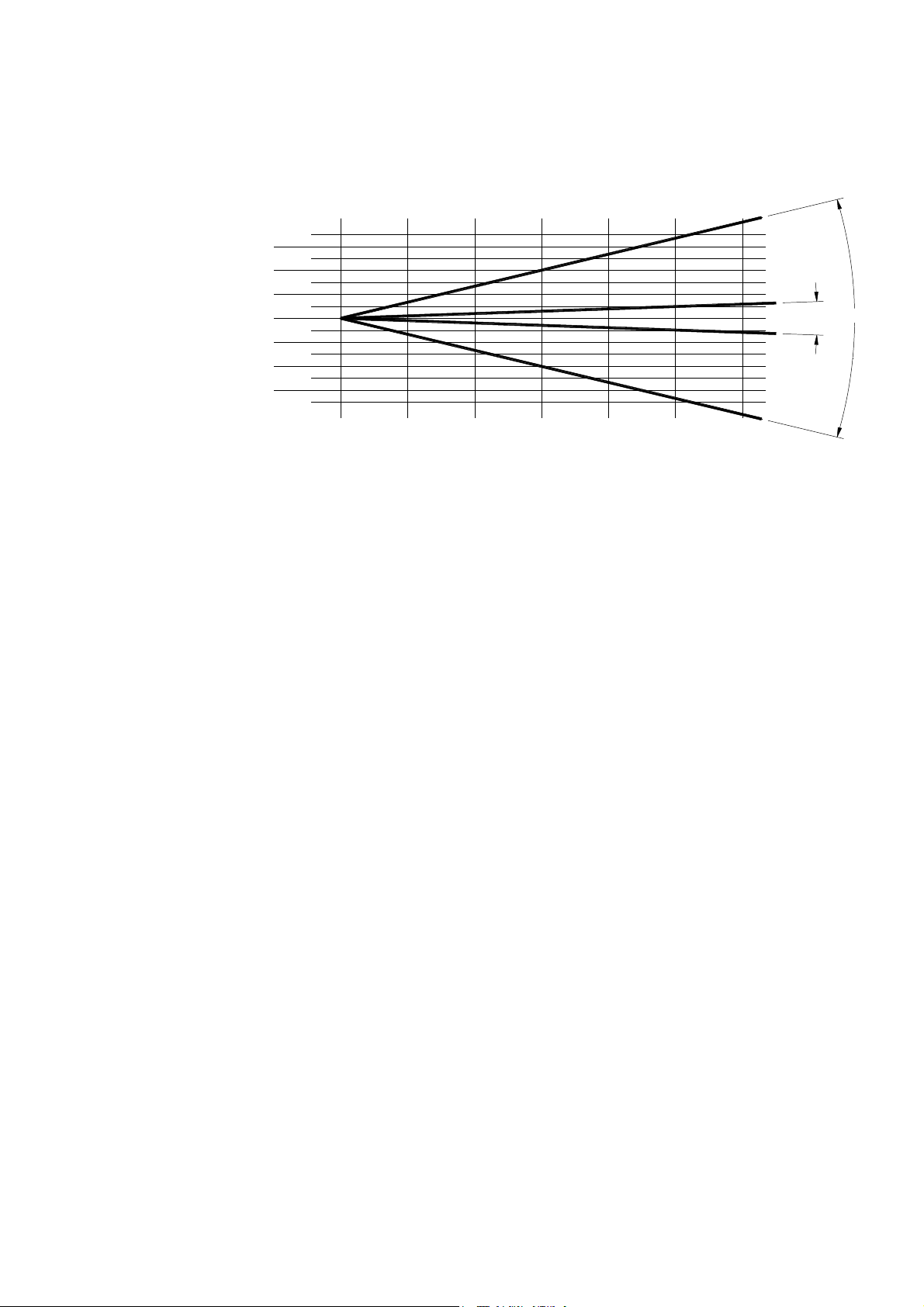

LIGHT OUTPUT

63° （ lu x）

7. 5 ° （ lu x ）

DISTANCE（ m）

7 .5° DIA M E T E R （ m）

63 ° D IA M ET E R （ m）

0m 5m 10m 15 m 20 m 25m 30m

1398 34 9 155 87 56 39

96 371 2 4093 10 708 602 3 3 8 55 2 677

0.66 1 .3 3 1 .9 9 2.65 3 .3 1 3 .9 8

5.55 1 1.1 1 16.66 22 .2 1 27.76 33.32

7. 5 °

63 °

11. CIRCUIT DIAGRAM AND PCB CONNECTIONS

23/26

Page 24

12. COMPONENT ORDER CODES

24/26

Page 25

NAME CODE NUMBER

POWER SWITCH

192010136

1 S-

350-24 POWER FILTER

193020008

20A 115/250VAC

THERMAL SWITCH

190010150

250V

16A ELECTRONIC BALLAST

040070132

2000W

IGNITER

040090066

2000W

LAMP

100070044

MSR GOLD

2000/1 FASTFIT

CHAMBER FAN

030060064

2 LAMP FAN

030060065

2 FRONT

CHAMBER FAN

030060065

2 BASE FAN

030060066

1 BALLAST FAN

030060066

2 FOCUS MOTOR

ZOOM MOTOR

ROTATING GOBO MOTOR 2#

030040085

IRIS MOTOR

030040088

1 PAN MOTOR

TILT MOTOR

STROBE MOTOR

COLOR WHEEL MOTOR

1 PRISM ROTATION MOTOR

1 ROTATING GOBO WHEEL 1#

EFFECT WHEEL IN MOTOR

1 FROST FILTER MOTOR

030040132

1 CYM

MOTOR

030040152

2 CTO MOTOR

030040152

2 DIMMER MOTOR

030040153

2 FIXED GOBO WHEEL MOTOR

030040084

MOTOR

PAN AND TILT DRIVE BOARD

230020592

1 DRIVER BOARD1

230020584

DRIVER

BOARD3

230020586

1 DRIVER BOARD4

230020587

1 MASTER BOARD

230020580

1 POWER BOARD

230020590

QTY REMARKS

TILT BELT 290151320 1 213-3M-5 PAN BELT 290151328 1 885-3M-9

030040073

030040156

030040095

030040112

EFFECT WHEEL ROTATION

030040155 1

DRIVER BOARD2 230020585 1

25/26

Page 26

PR LIGHTING LTD.

1582 Xingye Avenue, Nancun Panyu

Guangzhou, 511442 China

TEL: +86-20-3995 2888

PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted!

P/N: 320020429

Version: 20170718(Preliminary）

26/26
