PR Lighting PR5000 Wash User Manual

Page 1

PR5000 Wash

This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

PR LIGHTING LTD.

http://www.pr-lighting.com

Page 2

2/22

INDEX

SAFE USAGE OF THE PROJECTOR 3 INSTALLING THE PROJECTOR 4 FITTING THE LAMP 4 POWER SUPPLY – MAINS 5 CONTROL CONNECTIONS 5 DMX TERMINATOR 6 SETUP OPTIONS-PROJECTOR CONFIGURATION 6 TO SET THE DMX START ADDRESS 6 OPERATION MENU 8 ERROR MESSAGES 11 REPLACING FRESNEL LENS 11 DMX PROTOCOL 12 LED INDICATION 14 MAINTENANCE 14 KEEPING THE PROJECTOR CLEAN 14 TROUBLESHOOTING 15 TECHNICAL DATA 16 ELECTRICAL DIAGRAM 19 COMPONENT ORDER CODES 20

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without

notice. Whilst every care is taken in the preparation of this manual we reserve the right to change specifications in the course of

product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence

arising from them.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good

condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the

unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.

ACCESSORIES

These items are packed together with the projector:

Name Quantity Unit Remark

G clamps 2 Pcs

XLR cable 1 Pc 5-pin plug

Safety cord 2 Pcs

Spare gobos 4 Pcs

This manual 1 Pc

Ω clamps 2 Pcs Options

Page 3

3/22

SAFE USAGE OF THE PROJECTOR

When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus.

The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other liquids.

The projector is not designed or intended to be mounted directly on to inflammable surfaces.

The projector is only intended for installation, operation and maintenance by qualified personnel.

The projector must be installed in a location with adequate ventilation, at least 50cm from adjacent wall surfaces. Be sure that no ventilation slots are blocked.

Do not project the beam onto inflammable surfaces, minimum distance is 5m. 5m

Avoid direct exposure to the light from the lamp. The light is harmful to the eye.

Do not attempt to dismantle and/or modify the projector in any way.

Electrical connection must only be carried out by qualified personnel.

Before installation, ensure that the voltage and frequency of power supply match the power requirements of the projector.

It is essential that each projector is correctly earthed and that electrical installation conforms to all relevant standards.

Do not connect this device to any other types of dimmer apparatus.

Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into contact with other cables. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Keep the lamp clean. Do not touch the lamp glass with bare hand.

The projector should always be installed with a secondary safety fixing. A safety cord is supplied for this; it should be attached as shown in “installing the projector” section.

The lamp used in this projector is a discharge lamp. After switching off don’t attempt to restart the projector until lamp has cooled, this will require approx 15 minutes. Switching the lamp on and off at short intervals will reduce the life of both the lamp and the projector. But occasional breaks will prolong the life of the lamp and projector.

Never run the projector without a lamp. The lamp shall be changed if it has become damaged or thermally deformed.

Shields and lens shall be changed if they have become visibly damaged to such an extent than their effectiveness is impaired, for example by cracks or deep scratches.

Exterior surface temperatures of the luminaire after 5 minutes operation is 80℃, when steady state is achieved 170℃,

There is no user serviceable parts inside the projector, do not open the housing and never operate the projector with the covers removed.

Always disconnect from the mains, w hen the device is not in use or before cleaning it or before attempting any maintenance work !

If you have any questions, don’t hesitate to consult your dealer or manufacturer.

Page 4

4/22

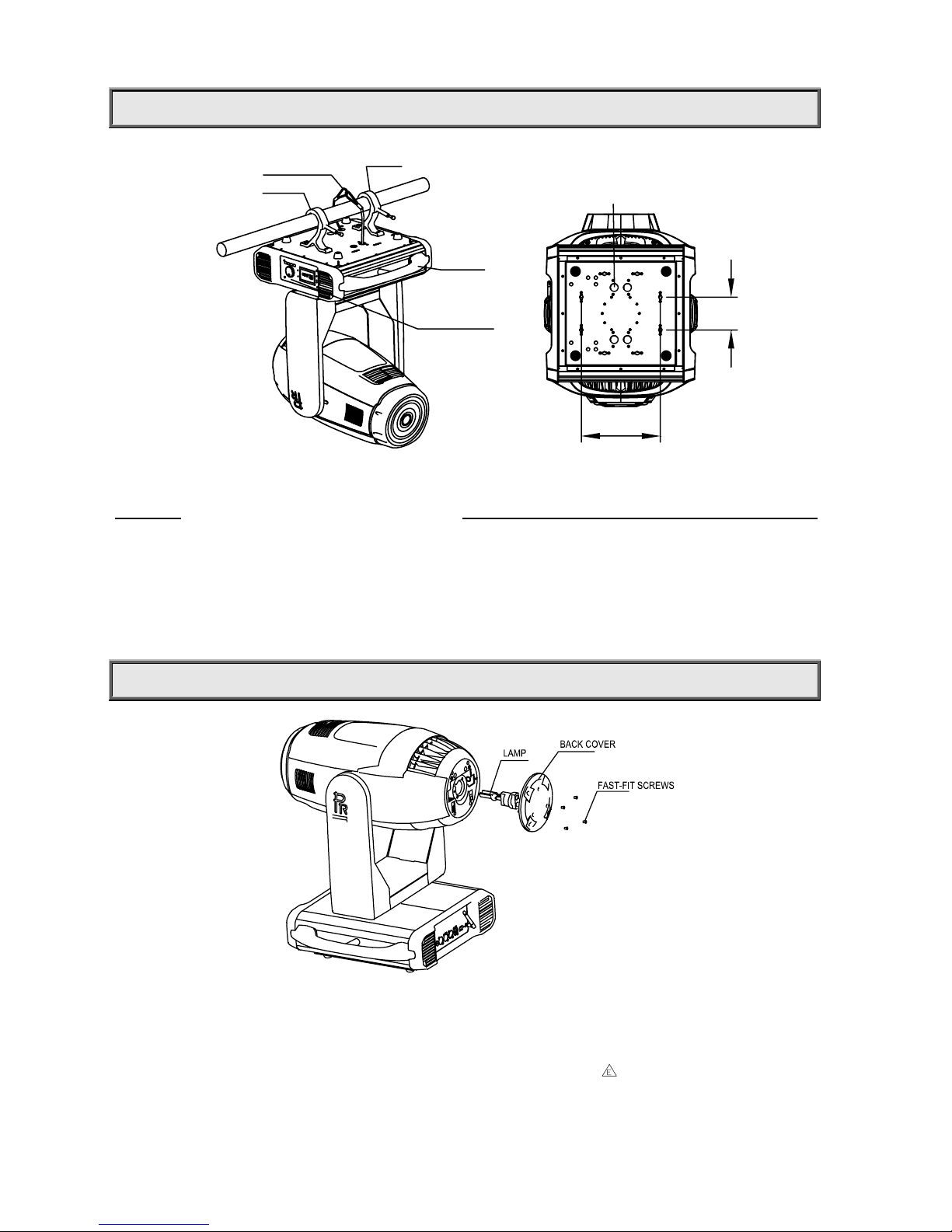

INSTALL THE PROJECTOR

106

256

HANDLE

SAFETY CORD

CLAMP

To pass 2 SAFETY CORDS

through 4 HOLES for safety!

WARNING

CONTROL PANEL

CLAMP

Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the

WARNING

on the underside of the base as shown above) To pass 2 SAFETY CORDS through 4 HOLES for safety!

Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector is secure and is strong enough to support a weight of PR5000 Wash.

WARNING:

1. Unlock the P AN and TILT be fore the 1

application of projector for safety .

2. The projector MUST be lifted or carried by the HANDLES instead of clamps.

3. For safety the safety cord should afford 10 times of the unit’s weight.

FITTING THE LAMP

Lock the yoke before fitting/replacing the lamp. Loosen 4 fast-fit screws and remove the back cover, you can see the structure as shown in the figure above. Rotate the lampholder to the left and take out the worn-out lamp.

Fit new lamp and close the back cover by fastening 4 fast-fit screws. Note: don’t touch the bulb of the new lamp with

bare hand so as not to influence the beam output;

WARNING: The MSR series are high-pressure lamps with external igniters (

). Care should always be taken

when handling these lamps. Always read the manufacturers "Instructions for use" enclosed with the lamp.

Page 5

5/22

POWER SUPPLY-MAINS

Connect the power cord as follows:

L (live) =brown E (earth) =yellow/green

N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.

IMPORT ANT It is essential that each projector is correctly earthed and the electrical installation conforms to a ll relevant standards.

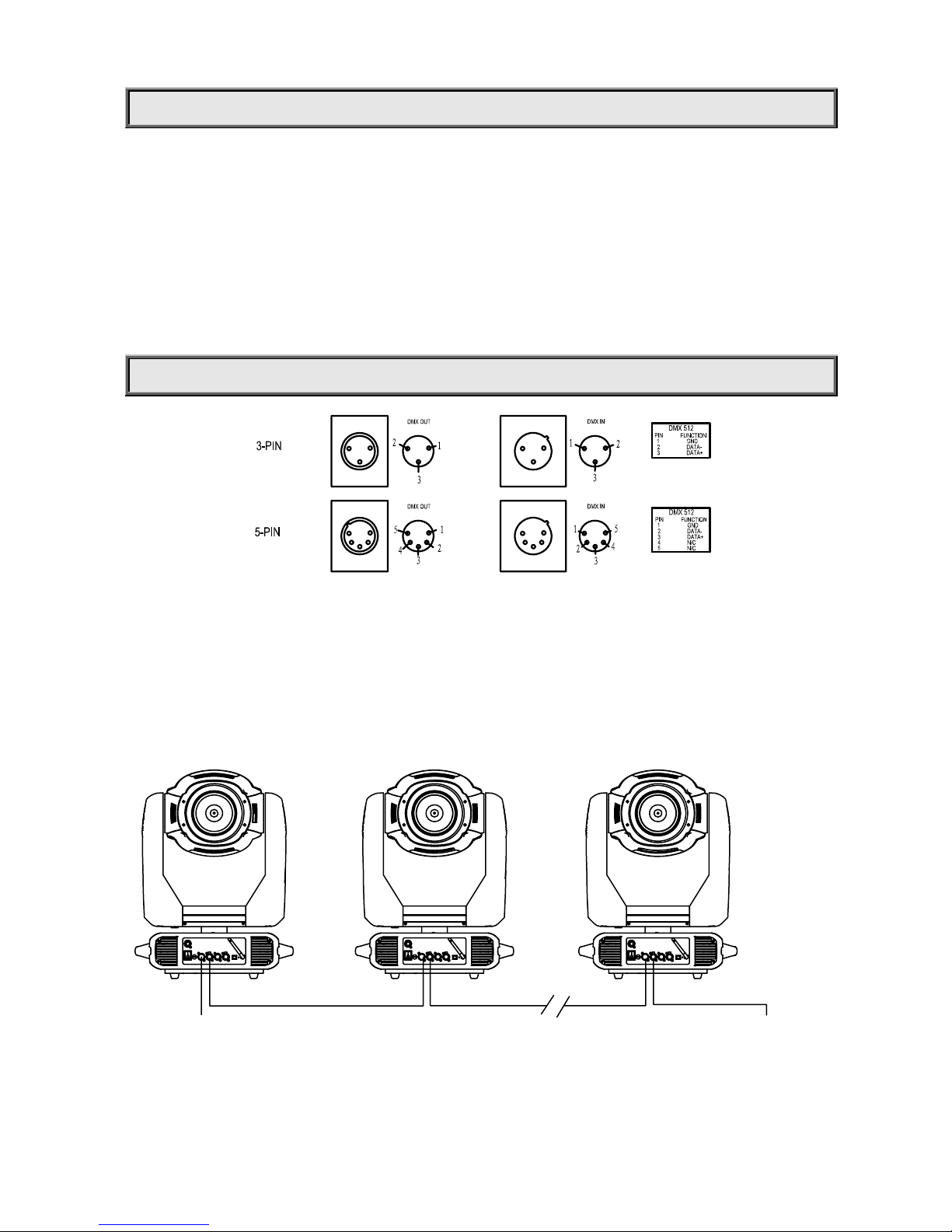

CONTROL CONNECTION

Connection between controller and projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above. Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not connected in any way. The unit accepts digital control signals in protocol DMX512 (1990). Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input and connect the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown in the figure below.

TO TERMINATER

TO CONTROLLER

DMX IN

DMX OUT

DMX IN

DMX OUT

DMX IN

DMX OUT

Page 6

6/22

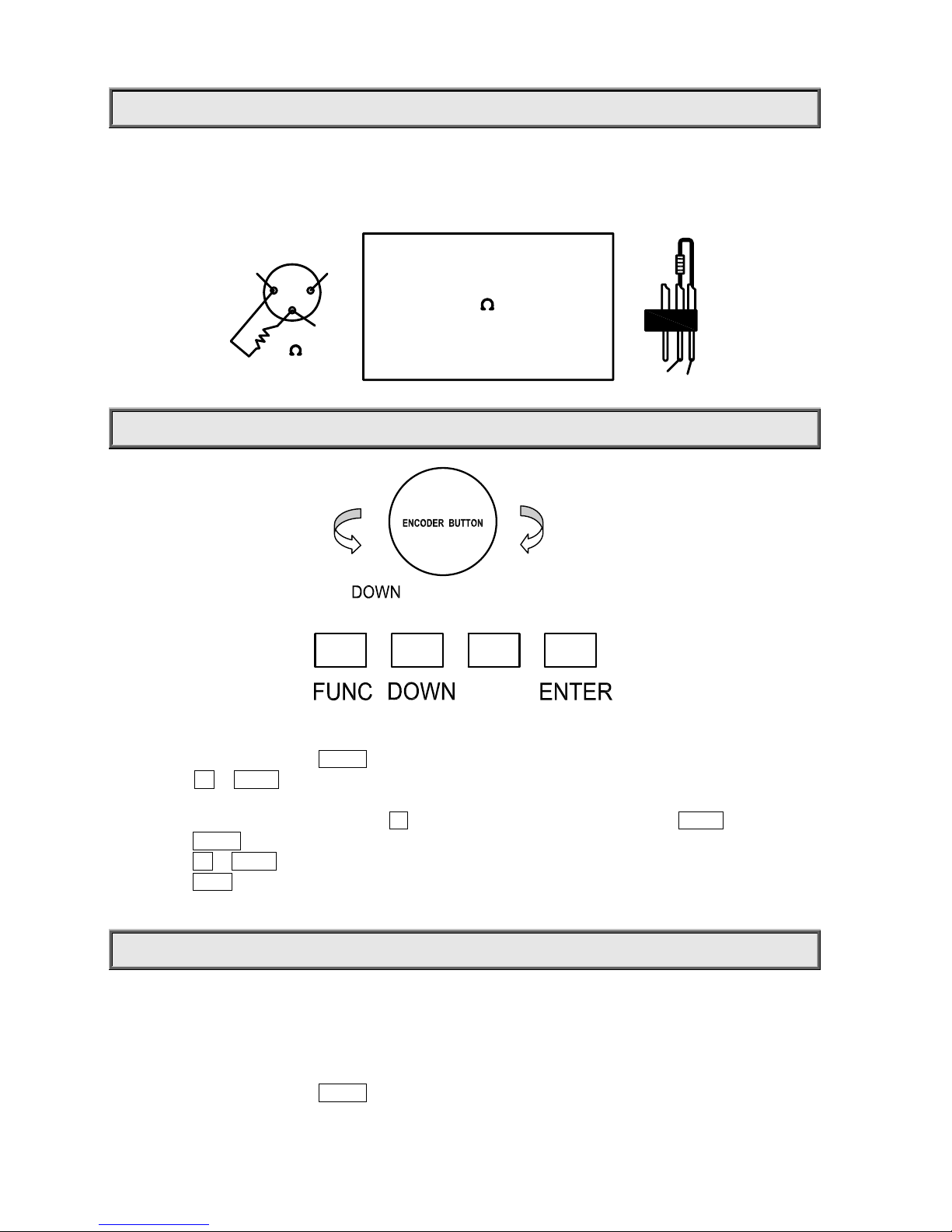

DMX TERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. The connections are illustrated below.

120

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor across pins 2 and 3 in an XLR plug and insert into the DMX out socket

on the last unit in the chain.

PIN 3

PIN 2

SETUP OPTIONS-PROJECTOR CONFIGURATION

Projector configuration can be set conveniently via pressbutton switch and LCD display. Turn the projector on and the LCD display will show DMX address you set and save last time and it can be reset and saved again as you please. Launch the projector. Press button ENTER more than 5 seconds to unlock panel. Press button UP or DOWN if you want to browse through the various Setup Options. T here are 10 option codes

from DMX Address to Wireless options, and each code has a specific function. If you turn the encoder

knob clockwise, the function like as button UP. On the contrary, the function like as button DOWN. Press button ENTER to save your settings or enter the next menu. There is same function if you push the encoder knob. Press button UP or DOWN to shift. Press button FUNC, it will return to the upper menu one by one. If you stay for minutes defaulted will show display status automatically.

TO SET THE DMX START ADDRESS

Each projector must be given a DMX start address so that the correct projector responds to the correct control signals.

This DMX start address is the channel number from which the projector starts to “listen” to the digital control information

being sent out from the controller. PR5000 Wash have 3 DMX modes. There are standard mode, extended mode and

short mode. For example standard mode have 17 channels, so set the No. 1 projector’s address 001, No. 2 projector’s

address 018, No. 3 projector’s address 035, No. 4 projector’s address 052, and so on. Launch the projector. Press button ENTER or encoder knob more than 5 seconds to unlock panel.

Page 7

7/22

Press button FUNC to display DMX address;

Press button UP and DOWN, you can set the address;

Press button ENTER to confirm; In the same time. The GREEN LED will flash one time. It means the setting has

been enabled. Press button FUNC, it will return to the upper menu one by one.

Page 8

8/22

OPERATION MENU

1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL

PR LIGHTING

PR5000 WASH

DMX Address=XXX

DMX Address

Short Mode

Standard Mode

Extended Mode

Reset

Rese

re You Sure?

Config Settings

DMX Mode

Standard

DMX Mode

Extended

DMX Mode

Short

Lamp Control

Lamp Control B

Control Channel

Lamp Control B

Power On

Lamp Control B

DMX Presen

Loss of DMX

When DMX is Los

Normal Time Ou

When DMX is Los

Hold Last Value

Factory Settings

(Press button

DOWN/UP/ENTER at the

same time to enter the

sub-menu)

Fixture type

(WARNING：Never

change the fixture ty pe

or the system will be

damaged!)

Option Settings

Colour Positions

STEPPED

Colour Positions

LINEAR

Pan DMX Invert

OFF

Pan DMX Invert

Tilt DMX Invert

OFF

Tilt DMX Invert

Pan Tilt Swap

OFF

Pan Tilt Swap

Dimmer Invert

OFF

Dimmer Invert

Zoom Invert

OFF

Zoom Invert

CMY Invert

OFF

CMY Invert

Page 9

9/22

CTO Invert

OFF

CTO Invert

Defaults

OFF

Defaults

Restore Defaults

Display Options

Display Mode

Display

On Always

Display

Off After Delay

Display Invert

OFF

Display Invert

Display Dimming

Disp Dim Level

Min

Disp Dim Level

Full

Display Contrast

XXX(1~36, Default is 16)

Display Language

Language =

English

Language =

Chinese

Information

Lamp Hours

Lamp Hours =

Reset Lamp Hours

Are You Sure?

Total Hours

Total Hours =

Temperature

Display Board

Display Board =

XX℃

Driver Board 1

Driver Board 1 =

XX ℃

Driver Board 2

Driver Board 2 =

XX ℃

Pan and Tilt

Pan and Tilt =

XX ℃

Head Sensor

Head Sensor=

XX ℃

Software Version

Display Board

Display Board =

X.X.X

Driver Board 1

Driver Board 1 =

X.X.X

Page 10

10/22

Driver Board 2

Driver Board 2 =

X.X.X

Pan and Tilt

Pan and Tilt =

X.X.X

Power Board

Power Board =

X.X.X

View DMX values

DMX Channel

1=XXX

Electronic SN

Electronic SN=

************

RDM Device Label

ANSI E1.20 RDM

Version

Tes t Mo d es

Factory Setup

OFF

Factory Setup

Self Test

OFF

self test

Lamp Manual

Control

Lamp Status

Status = XXX

Control = X

Turn Lamp On

Turn Lamp Off

Wireless Options

Wireless Mode

XLR First

Wireless Mode Wireless Only

Wireless Mode

XLR Only

Wireless Mode

Wireless To XLR

Wireless Mode

Wireless First

Un Link Wireless

Really Un Link

Enter = Yes

Page 11

11/22

ERROR MESSAGES

In the course of launch, PR5000 Wash examines automatically whether there are errors and if there are, it will display information as follows:

Display

Message

Sensor Err S1-M1 Colour wheel (1# drive board motor 1) error Sensor Err S1-M2 CTO (1# drive board motor 2) error Sensor Err S1-M3 CYM-cyan (1# drive board motor 3) error Sensor Err S1-M4 CYM-yellow (1# drive board motor 4) error Sensor Err S1-M5 CYM-magenta (1# drive board motor 5) error Sensor Err S2-M1 Colour wheel (2# drive board motor 1) error Sensor Err S2-M2 Zoom (2# drive board motor 2) error

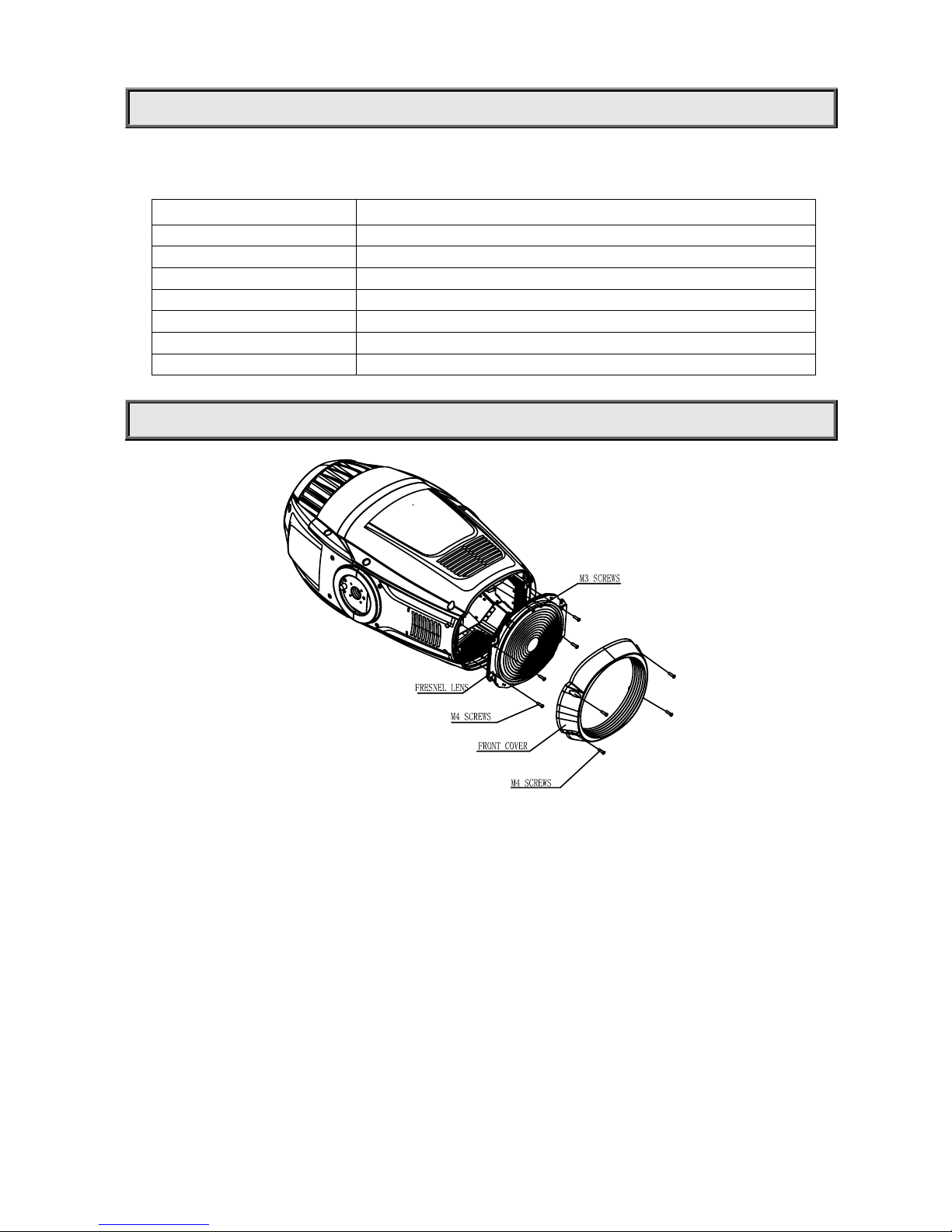

REPLACING FRESNEL LENS

The product can be changed from Fresnel lens to convex lens according to the clients request. Replaced as follows:

Disconnect the fixture from power. Lock Tilt. Carefully lift off the front cover by undoing the M4 screws.

Take the Fresnel lens out by undoing 6

screws.

Mounted on the convex lens and front cover, then

fasten screws.

Loosen tilt.

Page 12

12/22

DMX PROTOCOL

Short mode

Standard

mode

Extended

mode

FUNCTION DMX DESCRIPTION

1 1 1 Strobe

000-010 Black

011-025 Open

026-225 Strobe speed from slow to fast

226-246 Macro

247-255 Open

2 2 2 Dimmer

000-003

Black

004-255

Dimming from dark to light (0-100%)

3 3 Dimmer Fine 000-255 Dimmer in 16 Bit precision

3 4 4 CYM Macro

000-016

White

017-035

Yellow+ Magenta=Red

036-054

Ye ll ow

055-073

Yellow+ Cyan=Green

074-092

Cyan

093-110

Cyan+ Magenta=Blue

111-128

Magenta

129-255

CYM colour mixing from slow to fast

4 5 5 CYM-Cyan 000-255 Cyan (Linear 0-100%)

CYM-Cyan

Fine

000-255 Cyan in 16 Bit precision

5 6 7 CYM-Yellow 000-255 Yellow (Linear 0-100%)

CYM-Yellow

Fine

000-255 Yellow in 16 Bit precision

6 7 9 CYM-Magenta 000-255 Magenta (Linear 0-100%)

CYM-Magenta

Fine

000-255 Magenta in 16 Bit precision

7 8 11 CTO 000-255 Linear adjust from high to low

12 CTO Fine 000-255 CTO in 16 Bit precision

8 9 13 Colour Wheel 1

000-008

White

009-015

White/colour 1

016-023

Colour 1

024-030

Colour 1/colour 2

031-038

Colour 2

039-045

Colour 2/colour 3

046-053

Colour 3

054-060

Colour 3/colour 4

061-068

Colour 4

069-075

Colour 4/colour 5

076-083

Colour 5

084-090

Colour 5/colour 6

091-098

Colour 6

099-105

Colour 6/ white

106-113

Colour 7

114-120

Colour 7/white

Page 13

13/22

121-127

white

128-191

Rainbow rotation speed from fast to slow

192-255

Rainbow reverse rotation speed from fast to slow

9 10 14 Colour Wheel 2

000-008

White

009-015

White/colour 1

016-023

Colour 1

024-030

Colour 1/colour 2

031-038

Colour 2

039-045

Colour 2/colour 3

046-053

Colour 3

054-060

Colour 3/colour 4

061-068

Colour 4

069-075

Colour 4/colour 5

076-083

Colour 5

084-090

Colour 5/colour 6

091-098

Colour 6

099-105

Colour 6/ white

106-113

Colour 7

114-120

Colour 7/white

121-127

white

128-191

Rainbow rotation speed from fast to slow

192-255

Rainbow reverse rotation speed from fast to slow

10 11 15 Zoom 000-255 Linearly zooming

16 Zoom Fine 000-255 Zoom in 16 precision

11 12 17 Pan 000-255 Pan rotation

13 18 Pan Fine 000-255 Pan rotation in 16 precision

12 14 19 Tilt 000-255 Tilt rotation

15 20 Tilt Fine 000-255 Tilt rotation in 16 precision

16 21

Pan & Tilt

speed

000-255 Pan&Tilt speed from fast to slow

13 17 22 Control

000-047

Reserved

048-080

Reset

081-112

Reserved

113-144

Lamp off ( stop in DMX value for 10 s)

145-168

Reserved

169-200

Lamp power reduced to 50%

201-223

Reserved

224-255

Lamp on (See remark below)

Remark:

If you intend to turn on/off the lamp via the last channel of the controller, don’t attempt to push the channel to value 224-255 immediately after turning it off, or push the slide bar to value 224-255 to wait it cooling. Under these 2 circumstances, the lamp can not be turned on. The right operation is: turn it off---cool down---push the slide bar to turn it on.

Page 14

14/22

LED INDICATION

Green

DMX signal OK

Off

No DMX signal

Flash

DMX signal error

Yellow On

Setting the panel

Blue On Power

Red/Green

Red

Running self test mode

Green

Reserved

Green

Wireless signal OK

Off

No connection to any transmitter

Flash

Lost contact with the transmitter or linking transmitter

MAINTENANCE

If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes damaged or deformed in any way it must be replaced. If the light from the lamp appears dim this would normally indicate that it is reaching the end of its life and it should be changed at once, aged lamps run to the extremity of their life might explode. If the projector does not function, check the fuses on the power socket of the projector, they should only be replaced by fuses of the same specification. Should these be damaged call a qualified technician before replacement. The projector has thermal protection device that will switch off the projector in case of overheating, should either of these operate, check that the fans are not blocked, and if they are dirty clean them before switching on the projector again. Check that the fans are operational, if not call a qualified technician.

Any maintenance work sh ould only be carried out by qualified tec hnicians.

KEEPING THE PROJECTOR CLEAN

To ensure the reliability of the projector it should be kept clean. It is recommended that the fans should be cleaned every 15 days. The lens and dichroic colour filters should also be regularly cleaned to maintain an optimum light output.

NOT use any type of solvent on dichroic colour filters.

Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. A soft cloth and typical glass cleaning products should be used in cleaning. It is recommended to clean the external optics at least once every 20 days and clean the internal optics at least once every 30 / 60 days.

Do not use any organic solvent, e.g. alcohol, to clean the reflecto r mirror, dichroic colour filters or housing of the apparatus.

Page 15

15/22

TROUBLESHOOTING

PROBLEM ACTION

The projector doesn’t switch on

¾ Check the fuse on the power socket.

¾ Replace the lamp.

The lamp comes on but the projector

doesn’t respond to the controller

¾ Make sure that the projector is correctly configurated.

¾ Replace or repair the DMX cable.

The projector only functions intermittently ¾ Make sure the fan is working and not dirty.

Defective projection

¾ Check the lenses are not broken.

¾ Remove dust or grease from the lenses.

The project image appears to have a halo

¾ Make sure the lamp is installed correctly.

¾ Carefully clean the optical group lenses and the projector

components.

The beam appears dim

¾ Check the optics is clean.

¾ Replace with a new lamp of the specified type and rating.

Page 16

16/22

TECHNICAL DATA

VOLTAGES:

200V/220V/230V/240V AC，50/60Hz

POWER CONSUMPTION:

1800W@220V

LAMP:

OSRAM

HTI 1500W/60/P50

Colour Temperature 6000°K

Socket

PGJX50，single ended

Manufacturers Rated Lamp Life 750 Hours replacement

PHILIPS

MSR Gold 1500FastFit

Colour Temperature 6000°K

Socket

PGJX50，single ended

Manufacturers Rated Lamp Life 750 Hours replacement

COLOURS:

Smooth CYM colour mixing system with macro

2 wheels with 7 dichroic colour filters plus white

With variable speed bi-directional rainbow effect

Step/linear colour changing is available

COLOUR TEMPERA TURE CORRECTION:

Linearly colour temperature correction

FOCUS:

DMX linear focus

DIMMER:

0-100% linearly adjustable

SHUTTER:

Double shutter blades, 0.3~25 F.P.S

HEAD MOVEMENT :

Pan 540º, Tilt 270º with auto position correction

BEAM ANGLE:

11°in highlight mode

13°～40°

linearly adjustable

Page 17

17/22

OPTIONAL CONVEX LENS BEAM ANGLE:

10°in highlight mode

12°～35°

linearly adjustable

CONTROL:

DMX512, 3 pin and 5 pin interfaces RDM control protocol 13 channels in short mode, 17 channels in standard mode, and 22 channels in extended mode. Self-test mode

OTHER FUNCTIONS:

Adjustable Pan & Tilt speed

Fixture and lamp usage time display

LCD display with English and Chinese language menu

Energy saving function of the ballast

Built-in analyzer for easy fault finding, error messages

Modular construction for easy maintenance

Setup options by chargeable battery inside without power connection.

Input signal isolating protection

Network interface

DMX512 wireless receiver

DMX512 wireless transmitter (optional)

HOUSING:

Composite plastic, IP20

WEIGHT:

46Kg

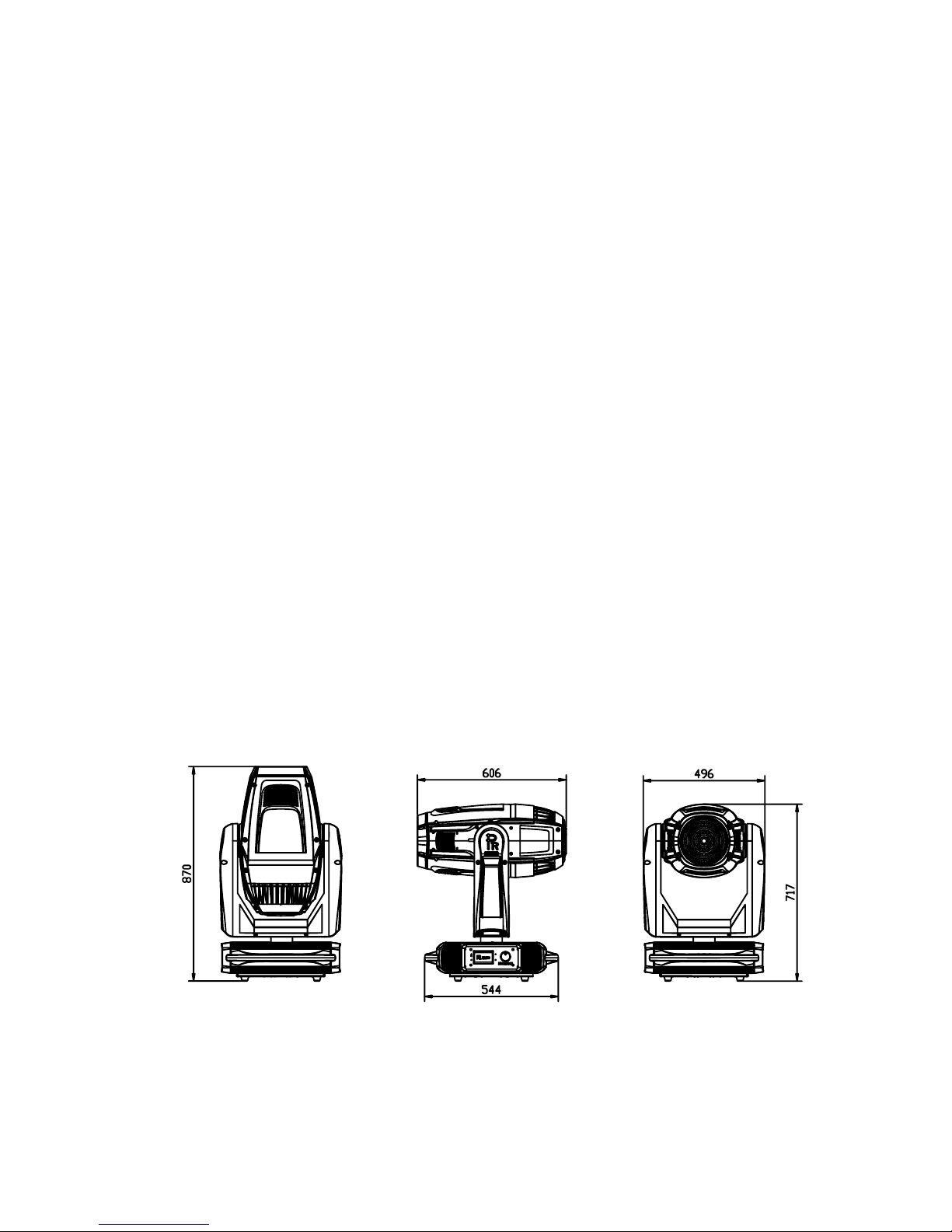

SIZES:

Page 18

18/22

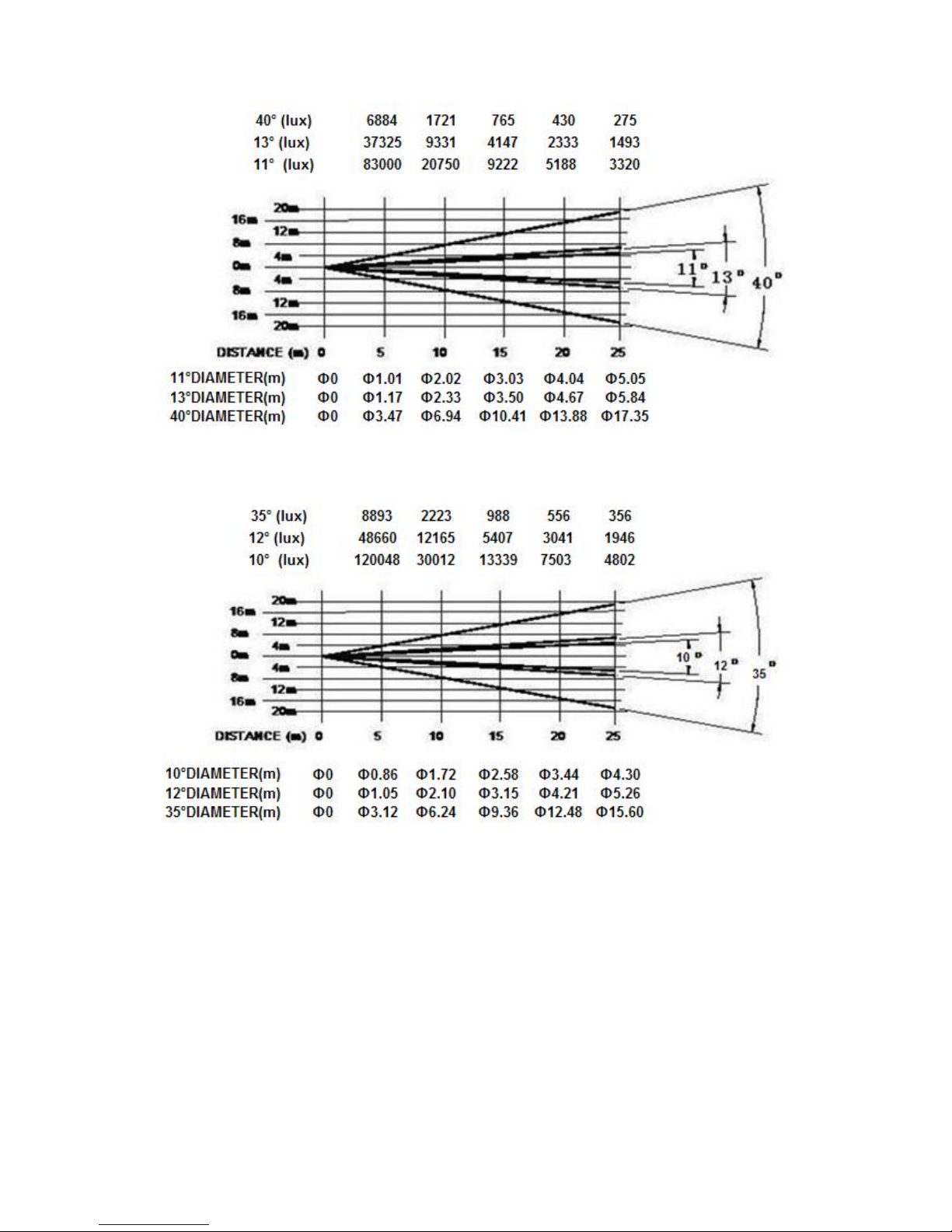

FRESNEL LENS LIGHT O UTPUT:

OPTIONAL CONVEX LENS LIGH T OUTPUT

Page 19

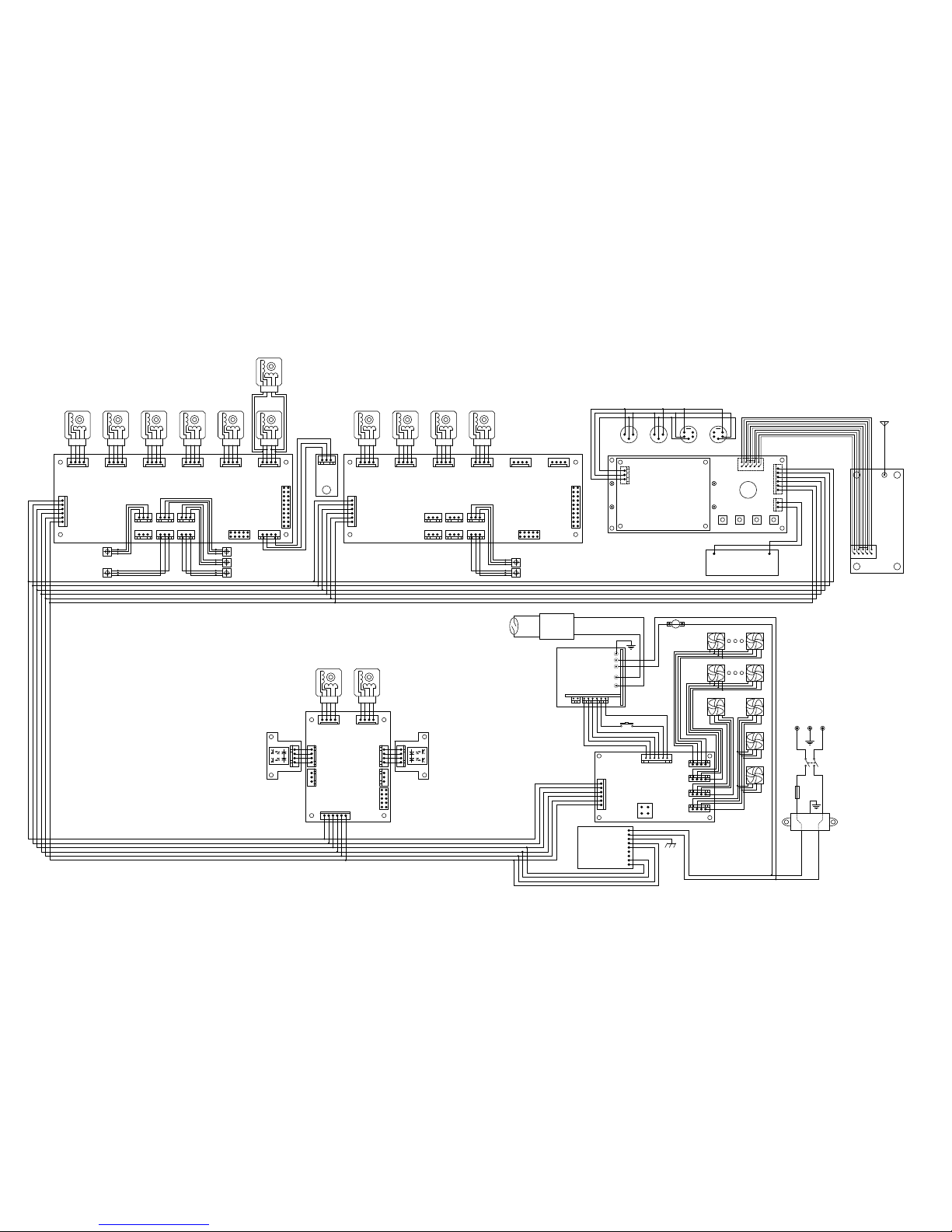

SENS1 SENS2

SENS3 SENS4

SENS5 SENS6

MOTOR1 MOTOR2 MOTOR3 MOTOR4 MOTOR5 MOTOR6

SLAVE #1 PCB

SENS1 SENS2

SENS3 SENS4

SENS5 SENS6

MOTOR1 MOTOR2 MOTOR3 MOTOR4 MOTOR5 MOTOR6

SLAVE #2 PCB

PAN & TILT PCB

GND

VCC

DMX-SENS1

DMX-SENS2

GND

VCC

DMX-SENS1

DMX-SENS2

TILT ENCODE

PAN ENCODE

DMX-IN DMX-OUT

1 2

234

DMX-IN DMX-OUT

VGS

AC INPUT

Filter

VGS VGS

VGS VGSVGS VGS VGS VGS

VGSVGS VGS

HALL 1-5 View of mark side

HALL 1-3 View of mark side HALL 1-1

View of mark side HALL 1-4 View of mark side

PAN TILT

GND

VCC

DMX-SENS1

DMX-SENS2

V G S

G S2 S1

S1 S2

HALL 1-2

View of mark side

LED1

LED2LED3

LED4

LCD DISPLAY

FUNCTION DOWN UP ENTER

GND

VCC

DMX-SENS1

DMX-SENS2

GND

DATA-

DATA+

FEMALE FEMALEMALEMALE

DC6V GND

Battery

SWITCH

View side of no axletree

M1-6B DIMMER

ABC

View side of no axletree

J1 PAN

ABC

View side of no axletree

J2 TILT

ABC

View side of no axletree

M1-6A DIMMER

ABC

HEAD FAN 1 HEAD FAN n

HEAD FAN

Thermostat

GND

DMX-SENS1

DMX-SENS2

FAN1

FAN2

FAN3

FAN4

FAN & LIGHTING PCB

PWM

FAN

View side of no axletree

M1-5 MAGENTA

ABC

View side of no axletree

M1-4 YELLOW

ABC

View side of no axletree

M1-3 CYAN

ABC

View side of no axletree

M1-1 COLOUR1

ABC

View side of no axletree

M1-2 CTO

ABC

View side of no axletree

M2-4 STROBE 2

ABC

View side of no axle tree

M2-3 STROBE 1

ABC

View side of no axletree

M2-2 ZOOM

ABC

View side of no axletree

M2-1 COLOUR2

ABC

SSG

VSG

HEAD FAN 1 HEAD FAN n

Fuse

TRANSFORMER

ELECTRONIC

+24V +24V

ACL ACN

+24V

VCC

SW-PB

162345

IGNITOR

GROUND

N L

TO IGNITOR

ELECTRONIC BALLAST

LAMP

12 1 62345

HALL 2-2 View of mark side

BOX FAN 3

BOX FAN 2

BOX FAN 1

Antenna

HALL 2-1 View of mark side

Page 20

20/22

COMPONENT ORDER CODES

NAME PART NO. QUANTITY REMARK

POWER SUPPLY

192010136 1 S-350-24

MAINS FILTER 193020008 1 20A 115/250VAC THERMOSTAT

190010150 1 250V-16A

ELECTRIC BALLAST 040070100 1 1500W IGNITOR 040090052 1 IGN40C12E LAMP

100050087 1 HTI 1500W/60/P50

TILT D R I V E B E LT 290151327 1 PAN DRIVE BELT 290151328 1 FAN NEAR FILTER IN TOP BOX

030060064 1

FAN IN FRONT BOX 030060065 4 FAN IN BASE 030060066 3 FAN NEAR THE CYM

030060064 1

FAN NEAR THE ELECTRIC BALLAST 030060066 2 PAN &TILT MOTOR 030040156 2 CYM MOTOR

030040152 2

CTO MOTOR 030040152 2 SHUTTER BLADE MOTOR

030040095

1 COLOUR WHEEL 1 MOTOR 1 COLOUR WHEEL 2 MOTOR

030040125 1

FOCUS MOTOR 030040161 1 IRIS MOTOR 030040153 2 PAN/TILT DRIVE PCB

230020592 1

MOTOR DRIVE PCB 1 230020584 1 MOTOR DRIVE PCB 2 230020611 1 DISPLAY PCB

230020580 1

POWER BOARD 230020590 1

Page 21

21/22

Page 22

22/22

PR LIGHTING LTD.

1582 Xingye Avenue, Nancun Panyu

Guangzhou, 511442 China

TEL: +86-20-3995 2888 FAX: +86-20-3995 2330

P/N: 320020034

Version: 20110704
