XL WASH 1500

PR-2805/PR-2805M

This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

PR LIGHTING LTD.

http://www.pr-lighting.com

Page 2

2/22

INDEX

SAFE USAGE OF THE PROJECTOR 3 INSTALLING THE PROJECTOR 4 FITTING THE LAMP 4 POWER SUPPLY – MAINS 5 CONTROL CONNECTIONS 5 DMX TERMINATOR 6 SETUP OPTIONS-PROJECTOR CONFIGURATION 6 TO SET THE DMX START ADDRESS 6 OPERATION MENU 7 ERROR MESSAGES 10 DMX PROTOCOL 11 LED INDICATION 14 MAINTENANCE 14 LUBRICATION 14 KEEPING THE PROJECTOR CLEAN 14 TROUBLESHOOTING 15 TECHNICAL DATA 16 ELECTRICAL DIAGRAM 19 COMPONENT ORDER CODES 20

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without

notice. Whilst every care is taken in the preparation of this manual we reserve the right to change specifications in the course of

product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence

arising from them.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good

condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the

unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.

ACCESSORIES

These items are packed together with the projector:

Name Quantity Unit Remark

G clamps 2 Pcs XLR cable 1 Pc 3-pin plug Safety cords 2 Pcs This manual 1 Pc Ω clamps 2 Pcs Options

Page 3

3/22

SAFE USAGE OF THE PROJECTOR

When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus.

The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other liquids.

The projector is not designed or intended to be mounted directly on to inflammable surfaces.

The projector is only intended for installation, operation and maintenance by qualified personnel.

The projector must be installed in a location with adequate ventilation, at least 50cm from adjacent wall surfaces. Be sure that no ventilation slots are blocked.

Do not project the beam onto inflammable surfaces, minimum distance is 5m. 5m

Avoid direct exposure to the light from the lamp. The light is harmful to the eye.

Do not attempt to dismantle and/or modify the projector in any way.

Electrical connection must only be carried out by qualified personnel.

Before installation, ensure that the voltage and frequency of power supply match the power requirements of the projector.

It is essential that each projector is correctly earthed and that electrical installation conforms to all relevant standards.

Do not connect this device to any other types of dimmer apparatus.

Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into contact with other cables. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Keep the lamp clean. Do not touch the lamp glass with bare hand.

The projector should always be installed with a secondary safety fixing. A safety cord is supplied for this; it should be attached as shown in “installing the projector” section.

The lamp used in this projector is a discharge lamp. After switching off don’t attempt to restart the projector until lamp has cooled, this will require approx 15 minutes. Switching the lamp on and off at short intervals will reduce the life of both the lamp and the projector. But occasional breaks will prolong the life of the lamp and projector.

Never run the projector without a lamp.

There is no user serviceable parts inside the projector, do not open the housing and never operate the projector with the covers removed.

Always disconnect from the mains, w hen the device is not in use or before cleaning it or before attempting any maintenance work !

If you have any questions, don’t hesitate to consult your dealer or manufacturer.

Page 4

4/22

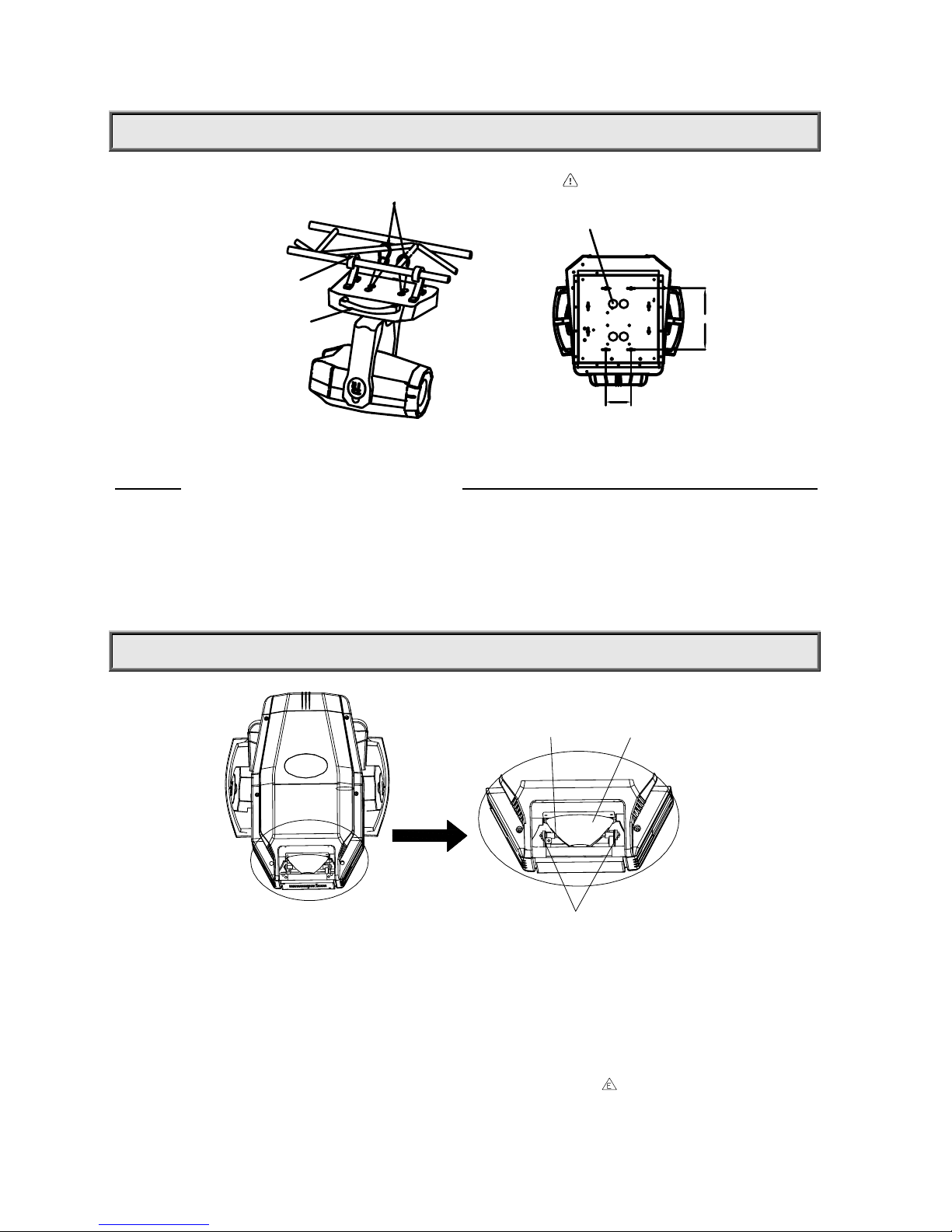

INSTALL THE PROJECTOR

(2PCS)

HANDLES

(2PCS)

SAFETY CORD

CLAMPS

To pass 2 SAFETY CORDS

through 4 HOLES for safety!

WARNING

257

106

Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the

WARNING

on the underside of the base as shown above) To pass 2 SAFETY CORDS through 4 HOLES for safety!

Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector is secure and is strong enough to support a weight of XL WASH

1500.

WARNING:

1. Unlock the P AN and TILT be fore the 1

application of projector for safety .

2. The projector MUST be lifted or carried by the HANDLES instead of clamps.

3. For safety the safety cord should afford 10 times of the unit’s weight.

FITTING THE LAMP

NUT

LAMP

REFLECTER

Lock the yoke before fitting/replacing the lamp. Loosen 4 screws and open the back covers, you can see the structure as shown in the figure above. Loosen 2 nuts at the both ends of lamp and take out the worn-out lamp. Suggest to free one end after another.

Fit new lamp and fasten 2 screws at the both ends of lamp. Note: don’t touch the bulb of the new lamp with bare hand so

as not to influence the beam output; the PST (pumping stem tip off) on the bulb facing the rear cover with fans perpendicularly and being not in the beam’s way is a must and aids cooling. Close the rear cover and fasten 4 screws.

NOTE: The convex of the nuts should face to the side when fitting the lamp. WARNING: The MSR series are high-pressure lamps with external igniters (

). Care should always be taken

when handling these lamps. Always read the manufacturers "Instructions for use" enclosed with the lamp.

Page 5

5/22

POWER SUPPLY-MAINS

Connect the power cord as follows:

L (live) =brown E (earth) =yellow/green

N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.

IMPORT ANT It is essential that each projector is correctly earthed and the electrical installation conforms to a ll relevant standards.

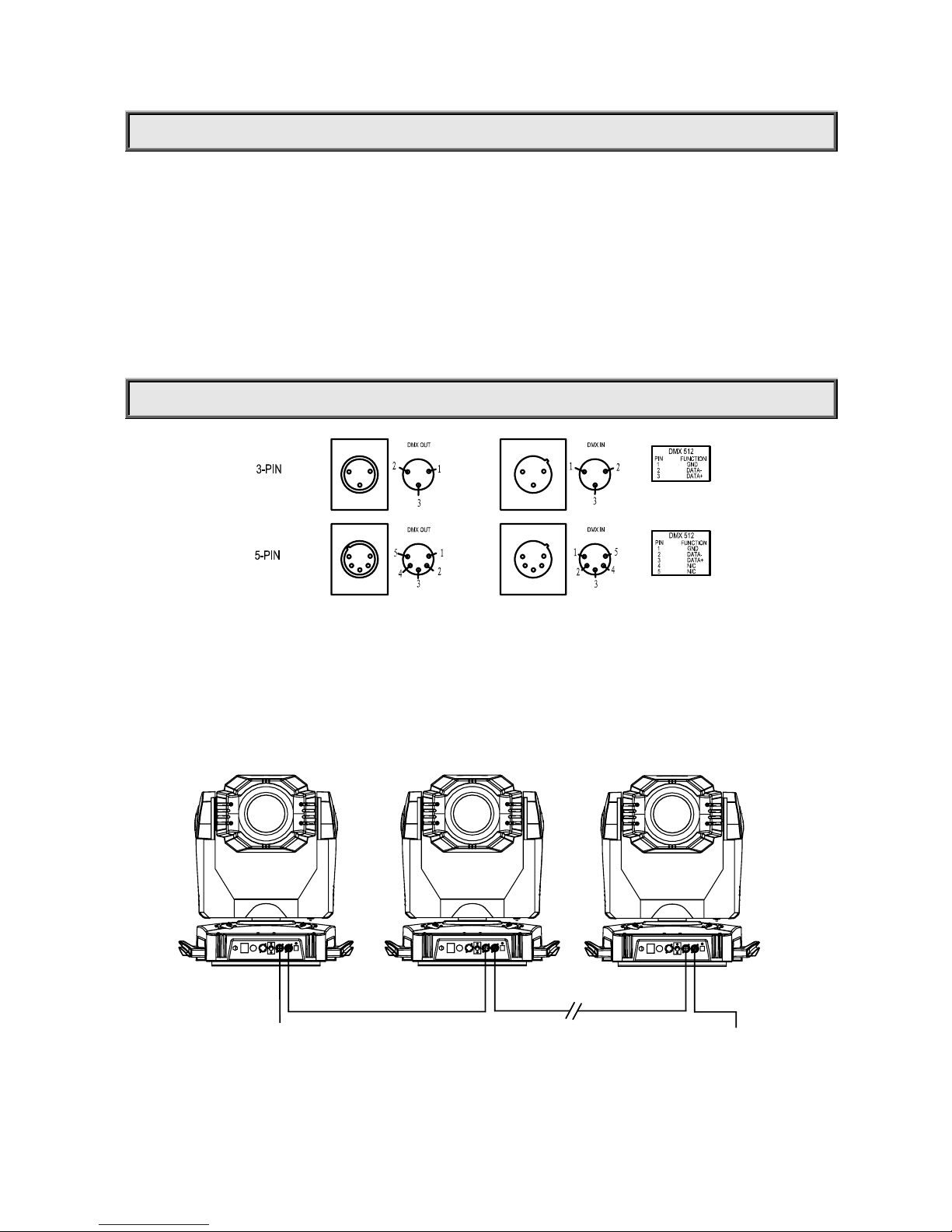

CONTROL CONNECTION

Connection between controller and projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above. Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not connected in any way. The XL WASH 1500 accepts digital control signals in protocol DMX512 (1990). Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input and connect the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown in the figure below.

DMX OUTDMX IN

DMX IN FROM

TERMINATER

DMX IN DMX OUT DMX IN

DMX OUT

CONTROLLER

Page 6

6/22

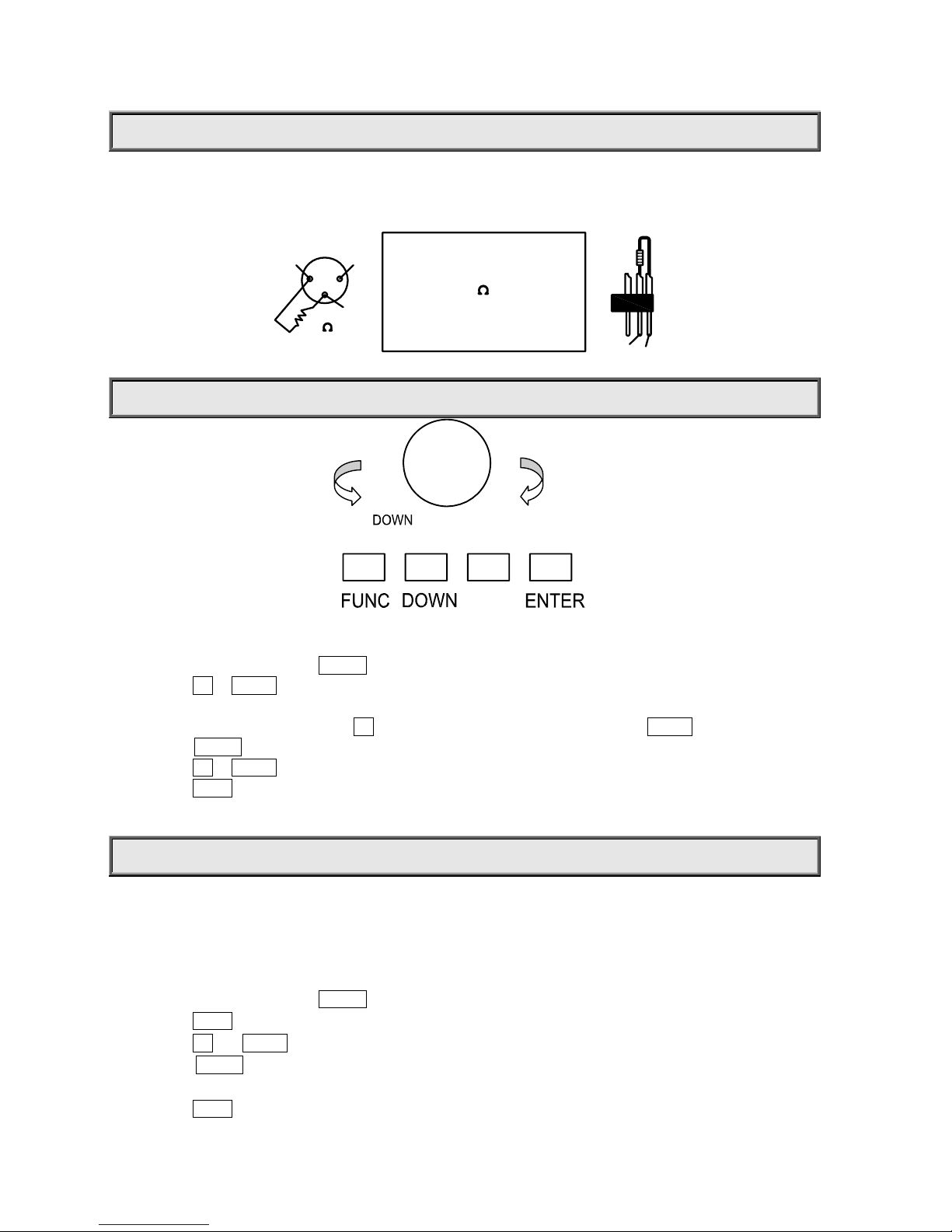

DMX TERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. The connections are illustrated below.

120

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor across pins 2 and 3 in an XLR plug and insert into the DMX out socket

on the last unit in the chain.

PIN 3

PIN 2

SETUP OPTIONS-PROJECTOR CONFIGURATION

CODER BUTTON

Projector configuration can be set conveniently via pressbutton switch and LCD display. Turn the projector on and the LCD display will show DMX address you set and save last time and it can be reset and saved again as you please. Launch the projector. Press button ENTER more than 5 seconds to unlock panel. Press button UP or DOWN if you want to browse through the various Setup Options. T here are 8 option codes from

DMX Address to Lamp Manual Control, and each code has a specific function. If you turn the coder knob

clockwise, the function like as button UP . On the contrary, the function like as button DOWN . Press button ENTER to save your settings or enter the next menu. There is same function if you push the coder knob. Press button UP or DOWN to shift. Press button FUNC, it will return to the upper menu one by one. If you stay for minutes defaulted will show display status automatically.

TO SET THE DMX START ADDRESS

Each XL WASH 1500 must be given a DMX start address so that the correct projector responds to the correct control

signals. This DMX start address is the channel number from which the projector starts to “listen” to the digital control

information being sent out from the controller. The XL WASH 1500 has 3 DMX modes. There are standard mode,

extended mode and short mode. For example standard mode has 17 channels, so set the No. 1 projector’s address 001,

No. 2 projector’s address 018, No. 3 projector’s address 035, No. 4 projector’s address 052, and so on. Launch the projector. Press button ENTER or coder knob more than 5 seconds to unlock panel.

Press button FUNC to display DMX address;

Press button UP and DOWN, you can set the address;

Press button ENTER to confirm; In the same time. The GREEN LED will flash one time. It means the setting has

been enabled. Press button FUNC, it will return to the upper menu one by one.

Page 7

7/22

OPERATION MENU

1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL

PR LIGHTING

XL SERIES

XL 1500 WASH

DMX Address=001

DMX Address

DMX Addres

001-499 in short mode 001-496 in stand mode 001-490 in extended mod

Reset

Rese

Are You Sure?

Config Settings

DMX Mode

DMX Mod

Standard 1

DMX Mod

Extended 16

DMX Mod

Short

Lamp Control

Lamp Control B

Control Channel

Lamp Control B

Power On

Lamp Control B

DMX Presen

Loss of DMX

When DMX is Los

Normal Time Ou

When DMX is Los

Hold Last Valu

Factory Settings

(Press button

DOWN/UP/ENTER at the same

time to enter the sub-menu)

Fixture type

(WARNING：Never change

the fixture type or the

system will be damaged!)

Fixture type=

XL 120

Fixture type=

XL 70

Fixture type=

XL 57

Fixture type=

XL 1200 F

Fixture type=

XL 1200 Wash

Fixture type=

XL 700 Wash

Fixture type=

XL 180

Fixture type=

XL 150

Fixture type=

XL 1500 Wash

Fixture type=

S 120

Option Settings

Colour Positions

Colou

Position

STEPPED

ColourPosition

LINEA

Pan DMX Invert

Pan DMX Inver

OFF

Pan DMX Inver

Tilt DMX Invert

Tilt DMX Inver

OFF

Tilt DMX Inver

Pan Tilt Swap

Pan Tilt Swa

OFF

Pan Tilt Swa

Dimmer Invert

Dimmer Inver

OFF

Dimmer Inver

Zoom Invert

Zoom Inver

OFF

Zoom Invert

Page 8

8/22

CMY Invert

Inver

OFF

CMYInver

CTO Invert

TO Inver

OFF

TO Inver

Defaults

Default

OFF

Default

Restore Default

Display Options

Display Mode

Displa

On Alwa

Displa

Off After Dela

Display Invert

DisplayInver

OFF

DisplayInver

Display Dimming

Disp Dim Level

Min

Disp Dim Level

DispDim Level

Disp Dim Level

Full

Display Contrast

Display Contras

XXX(1~36, Defaultis 16

)

Display Language

Language =

lish

Language =

Chines

Information

Lamp Hours

Lamp Hours =

Reset Lamp Hour

Are You Sure?

Total Hours

Total Hours =

Temperature

Display Board

Display Board =

℃

Driver Board 1

Driver Board 1 =

XX ℃

Driver Board 2

Driver Board 2 =

XX ℃

Pan and Tilt

Pan and Tilt =

XX ℃

Head Sensor

Head Sensor=

XX ℃

Software Version

Display Board

Display Board =

X.X.

Driver Board 1

Driver Board 1 =

X.X.X

Driver Board 2

Driver Board 2 =

X.X.X

Pan and Tilt

Pan and Tilt =

X.X.X

Power Board

Power Board =

X.X.X

View DMX values

DMX Channel

Page 9

9/22

Test Modes

Factory Setup

Factory Setu

OFF

Factory Setu

Self Test

Self Tes

OFF

self tes

Lamp Manual

Control

Lamp Status

Status = XX

Control =

Turn Lamp On Turn Lamp Off

Page 10

10/22

ERROR MESSAGES

In the course of launch, XL WASH 1500 examines automatically whether there are errors and if there are, it will display information as follows:

Display

Message

Sensor Err S1-M1 Colour wheel 1 (1# drive board motor 1) error Sensor Err S1-M2 CTO (1# drive board motor 2) error Sensor Err S1-M3 CYM-cyan (1# drive board motor 3) error Sensor Err S1-M4 CYM-yellow (1# drive board motor 4) error

Sensor Err S1-M5 CYM-magenta (1# drive board motor 5) error

Sensor Err S1-M6 Dimmer (1# drive board motor 6) error

Sensor Err S2-M1 Zoom (2# drive board motor 1) error

Sensor Err S2-M2 Inside lens 1 (2# drive board motor 2) error Sensor Err S2-M3 Inside lens 2 (2# drive board motor 3) error Sensor Err S2-M4 Colour wheel 2 (2# drive board motor 4) error Sensor Err S2-M5 Strobe 1 (2# drive board motor 5) error Sensor Err S2-M6 Strobe 2 (2# drive board motor 6) error

Page 11

11/22

DMX PROTOCOL

Short mode

Standard

mode

Extended

mode

FUNCTION DMX DESCRIPTION

1 1 1 Strobe

000-010 Black

011-025 Open

026-225 Strobe speed from slow to fast

226-255 Open

2 2 2 Dimmer

000-007 Black

008-255 Dimming from dark to light (0-100%)

3 Dimmer Fine 000-255 Dimmer in 16 Bit precision

3 3 4 CYM Macro

000-01

White

017-03

Yellow+ Magenta=Red 036-054 Yellow 055-07

Yellow+ Cyan=Green 074-092 Cyan 093-110 Cyan+ Magenta=Blue

111-12

Magenta 129-25

CYM colour mixing from slow to fas

4 4 5 CYM-Cyan 000-255 Cyan (Linear 0-100%)

CYM-Cyan

Fine

000-255 Cyan in 16 Bit precision

5 5 7 CYM-Yellow 000-255 Yellow (Linear 0-100%)

CYM-Yellow

Fine

000-255 Yellow in 16 Bit precision

6 6 9 CYM-Magenta 000-255 Magenta (Linear 0-100%)

CYM-Magenta

Fine

000-255 Magenta in 16 Bit precision

7 7 11 CTO 000-255 Linear adjust from high to low

12 CTO Fine 000-255 CTO in 16 Bit precision

8 8 13 Colour Wheel 1

000-01

White 017-024 White/colour 1

025-032 Colour 1

033-040 Colour 1/colour 2

041-048 Colour 2

049-056 Colour 2/colour 3

057-064 Colour 3

065-072 Colour 3/colour 4

073-080 Colour 4

081-088 Colour 4/colour 5

089-096 Colour 5

097-104 Colour 5/colour 6

105-112 Colour 6

113-120 Colour 6/ white

121-127 white

128-133 Rainbow rotation speed 1 (slowest)

134-139 Rainbow rotation speed 2

Page 12

12/22

140-145 Rainbow rotation speed 3

146-151 Rainbow rotation speed 4

152-157 Rainbow rotation speed 5

158-163 Rainbow rotation speed 6

164-169 Rainbow rotation speed 7

170-175 Rainbow rotation speed 8

176-181 Rainbow rotation speed 9

182-187 Rainbow rotation speed 10

188-195 Stop in current position

196-201

Rainbow reverse rotation speed 1(slowest)

202-207 Rainbow reverse rotation speed 2

208-213 Rainbow reverse rotation speed 3

214-219 Rainbow reverse rotation speed 4

220-225 Rainbow reverse rotation speed 5

226-231 Rainbow reverse rotation speed 6

232-237 Rainbow reverse rotation speed 7

238-243 Rainbow reverse rotation speed 8

244-249 Rainbow reverse rotation speed 9

250-255 Rainbow reverse rotation speed 10

9 9 14 Colour Wheel 2

000-016 White

017-024 White/colour 1

025-032 Colour 1

033-040 Colour 1/colour 2

041-048 Colour 2

049-056 Colour 2/colour 3

057-064 Colour 3

065-072 Colour 3/colour 4

073-080 Colour 4

081-088 Colour 4/colour 5

089-096 Colour 5

097-104 Colour 5/colour 6

105-112 Colour 6

113-120 Colour 6/ white

121-127 white

128-133 Rainbow rotation speed 1 (slowest)

134-139 Rainbow rotation speed 2

140-145 Rainbow rotation speed 3

146-151 Rainbow rotation speed 4

152-157 Rainbow rotation speed 5

158-163 Rainbow rotation speed 6

164-169 Rainbow rotation speed 7

170-175 Rainbow rotation speed 8

176-181 Rainbow rotation speed 9

182-187 Rainbow rotation speed 10

Page 13

13/22

188-195 Stop in current position

196-201

Rainbow reverse rotation speed

1(slowest) 202-207 Rainbow reverse rotation speed 2

208-213 Rainbow reverse rotation speed 3

214-219 Rainbow reverse rotation speed 4

220-225 Rainbow reverse rotation speed 5

226-231 Rainbow reverse rotation speed 6

232-237 Rainbow reverse rotation speed 7

238-243 Rainbow reverse rotation speed 8

244-249 Rainbow reverse rotation speed 9

250-255 Rainbow reverse rotation speed 10

10 10 15 Zoom

The DMX value of narrow angle channel is 0

000-255 Linear adjust from 15° to 42°

The DMX value of narrow angle channel is not 0

000-009 Narrow angle mode

010-255 Linear adjust from 15° to 42°

16 Zoom Fine 000-255 Zoom in 16 precision

11 11 17 Narrow Angle

This channel is available only with DMX value of zoom channel is between 000-009

000-255

Open the inside Zoom lens, change

beam angle to 10°

12 12 18 Pan 000-25

Pan rotation 450°

Pan Fine 000-25

Pan rotation in 16 precision

13 14 20 Til

000-25

Tilt rotation 270°

21 Tilt Fine 000-2

Tilt rotation in 16 precision

16 22

Pan & Tilt

speed

000-255 Pan&Tilt speed from fast to slow

14 17 23 Control

000-04

Reserved 049-080 Rese

081-112 Reserved 113-144 Lamp off ( stop in DMX value for 10 s) 145-16

Reserved 169-200 Lamp power reduced to 50% 201-22

Reserved 224-25

Lamp on (See remark below)

Remark:

If you intend to turn on/off the lamp via the last channel of the controller, don’t attempt to push the channel to value 224-255 immediately after turning it off, or push the slide bar to value 224-255 to wait it cooling. Under these 2 circumstances, the lamp can not be turned on. The right operation is: turn it off---cool down---push the slide bar to turn it on.

Page 14

14/22

LED INDICATION

Green

DMX signal OK

Off

No DMX signal

Flash

DMX signal error

Yellow On

Setting the panel

Blue On Power

Red/Green

Red

Running self test mode

Green

Reserved

MAINTENANCE

If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes damaged or deformed in any way it must be replaced. If the light from the lamp appears dim this would normally indicate that it is reaching the end of its life and it should be changed at once, aged lamps run to the extremity of their life might explode. If the projector does not function, check the fuses on the power socket of the projector, they should only be replaced by fuses of the same specification. Should these be damaged call a qualified technician before replacement. The projector has thermal protection device that will switch off the projector in case of overheating, should either of these operate, check that the fans are not blocked, and if they are dirty clean them before switching on the projector again. Check that the fans are operational, if not call a qualified technician.

Any maintenance work sh ould only be carried out by qualified tec hnicians.

LUBRICATION

To ensure the smooth motion of the inside Zoom lens, it is recommended that the shafts for the Zoom lens holder be lubricated periodically, preferably every two months. Use only high quality, high-temperature resistant grease instead of any type of oil.

KEEPING THE PROJECTOR CLEAN

To ensure the reliability of the projector it should be kept clean. It is recommended that the fans should be cleaned every 15 days. The lens and dichroic colour filters should also be regularly cleaned to maintain an optimum light output.

NOT use any type of solvent on dichroic colour filters.

Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. A soft cloth and typical glass cleaning products should be used in cleaning. It is recommended to clean the external optics at least once every 20 days and clean the internal optics at least once every 30 / 60 days.

Do not use any organic solvent, e.g. alcohol, to clean the reflecto r mirror, dichroic colour filters or housing of the apparatus.

Page 15

15/22

TROUBLESHOOTING

PROBLEM ACTION

The projector doesn’t switch on

¾ Check the fuse on the power socket.

¾ Replace the lamp.

The lamp comes on but the projector

doesn’t respond to the controller

¾ Make sure that the projector is correctly configurated.

¾ Replace or repair the DMX cable.

The projector only functions intermittently ¾ Make sure the fan is working and not dirty.

Defective projection

¾ Check the lenses are not broken.

¾ Remove dust or grease from the lenses.

The project image appears to have a halo

¾ Make sure the lamp is installed correctly.

¾ Carefully clean the optical group lenses and the projector

components.

The beam appears dim

¾ Check the optics is clean.

¾ Replace with a new lamp of the specified type and rating.

Page 16

16/22

TECHNICAL DAT A

VOLTAGES:

Electronical ballest(PR-2805):

200/220/230/240V AC，50/60Hz

Options:

Magenetic ballest(PR-2805M):

100/120V AC，50/60Hz

220VAC ，50/60Hz

Options:

200/230/240V AC，50/60Hz

POWER CONSUMPTION: Electronical ballest(PR-2805): 1700W@220V Magenetic ballest(PR-2805M): 1800W@220V

LAMP:

OSRAM HTI 1500 W/D7/60 Colour T emperature 6000°K Socket

SFc10-4，double ended

Manufacturers Rated Lamp Life 750 Hours replacement

PHILIPS MSR Gold 1510 SA DE Colour Temperature 5800°K Socket SFc10-4，double ended Manufacturers Rated Lamp Life 750 Hours replacement

COLOURS: Smooth CYM colour mixing system with macros 2 wheels each with 6 dichroic colour filters plus white and CYM colour mixing system With variable speed bi-directional rainbow effect Step/linear colour changing is available

COLOUR TEMPERA TURE CORRECTION:

Linearly colour temperature correction

FOCUS:

DMX controlled focus

DIMMER:

0-100% linearly adjustable

SHUTTER:

Double shutter blades, 0.3~12 F.P.S Macros

Page 17

17/22

HEAD MOVEMENT :

Pan 450º, Tilt 270º with auto position correction

BEAM ANGLE: 10°narrow angle mode

15°～42°

CONTROL:

DMX512, 3 pin, 5 pin interfaces 14 channels in short mode, 17 channels in standard mode, and 23 channels in extended mode. Self-test mode

OTHER FUNCTIONS:

Adjustable Pan & Tilt speed

Fixture and lamp usage time display

LCD display with English and Chinese language menu

Energy saving function of the ballast

Built-in analyzer for easy fault finding, error messages

Built-in demo sequences

Setup options by chargeable battery inside without power connection.

Input signal isolating protection

Network interface (Reserved)

HOUSING:

Composite plastic, IP20

WEIGHT:

Electronical ballest(PR-2805): 32kg

Magenetic ballest(PR-2805M): 45kg

Page 18

18/22

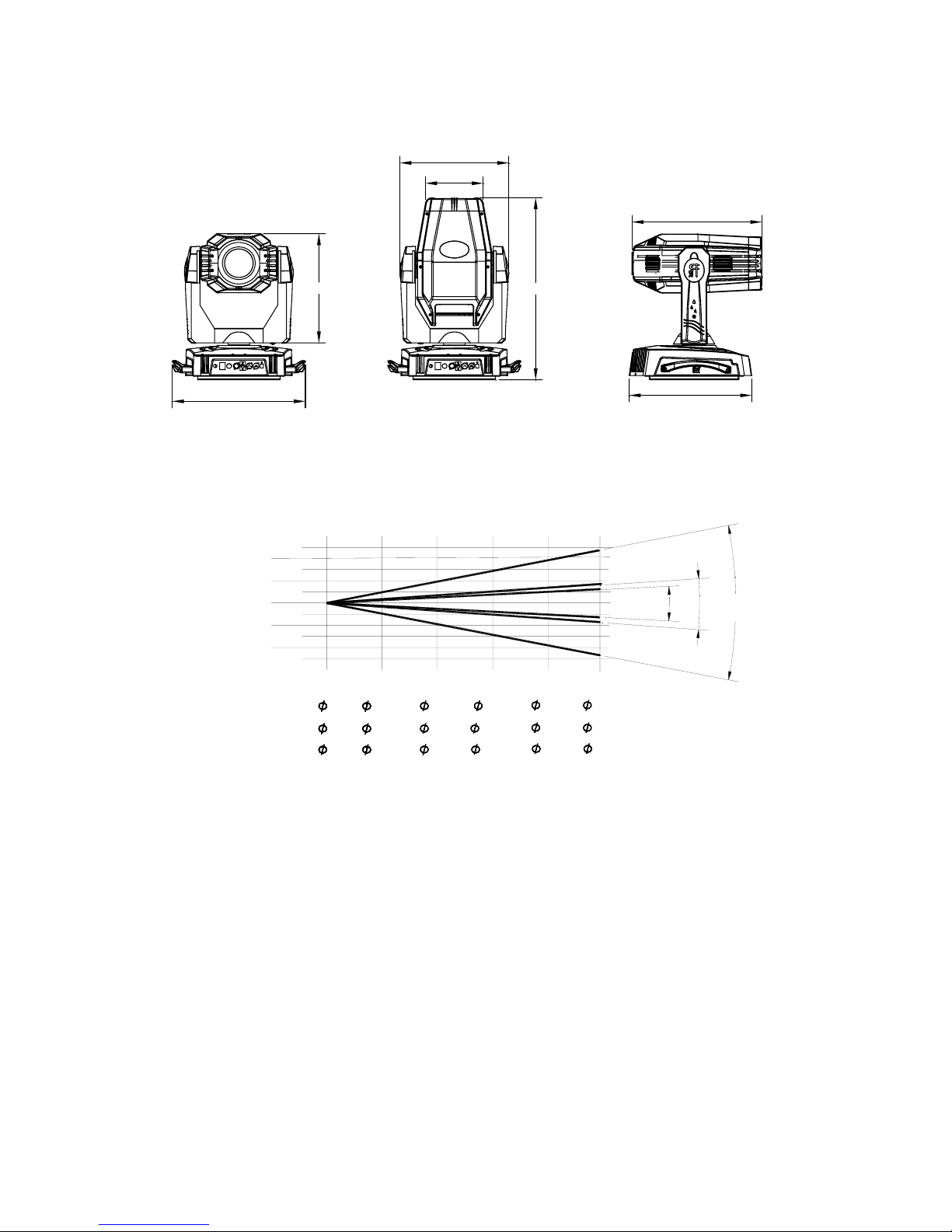

SIZES:

See at below

548

755

448

238

453

535

505

LIGHT OUTPUT :

3430

1520

270

4.43

6.63

18.57

430 2380

1700 9730

760

4230

953021440 5360

14.85

5.30

3.55

7.43

2.65

1.77

11.44

2.66

3.98

42°

（

lux

）

15°（ lux

）

20m

12m

16m

10°

（

lux

）

20m

DISTANCE (m)

10° DIAMETER (m)

16m

3.71

1.33

0.89

6830 38120

85770

10°

15°

42°

15° DIAMETER (m)

42° DIAMETER (m)

Page 19

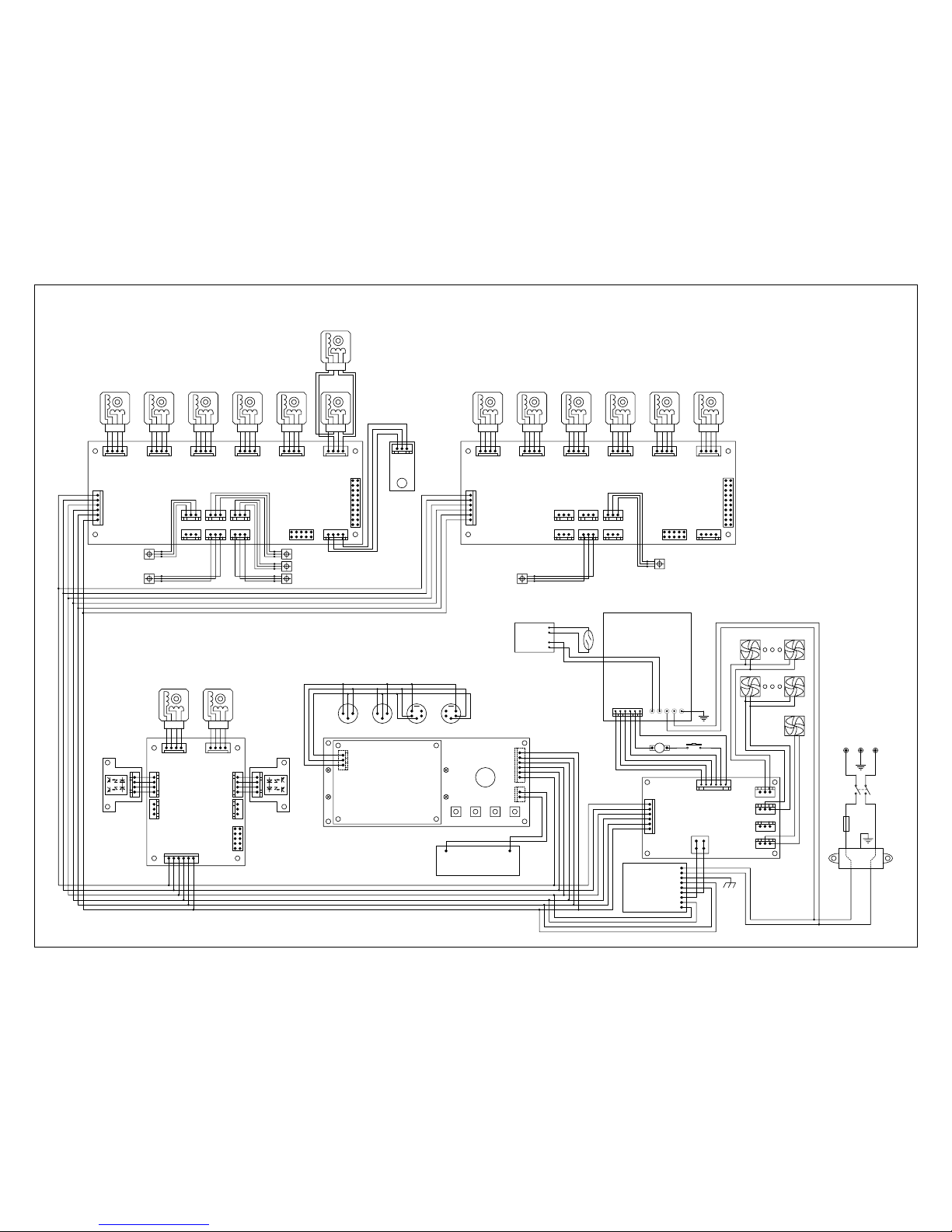

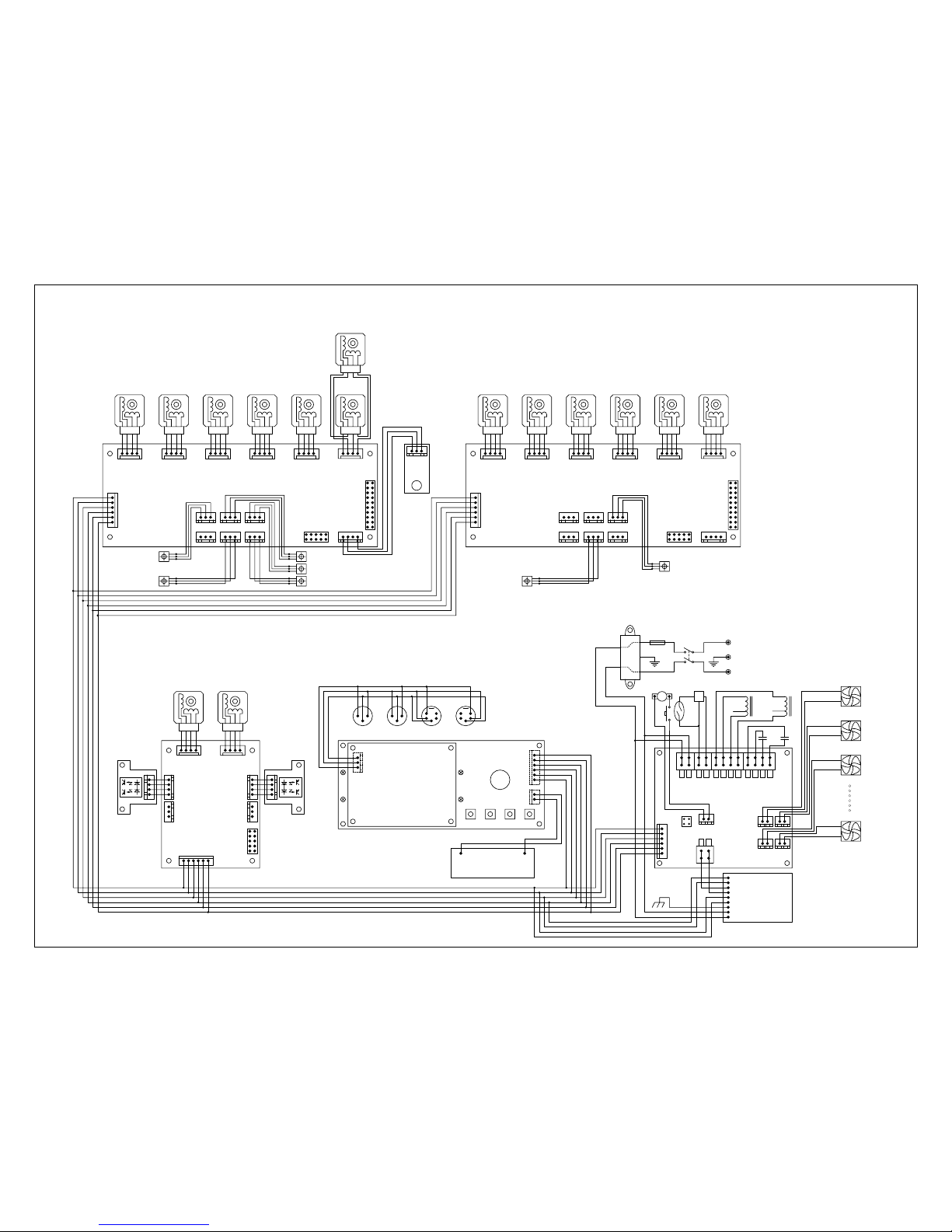

SENS1 SENS2

SENS3 SENS4

SENS5 SENS6

MOTOR1 MO TOR2 MOTOR3 MO TOR4 MOTOR5 MO TOR6

SLAVE #1 PCB

SENS1 SENS2

SENS3 SENS4

SENS5 SENS6

MOTOR1 MOTOR2 MOTOR3 MOTOR4 MOTOR5 MOTOR6

SLAVE #2 PCB

PAN & TILT PCB

GND

VCC

DMX-SENS1

DMX-SENS2

GND

VCC

DMX-SENS1

DMX-SENS2

TILT ENCODE

PAN ENCODE

DMX-IN DMX-OUT

1 2

234

DMX-IN DMX-OUT

VGS

VGS VGS

VGS VGSVGS VGS VGS VGS

VGSVGS VGS

HALL 1-5 View of mark side

HALL 1-3 View of mark side HALL 1-1

View of mark side HALL 1-4 View of mark side

HALL 2-1 View of mark side

HALL 2-4 View of mark side

PAN TILT

GND

VCC

DMX-SENS1

DMX-SENS2

V G S

G S2 S1

S1 S2

HALL 1-2

View of mark side

LED1

LED2LED3

LED4

LCD DISPLAY

FUNCTION DOWN UP ENTER

GND

VCC

DMX-SENS1

DMX-SENS2

GND

DATA-

DATA+

FEMALE FEMALEMALEMALE

DC6V GND

Battery

View side of no axletree

M2-6 STROBE 2

ABC

View side of no axletree

M2-5 STROBE 1

ABC

View side of no axletree

M2-4 COLOUR 2

ABC

View side of no axletree

M2-3 Inside Fresnel Lens 2

ABC

View side of no axletree

M2-2 Inside Fresnel Lens 1

ABC

View side of no axletree

M2-1 Fresnel Lens Focus

ABC

View side of no axletree

M1-6B DIMMER-2

ABC

View side of no axletree

M1-5 MAGENTA

ABC

View side of no axletree

M1-4 YELLOW

ABC

View side of no axletree

M1-3 CYAN

ABC

View side of no axletree

M1-1 COLOUR1

ABC

View side of no axletree

M1-2 CTO

ABC

View side of no axletree

J1 PAN

ABC

View side of no axletree

J2 TILT

ABC

View side of no axletree

M1-6A DIMMER-1

ABC

Filter

Thermostat

GND

DMX-SENS1

DMX-SENS2

FAN1

FAN2

FAN3

FAN4

FAN & LIGHTING PCB

FULL

3 / 4

HALF

SSG

VSG

SSG

HEAD FAN 1 HEAD FAN n

BOX FAN

HEAD FAN 1 HEAD FAN n

AC INPUT

NL E

SWITCH

Fuse

TRANSFORMER

ELECTRONIC

+24V +24V

ACL ACN

+24V

SW-PB

VCC

IGNITOR

GROUNDLN

TO IGNITOR

ELECTRONIC BALLAST

LAMP

162345

Page 20

SENS1 SENS2

SENS3 SENS4

SENS5 SENS6

MOTOR1 MOTOR2 MOTOR3 MOTOR4 MOTOR5 MOTOR6

SLAVE #1 PCB

SENS1 SENS2

SENS3 SENS4

SENS5 SENS6

MOTOR1 MOTOR2 MOTOR3 MOTOR4 MOTOR5 MOTOR6

SLAVE #2 PCB

PAN & TILT PCB

GND

VCC

DMX-SENS1

DMX-SENS2

GND

VCC

DMX-SENS1

DMX-SENS2

TILT ENCODE

PAN ENCODE

DMX-IN DMX-OUT

1 2

234

DMX-IN DMX-OUT

VGS VGS VGS

VGS VGSVGS VGS VG S VGS

VGSVG S VGS

HALL 1-5 View of mark side

HALL 1-3 View of mark side

HALL 1-1

View of mark side HALL 1-4 View of mark side

HALL 2-1 View of mark side

HALL 2-4 View of mark side

PAN TILT

GND

VCC

DMX-SENS1

DMX-SENS2

V G S

S2 S1

S1 S2

HALL 1-2

View of mark side

LED1

LED2LED3

LED4

LCD DISPLAY

FUNCTION DOWN UP ENTER

GND

VCC

DMX-SENS1

DMX-SENS2

GND

DATA-

DATA+

FEMALE FEMALEMALEMALE

DC6V GND

Battery

View side of no axletree

M2-6 STROBE 2

ABC

View side of no axletree

M2-5 STROBE 1

ABC

View side of no axletree

M2-4 COLOUR 2

ABC

View side of no axletree

M2-3 Inside Fresnel Lens 2

ABC

View side of no axletree

M2-2 Inside Fresnel Lens 1

ABC

View side of no axletree

M2-1 Fresnel Lens Focus

ABC

View side of no axletree

M1-6B DIMMER

ABC

View side of no axletree

M1-5 MAGENTA

ABC

View side of no axletree

M1-4 YELLOW

ABC

View side of no axletree

M1-3 CYAN

ABC

View side of no axletree

M1-1 COLOUR1

ABC

View side of no axletree

M1-2 CTO

ABC

View side of no axletree

J1 PAN

ABC

View side of no axletree

J2 TILT

ABC

View side of no axletree

M1-6A DIMMER

ABC

螺纹镜调焦

降色温片

SSG

VSG

SSG

AC INPUT

Filter E

HEAD FAN n

HEAD FAN 1

SWITCH

LAMP

Thermostat

GND

DMX-SENS1 DMX-SENS2

FAN1

FAN2

FAN3

FAN4

AC230V

IGNITER CAPACITORBALLAST

Cap-1 Cap-2

DNL

GND

50Hz

60Hz

LOW Ballast

FAN & LIGHTING PCB

VCC VCC

FULL

3 / 4

HALF

PPLHND CCHL

CN6 Thermostat

50Hz

60Hz

HIGH Ballast

PCB FAN

BOX FAN

TRANSFORMER

ELECTRONIC G G

+24V

FG ACL

ACN

+24V

SW-PB

GND

FUSE

DC-SEL

Page 21

21/22

COMPONENT ORDER CODES

NAME PART NO. QUANTITY REMARK

POWER SUPPLY 190010098 1 24V MAINS FILTER 193020008 1 20A 115/250VAC THERMOSTAT 190010074 1 150℃ CAPACITOR**** 140010060 2 80µF/370V BALLAST**** 040070000 2 230V/50-60Hz IGNITOR**** 040090048 1 4~5KV/1800W LAMP 100050072 1 HTI 1500W/D7/60 TILT DRIVE BELT 290151241 1 HTD-750-3M PAN DRIVE BELT 290151234 1 HTD501-3M FAN IN BASE 030060056 1 BP802524L-03 24V/0.12A FAN IN FRONT SIDE 030060053 2 BP802524H-03 24V/0.21A FAN IN BACK SIDE 030060055 2 3106KL-05W-B50 24V/0.16A FAN NEAR THE LAMP(SMALL ) 030060058 1 24V 0.3A FAN NEAR THE LAMP(LARGE ) 030060059 1 24V 0.35A FAN NEAR THE CYM 030060052 3 BP501024H 24V/0.09A FAN NEAR THE POWER PCB 030060057 1 SP602524H-03 DC24V/2.88W PAN M O TOR

030040089

23HS2039L 6.35*25

TILT MOTOR 1 DIMMER MOTOR 030040093 2 17HD0013-33L 5*35 ZOOM MOTOR 030040060 1

39BYG501-4A 5*24

CYM-CYAN MOTOR

030040114

16HY7001-30L 5*40

CYM-YELLOW 1 CYM-MAGENTA MOTOR 1 CTO MOTOR 1

COLOUR WHEEL 1 MOTOR 030040096 1 42BYGH016-15A 5*23 COLOUR WHEEL 2 MOTOR 030040084 1 17HS0002-59L 5*28 ZOOM LENS MOTOR 030040081 2 14HY5003-01L 5*12 SHUTTER BLADE MOTOR 030040116 2 16HY7001-32L 5*15 PAN/TILT DRIVE PCB 230020177 1 MOTOR DRIVE PCB 1 230020178 1 MOTOR DRIVE PCB 2 230020189 1 POWER PCB 230020223A 1 DISPLAY PCB 230020220A 1 POWER PCB**** 230020227A 1

****Only apply to Magnetic ballast

Page 22

22/22

PR LIGHTING LTD.

1582 Xingye Avenue, Nancun Panyu

Guangzhou, 511442 China

TEL: +86-20-3995 2888 FAX: +86-20-3995 2330

P/N: 320020013

Last Revision:20080924
