PR Lighting XL 700, PR-2700 User Manual

Page 1

XL 700

PR-2700

This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

PR LIGHTING LTD.

http://www.pr-lighting.com

Page 2

2/24

INDEX

SAFE USAGE OF THE PROJECTOR 3 INSTALLING THE PROJECTOR 4 FITTING THE LAMP 4 POWER SUPPLY – MAINS 5 CONTROL CONNECTIONS 5 DMX TERMINATOR 6 SETUP OPTIONS-PROJECTOR CONFIGURATION 6 TO SET THE DMX START ADDRESS 6 OPERATION MENU 8 ERROR MESSAGES 11 REPLACING GOBOS 11 DMX PROTOCOL 12 LED INDICATION 16 MAINTENANCE 16 LUBRICATION 16 KEEPING THE PROJECTOR CLEAN 16 TROUBLESHOOTING 17 TECHNICAL DATA 18 ELECTRICAL DIAGRAM 21 COMPONENT ORDER CODES 22

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without

notice. Whilst every care is taken in the preparation of this manual we reserve the right to change specifications in the course of

product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence

arising from them.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good

condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the

unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.

ACCESSORIES

These items are packed together with the projector:

Name Quantity Unit Remark G clamps 2 Pcs XLR cable 1 Pc 3-pin plug Safety cord 2 Pcs Spare gobos 4 Pcs This manual 1 Pc Ω clamps 2 Pcs Options

Page 3

3/24

SAFE USAGE OF THE PROJECTOR

When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus.

The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other liquids.

The projector is not designed or intended to be mounted directly on to inflammable surfaces.

The projector is only intended for installation, operation and maintenance by qualified personnel.

The projector must be installed in a location with adequate ventilation, at least 50cm from adjacent wall surfaces. Be sure that no ventilation slots are blocked.

Do not project the beam onto inflammable surfaces, minimum distance is 5m. 5m

Avoid direct exposure to the light from the lamp. The light is harmful to the eye.

Do not attempt to dismantle and/or modify the projector in any way.

Electrical connection must only be carried out by qualified personnel.

Before installation, ensure that the voltage and frequency of power supply match the power requirements of the projector.

It is essential that each projector is correctly earthed and that electrical installation conforms to all relevant standards.

Do not connect this device to any other types of dimmer apparatus.

Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into contact with other cables. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Keep the lamp clean. Do not touch the lamp glass with bare hand.

The projector should always be installed with a secondary safety fixing. A safety cord is supplied for this; it should be attached as shown in “installing the projector” section.

The lamp used in this projector is a discharge lamp. After switching off don’t attempt to restart the projector until lamp has cooled, this will require approx 15 minutes. Switching the lamp on and off at short intervals will reduce the life of both the lamp and the projector. But occasional breaks will prolong the life of the lamp and projector.

Never run the projector without a lamp.

There is no user serviceable parts inside the projector, do not open the housing and never operate the projector with the covers removed.

Always disconnect from the mains, when the device is not in use or before cleaning it or before attempting any maintenance work !

If you have any questions, don’t hesitate to consult your dealer or manufacturer.

Page 4

4/24

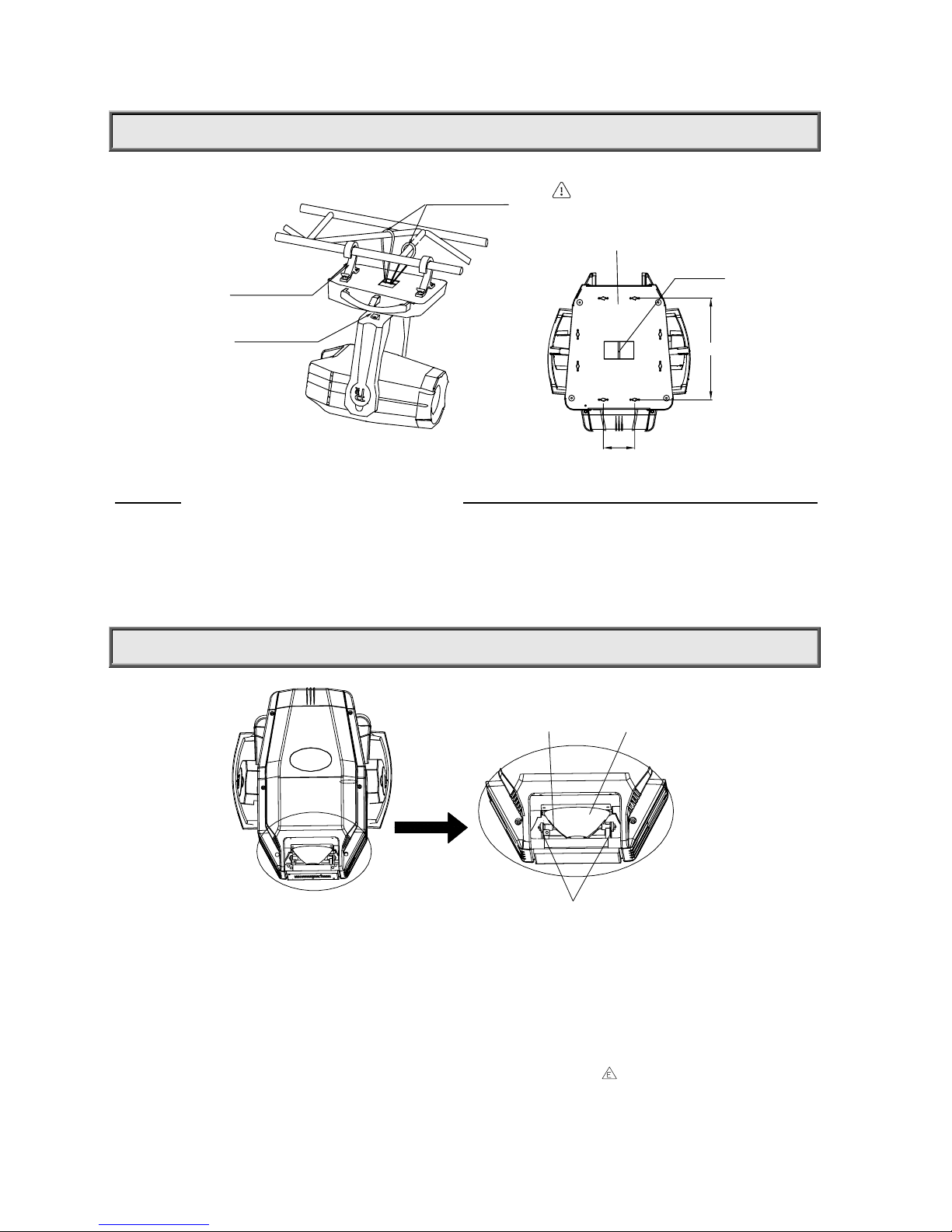

INSTALL THE PROJECTOR

(2PCS)

HANDLES

(2PCS)

SAFETY CORD

CLAMPS

To pass 2 SAFETY CORDS

through the TRUSS for safety!

WARNING

TRUSS

106

339

Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the

WARNING

on the underside of the base as shown above) To pass 2 SAFETY CORDS through the truss for safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector is secure and is strong enough to support a weight of XL 700.

WARNING:

1. Unlock the PAN and TILT before the 1

application of projector for safety.

2. The projector MUST be lifted or carried by the HANDLES instead of clamps.

3. For safety the safety cord should afford 10 times of the unit’s weight.

FITTING THE LAMP

NUT

LAMP

REFLECTER

Lock the yoke before fitting/replacing the lamp. Loosen 4 screws and open the back covers, you can see the structure as shown in the figure above. Loosen 2 nuts at the both ends of lamp and take out the worn-out lamp. Suggest to free one end after another. Fit new lamp and fasten 2 screws at the both ends of lamp. Note: don’t touch the bulb of the new lamp with bare hand so as not to influence the beam output; the PST (pumping stem tip off) on the bulb facing the rear cover with fans perpendicularly and being not in the beam’s way is a must and aids cooling. Close the rear cover and fasten 4 screws.

NOTE: The convex of the nuts should face to the side when fitting the lamp. WARNING: The MSR series are high-pressure lamps with external igniters (

). Care should always be taken

when handling these lamps. Always read the manufacturers "Instructions for use" enclosed with the lamp.

Page 5

5/24

POWER SUPPLY-MAINS

Connect the power cord as follows:

L (live) =brown E (earth) =yellow/green

N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.

IMPORTANT It is essential that each projector is correctly earthed and the electrical installation conforms to all relevant standards.

CONTROL CONNECTION

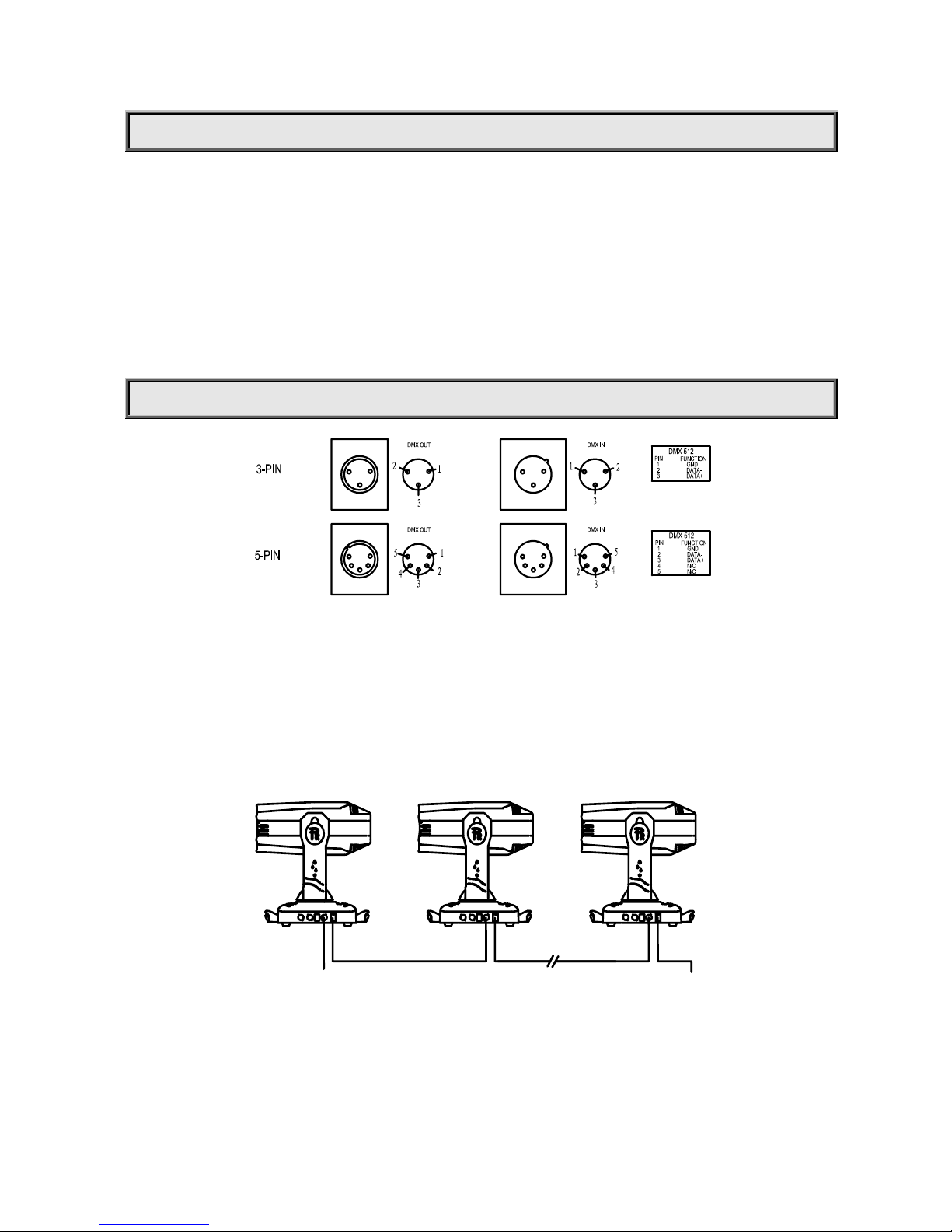

Connection between controller and projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above. Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not connected in any way. The XL 700 accepts digital control signals in protocol DMX512 (1990). Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input and connect the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown in the figure below.

DMX IN CONTROLLER

TERMINATER

DMX OUT

DMX IN

DMX IN DMX OUT DMX IN DMX OUT

No.1

No.2 No. n

Page 6

6/24

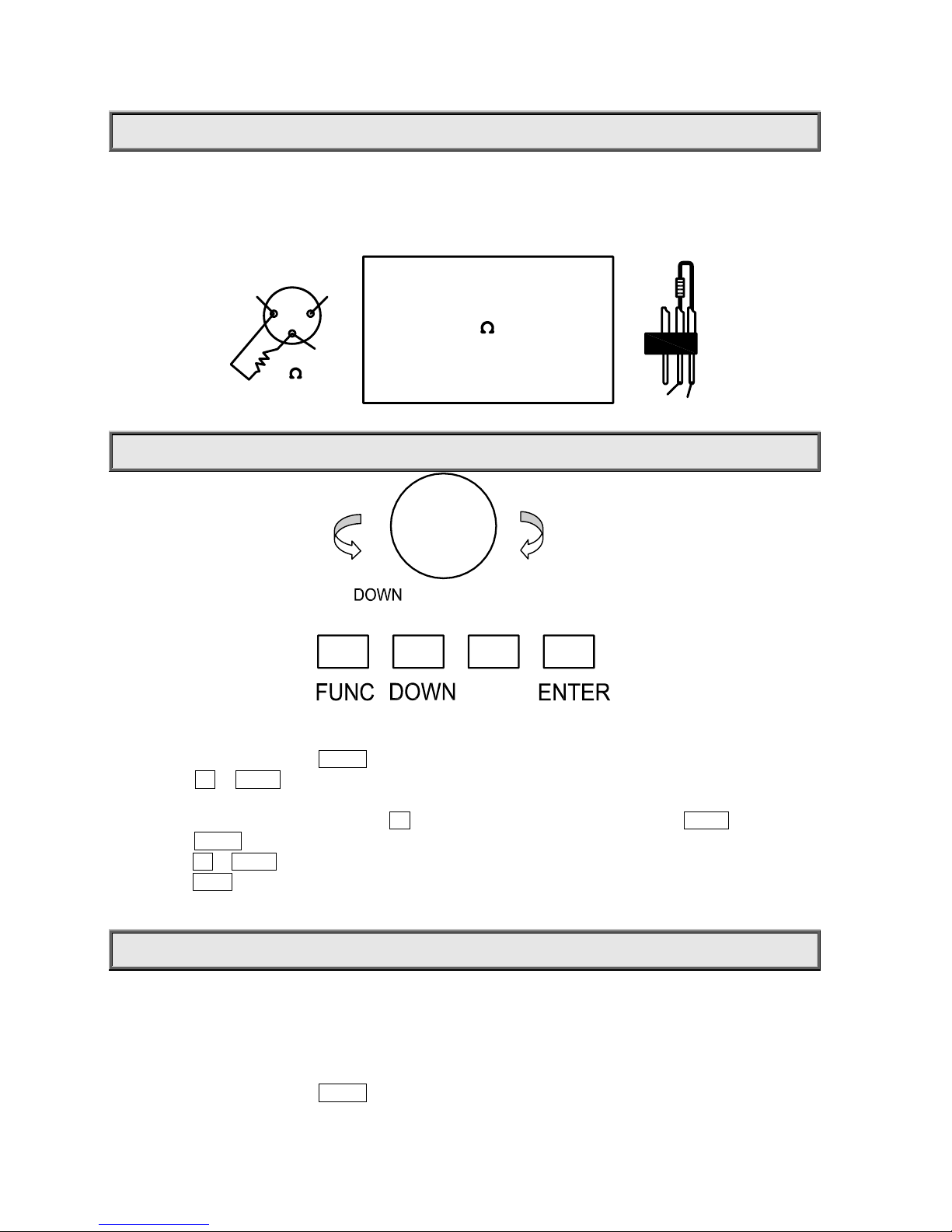

DMX TERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. The connections are illustrated below.

120

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor across pins 2 and 3 in an XLR plug and insert into the DMX out socket

on the last unit in the chain.

PIN 3

PIN 2

SETUP OPTIONS-PROJECTOR CONFIGURATION

CODER BUTTON

Projector configuration can be set conveniently via pressbutton switch and LCD display. Turn the projector on and the LCD display will show DMX address you set and save last time and it can be reset and saved again as you please. Launch the projector. Press button ENTER more than 5 seconds to unlock panel. Press button UP or DOWN if you want to browse through the various Setup Options. T here are 8 option codes from DMX Address to Lamp Manual Control, and each code has a specific function. If you turn the coder knob clockwise, the function like as button UP . On the contrary, the function like as button DOWN . Press button ENTER to save your settings or enter the next menu. There is same function if you push the coder knob. Press button UP or DOWN to shift. Press button FUNC, it will return to the upper menu one by one. If you stay for minutes defaulted will show display status automatically.

TO SET THE DMX START ADDRESS

Each XL 700 must be given a DMX start address so that the correct projector responds to the correct control signals.

This DMX start address is the channel number from which the projector starts to “listen” to the digital control information

being sent out from the controller. The XL 700 has 3 DMX modes. There are standard mode, extended mode and short

mode. For example standard mode has 24 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address

025, No. 3 projector’s address 049, No. 4 projector’s address 073, and so on. Launch the projector. Press button ENTER or coder knob more than 5 seconds to unlock panel.

Page 7

7/24

Press button FUNC to display DMX address;

Press button UP and DOWN, you can set the address;

Press button ENTER to confirm; In the same time. The GREEN LED will flash one time. It means the setting has

been enabled. Press button FUNC, it will return to the upper menu one by one.

Page 8

8/24

OPERATION MENU

1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL

PR LIGHTING

XL SERIES

XL 700

DMX Address=001

DMX Address

(001-512)

Reset

Are You Sure?

DMX Mode

Standard 16

DMX Mode

Extended 16

DMX Mode

Short 8

Lamp Control By

Control Channel

Lamp Control By

Power On

Lamp Control

Lamp Control By

DMX Present

Fixture type=

XL 1200

Fixture type=

XL 700

Fixture type=

XL 575

Fixture type=

XL 1200 FS

Fixture type=

XL 1200 Wash

Fixture type=

XL 700 Wash

Config Settings

Factory Settings

(Press button

DOWN/UP/ENTER at the same

time to enter the sub-menu)

Fixture type

(WARNING：Never change

the fixture type or the

system will be damaged!)

Fixture type=

XL 1800

Colour Positions

STEPPED

Colour Positions

LINEAR

F-Gobo Positions

STEPPED

F-Gobo Positions

LINEAR

Pan DMX Invert

OFF

Pan DMX Invert

Tilt DMX Invert

OFF

Tilt DMX Invert

Pan Tilt Swap

OFF

Pan Tilt Swap

Dimmer Invert

OFF

Dimmer Invert

Iris Invert

OFF

Iris Invert

Zoom Invert

OFF

Option Settings

Zoom Invert

Page 9

9/24

CMY Invert

OFF

CMY Invert

Defaults

OFF

Defaults

Restore Defaults

Display

On Always

Display Mode

Display

Off After Delay

Disp Dim Level

Min

Disp Dim Level

Display Dimming

Disp Dim Level

Full

Display Contrast

XXX(1~36, Default is 16)

Language =

English

Display Options

Display Language

Language =

Chinese

Lamp Hours

Lamp Hours =

Reset Lamp Hours

Are You Sure?

Total Hours

Total Hours =

Display Board

Display Board =

XX℃

Driver Board 1

Driver Board 1 =

XX ℃

Driver Board 2

Driver Board 2 =

XX ℃

Driver Board 3

Driver Board 3 =

XX ℃

Pan and Tilt

Pan and Tilt =

XX ℃

Temperature

Head Sensor

Head Sensor=

XX ℃

Display Board

Display Board =

X.X.X

Driver Board 1

Driver Board 1 =

X.X.X

Driver Board 2

Driver Board 2 =

X.X.X

Driver Board 3

Driver Board 3 =

X.X.X

Pan and Tilt

Pan and Tilt =

X.X.X

Software Version

Power Board

Power Board =

X.X.X

Information

View DMX values

DMX Channel

1=0

Factory Setup

OFF

Test Modes

Factory Setup

Page 10

10/24

Self Test

OFF

Self Test

self test

Lamp Status

Status = XXX

Control = X

Turn Lamp On

Lamp Manual

Control

Turn Lamp Off

Page 11

11/24

ERROR MESSAGES

In the course of launch, XL 700 examines automatically whether there are errors and if there are, it will display information as follows:

Display

Message

Sensor Err S1-M1 CYM-cyan (1# drive board motor 1) error

Sensor Err S1-M2 CYM-yellow (1# drive board motor 2) error

Sensor Err S1-M3 CYM-magenta (1# drive board motor 3) error

Sensor Err S1-M4 Colour wheel (1# drive board motor 4) error

Sensor Err S2-M1 Rotating Gobo wheel 1 (2# drive board motor 1) error

Sensor Err S2-M2 Gobo rotation (2# drive board motor 2) error

Sensor Err S2-M4 Fixed Gobo wheel (2# drive board motor 4) error

Sensor Err S3-M1 Effects wheel (3# drive board motor 1) error

Sensor Err S3-M3 Prism (3# drive board motor 3) error

Sensor Err S3-M4 Prism rotation (3# drive board motor 4) error

Sensor Err S3-M5 Focus (3# drive board motor 5) error

Sensor Err S3-M6 Zoom (3# drive board motor 6) error

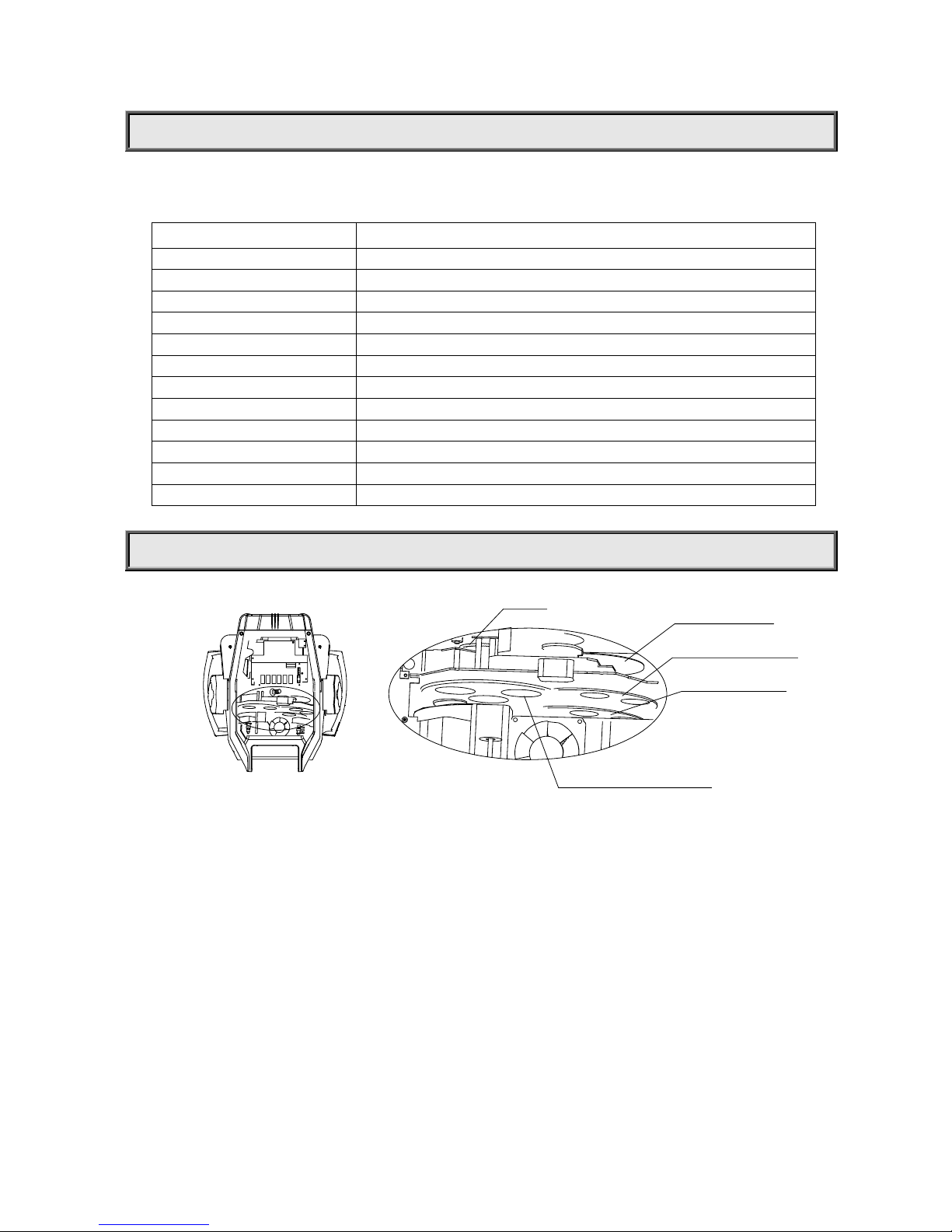

REPLACING GOBOS

EFFECT WHEEL

ROTATING GOBO WHEEL

FIXED GOBO WHEEL

FROST

COLOUR WHEEL

Disconnect the fixture from power. Lock Tilt. Carefully lift off the cover by undoing the 6 screws.

For gobos replacement on the fixed gobo : Remove the gobo and insert the new one into the position by hands .

For gobos replacement on the rotating gobo wheel: Remo ve the gobo hold er with gobo from gobo wheel by hands. Pull out the spring and drop the old gobo out of the holder. Insert the new gobo into the holder, and then insert the spring with the narrow end against the gobo. Push the end of the spring in under lip of the holder. Pick the spring clip up and put the gobo holder back into the position, if necessary, a small screwdriver will be helped.

Note: If the gobo is a glass one, it should be touched with glabrous, clean and soft tissue or cloth matted between hand and glass instead of with bare hand. Close the rear cover and fasten 6 screws.

Page 12

12/24

DMX PROTOCOL

Short mode

Standard

mode

Extended

mode

FUNCTION DMX DESCRIPTION

000-010 Black

011-025 Open

026-225 Strobe speed from slow to fast

1 1 1 Strobe

226-255 Open

000-007 Black

2 2 2 Dimmer

008-255 Dimming from dark to light (0-100%)

3 Dimmer Fine 000-255 Dimmer in 16 Bit precision

000-016 White 017-035 Yellow+ Magenta=Red 036-054 Yellow 055-073 Yellow+ Cyan=Green 074-092 Cyan

093-110 Cyan+ Magenta=Blue 111-128 Magenta

3 3 4 CYM Macro

129-255 CYM colour mixing from slow to fast

4 4 5 CYM-Cyan 000-255 Cyan (Linear 0-100%)

CYM-Cyan

Fine

000-255 Cyan in 16 Bit precision

5 5 7 CYM-Yellow 000-255 Yellow (Linear 0-100%)

CYM-Yellow

Fine

000-255 Yellow in 16 Bit precision

6 6 9 CYM-Magenta 000-255 Magenta (Linear 0-100%)

CYM-Magenta

Fine

000-255 Magenta in 16 Bit precision

000-016 White

017-024 White/colour 1

025-032 Colour 1

033-040 Colour 1/colour 2

041-048 Colour 2

049-056 Colour 2/colour 3

057-064 Colour 3

065-072 Colour 3/colour 4

073-080 Colour 4

081-088 Colour 4/colour 5

089-096 Colour 5

097-104 Colour 5/colour 6

105-112 Colour 6

113-120 Colour 6/colour 7

121-127 white

128-133 Rainbow rotation speed 1 (slowest)

134-139 Rainbow rotation speed 2

140-145 Rainbow rotation speed 3

7 7 11 Colour Wheel

146-151 Rainbow rotation speed 4

Page 13

13/24

152-157 Rainbow rotation speed 5

158-163 Rainbow rotation speed 6

164-169 Rainbow rotation speed 7

170-175 Rainbow rotation speed 8

176-181 Rainbow rotation speed 9

182-187 Rainbow rotation speed 10

188-195 Stop in current position

196-201

Rainbow reverse rotation speed 1(slowest)

202-207 Rainbow reverse rotation speed 2

208-213 Rainbow reverse rotation speed 3

214-219 Rainbow reverse rotation speed 4

220-225 Rainbow reverse rotation speed 5

226-231 Rainbow reverse rotation speed 6

232-237 Rainbow reverse rotation speed 7

238-243 Rainbow reverse rotation speed 8

244-249 Rainbow reverse rotation speed 9

250-255 Rainbow reverse rotation speed 10 000-135 Iris from large to small (0-100%)

136-231 Macro

8 8 12 Iris

232-255 Minimal

13 Iris Fine 000-255 Iris in 16 Bit precision

000-016 Clear 017-032 Gobo1 033-048 Gobo 2 049-064 Gobo 3 065-080 Gobo 4 081-096 Gobo 5 097-112 Gobo 6 113-127 Gobo 7 128-132 Reverse rotation speed 1 (slowest) 133-135 Reverse rotation speed 2 136-138 Reverse rotation speed 3 139-141 Reverse rotation speed 4 142-144 Reverse rotation speed 5 145-147 Reverse rotation speed 6 148-150 Reverse rotation speed 7(fastest) 151-153 Rotation speed 1 (slowest) 154-156 Rotation speed 2 157-159 Rotation speed 3 160-162 Rotation speed 4 163-165 Rotation speed 5 166-168 Rotation speed 6 169-171 Rotation speed 7(fastest) 172-174 Gobo 1 shake 1(slowest) 175-177 Gobo 1 shake 2 178-180 Gobo 1 shake 3 181-183 Gobo 1 shake 4（fastest） 184-186 Gobo 2 shake 1(slowest) 187-189 Gobo 2 shake 2 190-192 Gobo 2 shake 3 193-195 Gobo 2 shake 4（fastest） 196-198 Gobo 3 shake 1(slowest) 199-201 Gobo 3 shake 2

9 9 14 Fixed Gobo

Wheel

202-204 Gobo 3 shake 3

Page 14

14/24

205-207 Gobo 3 shake 4（fastest） 208-210 Gobo 4 shake 1(slowest) 211-213 Gobo 4 shake 2 214-216 Gobo 4 shake 3 217-219 Gobo 4 shake 4（fastest） 220-222 Gobo 5 shake 1(slowest) 223-225 Gobo 5 shake 2 226-228 Gobo 5 shake 3 229-231 Gobo 5 shake 4（fastest） 232-234 Gobo 6 shake 1(slowest) 235-237 Gobo 6 shake 2 238-240 Gobo 6 shake 3 241-243 Gobo 6 shake 4（fastest） 244-246 Gobo 7 shake 1(slowest) 247-249 Gobo 7 shake 2 250-252 Gobo 7 shake 3 253-255 Gobo 7 shake 4（fastest） 000-021 white 022-042 Gobo1 043-064 Gobo 2 065-085 Gobo 3 086-106 Gobo 4 107-127 Gobo 5 128-134 Rotation speed 1 (slowest) 135-142 Rotation speed 2 143-149 Rotation speed 3 150-156 Rotation speed 4 (fastest) 157-163 Reverse rotation speed 1 (slowest) 164-170 Reverse rotation speed 2 171-177 Reverse rotation speed 3 178-184 Reverse rotation speed 4(fastest) 185-191 Gobo 1 shake slow 192-198 Gobo 1 shake fast 199-205 Gobo 2 shake slow 206-212 Gobo 2 shake fast 213-219 Gobo 3 shake slow 220-226 Gobo 3 shake fast 227-233 Gobo 4 shake slow 234-240 Gobo 4 shake fast 241-247 Gobo 5 shake slow

10 10 15

Rotating Gobo

Wheel

248-255 Gobo 5 shake fast 000-120 0~540°index 121-127 Rotation speed 1 (slowest) 128-135 Rotation speed 2 136-143 Rotation speed 3 144-151 Rotation speed 4 152-159 Rotation speed 5 160-167 Rotation speed 6 168-175 Rotation speed 7 176-183 Rotation speed 8 (fastest) 184-191 Stop rotating 192-199 Reverse rotation speed 1 (slowest) 200-207 Reverse rotation speed 2 208-215 Reverse rotation speed 3 216-223 Reverse rotation speed 4 224-231 Reverse rotation speed 5 232-239 Reverse rotation speed 6 240-247 Reverse rotation speed 7

11 11 16 Gobo rotation

248-255 Reverse rotation speed 8 (fastest)

12 17 Gobo rotation 000-255 Gobo rotation in 16 Bit precision

Page 15

15/24

Fine

000-051 Clear 052-102 CTO 103-153 Frost 154-204 Prism 1

12 13 18 Prism / Frost

205-255 Prism 2

000-120 Prism index （0~540°） 121-127 Reverse rotation speed 1 (slowest) 128-135 Reverse rotation speed 2 136-143 Reverse rotation speed 3 144-151 Reverse rotation speed 4 152-159 Reverse rotation speed 5 160-167 Reverse rotation speed 6 168-175 Reverse rotation speed 7 176-183 Reverse rotation speed 8 (fastest) 184-191 Stop in current position 192-199 Rotation speed 1 (slowest) 200-207 Rotation speed 2 208-215 Rotation speed 3 216-223 Rotation speed 4 224-231 Rotation speed 5 232-239 Rotation speed 6 240-247 Rotation speed 7

13 14 19 Prism rotation

248-255 Rotation speed 8 (fastest)

000-020 White

14 15 20 Effect Wheel

021-255 Wheel full into beam gradually 000-125 Rotation speed from fast to slow 126-141 Stop in current position

15 16 21

Effect Wheel

Rotation

142-255

Reverse rotation speed from slow to fast

16 17 22 Focus 000-255 Linearly focusing

23 Focus Fine 000-255 Focus in 16 precision

17 18 24 Zoom 000-255 From large to small

25 Zoom Fine 000-255 Zoom in 16 precision

18 19 26 Pan 000-255 Pan rotation 450°

20 27 Pan Fine 000-255 Pan rotation in 16 precision

19 21 28 Tilt 000-255 Tilt rotation 270°

22 29 Tilt Fine 000-255 Tilt rotation in 16 precision

23 30

Pan & Tilt

speed

000-255 Pan & Tilt speed from fast to slow

000-048 Reserved 049-080 Reset

081-112 Reserved

113-144 Lamp off ( stop in DMX value for 10 s) 145-168 Reserved 169-200 Lamp power reduced to 50% 201-223 Reserved

20 24 31 Control

224-255 Lamp on (See remark below)

Remark:

If you intend to turn on/off the lamp via the last channel of the controller, don’t attempt to push the channel to value 224-255 immediately after turning it off, or push the slide bar to value 224-255 to wait it cooling. Under these 2 circumstances, the lamp can not be turned on. The right operation is: turn it off---cool down---push the slide bar to turn it on.

Page 16

16/24

LED INDICATION

DMX signal OK

Off

No DMX signal

Green

Flash

DMX signal error

Yellow On

Setting the panel

Blue On Power

Red

Running self test mode

Red/Green

Green

Reserved

MAINTENANCE

If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes damaged or deformed in any way it must be replaced. If the light from the lamp appears dim this would normally indicate that it is reaching the end of its life and it should be changed at once, aged lamps run to the extremity of their life might explode. If the projector does not function, check the fuses on the power socket of the projector, they should only be replaced by fuses of the same specification. Should these be damaged call a qualified technician before replacement. The projector has thermal protection device that will switch off the projector in case of overheating, should either of these operate, check that the fans are not blocked, and if they are dirty clean them before switching on the projector again. Check that the fans are operational, if not call a qualified technician.

Any maintenance work should only be carried out by qualified technicians.

LUBRICATION

To ensure the continuous rotation of the rotating gobos and linear motion of the lens for focusing, it is recommended that the bearings for the rotating gobos and the 2 shafts for the focusing lens holder be lubricated periodically, preferably every two months. Use only high quality, high-temperature resistant grease instead of any type of oil. When lubricating the bearings, a syringe with a fine needle is the easiest way to introduce the grease to the bearings around each gobo.

KEEPING THE PROJECTOR CLEAN

To ensure the reliability of the projector it should be kept clean. It is recommended that the fans should be cleaned every 15 days. The lens and dichroic colour filters should also be regularly cleaned to maintain an optimum light output.

NOT use any type of solvent on dichroic colour filters.

Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. A soft cloth and typical glass cleaning products should be used in cleaning. It is recommended to clean the external optics at least once every 20 days and clean the internal optics at least once every 30 / 60 days.

Do not use any organic solvent, e.g. alcohol, to clean the reflector mirror, dichroic colour filters or housing of the apparatus.

Page 17

17/24

TROUBLESHOOTING

PROBLEM ACTION

The projector doesn’t switch on

¾ Check the fuse on the power socket.

¾ Replace the lamp.

The lamp comes on but the projector

doesn’t respond to the controller

¾ Make sure that the projector is correctly configurated.

¾ Replace or repair the DMX cable.

The projector only functions intermittently ¾ Make sure the fan is working and not dirty.

Defective projection

¾ Check the lenses are not broken.

¾ Remove dust or grease from the lenses.

The project image appears to have a halo

¾ Make sure the lamp is installed correctly.

¾ Carefully clean the optical group lenses and the projector

components.

The beam appears dim

¾ Check the optics is clean.

¾ Replace with a new lamp of the specified type and rating.

Page 18

18/24

TECHNICAL DATA

VOLTAGES:

100V/120V/200V/220V/230V/240V AC，50/60Hz

POWER CONSUMPTION:

830W@220V

LAMP:

PHILIPS MSR 700 SA/2 DE

Colour Temperature 7500°K

Socket

SFc10-4，double ended

Manufacturers Rated Lamp Life 750 Hours replacement

OSRAM SharXS HTI 700 W/D4/60

Colour Temperature 6000°K

Socket

SFc10-4，double ended

Manufacturers Rated Lamp Life 750 Hours replacement

COLOURS:

Smooth CYM colour mixing system with macros

1 wheel with 6 dichroic colour filters plus white

With variable speed bi-directional rainbow effect

Step/linear colour changing is available

GOBOS:

1 Rotating gobo wheel:

5 interchangeable gobos+ white, glass or metal gobos can be fixed

Indexable, bi-directionally rotatable at variable speeds

1 Fixed gobo wheel :

7 interchangeable gobos+ white

bi-directional wheel scrolling at variable speeds

Gobo diameter: Φ36.3mm

Gobo image diameter: Φ31.5mm

PRISM/ FROST:

1x linear lens, 1x3 facet prism, indexable, bi-directionally rotatable at variable speeds

1x frost, 1xCTO

EFFECT FILTERS:

1 interchangeable gobo effect wheel scrolling at variable speeds

Page 19

19/24

FOCUS:

DMX controlled focus

DIMMER:

0-100% linearly adjustable

SHUTTER:

Double shutter blades, 0.3~12 F.P.S

Macros

HEAD MOVEMENT:

Pan 450º, Tilt 270º with auto position correction

BEAM ANGLE:

12°～34°, linearly adjustable

CONTROL:

DMX512, 3 pin interface 20 channels in short mode, 24 channels in standard mode, and 31 channels in extended mode. Self-test mode

OTHER FUNCTIONS:

Adjustable Pan & Tilt speed

Fixture and lamp usage time display

LCD display with English and Chinese language menu

Energy saving function of the ballast

Built-in analyzer for easy fault finding, error messages

Built-in demo sequences

Setup options by chargeable battery inside without power connection.

Input signal isolating protection

Network interface (Reserved)

HOUSING:

Composite plastic, IP20

WEIGHT:

30Kg

Page 20

20/24

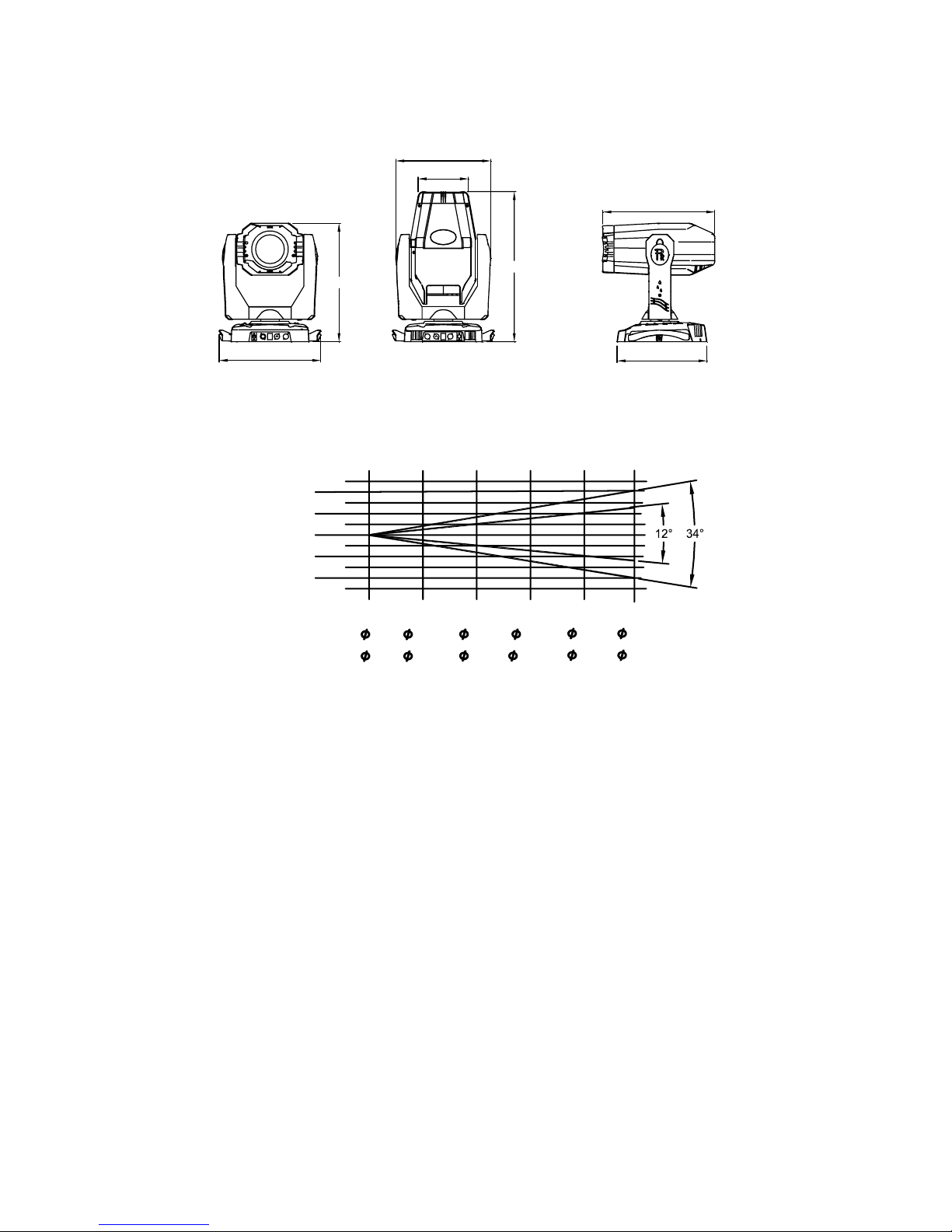

SIZES:

See at below

559

708

448

237

480

528

424

LIGHT OUTPUT:

34° DIAMETER (m)

23260

3220

1.07

3.03

16m

12° DIAMETER (m)

DISTANCE (m)

20m

12°

（

lux

）

16m

12m

20m

34°

（

lux

）

9.09

3.21

2.14

6.06

4.28

12.12

14505810 2580

350800 200

15.15

5.35

120

930

Page 21

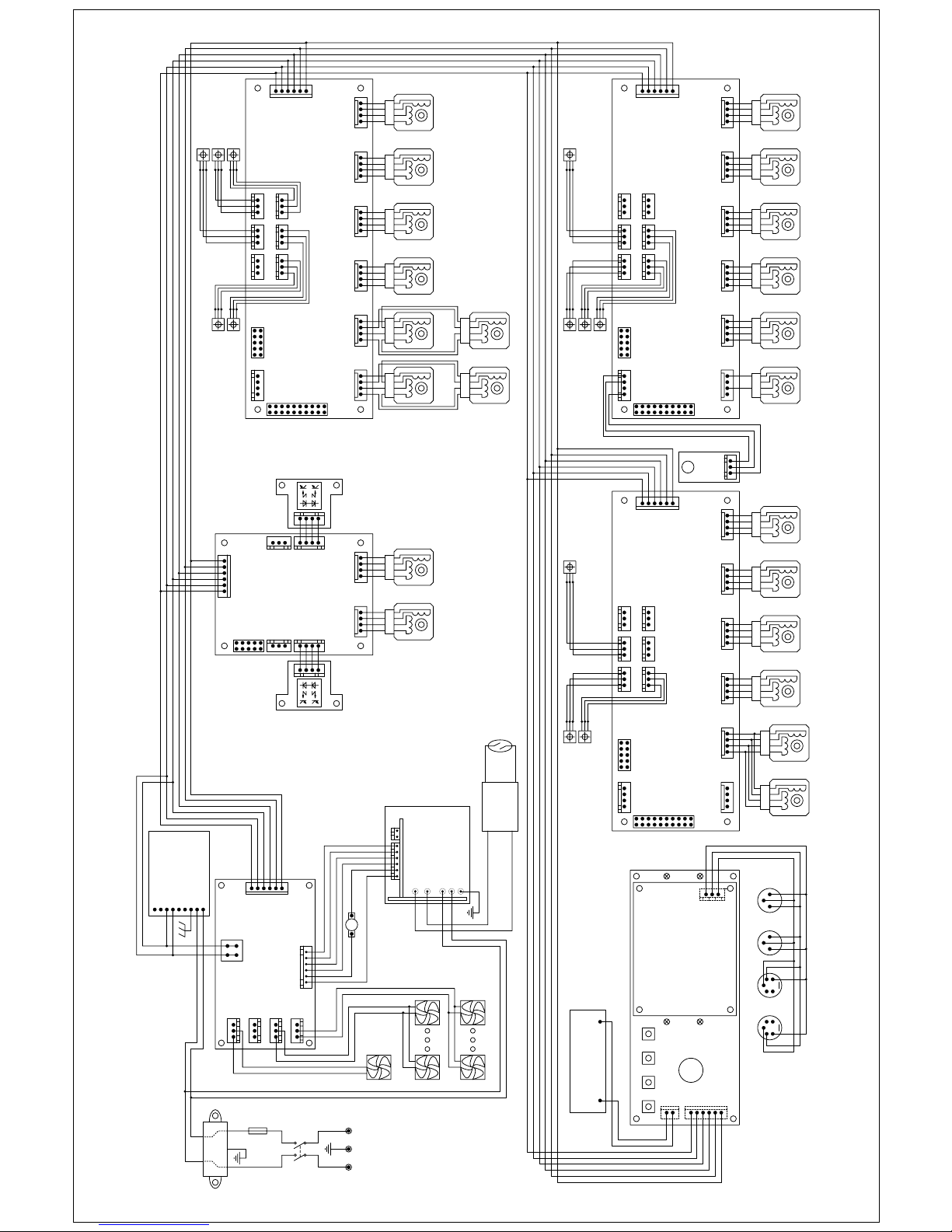

SENS1

SENS2

SENS3

SENS4

SENS5

SENS6

MOTOR1 MOTOR2 MOTOR3 MOTOR4 MOTOR5 MOTOR6

SLAVE #1 PCB

SENS1

SENS2

SENS3

SENS4

SENS5

SENS6

MOTOR1 MOTOR2 MOTOR3 MOTOR4 MOTOR5 MOTOR6

SLAVE #2 PCB

PAN & TILT PCB

GND

VCC

DMX-SENS1

DMX-SENS2

GND

VCC

DMX-SENS1

DMX-SENS2

TILT ENCODE

PAN ENCODE

DMX-IN DMX-OUT

3451

345

DMX-IN DMX-OUT

VGS

Filter

VGS VGS

VGS VGSVGS VGS VGS VGS

VGSVGS VGS

SENS1

SENS2

SENS3

SENS4

SENS5

SENS6

MOTOR1 MOTOR2 MOTOR3 MOTOR4 MOTOR5 MOTOR6

SLAVE #3 PCB

GND

VCC

DMX-SENS1

DMX-SENS2

HALL 3-5

View of mark side

HALL 3-6

View of mark side

HALL 3-3

View of mark side

HALL 3-1

View of mark side

VGS VGS VGS

VGSVGS VGS

HALL 3-4

View of mark side

HALL 1-3

View of mark side

HALL 1-1

View of mark side

HALL 1-4

View of mark side

HALL 2-4

View of mark side

PAN TILT

GND

VCC

DMX-SENS1

DMX-SENS2

VGS

VGS2

HALL 1-2

View of mark side

LED1

LED2LED3

LED4

LCD DISPLAY

FUNCTION DOWN UP ENTER

GND

VCC

DMX-SENS1

DMX-SENS2

GND

DATA-

DATA+

FEMALE FEMALEMALEMALE

DC6V

GND

Battery

View side of no axletree

M2-5

STROBE-2

B C

View side of no axletree

M2-5

STROBE-1

B C

View side of no axletree

M1-6B

DIMMER-2

B C

View side of no axletree

M3-6B

ZOOM-2

B C

View side of no axletree

M3-5B

FOCUS-2

B C

View side of no axletree

M3-2

EFFECT ROTATION

B C

View side of no axletree

M3-1

EFFECT

B C

View side of no axletree

PAN

B C

View side of no axletree

TILT

B C

View side of no axletree

M3-6A

ZOOM-1

B C

View side of no axlet ree

M3-5A

FOCUS-1

B C

View side of no axlet ree

M1-5

DIMMER-1

B C

Thermostat

GND

DMX-SENS1

DMX-SENS2

FAN1

FAN2

FAN3

FAN4

DC24V

FAN & LIGHTING PCB

FULL

3 / 4

HALF

IGNITOR

GROUND

TO IGNITOR

ELECTRONIC

BALLAST

LAMP

12 1 62345

View side of no axletree

M1-3

MAGENTA

B C

View side of no axletree

M1-2

YELLOW

B C

View side of no axletree

M1-1

CYAN

B C

View side of no axl etree

M1-4

COLOUR

B C

View side of no axletree

M2-2

GOBO ROTATING

B C

View side of no axletree

ROTATING-GOBO

B C

View side of no axlet ree

M2-4

FIXED GOBOS

B C

View side of no axl etree

M2-3

IRIS

B C

View side of no axl etree

M3-4

PRISM ROTATING

B C

View side of no axletree

M3-3

PRISM

B C

M2-1

HALL 2-1

View of mark side

HALL 2-2

View of mark side

S S G

V S G

S S G

AC INPUT

NL E

SWITCH

Fuse

HEAD FAN 1 HEAD FAN n

BOX FAN

HEAD FAN 1 HEAD FAN n

TRANSFORMER

ELECTRONIC

+24V

ACL

ACN

+24V

Page 22

22/24

COMPONENT ORDER CODES

NAME PART NO. QUANTITY REMARK

POWER SUPPLY 190010098 1 24V MAINS FILTER 193020008 1 20A 115/250VAC THERMOSTAT 190010035 1 120℃ 16A/250V SWITCH 190010050 1 16A 250V/20A 125VAC BALLAST 040070081 1 MHS700A5Z RC IGNITOR 040090043 1 575~1200W LAMP 100050061 1 MSR 700W SA/2 DE TILT DRIVE BELT 290151241 1 HTD-750-3M PAN DRIVE BELT 290151234 1 HTD-501-3M FAN IN FRONT SIDE 030060053 2 DC 24V/0.21A FAN IN BACK SIDE 030060055 2 DC 24V/0.16A FAN NEAR THE COLOUR WHEEL 1 FAN NEAR THE LAMP

030060054

DC 24V/0.20A

FAN NEAR THE CYM 030060052 2 DC 24V/0.09A PAN M O TOR 1 TILT MOTOR

030040089

23HS2039L 6.35*25

PRISM ROTATION MOTOR 030040131 1 16HY0002-02L 5*24 ROTATING GOBO WHEEL MOTOR 1 PRISM/FROST MOTOR

030040092

17HD0013-32L 5*7

DIMMER MOTOR 030040093 2 17HD0013-33L 5*35 FOCUS MOTOR 2 ZOOM MOTOR

030040073

17HD5003-09L 5*20

GOBO ROTATION MOTOR 030040132 1 17HD0013-31L 5*23 CYM-CYAN MOTOR 1 CYM-YELLOW 1

CYM-MAGENTA MOTOR 1 EFFECT WHEEL ROTATION MOTOR

030040114

16HY7001-30L 5*40

FIXED GOBO WHEEL MOTOR 1 COLOUR WHEEL MOTOR

030040136

16HS7002 5*17

SHUTTER BLADE MOTOR 030040116 2 16HY7001-32L 5*15 IRIS MOTOR 030040088 1 39BYG501-4A 5*24 EFFECT WHEEL MOTOR 030040118 1 16HY7001-34L 5*12*10 PAN/TILT DRIVE PCB 230020177 1 MOTOR DRIVE PCB 1 230020212 1 MOTOR DRIVE PCB 2 230020213 1 MOTOR DRIVE PCB 3 230020214 1 DISPLAY PCB 230020220 1 POWER PCB 230020223 1

Page 23

23/24

Page 24

24/24

PR LIGHTING LTD.

1582 Xingye Avenue, Nancun Panyu

Guangzhou, 511442 China

TEL: +86-20-3995 2888 FAX: +86-20-3995 2330

P/N: 321010256

Last Revision: 28:05:2007
