PR Lighting XR440 BEAM, PR-2464 User Manual

1/27

XR440 BEAM

PR-2464

The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference.

PR LIGHTING LTD.

http: //www. pr- lig hting. com

2/27

INDEX

1. SAFETY AND WARNINGS

2. INSTUCTIONS

●CLEANING AND MAINTENANCE

●LUBRICATION

●TROUBLESHOOTING

3. APPEARANCE

4. INSTALLATION

●RIGGING

●POWER CONNECTIONS

●DMX CONTROL CONNECTIONS

●DMX TERMINATOR

●ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP

●GOBO/COLOR FILTER REPLACEMENT

5. SETUP AND CONFIGURATION

●FRONT PANEL OPERATION

●DMX START ADDRESS

●DMX WIRELSESS CONTROL

●STAND-ALONE MODE

●MASTER/SLAVE MODE

6.OPERATION MENU

7. DMX PROTOCOL

8. LED INDICATION

9. ERROR MESSAGES

10.TECHNICAL DATA

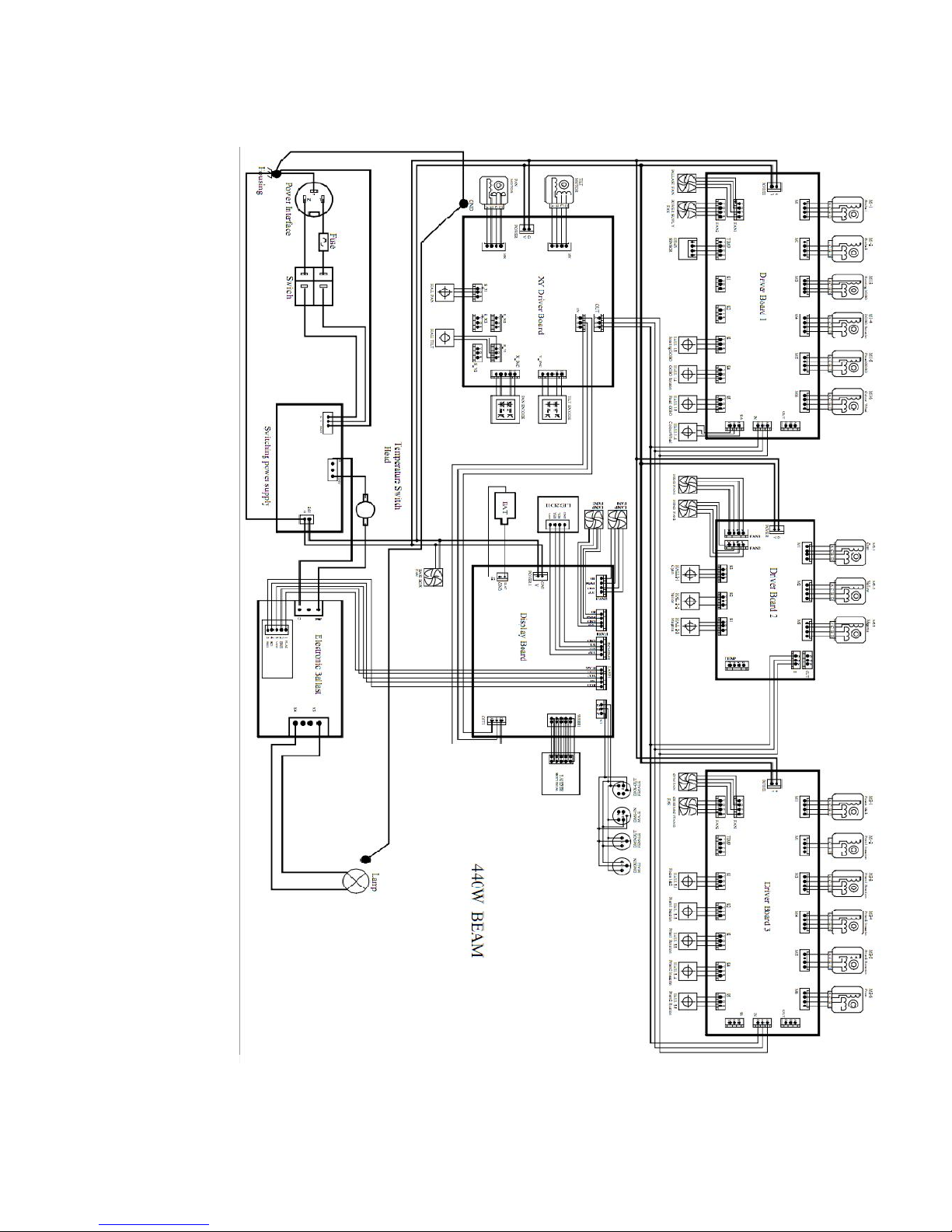

11.CIRCUIT DIAGRAM AND PCB CONNECTIONS

●CIRCUIT DIAGRAM

●PCB CONNECTIONS

12.COMPONENT ORDER CODES

3 4 4 4 5 5 6 6 6 7 7 8 8 9 9 9 9 9 10 10 19 22 22 23 27 27 28 29

ACCESSORIES

The following items are supplied with the projector and please check:

Name

Quantity

Unit Remark

G clamp

2 Pcs

XLR Signal Cable

1

Set

With Male and female sockets

Safety cord

1

Pc

User

manual

1

Pc

Ω clamps

2 Pcs Optional

Please note that as part of our ongoing commitment to continuous product development, spec ifications are subject to change without notice.

Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the course of product

improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence arising from

them.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good

condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the unit.

Any damage cause d by improper use will not be assumed by the manufact urer and / o r dealer.

3/27

1. SAFETY AND WARNINGS

NOTE

Before a projector’s installation, power-on, operation and maintenance, please carefully read

the safety information hereinafter!

The following safety signs are used in the user manual.

Warning

User

Manual

Electrical

shock

Goggles

Protective

Gloves

Flames

High

Temperature

● When unpacking , check if there is transportation damage before using the projector. Should there be any damage

caused by transportation, consult your dealer and do not use it.

●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector

as he/she likes.

●Please be noted that the damage caused by changing the projector at will is not warranted..

● Do not hesitate to contact the dealer or the manufacturer if any questions or advice.

● The projector is for indoor use only, IP20.

● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not

allow contact with water or any other liquids.

●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while

being operated.

●The projector is only intended for installation, operation and maintenance by qualified personnel. And the

operation must strictly follow the procedures in the manual.

●No repairable parts in the projector and do not open covers for maintenance by yourself.

●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.

●Do not connect this device to any type of dimmer pack.

●After lamp switched on, the minimum distance between the projector and illuminated surface is 18m.

●lens and other optical parts shall be replaced immediately if they have deformed or been damaged, otherwise the

light output will be compromised.

●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a

projector while covers(housing)are off.

●Keep the lamp clean and do not touch it with bare hands.

●While operating it, wear protective items.

●Any electrical connection must be carried out by a qualified person .

●Before installation, please confirm the voltage supplied matches what is required for the projector.

●Each projector must be properly earthed and installed as per related electrical standards.

●Do not use power cord with its insulator damaged and connect the power cord with other cables.

●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully

or by pulling the power cable.

●All power cords must conform to related safety and regulations.

●While being operated, the projector should not be under rains or in humidity.

●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other

electrical parts’ life will be shortened .

4/27

●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety

cord supplied through the safety cord holes for safety support.

●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from

power mains.

●After running for 30minutes, the temperature of the housing of the projector is 45℃.After stable operation ,

its temperature is 70℃.

●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not

mean the projector has some defects.

●Do not mount the projector directly on inflammable surface..

●Do not project the beam straightly on combustible items and the minimum distance between the

projector and illuminated items is 18m.

●A projector should be installed with good ventilation and the minimum distance between the projector

and walls is 50cm. At the same time, please ensure the fans and air inlets and outlets are workable.

2. INSTRUCTIONS

●CLEANING AND MAINTENANCE

If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the

projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved, restart the projector.

The accumulation of oil, smoke and dust on the lens will compromise the light output. Cleaning a projector is very necessary to

ensure a reliable use of it. Cooling fans need to be cleaned every 15days. Internal lens, reflector and hot mirror need to be cleaned periodically to optimize light output.

Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning

work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean and do not touch optical parts with bare hands.

●Before any maintenance and cleaning, please ensure the project is off the power.

●Only qualified person is allowed to do maintenance.

●During maintenance and before maintenance, the projector must be off power.

●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens whether it runs or not.

●Do not use alcohol or other organic solvent to clean the housing to avoid damage.

●Do not use any solvent with chemical elements to clean color filters or hot mirror.

●LUBRICATION

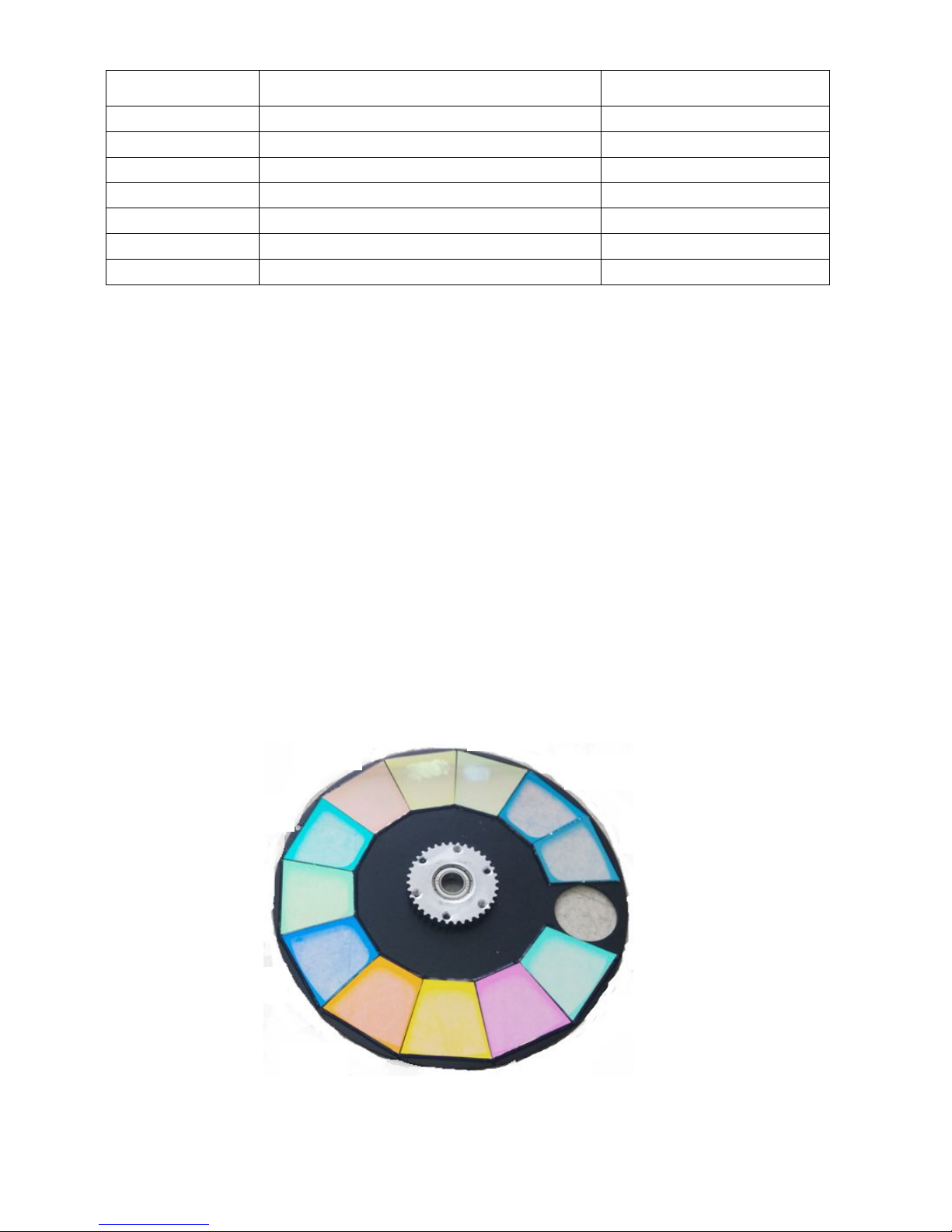

To ensure smooth movement of gobos and zoom and focus lens, it’s advised rotators’ bearings and 4 slide rails for zoom and focus lens be lubricated every 2 months. High quality and high temperature lubricant/grease is advised.

5/27

●TROUBLESHOOTING

PROBLEM ACTION

The projector doesn’t switch on

 Check the fuse on the power socket.  Check the lamp.

The lamp is on but the projector doesn’t respond to the controller

 Make sure that the fixture’s start address is right  Replace or repair the XLR signal cable.

The projector functions intermittently  Make sure the fan is working well or fans and their shields are not blocked

Beam appears dim, Low in brightness

 Make sure the lamp is within its lifespan.  Remove dust or grease from the lenses.

The project image appears to have a halo  Carefully clean the lamp, optical lenses and other components.

Heavily Defective Beam

 Check if lens are in good condition(not cracked).  Clean dust or grease on the lens.

3. APPEARANCE

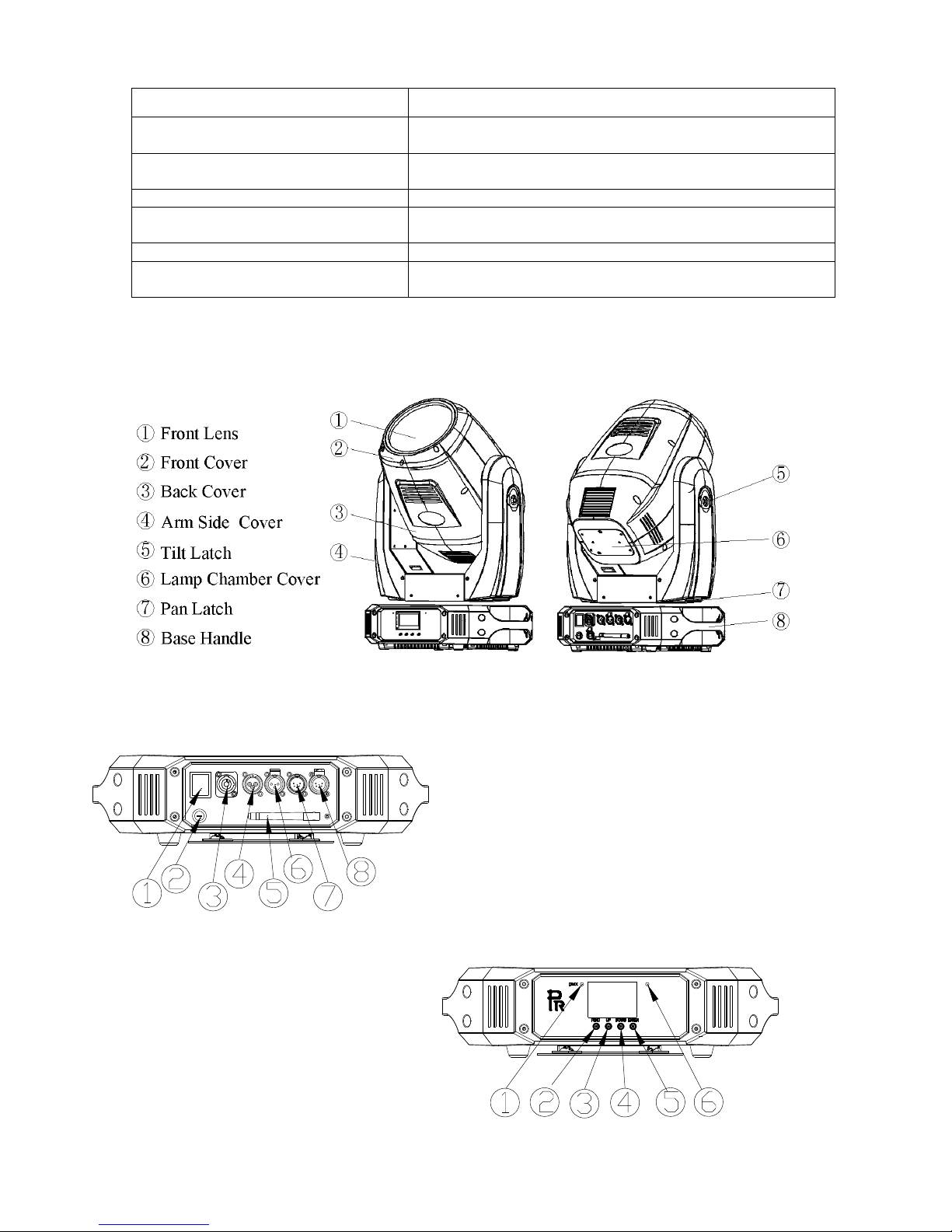

While transportation, the head should be locked-Tilt Latch(4) and Pan Latch(6) should be at locking positions. Before the use of the projector, unlock both.

Rear Panel of the Base

1. Power Switch

2. Fuse Holder

3. Power Socket

4. 3-Pin XLR Socket(Male)

5. Wireless Antenna

6. 3-Pin XLR Socket(Female)

7. 5-Pin XLR Socket(Male)

8. 5-Pin XLR Socket(Female)

Front Panel of the Base

1. XLR Signal Indication

2. Key Func

3. Key UP

4. Key Down

5. Key Enter

6. Wireless Signal Indication

W-DMXDMX

6/27

4. INSTALLATION

● RIGGING

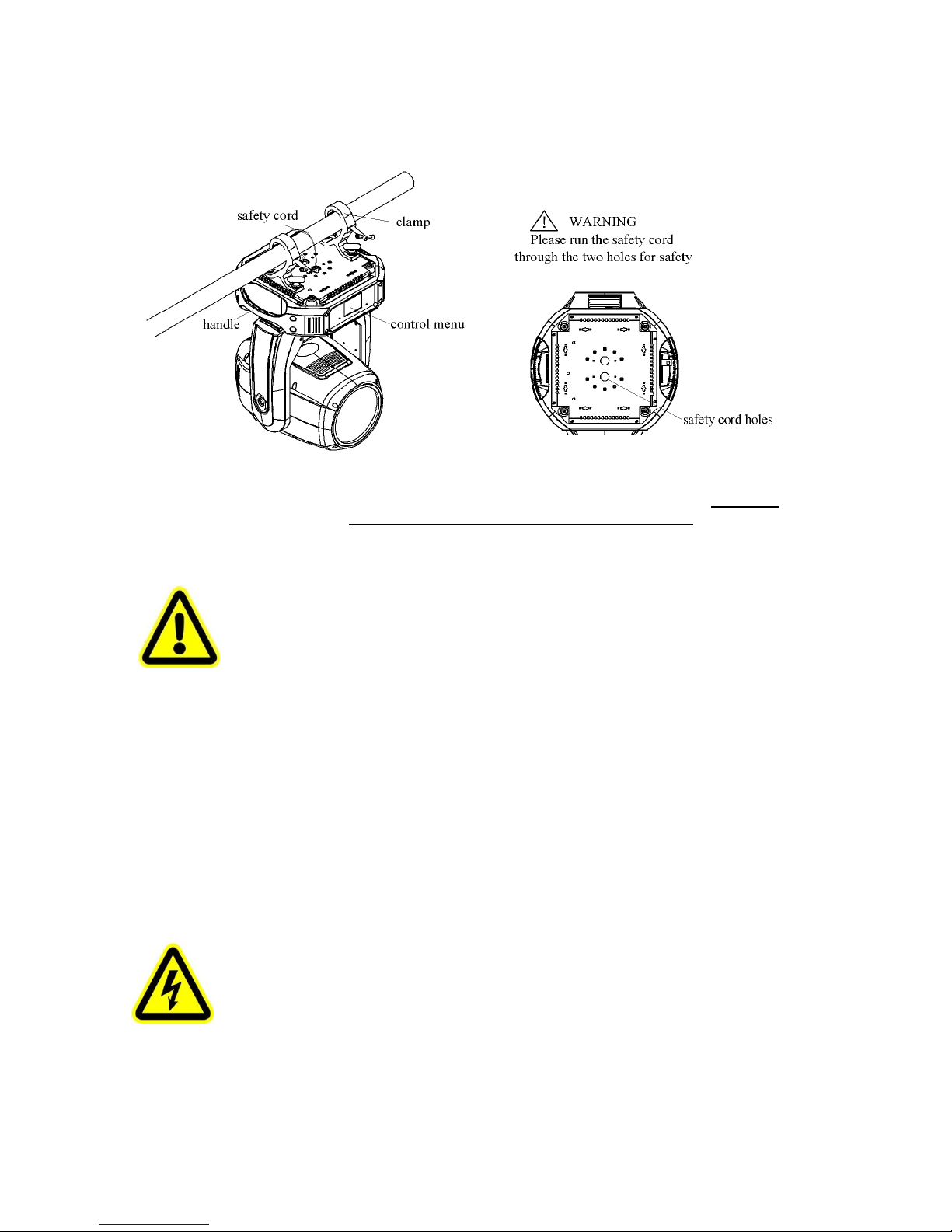

Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a projector with power while it is locked.

Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING

on the underside of the base as shown above) To pass the SAFETY CORD through the HOLES for safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector to is secure and strong enough to support the weight of a XR 1000 Framing.

WARNING:

●The projector MUST be lifted or carried by the HANDLES instead of clamps.

●.For safety the safety cord should afford 10 times the Projector’s weight.

● POWER CONNECTION

Connect the power cord as follows:

L (live) =brown E (earth) =yellow/green N (neutral) =blue

Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each projector be connected with power separately so that they may be individually switched on and off.

●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in

accordance with the standards concerned.

●If any questions about the electrical installation, do not continue but consult a qualified electrician.

7/27

●DMX CONTROL CONNECTION:

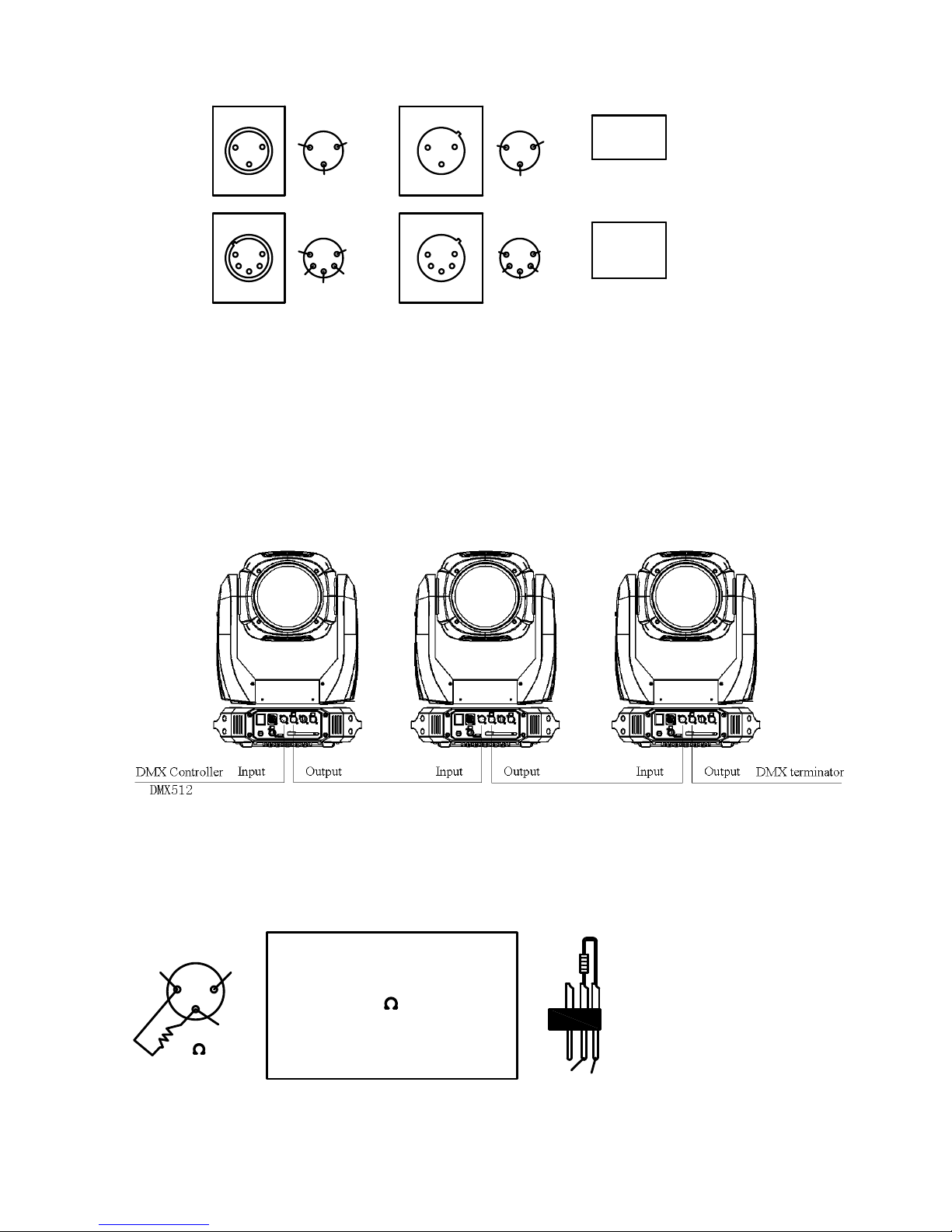

Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.

Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets mustn’t be connected in any way other than mentioned in the above figure. The XR440 Beam accepts digital control signals in protocol DMX512 (1990).

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX terminator as shown in the figure below.

●DMX TERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. The connections are illustrated below.

4 N/C

N/C5

FUNCTION

GND1

3 DATA+

DATA-2

DMX 512

2 DATA-

DATA+3

1 GND

FUNCTION

DMX OUT DMX IN

DMX IN

DMX OUT

1

2

3

1

2

3

4

5

1

2

3

5

4

3

2

1

2

1

3

120

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor across pins 2 and 3 in an XLR plug and insert into the DMX out socket

on the last unit in the chain.

PIN 3

PIN 2

8/27

● ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP

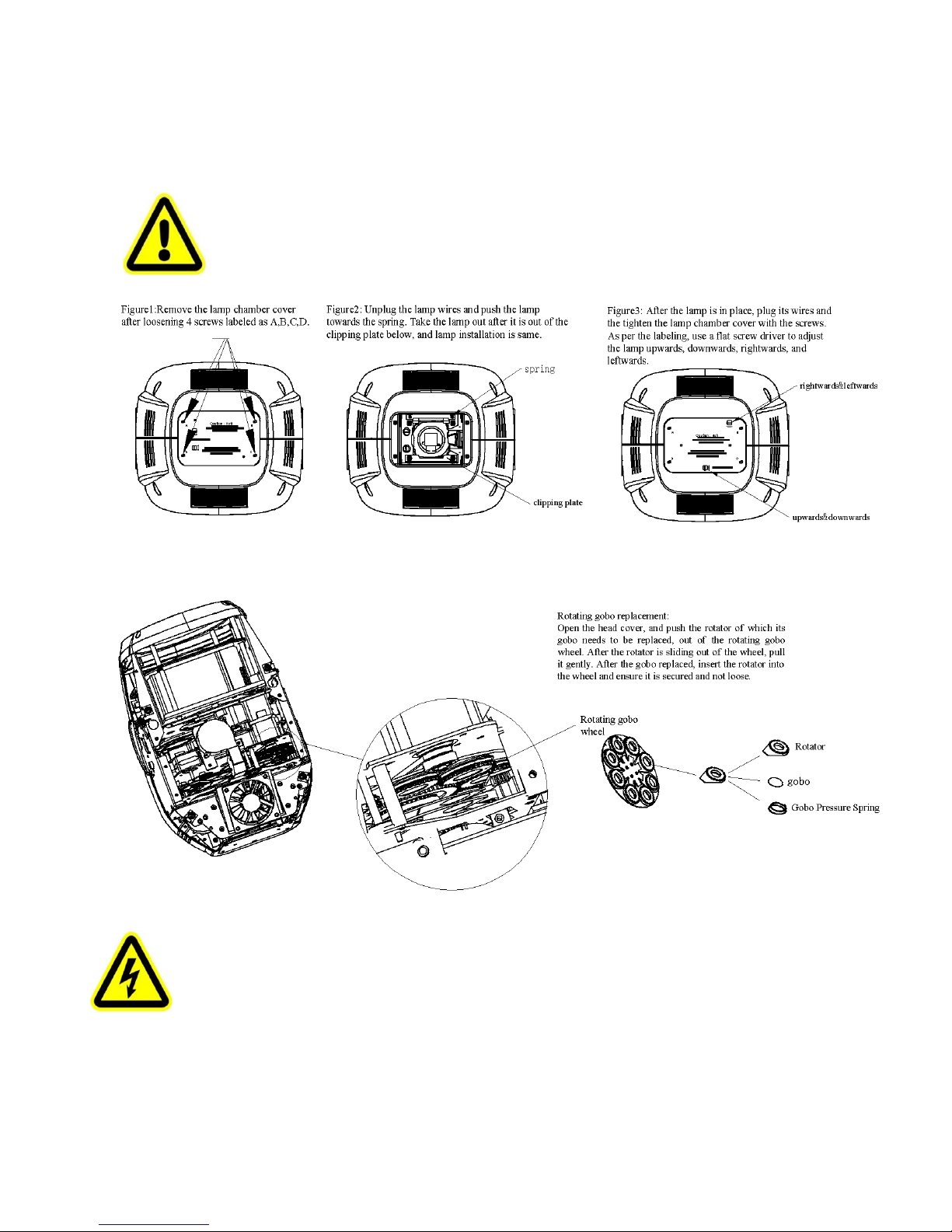

Lock the yoke before fitting/replacing the lamp. Just as Shown by Figure 1, after opening the cover at the rear of the projector by loosening 4 fastfit screws, you can open the head. To adjust the lamp as per Figure 2. Take out the lamp as per the figure 3. Before removing the lamp, unplug its power wires. After the lamp in, plug its power wires.

●Don’t touch the internal surface of the reflector and the burner of the lamp with bare hands so as not to impair

the beam output. While lamp’s installation, do not damage the metal wire around the burner.

●Please read "Instructions " enclosed with the lamp.

●Do not operate the projector while adjusting the lamp.

.

●GOBO REPLACEMENT

DANGER!

Before replacement of gobos, the projector must be off the power completely.

9/27

5. SETUP AND CONFIGURATION

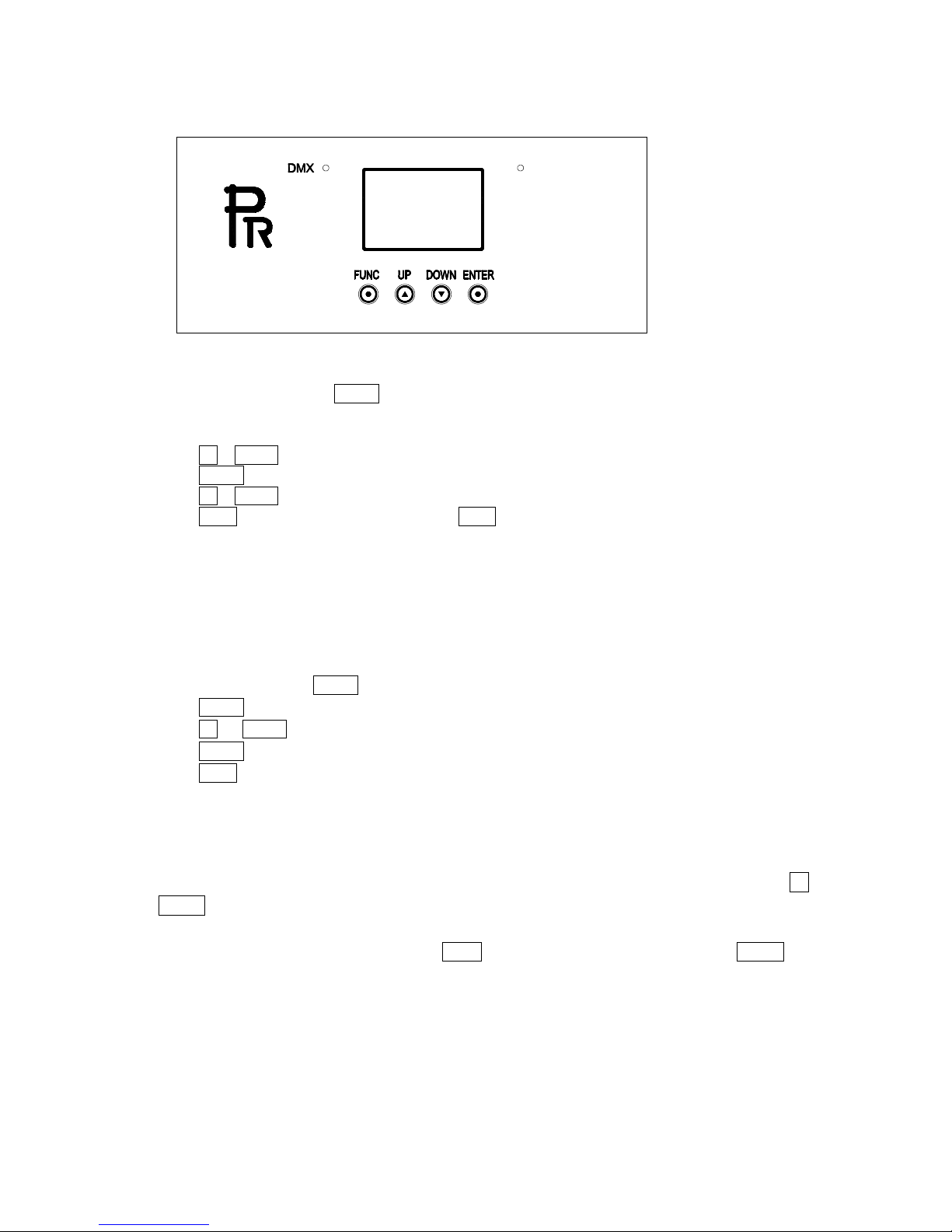

●Front Panel Operation

W-DMXDMX

Projector configuration can be set conveniently via push button and LCD display. Launch the projector and press button ENTER for more than 2 seconds to unlock the panel, the LCD will show the function menu of

the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the

“OPERATION MENU” section. Press button UP or DOWN if you want to browse through the various Setup Options. Press button ENTER to save your settings or enter the submenu.

Press button UP or DOWN to change values(plus or minus). Press button FUNC, it will return to the upper menu. If button FUNC not pressed, the default will show display status automatically.

● DMX START ADDRESS

Each XR 440 Beam must be given a DMX start address so that the correct projector responds to the correct control signals. This

DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out

from the controller. The XR 440 Beam has 4DMX modes. There are standard mode ,short mode, extended mode and compatible

mode. For example standard mode has 24 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 025, No. 3

projector’s address 049, No. 4 projector’s address073, and so on.

Launch the projector. Press button ENTER more than 2seconds to unlock panel.

Press button ENTER to display DMX address.

Press button UP and DOWN, you can set the address.

Press button ENTER to confirm; after powered on next time, the default will be last value saved.

Press button FUNC, it will return to the upper menu.

.

●DMX WIRELESS CONTROL (If the projector has the function)

The projector has wireless control function with wireless receiver module and antenna for remote control.

Its operation is as follows:

1. The setup of it is below: Enter into a projector’s menu. Select the menu “Wireless Options” via the buttons of UP and

DOWN .

2. Select the mode of “Wireless First” or “Wireless Only” or others.(Note: Do not select “XLR Only”).

3. Go back to the upper level menu via the button of FUNC and ensure the cancellation via the button of ENTER after the

menu of “Un-Link Wireless” selected.

4. After the “Wireless Transmitter” sends signals, the “W-DMX” indication of the control panel in the base will be on,

meaning wireless receiver is activated. Only after the projector is linked with a transmitter, can it receive the signals from

the wireless transmitter.

●STAND-ALONE MODE

Operate the projector without connecting with a controller, enable the master mode through the operation panel, the projector will run in Stand-Alone mode automatically. DMX address can be set at any number within 512.

10/27

●MASTER/SLAVE MODE

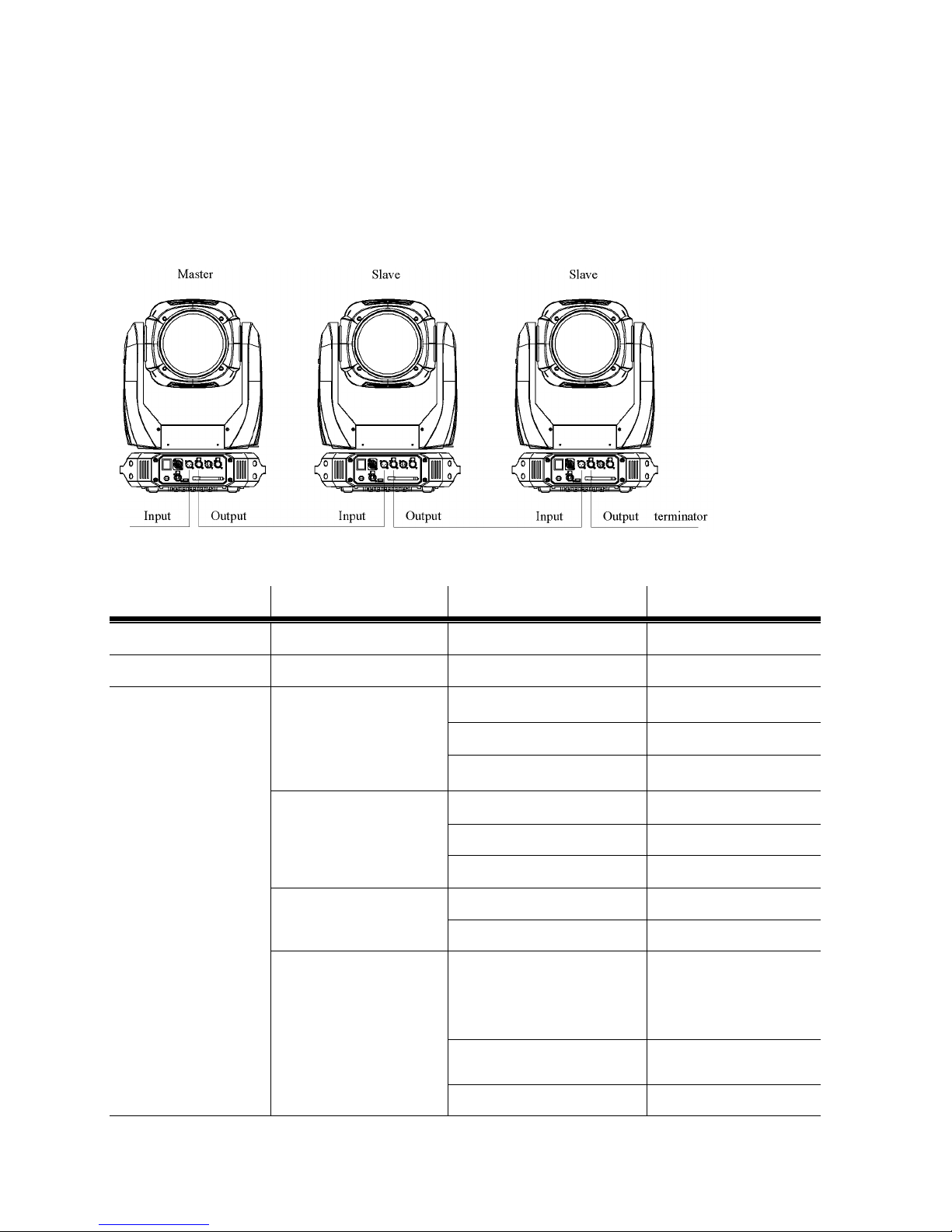

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First, connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.

Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can be set accordingly.

After Powered on, the group will run in Master/Slave Mode.

6. OPERATION MENU

First Menu Secondary Menu Third Menu Fourth Menu

DMX Address

DMX Address=XXX

Reset

Are You Sure

Config Settings

DMX Mode

Standard 16

Extended 16

Short 8

Lamp Control

By Control Channel

By Power On

By DMX Present

Loss of DMX

When DMX is Lost

Normal time out

When DMX is Lost

Hold Last Value

Factory Settings

Fixture Type

(Press button DOWN/UP/ENTER at

the same time to enter this menu)

(WARNING: Never change the fixture

type ,otherwise the system will be

damaged!)

Offset Menu

(Press button DOWN/UP/ENTER at

the same time to enter this menu)

Pass Code

11/27

Option Settings

Color Positions

STEPPED

Color Positions

LINEAR

F-Gobo Positions

STEPPED

F-Gobo Positions

LINEAR

Pan DMX Invert

OFF

Pan DMX Invert

ON

Tilt DMX Invert

OFF

Tilt DMX Invert

ON

Pan Tilt Swap

OFF

Pan Tilt Swap

ON

Dimmer Invert

OFF

Dimmer Invert

ON

Zoom Invert

OFF

Zoom Invert

ON

CMY Invert

OFF

CMY Invert

ON

Defaults

OFF

Defaults

Restore Defaults

Display Options

Display Mode

Display

On Always

Display

Off After Delay

Display Invert

OFF

Display Invert

ON

Display Dimming

Disp Dim Level

Min

Disp Dim Level

1

Disp Dim Level

2

Disp Dim Level

3

Disp Dim Level

4

Disp Dim Level

5

Disp Dim Level

6

Disp Dim Level

7

Disp Dim Level

8

Disp Dim Level

9

Disp Dim Level

Full

12/27

Display Contrast

XX(1~21)

Information

Lamp Hours

XX )

Reset Lamp Hours

Are You Sure(UP/DOWN)

Total Hours XX

Temperature

Display Board

Display Board=

XX℃

Driver Board 1

Driver Board 1=

XX℃

Driver Board 2

Driver Board 2=

XX℃

Driver Board 3

Driver Board 3=

XX℃

Pan and Tilt

Pan and Tilt=

XX℃

Head Sensor

Head Sensor=

XX℃

Software Version

Display Board

System= XXX

Boot =XXX

Driver Board 1

Driver Board 1 System= XXX

Boot =XXX

Driver Board 2

Driver Board 2 System= XXX

Boot =XXX

Driver Board 3

Driver Board 3 System= XXX

Boot =XXX

Pan and Tilt

System= XXX

Boot =XXX

View DMX Values

DMX Channel

1=XXX

Electronic SN

Electronic SN= ************

RDM Device Label

ANSI E1.20 RDM

Version X.X

Pan Encoder

Wiring Normal Pan Err 0

Count 50880

Tilt Encoder

Wiring Normal

Tilt Err 0

Count 28080

Driver Faults

X Over Temp 0

Y Over Temp 0 X Fault 0 Y Fault 0

MEMS Sensor

X Axis = XXXX Y Axis = XXXX Z Axis = XXXX

Status =Good/Fail

Fan Speeds

Lanp Fan 1= XXX Lanp Fan 2= XXX

Head Fan= XXX

All Others= XXX

13/27

Test Modes

Factory Setup

OFF

Factory Setup

ON

Self Test

OFF

Self Test

ON

Lamp Manual Control

Lamp Status

S= X C= X

Lamp On

Turn Lamp On

Turn Lamp Off

Wireless Options

Wireless Mode

XLR First

Wireless Mode Wireless Only

Wireless Mode

XLR Only

Wireless Mode

Wireless To XLR

Wireless Mode

Wireless First

Un-Link Wireless

Really Un-Link

Enter=Yes

Operation Mode

=

DMX Operation

Operation Mode=

Master Mode

User Memory 1

User Memory 2

Operation Mode=

Slave Mode

User Memory 1

User Memory 2

Operation Mode=

Static Scene

User memories Edit user memory User memory 1

Scene XX （1~200scenes）

Shutters Shutters XXX

Dimmer Dimmer XXX

Dimmer low Dimmer low XXX

CYM Macro CYM Macro XXX

Cyan Cyan XXX

Yellow Yellow XXX

Magenta Magenta XXX

Color Wheel Color Wheel XXX

Fixed G-Wheel Fixed G-Wheel XXX

R Gobo-Wheel

Rotating G

-

Wheel

XXX

Gobo Rotate Gobo Rotation XXX

Gobo Rotate L G-Rotation slow XXX

R Prism Rotate Prism Rotation XXX

R Prism In Out Prism In out XXX

R Prism 2 Rotate Prism 2 Rotation XXX

R Prism 2 In Out Prism 2 In out XXX

Frost Frost XXX

Focus Focus XXX

Pan Coarse Pan XXX

Pan Fine Pan Fine XXX

Tilt Coarse Tilt XXX

Tilt Fine

Tilt Fine XXX

14/27

M Speed

Motors’ Speeds

XXX

（000~255）

Delay

Delay XX s （0.25s~100min）

Link To Step

XXX（1~200）

User memory 2

Scene XX

（1~200scenes）

Shutters Shutters XXX

Dimmer Dimmer XXX

Slow Dimmer Slow Dimmer XXX

CYM Macro CYM Macro XXX

Cyan Cyan XXX

Yellow Yellow XXX

Magenta Magenta XXX

Color Wheel Color Wheel XXX

Fixed G-Wheel Fixed G-Wheel XXX

Rotating G-Wheel

Rotating G

-

Wheel

Gobo Rotation Gobo Rotation XXX

G-Rotation slow G-Rotation slow XXX

Prism1 Out Prism1 Out XXX

Prism1 Rotation Prism1 Rotation XXX

Prism2 Out Prism2 Out XXX

Prism2 Rotation Prism2 Rotation XXX

Frost Frost XXX

Focus Focus XXX

Pan Pan XXX

Pan Fine Pan Fine XXX

Tilt Tilt XXX

Tilt Fine

Tilt Fine XXX

Motors’ Speeds

Motors’ Speeds XXX （000~255）

Delay

Delay XX s （0.25s~100min）

Link To Step

Shift to scene XXX（1~200）

Static Scene

Shutters Shutters XXX

Dimmer Dimmer XXX

Slow Dimmer Slow Dimmer XXX

CYM Macro CYM Macro XXX

CMY Cyan Cyan XXX

CMY Yellow Yellow XXX

CMY Magenta Magenta XXX

Color Wheel Color Wheel XXX

Fixed G-Wheel

Fixed G

-

Wheel

XXX

Rotating G-Wheel

Rotating G

-

Wheel

XXX

Gobo Rotation

Gobo Rotation XXX

G-Rotation slow

G

-

Rotation slow

XXX

Prism1 Out Prism1 Out XXX

Prism1 Rotation

Prism1 Rotation XXX

Prism2 Out Prism2 Out XXX

15/27

Prism2 Rotation

Prism2 Rotation XXX

Frost Frost XXX

Focus Focus XXX

Pan Pan XXX

Pan Fine Pan Fine XXX

Tilt Tilt XXX

Tilt Fine

Tilt Fine XXX

Motors’ Speeds

Motors’ Speeds XXX（000~255）

Init User memory

Reset User memory 1

Reset User1 Unlock 2,3,4 （Press buttons 2,3.4,ie buttons UP/DOWN/ENTER to

execute the function

）

User memory 1 has been reset

Reset User memory 2

Reset User2 Unlock 2,3,4 （Press buttons 2,3.4,ie buttons UP/DOWN/ENTER to

execute the function

）

User memory 2 has been reset

Reset Static Scene

Reset Static Scene Unlock 2,3,4 （Press buttons 2,3.4,ie buttons UP/DOWN/ENTER to

execute the function

）

Static Scene has been reset

16/27

7. DMX PROTOCOL

Short mode

Standard

mode

Extended

Mode

FUNCTION DMX DESCRIPTION

1 1 1 Strobe

000-010

Close

011-025

Open

026-225

Strobe speed from slow to fast

226-239

Macro 1

240-241

Macro 2

242-246

Macro 3

247-255

Open

2 2 2

Dimmer

000-003 Close

004-255 Linear dimming（0-100%）

3 3

Dimmer Fine

0-255

Dimmer in 16 bit

3 4 4 CYM Macro

000-016

White

017-035

Yellow+ Magenta=Red

036-054

Yellow

055-073

Yellow +Cyan=Green

074-092

Cyan

093-110

Cyan + Magenta= Violet

111-128

Magenta

129-255

CYM color mixing from slow to fast

4 5 5

Cyan

000-255

Cyan (linear 0~100%)

6

Cyan Fine

000-255

Cyan in 16 Bit

5 6 7

Yellow

000-255

Yellow (linear 0~100%)

8

Yellow Fine

000-255

Yellow in 16 Bit

6 7 9

Magenta

000-255

Magenta (linear 0~100%)

10

Magenta Fine

000-255

Magenta in 16 Bit

7 8 11

Color Wheel

000-016

White

017-024

CTO

025-033

Light Yellow

034-041

UV

042-050

Dark Blue

051-058

Green

059-067

Orange

068-075

Magenta

076-084

Yellow

085-092

Cyan

093-101

Blue

102-109

Light Green

110-128

Red

129-191

Rotation ,Clockwise from slow to fast

192-255

Rotation ,Anti-Clockwise from fast to slow

000-006

Open

007-013

Gobo1/ Concave Triangle

014-020

Gobo2/ 4 paralleled Bars

17/27

8

9

12

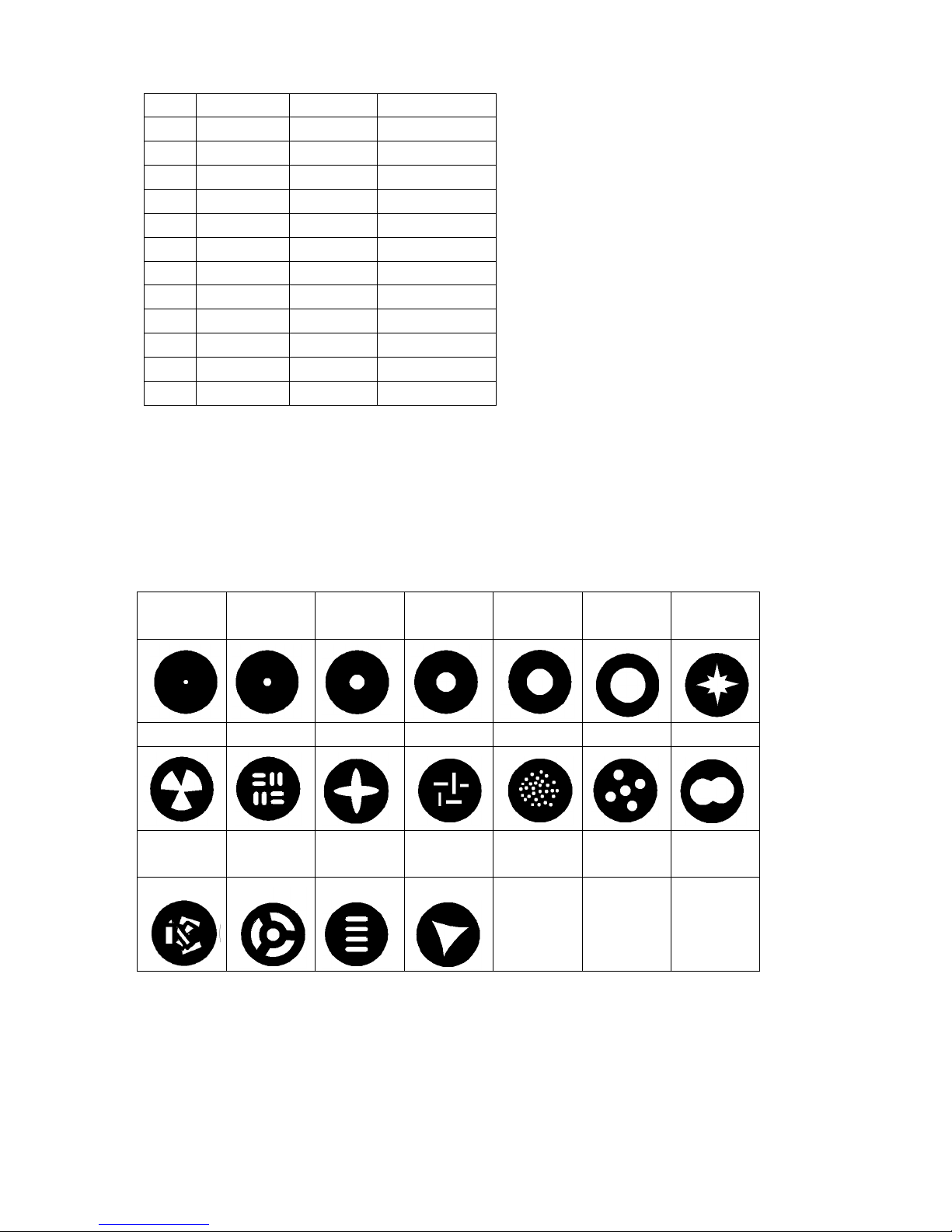

Fixed Gobo

Wheel

021-026

Gobo3/ Steering Wheel

027-033

Gobo4/ Quadrangles

034-040

Gobo5/ Eight

041-047

Gobo6/ Five Dots

048-053

Gobo7/ Stars

054-060

Gobo8/ Rectangles

061-067

Gobo9/ Flower

068-074

Gobo10/8 Bars

075-080

Gobo11/ Fan

081-087

Gobo12/ Ping

088-094

Gobo13/ Dot6

095-101

Gobo14/ Dot5

102-107

Gobo15/Dot4

108-114

Gobo16/Dot3

115-121

Gobo17/Dot2

122-127

Gobo18/Dot

128-146

Clockwise rotation from slow to fast

147-165

Anti Clockwise rotation from slow to fast

166-170

Shake effect 1 from slow to fast

171-175

Shake effect 2 from slow to fast

176-180

Shake effect 3 from slow to fast

181-185

Shake effect 4 from slow to fast

186-190

Shake effect 5 from slow to fast

191-195

Shake effect 6 from slow to fast

196-200

Shake effect 7 from slow to fast

201-205

Shake effect 8 from slow to fast

206-210

Shake effect 9 from slow to fast

211-215

Shake effect 10 from slow to fast

216-220

Shake effect 11 from slow to fast

221-225

Shake effect 12 from slow to fast

226-230

Shake effect 13 from slow to fast

231-235

Shake effect 14 from slow to fast

236-240

Shake effect 15 from slow to fast

241-245

Shake effect 16 from slow to fast

246-250

Shake effect 17 from slow to fast

251-255

Shake effect 18 from slow to fast

9 10 13

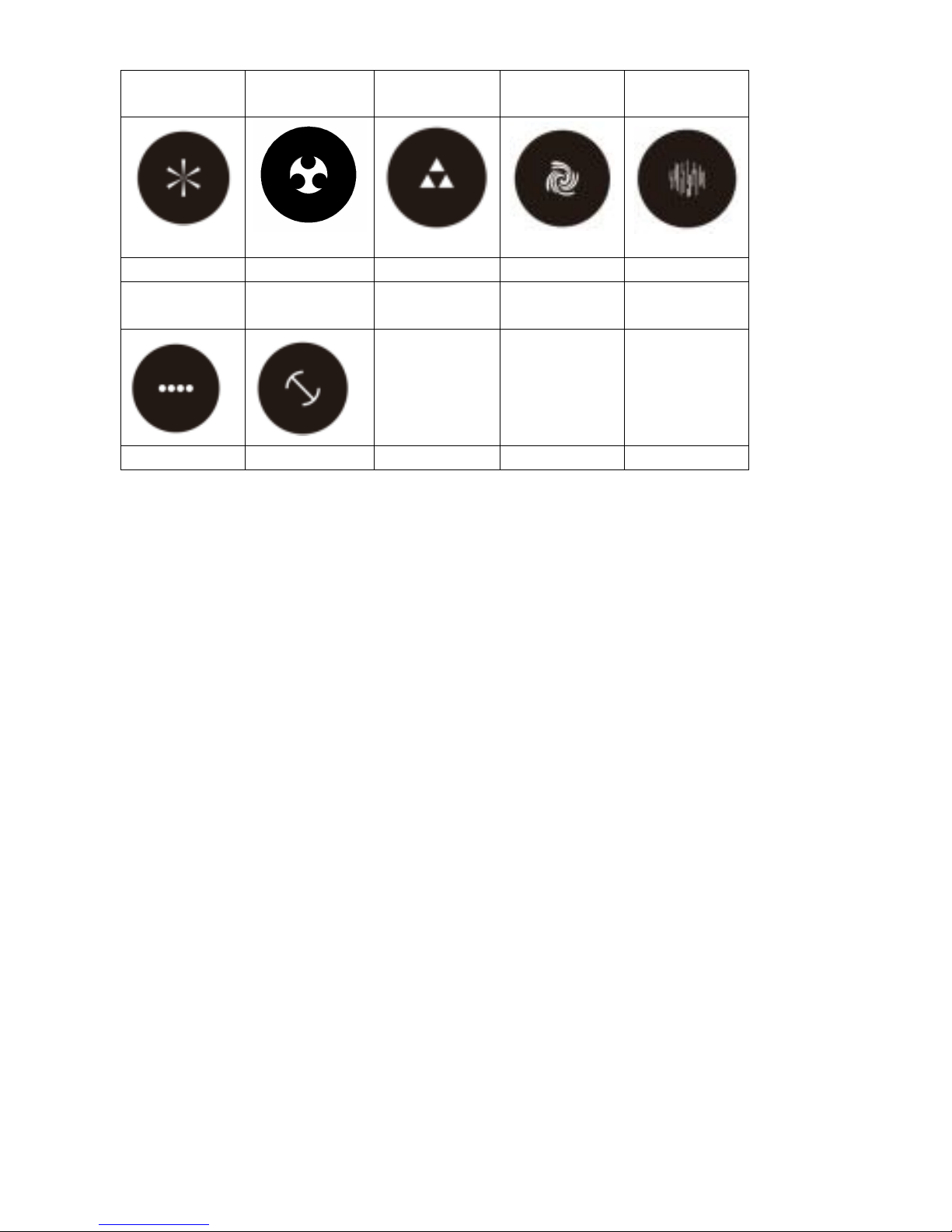

Rotating Gobo

Wheel l

000-016

White

017-032

Gobo 1/ Double T

033-048

Gobo 2/4 Dots in a line

049-064

Gobo 3/ Linear

065-080

Gobo 4/ Spun Dots

081-096

Gobo 5/3 Triangles

097-112

Gobo 6/3 black circles

113-127

Gobo 7/ Symmetric

18/27

128-163

Rotation （clockwise From slow to Fast）

164-199

Reverse Rotation （anti-clockwise From slow to Fast）

200-207

Shake of Gobo 1 from slow to fast

208-215

Shake of Gobo 2 from slow to fast

216-223

Shake of Gobo 3 from slow to fast

224-231

Shake of Gobo 4 from slow to fast

232-239

Shake of Gobo 5 from slow to fast

240-247

Shake of Gobo 6 from slow to fast

248-255

Shake of Gobo 7 from slow to fast

10 11 14

Gobo Rotation

000-128

Gobo Indexing(0~540degrees)

129-188

Rotation （Clockwise From slow to Fast）

189-195

Stop

196-255

Rotation （Anti-Clockwise From slow to Fast）

12 15

Gobo Rotation

Fine

0-255

Gobo Rotation in 16 Bit

11 13 16

Prism1

000-016

Open

017-255

Prism

12 14 17

Prism1 Rotation

000-128

Prism Indexing

129-191

Rotation(Clockwise from slow to fast)

192

Stop

193-255

Rotation(Anti- Clockwise from slow to fast)

13 15 18

Prism2

000-016

White

017-255

Prism

14

16

19

Prism2 Rotation

000-128

Prism Indexing

129-191

Rotation(Clockwise from slow to fast)

192

Stop

193-255

Rotation(Anti- Clockwise from slow to fast)

15 17 20

Frost Filter

000-255

Linear Frost

16 18 21

Focus

000-255

Linear Focus

22

Focus Fine

000-255

Focus in 16 bit precision

17 19 23

Pan

000-255

Pan(0°~540°)

20 24

Pan Fine

000-255

Pan in 16 bit precision

18 21 25

Tilt

000-255

Tilt(0°~270°)

22 26

Tilt Fine

000-255

Tilt in 16 bit precision

23 27

Pan & Tilt Speeds

000-255

Pan & Tilt Speed from Fast to Slow

19 24 28

Control

000-047

Reserved

048-080

Reset

081-112

Reserved

113-144

Lamp Off ( Delay for 3 s)

145-168

Reserved

169-200

Lamp Half Power

201-223

Reserved

224-255

Lamp Full Power

Note: Prism Effect> Frost

19/27

8. LED INDICATION

DMX Indication

On DMX signal OK

Off No DMX signal

Flash DMX signal error

W-DMX Indication

On No wireless signal

Off

Not linked with any transmitter

Flash

Being unlinked or being linked or no wireless signal by the transmitter

9. ERROR MESSAGES

During the reset, the control system will detect the errors and will display information below:

Sensor Err S1-M3

Rotating gobo wheel rotation (1# drive board motor 3) error Correction

Sensor Err S1-M4

Gobo rotation (1# drive board motor 4) error
