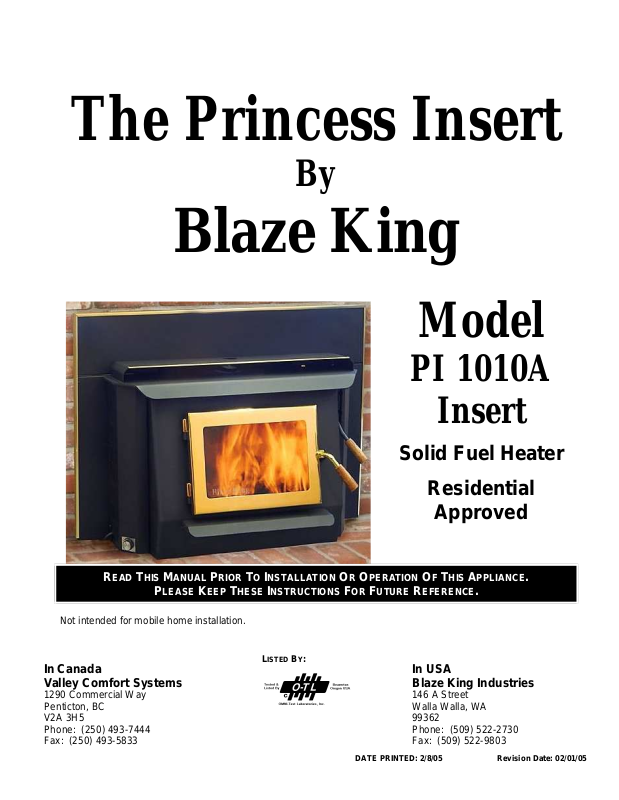

Princess PI 1010A User Manual

The Princess Insert

By

Blaze King

Model

PI 1010A

Insert

Solid Fuel Heater

Residential

Approved

READ THIS MANUAL PRIOR TO INSTALLATION OR OPERATION OF THIS APPLIANCE.

PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Not intended for mobile home installation.

In Canada In USA
Valley Comfort Systems Blaze King Industries

1290 Commercial Way 146 A Street
Penticton, BC Walla Walla, WA
V2A 3H5 99362
Phone: [phone] Phone: [phone]
Fax: [phone] Fax: [phone]

LISTED BY:

DATE PRINTED: 2/8/05 Revision Date: 02/01/05 PI-1010A Page 1

Approval Label

A

A

B

A = 8" (203 mm) measured from each side
of the fuel loading and ash removal openings
B = 16" (406 mm) in USA
B = 18" (457 mm) in Canada

NON-Combustible
Spark Protection

COMBUSTIBLE

Minimum
1" (25.4mm)
Clearance to
Combustible

PRINCESS INSERT

S/N -

LISTED SOLID FUEL BURNING FIREPLACE INSERT MODEL: PI/1010A Tested to:

Report No. 142-S-05-2 UL 1482 / ULC S628 CERTIFIED IN BOTH UNITED STATES AND CANADA

EPA Cert. No. 586

PREVENT HOUSE FIRES- Install and use only in accordance with Blaze
King’s installation and operation instructions. Install and use in a code
complying fireplace only. Stainless steel flue liner is required in Canada
and recommended in the United States. Contact local building or fire

B

officials about restrictions and installation inspection in your area.
Minimum Clearances To Combustibles

(Measured from Insert/Stove Sides and Top)
A—Side to Combustible Wall 7 in / 178 mm
B—Top to Bottom of Mantel 22 in / 559 mm
C—Side to Combustible Facing 7 in / 178 mm

A

C

FLOOR PROTECTION
A non-combustible floor protection is required for all installations extending 16" (in USA) or
18" (in Canada) in front of the door and extending 8" to either side of the door opening. In
addition to the above requirement that portion of the insert which extends out in front of the
fireplace hearth must have a minimum of 1" vertical distance to any combustible material

Electrical rating: (115 VAC, 60 Hz, 0.58 Amps. Risk of electrical shock. Disconnect power before servicing
unit. Do not route power cord in front of or beneath heater). Do not remove bricks or mortar in masonry
fireplace. Do not use grate or elevate fire. Inspect and clean chimney frequently.
U.S. ENVIRONMENTAL PROTECTION AGENCY- Certified to comply with July, 1990 particulate emission standards.
*Operate with doors closed. Open door to feed fire ONLY. *Do not obstruct combustion air openings.
*Use only high temperature ceramic glass if replacement is necessary, 5 mm thick.

Warning: Do not operate with cracked or broken glass. Take care not to strike glass with hard objects and

do not slam door shut. Do not build fire close to the glass door. For use with solid fuel only. Other fuels may
cause a house fire or endanger your safety. DO NOT OVERFIRE! IF HEATER OR CHIMNEY GLOWS YOU ARE
OVERFIRING INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE
CREOSOTE BUILDUP MAY OCCUR RAPIDLY.

CAUTION: HOT WHILE IN OPERATION. DO NOT TOUCH.

KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT
MAY CAUSE SKIN BURNS. READ THIS LABEL AND INSTRUCTION
MANUAL BEFORE OPERATING HEATER.

MANUFACTURED IN: MANUFACTURE DATE

USA: Canada:
Blaze King Industries Valley Comfort Systems
146A Street 1290 Commercial Way
Walla Walla, WA. Penticton, B.C.
99362 V2A 3H5

JAN



JUL



2003



FEB
AUG
2004





DATE PRINTED: 2/8/05 Revision Date: 02/01/05 PI-1010A Page 2

MAR  APR
SEP
2005  2006



OCT





MAY
NOV
2007





JUN
DEC
2008





#0220

To Our Valued Customers

Dear Customer:

Thank you for purchasing the Princess wood burning insert (hereafter referred to as "stove").

This owner's manual explains the steps required to safely assemble, install, operate, and
maintain your new stove. Be a responsible stove owner; PLEASE CAREFULLY READ THIS
ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW STOVE. FAILURE TO
FOLLOW THESE INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY
INJURY, OR EVEN DEATH.

Obtain permits from the Building Inspector or Fire Department, if local laws require. Check
local building and fire codes before installing your stove. When the installation has been
completed by a qualified, licensed installer, have it checked by your local inspector.
Disregarding inspection and code requirements may jeopardize your homeowner's insurance.
Since some insurance carriers require notification of a stove installation, contact your
insurance agent. We want your stove to give you many years of trouble-free operation.

While we have made every effort to make these instructions as complete as possible, some
installation or operating conditions may not be covered. If you have any questions that are not
answered here, contact your BLAZE KING dealer, Local Building Inspector, Fire Department,
or our customer service department at Blaze King, Walla Walla, WA [phone] or in
Canada Valley Comfort Systems / Blaze King, Penticton, B.C. [phone].

Thank you for your purchase,

The Management and Employees of

Blaze King

DATE PRINTED: 2/8/05 Revision Date: 02/01/05 PI-1010A Page 3

Safety Notice

IF THIS BLAZE KING STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. TO REDUCE

THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. CONTACT LOCAL BUILDING OR

FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION

REQUIREMENTS IN YOUR AREA.

THIS INSERT IS SUITABLE FOR INSTALLATION IN EITHER:

- A FACTORY BUILT FIREPLACE LISTED TO UL 127 OR ULC S620.

- A CODE-APPROVED MASONRY CHIMNEY WITH A FLUE LINER.
MANDATORY in CANADA, Recommended in USA

PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW ROOM HEATER.

FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR

EVEN DEATH.

This unit is certified by the United States Environmental Protection Agency. Certified to comply with July, 1990
particulate emissions standards.

The following statement is required by the Environmental Protection Agency:

"This wood heater contains a catalytic combustor, which needs periodic inspection and
replacement for proper operation. It is against the law to operate this wood heater in a manner
inconsistent with operating instructions of this manual, or if the catalytic element is deactivated

or removed. DO NOT operate this insert without a properly operating catalytic combustor."'

See pages 26 & 27 for Catalytic Combustor, Testing and Replacement.

CHIMNEYS: MASONRY FIREPLACE

In Canada: A code approved masonry chimney with a 6” listed stainless steel flue liner system and the accom-

panying vent connector is required.
In U.S.A.: A code approved masonry chimney with appropriate vent connector extending from the flue collar of

the stove to the first chimney flue liner and adaptor plate. A full length listed flue liner system with vent connector
is recommended for all installations.

SAVE THESE INSTRUCTIONS

CAUTION: HOT WHILE IN OPERATION. DO NOT TOUCH.

KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT
MAY CAUSE SKIN BURNS. READ NAMEPLATE AND
INSTRUCTIONS BEFORE OPERATING THE HEATER.

DATE PRINTED: 2/8/05 Revision Date: 02/01/05 PI-1010A Page 4

Table Of Contents

KEEP THIS MANUAL FOR FUTURE REFERENCE.

Section _____________________________________________________________________________________Page

APPROVAL LABEL ....................................................................................................................................................... 2

VALUED CUSTOMER ................................................................................................................................................... 3

SAFETY NOTICE .......................................................................................................................................................... 4

TABLE OF CONTENTS ........................................................................................................................................... 5 & 6

WARRANTY ................................................................................................................................................................. 7

DEFINITIONS ............................................................................................................................................................... 8

Building Codes and Permits ........................................................................................................................................... 8

Bypass .......................................................................................................................................................................... 8

Catalytic Combustor ...................................................................................................................................................... 8

Chimney ........................................................................................................................................................................ 8

Combustible Material ..................................................................................................................................................... 8

Combustion Air Intake ................................................................................................................................................... 9

Creosote ....................................................................................................................................................................... 9

Door, Loading ................................................................................................................................................................ 9

Draft .............................................................................................................................................................................. 9

Fan ............................................................................................................................................................................... 9

Fan Speed Control ........................................................................................................................................................ 9

Firebox .......................................................................................................................................................................... 9

Flame Shield ................................................................................................................................................................. 9

Flammable Liquids ........................................................................................................................................................ 9

Floor Protector .............................................................................................................................................................. 9

Flue ............................................................................................................................................................................ 10

Fuel ............................................................................................................................................................................ 10

Hearth ......................................................................................................................................................................... 10

Ice - Formation and Prevention .................................................................................................................................... 10

Inspections .................................................................................................................................................................. 10

Listed .......................................................................................................................................................................... 10

Thermometer ............................................................................................................................................................... 10

Thermostat .................................................................................................................................................................. 10

Leveling Screws .......................................................................................................................................................... 10

SAFETY ...................................................................................................................................................................... 11

Chimney Fire ............................................................................................................................................................... 11

Smoke Detectors ......................................................................................................................................................... 11

Fire Extinguishers ........................................................................................................................................................ 11

Building and Fire Codes ............................................................................................................................................... 11

Children ...................................................................................................................................................................... 12

Chimneys .................................................................................................................................................................... 12

Clearances to Combustible Materials ........................................................................................................................... 12

Creosotes Formation and Need for Removal ................................................................................................................ 12

Fuel ............................................................................................................................................................................ 13

Electrical Power ........................................................................................................................................................... 13

Disposal of Ashes ........................................................................................................................................................ 13

Loading Door ............................................................................................................................................................... 13

SPECIFICATIONS ....................................................................................................................................................... 14

PREPARATION AND ASSEMBLY ............................................................................................................................... 15

Inspect Your Chimney ................................................................................................................................................. 15

Chimney Height Affects Draft ....................................................................................................................................... 15

Planning for Your Stove Placement .............................................................................................................................. 15

Floor Protector ............................................................................................................................................................ 16

Clearances to Combustibles ........................................................................................................................................ 16

Tools Needed for Installation ........................................................................................................................................ 17

Stove Assembly ........................................................................................................................................................... 17

Product Inspection ....................................................................................................................................................... 17

Installing the Combustor Assembly ............................................................................................................................... 17

Flame Shield ............................................................................................................................................................... 17

DATE PRINTED: 2/8/05 Revision Date: 02/01/05 PI-1010A Page 5

Table Of Contents

Assembly - General ...............................................................................................................................................18 - 20

Installation into Factory Built Fireplaces ........................................................................................................................ 20

Installation - Chimney .................................................................................................................................................. 21

Chimney Drafts ............................................................................................................................................................ 21

OPERATION ............................................................................................................................................................... 22

Fuel ............................................................................................................................................................................ 22

Your First Fire .......................................................................................................................................................22 - 23

Fan Operation ............................................................................................................................................................. 23

A Couple of Tips .......................................................................................................................................................... 24

MAINTENANCE .......................................................................................................................................................... 25

Ash Removal ............................................................................................................................................................... 25

Authorized Service Representative ............................................................................................................................... 25

Creosote; Formation, Inspection, Removal ................................................................................................................... 25

Loading Door Gasket, Inspection, Replacement ................................................................................................... 25 & 26

Catalytic Combustor, Testing, Cleaning ........................................................................................................................ 26

Catalytic Combustor, Replacement .............................................................................................................................. 27

Door Glass, Cleaning ................................................................................................................................................... 27

Door Glass, Replacement ............................................................................................................................................ 27

Fan Assembly ............................................................................................................................................................. 28

Paint ........................................................................................................................................................................... 28

Rheostat-Replacement ................................................................................................................................................ 28

Thermometer ............................................................................................................................................................... 28

Thermostat .................................................................................................................................................................. 28

TROUBLESHOOTING ................................................................................................................................................. 29

Chimney Fire ............................................................................................................................................................... 29

Heat, not enough ......................................................................................................................................................... 29

Heat, too much ............................................................................................................................................................ 30

Fan ............................................................................................................................................................................. 30

Creosote ..................................................................................................................................................................... 30

Catalytic Combustor ..............................................................................................................................................30 - 31

Dirty Door Glass .......................................................................................................................................................... 31

STANDARD AND REPLACEMENT PARTS ................................................................................................................. 32

DATE PRINTED: 2/8/05 Revision Date: 02/01/05 PI-1010A Page 6

Warranty

BLAZE KING LIMITED WOODSTOVE WARRANTY - Princess Insert

Blaze King's warranty policy only applies to units sold in the USA or CANADA

WHAT THE WARRANTY COVERS:

This warranty contains different terms which cover different parts of the stove. BLAZE KING warrants the STEEL COMPONENTS
of this BLAZE KING stove, which is delivered with this warranty, against defects in material or workmanship to you, the original
retail purchaser (hereafter referred to as purchaser), for a period of up to five (5) years following the date of original retail
purchase, subject to the provisions of the RESPONSIBILITIES OF THE COMPANY below. BLAZE KING warrants the FAN
ASSEMBLY, MODULAR THERMOSTAT, FRONT DOOR GASKET, and WOOD HANDLES of this BLAZE KING, which is
delivered with this warranty, against defects in material or workmanship, to the purchaser, for a period of one (1) year following
the date of original retail purchase, subject to the provisions of the RESPONSIBILITIES OF THE COMPANY below. The
CATALYTIC COMBUSTOR is under warranty by Süd Chemie Prototech of Needham, Massachusetts for six (6) years. The
purchaser shall pay the following share of the then current retail price for the combustor: The first two (2) years no charge, 3rd
year 50%; 4th year 70%; 5th year 80%; 6th year 90%. The Combustor must be returned to your dealer along with a completed
COMBUSTOR FAILURE REPORT. Warranty WILL NOT BE GIVEN until Süd Chemie Prototech completes an inspection and
analysis of the defective combustor.

WHAT THE WARRANTY DOES NOT COVER:

Unless otherwise provided by law or covered by this warranty, BLAZE KING is not responsible for removal, transportation or re­installation of any product repaired or replaced pursuant to this warranty. BLAZE KING shall in no event be liable for special,
incidental, consequential, indirect or other similar damages arising from the breach of the warranty, even if BLAZE KING has
been advised of the possibility of such damages. Some states/provinces do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you. There are no implied warranties of any kind.
Actions for breach of this warranty must be brought within one (1) year of The expiration of this warranty. There is no warranty on
paint, ceramics, glass, bricks or gold plating. No person is authorized to modify this warranty or to make any additional warranties
on behalf of the manufacturer, BLAZE KING.

HOW YOU CAN GET SERVICE:

If this product requires repair or replacement due to defects in material or workmanship covered by this warranty, contact your
Blaze King dealer and explain the defect. If the dealer does not repair or replace the product to your satisfaction, contact the
Service Department of Blaze King in the U.S.A. at 1-509-522-2730 and in Canada at 1-250-493-7444 or write to Blaze King at
one of the addresses listed on the front cover of this manual. Please explain the defect and state the model, serial number, date
of retail purchase, and the name and address of your Blaze King dealer. Blaze King may request that the defective part, parts, or
the entire stove, be shipped to one of Blaze King's manufacturing locations at the purchaser’s expense.
RESPONSIBILITIES OF THE COMPANY:
IF the purchaser has complied with all of the terms and conditions of this warranty and IF the purchaser has notified BLAZE KING
of a defect prior to the expiration of the respective warranty period and after shipment, BLAZE KING will either repair or replace
the product, AT ITS ELECTION, or MAY ELECT to refund a portion of the purchase price, based on the formula below, if it cannot
readily and quickly provide the purchaser with a replacement. The repaired product or replacement will be returned to a BLAZE
KING dealer nearest the purchaser at BLAZE KING’s expense. IF it is determined by BLAZE KING that there is no defect, or that
the defect resulted from causes not within the scope of this warranty, THEN the purchaser must bear the cost of storing the
product and of returning the product to the purchaser. For parts of this woodstove or fireplace insert warranted beyond the first
year, BLAZE KING will have the same obligations as described in this paragraph, provided, however, that the purchaser shall pay
the following percentage of the then-current retail cost of the repair or the replacement, according to the year after purchase in
which the defect is brought to the attention of BLAZE KING:

during the 2nd year ..........................purchaser pays 20% during the 3rd year ...................................purchaser pays 40%

during the 4th year ...........................purchaser pays 60% during the 5th year ...................................purchaser pays 80%

WARNING: TO VALIDATE THIS WARRANTY YOU MUST COMPLETE AND RETURN THE WARRANTY CARD WITHIN 20
DAYS OF THE DATE OF PURCHASE.
MISUSE OF STOVE NULLIFIES WARRANTY:

The above warranty is conditional upon the proper installation and use of the stove according to the manufacturer’s directions
embodied in the Owner’s Installation and Operation Instructions published by BLAZE KING and in compliance with the local
building or fire codes in the area where it is installed. The stove should be inspected by the Local Building Inspector or Fire
Department prior to beginning use. A copy of the Owner’s Installation and Operation Instructions is provided with each unit, or
can be obtained by contacting BLAZE KING. READ THE OWNER’S INSTALLATION AND OPERATION INSTRUCTIONS
BEFORE INSTALLING OR USING THE STOVE. SAVE THESE INSTRUCTIONS FOR FURTHER MAINTENANCE AND
SAFETY PROCEDURES. Alteration of, abuse of, damage to, lack of maintenance of, faulty repair, OR misuse of the stove,
VOIDS this warranty. Use of fuel other than natural untreated wood (such as artificial logs, wood exposed to salt water, or coal
that may burn at excessively high temperatures or may release fumes that can explode) will VOID this warranty. Burning the
stove with the loading door open will also VOID this warranty. Blaze King stoves have been thoroughly tested under extreme con­ditions, only abuse and over firing may create noticeable warping of components. Over firing of your stove will void all warranties
implied or otherwise.

OTHER LEGAL RIGHTS OF THE PURCHASER:

This warranty gives you specific legal rights, and you may have other rights that vary from state to state or province to province.
All parts of this warranty are to be interpreted in accordance with the laws of British Columbia/Canada. If you do not agree to the
purchase of the stove on the terms and conditions set out in this warranty, then you must return the stove to the dealer prior to
use or installation, and the purchase price will be refunded.

DATE PRINTED: 2/8/05 Revision Date: 02/01/05 PI-1010A Page 7

Definitions

BUILDING CODES AND PERMITS

Most areas require a permit from the city or county Building Inspector, Fire Marshal or Authority Having Jurisdic­tion. Check local building codes before beginning installation. After the installation is completed, it should be
checked by your local Fire Marshal or Building Inspector.

BYPASS

All catalytic wood burning stoves have a bypass device for allowing the smoke from the fire to temporarily by­pass, or go around, the catalyst. In Blaze King models, the bypass is located just behind the catalyst. The by­pass is a heavy steel plate, hinged inside the stove, and is controlled by the bypass handle on the right front of
the stove. When the handle is in the down position the bypass is closed, to open the bypass lift the handle up.

CATALYTIC COMBUSTOR

Warning: This wood heater contains a catalytic combustor, which needs periodic inspection and replacement for
proper operation. It is against the law to operate the wood heater in a manner inconsistent with operating instruc­tions of this manual, or if the catalytic element is deactivated or removed. DO NOT operate this insert without a
properly operating catalytic combustor.
The combustor is a ceramic honeycomb on which is coated a catalyst. The catalyst may be a combination of one
or more precious metals, including following: platinum, palladium, rhodium and cerium. The catalyst chemically
lowers the combustion temperature of the smoke from a wood fire, thereby allowing more smoke to burn, and
both increasing efficiency and lowering emissions. The catalyst is generally operational while the stove ther­mometer registers in the "Active" zone. If the thermometer does not stay in the Active zone, but falls into the
"Inactive" zone for most, of the burn cycle, the thermostat could be set too low or the catalyst may need cleaning
or replacement. The catalyst is located in the top of the firebox, just inside the door. See CATALYTIC COMBUS­TOR, TESTING, page 26.

COAL

DO NOT BURN COAL IN THIS STOVE. Evidence of coal burning automatically voids all warranties.

CHIMNEY

One or more passageways, vertical or nearly so, for sending flue gases (smoke) to the outside atmosphere.
Stoves must be vented ONLY to the outside, never to other rooms or buildings.
Special methods are required when passing through a wall or ceiling. See chimney manufacturers instructions
and local building codes.
Two types, of chimneys are acceptable for use with these stoves:

- A listed factory built fireplace/chimney suitable for use with solid fuels and conforming to, UL 127 or ULC S620.

- Masonry Chimney: A field-constructed, code-approved, chimney of solid masonry units, bricks, stones, listed
masonry chimney units or reinforced Portland cement concrete, with at least 5/8" fire clay lining joined with re­fractory cement or other listed lining system suitable for use with wood stoves. Before connecting to an existing
masonry chimney, have it inspected by a certified chimney sweep.

NEVER VENT THE STOVE INTO A CLASS "B" GAS VENT CHIMNEY. NEVER USE A CHIMNEY CONNEC­TOR OR CHIMNEY FLUE SMALLER THAN THE STOVE EXHAUST, UNLESS APPROVED BY YOUR LO­CAL INSPECTOR.

Avoid a home fire. Maintain the designated clearance distance to combustibles. Insulation must not touch the
chimney. There must be the designated air space clearance around the chimney. This air space around a chim­ney is necessary to allow natural heat removal from the area. Insulation in this space will cause a heat buildup
which may ignite wood framing.

DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

Generally, the taller the chimney, the more dependable the draft. The chimney should be kept warm to enhance
the draft. This will also protect against creosote accumulation caused by condensation of water vapor and
smoke. A build-up of creosote can reduce the draft and will become a potential fire hazard. See CREOSOTE,
page 9. A chimney should extend at least three feet above a flat roof, or at least two feet above any part of the
roof within 10 feet. Chimney tops should NEVER be near trees or other tall objects that might cause down-drafts.

COMBUSTIBLE MATERIAL

Material made of or surfaced with wood, compressed paper, plant fibers, plastics, or other materials that will ig­nite and burn, whether flame proof or not, or whether plastered or un-plastered.

DATE PRINTED: 2/8/05 Revision Date: 02/01/05 PI-1010A Page 8

Definitions

COMBUSTION AIR INTAKE

Located on the front right of the stove. Combustion air is drawn into this opening, through the thermostat and
into the firebox. In tight contemporary homes, using outside combustion air may be desirable.

CREOSOTE - FORMATION AND NEED FOR REMOVAL

When wood is burned slowly, it produces tar and other organic vapors which combine with expelled moisture to
form creosote. The creosote vapors condense in the relatively cool chimney flue of a slow-burning fire. As a re­sult, creosote residue accumulates on the flue lining. When ignited, this creosote makes an extremely hot fire.

PREVENT CREOSOTE FIRES: Inspect Chimney Connector and Chimney TWICE monthly and clean if neces­sary. If a chimney fire starts, close the loading door and turn the thermostat to the lowest setting. Call the fire de­partment immediately.
The basic design of this catalyst equipped stove will reduce creosote accumulation to a very low level. However,
the frequency of start-up operations and the temperature at which the stove is operated on a regular basis can
affect that accumulation. The inspection frequency noted above is still a vital step in the safe operation of any
wood burning system.

DOOR, LOADING

The door on the front of the stove, with viewing glass installed. This door must be closed and latched tightly
whenever the fire is burning. When cleaning the stove, wait 1/2 hour after the fire is out or until the stove is suffi­ciently cooled before opening the door.

DRAFT

This appliance may not operate properly if the draft is below .02” of water as measured using a water manome­ter. Draft below .02” will cause excessive smoke spillage, incomplete combustion and fire startup problems. Draft
ranging from .02" to .10" of water is suggested for normal operation. Low draft may sometimes be improved by
making a chimney taller. Exterior chimneys may be too cold to achieve proper draft with these units. If an exte­rior masonry chimney is being used it should be lined with a listed stainless steel liner. An external factory built
chimney should be enclosed in an insulated chase.

FAN

The fan circulates room air across the firebox and back into the home. The fan speed should be adjusted to
match the heat output of the stove.

FAN SPEED CONTROL

Located on the lower left this controls the fan speed. When stove is burning on low, set fan to low. When the
stove is burning on high, set fan to high. Adjust fan speed to match, as much as possible, the burn rate of the
stove.

FIREBOX, STOVE

Steel, lined with firebrick. The recommended length of log to be used in this firebox is 16" for PI1010A.

FLAME SHIELD

The flame shield is a stainless steel plate, punched with many 3/8" holes. If the flame shield is shipped in the
firebox or has fallen off during shipping then it must be installed before the first fire. Hold it in the firebox with the
triangular wings facing away. Lift it between the loading door and the catalyst, and rest the bottom of the plate on
the two holders that protrude below the catalyst. The flame shield should rest at an angle (about 45 degrees)
with its bottom near the combustor, and its top near the stove front. Do not operate the stove without the flame
shield in position.

FLAMMABLE LIQUIDS

NEVER use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid or similar liquids to start or
"freshen up" a fire in this stove. Keep all such liquids well away from the stove while it is in use.

FLOOR PROTECTOR

Noncombustible surfacing applied to the floor area extending in front of the insert. Floor protector sizes are
shown on page 16.

DATE PRINTED: 2/8/05 Revision Date: 02/01/05 PI-1010A Page 9

Definitions

CAUTION

DO NOT USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL

LIGHTER FLUID OR SIMILAR LIQUIDS TO START OR -'FRESHEN UP" A FIRE IN THIS

APPLIANCE. KEEP THESE FLAMMABLE LIQUIDS WELL AWAY FROM THIS APPLI-

ANCE WHILE IT IS IN USE.

FLUE

The general term for a passage through which flue gases (smoke) pass from the combustion chamber to the
outside air.

FUEL
THIS STOVE IS FOR USE WITH SOLID WOOD FUEL ONLY.
Do not burn trash, paper, pine branches or artificial fire logs. Such abuse may void the warranty.

HEARTH

The bricked floor area within the fire chamber of a fireplace or fireplace stove. The bottom of the firebox. Build
the fire directly on the Hearth.

ICE - FORMATION AND PREVENTION

Most of what you see coming from the chimney of a properly operating catalytic stove is water vapor. In ex­tremely cold weather - and with some exterior chimneys - this vapor may freeze in the chimney, to the point of
actually blocking the chimney and extinguishing the fire. In such weather, occasionally burn the stove for 4 or 5
minutes with the bypass open and the thermostat set at maximum to melt any possible ice buildup.

DO NOT BURN THE STOVE WITH THE LOADING DOOR OPEN.
INSPECTIONS

The stove should be inspected periodically for missing or damaged firebricks, corroded metal or deterioration of
parts. If anything appears unsafe, contact your stove dealer for advice. Do not operate stove until the condition is
corrected. The chimney and chimney connector should be inspected at the beginning of each burning season
and twice monthly during the winter to determine if a creosote buildup had occurred. If creosote has accumu­lated it should be removed to reduce the risk of a chimney fire. See CREOSOTE, page 12.
Chimney caps occasionally will be plugged. See, Maintenance, page 27.

LISTED

Meeting Underwriter's Laboratories, Inc. standards and specifications when installed properly, and inspected.

WARNING: DO NOT INSTALL IN A SLEEPING ROOM.

THERMOMETER

The probe of the Blaze King catalyst thermometer rests behind the catalyst. The thermometer gives an indication
of the temperature of the gasses after the catalyst. Due to the way it is made, the thermometer has a 4 - 8 min­ute lag time. The thermometer should be periodically cleaned. Lift it from the stove (be careful, it may be hot)
and wipe the probe clean. At room temperature (out of the stove) the thermometer indicator generally points to
the bottom of the "Inactive" zone. It may, over time, change slightly. Adjust it by loosening the bolt above the
dial, and turning the dial face. Be sure the bolt is retightened before placing back on stove. See THERMOME­TER, page 28.

THERMOSTAT

The thermostat, sometimes referred to as the Combustion Air Control, is mounted on the right side near the top.
It incorporates a bimetallic coil which responds to the naturally uneven cycles of the burning wood. This auto­matic compensation gives you even, comfortable heat. These Blaze King stoves burn cleanest when the thermo­stat is set and left unchanged. Frequent adjustments are unneeded and reduce efficiency and clean burn.

LEVELING SCREWS

On the underside of the unit at each corner there is a 3/8” nut welded. If required the installer can thread a 3/8”
NC bolt, of the determined length, into these nuts to assist in leveling the unit. The unit must sit level with or
slightly above the hearth and be firmly supported.

DATE PRINTED: 2/8/05 Revision Date: 02/01/05 PI-1010A Page 10
