OPERATING
INSTRUCTIONS
Single Spindle Mixer
Model No. SMW-C, -CF
TABLE OF CONTENTS PAGE
Installation..................................................................... 2
Operating ....................................................................... 2
Cleaning ........................................................................ 2
Proper Maintenance ..................................................... 2
LIMITED WARRANTY
This product is warranted to be free from defects in
material and/or workmanship for a period of 1 year
from date of original installation, not to exceed 18
months from date of shipment from our factory.
Any component which proves to be faulty in material
and/or workmanship will be replaced or repaired (at
the option of Prince Castle, Inc.) without cost to the
customer for parts or labor.
This warranty is subject to the following exceptions/
conditions:
SPECIFICATION
SMW-C, -CF Dimensions
Width 4” (55.88 cm)
Depth 6” (55.88 cm)
Height 12” (58.92 cm)
Shipping Weight 12lbs. (5.44 kg.)
z Use of any non-genuine Prince Castle parts
voids this warranty. All genuine Prince Castle
replacement spare parts are warranted for ninety
(90) days from date of purchase.
z Damage caused by carelessness, neglect, and/
or abuse (e.g., dropping, tampering or altering
parts), equipment damaged in shipment, by fire,
flood or an act of God is not covered under this
warranty.
ELECTRICAL
SMW-C SMW-CF
Wall Mounted Wall Mounted
110-120 VAC 220 V
60 Hz 50-60 HZ
Two-speed switch & motor Two-speed switch & motor
10,000 & 15,000 RPM 10,000 & 15,000 RPM
355 East Kehoe Blvd. z Carol Stream, IL 60188
Printed in 2005
Prince Castle Inc.
Tel: (630) 462-8800 z Fax: (630) 462-1460
Toll Free: 1-800-PCASTLE
SMW-504
INSTALLATION
1. After you have removed the mixer from the carton,
inspect the unit for signs of damage. If there is
damage to the unit:
z Notify carrier within 24 hours after delivery.
z Save carton and packing materials for inspection
purposes.
z Contact your local dealer or if purchased directly
the Prince Castle Customer Sales Department at
1-800-722-7853 to arrange for a replacement to
be sent.
1. Place the product into the cup.
2. Place the cup on to the cup catch bracket and lift
up until the motor turns on. The spindle will run four
seconds then automatically shut off. Release the
cup from the cup catch bracket and remove it from
the mixer.
CLEANING
To clean, simply wipe mixer head with a damp cloth.
2. Verify that all parts have been received.
CAUTION: The stainless steel spindle is
machined. Ground care must be taken so it
will not be damaged. Severe impact and
undue pressure can put the spindle out of
alignment and balance, making it inoperable at high speeds. When lifting or mov-

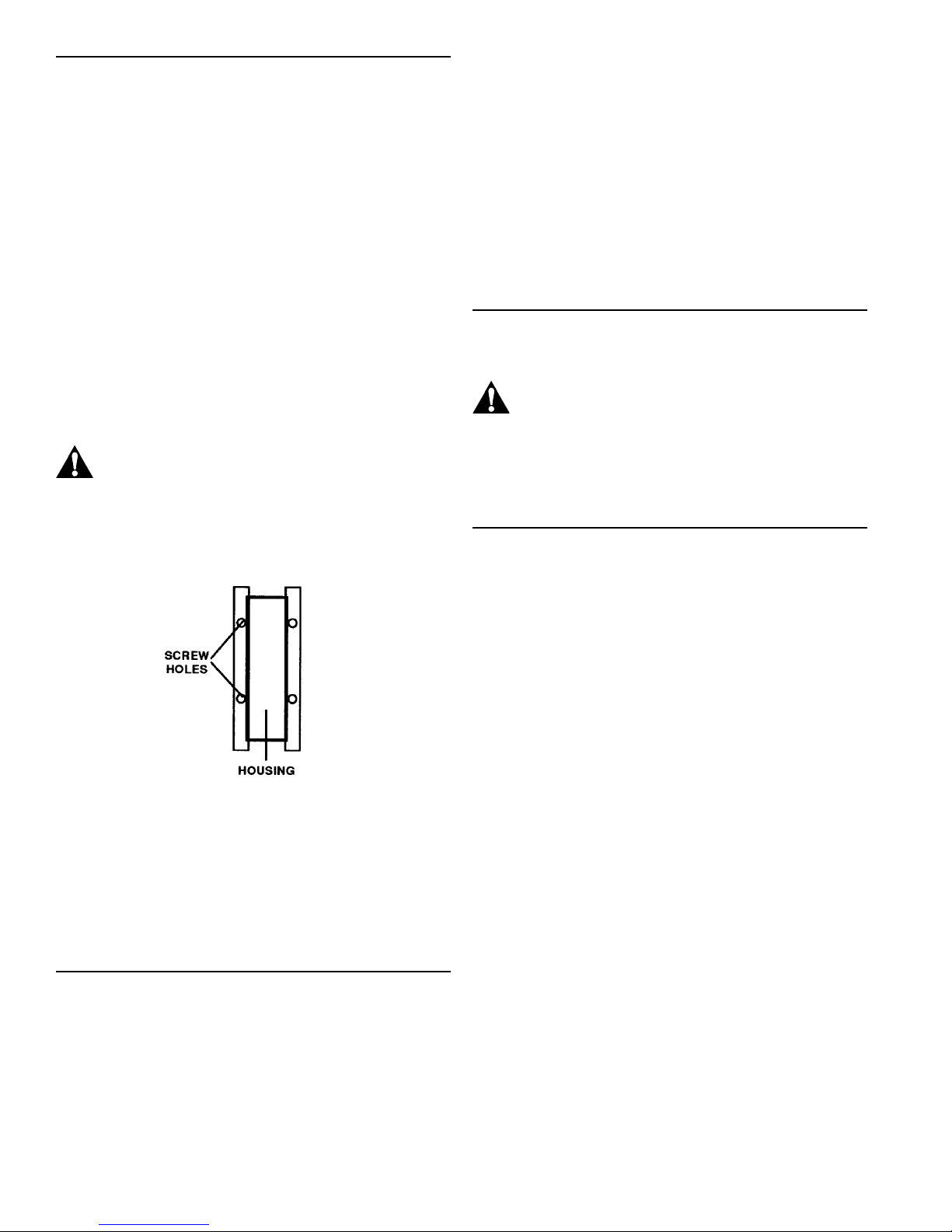

figure 1
ing the mixer, do not touch the spindle.
3. Using the four holes on the side of the stainlesssteel mixer housing as a template, mark the
surface where mixer is to be mounted. Use the
mounting hardware provided. See figure 1.
CAUTION: Care must be taken to prevent
water and cleaning material from entering the motor housing. This will cause
damage to the electrical system.
PROPER MAINTENANCE
Unless the mixer is damaged, it requires very little
maintenance other than cleaning. The spindle shaft
rotates on sealed ball bearings which do not require
lubrication. If the spindle slows down during operation then the brushes must be replaced.
4. Plug mixer into the appropriate outlet. See Electrical Specifications.
OPERATION
Your mixer is equipped with an automatic starting
switch which starts the motor when a drink container is
placed in position.
IMPORTANT: If the container is removed rapidly from
the spindle when the drink is finished, very little of the
drink will adhere to the agitators.
2
EXPLODED VIEW MOUNTING FRAME
6
7 8
9
5
4
3
11
2
10
PARTS LIST
1
ITEM PART NO. DESCRIPTION
1 SMW-99 Lower Cup Catcher
2 SMW-100 Upper Cup Catcher
3 SMW-101 Cup Adjuster Bar
4 SMW-104 Cover Assembly
5 SMW-9 Insulation
6 SMW-106 Switch Actuator Assembly
7 SMW-98 Switch Actuator Support
8 78-042 Switch
9 SMW-105 Chassis Assembly
10 SMW-33 Line Cord
11 66-006 Strain Relief
3
PARTS LIST FOR MODEL SM-22 DRINK MACHINE SPINNER HEAD
3
PARTS LIST
ITEM PART NO. DESCRIPTION
1 SMW-17 Upper Motor Housing
2 SMW-18 Lower Motor Housing
3 SMW-19 (110V) Spindle and Armature Assembly
SMW-19F(220V) (includes bearings and bearing retainer)
4 SMW-20 (110V) Field Coil
SMW-20F (220V)
5 SMW-21 Toggle Switch
6 SMW-22 Brushholder (2 required)
7 SMW-23 Brush, Shunt, and Spring Assembly (2 required)
8 SMW-24 Brush Retainer Cap (2 required)
9 SMW-25 Hole Plug
10 SMW-26 Fan Baffle
11 SMW-27 Motor Assembly Screw (2 required)
12 SMW-28 Bearing Loading Spring
13 SMW-29 Field Coil Retaining Screw (2 required)
14 SMW-30 Short Brush Wire with Push-in Terminal
15 SMW-31 Long Brush Wire with Push-in Terminal
16 SMW-32 Bearing Retainer and Fan Baffle Screws
(6 required)
17 SMW-42 Bottom Agitator (Soft Ice Cream)
18 SMW-44 Bottom Agitator Screw
19 SMW-43 Spindle Agitator
20 SMW-45 Hard Ice Cream Agitator (Not Shown)
4
