OPERATING
INSTRUCTIONS
Single Spindle Mixer
Model No. SMW & SM-22
TABLE OF CONTENTS PAGE
Installation..................................................................... 2
Operating ....................................................................... 2
Cleaning ........................................................................ 2
Proper Maintenance ..................................................... 3
Parts List................................................................ 3 & 4
LIMITED WARRANTY
This product is warranted to be free from defects in
material and/or workmanship for a period of one
year from date of original installation, not to exceed
one year from date of shipment from our factory.
Any component which proves to be faulty in material
and/or workmanship will be replaced or repaired (at
the option of Prince Castle, Inc.) without cost to the
customer for parts or labor.
This warranty is subject to the following exceptions/
conditions:
The Prince Castle Single Spindle Mixers are perfect
for restaurants with soft serve ice cream machines.
High and low speeds and removable cupholder make
this mixer easy-to-use and clean. These mixers
handle any size paper cup.
SPECIFICATION
SMW & SM-22 Dimensions
Width 4” (55.88 cm)
Depth 6” (55.88 cm)
Height 12” (58.92 cm)
Shipping Weight 12lbs. (5.44 kg.)
z Use of any non-genuine Prince Castle parts
voids this warranty. All genuine Prince Castle
replacement spare parts are warranted for ninety
(90) days from date of purchase.
z Damage caused by carelessness, neglect, and/
or abuse (e.g., dropping, tampering or altering
parts), equipment damaged in shipment, by fire,
flood or an act of God is not covered under this
warranty.
ELECTRICAL
SMW SM-22
Wall Mounted Spinner Head
110-120 VAC 110-120 VAC
60 Hz 60 Hz
Two-speed switch & motor Two-speed switch & motor
10,000 & 15,000 RPM 10,000 & 15,000 RPM
355 East Kehoe Blvd. z Carol Stream, IL 60188
Printed in 2001
Prince Castle Inc.
Tel: (630) 462-8800 z Fax: (630) 462-1460
Toll Free: 1-800-PCASTLE
SMW-501
INSTALLATION
1. After you have removed the mixer from the carton,
inspect the unit for signs of damage. If there is
damage to the unit:
z Notify carrier within 24 hours after delivery.
z Save carton and packing materials for inspection
purposes.
z Contact the Prince Castle Customer Sales
Department at 1-800-722-7853 to arrange for
a replacement to be sent.
2. Verify that all parts have been received.
CAUTION: The stainless steel spindle is
machined. Ground care must be taken so it
will not be damaged. Severe impact and
undue pressure can put the spindle out of
alignment and balance, making it inoperable at high speeds. When lifting or moving the mixer, do not touch the spindle.
3. Using the four holes on the side of the stainlesssteel mixer housing as a template, mark the
surface where mixer is to be mounted. Use the
mounting hardware provided. See figure 1.
figure 1
figure 2
HARD ICE CREAM:
1. Place the ice cream on one side of the mixing cup so
that the spindle is not thrust into the hard ice cream.
IMPORTANT: Never force the spindle into the hard ice
cream. This may cause ice cream to accumulate at the
bottom of the mixing cup, preventing thorough mixing.
2. Place the mixing cup on the mixer and press
against starting switch clip.
SOFT ICE CREAM:
1. Pour the proper amount of syrup and soft serve into
the mixing cup.
2. Place the mixing cup on the mixer and press cup
against starting switch clip.
IMPORTANT: To properly mix a mild drink requires
time. Let the drink run on the mixer until it has become creamy and attained an overrun. This time
element depends upon the temperature and components of the drink and can be determined by trial.
Generally, thinner drinks are mixed at low speed and
thicker drinks are mixed at higher speeds.
4. Plug mixer into a 110-120 Volt outlet.
OPERATION
Your mixer is equipped with an automatic starting
switch which starts the motor when a drink container is
placed in position. The motor continues to operate as
long as there is a container on the machine, the
automatic switch shuts off the motor when the container is removed.
IMPORTANT: If the container is removed rapidly from
the spindle when the drink is finished, very little of the
drink will adhere to the agitators. See figure 2.
CLEANING
To clean, simply wipe mixer head with a damp cloth.
CAUTION: Care must be taken to prevent
water and cleaning material from entering the motor housing. This will cause
damage to the electrical system.
IMPORTANT: See separate instruction sheet,
Sanitizing Instructions for the Model SMW Mixer.
PROPER MAINTENANCE
Unless the mixer is damaged, it requires very little
maintenance other than cleaning. The spindle shaft
rotates on sealed ball bearings which do not require
lubrication. If the spindle slows down during operation then the brushes must be replaced.
2
EXPLODED VIEW MOUNTING FRAME
PARTS LIST
ITEM PART NO. DESCRIPTION
1 SMW-33 Line Cord (110 V)
1A SMW-15 Linw Cord (220 V)
2 SMW-2 Mounting Bracket
3 78-042 Switch
4 SMW-35 Cover (110 V)
4A SMW-36 Cover (220 V)
5 SMW-87 Retaining Clip
6 SMW-6 Spring Clip Bracket
7 SMW-88 Spacer
8 SMW-88 Activating Bracket
9 SMW-9 Insulation
10 SMW-10 Cup Reset
11 88-111 Wire Clamp
12 SMW-86 Adjustable Bracket
13 SMW-13 Top Cover
ITEM PART NO. DESCRIPTION
14 66-016 Strain Relief Bushing
15 88-022 Wire Nut
16 89-138 Grommet
17 73-031 Nut
18 76-167 Screw
19 76-173 Screw
20 76-176 Screw
21 76-130 Screw
22 76-175 Screw
23 76-169 Screw
24 76-041 Screw
25 SMW-83 Cup Hook
26 76-642 Screw
27 79-015 Washer
28 79-028 Washer*
29 73-030 Nut
30 73-015 Nut
*Not shown– used to mount spinner head to mounting bracket.
3

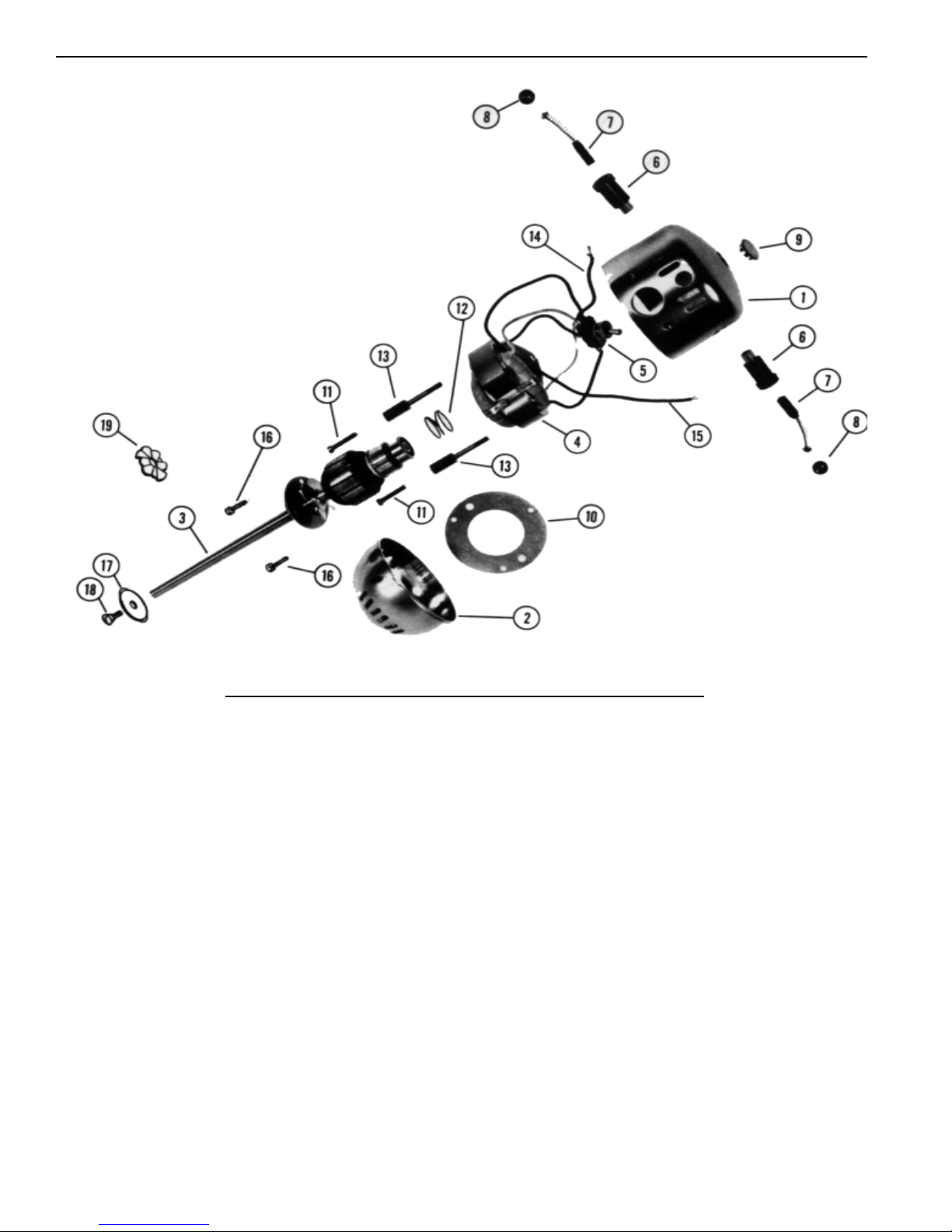

PARTS LIST FOR MODEL SM-22 DRINK MACHINE SPINNER HEAD
3
PARTS LIST
ITEM PART NO. DESCRIPTION
1 SMW-17 Upper Motor Housing
2 SMW-18 Lower Motor Housing
3 SMW-19 (110V) Spindle and Armature Assembly
SMW-19F (220V) (includes bearings and bearing retainer)
4 SMW-20 (110V) Field Coil
SMW-20F (220V)
5 SMW-21 Toggle Switch
6 SMW-22 Brushholder (2 required)
7 SMW-23 Brush, Shunt, and Spring Assembly
(2 required)
8 SMW-24 Brush Retainer Cap (2 required)
9 SMW-25 Hole Plug
10 SMW-26 Fan Baffle
11 SMW-27 Motor Assembly Screw (2 required)
12 SMW-28 Bearing Loading Spring
13 SMW-29 Field Coil Retaining Screw (2 required)
14 SMW-30 Short Brush Wire with Push-in Terminal
15 SMW-31 Long Brush Wire with Push-in Terminal
16 SMW-32 Bearing Retainer and Fan Baffle Screws
(6 required)
17 SMW-42 Bottom Agitator (Soft Ice Cream)
18 SMW-44 Bottom Agitator Screw
19 SMW-43 Spindle Agitator
20 SMW-45 Hard Ice Cream Agitator (Not Shown)
4
