Prince Castle Wedgers, Slicers, Dicers, Cutters User Manual

Slicers
Cutters
Wedgers
Dicers
Fasline products offer several benefits, including:
• Portion Control
• Increased Yield
• Uniform, Consistent Product
• Operator Safety
• Greater Productivity with Less Labor
Prince Castle’s Fasline family is the safest and most efficient line of slicers, dicers, wedgers and cutters available today. With a wide variety of models and sizes, Prince Castle’s Fasline family provides durability and precision cutting every time for everything from fruit and vegetables to bagels and cheese.
Any Way You SLICE It...
Any way you SLICE it, Prince Castle has the perfect product for slicing tomatoes, bagels, onions and many other foods. The Tomato Saber combines precision engineering with an ergonomic design to create an easy-to-use, safety-conscious alternative to tomato slicing. The Bagel Saber safely cuts even the biggest bagels perfectly every time, and the Tomato Witch and Onion Witch are well-suited for most operations.
• Inexpensive Solutions to Expensive Problems
The Short-CUT To Productivity...
All foodservice operations are looking for new and effective ways to CUT costs and save labor without compromising efficiency and safety. Prince Castle’s Fasline Specialty cutters, including the Lettuce Witch, Potato Witch, Cheese Witch and Cheese Cuber, are ideal solutions for maximizing yield and minimizing labor through portion control and greater productivity.
Giving You The Competitive WEDGE...
Drive a wedge between yourself and the competition with Prince Castle’s Wedge Witch. Perfect for most fruits and vegetables, the Wedge Witch produces uniform and attractive wedges that seal in natural juices and flavors.
Don’t Roll The DICE...
If you’re looking to dice any fruit and vegetable from onions and potatoes to tomatoes and apples, the Prince Castle Dice Witch is a sure bet for perfect results every time - quickly, safely and economically.
And of course, Prince Castle promises to provide you with unparalleled customer service. Our commitment to service has helped build the most recognizable foodservice operations in the world today, and it can help take you to the top too!
Tomato Slicers
943 Series Tomato Saber
• Exclusive Perma-TightTM blade cartridge
1
never needs adjustment or tightening; 50 percent longer blade life and quick Snap-in/snap-out replacement.
• Perfect slicing use after use.
• Ergonomically-designed contoured
2
pusher handle carries tomato through blades instead of “rolling” it.
• Tomato Catcher reduces clean-up and
3
improves food safety.
• Commercial-grade aluminum cast base for
4
added strength, weight and corrosion­resistance.
• Permanently lubricated Duralon bearings allow Pusher and Carrier assembly to effortlessly slide along polished stainless steel rods.
• Available in four slice sizes: 3/16”, 1/4”, 3/8” and 7/32”
• Two-year warranty (excluding blades)
Model Description
943-A 3/16” (.477 cm) slice 943-B 1/4” (.635 cm) slice 943-C 3/8” (.953 cm) slice 943-D 7/32” (.553 cm) slice
2
4
Model 943 Tomato Saber
Permanently-tensioned blades stay razor-sharp for an extended life. In one test, the Perma-Tight blade cartridge sliced over 20,000 tomatoes.
1
3
1
919 Series Tomato Witch
• Hand tightening knobs allow quick changing or tightening of blades. No tools required.
• Heavy-duty construction.
• Steel guide bars ensure proper alignment and uniform slices.
• Built-in hand guard for safety.
• Available in four slice sizes: 3/16”, 1/4”, 3/8” and 7/32”.
• Two-year parts and labor warranty (excluding blades).
The Model 953 Tomato Core-It cores tomatoes for waste-free slicing and comes standard with each 943 or 919 model.
Model Description
919-AAS 3/16” (.477 cm) slice 919-ABS 1/4” (.635 cm) slice 919-ACS 3/8” (.953 cm) slice 919-ADS 7/32” (.553 cm) slice
Bagel Slicers
970-A Series Bagel Saber
• Safely slices even the biggest bagels perfectly in half every time.
• Blades under protective cover for safety.
• Durable stainless steel construction.
• Ergonomic design provides effortless slicing by anyone in just one stroke.
• Built-in table stop ensures unit will not slide during operation.
• Just rinse and wipe dry for easy clean-up ­unit is completely submersible.
• Two-year warranty (excluding blades).
Model Description
970-A Bagel Saber
911 Series Onion Witch
• Perfect for onions, oranges, lemons and many other fruits and vegetables.
• Fast, effortless and safe operation.
• No pre-scoring necessary.
• Two-handed operation minimizes blade exposure to operator.
• Available in three slice sizes:
- 3/16” (.477 cm)
- 1/4” (.635 cm)
- 3/8” (.953 cm)
• Two-year warranty (excluding blades).
Model Description
911-A 3/16” (.477 cm) slice
Yields 16 slices*
911-B 1/4” (.635 cm) slice
Yields 12 slices*
911-C 3/8” (.953 cm) slice
Yields 9 slices*
Onion Slicers
*Based on 3” (7.63 cm) diameter onion.
908 Series Wedge Witch
• Quickly sections fruits and vegetables into uniform portions while sealing in natural flavors and juices and saving costs.
• Produces high yields and handles high volumes quickly, efficiently and safely.
• Available in four, six, eight, ten or twelve section models.
• Solid cast aluminum construction.
• Stainless steel blades.
• Four wide-stance legs and non-skid rubber feet ensure stability and safety.
• Easy to use and clean and dishwasher-safe.
• Two-year warranty (excluding blades).
Model Description
908-A4 4-section Wedge Witch 908-A6 6-section Wedge Witch 908-A8 8-section Wedge Witch 908-A10 10-section Wedge Witch 908-A12 12-section Wedge Witch
Wedgers
Dicers
910-A Series Dice Witch
• Dices any pre-sliced fruit or vegetable, including onions, potatoes, tomatoes, apples and even fries.
• Produces high yields and handles high volumes quickly, efficiently and safely.
• Sturdy frame sits balanced on four large legs with non-skid rubber feet for safety.
• One quick and easy downstroke on the pusher head after pre-slicing provides perfectly diced 3/8” (.953 cm) sections.
• Large 12.25 square inch (79.03 sq. cm) cutting head.
• Interlocking stainless steel blades eliminate need for blade tightening.
• Two-year warranty (excluding blades).
Model Description
910-A 3/8” sq. cut
(.953 sq. cm cut)
Potato Cutters

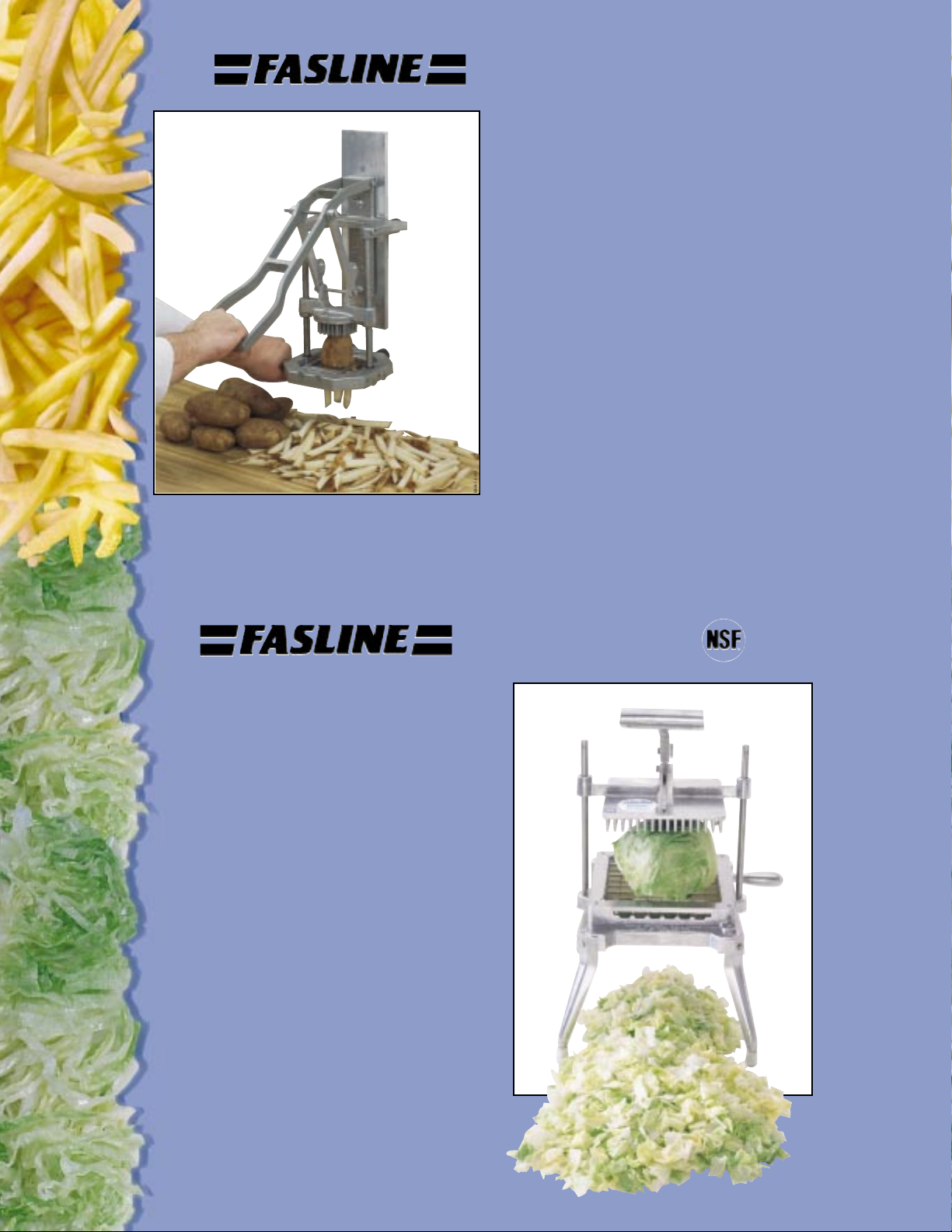

913, 914, 915 Series Potato Witch
• Cuts perfect fries with a single stroke.
• Precision-sharpened, interlocking stainless steel blades provide fast, easy operation with maximum safety and durability.
• Sturdy construction for long life.
• Available in three models:
- shoestring 3/8” (.953 cm) square cut
- six-section wedge
- eight-section wedge.
• Two-year warranty (excluding blades).
•Optional wall-mount bracket available.
Model Description
913 Shoestring - 3/8” sq. cut
(.953 sq. cm cut) 914 6-section wedge 915 8-section wedge 913-5 Quick wall-mount bracket
Lettuce Cutter
912-C Series Lettuce Witch
• Designed for efficiency and safety.
• Cuts bite-sized 1” (2.54 cm) square pieces of lettuce quickly and easily.
• Interlocking stainless steel cutting blades never need tightening and ensure clean cuts with just one stroke, keeping lettuce fresh and moist.
• Cuts an entire carton of lettuce in just minutes without bruising, tearing or discoloration.
• 64 square inch (412.9 sq. cm) blade area to accommodate even the largest heads of lettuce.
• Heavy cast aluminum construction
• Easy to clean and dishwasher-safe.
• Two-year warranty (excluding blades).
• NSF-listed.
Model Description
912-C 1” sq. cut
(2.54 sq. cm cut)
896, 897 Series Cheese Cubers
• Sized to cut up to 1/2 of a 5-lb. (2.3kg) loaf (5-1/2” x 3-1/2” x 3-1/2”)(13.97 cm x 8.89 cm x 8.89 cm) at one time.
• Cuts both cubes and sticks.
• Ideal for school, caterers and salad bars.
• Simple design and construction.
• Exclusive spring-loaded cutting wire for extended life.
• Two-year warranty (excluding cutting wires).
Model Description
896 Cuts 9/16” (1.43 cm) cubes
Yields 324 cubes*
897 Cuts 7/8” (2.22 cm) cubes
Yields 96 cubes*
*Based on half of standard 5-lb.(2.3kg) loaf,
which measures 5-1/2” x 3-1/2” x 3-1/2” (13.97 cm x 8.89 cm x 8.89 cm)
Cheese Cubers
Cheese Witch
899 Series Cheese Witch
• Cuts up to (18.2kg) 40-lb. blocks and 35-lb. (15.9kg) wheels of cheese.
• Helps save up to 15 percent of cheese costs by allowing users to buy bulk cheese and cutting on site.
• Safe and simple to operate.
• Heavy-duty design and construction.
• Sanitary coated base makes clean-up quick and easy.
• Heavy-gauge stainless steel cutting wire for fast, easy cutting.
• Two-year warranty (excluding cutting wire).
Model Description
899 Cheese Witch
(Ideal for bulk cheese)
Replacement Blade Set Chart
Number Of Order Blade
Model Slice Size Blades On Unit Length Set Number
896 Cheese Cuber 9/16” cube (1.43 cm) 15 (WIRES)** 8” (20.32 cm) 896-6S (8 Wires)** 897 Cheese Cuber 7/8” cube (2.22 cm) 10 (WIRES) 8” (20.32 cm) 896-6S (8 Wires) 899 Cheese Witch Variable 1 (WIRE) 17-1/2” (44.45 cm) 896-6S (8 Wires)
908-A4 Wedge Witch 4 section 4 4-1/4” (10.79 cm) dia. 908-69 908-A6 Wedge Witch 6 section 6 4-1/4” (10.79 cm) dia. 908-70 908-A8 Wedge Witch 8 section 8 4-1/4” (10.79 cm) dia. 908-71 908-A10 Wedge Witch 10 section 10 4-1/4” (10.79 cm) dia. 908-72 908-A12 Wedge Witch 12 section 12 4-1/4” (10.79 cm) dia. 908-73
910-A Dice Witch 3/8” Dice (.953 cm) 16* 3-1/2” (8.89 cm) 910-50*
911-A Onion Witch 3/16” (.477 cm) 6/7 (2 sets) 7-1/2” (19.05 cm) 911-A1 911-B Onion Witch 1/4” (.635 cm) 5/6 (2 sets) 7-1/2” (19.05 cm) 911-B1 911-C Onion Witch 3/8” (.953 cm) 7 7-1/2” (19.05 cm) 911-C1
912-C Lettuce Witch 1” square (2.54 cm) 14* 8” (20.32 cm) 912-156*
913 Potato Witch 3/8” (.953 cm) 8/8 (2 sets) 4-3/4” (12.06 cm) 913-1 914 Potato Witch 6 section 6 4-1/4” (10.79 cm) dia. 914-1 915 Potato Witch 8 section 8 4-1/4” (10.79 cm) dia. 908-1
919-AAS Tomato Witch 3/16” (.477 cm) 14 9-7/8” (25.08 cm) 919-187A 919-ABS Tomato Witch 1/4” (.635 cm) 10 9-7/8” (25.08 cm) 919-188A 919-ACS Tomato Witch 3/8” (.953 cm) 7 9-7/8” (25.08 cm) 919-189A 919-ADS Tomato Witch 7/32” (.553 cm) 12 9-7/8” (25.08 cm) 919-191A
943-A Tomato Saber 3/16” (.477 cm) 12 17.69” (44.93 cm) 943-038A 943-B Tomato Saber 1/4” (.635 cm) 9 17.69” (44.93 cm) 943-039A 943-C Tomato Saber 3/8” (.953 cm) 6 17.69” (44.93 cm) 943-040A 943-D Tomato Saber 7/32” (.553 cm) 10 17.69” (44.93 cm) 943-041A
* Interlocking blade set ** Order two kits to replace all wires
Fasline Product Warranty
All Prince Castle slicers come with a two-year replacement warranty from the date of purchase (excluding blades).
For more information on any Prince Castle products,
call 1-800-PCASTLE or (630) 462-8800

Prince Castle, Inc.

CAT-FAS 3/99
355 East Kehoe Blvd • Carol Stream, IL 60188
Tel: (630) 462-8800 • Fax: (630) 462-1460
