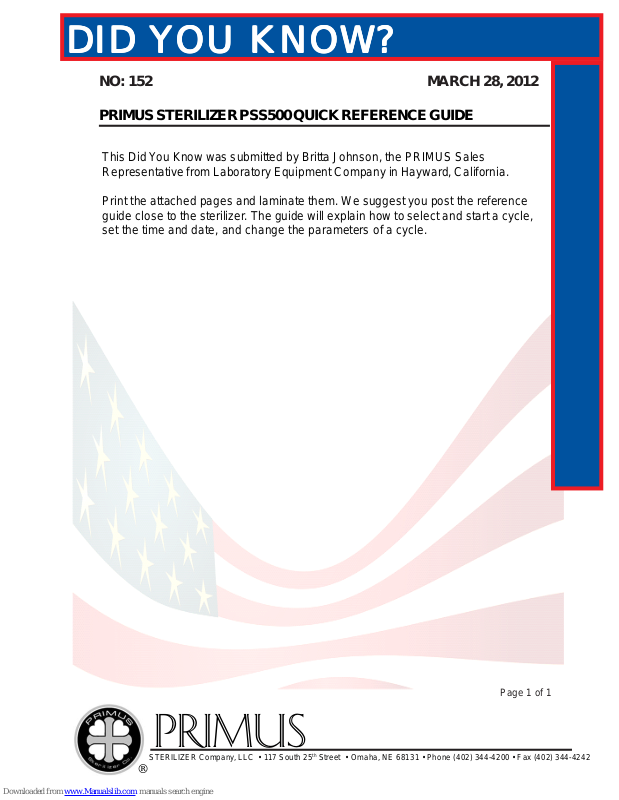

NO: 152 MARCH 28, 2012
PRIMUS STERILIZER PSS500 QUICK REFERENCE GUIDE
This Did You Know was submitted by Britta Johnson, the PRIMUS Sales
Representative from Laboratory Equipment Company in Hayward, California.
Print the attached pages and laminate them. We suggest you post the reference
guide close to the sterilizer. The guide will explain how to select and st art a cycle,
set the time and date, and change the parameters of a cycle.
YY
OU KNOOU KNO
Y
OU KNO
YY
OU KNOOU KNO
W?W?
W?
W?W?
PRIMUS
STERILIZER Company, LLC • 117 South 25th Street • Omaha, NE 68131 • Phone (402) 344-4200 • Fax (402) 344-4242
®
Page 1 of 1
Page 2
PRIMUS Sterilizer PSS500 Quick Reference Guide
Selecting a Cycle
1) To select Cycle 1 – 4, press the corresponding button 1 – 4.
2) For Cycle 5 – 8, press the up UP ARROW () and then the 1 – 4 button where 1 = Cycle 5,
2 = Cycle 6, etc.
Starting a Cycle
1) Select the desired cycle (see Selecting a Cycle above)
2) Close the door(s)
a. For power door units, press and hold the DOOR button until the door is fully closed
b. For non-power door units, manually slide the door into the closed position
c. For either type unit, the DOOR CLOSED light indicates that the door is fully closed
3) When the jacket has warmed to the appropriate temperature, the READY LIGHT and the
START button light will illuminate
4) Press the START button. The gasket(s) will seal and the cycle will operate automatically
Cycle Complete
1) At the completion of the cycle, the buzzer will sound and the display will read CYCLE
COMPLETE
a. For non-bio-seal units, the gaskets will retract automatically
b. For bio-seal units, the gasket will remain sealed until one of the DOOR buttons is
2) Open the door
a. For power door units, press the DOOR button once
b. For non-power door units, manually slide the door into the open position
Setting Time / Date
1) Press the ASTERISK button (*)
2) Press the UP ARROW () until the desired parameter (day, month, hour, etc) is listed
3) Press the ENTER button
4) Press the UP ARROW or DOWN ARROW ( or ) until the desired value is displayed
5) Press the ENTER button to lock in desired value
6) Press the ADV button when all changes are complete
Changing Cycle Parameters
1) Select the desired cycle
2) Press the MENU key
3) Press the UP ARROW or DOWN ARROW ( or ) until the desired parameter is displayed
4) Press the ENTER button
5) Press the UP ARROW or DOWN ARROW ( or ) until the desired value is displayed
6) Press the ENTER button to lock in desired value
7) Repeat for all desired changes
8) Press the ADV button when all changes are complete
pressed
PRIMUS Sterilizer Company, LLC
Phone (402) 344-4200 - Fax (402) 344-4242
Email: [email protected]
URL: www.primus-sterilizer.com
Page 3
Sample Navigation to
Change Sterilize Time on
Cycle 1
Press the MENU key
Press the Up Arrow key
Press the ENTER key
Press the Up Arrow key two
times
Press the ASTERISK key
Press the Up Arrow key two
times
Press the ENTER key
Press the ADV key
