PRIMERGY
PRIMERGY RX200
Server System
Operating Manual
Xenia Fierley
Fujitsu Siemens Computers GmbH München
81730 München
e-mail: email: manuals@fujitsu-siemens.com
Tel.: (089) 61001--157
Fax: (++49) 700 / 372 00000
A26361-K878-Z102-2-7619
Sprachen: De
Edition April 2004
Comments… Suggestions… Corrections…
The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.
Fax forms for sending us your comments are included in
the back of the manual.
There you will also find the addresses of the relevant
User Documentation Department.
Certified documentation
according DIN EN ISO 9001:2000
To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2000.
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright and Trademarks
Copyright © 2003 Fujitsu Siemens Computers GmbH.
All rights reserved.
Delivery subject to availability; right of technical modifications reserved.
All hardware and software names used are trademarks of their respective manufacturers.
This manual is printed on
paper treated with
chlorine-free bleach.
Introduction
Installation Steps Overview
Important Notes
Hardware Installation
Preparation for Use and Operation
Property and Data Protection
Troubleshooting and Tips
Abbreviation, Related Publications and Index
Contents
1Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Overview of the Documentation . . . . . . . . . . . . . . . . . . 1
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Notational Conventions . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Installation Steps: Overview . . . . . . . . . . . . . . . . . . . 9
3 Important Notes . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2 CE Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.3 FCC Class A Compliance Statement . . . . . . . . . . . . . . 17
3.4 Transporting the Server . . . . . . . . . . . . . . . . . . . . . 18
3.5 Notes on Installing in the Rack . . . . . . . . . . . . . . . . . 18
3.6 Environment Protection . . . . . . . . . . . . . . . . . . . . . 19
4 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . 21
4.1 Installation Steps . . . . . . . . . . . . . . . . . . . . . . . . 22
4.2 Unpacking the Server . . . . . . . . . . . . . . . . . . . . . . 22
4.3 Installing/Removing the Server into/from the Rack . . . . . . . 23

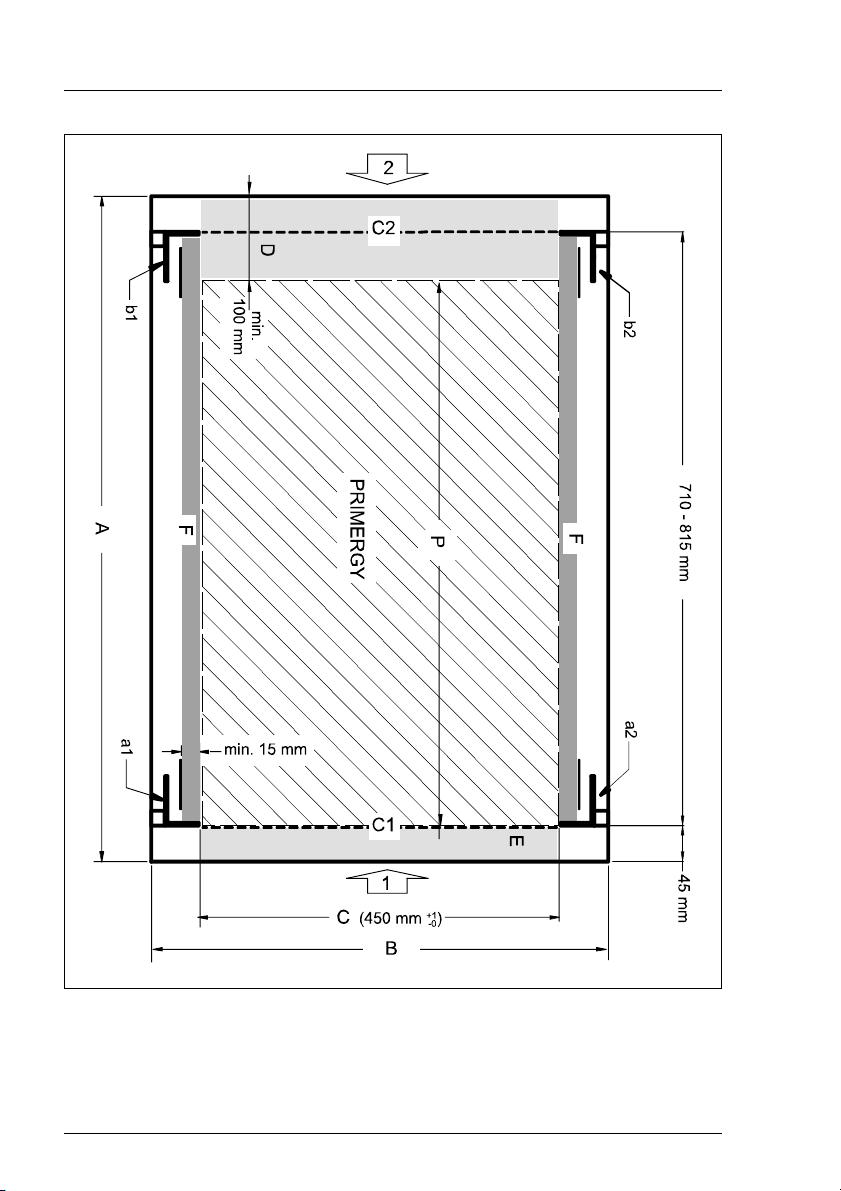

4.3.1 Requirements of the Rack . . . . . . . . . . . . . . . . . . . . 23

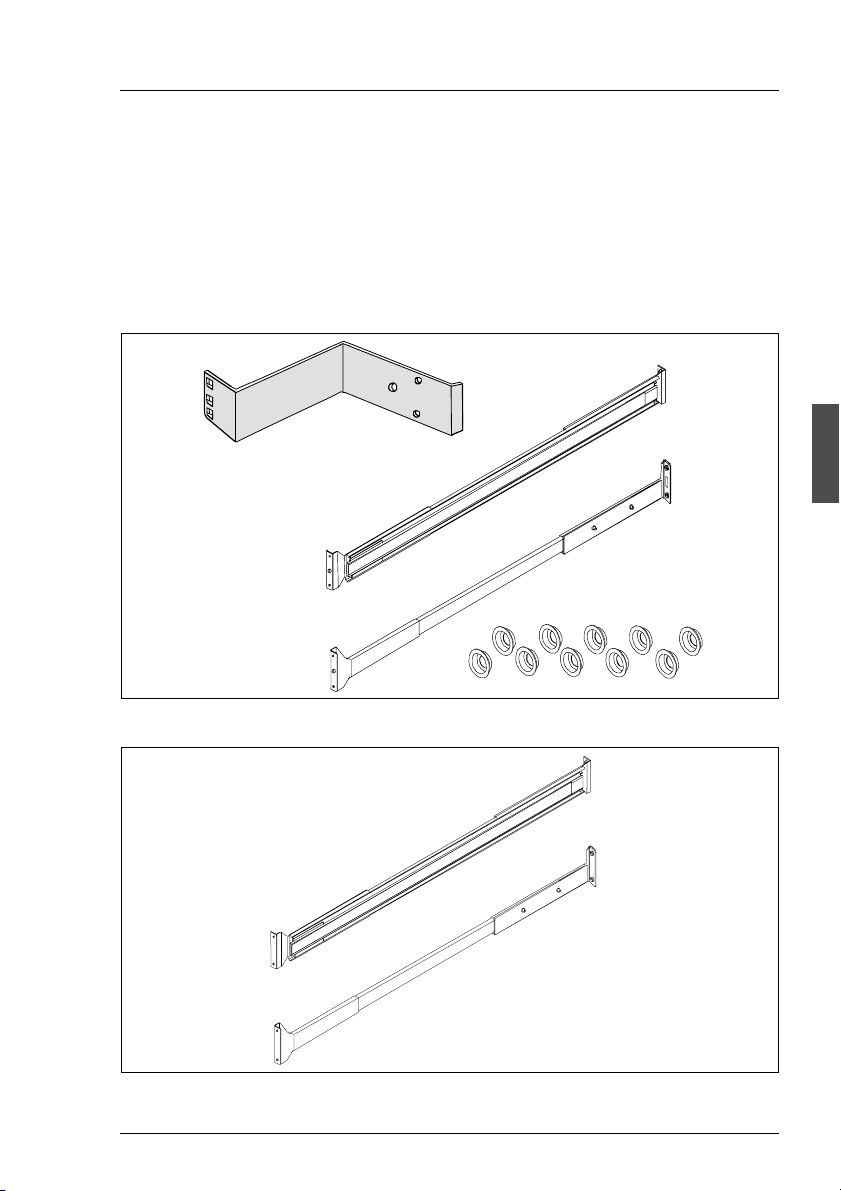

4.3.2 Necessary parts . . . . . . . . . . . . . . . . . . . . . . . . . 27

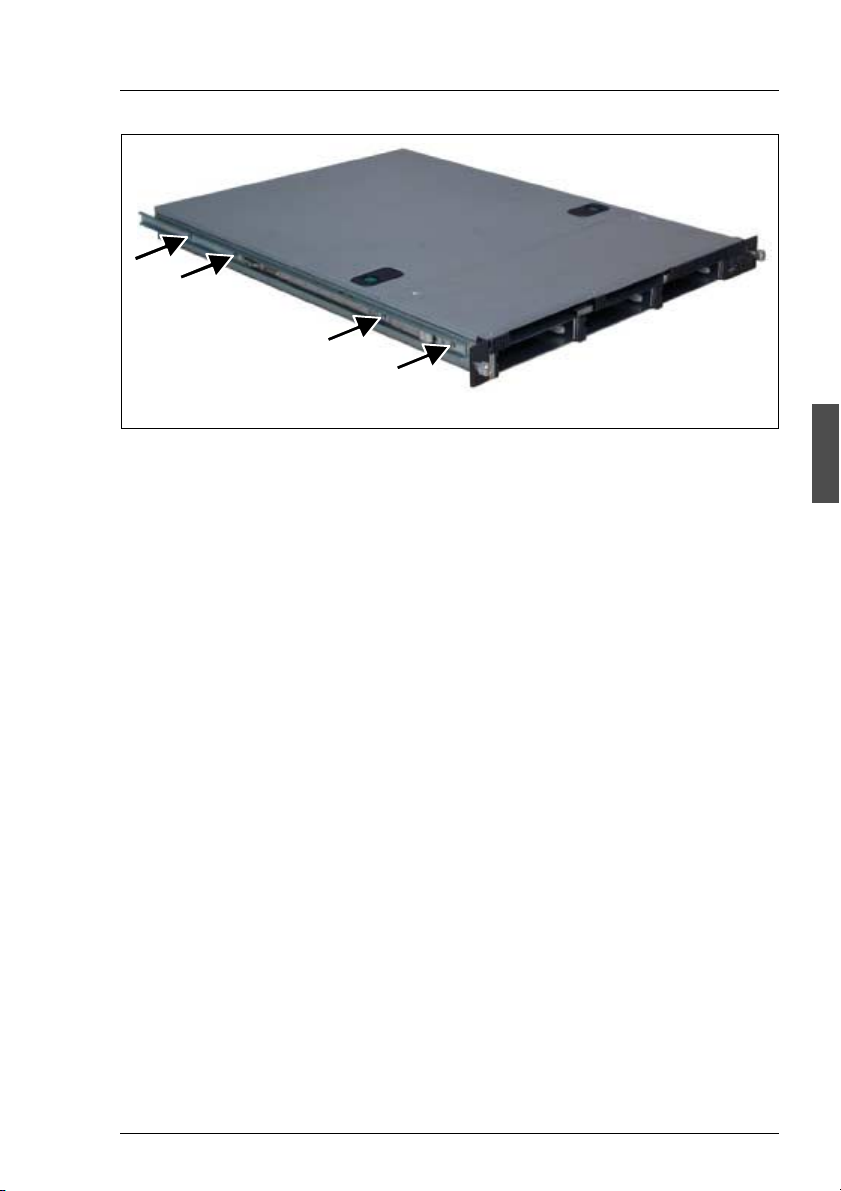

4.3.3 Preparing the Server . . . . . . . . . . . . . . . . . . . . . . . 28

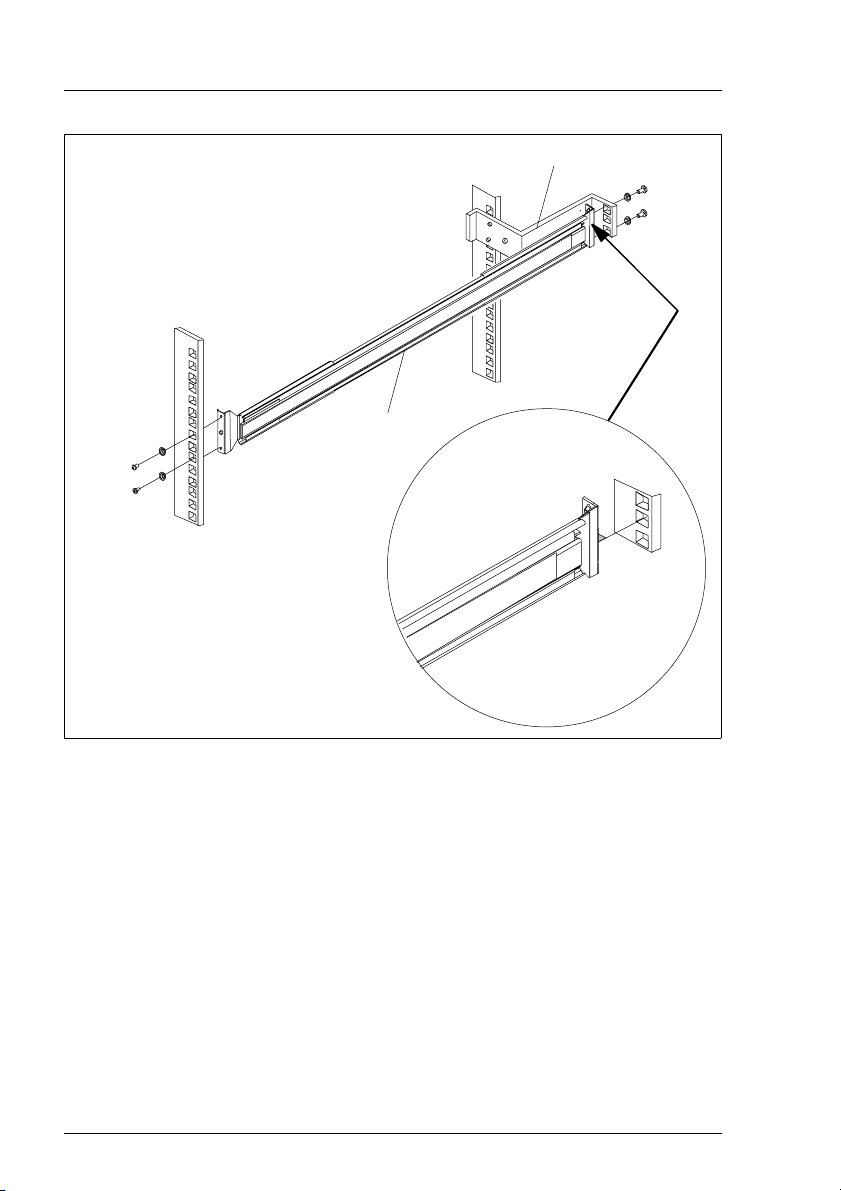

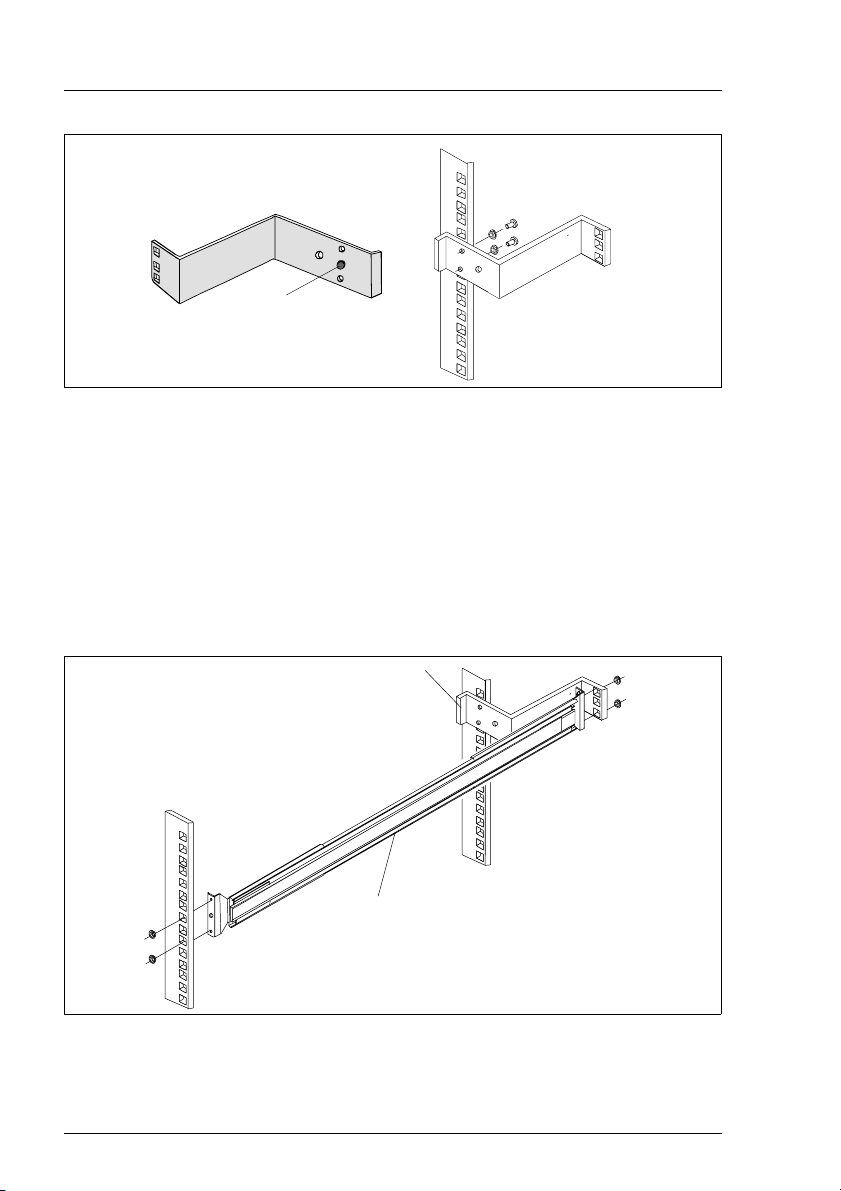

4.3.4 Mounting in the PRIMECENTER/DataCenter Rack . . . . . . . 29
4.3.5 Mounting into the Classic Rack . . . . . . . . . . . . . . . . . 33
4.3.6 Installing the Server . . . . . . . . . . . . . . . . . . . . . . . 34
4.3.7 Mounting in 3rd-Party Racks . . . . . . . . . . . . . . . . . . . 35
4.4 Connecting Devices to the Rack Model . . . . . . . . . . . . . 36

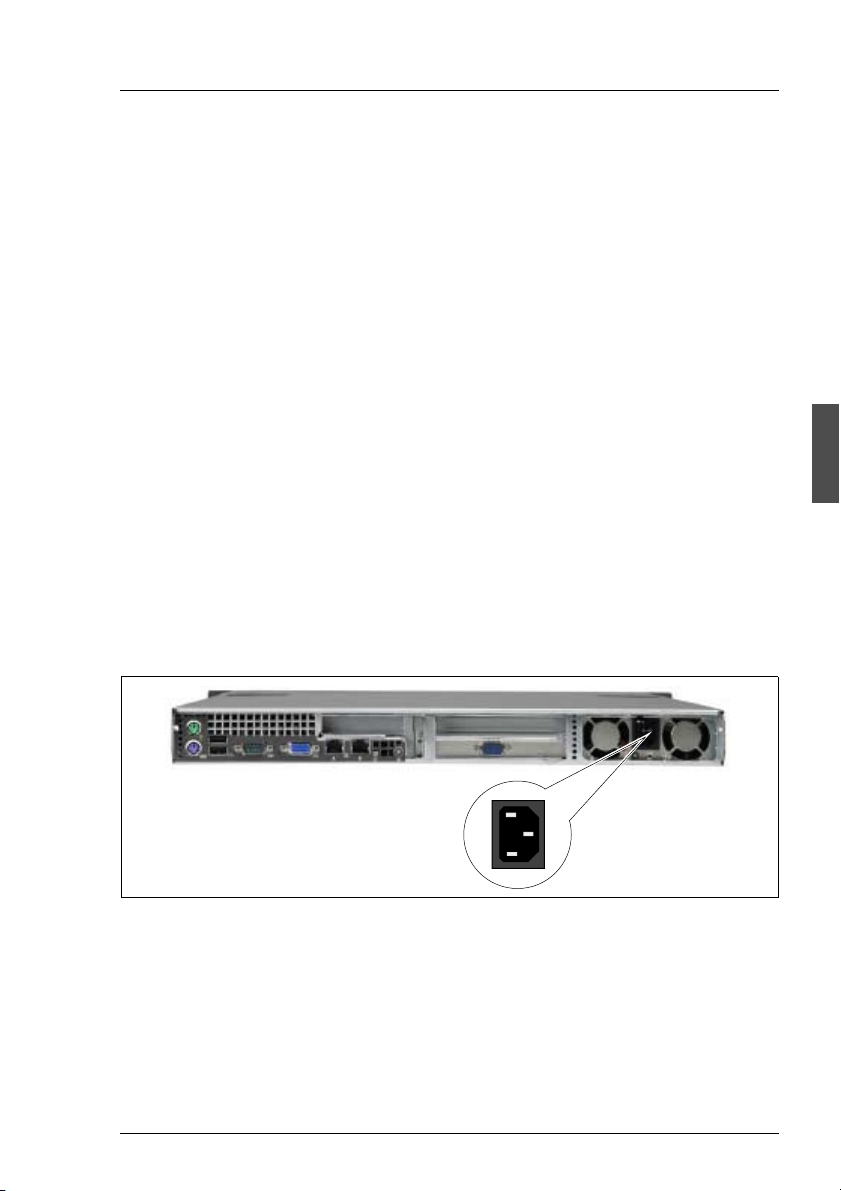

4.5 Connecting the Server to the Line Voltage . . . . . . . . . . . 37
4.6 Instructions on Connecting and Disconnecting Cables . . . . . 38
5 Preparation for Use and Operation . . . . . . . . . . . . . . 39
5.1 Switching the Server ON and OFF . . . . . . . . . . . . . . . 39
5.2 Configuring the Server and Installing the Operating System . . 41
5.2.1 Configuration with ServerStart . . . . . . . . . . . . . . . . . . 41
5.2.2 Configuration without ServerStart . . . . . . . . . . . . . . . . 41
5.3 Operating and Indicator Elements . . . . . . . . . . . . . . . . 42
5.3.1 The Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

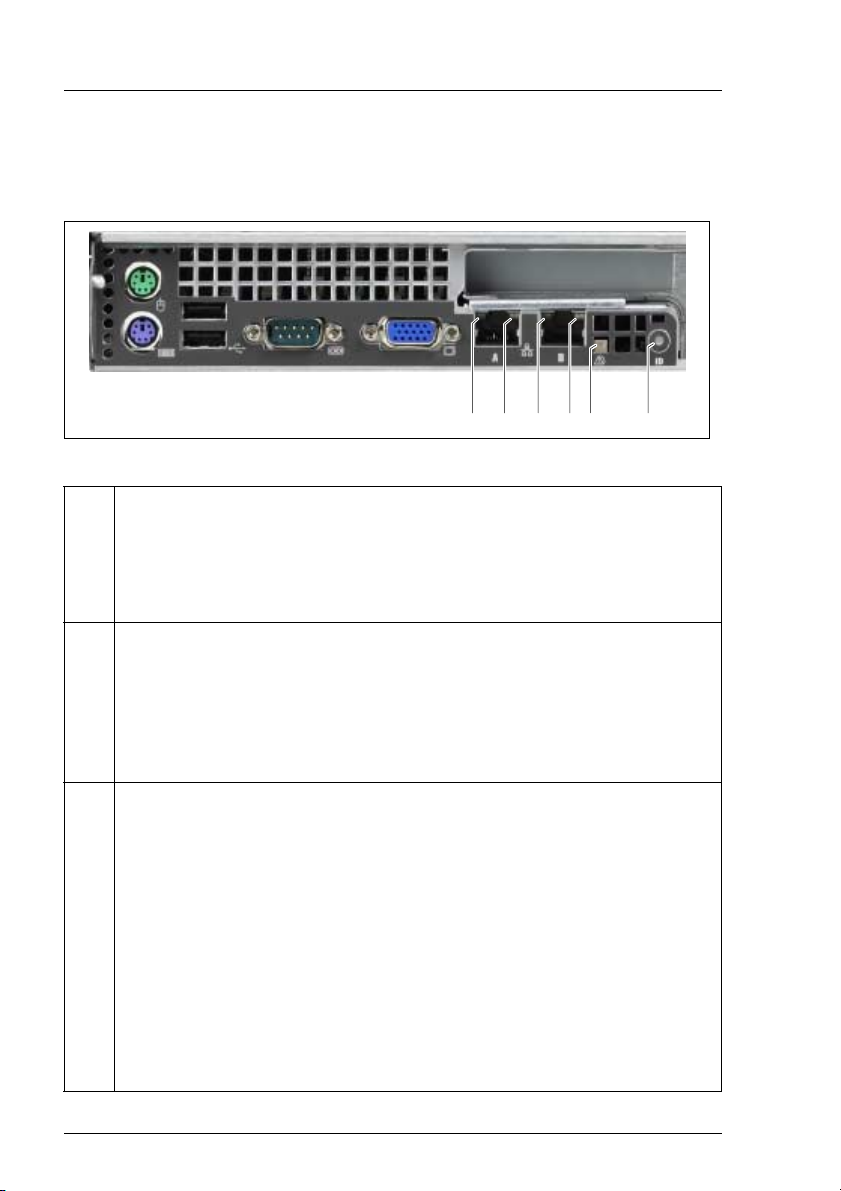

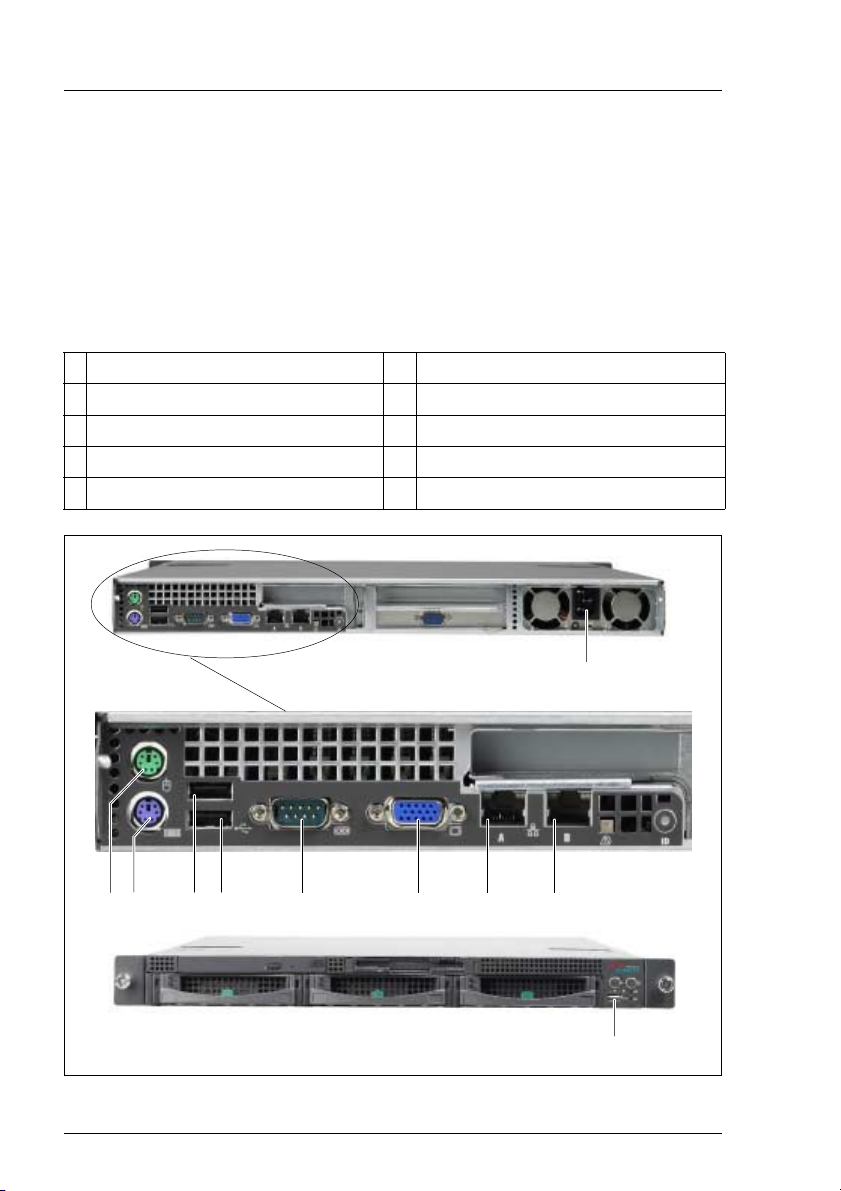

5.3.2 The Rear Side . . . . . . . . . . . . . . . . . . . . . . . . . . 46
A26361-K878-Z102-2-7619

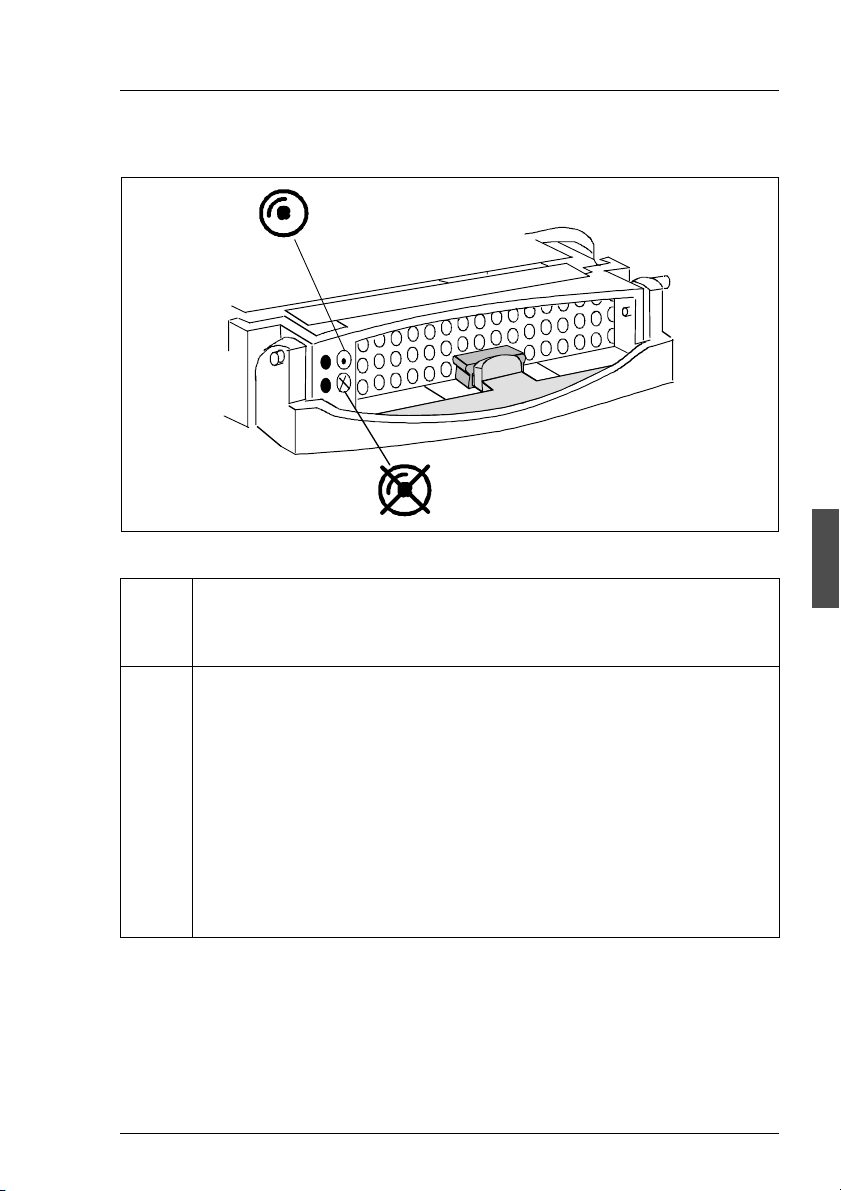

5.4 Hot-Swap HDD Modules . . . . . . . . . . . . . . . . . . . . . 47
5.4.1 Handling Hard Disk Drives/HDD Modules . . . . . . . . . . . . 48

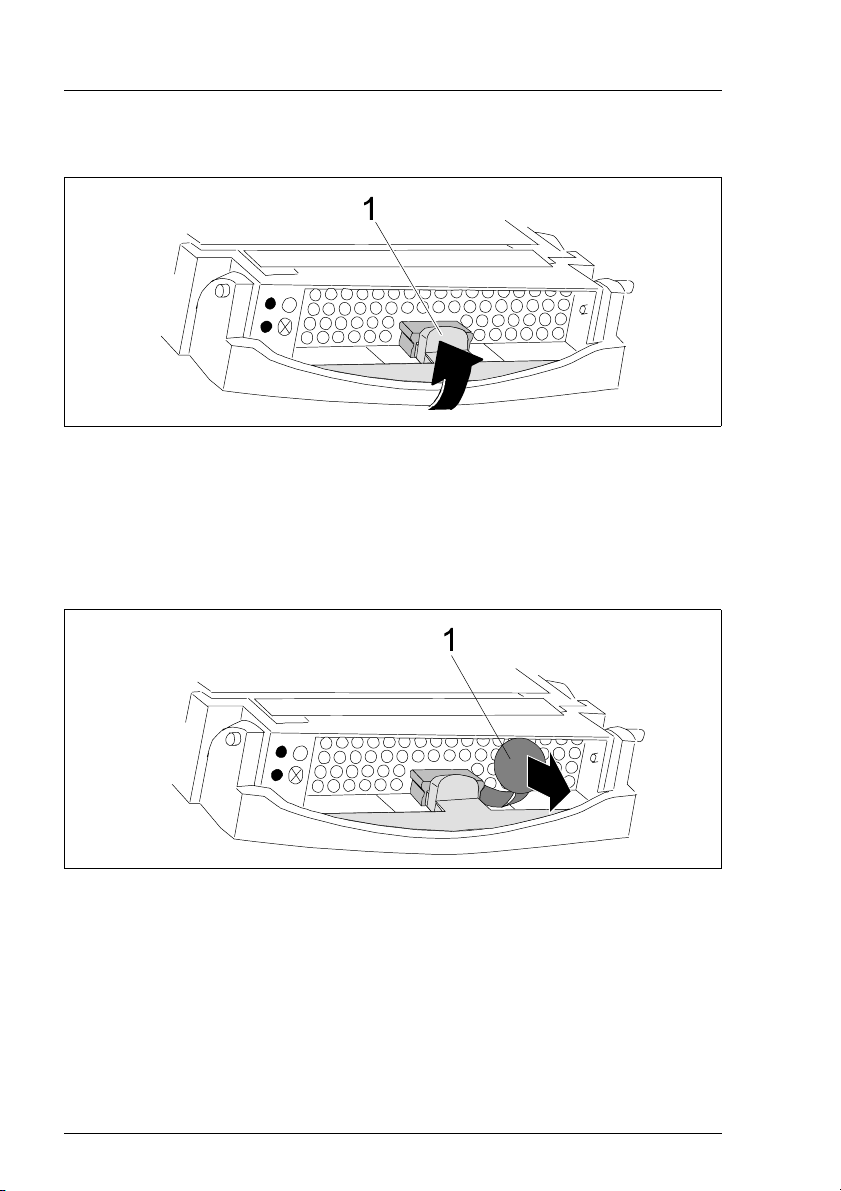

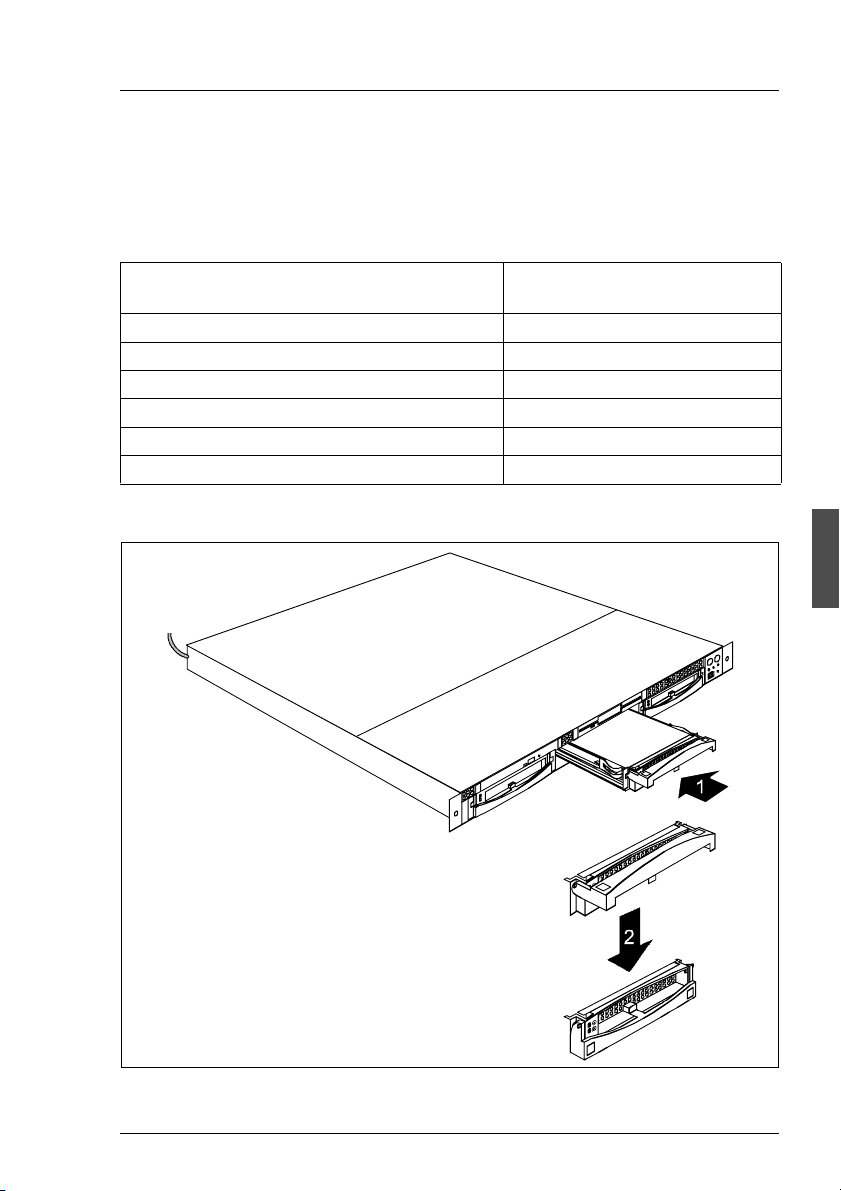

5.4.2 Installing/Removing HDD/Dummy Module . . . . . . . . . . . . 48
5.5 Cleaning the Server . . . . . . . . . . . . . . . . . . . . . . . . 53
6 Property and Data Protection . . . . . . . . . . . . . . . . . . 55
6.1 BIOS Setup Security Functions . . . . . . . . . . . . . . . . . . 55
7 Troubleshooting and Tips . . . . . . . . . . . . . . . . . . . . 57
7.1 Power-ON Indicator Remains Dark . . . . . . . . . . . . . . . . 57
7.2 The Server Switches itself OFF . . . . . . . . . . . . . . . . . . 58
7.3 Screen Remains Blank . . . . . . . . . . . . . . . . . . . . . . 58
7.4 Flickering Stripes on the Monitor Screen . . . . . . . . . . . . . 59
7.5 No Screen Display or the Display Drifts . . . . . . . . . . . . . . 59
7.6 No Mouse Pointer Displayed on Screen . . . . . . . . . . . . . 59
7.7 Floppy Disk Cannot be Read and/or Written . . . . . . . . . . . 60
7.8 Incorrect Time and/or Date . . . . . . . . . . . . . . . . . . . . 60
7.9 System Will Not Boot . . . . . . . . . . . . . . . . . . . . . . . 60
7.10 Drives Are Reported as „Dead“ . . . . . . . . . . . . . . . . . . 61
7.11 Added Drive Reported Defective . . . . . . . . . . . . . . . . . 61
7.12 Error Messages on the Screen . . . . . . . . . . . . . . . . . . 61
Abbreviation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
A26361-K878-Z102-2-7619
1 Introduction
The PRIMERGY RX200 server is a high performance Intel-based 2-way rack
server which is characterized by an ultra compact design. The compact design
(only 1HU high) fits perfectly into the data processing center and server farms.
Within 19-inch infrastructures the server forms a flexible platform for sophisticated Web applications. It is suitable for use as e-mail server, terminal server
and also as general application in multi-tier configurations.
The PRIMERGY RX200 server offers a high level of reliability and availability
through highly developed hardware and software components. Up to 2 Intel®
Xeon™ processors, up to 12 GB ECC DDR-SDRAM main memory and max. 3
hot-swap hard disk drives fulfill highest requirements of functionality, performance and capacity. There are up to three PCI extension slots.
In conjunction with ServerView and RemoteView the onboard server
management controller provides a comprehensive monitoring and remote
management functionality. The optional RemoteView Service Board (RSB)
enhances this functionality.
Security functions in the BIOS Setup („D1570 Setup Utility for RX200“) and on the
system board protect the data on the server against manipulation. Additional
security is provided by the lockable rack door.
1.1 Overview of the Documentation
I PRIMERGY manuals are available in PDF format on the ServerBooks
CD. The ServerBooks CD is part of the ServerStart Bundle delivered with
each server system.
The PDF files for the manuals can also be downloaded free of charge
from the Internet. The overview page showing the online documentation
available in the Internet can be found via the URL: http://manuals.fujitsu-
siemens.com (click intel based server/PRIMERGY ServerBooks).
A26361-K878-Z102-2-7619 1
Overview of the Documentation Introduction
Concept and target group of this manual
This operating manual describes how to install and how to operate your server.
This manual is intended for those responsible for installing the hardware and
ensuring that the system runs smoothly. The manual contains all the information
required for installing and operating your PRIMERGY RX200.
To understand the different expansion options it is necessary to have a
knowledge of hardware and data transmission, as well as basic knowledge of
the operating system used.
Additional server documentation
To the PRIMERGY RX200 documentation set belong the following additional
manuals:
– “Safety and Ergonomics” manual (print version delivered together with the
system, PDF file available on the ServerBooks CD)
– “Warranty” manual (print version delivered together with the system, PDF file
available on the ServerBooks CD)
– Technical Manual for the system board D1570 (PDF file available on the
ServerBooks CD)
– „D1570 Setup Utility for RX200“ (PDF file available on the ServerBooks CD)
– “ServerStart Bundle“ includes the ServerStart CD, the ServerBooks CD and
the print version of the manual „ServerStart Bundle“. The PDF file of the
manual is also available on the ServerBooks CD.
– Quick Installation Guide „AcceleRAID 160 PCI to UItra 160 SCSI RAID
Controller“ (PDF file available on the ServerBooks CD)
– Installation Guide „AcceleRAID 160 PCI to UItra 160 SCSI RAID Controller“
(PDF file available on the ServerBooks CD)
Further sources of information
– technical manual for the corresponding rack
– manual for the monitor
– manual for ServerView server management
– manual for the remote test and diagnostic system RemoteView
– documentation for the boards and drives
– operating system documentation
– information files of your operating system
(see also “Related Publications” on page 69).
2 A26361-K878-Z102-2-7619
Introduction Features
1.2 Features
System board
The features of the system board (D1570) are described in the technical manual
for the system board in relation to the hardware and in the „D1570 Setup Utility
for RX200“ (see “Related Publications” on page 69).
Hard disk drives
The server can accommodate up to three ULTRA 160-SCSI hard disk drive
modules.
Each hard disk drive module (HDD module) can accommodate a SCSI hard
disk drive with an SCA (Single Connector Attachment) interface and a maximum
height of 1 inch. The module is connected to the SCSI backplane without cables
via the SCA interface. This allows hard disk drive modules to be simply plugged
in or pulled out (for further details see section “Hot-Swap HDD Modules” on
page 47).
For operating the hard disk drives an 1-channel PCI RAID controller (Ultra160
SCSI) is available.
In a corresponding RAID configuration the HDD modules can be exchanged
during operation (hot-swap).
Accessible drives/components
Two mounting locations are available:
– one location with a 3.5 inch slimline floppy disk drive (1.44 MB)
– one location for a slimline CD-/DVD-ROM drive (optionally)
The accessible drives integrated in this locations cannot be replaced during
operation.
LocalView (option)
Instead of the floppy disk drive, a LocalView module can be installed in the
3.5 inch location.
A26361-K878-Z102-2-7619 3
Features Introduction
USB port
The additional USB interface on the front of the server supports activities
carried out by the service technician. The maximum length of the external cable
are three meters.
High level of availability and reliability
When memory data is accessed, 1-bit errors in the main memory are recognized and automatically corrected with the ECC (Error Correcting Code)
method. The patented memory scrubbing function regularly starts up the EDC
mechanism and thus ensures continuous data integrity.
The memory modules used support Chipkill™ technology, which in addition
increases the effectiveness of the monitoring and correction of memory errors.
ASR&R (Automatic Server Reconfiguration and Restart) restarts the system in
the case of an error and automatically „hides“ the defective system components.
The PDA (Prefailure Detection and Analyzing) technology from Fujitsu Siemens
Computers analyzes and monitors all components important for system
reliability.
The onboard SCSI RAID controller support RAID Levels 0, 1, 5 10 and 50 and
increase system availability. The hot-swap HDD modules provide additional
security.
server management
Server management is implemented with the aid of the supplied ServerView
software and PDA (Prefailure Detection and Analyzing) technology from Fujitsu
Siemens. PDA reports the threat of a system error or overloading early on so
that preventative measures can be taken.
ServerView enables the management of all PRIMERGY servers in the network
via a central console. The following key features are supported among others
by ServerView in this context.
● Remote power-on (Wake On LAN)
● Temperature monitoring of the CPU and the surrounding area
● Monitoring of the utilization of the PCI buses
● Detailed status and error reports for bus systems, processors and main
memory
4 A26361-K878-Z102-2-7619
Introduction Features
● Watchdog timer for Automatic Server Reconfiguration and Restart (ASR&R)
in the event of failure of memory modules or processors
● Power monitoring
● Early detection of a defective fan
● Watchdog timer for operating system monitoring and application monitoring
with ASR&R
Further information on ServerView server management is provided in the
associated documentation (see “Related Publications” on page 69).
ServerStart
You can configure the PRIMERGY server quickly and purposefully with the
ServerStart software provided. User-guided menus are available for installing the
server operating system (for further details see „ServerStart Bundle“).
Service and support
PRIMERGY server are service-friendly and modular, thus enabling quick and
simple maintenance.
The handles and locks (touch point) of the different hot-plug/hot-swap components are colored green to ensure simple and immediate recognition.
In order to avoid damage to components by incorrect handling when they are
being installed and removed, green highlighting also identifies the component
areas that can be touched without causing damage to the respective
component.
The flash EPROM program supplied with the Fujitsu Siemens Computers
utilities supports a fast BIOS update. The RemoteView Remote Test and
Diagnosis System allows the PRIMERGY RX200 Server to be maintained from
remote locations. Remote diagnosis can be performed as a result for system
analysis, remote configuration and remote restart should the operating system
or hardware fail.
A26361-K878-Z102-2-7619 5
Notational Conventions Introduction
RemoteView
RemoteView is the remote management solution from Fujitsu Siemens
Computers for Intel-based PRIMERGY systems. RemoteView and the relevant
hardware components integrated on the system board allow remote monitoring
and maintenance as well as fast restoration of operability in the event of errors.
Remote monitoring and maintenance avoids time-consuming and costly on-site
repairs and reduces service costs. This leads to a reduction in the total cost of
ownership and an excellent return on investment for the remote management
solution.
RemoteView helps
● switch on/off the system remotely
● monitor systems and analyze the cause of faults
●
prepare error resolution or to have this process initiated independently if
possible
● identify potential sources of error
● configure the system
●
adjust system settings and initiate system restarts from a remote location
1.3 Notational Conventions
The following notational conventions are used in this manual:
text in italics indicate commands, menu items or software programs
„Quotation marks“ indicate names of chapters and terms that are being
emphasized
Ê text which follows this symbol describes activities that
must be performed in the order shown
V CAUTION! pay particular attention to texts marked with this symbol.
Failure to observe this warning may endanger your life,
destroy the system or lead to the loss of data.
I indicates additional information, notes and tips
Table 1: Notational conventions
6 A26361-K878-Z102-2-7619
Introduction Technical Data
1.4 Technical Data
Electrical data (power supply unit)
Power supply unit Multi-range
Rated voltage range 100 V- 127 V / 200 V - 240 V
Frequency 50 Hz - 60 Hz
Max. rated current: 3,5 A / 100 V -127 V
2,0 A / 200 V - 240 V
Effective power 322 W
Apparent power 332 VA
Heat dissipation 1159 kJ/h
Main power fuse 16 A
Protection class I
National and international standards
Product safety and ergonomics IEC 60950 / EN 60950 / UL 60950-00 3rd. Ed.,
CAN/CSA C22.2 No. 60950-00 3rd. Ed.
Electromagnetic compatibility
European standards
Interference emission EN 55022
Harmonic current EN 61000-3-2
flicker EN 61000-3-3
Interference immunity EN 55024
International standards FCC class A
VCCI class A / JEIDA
C-Tick class A
BSMI class A
CE label
according to EU directives
A26361-K878-Z102-2-7619 7
Low-Voltage Directive 73/23/EWG
Electromagnetic Compatibility 89/336/EEC
Technical Data Introduction
Mechanical values
Width 430 mm
Installation depth 650 mm
area for cable routing (cable area depth) in the rack 100 mm
Height 44.2 mm or 1 HU
Weight
13 - 15 kg (depending on the configuration)
Ventilation clearance
at least 200 mm on the front and on the rear side
Environmental conditions
Environment class 3K2
Environment class 2K2
EN 60721 / IEC 721 section 3-3
EN 60721 / IEC 721 section 3-2
Temperature:
Operation (3K2)
Transport (2K2)
5 °C .... 35 °C
-25 °C .... 60 °C
Humidity 10 ... 85%
Condensation during operation must be avoided!
Noise level
Sound power level L
(ISO 9296) ≤ 7,3 B (standby)
WAd
Sound pressure level at bystander position
L
(ISO 9296)
pAm
≤ 7,5 B (operating)
≤ 58 dB(A) (standby)
≤ 60 dB(A) (operating)
8 A26361-K878-Z102-2-7619
2 Installation Steps: Overview
In this chapter you will find an overview of the steps necessary to install your
server system. Links guide you to sections where you can find more detailed
information on the individual steps:
Ê At first, please take notice of chapter “Important Notes” on page 11and
following.
Ê Unpack the system, check the contents of the package for visible transport
damage and check whether the delivery agrees with the details in the
delivery note (see section “Unpacking the Server” on page 22).
Ê Transport the server to the place where you want to set it up.
Ê Make sure all necessary manuals (see “Additional server documentation” on
page 2) are available; possibly print of the PDF files.

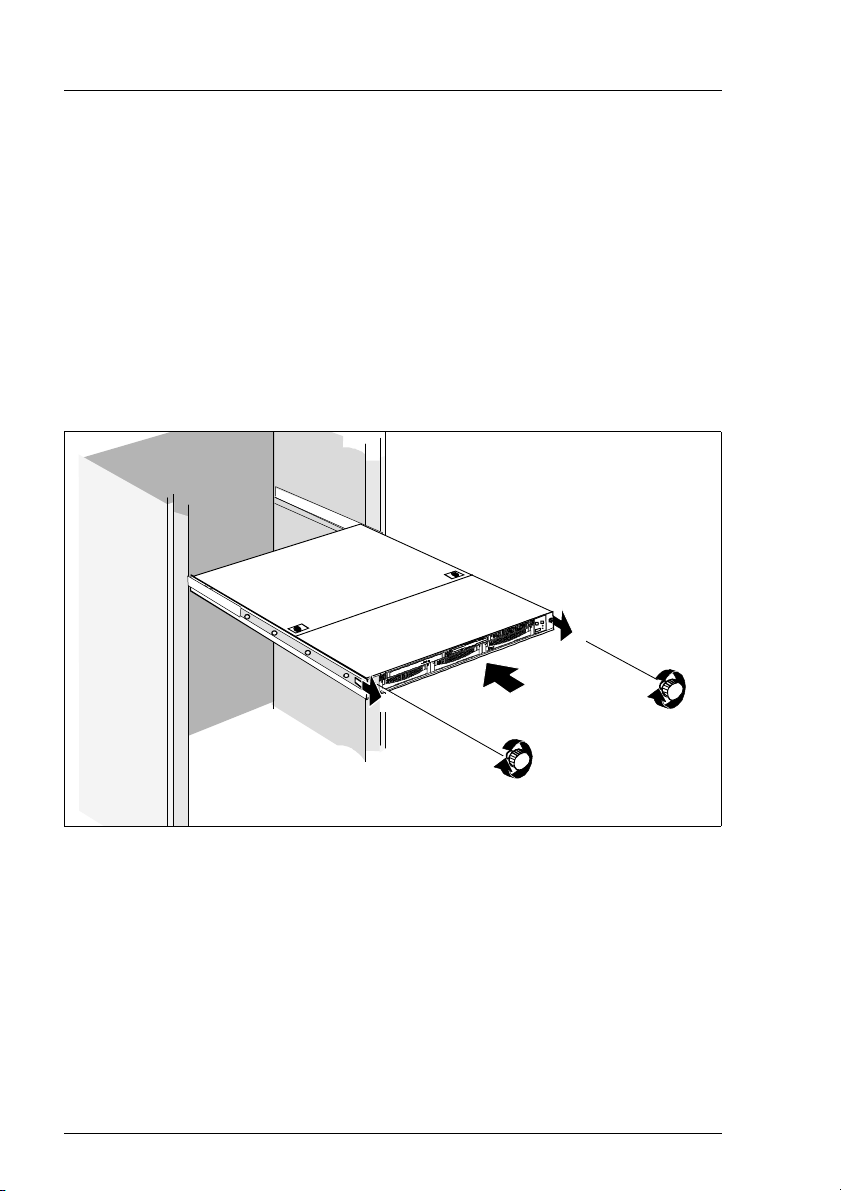

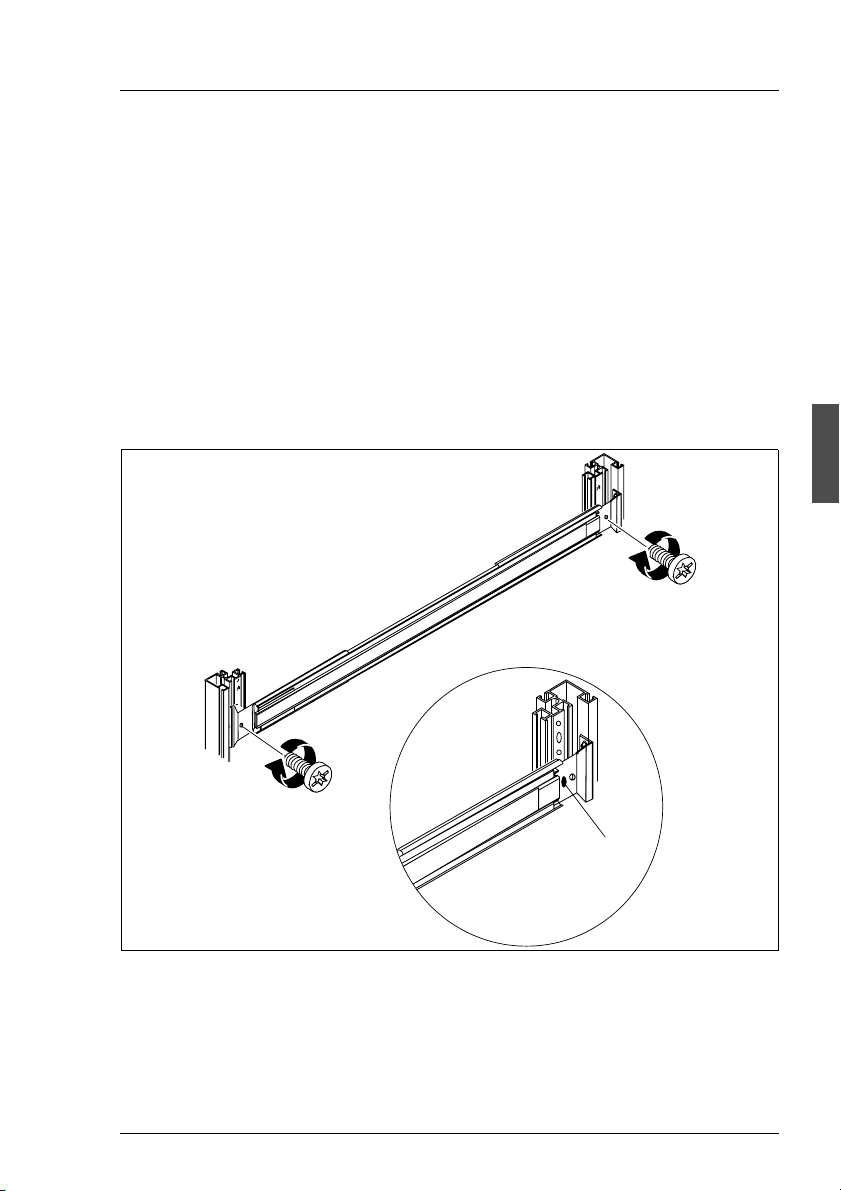

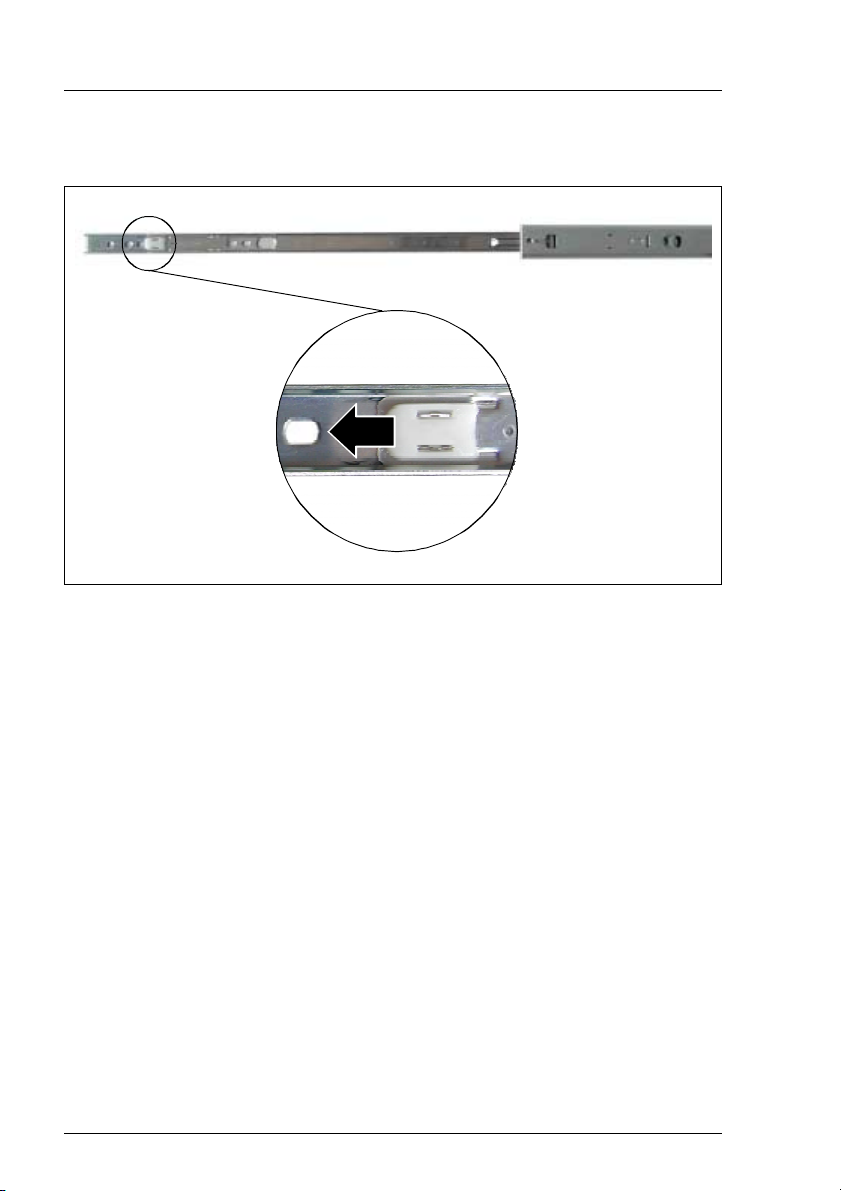

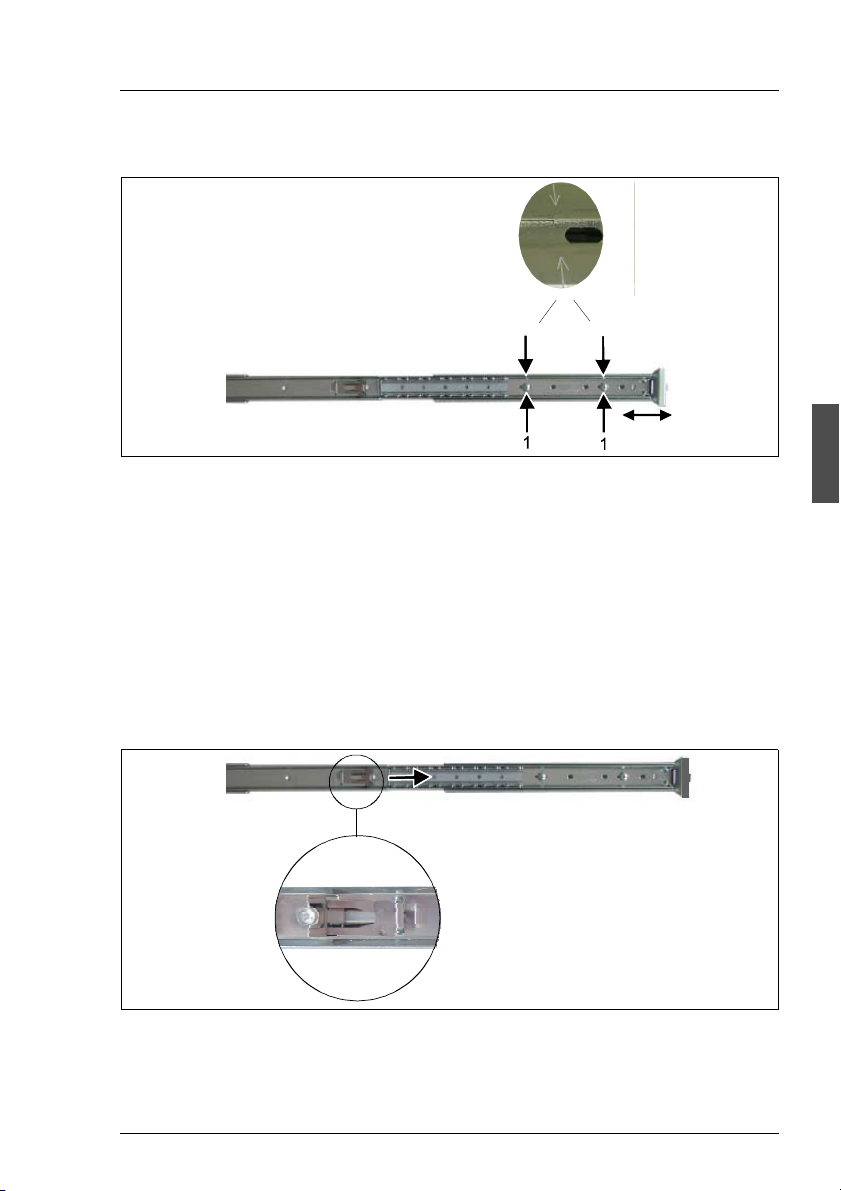

Ê Mounting the server into the rack (see section “Installing/Removing the
Server into/from the Rack” on page 23).
Ê Cable the server. Please also refer to the section “Connecting Devices to the
Rack Model” on page 36 and the section “Instructions on Connecting and
Disconnecting Cables” on page 38.
Ê Connect the system to the line voltage (see section “Connecting the Server
to the Line Voltage” on page 37).

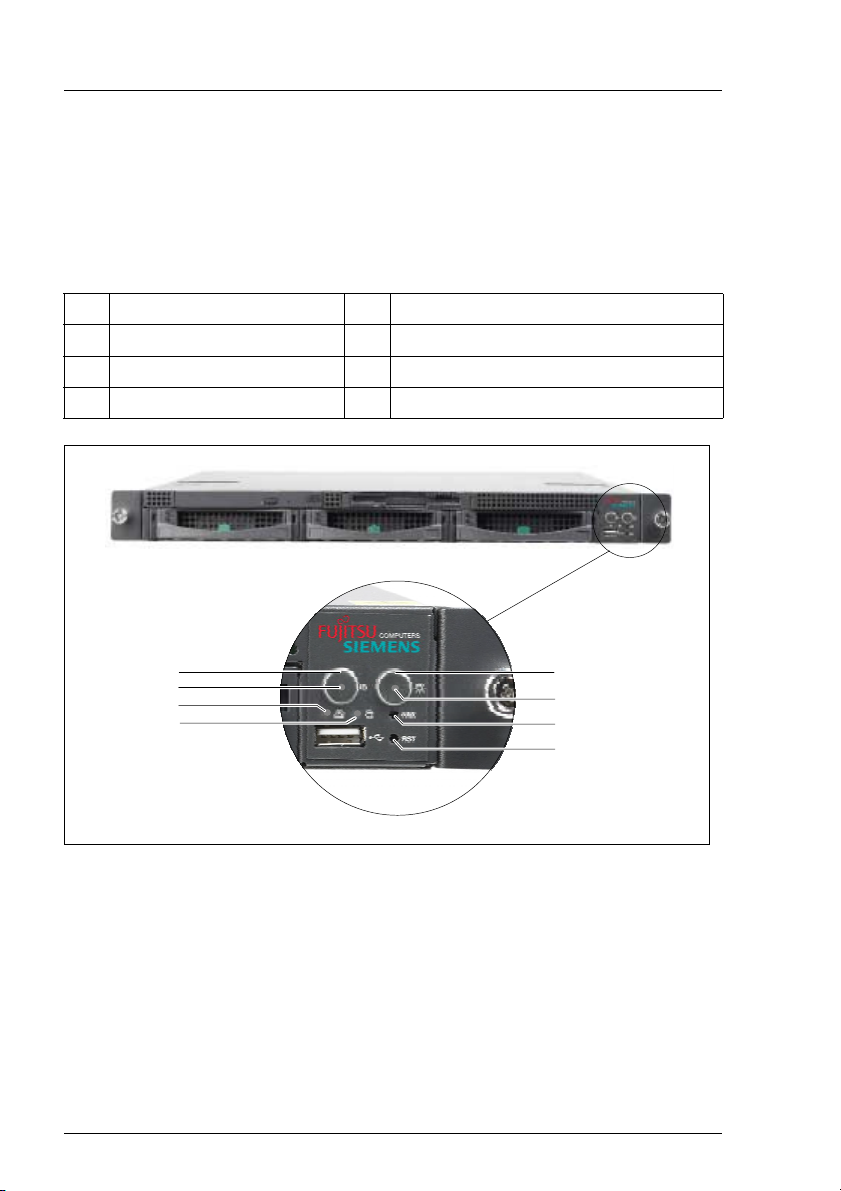

Ê Make yourself familiar with the operating and indicator elements on the front
and on the rear side of the server (see section “Operating and Indicator
Elements” on page 42).
Ê Configure the server and install the desired operating system and applica-
tions. To do so, you have the following possibilities:
– Remote configuration and installation with ServerStart:
With the ServerStart-CD provided, you can configure the server and install
the operating system in a convenient manner.
To find out how to operate ServerStart and for further information, refer to
the „ServerStart Bundle“ manual.
You find additional information for configuration in section “Configuration
with ServerStart” on page 41.
A26361-K878-Z102-2-7619 9
Installation Steps: Overview
– Local configuration and installation with or without ServerStart (see
section “Configuration with ServerStart” on page 41 and/or section
“Configuration without ServerStart” on page 41).
I For further information on remote or local installation of the server please
refer to the ServerStart manual, which contains a “Quick Step Guide“ as
well as detailed description of the different installation options and installation wizards. A print version of the ServerStart manual is included in the
ServerStart Bundle, delivered with the server system. A PDF version of
the manual is contained on the PRIMERGY ServerBooks CD.
10 A26361-K878-Z102-2-7619
3 Important Notes
In this chapter you will find essential information regarding safety when working
with your server.
3.1 Safety
I The following safety notes are also provided in the “Safety and
Ergonomics” manual, which contains additional information about
ergonomics.
This device complies with the relevant safety regulations for data processing
equipment, including electronic office machines for use in an office
environment.
If you have any questions about where you can set up the device, contact your
sales outlet or our customer service team.
V CAUTION!
The actions described in these instructions should only be performed by
technicians, service personnel or technical specialists. Equipment
repairs should only be performed by qualified staff. Any failure to observe
the guidelines in this manual, and any unauthorized openings and
improper repairs could expose the user to risks (electric shock, fire
hazards) and could also damage the equipment. Please note that any
unauthorized openings of the device will result in the invalidation of the
warranty and exclusion from all liability.
A26361-K878-Z102-2-7619 11
Safety Important Notes
Before operating the device
V CAUTION!
● During installation and before operating the device, observe the
instructions on environmental conditions for your device (see
“Environmental conditions” on page 8).
● If the device is brought in from a cold environment, condensation may
form both inside and on the outside of the machine.
Wait until the device has acclimatized to room temperature and is
absolutely dry before starting it up. Material damage may be caused
to the device if this requirement is not observed.
● Transport the device only in the original packaging or in packaging
that protects it from knocks and jolts.
Installation and operation
V CAUTION!
● If the device is integrated in an installation that receives power from
an industrial (public) power supply network with the IEC309
connector, the (public) power supply protection must comply with the
requirements for non-industrial (public) power supply networks for the
type A connector.
● The server automatically sets itself to a voltage in the range of
100 V to 240 V. Make sure that your local voltage is within this range.
● This device has a specially approved power cable and must only be
connected to a grounded insulated socket.
● Ensure that the power socket on the device or the grounded wall
outlet is freely accessible.
● The ON/OFF button does not disconnect the device from the mains
voltage. To disconnect the line voltage completely, remove the power
plug from the grounded insulated socket.
12 A26361-K878-Z102-2-7619
Important Notes Safety
V CAUTION!
● Always connect the device and the attached peripherals to the same
power circuit. Otherwise you run the risk of losing data if, for example,
the central processing unit is still running but the peripheral device
(e.g. storage subsystem) has failed during a power outage.
● Data and signal cables must be adequately shielded.
● To the LAN wiring the requirements apply in accordance with the
standards EN 50173 and EN 50174-1/2. As minimum requirement
the use of a protected LAN line of category 5 for 10/100 MBps
Ethernet, and/or of category 5e for Gigabit Ethernet is considered.
The requirements of the specification ISO/IEC 11801 are to be
considered.
● Never connect or disconnect data transmission lines during a storm
(lightning hazard).
● Route the cables in such a way that they do not form a potential
hazard (make sure no-one can trip over them) and that they cannot
be damaged. When connecting up a device, refer to the relevant
notes in this manual.
● Make sure that no objects (such as bracelets or paper clips) fall into
or liquids spill into the device (risk of electric shock or short circuit).
● In emergencies (e.g. damaged casing, controls or cables, penetration
of liquids or foreign matter), switch off the device immediately, remove
the power plug and contact your sales outlet or customer service
team.
● Proper operation of the device (in accordance with IEC 60950/DIN
EN 60950) is only ensured if the casing is completely assembled and
the rear covers for the installation openings have been put in place
(electric shock, cooling, fire protection, interference suppression).
● You may only set those resolutions and refresh rates specified in the
„Technical data“ section of the monitor description. Otherwise, you
may damage your monitor. If you are in any doubt, contact your sales
outlet or customer service centre.
A26361-K878-Z102-2-7619 13
Safety Important Notes
V CAUTION!
● The warranty expires if the device is damaged during the installation
or replacement of system expansions.
● Only install system expansions that satisfy the requirements and
rules governing safety and electromagnetic compatibility and relating
to telecommunications terminal equipment. If you install other expansions, you may damage the system or violate the safety regulations
and regulations governing RFI suppression. Information on which
system expansions are suitable can be obtained from the customer
service centre or your sales outlet.
● The components marked with a warning label (e.g. lightning symbol)
may only be opened, removed or exchanged by authorized, qualified
personnel.
Notes on handling CDs and CD-/DVD-ROM drives
The hot-swap components are exceptions to this rule.
V CAUTION!
● Use only CDs in proper condition in the CD-/DVD-ROM drive of your
server to prevent data loss, damage to the device and injuries.
● Therefore, check each CD for damage, cracks, breakage etc. before
inserting it in the drive.
Please note that any additional labels applied may change the
mechanical properties of a CD and cause imbalance.
Damaged and imbalanced CDs can break at high drive speeds (data
loss).
Under certain conditions sharp-edged pieces of broken CDs can
penetrate the cover of the drive (damage to the device) and be thrown
out of the device (danger of injury, particularly on uncovered body
parts such as the face or neck).
I You protect the CD-/DVD-ROM drive and prevent mechanical damage,
as well as premature wearing of the CDs, by observing the following
suggestions:
– Only insert the CDs in the drive when needed and remove them after
use.
– Store the CDs in suitable sleeves.
– Protect the CDs from exposure to heat and direct sunlight.
14 A26361-K878-Z102-2-7619
Important Notes Safety
note about the laser
The CD/DVD-ROM drive contains a laser diode classified according to
IEC 825-1:1993:LASER CLASS 1.
Batteries
V CAUTION!
● Incorrect replacement of batteries may lead to a risk of explosion. The
batteries may only be replaced with identical batteries or with a type
recommended by the manufacturer (see the technical manual for the
system board). If possibly inserted auxiliary boards contain
batteries/accus the appropiate references in the associated manuals
are to be considered.
● Do not throw batteries into the trash can. They must be disposed of
in accordance with local regulations concerning special waste.
● The battery must be disposed of in accordance with local regulations
concerning special waste.
● Replace the lithium battery on the system board in accordance with
the instructions in the technical manual for the system board (see
“Related Publications” on page 69). If possibly inserted auxiliary
boards contain batteries/accus the appropiate references in the
associated manuals are to be considered.
● All batteries containing pollutants are marked with a symbol (a
crossed-out garbage can). In addition, the marking is provided with
the chemical symbol of the heavy metal decisive for the classification
as a pollutant:
Cd Cadmium
Hg Mercury
Pb Lead
A26361-K878-Z102-2-7619 15
Safety Important Notes
Modules with electrostatic-sensitive components
Systems and components that might be damaged by electrostatic discharge
(ESD) are marked with the following label:

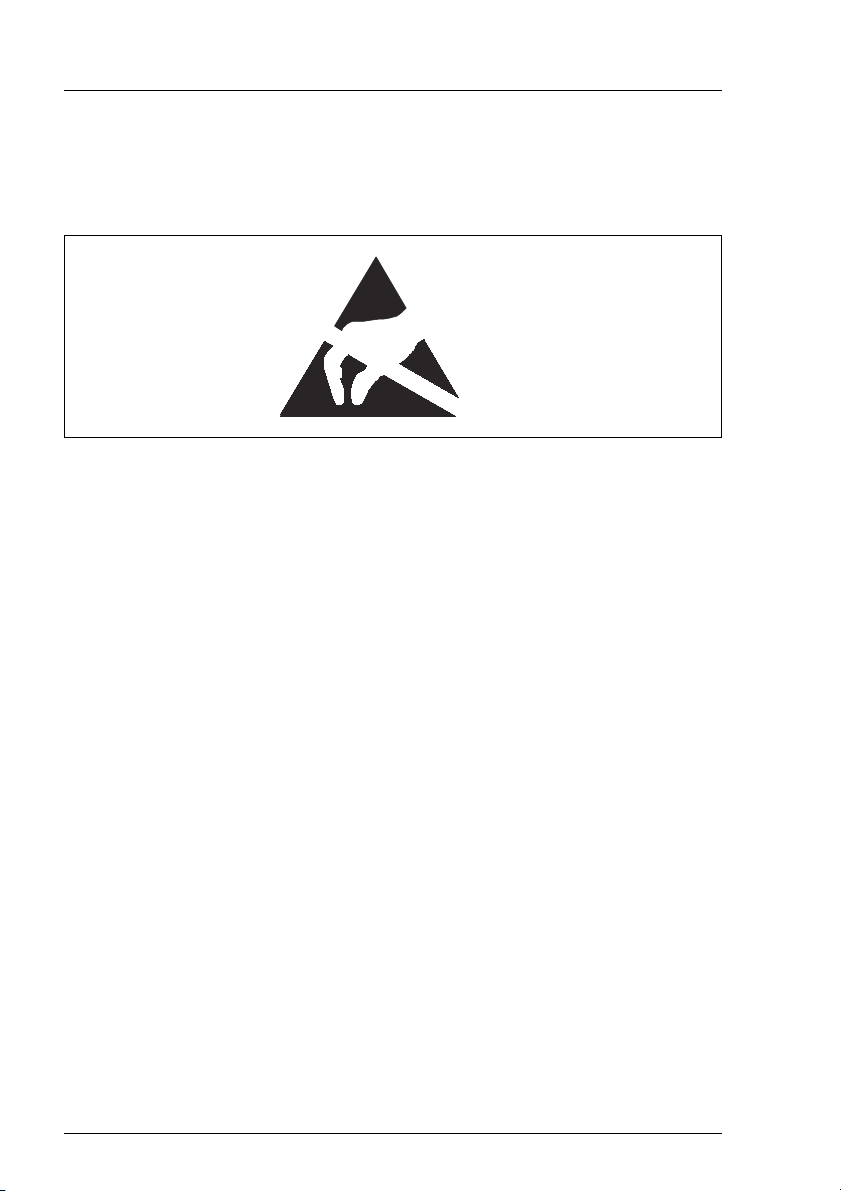

Figure 1: ESD label
When you handle components fitted with ESDs, you must observe the following
points under all circumstances:
● Remove the power plug from the power socket before inserting or removing
components containing ESDs.
● You must always discharge yourself of static charges (e.g. by touching a
grounded object) before working.
● The equipment and tools you use must be free of static charges.
● Use a grounding cable designed for this purpose to connect yourself to the
system unit as you install components.
● Do not touch any exposed pins or conductors on a component.
● Place all components on a static-safe base.
I You will find a detailed description for handling ESD components in the
relevant European or international standards (EN 61340-5-1,
ANSI/ESD S20.20).
Other important points:
● When cleaning the device, please observe the relevant notes in section
“Cleaning the Server” on page 53.
● Keep this Operating Manual safety and all additional documentation
(e.g. Technical Manual, CD) together with the device. All documentation
should be included if the device is passed on to a third party.
16 A26361-K878-Z102-2-7619
Important Notes CE Certificate
3.2 CE Certificate
The shipped version of this device complies with the requirements of
the EEC directives 89/336/EEC „Electromagnetic compatibility“ and
73/23/EEC „Low voltage directive“. The device therefore qualifies for
the CE certificate (CE=Communauté Européenne).
3.3 FCC Class A Compliance Statement
If there is an FCC statement on the device, then:
The following statement applies to the products covered in this manual, unless
otherwise specified herein. The statement for other products will appear in the
accompanying documentation.
NOTE:
This equipment has been tested and found to comply with the limits for a
„Class A“ digital device, pursuant to Part 15 of the FCC rules and meets all
requirements of the Canadian Interference-Causing Equipment Standard
ICES-003 for digital apparatus. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in strict accordance with the instructions, may cause harmful
interference to radio communications. However, there is no warranty that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between equipment and the receiver.
● Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
Fujitsu Siemens Computers is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those
A26361-K878-Z102-2-7619 17
Transporting the Server Important Notes
specified by Fujitsu Siemens Computers. The correction of interferences
caused by such unauthorized modification, substitution or attachment will be the
responsibility of the user.
The use of shielded I/O cables is required when connecting this equipment to
any and all optional peripheral or host devices. Failure to do so may violate FCC
and ICES rules.
3.4 Transporting the Server
V CAUTION!
Only transport the server to the new site in its original packaging or in
packaging that protects it from knocks and jolts. Do not unpack the server
until it is at its installation location.
If you need to lift or transport the server, ask other people to help you.
3.5 Notes on Installing in the Rack
V CAUTION!
● When connecting and disconnecting cables, observe the relevant
notes in the chapter „Important notes“ in the technical manual for the
corresponding rack. The technical manual is supplied with the corre-
sponding rack.
● Make sure when installing the rack that the anti-tilt mechanism is
properly mounted.
● For safety reasons, no more than one unit may be removed from the
rack at any one time during installation and maintenance work.
● If several units are removed from the rack at the same time, there is
a risk that the rack will tilt forward.
● The rack must be connected to the power supply by an authorized
specialist (electrician).
● If the rack model is integrated in an installation that receives power
from an industrial (public) power supply network with the IEC309
connector, the (public) power supply protection must comply with the
requirements for non-industrial (public) power supply networks for the
type A connector.
18 A26361-K878-Z102-2-7619
Important Notes Environment Protection
3.6 Environment Protection
Environmentally-friendly product design and development
This product has been designed in accordance with the Fujitsu Siemens
Computers standard for “environmentally friendly product design and development”. This means that key factors such as durability, selection and labeling
of materials, emissions, packaging, ease of disassembly and recycling have
been taken into account.
This saves resources and thus reduces the harm done to the environment.
Notes on saving energy.
Devices that do not have to be switched on permanently should be switched off
until they are needed as well as during long breaks and after completion of work.
Notes on packaging
Please do not throw away the packaging. You may need it later for transporting
your system unit. If possible, the device should only be transported in its original
packaging.
Notes on dealing with consumables
Please dispose of printer consumables and batteries in accordance with local
government regulations.
Do not throw batteries or rechargeable batteries into the trash can. They must
be disposed of in accordance with local regulations concerning special waste.
Note on labeling plastic parts
Please avoid sticking your own labels on plastic parts wherever possible, since
this makes it difficult to recycle them.
A26361-K878-Z102-2-7619 19
Environment Protection Important Notes
Returning, recycling and disposal
For details on take-back and reuse of devices and consumables within Europe,
contact your Fujitsu Siemens Computers branch office/subsidiary or our
recycling center in Paderborn:
Fujitsu Siemens Computers
Recycling Center
D-33106 Paderborn
Tel. +49 5251 8180-10
Fax +49 5251 8180-15
20 A26361-K878-Z102-2-7619
4 Hardware Installation
V CAUTION!
Please note the safety instructions in chapter “Important Notes” on
page 11.
Do not expose the server to extreme environmental conditions (see
“Environmental conditions” on page 8). Protect it from dust, humidity, and
heat.
The HDD modules installed in the server may not be exposed to a
temperature shock (see section “Handling Hard Disk Drives/HDD
Modules” on page 48).
In order to avoid the formation of condensation inside or on the outside
of the hard disk drives the server must be acclimatized in its operating
environment for an acclimatization time (table 2).
Temperature difference (°C) Minimum acclimatization time
(hours)
53
10 5
15 7
20 8
25 9
30 10
Table 2: Acclimatization time
I The temperature difference in table 2 represents the difference between
the operating temperature and the external, transport or storage temperature.
A26361-K878-Z102-2-7619 21
Installation Steps Hardware Installation
4.1 Installation Steps
The following installation steps are described in detail in other sections of this
chapter:
Ê Unpacking the server (see next section “Unpacking the Server” on page 22).
Ê Mounting the server into the rack (see the layout arrangement created with
System-Architect on the order lists and section “Installing/Removing the
Server into/from the Rack” on page 23).
Ê Cabling the server. Please also refer to the Technical Manual for the corre-
sponding rack and the section “Instructions on Connecting and Disconnecting Cables” on page 38.
Ê Connect the server to the power supply (see section “Connecting the Server
to the Line Voltage” on page 37).
4.2 Unpacking the Server
V CAUTION!
Please note the safety instructions in chapter “Important Notes” on
page 11.
Do not unpack the server until it is at its installation location.
Ê Transport the server to the place where you want to set it up.
It is recommended not to throw away the original packaging material as it may
be required for transportation at a later date.
Ê Unpack all individual parts.
Ê Check the delivery for any damage during transport.
Ê Check whether the delivery agrees with the details on the delivery receipt.
The identification rating plate is located on the rear area on the server.
Notify your supplier immediately should you discover that the delivery does not
correspond to the delivery receipt.
I If the HDD modules are provided with a transport lock (see figure 21 on
page 50) remove these.
Keep the transport locks in case you want to transport the server again.
22 A26361-K878-Z102-2-7619
Hardware Installation Installing/Removing the Server into/from the Rac
k
4.3 Installing/Removing the Server into/from the Rack
V CAUTION!
●
Please note the safety instructions in
page 11 and in section “Notes on Installing in the Rack” on page 18.
● The rack can tip over when more than one slide-in module is pulled
out.
chapter “Important Notes” on
V CAUTION!
No cable management is available for the server!
Before removing the server from the rack, all cables connected on the
server must be unpluged from the sockets. Proceed as follows:
Ê Close all applications and shut down the operating system in a
orderly manner.
Ê Switch OFF the server.
Ê Unplug all cables from the server.
Ê Remove the server.
4.3.1 Requirements of the Rack
The rack systems of the Fujitsu Siemens Computers (PRIMECENTER Rack,
DataCenter Rack and 19-Inch (Classic) Rack) support fully the installation of the
PRIMERGY server systems. The installation into the at present usual rack
systems of different foreign manufacturers (3rd-Party Rack) is supported to
large part.
To accommodate the ventilation concept and ensure proper ventilation of the
components in the rack, any unused areas must be closed using dummy covers.
The power is supplied via the socket strips available in the rack.
The main features of the rack systems of the Fujitsu Siemens Computers are:
A26361-K878-Z102-2-7619 23
Installing/Removing the Server into/from the Rack Hardware Installation
PRIMECENTER Rack
– Frontally bolted telescopic rails.
The rails are provided with a linear alignment possibility to ensure also an
adjustment to different rack depths.
DataCenter Rack
– Frontally or laterally bolted telescopic rails (except within the rear left area
where a support angle is used).
Classic (19-Inch) Rack
– Laterally bolted telescopic rails.
The mounting of the rails in the different racks is described in the next sections.
To rack systems of different foreign manufacturers the following applies:
3rd-Party Rack
Certain boundary conditions are to be fulfilled:
– Installation dimensions (see the dimensions shown in figure 2 on page 26):
1 rack front side
2 rack rear side
A rack depth (comparison PRIMECENTER Rack 940/1000 mm)
B rack width (comparison PRIMECENTER Rack 700 mm)
C clearance of the 19-inch installation level
C1 front 19-inch installation level
C2 rear 19-inch installation level
D area for cable routing (cable area depth) and ventilation
E area for front panel and ventilation
F right and left area for support systems
P PRIMERGY installation depth
a1 front left support upright
a2 front right support upright
b1 rear left support upright
b2 rear right support upright
24 A26361-K878-Z102-2-7619
Hardware Installation Installing/Removing the Server into/from the Rac
k
– The operability of the safety mechanisms at the server e.g. stoppers or
holding back systems must be guaranteed.
– The form of the rack support uprights must ensure the frontal screwing on of
the rails.
– Frontally bolted telescopic rails or sliding rails.
The rails are provided with a linear alignment possibility to ensure also an
adjustment to different rack depths.
– Climatic conditions.
For the ventilation of the installed server a large extent unhindered air intake
in the rack front and air discharge in the rear cover of the rack are necessary.
In principle the ventilation concept plans that the necessary cooling is
reached by the horizontal self-ventilation of the installed devices (air flow
from the front to the rear).
– Power supply.
For the installation in 3rd-Party Racks it is to be made certain that appropriate socket strips are present.
A26361-K878-Z102-2-7619 25
Installing/Removing the Server into/from the Rack Hardware Installation
Figure 2: Mechanical conditions
26 A26361-K878-Z102-2-7619
Hardware Installation Installing/Removing the Server into/from the Rac
k
4.3.2 Necessary parts
For mounting the server into the appropriate rack the following parts are
available (figure 3 and/or figure 4):
– support bracket (a)
– one left and one right telescopic rail (a/b) (assembled)
– ten plugwashers (c)
a
b
c
Figure 3: Necessary parts for PRIMECENTER Rack and DataCenter Rack
a
Figure 4: Necessary parts for Classic (19-Inch) Rack
A26361-K878-Z102-2-7619 27
Installing/Removing the Server into/from the Rack Hardware Installation
4.3.3 Preparing the Server
1
Figure 5: Unlocking the telescopic bar
Ê Open one of the telescopic rails completely.
Ê Unlock the outermost telescopic bar by pushing the white lever (figure 5) in
the direction of the arrow (1) and pull the telescopic bar completely out from
the rail.
Ê Repeat the both steps with the second telescopic rail.
28 A26361-K878-Z102-2-7619
Hardware Installation Installing/Removing the Server into/from the Rac
k
4xM4
1
Figure 6: Screwing this part of the rail onto the server
Ê Place the u-shaped telescopic bars with the flat side on the left and/or on the
right on the server. Ensure that the white lever is placed in the direction of
the server front (1).
Ê Fasten the telescopic bars with 4 screws (M4) each, to the server (left and
right) (figure 6).
4.3.4 Mounting in the PRIMECENTER/DataCenter Rack
I General information are provided in the Technical Manual for the PRIME-
CENTER and/or DataCenter Rack (see “Related Publications” on
page 69).
Mounting the support bracket
When mounting the left telescopic rail in the PRIMECENTER/DataCenter Rack,
the supplied support bracket must first be mounted level with the device on the
rear left support upright.
I For better orientation the height units are marked on the support uprights
(PRIMECENTER Rack only).
Ê Place the support bracket at the appropriate height on the left rear support
upright by inserting the positioning nub (1 in figure 7 on page 30) in the
corresponding hole of the support upright.
A26361-K878-Z102-2-7619 29
Installing/Removing the Server into/from the Rack Hardware Installation
1
Figure 7: Mounting the support bracket
Ê Place the plugwashers in the holes of the support uprights and secure the
bracket with two screws.
Placing the plugwashers
To fasten the telescopic rails, no flange nuts are necessary since the rails are
equipped with threaded holes. For adjustment in each case two plugwashers
(position c in figure 8) must be pre-mounted at the support uprights and the
support bracket.
a
c
b
c
Figure 8: Placing the plugwashers
Ê Place the plugwashers (c) in the holes of the support uprights and of the
support bracket.
30 A26361-K878-Z102-2-7619
Hardware Installation Installing/Removing the Server into/from the Rac
k
3
2
2
Length adjustment of the rails
Figure 9: Performing adjustment
Ê Open the telescopic rails completely.
Ê Release the both adjustment screws (1).
Ê On the external side of the rails, there are two punched arrows. Set these
arrows (2) with the center of the adjustment screws (1) to coincide. In order
to reach this, push together or pull apart the telescopic rail (3).
Ê Fasten the adjustment screws (2).
Mounting the telescopic rails into the rack
2
1
Figure 10: Pushing together the telescopic rail
Ê Press in the safety spring (1) and push together the telescopic rails (2) in the
direction of the arrow.
A26361-K878-Z102-2-7619 31
Installing/Removing the Server into/from the Rack Hardware Installation
a
c
3
2xM5
c
b
2
2xM5
1
Figure 11: Mounting the left telescopic rail
Ê There is a small horizontal lead (1) between the securing holes on the rear
end of the left telescopic rail. Fit this lead in the corresponding hole of the
support bracket.
Ê Secure the telescopic rail on the frontal left support upright with two screws
M5 (2).
Ê Secure the telescopic rail on the support bracket with two screws M5 (3).
Ê Repeat the steps with the right telescopic rail (to be mounted on the right
support uprights).
Ê Mount the server (see section “Installing the Server” on page 34).
32 A26361-K878-Z102-2-7619
Hardware Installation Installing/Removing the Server into/from the Rac
k
4.3.5 Mounting into the Classic Rack
I General information are provided in the Technical Manual for the Classic
(19-inch) Rack (see also “Related Publications” on page 69).
Ê Mark the position of the attachment points for the telescopic rails and for the
server (front panel) on the support uprights.
Ê Place the spring nuts to fasten the telescopic rails in the groove of the
support uprights at the marked attachment points as described in the
Technical Manual for the Classic (19-inch) Rack.
Ê Adjust the position of the nuts in the groove until they lock into the correct
position.
2
1 x M 5
2
1 x M 5
1
Figure 12: Mounting the left telescopic rail into the Classic Rack
Ê There is a guide nub (1) at both ends of the telescopic rail. Fit this nubs into
the oblong holes of the support uprights next to the spring nuts.
Ê Using the supplied Allen key (No. 5) secure the telescopic rail with one screw
M5 each in the rack at the left front and rear support uprights.
A26361-K878-Z102-2-7619 33
Installing/Removing the Server into/from the Rack Hardware Installation
Ê Repeat the steps with the right telescopic rail (to be mounted on the right
support uprights).
Ê Mount the server (see section “Installing the Server” on page 34).
4.3.6 Installing the Server
Ê Pull out the mounted telescopic rails completely. The internal rails must click
into place so that you can no longer push them back.
Ê Insert the prepared server (see section “Preparing the Server” on page 28)
into the projecting telescopic rails until the telescopic bars click into place.
1
2
1
3
Figure 13: Fitting the Server in the Rack
Ê Pull the white lever of both telescopic bars (see also figure 5) in the direction
of the server front (1).
Ê Slide the server into the rack (2).
3
I After you have inserted the server, you should pull out the server
again completely and insert it again into the rack. Thus it is
guaranteed that the server runs cleanly in the telescopic rails.
Ê Fasten the server (front panel) using two knurled screws (3).
34 A26361-K878-Z102-2-7619
Hardware Installation Installing/Removing the Server into/from the Rac
k
The server is removed in the reverse order.
V CAUTION!
No cable management is available for the server!
Before removing the server from the rack, all cables connected on the
server must be unpluged from the sockets. Please note the instructions
in section “Installing/Removing the Server into/from the Rack” on
page 23.
4.3.7 Mounting in 3rd-Party Racks
For mounting the server in the 3rd-Party Rack the following parts are necessary:
– one left and one right telescopic rail (assembled)
– possibly ten plugwashers (figure 3 on page 27)
Ê Take the original manual of the rack manufacturer regarding the mechanical
installation and/or the climatic conditions to assistance.
V CAUTION!
With the installation in 3rd-Party Rack it is to be made certain that the
air flow is ensured from the front to the rear in the rack.
Ê Mount the necessary manufacturer original parts (like support bracket).
I Sometimes a number of parts of the delivered mounting kit cannot be
used because original parts of the 3rd-Party Rack are to be used.
Ê Mount the telescopic bars as described in section “Preparing the Server” on
page 28.
Ê Secure the telescopic rails into the rack as described in section “Mounting in
the PRIMECENTER/DataCenter Rack” on page 29.
Ê Mount the server (see section “Installing the Server” on page 34) and route
the cables as described in the original manual of the rack.
A26361-K878-Z102-2-7619 35
Connecting Devices to the Rack Model Hardware Installation
4.4 Connecting Devices to the Rack Model
The ports for external devices are on the rear of the server. You find an
additional USB port (position 10 in figure 14) on the front of the server. Which
additional ports are available on your server depends on the PCI boards
installed.
The standard ports (figure 14) are marked with symbols, and some are colorcoded:
1 Mouse (PS/2) (green) 6 Monitor port (VGA) (blue)
2 Keyboard port (PS/2) (purple) 7 LAN A (10/100/1000 MBps)
3 USB 1 8 LAN B (10/100/1000 MBps)
4 USB 2 9 Mains Connection
5 Serial port COM1 10 USB on the front
9
152634 78
10
Figure 14: Connections
36 A26361-K878-Z102-2-7619
Hardware Installation Connecting the Server to the Line Voltage
I Some of the devices that can be connected may require special drivers
(see the documentation for the connected device).
Ê Connect the desired devices to the server.
Connecting the keyboard, mouse and monitor (if desired)
Ê Connect the monitor, keyboard and mouse to the standard ports of the
server (see table and figure 14 on page 36).
Ê Connect the power cable of the monitor to the mains socket strip of the rack.
I The rated current for the monitor can be found on the technical data label
on the monitor or in the operating manual for the monitor.
4.5 Connecting the Server to the Line Voltage
The server has a fixed power supply unit.
V CAUTION!
The installed power supply unit automatically sets itself to a voltage in the
range of 100 V to 240 V. Make sure that your local voltage is within this
range.
1
Figure 15: Connecting the Server to the Line Voltage
Ê Connect the insulated connector of the power cable to the power supply unit
of the server (1), and the power plug into the mains socket strip of the rack
(see Technical Manual of the rack).
A26361-K878-Z102-2-7619 37
Connecting and Disconnecting Cables Hardware Installation
4.6 Instructions on Connecting and Disconnecting Cables
V CAUTION!
Be sure to read the documentation for the peripheral devices before
connecting them.
Do not connect or disconnect data cables during a thunderstorm.
When removing a cable, always hold it by the plug. Never unplug a cable
by pulling at the cable itself.
Connect and disconnect the cables in the order described below.
Connecting cables
Ê Turn off all power and equipment switches.
Ê Pull all power plugs out of the grounded power sockets.
Ê Plug all cables into the server and peripherals.
Ê Plug all data communication cables into the utility sockets.
Ê Plug all power cables into the grounded power sockets.
Disconnecting cables
Ê Turn off all power and equipment switches.
Ê Pull all power plugs out of the grounded power sockets.
Ê Unplug all data communication cables from the utility sockets.
Ê Disconnect the relevant cables from the server and all the peripherals.
38 A26361-K878-Z102-2-7619
5 Preparation for Use and
Operation
V CAUTION!
Please note the safety instructions in chapter “Important Notes” on
page 11.
5.1 Switching the Server ON and OFF
V CAUTION!
If after switching ON the server there is nothing but flickering stripes on
the screen, switch the server OFF immediately (see section “Flickering
Stripes on the Monitor Screen” on page 59).
The ON/OFF button does not disconnect the server from the mains. To
disconnect from the mains completely, remove the power plug.
Switching the server ON
– First system installation:
Ê Press the ON/OFF button (position 6 in figure 16 on page 42).
Power-on indicator (position 7 in figure 16 on page 42) lights green.
Ê Insert the ServerStart-CD and/or an installation disk in the corresponding
drive.
Ê Configure the server and install the operating system.
I Further information is provided in the section 5.2 on page 41. A
detailed description can be found in the „ServerStart Bundle“
manual.
– System already installed:
Ê Press the ON/OFF button (position 6 in figure 16 on page 42).
The server is switched on, performs a system test and boots the
operating system.
A26361-K878-Z102-2-7619 39
Switching the Server ON and OFF Preparation for Use and Operation
Switching the server OFF
Power-on indicator (position 7 in figure 16 on page 42) lights green.
Ê Shut down the operating system in an orderly manner.
Ê Press the ON/OFF button (position 6 in figure 16 on page 42) and/or send a
corresponding control signal (see “Other ON/OFF options” on page 40).
The server switches OFF and remains in standby mode.
Other ON/OFF options
In addition to the ON/OFF button, the server can be switched ON and OFF in
the following ways:
– Specified switch-on time/switch-off time
The server is switched ON or OFF at a time specified in the ServerView
program
– Ring indicator
The server is switched ON via an internal or external modem.
– Wake On LAN (WOL)
The server is switched on by a command via the LAN (Magic Package).
– After power failure
The server automatically reboots following a power failure (depending of the
settings in the BIOS).
– Power override function
The system can be switched OFF by longer pressing (approx. 4-5 sec.) the
ON/OFF button.
V CAUTION!
There is a risk that data may be lost.
40 A26361-K878-Z102-2-7619
Preparation for Use and Operation Configuring the Server
5.2 Configuring the Server and Installing the Operating System
This section contains information about configuring the server and installing the
operating system.
I Make sure that the energy saving functions are disabled in the BIOS Setup
(„D1570 Setup Utility for RX200“) during server operation.
5.2.1 Configuration with ServerStart
With the ServerStart-CD provided, you can configure the server and install the
operating system in a convenient manner.
The menu-guided configuration includes the server configuration with the SCU
and the RAID controller configuration with the GAM (Global Array Manager)
and/or Adaptec Storage Manager.
To find out how to operate ServerStart and for further information, refer to the
„ServerStart Bundle“ manual (see “Related Publications” on page 69).
5.2.2 Configuration without ServerStart
Configuring the PCI RAID controller
Configure the PCI RAID controller as described in the related documentation
(see “Related Publications” on page 69).
Installing the Operating System
Ê Insert the installation floppy disk and the CD for the operating system you
want to install into the corresponding drive.
Ê Reboot the server.
Ê Follow the instructions on the screen and in the manual for the operating
system.
I Please read how to install the desired operating system in the related
manual for the RAID controller.
A26361-K878-Z102-2-7619 41
Operating and Indicator Elements Preparation for Use and Operation
5.3 Operating and Indicator Elements
5.3.1 The Front
Figure 16 shows the operating and indicator elements on the front.
1 ID button 5 ON/OFF button
2 ID indicator 6 Power-on indicator
3 Global Error indicator 7 NMI button
4 Drive access indicator 8 Reset button
1
2
3
4
Figure 16: The front
42 A26361-K878-Z102-2-7619
5
6
7
8
Preparation for Use and Operation Operating and Indicator Elements
Operation elements
ON/OFF button
When the system is switched OFF, it can be switched ON again by
pressing the ON/OFF button. When the system is operating, pressing
the ON/OFF button will switch OFF the system.
I The ON/OFF button does not disconnect the server from the
mains. To disconnect from the mains completely, remove the
power plug.
NMI NMI button
V CAUTION!
Please do not press! Risk of losing data!
The NMI button may only be used by Service.
RST Reset button
Pressing the reset button reboots the system.
V CAUTION!
Risk of losing data!
ID ID button
Lights up (blue) on the front and on the rear of the server when the
ID button is pressed. The two ID indicators are synchronized.
Indicators on the control panel
Power-on indicator (dual color)
Lights orange when the server is switched OFF, but mains voltage is
present (standby mode).
Lights green when the server is switched ON.
Drive access indicator
An internal SCSI drive (HDD or backup drive) is being accessed.
A26361-K878-Z102-2-7619 43
Operating and Indicator Elements Preparation for Use and Operation
Global Error indicator (orange)
Does not light when the system is ok. No service incident or
!
ID ID indicator (blue)
Indicators on the drives
critical event has occurred.
Flashes orange when a critical event has occurred. Users can
check BIOS Setup, system- and eventlog or via ServerView for
event details. The indicator also flashes in standby mode.
Lights orange when a prefailure event has been recognized.
Users can check system- and eventlog or via ServerView for event
details. The indicator also lights in standby mode.
If the event is still acute after a power failure, the indicator is
activated after the restart.
Lights blue when the system has been selected by pressing the
ID button. To deactivate, press the button again.
The ID indicator can also be activated via ServerView and its status
reported to ServerView.
CD-ROM indicator
Lights green when the storage medium is being accessed.
Floppy disk drive indicator
Lights green when the storage medium is being accessed.
44 A26361-K878-Z102-2-7619
Preparation for Use and Operation Operating and Indicator Elements
Hard disk drive control indicators
HDD Access
HDD Fault
Figure 17: HDD module: indicators
LED
green
HDD access
– lights: HDD in active phase
– does not light: HDD inactive
LED
orange
HDD FAULT (in conjunction with a RAID controller)
– does not light: No HDD Error
– lights: HDD Faulty or Rebuild Stopped (drive defective/needs
replacing, a rebuild process was stopped or the HDD module is not
correctly inserted)
– slow blink: HDD Rebuild (the data is restored by the RAID controller
after changing a hard disk drive)
– fast blink: HDD Identify
– four fast blinks/pause: HDD Predicted Fault
– two fast blinks/pause: HDD Hot Spare (Hot spare drive active. The
corresponding drive has failed).
A26361-K878-Z102-2-7619 45
Operating and Indicator Elements Preparation for Use and Operation
5.3.2 The Rear Side
Indicators on the connection panel
112234
Figure 18: Connection panel: indicators
1 LAN active indicator (green)
Flashes green when a LAN transfer occurs.
Does not light if there is no LAN connection available.
Lights if there is LAN connection available.
2 LAN connection indicator (dual color)
Lights amber for a LAN transfer rate of 1 Gbps.
Lights green for a LAN transfer rate of 100 Mbps.
Does not light for a LAN transfer rate of 10 Mbps or if there is no LAN
connection available.
3 Global Error indicator (orange)
Does not light when the system is ok. No service incident or critical event
has occurred.
Flashes orange when a critical event has occurred. Users can check
BIOS Setup, system- and eventlog or via ServerView for event details. The
indicator also flashes in standby mode.
Lights orange when a prefailure event has been recognized. Users can
check system- and eventlog or via ServerView for event details. The
indicator also lights in standby mode.
If the event is still acute after a power failure, the indicator is activated
after the restart.
46 A26361-K878-Z102-2-7619
Preparation for Use and Operation Hot-Swap HDD Modules
4 ID indicator (blue)
Lights blue when the system has been selected by pressing the ID
button. To deactivate, press the button again.
The ID indicator on the front also lights up at the same time. The two ID
indicators are synchronized.
The ID indicator can also be activated via ServerView and its status
reported to ServerView.
5.4 Hot-Swap HDD Modules
Up to three U160-SCSI hard disk drives can be installed in the PRIMERGY
RX200 server.
The hard disk drives are built on a carrier which allows defective drives to be
replaced (hot-swap) or new drives to be added during operation. The hard disk
drive and the carrier constitute the hard disk drive module (HDD module).
The hot-swap function can only be performed if the RAID is configured appropriately.
A hard disk drive may only be replaced if it is inactive (see description of the
LEDs under “Hard disk drive control indicators” on page 45).
The hot swap procedure increases the availability of the system operation and
guarantees a high degree of data integrity and fail-safe performance.
A26361-K878-Z102-2-7619 47
Hot-Swap HDD Modules Preparation for Use and Operation
5.4.1 Handling Hard Disk Drives/HDD Modules
Hard disk drives incorporated in the HDD modules are highly sensitive electromagnetic devices and must be handled with great care. It is extremely likely that
incorrect handling will lead to partial and/or total failure of the hard disk drives.
These failures will result in data errors and to loss of data or to total corruption
of the hard disk drive.
Please observe the following rules, which will help avoid such problems
occurring:
● Store and transport HDD modules only within the limits stipulated in the
specification.
● When transporting HDD modules (even over short distances), always use
the original packaging (ESD labeling).
● Never expose a HDD module to a temperature shock. Avoid the formation of
condensation inside and on the outside of the hard disk drive. The hard disk
drives may only be exposed to defined temperature and climatic conditions.
● Always put the HDD module down carefully, with its largest surface facing
downwards, to avoid the danger of tipping over.
5.4.2 Installing/Removing HDD/Dummy Module
V CAUTION!
Under no circumstances should you remove a HDD module while the
system is in operation if you are not sure that the hard disk drive is
operated by a RAID controller and belongs to a disk array that is
operating in RAID level 1,5 or 10.
V CAUTION!
The HDD modules must be marked clearly so that they can be put back
into their original place after an upgrade. If this is not taken into account,
existing data can be destroyed.
The hard disk drives which can be ordered for the PRIMERGY RX200 are
delivered as HDD modules which include the hard disk drive preinstalled in a
carrier. The hard disk drive may only be removed from the carrier by personnel
with the appropriate technical training in compliance with the appropriate ESD
guidelines (see section “Modules with electrostatic-sensitive components” on
page 16).
48 A26361-K878-Z102-2-7619
Preparation for Use and Operation Hot-Swap HDD Modules
Removing the dummy module
Free slots are provided with a dummy module that must be removed before
installing an additional HDD module.

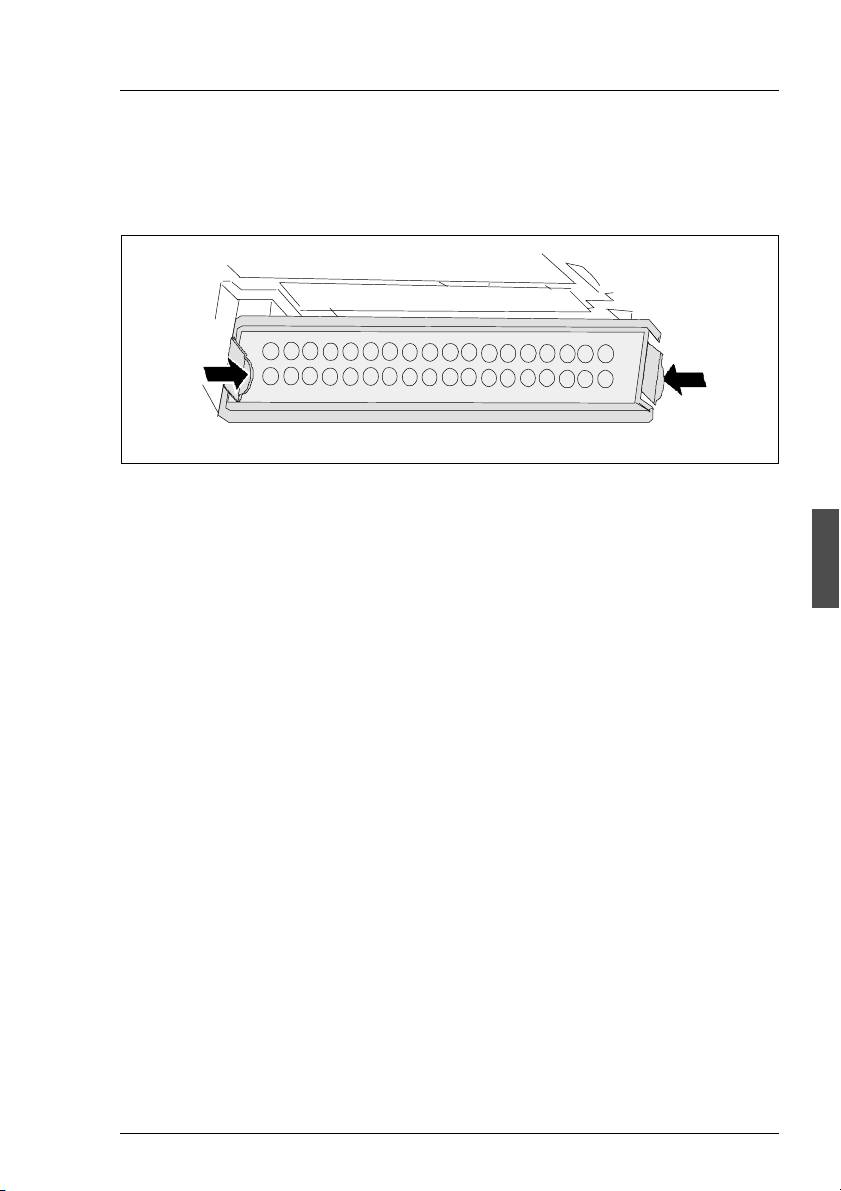

Figure 19: Unlocking dummy module
Ê Press both tabs on the dummy module together (see figure 19 on page 49)
until the locking mechanism disengages and remove the dummy module
from the mounting location.
The dummy module is installed in the reverse order.
V CAUTION!
Keep the dummy module for future use. If the HDD module is removed
again and not replaced with a new module, the dummy module must be
reinstalled due to cooling, to comply with applicable EMC regulations
(regulations on electromagnetic compatibility) and to protect against fire.
A26361-K878-Z102-2-7619 49
Hot-Swap HDD Modules Preparation for Use and Operation
Unlocking HDD module
Figure 20: Unlocking HDD module
Ê Open the locking mechanism by pressing the locking button (1).
Ê Push the handle of the HDD module fully in the direction of the arrow.
I If the HDD modules are provided with a transport lock (1 in the next
figure) remove these before you open the locking mechanism.
Figure 21: HDD module: removing the transport lock
50 A26361-K878-Z102-2-7619
Preparation for Use and Operation Hot-Swap HDD Modules
Installing the HDD module
V CAUTION!
The HDD module must be acclimatized in its operating environment for
an acclimatization time.
Temperature difference (°C)
(operating environment/outside)
53
10 5
15 7
20 8
25 9
30 10
Table 3: Acclimatization time for HDD module
Minimum acclimatization time
(hours)
Figure 22: Installing the HDD module
A26361-K878-Z102-2-7619 51
Hot-Swap HDD Modules Preparation for Use and Operation
Ê Carefully push the HDD module into the empty location (1) until it stops.
Ê Push the handle completely in the direction of the arrow (2) until the locking
mechanism engages.
Removing the HDD module
V CAUTION!
The hot-swap function can only be performed if the RAID is configured
appropriately.
Only remove a HDD module during operation if the drive is not being
accessed. Observe the control LEDs for the corresponding HDD module
(see Hard disk drive control indicators
If you want to replace a HDD module during operation, proceed as follows:
Ê If you want to remove a HDD module that is not defective, the drive must be
first set to offline via the software (RAID controller configuration software).
Ê Now pull out the HDD module a few centimeters.
Ê Wait for at least 60 seconds.
in table on page
page 45).
I This period is necessary for the RAID controller to recognize that a
HDD module has been pulled out and for the hard disk drive to come
to a stop.
Ê Pull out the HDD module fully.
Ê Insert the new HDD module.
If you remove a HDD module and do not replace it with a new module, insert a
dummy module into the empty mounting location. Ensure that the dummy
module engages correctly in the mounting location.
52 A26361-K878-Z102-2-7619
Preparation for Use and Operation Cleaning the Server
5.5 Cleaning the Server
V CAUTION!
Switch the server off and pull the power plug out of the groundedcontact power socket.
Do not clean any interior parts yourself; leave this job to a service
technician.
Do not use any cleaning agents that contain abrasives or may corrode
plastic.
Ensure that no liquid enters the system. Ensure that the ventilation areas
of the server and the monitor are clear.
Clean the keyboard and the mouse with a disinfecting cloth.
Wipe the server and monitor casing with a dry cloth. If particularly dirty, use a
cloth that has been moistened in a mild domestic detergent and then carefully
wrung out.
A26361-K878-Z102-2-7619 53
6 Property and Data Protection
The server is protected against unauthorized access with the lockable rack
door.
To protect your system and data internally against unauthorized access, you
can use the „D1570 Setup Utility for Rx200“ security functions.
6.1 BIOS Setup Security Functions
The Security menu in „D1570 Setup Utility for Rx200“ offers you various options
for protecting your data from unauthorized access. By combining these options
you can achieve optimum protection for your system.
I You will find a detailed description of the Security menu and how to assign
passwords in the manual „D1570 Setup Utility for Rx200“ on the Server-
Books CD (see “Related Publications” on page 69).
Preventing unauthorized BIOS Setup calls
You can activate this protection by entering a supervisor password in the
Security menu.
Preventing unauthorized system access
You can activate this protection by entering a user password in the Security
menu.
A26361-K878-Z102-2-7619 55
7 Troubleshooting and Tips
V CAUTION!
Observe the safety information in the „Security and Ergonomics“
manual and in chapter “Important Notes” on page 11.
If a problem occurs, try to resolve it as described:
– in this chapter,
– in the documentation for the attached devices,
– in the help systems of the software used.
If you fail to correct the problem, proceed as follows:
Ê Make a list of the steps and the circumstances that led to the fault. Also make
a list of any error messages that were displayed.
Ê Switch off the server.
Ê Contact our customer service team.
7.1 Power-ON Indicator Remains Dark
The power-ON indicator remains dark after you switch on your device.
Power cord incorrectly connected
Ê Make sure that the power cable is correctly connected to the server and to
the grounded socket.
Power supply overloaded
Ê Pull the server power plug out of the power socket.
Ê Wait a few seconds before you plug it into the grounded socket again.
Ê Switch on your server.
A26361-K878-Z102-2-7619 57
The Server Switches itself OFF Troubleshooting and Tips
7.2 The Server Switches itself OFF
Server management has detected an error
Ê Check the error list or the ErrorLog file in the ServerView program, and
attempt to eliminate the error.
7.3 Screen Remains Blank
Monitor is switched off
Ê Switch on your monitor.
Screen has gone blank
Ê Press any key on the keyboard.
or
Ê Deactivate screen blanking (screen saver). Enter the appropriate password.
Brightness control is set to dark
Ê Set the brightness control on the monitor to light. For detailed information,
please refer to the Operating Manual supplied with your monitor.
Power cable or monitor cable not connected
Ê Switch off the monitor and the server.
Ê Check whether the power cable is properly connected to the monitor and to
the grounded socket.
Ê Check whether the monitor cable is properly connected to the server and
monitor (if it is plugged in with a connector). If a separate graphics card is
installed in the server, then the monitor cable must be connected to the
graphics card.
Ê Switch on the monitor and the server.
58 A26361-K878-Z102-2-7619
Troubleshooting and Tips Flickering Stripes on the Monitor Screen
7.4 Flickering Stripes on the Monitor Screen
V CAUTION!
Switch off the server immediately. Risk of material damage.
Monitor does not support the set horizontal frequency
Ê Find out which horizontal frequency your monitor screen supports. You will
find the horizontal frequency (also known as line frequency or horizontal
deflection frequency) in the documentation for your monitor.
Ê Refer to the documentation for your operating system or corresponding
software for the screen controller for how to set the correct horizontal
frequency for your monitor, and follow the procedure accordingly.
7.5 No Screen Display or the Display Drifts
The wrong horizontal frequency or resolution has been selected for the
monitor or for the application program.
Ê Find out which horizontal frequency your monitor screen supports. You will
find the horizontal frequency (also known as line frequency or horizontal
deflection frequency) in the documentation for your monitor.
Ê Refer to the documentation for your operating system or corresponding
software for the screen controller for how to set the correct horizontal
frequency for your monitor, and follow the procedure accordingly.
7.6 No Mouse Pointer Displayed on Screen
Mouse driver not loaded
Ê Check whether the mouse driver is properly installed and is present when
the application program is started. Detailed information can be found in the
user manuals for the mouse, the operating system or the application
program.
A26361-K878-Z102-2-7619 59
Floppy Disk Cannot be Read and/or Written Troubleshooting and Tips
Mouse controller disabled
The mouse controller on the system board must be enabled if you use the
supplied mouse.
Ê Check in the „D1570 Setup Utility for Rx200“ that the mouse controller is
Enabled.
7.7 Floppy Disk Cannot be Read and/or Written
Ê Check whether the write protection for the floppy disk is activated.
Ê Check the entry for the floppy disk drive in „D1570 Setup Utility for Rx200“.
7.8 Incorrect Time and/or Date
Ê Set the time and/or date in the operating system or in „D1570 Setup Utility
for Rx200“.
I If the time and date are repeatedly wrong when you switch on your
server, you must change the lithium battery. Contact our Service group.
7.9 System Will Not Boot
The system will not boot after installing a new hard disk drive.
Incorrect SCSI configuration (Ultra Wide SCSI Controller)
Ê In the SCSI configuration menu check the settings for the hard disk drives
(SCSI Device Configuration) and the settings under Advanced Configuration
Options.
60 A26361-K878-Z102-2-7619
Troubleshooting and Tips Drives Are Reported as „Dead“
7.10 Drives Are Reported as „Dead“
This error message may occur by an incorrect configuration of the RAID
controller.
RAID controller configuration incorrect
Ê Check and correct the settings for the drives with the RAID controller utility.
Further information is provided in the manual on the RAID controller.
7.11 Added Drive Reported Defective
This error message may occur by an incorrect configuration of the RAID
controller.
RAID controller is not configured for this hard disk drive
The drive was probably installed when the system was switched off.
Ê Reconfigure the RAID controller for the drive with the corresponding utility.
Further information is provided in the manual on the RAID controller.
or
Ê Remove and reinstall the drive while the system is switched ON.
If the drive continues to be shown as defective, then replace it.
7.12 Error Messages on the Screen
The meanings of the error messages are explained in the „D1570 Setup Utility
for Rx200“ and in the documentation for the relevant components and programs
on the PRIMERGY ServerBooks CD.
A26361-K878-Z102-2-7619 61
Abbreviation
AC
Alternating Current
ANSI
American National Standard Institut
ASR&R
Automatic Server Reconfiguration and Restart
BIOS
Basic Input-Output System
BMC
Baseboard Management Controller
CC
Cache Coherency
CD
Compact Disk
CD-ROM
Compact Disk-Read Only Memory
CHS
Cylinder Head Sector
CMOS
Complementary Metal Oxide Semiconductor
COM
Communication
CPU
Central Processing Unit
DC
Direct Current
A26361-K878-Z102-2-7619 63
DIMM
Dual Inline Memory Module
DIP
Dual Inline Package
DMA
Direct Memory Access
DMI
Desktop Management Interface
ECC
Errror Checking and Correcting
ECP
Extended Capabilities Port
EEPROM
Electrically Erasable Programmable Read-Only Memory
EMC
ElectroMagnetic Compatibility)
EMP
Emergency Management Port
EPP
Enhanced Parallel Port
ESD
ElectroStatic Discharge
FPC
Front Panel Controller
FRU
Field Replaceable Unit
FSB
Front Side Bus
64 A26361-K878-Z102-2-7619
GAM
Global Array Manager
GUI
Graphical User Interface
HDD
Hard Disk Drive
HSC
Hot-Swap Controller
I²C
Inter-Integrated Circuit
I/O
Input/Output
ICM
Intelligent Chassis Management
ID
Identification
IDE
Intergrated Drive Electronics
IRQ
Interrupt Request Line
LAN
Local Area Network
LBA
Logical Block Address
LCD
Liquid Crystal Display
LUN
Logical Unit Number
A26361-K878-Z102-2-7619 65
LV D
Low-Voltage Differential SCSI
MMF
Multi Mode Faser
MRL
Manually Retention Latch
NMI
Non Maskable Interrupt
NVRAM
Non Volatile Random Access Memory
OS
Operating System
PCI
Peripheral Component Interconnect
PDA
Prefailure Detection and Analysing
POST
Power ON Self Test
RAID
Redundant Arrays of Independent Disks
RAM
Random Access Memory
ROM
Read-Only Memory
RSB
Remote Service Board
RTC
Real Time Clock
66 A26361-K878-Z102-2-7619
RTDS
Remote Test- und Diagnose-System
SAF-TE
SCSI Accessed Fault-Tolerance Enclosures
SBE
Single Bit Error
SCA
Single Connector Attachment
SCSI
Small Computer System Interface
SDR
Sensor Data Record
SDRAM
Synchronous Dynamic Random Access Memory
SEL
System Event Log
SMI
System Management Interrupt
SSU
System Setup Utility
SVGA
Super Video Graphics Adapter
USB
Universal Serial Bus
VGA
Video Graphics Adapter
ZCR
Zero Channel RAID
A26361-K878-Z102-2-7619 67
Related Publications
PRIMERGY manuals are available as PDF file on the ServerBooks CD. The
ServerBooks CD is part of the ServerStart Bundle delivered with each server
system.
The actual version of the necessary manuals can be downloaded free of charge
from the Internet. The overview page showing the online documentation
available in the Internet can be found via the URL:
http://manuals.fujitsu-siemens.com (choose: intel based servers/PRIMERGY
ServerBooks).
[1] Safety and Ergonomics
[2] Warranty
[3] PRIMECENTER Rack
Technical Manual
[4] DataCenter Rack
Technical Manual
[5] 19-Inch Rack
Technical Manual
[6] LocalView
User Manual
[7] PRIMERGY ServerStart Bundle
User’s Guide
[8] ServerView
Server Management
User Manual
[9] RemoteView
User Manual
[10] RemoteView Service Board
Installation Guide
[11] AcceleRAID 160 PCI to Ultra 160 SCSI RAID Controller
Quick Installation Guide
[12] AcceleRAID 160 PCI to Ultra 160 SCSI RAID Controller
Installation Guide
[13] System Board D1570
Technical Manual
[14] D1570 Setup Utiliy for RX200
Reference Manual
A26361-K878-Z102-2-7619 69
Index
3rd-Party Rack
installing in 35
requirements 24
A
accessible drives
CD-ROM 3
DVD-ROM 3
floppy disk drive 3
acclimatization time 51
server 21
additional information sources 2
ASR&R 4
availability 4
B
BIOS
security functions 55
BIOS update 5
C
cables
connecting 38
disconnecting 38
cage nut 33
CD-ROM
slim-line 3
CD-ROM indicator 44
CE certification 7, 17
Chipkill 4
Class A Compliance Statement 17
Classic Rack
requirements 24
cleaning
monitor, mouse, server, keyboard
53
components
hardware/software 1
configuring
server 5, 41
connecting
cables 38
external devices 38
connections
mains 36
consumables 19
control panel 42
correcting error 57
D
data manipulation 1
data protection 55
DataCenter Rack
requirements 24
delivery note 9, 22
devices
connecting to the server 36
disconnecting
cables 38
disposal
devices 20
drive
"dead" 61
defective 61
drive access
indicator 42, 43
dummy module
HDD module 49
DVD-ROM
slim-line 3
E
ECC 4
EDC 4
electrical data 7
electromagnetic compatibility 7, 17
EMC 7
EMC regulations 49
Environment Protection 19
environmental conditions 8
A26361-K878-Z102-2-7619 71
Index
error
display drifts 59
drive "dead" 61
drive defective 61
floppy disk
cannot be read or written 60
no mouse pointer 59
power-on indicator
does not light 57
screen remains dark 58
screen shows flickering stripes 59
server switches off 58
system does not boot 60
wrong date 60
wrong time 60
Error Correcting Code 4
Error Detection and Correction 4
error message
on screen 61
ESD (devices sensitive to electrostatic
discharge) 16
ESD-sensitive devices 16
external devices
connecting 38
F
fault
display drifts 59
screen dark 59
screen shows flickering stripes 59
system does not boot 60
FCC statement 17
features 3
flash EPROM 5
floppy disk
cannot be read or written 60
floppy disk drive
slim-line 3
Floppy disk drive indicator 44
G
GAM 41
Global Array Manager (GAM) 41
Global Error
indicator 42, 44, 46
graphics card 37
H
hard disk drive 3
carrier 47
handling 48
HDD module 47
hot-swap 47
indicator 44, 45
online replacing 52
hard disk drive module
hot-swap 4
HDD module
acclimatization time 21, 51
carrier 48
dummy module 47
handling 47
hard disk drive 48
hot-swap 4, 52
installing/removing 48
height units 33
hot-swap
HDD module 47, 52
power supply unit 37
I
ID
indicator 42, 44, 47
ID button 42, 43
indicator
hard disk drive 45
indicators
Global Error 42, 44, 46
HDD Access 42, 43
ID 42, 44, 47
LAN active 46
LAN connection 46
on the server 42
power-on indicator 42
installation
server 22
system architect 22
72 A26361-K878-Z102-2-7619
Index
installing
server 23
installing in
3rd-Party Rack 35
PRIMECENTER Rack 29
L
LAN active
indicator 46
LAN connection
indicator 46
light-emitting diode (LED) 15
lithium battery 15
LocalView 3
low-voltage directive 7, 17
M
mains voltage
connecting the server 37
meaning
of the symbols 6
Memory Scrubbing 4
model rating plate 22
monitor
display drifts 59
mounting kit
server 27
mouse
no mouse pointer
on the screen 59
N
NMI button 42, 43
noise level 8
notational conventions 6
note about the laser 15
O
ON/OFF button 42, 43
operating system
installing 41
operation 39
operation elements 42
overloading 4
P
packaging 19, 22
PDA 4
plugwasher
telescopic rail 30
ports 36
keyboard port 36
LAN 36
monitor port 36
mouse 36
serial port (COM1) 36
USB 4, 36
power supply
redundant 37
power supply unit
hot-swap 37
redundant 37
power-on indicator 43
does not light 57
PRIMECENTER Rack
installing in 29
requirements 24
PRIMERGY 5
property protection 55
R
rack
requirements 23
RAID controller
configuring 41
not configured
for hard disk drive 61
RAID level 4
recycling
devices 20
reliability 4
RemoteView 5, 6
removing
server 23
requirements
3rd-Party Rack 24
Classic Rack 24
DataCenter Rack 24
PRIMECENTER Rack 24
A26361-K878-Z102-2-7619 73
Index
reset button 42, 43
routing cables 32
S
safety 11
saving energy 19
screen
error message 61
flickering 59
no display on screen 59
remains dark 58
screen dark 59
shows flickering stripes 59
security functions 1
setup password 55
system password 55
server
acclimatization time 21
configuring 41
connecting external devices 36
connecting mains voltage 37
control panel 42
correcting error 57
data protection 55
dimensions 8
electrical data 7
environmental conditions 8
fitting in the rack 23
height units 33
ID button 42, 43
indicators 42
installing 23
keyboard port 36
LAN 36
mains connection 36
monitor port 36
mounting kit 27
mouse port 36
NMI button 42, 43
noise level 8
ON/OFF button 42, 43
operation 39
ports 36
power-on indicator 43
property protection 55
removing 23
reset button 42, 43
routing cables 32
safety standards 7
serial port (COM1) 36
standards 7
startup 39
switches itself off (error) 58
switching OFF 39
switching ON 39
technical data 7
transport 18
troubleshooting 57
unpacking 22
USB 36
ventilation clearance 8
weight 8
server management 4
ServerStart 5, 41
ServerView 4
supported functions 4
setup password 55
standards 7
startup
server 39
sticker 19
support bracket 29
switching OFF
server 39
switching ON
server 39
switch-OFF time
define 40
switch-ON time
define 40
system architect 22
system board 3
system does not boot 60
system password 55
74 A26361-K878-Z102-2-7619
T
take-back
devices 20
technical data 7
telescopic rail 33
plugwasher 30
transport damage 9, 22
troubleshooting, server 57
U
unpacking
server 22
USB port 4
V
ventilation clearance 8
W
weight 8
weight 8
Index
A26361-K878-Z102-2-7619 75
Fujitsu Siemens Computers GmbH
User Documentation
81730 München
Germany
Fax: (++49) 700 / 372 00000
email: manuals@fujitsu-siemens.com
http://manuals.fujitsu-siemens.com
Submitted by
Comments
Suggestions
Corrections
Comments on PRIMERGY RX200
Server System
✁
A26361-K878-Z102-2-7619
Fujitsu Siemens Computers GmbH
User Documentation
81730 München
Germany
Fax: (++49) 700 / 372 00000
email: manuals@fujitsu-siemens.com
http://manuals.fujitsu-siemens.com
Submitted by
Comments
Suggestions
Corrections
Comments on PRIMERGY RX200
Server System
✁
A26361-K878-Z102-2-7619
80 A26361-K878-Z102-2-7619
Information on this document
On April 1, 2009, Fujitsu became the sole owner of Fujitsu Siemens Computers. This new subsidiary of Fujitsu has been renamed Fujitsu Technology Solutions.
This document from the document archive refers to a product version which
was released a considerable time ago or which is no longer marketed.
Please note that all company references and copyrights in this document have
been legally transferred to Fujitsu Technology Solutions.
Contact and support addresses will now be offered by Fujitsu Technology Solutions and have the format …@ts.fujitsu.com.
The Internet pages of Fujitsu Technology Solutions are available at
http://ts.fujitsu.com/...
and the user documentation at http://manuals.ts.fu jitsu.com.
Copyright Fujitsu Technology Solutions, 2009
Hinweise zum vorliegenden Dokument
Zum 1. April 2009 ist Fujitsu Siemens Computers in den alleinigen Besitz von
Fujitsu übergegangen. Diese neue Tochtergesellschaft von Fujitsu trägt seitdem den Namen Fujitsu Technology Solutions.
Das vorliegende Dokument aus dem Dokumentenarchiv bezieht sich auf eine
bereits vor längerer Zeit freigegebene oder nicht mehr im Vertrieb befindliche
Produktversion.
Bitte beachten Sie, dass alle Firmenbezüge und Copyrights im vorliegenden
Dokument rechtlich auf Fujitsu Technology Solutions übergegangen sind.
Kontakt- und Supportadressen werden nun von Fujitsu Technology Solutions
angeboten und haben die Form …@ts.fujitsu.com.
Die Internetseiten von Fujitsu Technology Solutions finden Sie unter
http://de.ts.fujitsu.com/..., und unter http://manuals.ts.fujitsu.com finden Sie die
Benutzerdokumentation.
Copyright Fujitsu Technology Solutions, 2009
Loading...
