Prime IM-PT320 User Manual

Ver. 1.0 / 2011.07

User’s Manual

All-in-One Camera

Full-HD IP PTZ Outdoor

Safety Information



This symbol indicates that dangerous voltage
consisting a risk of electric shock is present within
this unit.

Warning Precaution

This exclamation point symbol is intended to alert the
user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

:

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

To prevent damage which may result in fire or electric shock
hazard, do not expose this appliance to rain or moisture.

Be sure to use only the standard adapter that is specified in
the specification sheet. Using any other adapter could cause
fire, electrical shock, or damage to the product.

Incorrectly connecting the power supply or replacing battery
may cause explosion, fire, electric shock, or damage to the
product.

Do not connect multiple cameras to a single adapter.
Exceeding the capacity may cause abnormal heat generation
or fire.

Securely plug the power cord into the power receptacle.
Insecure connection may cause fire.

When installing the camera, fasten it securely and firmly.
A falling camera may cause personal injury.

Do not place conductive objects (e.g. screw drivers, coins,
metal things, etc.) or containers filled with water on top of
the camera. Doing so may cause personal injury due to fire,
electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations.
Doing so may cause fire or electric shock.

If any unusual smells or smoke come from the unit, stop
using the product. In such case, immediately disconnect the
power sorce and contact the service center. Continued use
in such a condition may cause fire or electric shock.

If this product fails to operate normally, contact the nearest
service center. Never disassemble or modify this product in
any way.

When cleaning, do not spray water directly onto parts of the
product. Doing so may cause fire or electric shock.

WARNING

WARNING

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

Precautions

Operating

t Before using, make sure power supply and others are

properly connected.

t While operating, if any abnormal condition or malfunction

is observed, stop using the camera immediately and then

t contact your Special dealer.

Handling

tDo not disassemble or tamper with parts inside the camera.

tDo not drop or subject the camera to shock and vibration as

this can damage camera.

tCare must be taken when you clean the clear dome cover.

Especially, scratch and dust will ruin your quality of camera.

Installation and Storage

tDo not install the camera in areas of extreme temperature,

which exceed the allowable range.

tAvoid installing in humid or dusty places.
tAvoid installing in places where radiation is present.
tAvoid installing in places where there are strong magnetic

elds and electric signals.

tAvoid installing in places where the camera would be subject

to strong vibrations.

tNever expose the camera to rain and water.



Important Safety Instructions

1. Read these instructions. - All these safety and operating instructions should be read before the product is operated.

2. Keep these instructions. - The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use instructions should be followed.

5. Do not use this apparatus near water. - For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a

wet basement; near a swimming pool; etc.

6. Clean only with dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Slots and

openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protect it
from over-heating. The openings should never be blocked by placing the product on bed, sofa, rug or other similar
surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided and the manufacturer’s unstructions have been adhere to.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including ampliers)

that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid
injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.



Disposal of Your Old Appliance

1. When this crossed-out wheel bin symbol is attached to a product it mean the product is covered by
the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately form the municipal waste
stream via designated by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for
the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city oce,
waste disposal service or the shop where you purchased the product.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interferenece at his own expense.

Contents



6
7

8
10
15
17
18

19
20
21
22
23
24
25
26

27
28
29
30
31
32
33
34
35

36

39
40
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

63

64
65
66
68

69
70
71

Product & Accessories
Part Name & Functions

DIP Switch Setup
Installation Using Wall/Ceiling Mount Bracket
Cabling
Cabling the Audio Cable
Inserting/Removing an SD Memory Card

Quick Start of Network Connection
Initial Setup via a Crossover Cable
DDNS Registration
Guide to Network Environment
Setup Case A, B
Setup Case C, D
Port Forwarding
Starting IP Speed Dome

Basic Screen
PTZ Control
Etc. Control
Auto-map
Auto-map > Preset
Auto-map > Pattern
Auto-map > Scan
Auto-map > Group
Viewer Interface

Camera Setup

Setup Screen
Video Setup
Audio Setup
TCP/IP Setup
DDNS Setup
HTTPS
SNMP
Status
Alarm Input 1 Setup
Alarm Input 2 Setup
Motion Detection Setup
Schedule Setup
Auto Tracking Setup
Transfer Setup
FTP Setup
SMTP Setup
SD CARD Setup
Users Setup
Date/Time Setup
Firmware Update
Default Set
Restart
Log

Search

A : Current TCP/IP Settings
B : Changing IP address and subnet mask
C : Port Forwarding
FAQ

Dimension
Specification
Network Specification

1. Introduction

2. Installation

8. Appendix

9. Specifications

7. SD Card Search

3. Network Setup

4. Web Viewer Screen

5. Camera Setup

6. Setup



Product & Accessories

Introduction -

1

Wall Mount Type

Ceiling Mount Type

Housing Safety

Cable Hanger

Water Proof Tape

Hole Template

Hexagonal Wrench

Manual CD

Anchor Bolt(4pcs)

Safety Wire

102.0

142.0

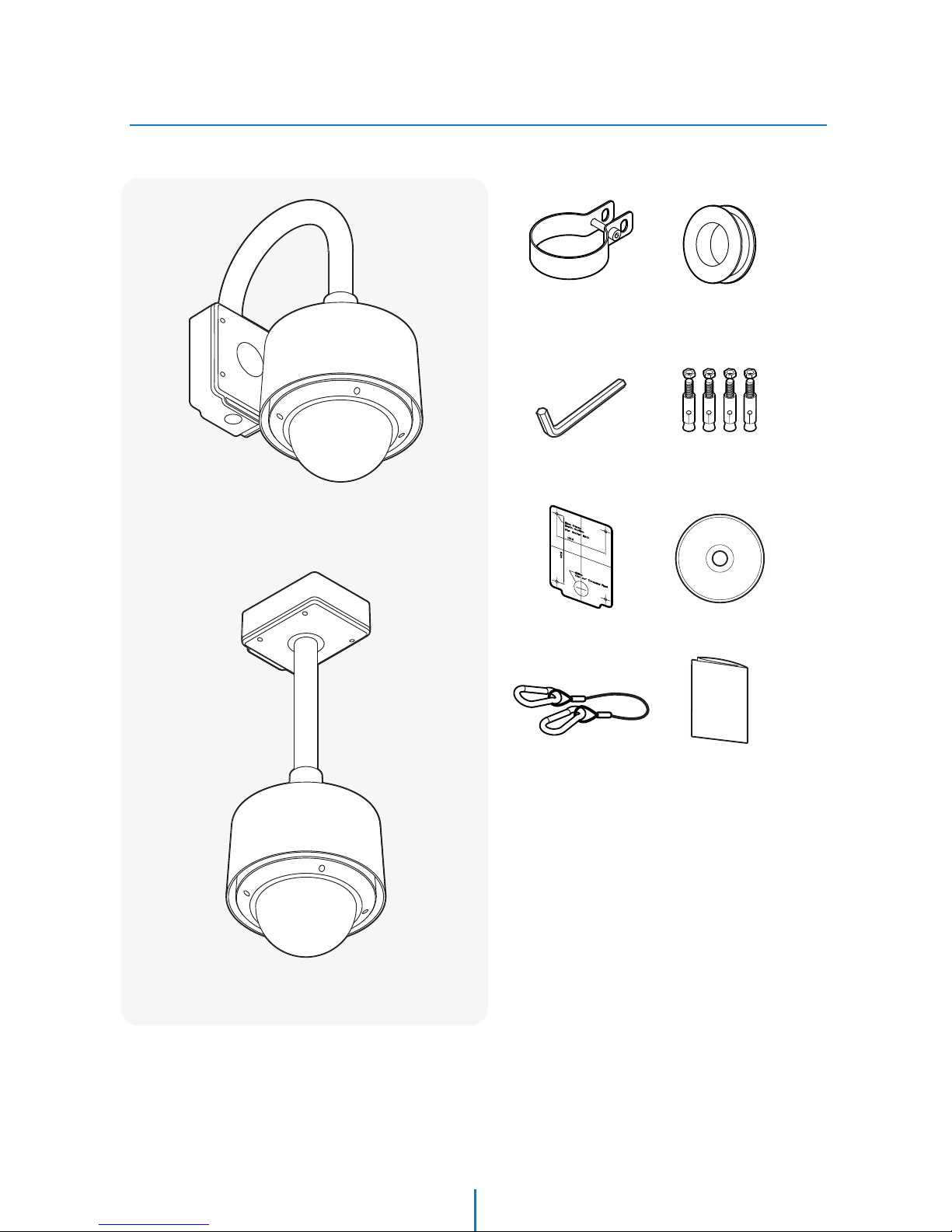

Product Accessories

Quick Manual



Part Name & Functions_Outside

Introduction -

1

1

Wall Mount Bracket

1

2

2

5

3

3

4

5

Wall/Ceiling Mount Bracket

These are used to install the camera on the wall or ceiling
and have junction box. The junction box of the bracket
accommodate inner box.

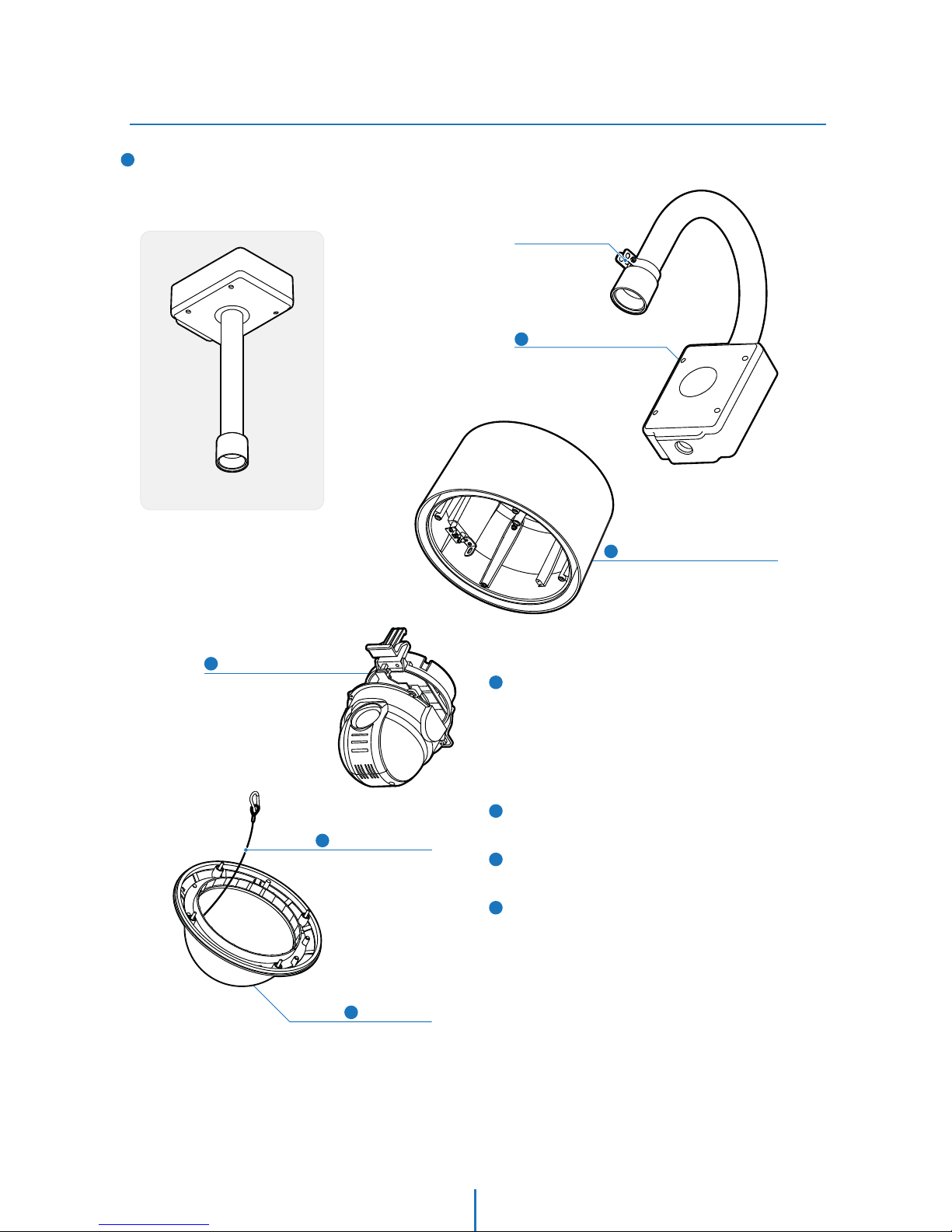

Sun Shield & Upper Housing

4

Dome Safety Wire

PTZ Mechanism

Dome Cover

Housing Safety
Wire Hanger

Ceiling Mount Bracket

Sunshield & Upper Housing

Sunshield protect bubble dome cover from the sun rays and
rain fall. In the sunshield, there is the upper housing which
will contain accommodate PTZ mechanism. In the upper
housing, there are fan and heater to remove moisture on
the bubble dome. Also, the upper housing will be
connected to both mounting brackets and dome cover.

PTZ Mechanism

Control the PTZ operations of the camera.

Dome Safety Wire

Prevents the dome cover from falling.

Dome Cover

Do not detach protection lm from dome cover before
finishing all installation process to protect dome cover from
scratches or dust.

8

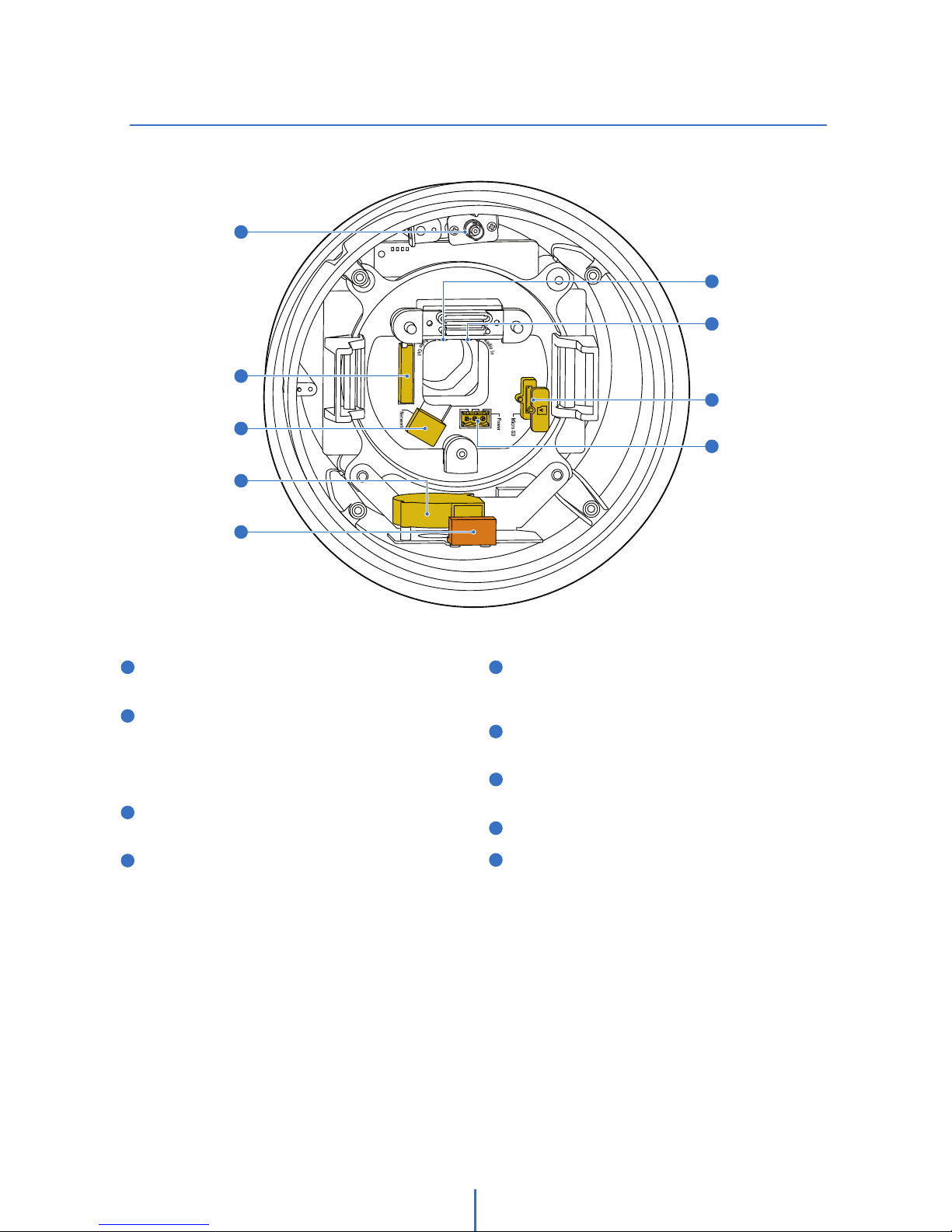

Part Name & Functions_Inside

Introduction -

1

6

7

8

9

Heater

Defrost the dome cover in a low temperature by increasing
the internal temperature of the housing.

Audio Output Port

Used to connect the audio output cable.

Audio Input Port

Used to connect the audio input cable.

Micro SD Memory Card Slot & Cover

Power Port

Connect the power source here.

1

2

3

4

5

2nd Video Output Port

Video out check the screen during installation.

Alarm In/Output and 2

nd Video Output Port

It connects to the alarm lights, siren or lamps, and it is
activated according to the OSD menu or ‘Setup’ on the Web

-viewer setting. And 2

nd video output use to check

the screen during installation.

Network Cable Port

Connect the crossover cable.

Fan

Defrosts the dome cover and removes moisture.

Alarm In/Output and

2

nd Video Output Port

Network Cable Port

Fan

Heater

Audio Output Port

Audio Input Port

Micro SD Card Slot
& Cover

2

1

3

4

5

6

7

8

9

Power Port

2

nd Video Output Port



Installation -

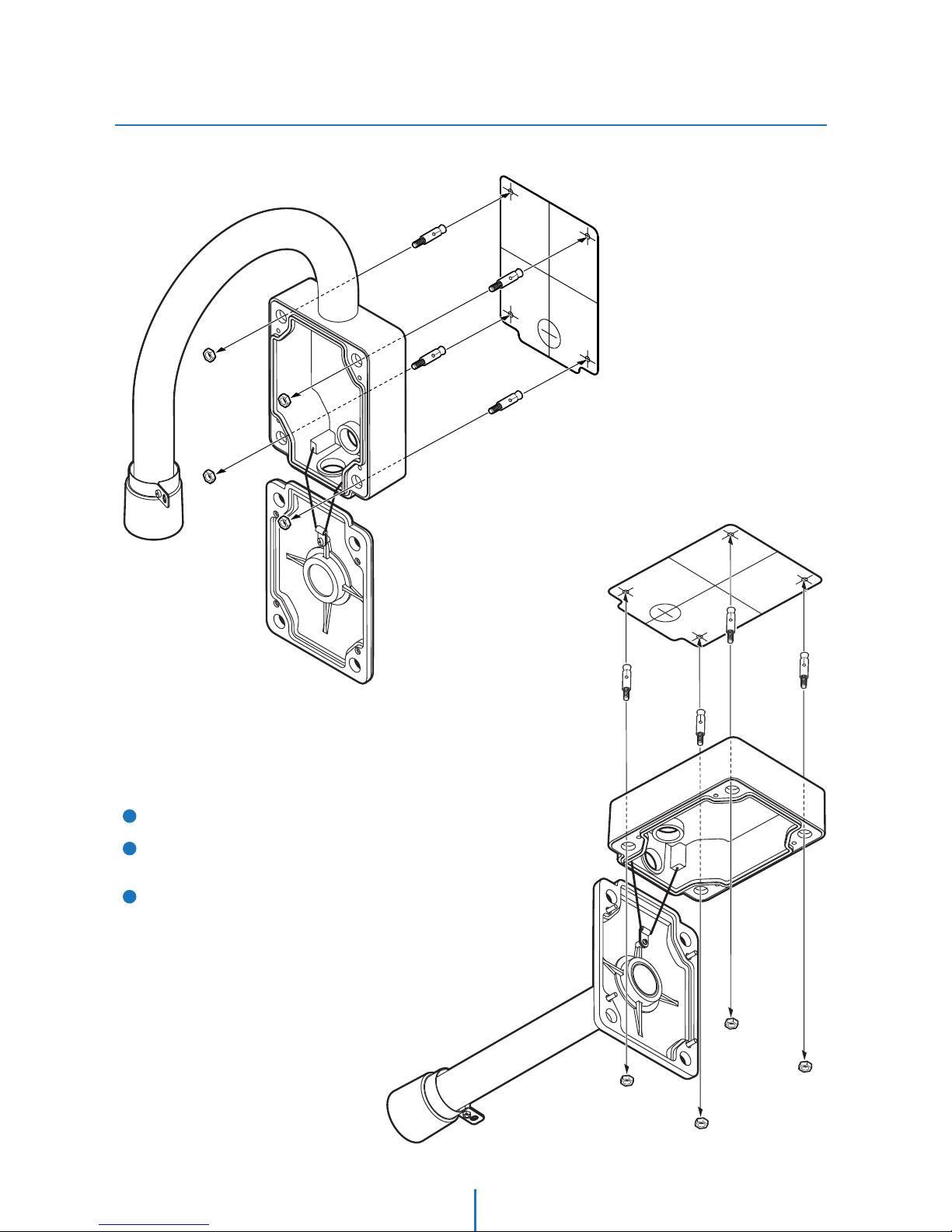

Installation Using Wall/Ceiling Mount Bracket

2

2

1

3

Using the hole template, mark the holes on the wall/ceiling.

After drilling the holes, fix the four anchor bolts into the
holes.

After locating the wall/ceiling mount bracket on the anchor
bolts properly, tighten the nuts for anchor bolts.

Ceiling Mount Bracket
Installation

Wall Mount Bracket
Installation



Installation

Installation -

2

4

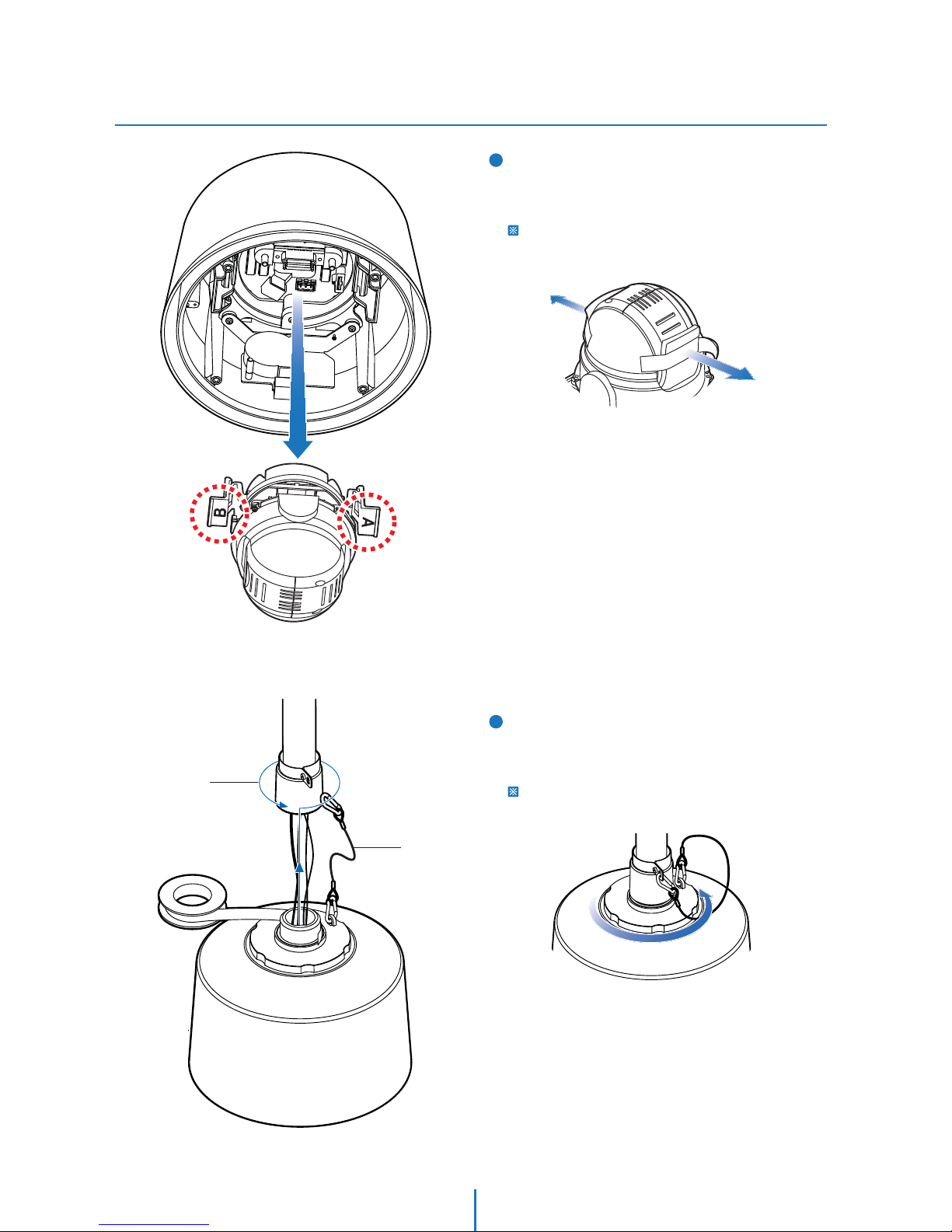

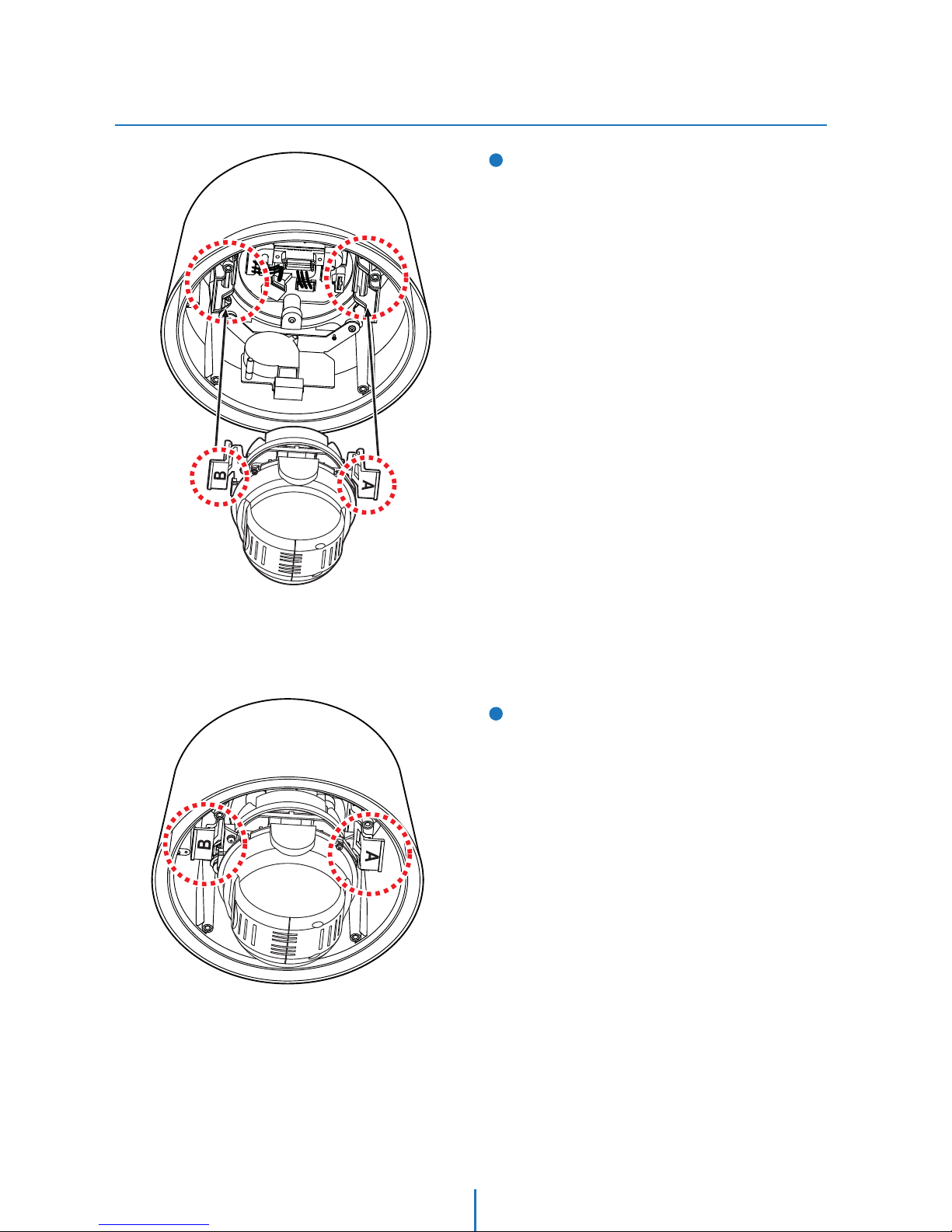

You have to detach the PTZ mechanism from the upper
housing to plug the connector of cable. When detach PTZ
mechanism, pressing down and holding up the black
handles in both sides of PTZ mechanism.

You should remove the tape used to fix the PTZ
mechanism after detaching the PTZ mechanism from
the upper housing.

5

[1] Wind the water proof tape on the pipe of upper housing.
[2] Hooking the safety wire on the hole of pipe.
[3] Attach the upper housing to wall mount bracket by
turning it at least seven turns.

To fix the upper body orientation, turn the handle of
double nuts to clockwise tightly.

[2]

[1]

[3]

11

Installation

Installation -

a

b

c

d

e

g

f

2

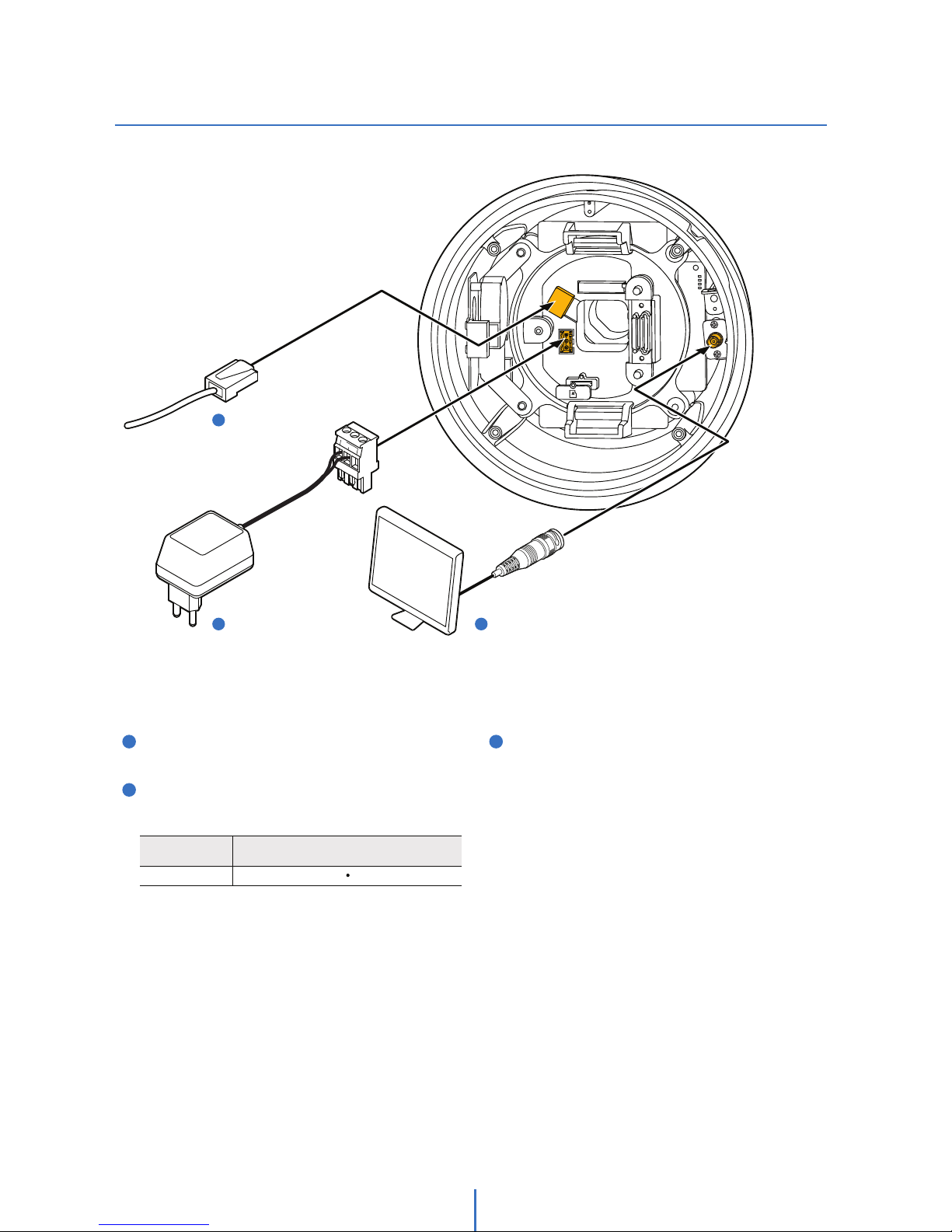

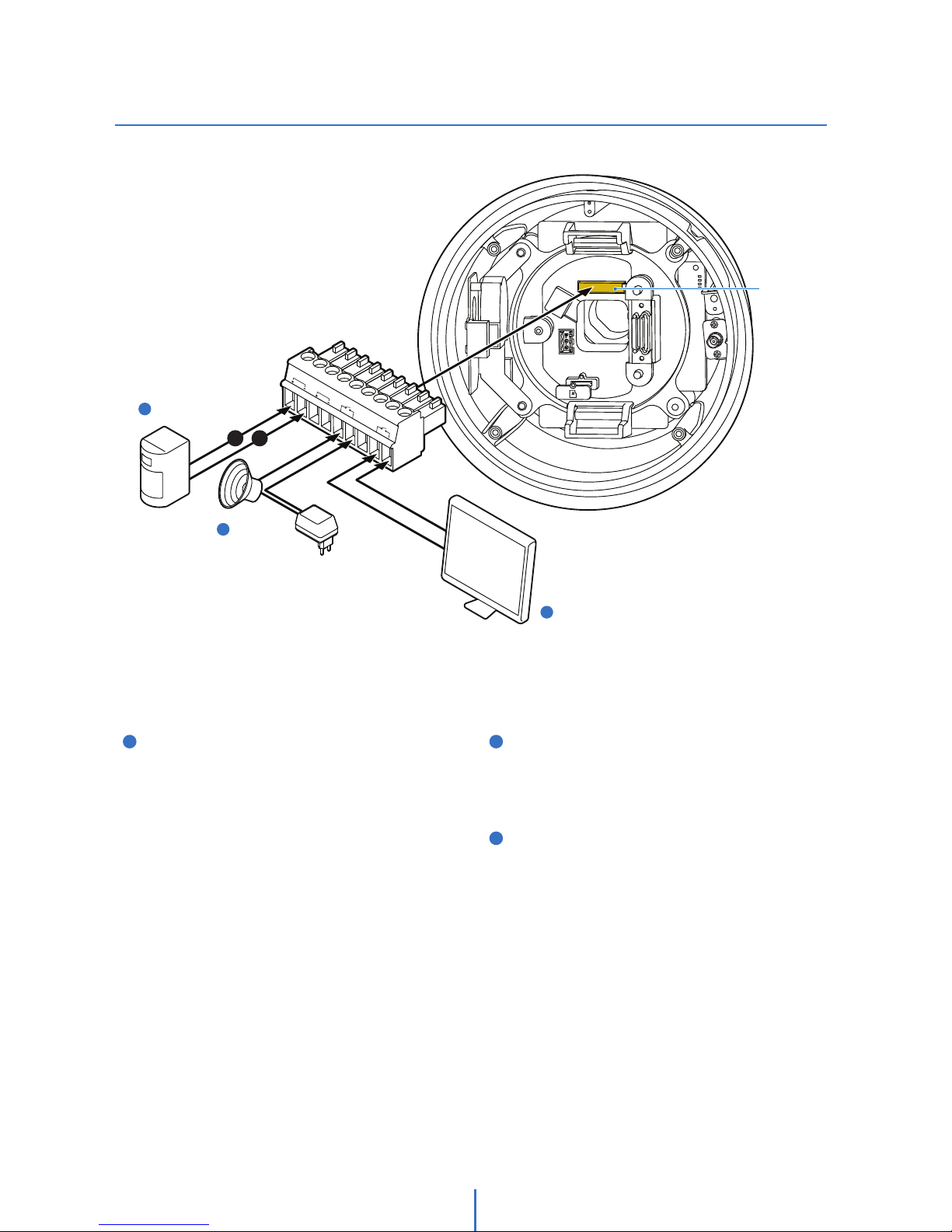

Connect each of the following cables to the applicable port
and set the DIP switch to congure the camera ID,
communication protocol.

2nd Video Output Port
Alarm In/Output and 2nd Video Output Port
Audio Output Port
Audio Input Port
Network Cable Port
Power Port
Micro SD Card Slot & Cover

Refer to 14, 15 page for detail cablings.
Refer to 16 page for detail audio cablings.
Refer to 17 page for detail inserting SD card.

a

b

c

d

e

g

f

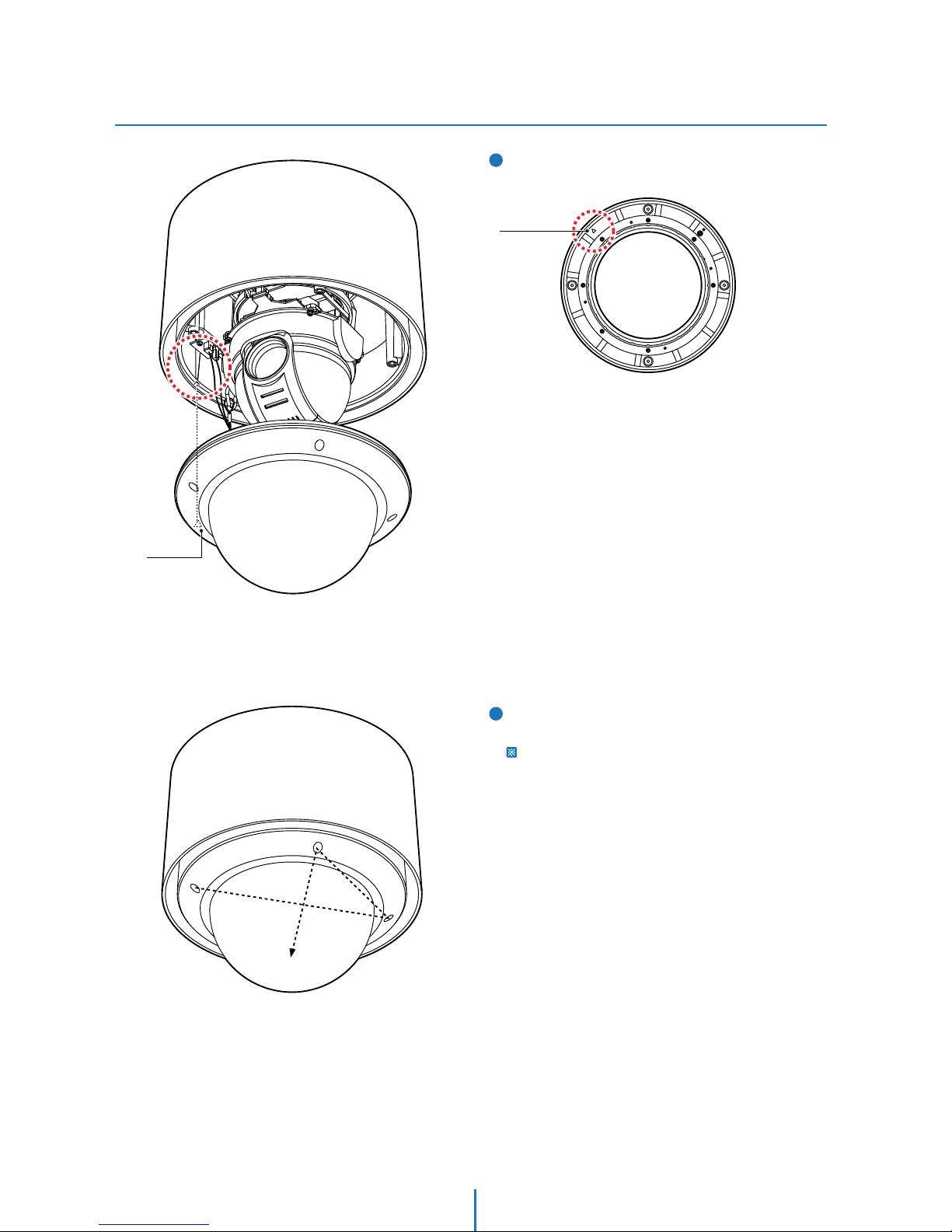

Make sure that the dome cover is connected rmly to the
safety wire.

7

6



Installation

Installation -

2

9

8

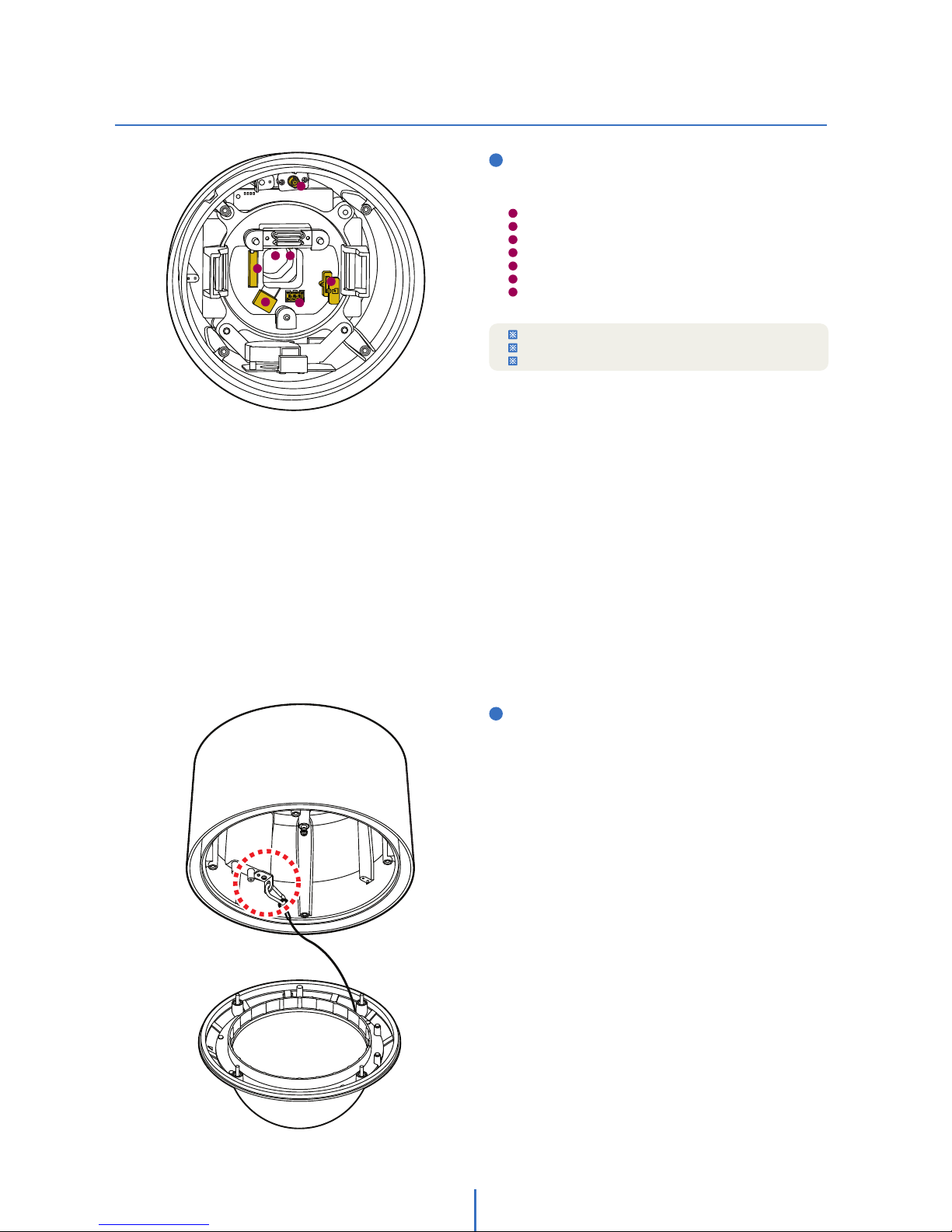

To lock the PTZ mechanism to the upper housing, press the
two black handles till it sounds snap.

Plug the connector of cable from junction box into properly.
After checking the orientation of one touch connector in the
upper housing, press the PTZ mechanism into hook in the
upper housing.



Installation

Installation -

2

11

10

Close the dome cover. Care must be taken to locate dome
cover by matching the ‘Arrow Mark’.

Tighten four screws on the dome cover in sequence as
shown in the picture.

To maintain the best sealing, the torque of each screw
must be in the range between

0.5 ~ 1.0 N·m(0.3 ~ 0.73 lbf·ft).

Arrow Mark

Arrow Mark

14

2

Cabling

Installation -

1

3

2

Video Output

Video out check the screen during installation.

Network Connection

Connect the crossover cable into the RJ-45.

Power Connection

Please, check the voltage and current capacity of rated
power carefully.

Rate Power

Current

Consumption

AC 24V Heater Off: 23W Heater On: 55W

Video Output

3

Network
Connection

1

AC 24V

F.G

Power

2

15

Cabling

Installation -

2

5

6

4

Alarm Output

There are 4 alarm outputs and all of them are relay contact
type. Therefore, you do not have to care about polarity,
AC/DC, and isolations between channels. Care must be taken
for the power capacity of relay contact written above.

2nd Video Output

Video out check the screen during installation.

Alarm Input/Sensor

If you want to use alarm input, the types of sensor must be
selected in Setup menu. The sensor types are ‘Normal Open’
and ‘Normal Close’. If sensor type is not selected properly,
the alarm can be activated reversely.

Alarm In/Output
and 2nd Video
Output

Alarm Output

5

2nd Video Output

6

IN1

IN2

OUT2

VIDEO

Alarm Input/Sensor

COM

In 1

4

16

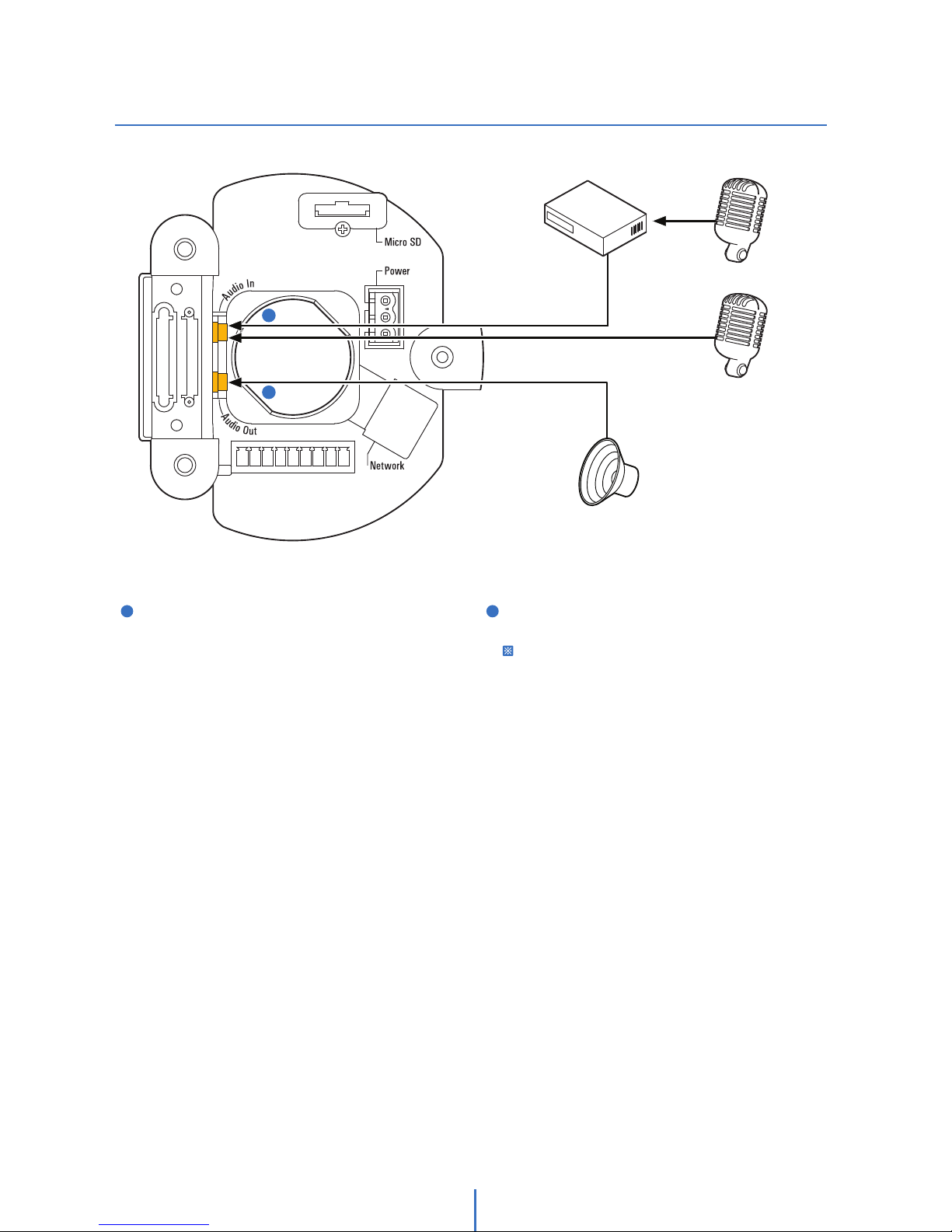

Cabling the Audio Cable

Installation -

2

Connect the ‘Audio Out’ port of the camera to the ‘Line In’
port of the speaker.

In case the microphone connects directly to ‘Audio Out’
port, the speaker does not work. The ‘Mic In’ function
is not supported.

1

Audio In

1

Audio Out

2

Connect the ‘Audio In’ port of the camera to the
microphone directly or ‘Line Out’ port of the amplifier
connected with microphone.

2

Amplifier

Mic.

Line In Connection

Direct Connection

Line Out Connection

Mic.

Speaker

17

2

Micro

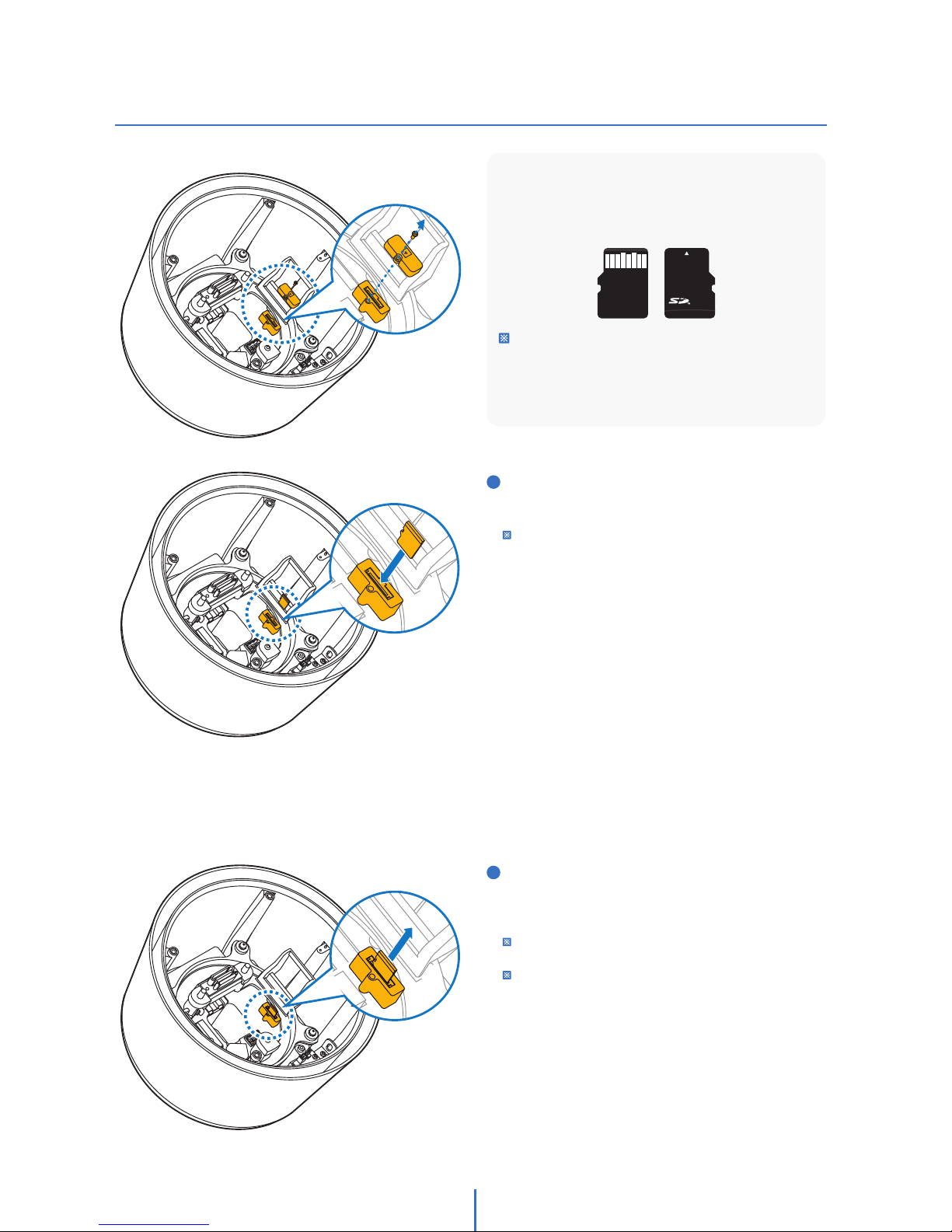

Inserting/Removing an SD Memory Card

Installation -

1

Inserting an SD Memory Card

Loosen the screw before removing the SD memory card
cover. Insert the SD card in the arrow direction.

Don’t insert the SD memory card while it’s upside down by force.
Otherwise, it may damage the SD memory card.

2

Removing an SD Memory Card

Removing an SD Memory Card Gently press down on the
exposed end of the memory card as shown in the diagram
to eject the memory card from the slot.

Pressing too hard on the SD memory card can cause the card to
shoot out uncontrollably from the slot when released.

If you have saved data in the SD memory card, removing the SD
memory card prior to setting record to OFF will cause damage to
the data stored in the card.

Recommended SD Card Specication (Not Included)

- Type: Micro SD (SDHC)

- Manufacturer: Transcend, Kingston, Toshiba, Sanddisk

- Capacity: 4~16G

- Class: over Class 6

The memory card is an external data storage device
that has been developed to oer an entirely new way
to record and share video, audio, and text data using
digital devices.



Quick Start of Network Connection

Network Setup -

3

Please follow the steps below to complete
the initial setup of the network function.

You will need to access a PC/laptop and should configure
that PC in order to communicate with the IP Camera.
Record the current TCP/IP properties of that PC. (IP address,
subnet mask, gateway, DNS, etc.d)

1.

Please do not power on the IP Camera until instructed.
Temporarily disable any proxy servers configured in internet

Explorer.
If connecting the IP Camera directly to a modem, power down

and reset the modem. Leave the modem powered down until
configurations are finalized with the IP Camera and the IP Camera
has been correctly connected to the modem.

Change the IP address of that host PC to 192.168.1.11 and
subnet mask to 255.255.255.0 (leave all other entries blank)

Connect the IP Camera to your PC’s Ethernet port via the
supplied crossover cable. (It does not matter what end is
used for the PC)

Power on the IP Camera using the according to the power
rated.

After 1 minute of power, verify a flashing ACTIVE indicator,
and a flashing or solid LINK indicator. After the
corresponding indicator lights are properly displayed, open
Internet Explorer.

Type - http://192.168.1.80 (the default IP of the IP Camera)
into your address bar.

Default ID/Password to access IP Camera are both the
word: admin.

Familiarize yourself with the Viewer Interface Screen.

Locate the TCP/IP configuration under Setup. Supply the
same ID and Password to enter Setup. (admin : admin)

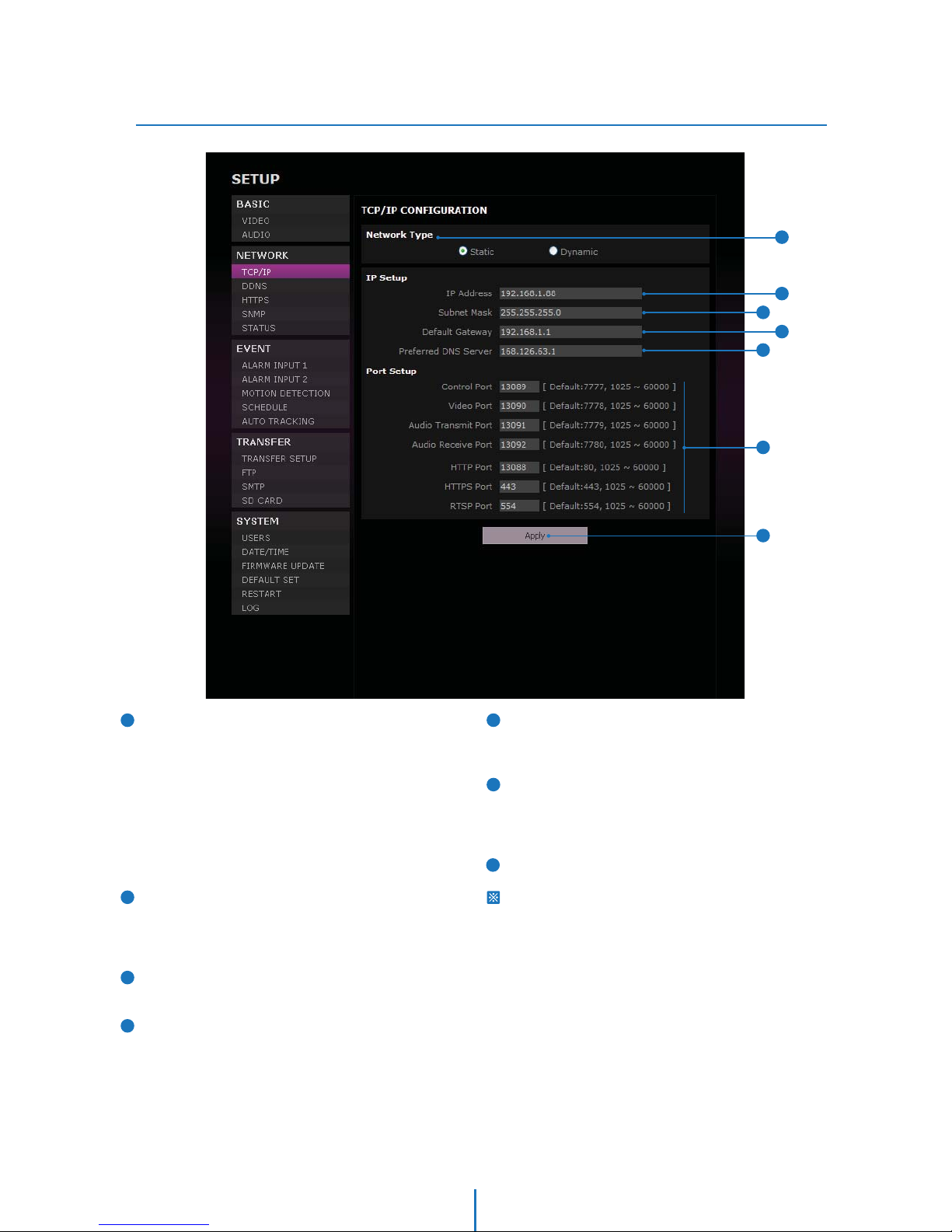

Under ‘Network Type’ select STATIC. You will only select
Dynamic if you are connecting the IP Camera directly to
your cable/DSL/Broadband modem and your Internet
Service Provider is supplying you a dynamic address.

2.

3.

4.

5.

6.

7.

8.

9.

10.

If your PC obtains its IP address automatically, then there is no
need to record any information.

If you have a network with other devices (such as PC/laptop, etc.)
or a router, you will NEVER select Dynamic.

Configure the IP Camera’s TCP/IP settings as you would any
other PC on your network, providing a proper IP address,
subnet mask, default gateway, and DNS server.

11.

If this is standalone unit with a direct connection to a cable/DSL/
Broadband modem then input the addresses you have received
from your ISP. If you received no IP address from your ISP, please
select Dynamic and choose the proper settings.

Current TCP/IP Settings
IP Address
Subnet Mask
Default Gateway
Primary DNS Server
Secondary DNS Server (Option)

Access your IP Camera via the Internet :

If you use a static IP address assigned by your ISP

1) Open Internet Explorer.

2) Type the IP of the IP Camera.

3) If you use a router, type the routers’ static IP and the web port
number of the IP Camera.

If you have a dynamic address provided by your ISP

1) Open Internet Explorer and visit the DDNS website.

2) Register the IP Camera.

3) Reboot the IP Camera.

4) Give the DDNS server 10 minutes to locate your IP Camera’s
IP information.

5) Click the refresh button in the Internet Explore.

6) After your camera is connected, select your camera.

15.

The IP Camera utilizes five TCP ports - a Web Port for utilizing
Internet Explorer, a Video Port, a Control Server Port, Audio
ports. A Web Port is for utilizing Internet Explorer, a Video
Server port is to support the streaming video, and a Control
Control Port is to transmit to control command. Also Audio
Port are to transmit and to receive Audio data. If this IP
Camera will be directly attached to a cable/DSL/Broadband
modem or has been assigned a static IP from your ISP, then
leave the default port settings.
If you are installing the IP Camera on a network, you must
define a Web Port other than 80. The other ports, a Video
Port, a Control Port, Audio Ports can remain unchanged.

If the IP Camera is connected to a network which utilizes a

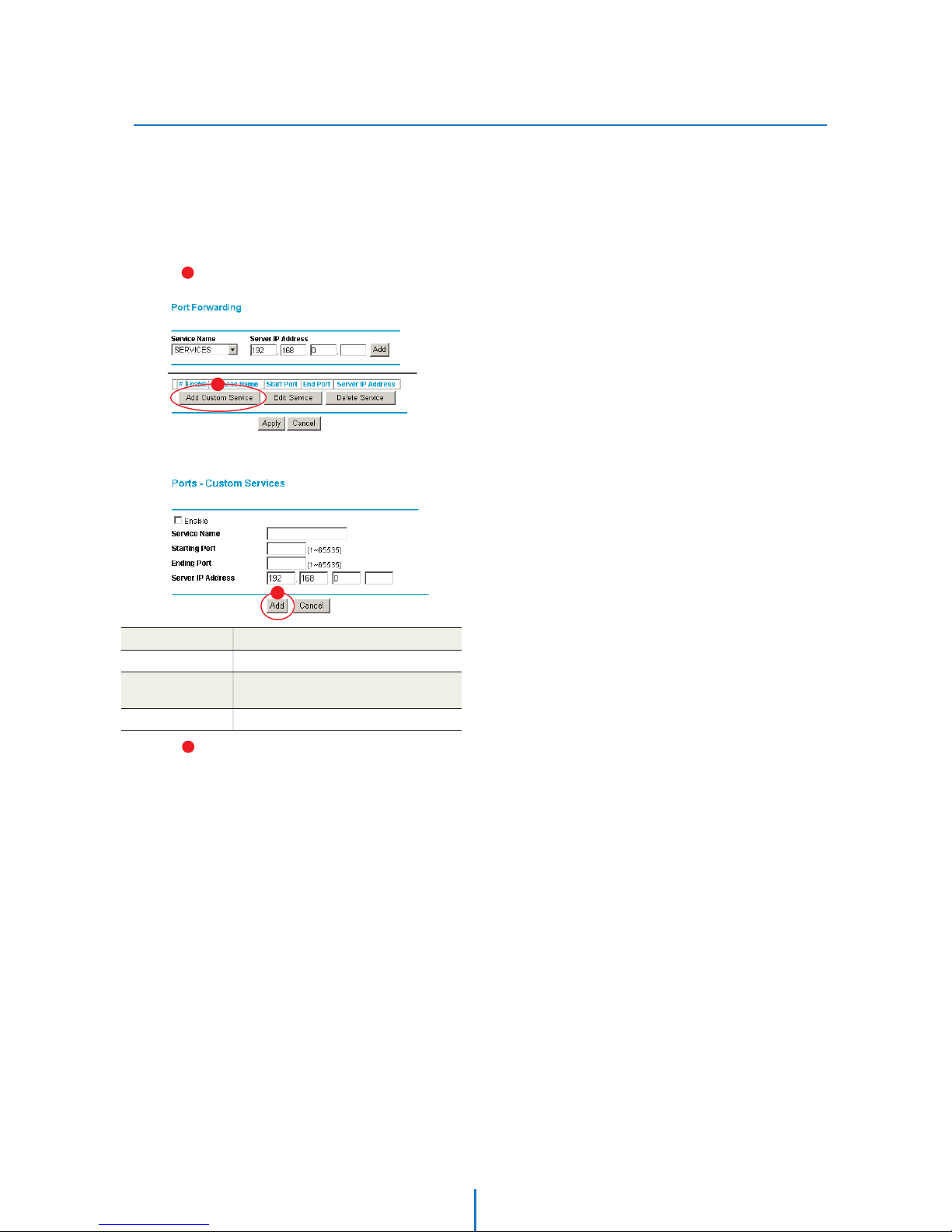

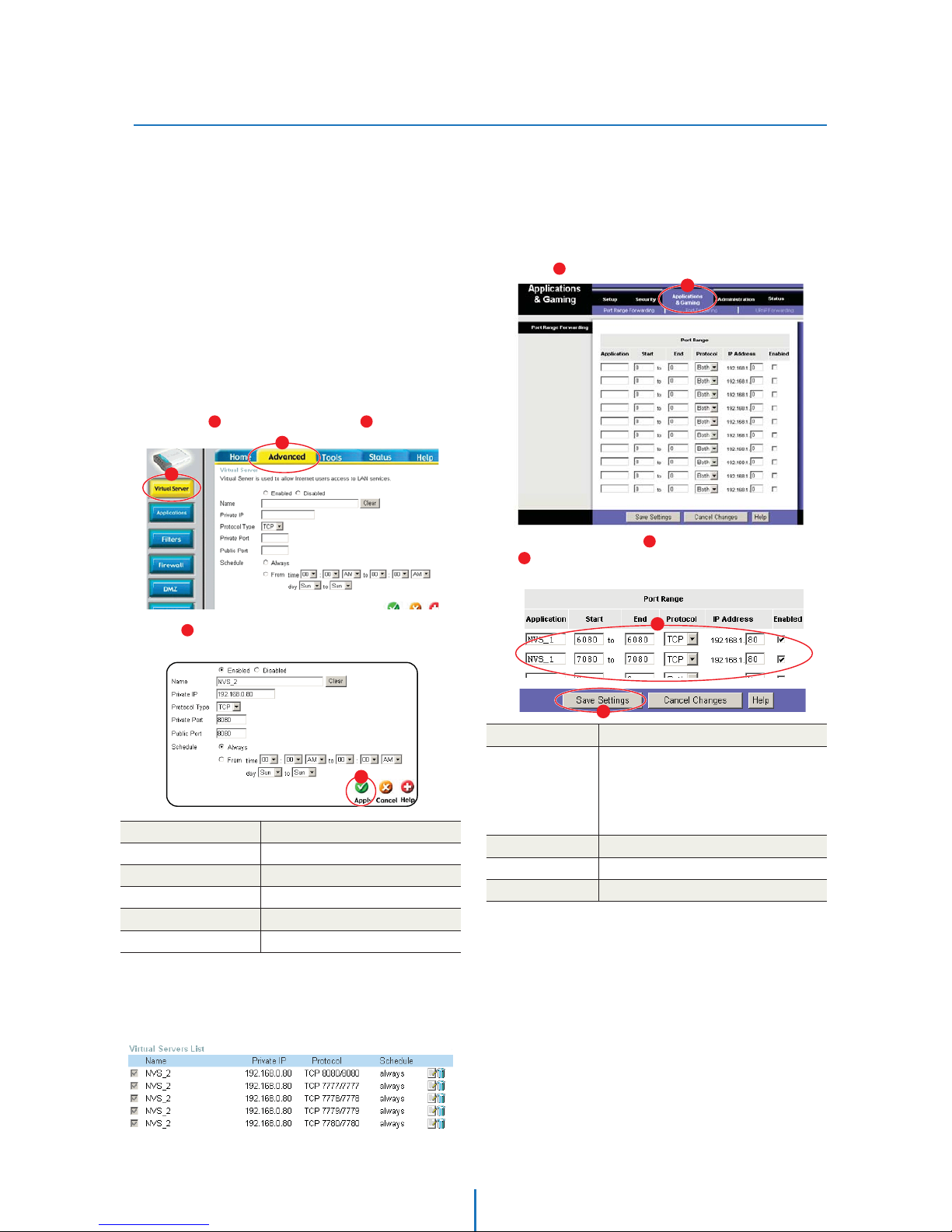

router, you must have Port Forwarding configured on your
personal router to forward all ports to the IP address you
have assigned the IP Camera.

After configuring Port Forwarding on your router (if necessary),
you may then access your IP Camera on your local network
by opening Internet Explorer and specifying the IP address
and Web Server Port that you have assigned to the IP
Camera.

12.

13.

14.

Examples: http://192.168.0.200:8888
If you left your Web Port set to 80, then you don’t need to specify

the port in the Address Bar when accessing your IP Camera.



Initial Setup via a Crossover Cable

Network Setup -

3

This section provides a guide on how to
connect the IP Camera to your PC/Laptop for
initial setup.

Please follow the instructions in the order they
appear, without skipping steps. Do not supply
power to the IP Camera, until instructed.

In order to access the IP Camera’s firmware
you will need to connect the Video Server
directly to a PC or Laptop computer via the
supplied crossover cable.

Before you begin, you must determine the current network/
INTERNET (TCP/IP) settings on the PC or laptop you plan to
setup the IP Camera. Write down your entries below for
quick reference.

1.

You will have to click ‘Yes’ twice to two individual prompts. This
allows your video to be displayed in Internet Explorer.

Current TCP/IP Settings
IP Address
Subnet Mask
Default Gateway
Primary DNS Server
Secondary DNS Server (Option)

In order for the IP Camera to communicate with your PC, you
have to change your PC’s IP address and subnet mask.

2.

Now you will be able to see the login screen for the IP
Camera.

7.

The default ID and Password are both the word ‘admin’
(without the “ ”)

If at any time you are prompted to download ActiveX controls,
you must click ‘Yes’, all contents are safe.

8.

9.

We recommend that you change your IP address to 192.168.1.11
and change the subnet mask to 255.255.255.0

Leave all other entries (Default Gateway, DNS Servers, etc.) blank.
For information on how to change your IP address and subnet

mask, see Appendix B.

After you have made the changes to your IP address and
subnet mask, you may then attach the IP Camera to your
PC via the supplied crossover cable. Plug-in either end of
the crossover cable into the PC’s network card and the other
end into your IP Camera.

After connecting the PC and IP Camera using the crossover
cable, power on the IP Camera by plugging in the power
supply shipped with the IP Camera.

No longer than 1 minute after powering on the IP Camera,
verify that the ACTIVE indicator light is flashing, and the
LINK indicator light is flickering or solid. If they are not,
please read the FAQ.

3.

4.

5.

Open Internet Explorer and type the IP address of 192.168.1.80
(default IP of the IP Camera from the factory) into the Address Bar
of the web browser (as seen below). Press Enter.

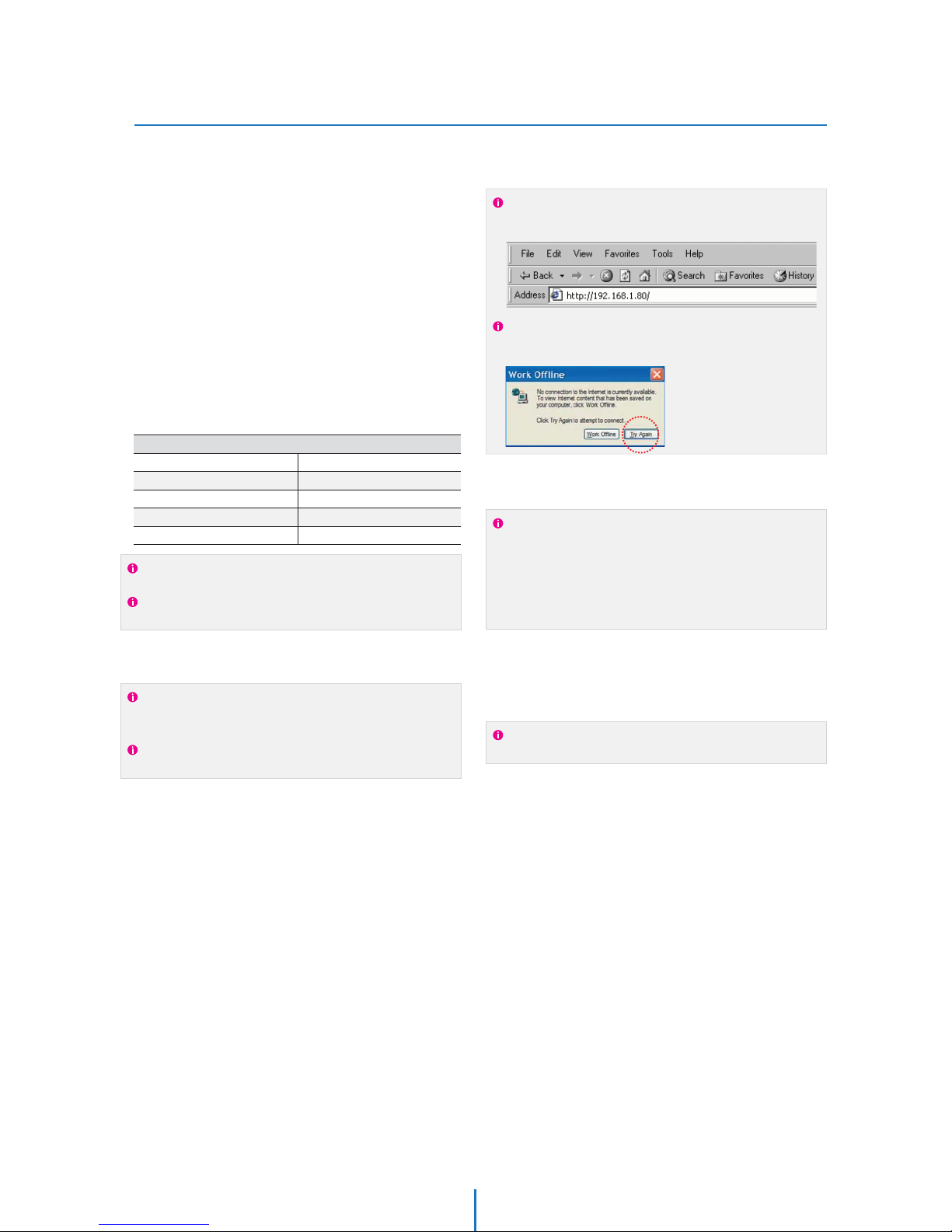

If a message appears after pressing ‘Enter’ similar to the image
depicted below, choose ‘Try Again’. This message will vary
depending on the operating system.

The 3 authorities are available :
Administrator, Operator and Viewer. The authority setup is
available in Setup.

t7JFXFS 0OMZNPOJUPSJOHJTBMMPXFE
t0QFSBUPS Most of the functions are allowed except

‘Setup’.

t"ENJOJTUSBUPS"MMGVODUJPOTBSFBMMPXFE

For information on how to determine your currents settings, see
Appendix A.

If you are obtaining an IP Address automatically, then there is no
need to write down this information.

Now you will be able to access the viewer software within
the IP Camera.

6.



DDNS Registration

Network Setup -

3

If you have DYNAMIC IP service from your
Internet Service Provider (ISP), you can’t tell
what current IP address of IP Camera is.
To solve this problem, you have to register to
our DDNS service.

At first, we recommend, you have to check if
you are using dynamic addressing. If so, please,
register your IP Video Server on our DDNS
website before you configure, setup, or install
the IP Camera.

Even though your IP is not dynamic, you will
get a benefit if you register to DDNS. In this
case, you just remember ‘alex.net4c.net/gate1’
instead of complicated series of number like
http://201.23.4.76:8078.

For more detail information, please contact
our Support Center.

To register IP Camera to DDNS, you should know the ‘Serial No.’ of
your IP Camera. The ‘Serial No.’ can be found in section 6 ‘Setup ­DDNS’ menu.

To use a public DDNS called ‘dyndns’ or ‘no-ip’, you can find detail
information on how to use this service.
(Please, visit its web site : http://www.dyndns.com or
http://www.no-ip.com)



Guide to Network Environment

Network Setup -

3

Please configure the IP Camera at the location
of its installation. You must determine your
network scenario in order to configure the IP
Camera with the proper TCP/IP settings.
This tutorial will guide you through the
process. Before actually configuring the IP
Camera, determine what settings you will
apply. Record those settings that you will use
to configure your IP Camera for reference.

When configuring your IP Camera, treat the
IP Camera as another PC on your network.
You will assign it several addresses and other
TCP/IP properties to match your current
network.

This step-by-step tutorial will teach what IP
addresses and network configurations you
should assign your IP Camera based upon
your network scenario.

If you were not given any IP addresses or the ISP was responsible
for the setup and installation of your Internet connection on your
PC or network, then please go to step 2.

If you are not using a router on your network, your ‘Current TCP/IP
Settings’ (from the previous section) and ‘Assigned IP Addresses
from My ISP’ will be exactly the same.

Before you begin, you will need to locate any information and
settings that you have received from your Internet Service
Provider (ISP). You may need to refer to these IP addresses at
a later time during the configuration.

1.

You must determine whether the IP address that you were
assigned from the ISP is STATIC or DYNAMIC. At this moment,
you are only concerned about the ISP. Did they provide you
with a STATIC or DYNAMIC address? If you are unsure, please
contact your ISP.

Configure your IP Camera’s TCP/IP settings for network
connectivity by selecting Setup from the main interface and
selecting TCP/IP located on the left of the Setup screen.

If prompted for an ID and Password, use ‘admin’ for both
entries.

The default web port number is 80. If your ISP blocks port 80
you must use a value between 1025 ~ 60000. Please consult
your ISP and determine if they block TCP port 80.

2.

3.

4.

Current TCP/IP Settings
IP Address
Subnet Mask
Default Gateway
Primary DNS Server
Secondary DNS Server (Option)

Static Dynamic

5. Depicted below are several basic network scenarios.
Determine which scenario describes your network. If your
network does not match one of the scenarios below and are
unsure how to setup your IP Camera, please contact your
network administrator, then call our Support Center.

Dash line box signifies areas of tour network that you can't control.
Only the ISP has access to these devices.



Setup Case A, B

Network Setup -

3

Case A:
Dynamic IP +
Personal Router [Most SOHO]

Personal Router
W/Intergrated Switch

Cable/xDSL Modem
(ISP Provided)

Phone Line

or CATV

PC

Internet

Case B:
Static(Fixed) IP +
Personal Router [Ecient]

Camera

Camera

PC

Personal Router
W/Intergrated Switch

Gateway or Router
at ISP

Public Line

Internet

Configure your IP Camera's TCP/IP properties
as follows :

STATIC (even though you have Dynamic IP from
your ISP, use STATIC on the IP Camera)

Network Type :1.

A private IP address such as

192.168.0.200 (Example)

Internet Address :2.

You need to assign the IP Camera an IP address, just as you would
assign a PC.

The IP address you assign must be unique to your network as well
as match your network. For information how to choose a unique
IP and match your network please read the FAQ.

The IP address you assign the IP Camera must be a private IP. For
information on how to choose a private IP please read the FAQ.

255.255.255.0 (Example)

192.168.0.1 (Example)

Subnet Mask :3.

You must use the same subnet mask as the one you noted under
‘Current TCP/IP Settings’.

Default Gateway :4.

This IP address must be the IP address of your router.
(private or LAN side)

Use the same Default Gateway you noted under ‘Current TCP/IP
Settings’.

Use the 1st DNS Server from ‘Assigned IP
Address from My ISP’.

Preferred DNS Server :5.

Use the DDNS server.

DDNS Server :6.

This is the same site you will register with later to accommodate
dynamic IP from your ISP.

8888Web Port :7.

Do NOT use the default port 80, you must change this number.
You may select any number between 1025 ~ 60000.

7777Control Port :8.

You may select any number between 1025 ~ 60000.

7778Video Port :9.

You may select any number between 1025 ~ 60000.

7779

7780

Audio Transmit Port :10.

You may select any number between 1025 ~ 60000.

Audio Receive Port :11.

You may select any number between 1025 ~ 60000.

If you did not receive any IP addresses from your ISP, please
contact them and acquire the IP address of their DNS server.



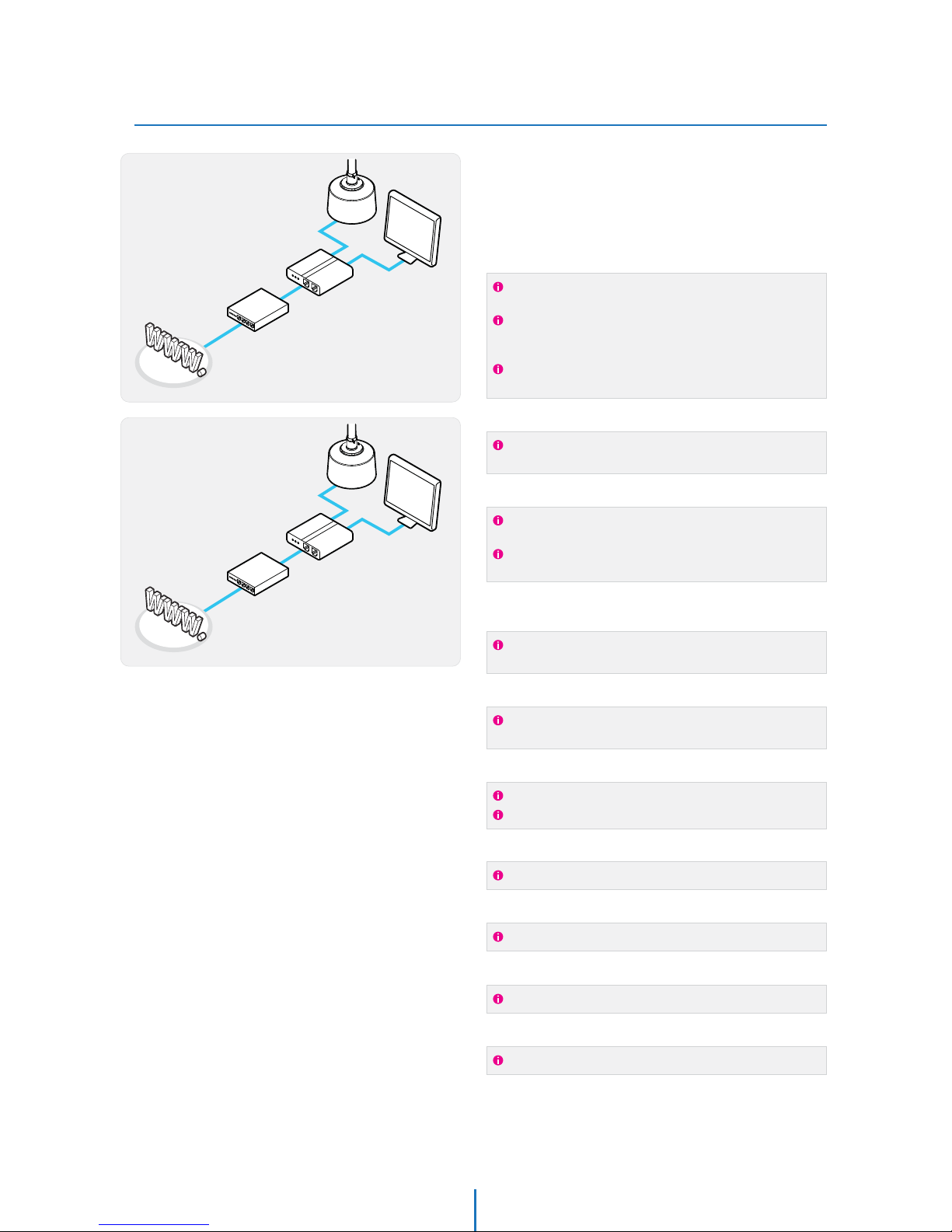

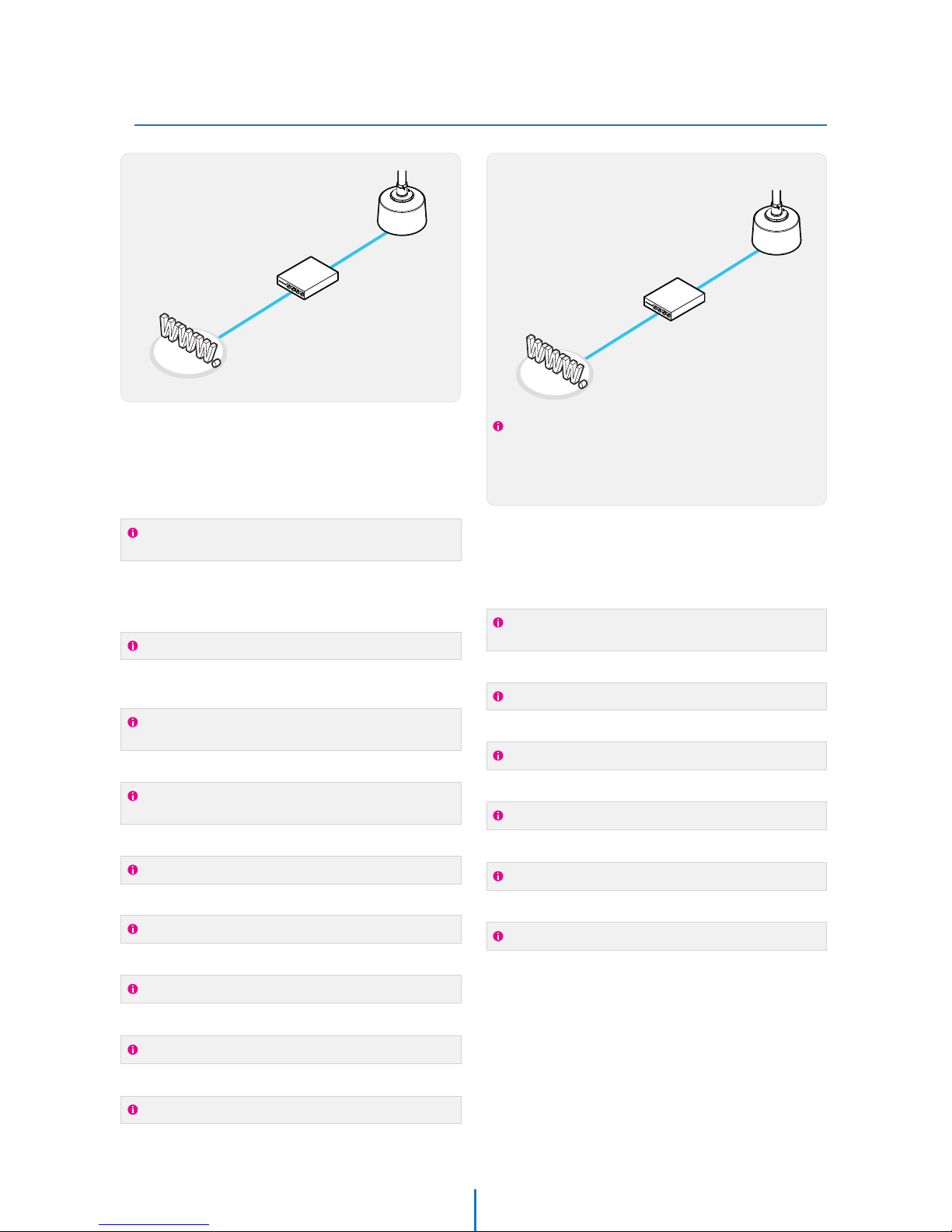

Setup Case C, D

Network Setup -

3

When connecting the IP Camera directly to a modem, power
down and reset the modem. Leave the modem powered down
until configurations are finalized with the IP Camera and the IP
Camera has been correctly connected to the modem. Then
power on the modem, followed by the IP Camera.

Cable/xDSL Modem
(ISP Provided)

Phone Line

or CATV

Internet

Camera

Internet

Camera

Public Line

Gateway or
Router at ISP

STATICNetwork Type :1.

A static IP address received from your ISP, such
as 24.107.88.125 (Example)

Internet Address :2.

You need to assign the IP Camera an IP address, just as you would
assign a PC.

Subnet mask assigned from your ISP, such as

255.255.255.240 (Example)

24.107.88.113 (Example)

Subnet Mask :3.

Default Gateway :4.

Use the assigned default gateway from your ISP

Use the 1st DNS Server from ‘Assigned IP
Address from My ISP’

Preferred DNS Server :5.

Use the DDNS server

DDNS Server :6.

This is the same site you will register with later to utilize our DDNS
service.

80Web Port :7.

You may select any number between 1025 ~ 60000.

7777Control Port :8.

You may select any number between 1025 ~ 60000.

7778Video Port :9.

You may select any number between 1025 ~ 60000.

7779

7780

Audio Transmit Port :10.

You may select any number between 1025 ~ 60000.

Audio Receive Port :11.

You may select any number between 1025 ~ 60000.

If you did not receive any IP addresses from your ISP, please
contact them and acquire the IP address of their DNS server.

DYNAMICNetwork Type :1.

Use the DDNS serverDDNS Server :2.

This is the same site you will register with later to accommodate
dynamic IP from your ISP.

80Web Port :3.

You may select any number between 1025 ~ 60000.

7777Control Port :4.

You may select any number between 1025 ~ 60000.

7778Video Port :5.

You may select any number between 1025 ~ 60000.

7779

7780

Audio Transmit Port :6.

You may select any number between 1025 ~ 60000.

Audio Receive Port :7.

You may select any number between 1025 ~ 60000.

Configure your IP Camera's TCP/IP properties
as follows :

Configure your IP Camera's TCP/IP properties
as follows :

Case C:
Static(Fixed) IP [Dedicated line directly
to the IP Camera]

Case D:
Dynamic IP + DSL/Cable Modem [Connected
directly to the IP Camera]



Port Forwarding

Network Setup -

After entering the correct TCP/IP settings you
will be ready for ‘Port Forwarding’ (Cases A, B).

Please record the TCP/IP settings of your IP Camera for future
reference. You may need this information to access your IP
Camera and to configure ‘Port Forwarding’.

1.

After clicking ‘Apply’ the system will prompt for a reboot.
Please allow the system 50 seconds to reboot and accept the
changes. After 50 seconds, close the configuration screen.
The view will display ‘Trying to Reconnect’. If the ACTIVE light
on the IP Camera has gone off and is now back on again
flashing, then the IP Camera has rebooted. After the system
reboots completely, remove the power supply from the
unit and close Internet Explorer.

Return your PC/Laptop TCP/IP properties to their original
settings.

Before installing the IP Camera, you must use ‘Port
Forwarding’ on your personal router (Cases A, B).

You will need to forward 5 ports:

t8FC1PSUZPVBTTJHOFEUPUIF*1$BNFSB
t$POUSPM1PSUZPVBTTJHOFEUPUIF*1$BNFSB
t7JEFP1PSUZPVBTTJHOFEUPUIF*1$BNFSB
t"VEJP5SBOTNJU1PSUZPVBTTJHOFEUPUIF*1$BNFSB
t"VEJP3FDFJWF1PSUZPVBTTJHOFEUPUIF*1$BNFSB

Both of these ports will be forwarded to the IP address you
assigned to the IP Camera.

In the example above, you would forward:

t
t
t
t
t

2.

3.

4.

IP Camera TCP/IP Settings
IP Address
Subnet Mask
Default Gateway
Preferred DNS Server
DDNS Server

8FC1PSU

Control Port
Video Port
Audio Transmit Port
Audio Receive Port

For information on how to use ‘Port Forwarding’ please read
Appendix C.

3



Starting IP Camera

Network Setup -

3

After correctly forwarding the Web Port,
Video Port, Control Port and two Audio Ports
through your router (if applicable), you may
then install the IP Camera in a proper location.

Locate the serial number located on the label attached to the
bottom of the IP Camera, you will need this for DDNS
registration.

Connect the IP Camera to your router or cable/DSL modem
(per your network scenario) via a Cat5/5e UTP Ethernet
network cable.

Supply power to the IP Camera.

After 1 minute, verify the IP Camera indicators:

t"$5*7&'MBTIJOH
t-*/,'MJDLFSJOH4PMJE

"GUFSDPOGJHVSJOH1PSU'PSXBSEJOHPOZPVSSPVUFS

(if necessary), you may then access your IP Camera on your
local network by opening Internet Explorer and specifying
the IP address and Web Port that you have assigned to the IP
Camera.

1.

2.

3.

4.

5.

Access your IP Camera via the Internet :6.

Examples: http://192.168.0.200:8888 or http://24.106.88.123
If you left your Web Port set to 80, then you don’t need to specify

the port in the Address Bar when accessing the IP Camera.

If you use Case B, C

1) Open Internet Explorer.

2) Type the IP of the IP Camera.

If you use Case A, D

1) Open Internet Explorer.

7JTJUUIF%%/4XFCTJUF

3) Register the IP Camera.

4) Give the DDNS server 10 minutes (MAX) to locate your IP
Camera’s IP information. You may reboot the server to send an
immediate request to our DDNS server.

5) After your camera is connected, select your camera.

The difference between B and C, is that B needs to set the port
forwarding.

Since the type of DDNS differs to the kind of the service, please
refer the related service site.



Basic Screen

Web Viewer Screen -

4

1

2

5

9

7

3

4

8

10

6

4

5

7

8

10

9

6

2

1

3

Web viewer is optimized with Windows XP or above version
and explorer browser.

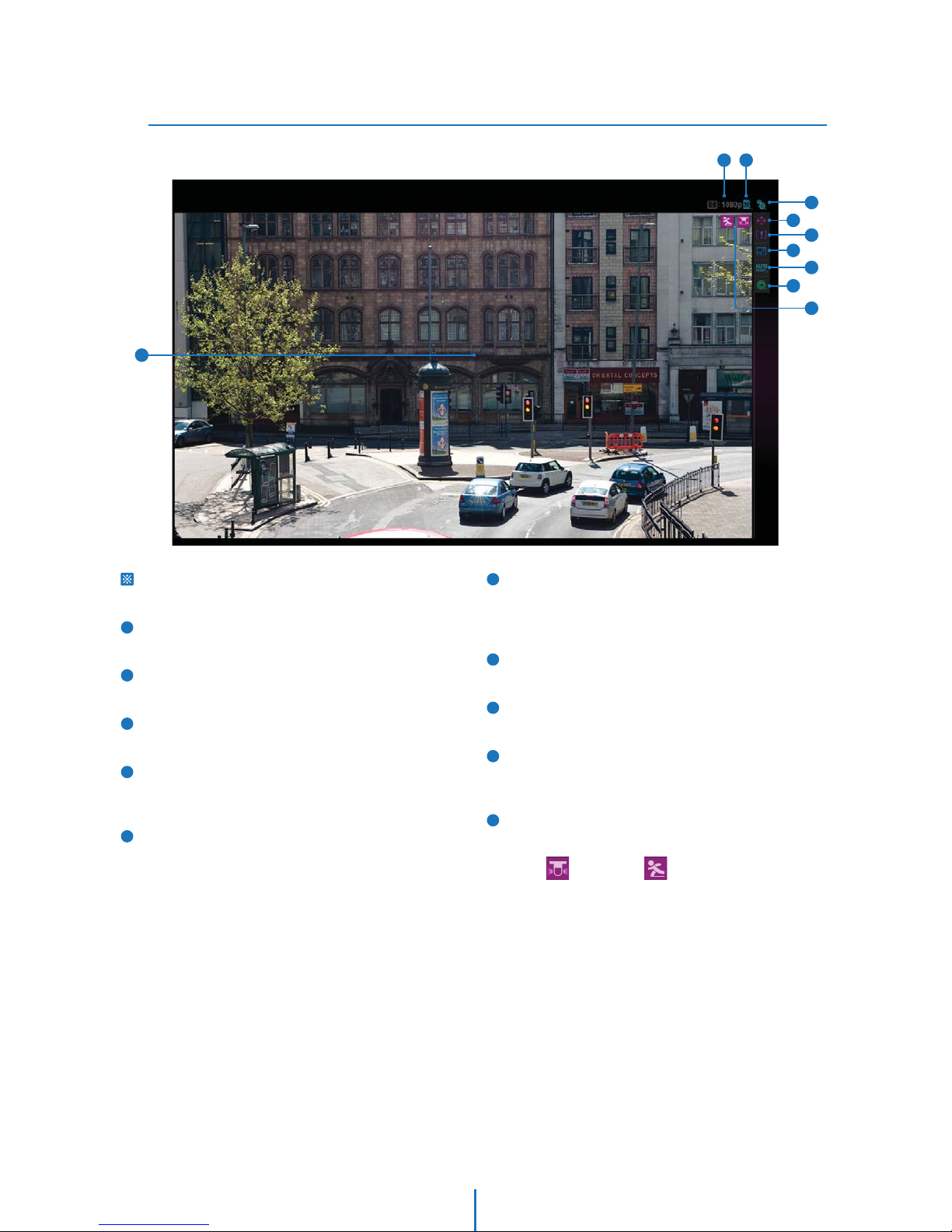

Live video display. This is the region for live video stream
from the camera.

Resolution. The resolution of video that displays currently
on the screen.

SD Card Search. Searching or Playing the Image which
stored in the SD Card.

Setup popup button. Click it to open the Setup page to
setup details of IP camera like Video, Network, Events,
System and etc. See the section 6 ‘Setup’ .

PTZ control tab button. Click it to extend the panel for Pan,
Tilt, Zoom, Focus, IRIS, Backup, Live Buffering and Video
Format control. See the section 4 ‘Web Viewer Screen - PTZ
Control’.

Etc. setup tab button. Click it to extend the panel for Alarm
Input, Alarm Output, Speaker, Microphone, Motion Detection
and Auto Tracking. See the section 4 ‘Web Viewer Screen ­Etc.’ .

Full screen button. Click it to extend the live video to full
screen. To return to normal mode, press ‘Esc’ or ‘Enter’ key.

Auto-Map popup button. Click it to pop up the Auto-Map
window.

Camera Setup popup button. Click it to open the Setup page
to setup details of Lens, White Balance, Auto Exposure, image
Backlight and etc. See the section 5 ‘Camera Setup’ .

Event alert icon. If Alarm in and Motion detection are
detected, below icons will appear.

<Alarm Input> <Motion Detection>



PTZ Control

Web Viewer Screen -

4

2

1

1

5

3

10

4

6

8

9

7

Windows Vista &
Windows 7

Windows xp, 2000 &
Windows me, 98

c:\user\(username)\AppData\LocalLow\
IP Network Camera\RECORD

:\My Documents\IP Network Camera\
RECORD\(MAC Address)\Stream1(or
2, 3, 4, 5)\(Date)\Date,Time_Filename.avi’.

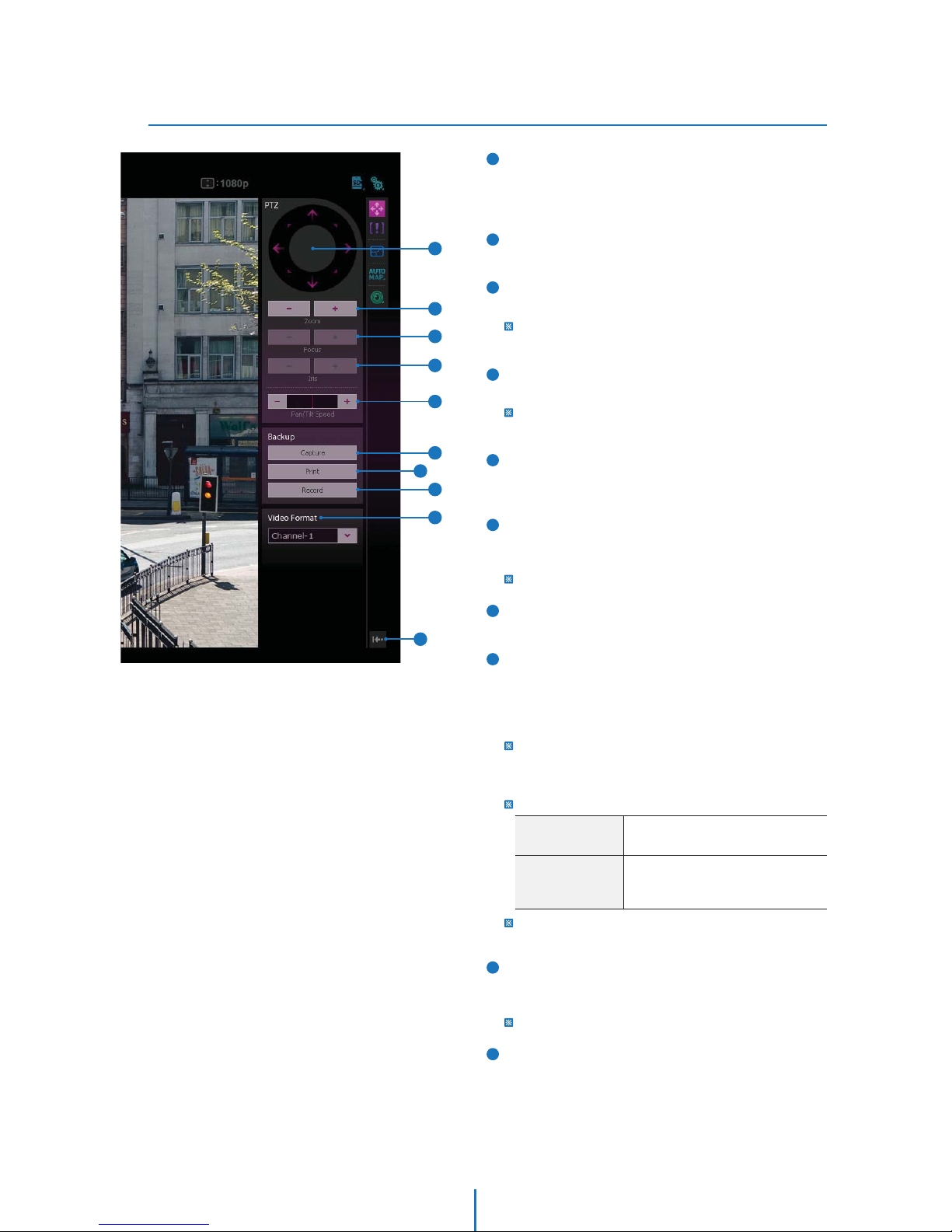

Pan-tilt wheel buttons. The Pan-tilt wheel enables to move
the camera for 8 directions by clicking the corresponding
arrow button. If you release the button clicked, the camera
motion will stop immediately.

Zoom control button. The zoom ratio of the camera can be
controlled by clicking ‘ + ’ or ‘ - ’ button.

Focus control button. The focus of the camera can be
controlled by clicking ‘ + ’ or ‘ - ’ button.

If ‘Focus Mode’ in the Camera Setup Menu is ‘Auto’, the Focus
cannot be changed manually.

Iris control button. The iris of the camera can be controlled
by clicking ‘ + ’ or ‘ - ’ button.

If ‘AE Mode’ in the Camera Setup Menu is ‘Full Auto, Shutter
Priority, Bright, Spotlight’, the Iris cannot be changed manually.

Pan-tilt speed slider. The pan-tilt speed can be controlled by
clicking ‘ + ’ or ‘ - ’ button. Also, you can adjust it by dragging
the red-lined slider in the center.

Capture button. Capture the live video in the form of BMP or
JPG file. The location and file name of image can be decided
after clicking this button.

Refer the ‘Setup > Basic > Backup’ to setup the type of Image.

Print Button. Print current live image to the printer
connected to the PC.

Record Button. If you click this button, the current live video
will be stored as AVI format file in your PC. During the
recording, you cannot change the Video Format. If you
change the Video Format, the recording will be stopped
automatically.

If remained disk space of the HDD drive where the video is
recorded is less than 1GByte, a warning message box regarding
the disk space will be shown and the recording will be stopped
automatically.

Recorded files folder

To play the recorded video in the Windows Media Player, H.264
codec must be installed.

Video stream button. Select a stream produced from the
camera between Stream 1 ~ 5 to display it in the live view
screen.

Refer the ‘Setup > Basic > Video’ to setup the Video Stream.

Hide Button. Hide all control panels extended.

2

5

3

4

6

8

9

10

7



Etc. Control

Web Viewer Screen -

4

2

1

5

3

4

8

9

10

7

6

8

9

7

2

5

3

4

6

1

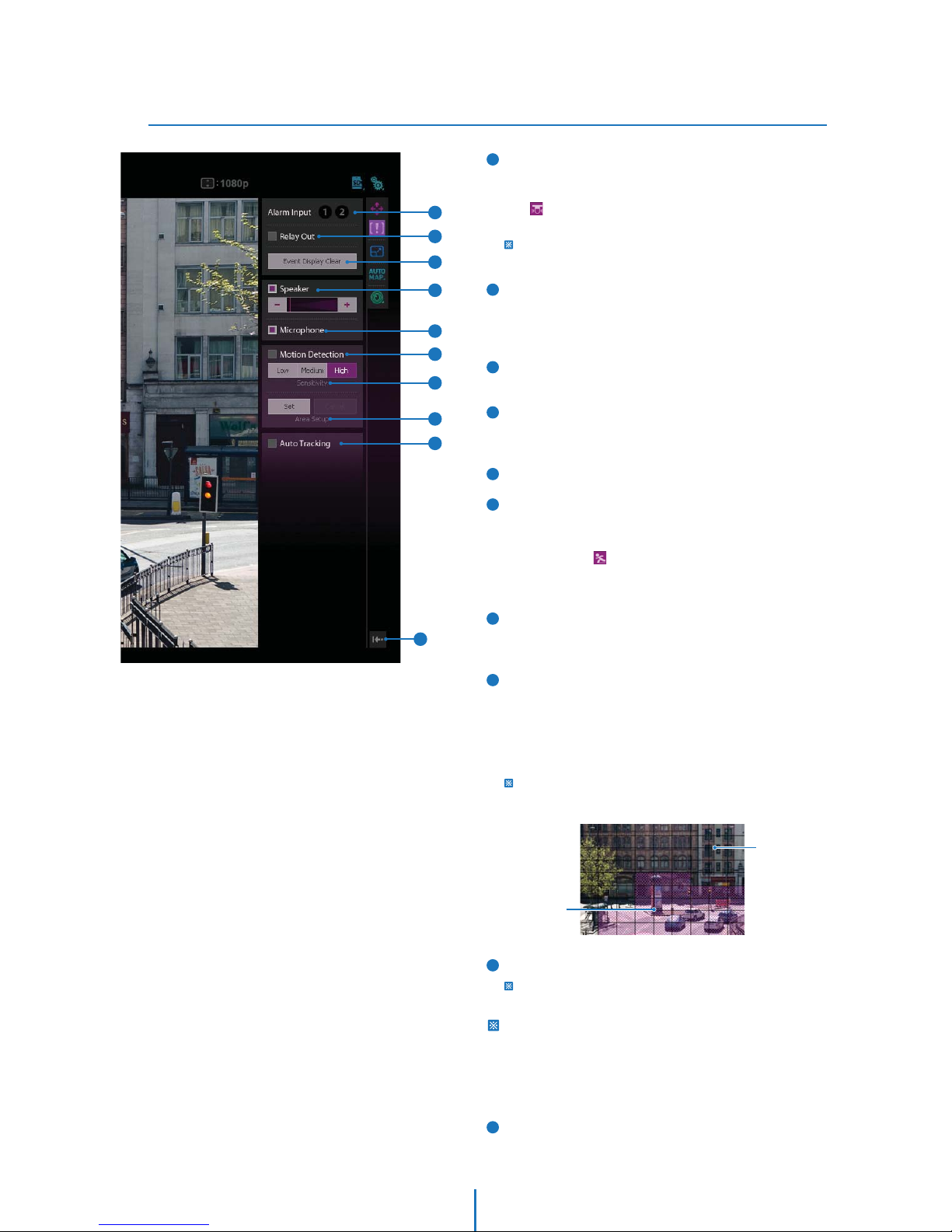

Alarm Input Status. It shows the Alarm Input status. If an
alarm is fired, the color of corresponding input number will
be changed to bright purple from dark gray and event alert
icon( ) is displayed on the ‘Live video display’. If alarm is
removed, the alarm input status is reset.

Regardless of alarm status, the Alert Icon will remain unless
'Event Display Clear' button is clicked.

Relay Out Button. Using these buttons, you can read status
of Relay Out and also set or reset it manually. If the status of
Relay out becomes On state, the color of the button will be
changed to bright purple.

Event Display Clear Button. Remove Event Alert Icons result
from Alarm Input or Motion detection.

Speaker Control. Enable/Disable Audio stream received
from the camera and Volume control of the speaker in the
computer.

Mic Control. Enable/Disable the Audio stream to the camera.

Motion Detection. Enable or Disable motion detection
function. ‘Detection Area setting’ below must be done in
advance.

Event Alert Icon( ) appears on the screen if 'Motion
Detection' is activated. Icon will remain unless 'Event Display
Clear' button is clicked.

Sensitivity. Define the sensitivity of motion detection. If
High is selected, it will detect very small motion while it
becomes relatively insensitive when Low is selected.

Area Setup. Setup the target area of motion detection.

<How To Setup>

1) If ‘Set’ button is clicked, Live screen shows grids to help area setup.

2) By clicking or dragging mouse on the grids, create or erase the
masks on the main view.

3) Motion detection is effective in the masked Area.

4) Save setting by clicking ‘Save’ button.
Area Setup is possible only on the Ch No.1 in the ‘Video Format’.

If you change the video format, motion detection area will return
the setup to the default.

Auto Tracking. Enable or Disable Auto Tracking function.

Auto Tracking will be automatically off when PTZ, Auto-map,
Aux Function, OSD menu, Motion Detection are runned.

Auto Tracking and Motion Detection cannot be run at the
same time.

Ex) If you run ‘Auto Tracking’ while running ‘Motion Detection’,
‘Motion Detection’ would be off automatically. Since then,
although you make ‘Auto Tracking’ off, ‘Motion Detection’
cannot be back ‘ON’.

Hide Button. Hide all control panel extended.

10

Unmasked Area

No Detection

Masked Area

Detection Eective



Auto-map

Web Viewer Screen -

4

2

3

4

5

1

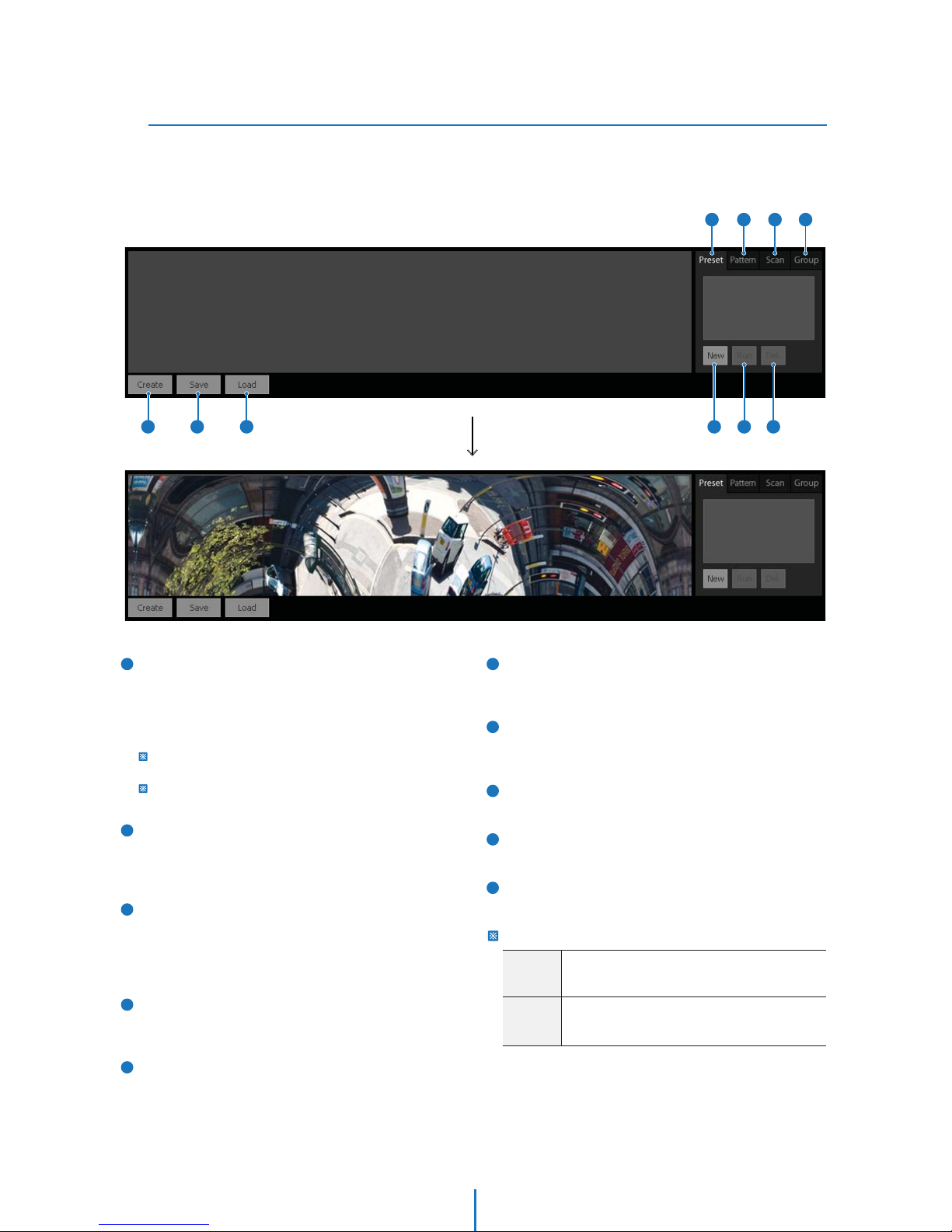

Create Map Button

If you click this button, a new map will be created on the
auto map window. Since the map is made by taking several
photo and stitching them into a map, it is recommended to
draw map when moving object is as small as possible. It will
take around 5 minutes for the completion.

To locate the most important object in the center, please, move
the camera to that object before creating the map.

When creating MAP, AE Mode will change to ‘Manual’, and it will
move back to AE mode after completing creating Map.

Save Map Button

If you click this button, the current Map data will be
uploaded to the IP Camera. By this, you can use stored map
data in the future and share it with other Clients.

Load Map Button

If you click this button, the Map data stored previously will
be downloaded from the IP Camera. If there is no map data
stored in the IP Camera, you will see only black map in the
screen.

Preset Tab Button

Shows Preset numbers in the list. The range of numbers is
1 to 1024.

Pattern Tab Button

Shows Pattern numbers in the list. The range of numbers is
1 to 128.

6

7

8

9

10

Scan Tab Button

Shows Scan numbers in the list. The range of numbers is 1 to

128.

Group Tab Button

Shows Group numbers in the list. The range of numbers is
1 to 128.

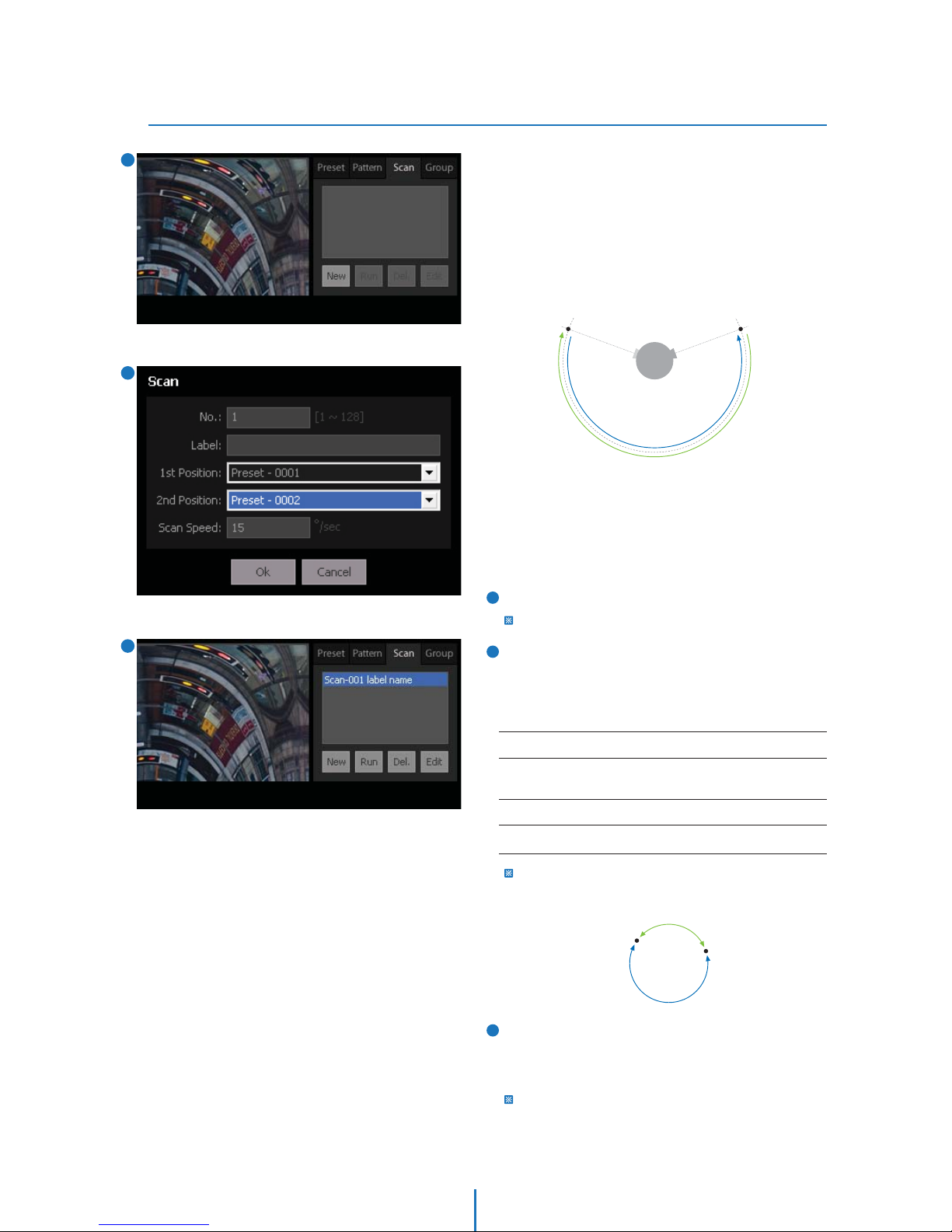

New Button. If you click this button, new popup will be
displayed for creating new preset, pattern, scan or group.

Run Button. Run selected contents of Preset, Pattern, Scan
or Group function.

Delete Button. Delete selected contents of Preset, Pattern,
Scan or Group function.

Basic Map Operation.

The Auto-map is the easiest way to control the

PTZ in an intuitive manner. If you click the
Auto-map popup button in the web viewer, the auto map window will appear as shown in the
picture below.

Complete Creat

>

If you click a point of interested on the map, the
camera will move to make that point be the center
of screen while the zoom ratio is maintained.

If you draw the box by clicking and dragging the
mouse, PTZ will move to match the live video in
your box drawn to viewer screen.

Left click

Draw box

21

3

98

10

5

4

7

6



Auto-map > Preset

Web Viewer Screen -

4

1

2

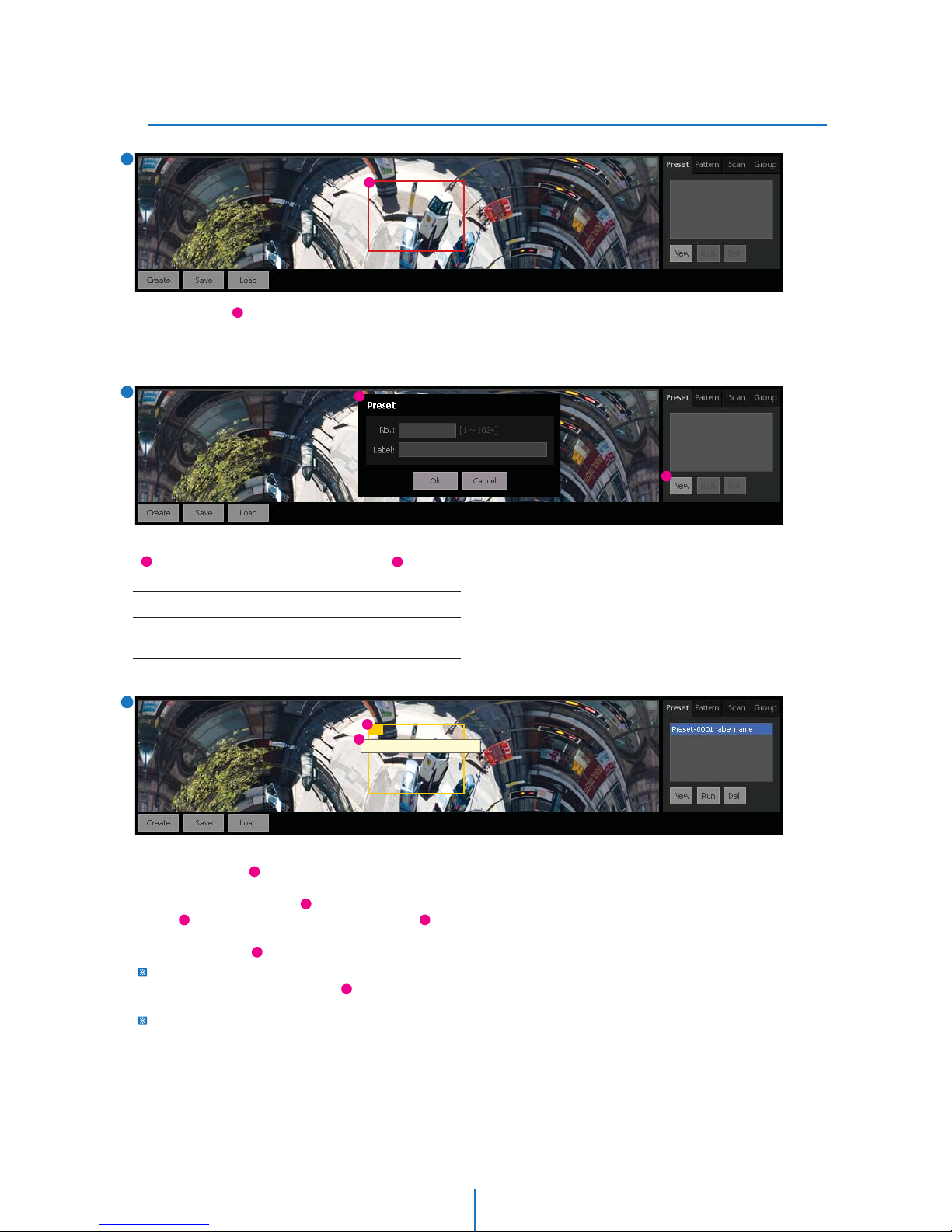

If you draw a box( ) on the map as shown in the picture, the
IP camera will move and change the zoom ratio to obtain
the optimal video matched with the box you just draw.

a

a

3

After drawing box on the map, if you click the ‘New’ button
( ), you will see the Preset Edit Popup Window( ). Input the
preset number and label.

PRESET No.

Label

Max. 9 alphabets/numbers are allowed(Including space).

1 ~ 1024

f

h

g

b

b

c

c

If you define a preset, size of view, location, number and label
of Preset is denoted( ) on the map.

If you click the preset number( ) on yellow box or click ‘Run’
button( ) after you select a Preset in the preset list( ),
camera will move to corresponding preset view. And if you
click the ‘Del’ button( ), the Preset will be erased forever.

Moreover, the detailed information of each Preset i.e. Pan/Tilt
angle and zoom ratio will be displayed( ) if the mouse
approaches to yellow box.
You can simply double click a Preset in the list to move to the
corresponding preset.

1

PAN : 321, TILT : 44.5, ZOOM : 1

d

e

e

f

h

g

d

d



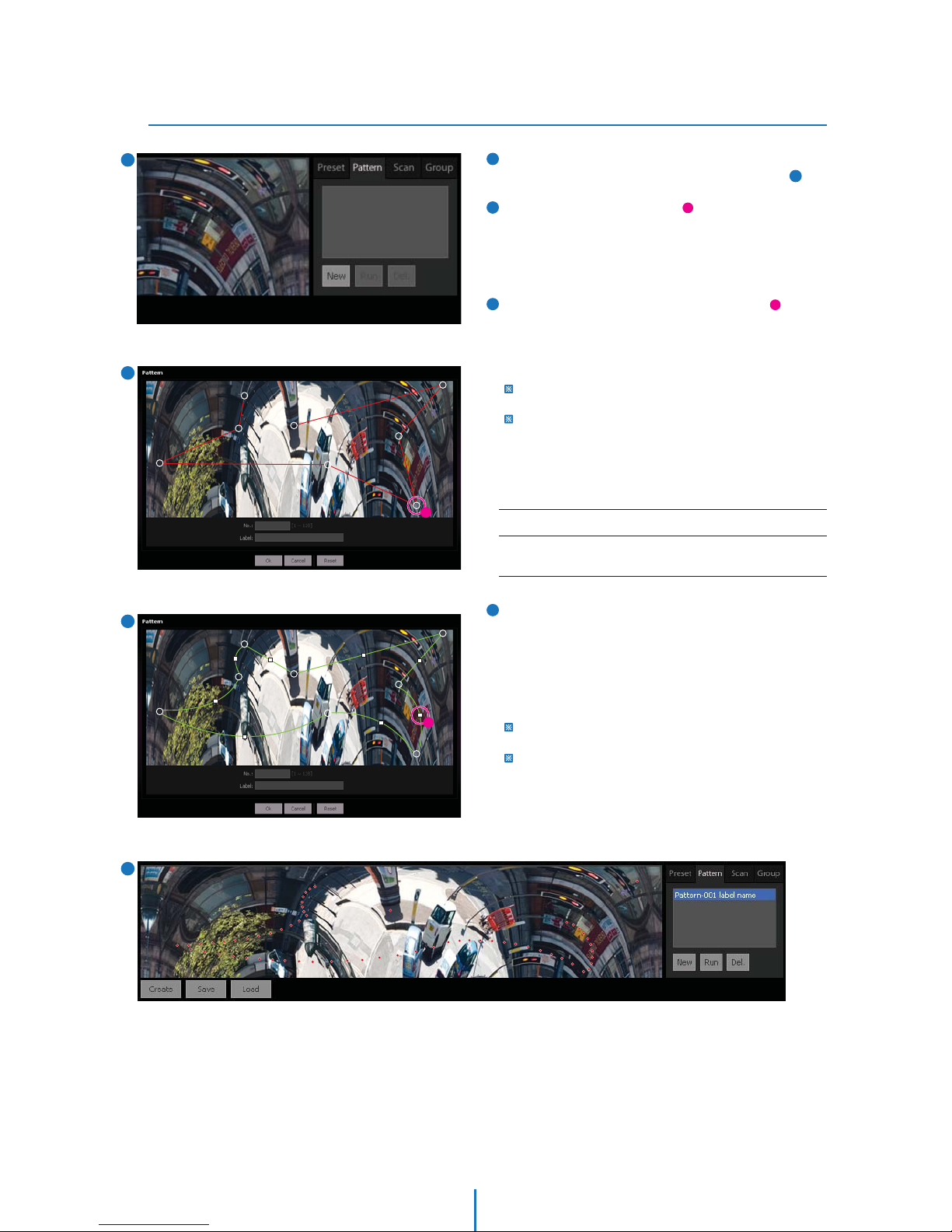

Auto-map > Pattern

Web Viewer Screen -

4

If you click the ‘New’ button, the Pattern Edit Window will
display expanded auto map as shown in the picture( ).

By clicking the desired positions( ) on the map repeatedly,
you can draw a polygon similar to the trajectory of pattern
desired. To close the polygon, please, click the starting point.
It is adviced that even 5~10 points is sufficient to make general
pattern since you can adjust the path in curve editing stage.

The polygon finished is consist of several nodes( ) and
segments. If you drag a node inward or outward, the line
segment can be changed to Curved segments. You can
change the zoom ratio and pan tilt speed for each segments
of trajectory.

To change zoom ratio, right click node and type zoom ratio
desired.
To change the pan tilt speed, right click the grey square on the
segment and select appropriate speed.

If you think the pattern is finished, type the pattern number
and its label. Click the ‘Ok’ button to save this pattern in the
camera.

If you select a pattern in the Pattern List, a series of dots
representing the pattern is displayed. After you select a
Pattern in the list, if you click the ‘Run’ button, the camera
will follow the trajectory of the pattern. The pattern will be
continued repeatedly untill there is the other actions by
operator. After you select a Pattern in the list, if you click the
‘Del’ button, the selected will be erased.

If trajectory is crossing or neighboring nodes are too close,
motion will not work properly.
You can simply double click a pattern in the list to move to the
corresponding pattern.

1

2

3

4

4

1

2

3

2

a

a

b

b

PATTERN No.

Label

Max. 9 alphabets/numbers are allowed(Including space).

1 ~ 128



Auto-map > Scan

Web Viewer Screen -

4

To create a Scan, click the ‘New’ button in the Scan tab.

There must be at least two Presets defined to make a scan.

The Scan Edit Window will be shown as the picture on the
left. Type the Scan number and its label. Assign 1st and 2nd
position of Scan from existing presets in the drop down box.
The Scan speed can be defined in the range of 1~360°/sec.
click the ‘Ok’ button to save this Scan in the camera.

The order of presets assigned in 1st and 2nd position affects the
turning direction as shown below. If the turning direction is
unsatisfactory, please, reverse the order of presets.

You can run this function by ‘Run’ button after selecting a
scan in the list. And if you click the ‘Del’ button after you
select a Scan in the list, the selected will be erased. To edit
the Scan, after select one in the list, click the ‘Edit’ button.

You can simply double click a Scan in the list to move to the
corresponding preset.

1st POS.

1. CW direction

2. CCW direction

2nd POS.

1st POS.

1st ~ 2nd

2nd ~ 1st

2nd POS.

SCAN SETUP

Up to 128 scans are available, which makes the camera to move
slowly between two preset positions.

When scan function runs, the camera moves from the preset
assigned as the 1st pos. to the preset assigned as the 2nd pos.
in CW(Clockwise) direction. Then camera moves from the preset
assigned as the 2nd pos. to the preset assigned as the 1st pos.
in CCW(Counterclockwise) direction. Then, it continues to move
from the 1st pos. to the 2nd pos. back and forth.

If the 1st POS. = the2nd POS.

In case that the preset assigned as the 1st pos. is same as the
preset assigned as the 2nd pos., the camera turns on its axis by
360° in CW direction and then it turns on its axis by 360° in CCW
direction.

1

2

1

3

2

Scan No.

1st / 2nd Position

Max. 9 alphabets/numbers are allowed(Including space).

1st / 2nd Position

Scan Speed

1 ~ 128

1 ~1024

1 ~ 360

°/sec

3



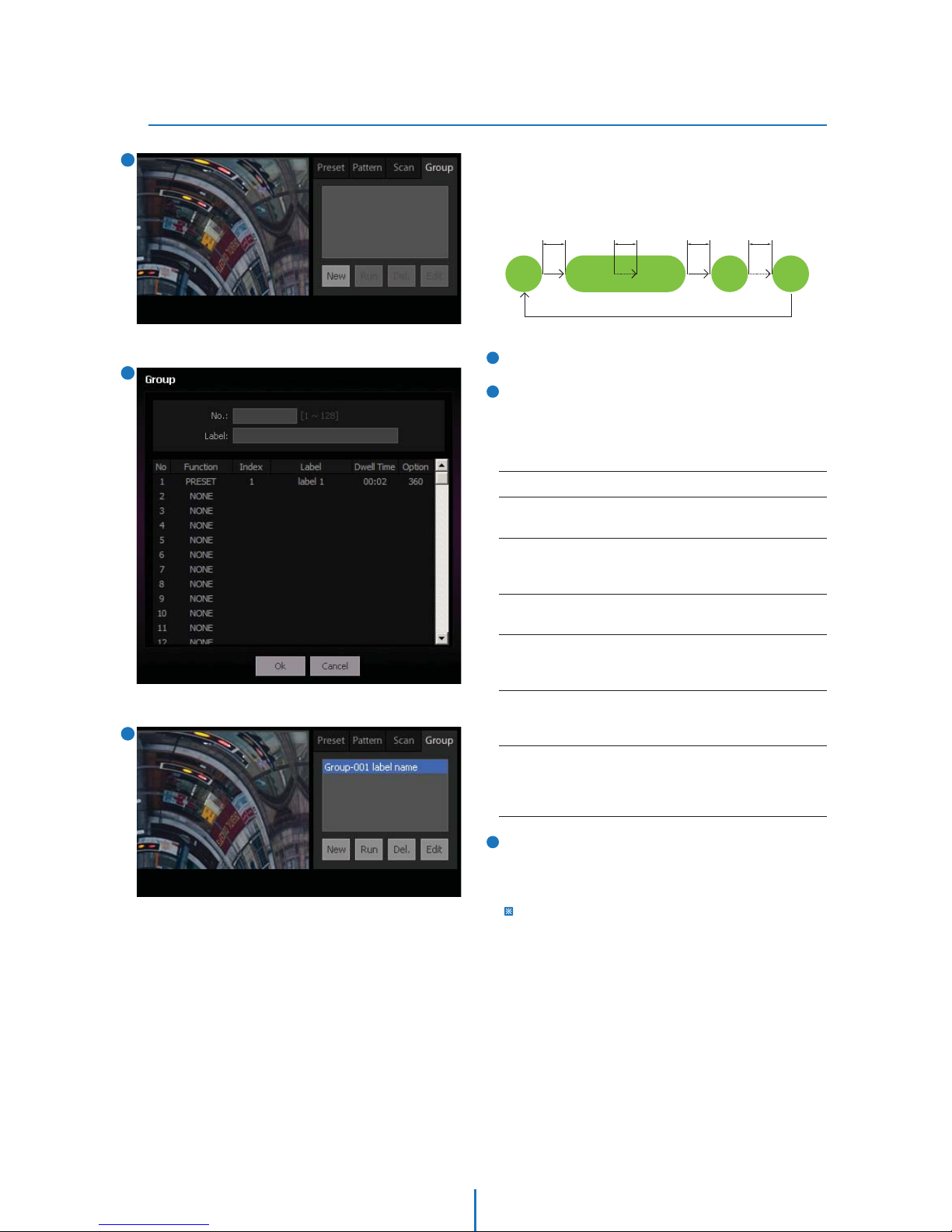

Auto-map > Group

Web Viewer Screen -

4

1

3

2

To create a Group, click the ‘New’ button in the Group tab.

The Group Edit Window will be shown as the picture on the
left. Type the Group number and its label. Assign Function,
Index of Function, Dwell Time, Option in the drop down box.
After you input all items, click the ‘Ok’ button to save this
Group in the camera.

You can run this function by ‘Run’ button after selecting a
group in the list. And if you click the ‘Del’ button after you
select a group in the list, the selected will be erased. To edit
the Group, after select one in the list, click the ‘Edit’ button.

You can simply double click a Group in the list to move to the
corresponding group.

1

3

2

GROUP SETUP

The group function allows running sequence of presets, pattern
and/or scans. Max. 128 group can be stored. Each group can
have max. 20 action entities which can be preset, pattern or scan.

GROUP No.

Label

Max. 10 alphabets/numbers are allowed(Including space).

No

Means the sequence of the function in a group.
The functions will be run from lower no. to higher no. by sequence.

Function

Select the function.

Index

Select the function index number.

Dwell Time

Sets dwell time between function. If the ‘OPT’ of pattern/group is
set to repeat more than twice, it means the repeat interval.

Option

It should be preset speed when preset is set in ‘Function’. It should
be the number of repeat when pattern or scan is selected in
‘Function’.

1 ~ 128

1 ~ 20

NONE / PRESET / PATTERN / SCAN

PRESET 1~1024 / PATTERN 1~128 /
SCAN 1~128

00:02 ~ 04:00 (min:sec)

PRESET: 1~360 / PATTERN & SCAN: 1~255

Dwell Time

Max. 20 Entities

Preset

1

Preset

120

Pattern5

1 Times

Pattern5

n Times

Scan3

1



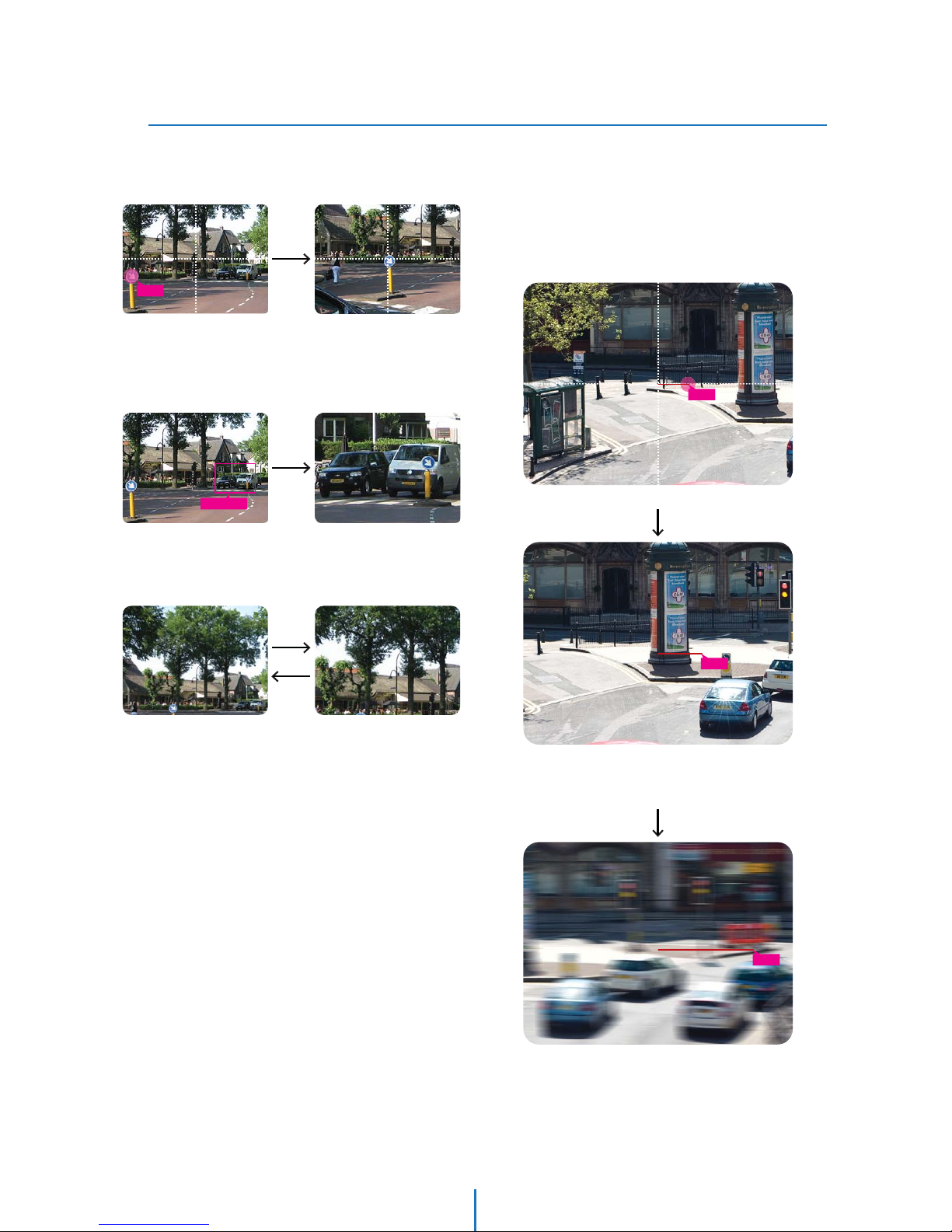

Viewer Interface

Web Viewer Screen -

1. Click & Go

By clicking a target in the main view, the camera will move
to locate the center of the view to the target.

2. Box & Go

By drawing a box on the target in the main view, the camera
will move the camera view to the center of the box and
change the zoom ratio to match the view size with that of
the box surrounding the target.

3. Zoom In/Out by Wheel Mouse

After clicking the screen, if you scroll the mouse wheel toward
the monitor, it result in Zoom out. When scroll reversely,
Zoom in.

1. Right Click & Drag

When you want to move PT as smoothly as real joystick does,
you can use virtual joystick function using the mouse in the
full screen mode.

2. Zoom In/Out by Wheel Mouse

Same as left 3.

Click!

Draw a box

4

Push

the

mouse

wheel

Pull
the

mouse

wheel

If you right click a position on a screen, red line is displayed.

If you drag the mouse to the desired direction while clicky
the right button of the mouse, the view will follow your
direction by moving the camera while a red line from the
center shows direction and speed.

If you drag further, the PT speed will be increased as red
line becomes longer.

Drag

Drag further

Since in the full screen mode, all GUIs are hidden, you can
control PTZ using powerful virtual joystick functions instead.
This functions can be used simultaneously.

Click!

Drag!

Drag!



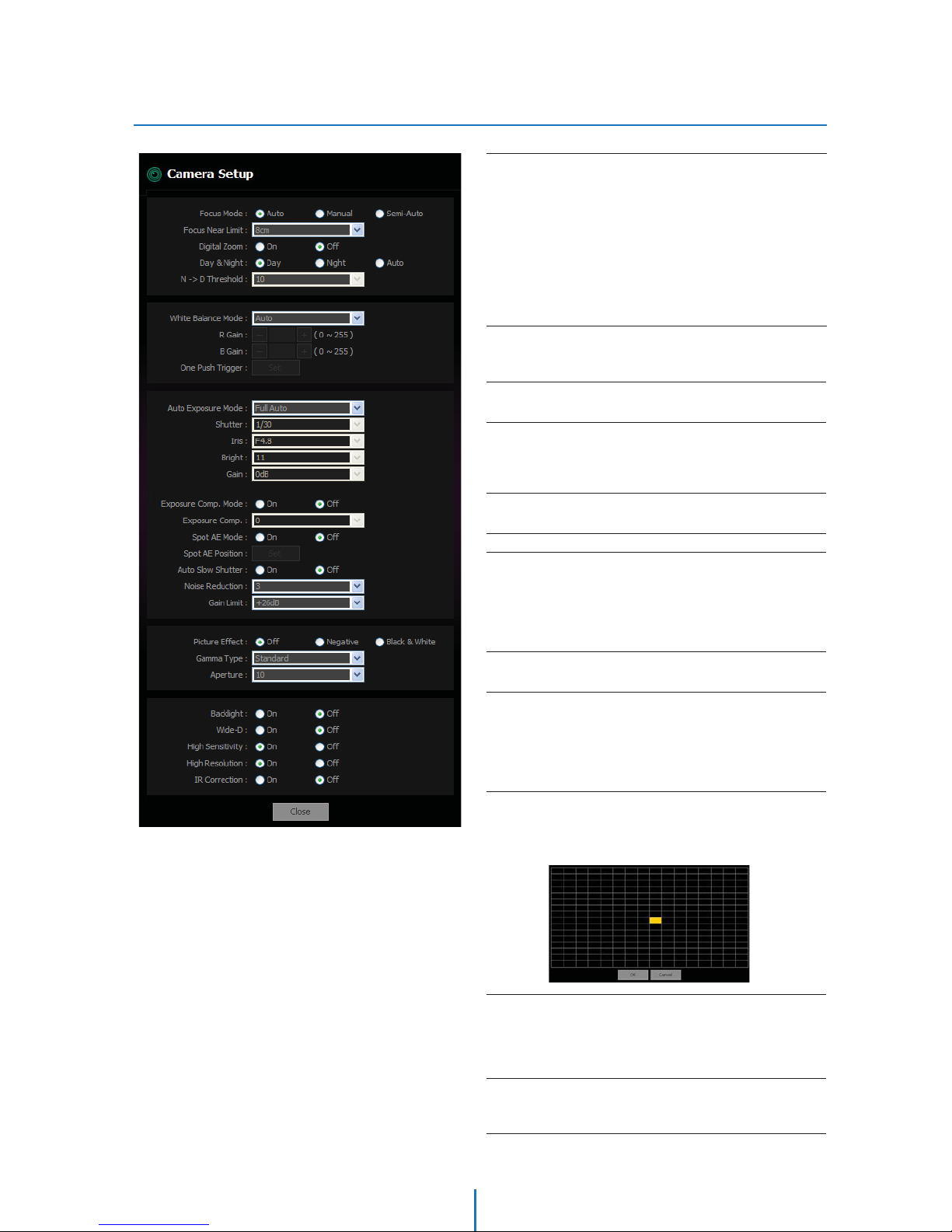

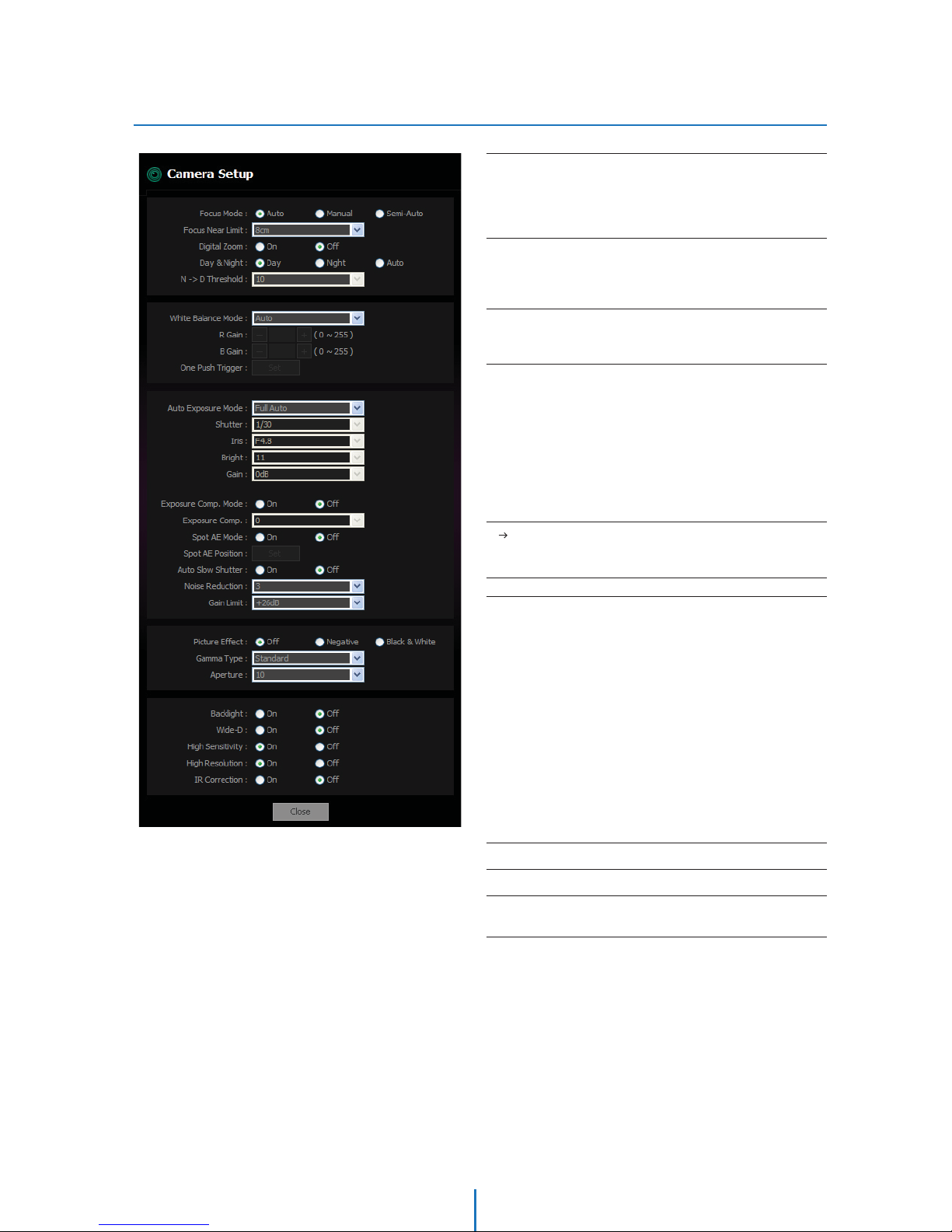

Lens / White Balance Setup

5

Camera Setup -

Focus Mode

In the auto focus mode, the focus adjustments is done automatically
no matter scene or zoom are changed. In the manual mode, you have
to adjust focus whenever it is required. In the Semi-Auto mode, lens
will control the Focus automatically after PTZ control.

Focus Near Limit

It defines the distance to ignore objects in auto focusing. For instance,
if you define it 4.9m, any object within this range will not be counted
in the auto focus mode.

Digital Zoom

Those who think image using digital zoom does not meet their
standards need to turn this Off.

Day & Night
Day: In this mode, the IR cut filter is applied to the image sensor

all the time. Thus, the sensitivity will be reduced in the dark light
condition but the better color reproduction performance are
obtained.
Night: In this mode, the IR cut filter on the image sensor is removed
all the time. The sensitivity will be enhanced in the dark light
condition

but the image is black and white.
Auto: In this mode, the IR cut filter is removed automatically
depending on the light condition around.

N D Threshold

It is a theshold value to change Night mode into Day mode when
Day & Night mode is Auto.

Auto / Manual / Semi-Auto

1Cm ~ 25m (14 Steps, Default 30Cm)

On / Off

Day / Night / Auto

0 ~ 28 (29 Steps, Default 10)

WB Mode

Auto: The camera performs white balance automatically.
Indoor: WB will be done under the assumption of the Indoor

illumination.

Outdoor: WB will be done under the assumption of the Sun light.
One-Push Mode: WB is executed once on the scene you designated.

To do this, click the ‘Set’ button in One push Trigger.

Manual: The R/B gain level can be set up manually.
ATW: Auto Tracking White balance (2000 to 10000K)
Outdoor Auto: 5800K Base Mode
Sodium Lamp Auto: This is an auto white balance mode that is

compatible with sodium vapor lamps.
Sodium Lamp: This is a fixed white balance mode specifically for
sodium vapor lamps.

R Gain

B Gain

One Push Trigger

Click the ‘Set’ to apply One-Push WB with the current scene.

Auto / Indoor / Outdoor / One- Push Mode
/ Manual / ATW / Outdoor Auto
/ Sodium Lamp Auto / Sodium Lamp

0 ~ 255

0 ~ 255



Lens / White Balance Setup

5

Camera Setup -

Shutter

The slower the shutter setting, the brighter the image is. However, the
haunting can happen on the image when the object is moving fast.

Iris

The smaller number makes the brighter image.

Bright

F1.8/28dB means Iris and gain respectively. The later number in the
list makes the brighter image.

Gain

The smaller number makes the daker image.

1/2 ~ 1/10,000 (21 Steps, Default 1/30)

F1.8 ~ F14 / Close (14 Steps, Default F1.8)

0 (IRIS:CLOSE, GAIN:0dB)
~ 31 (IRIS:F1.6, GAIN:+28dB) (28 Steps, Default 17)

28dB ~ -3dB (16 Steps, Default 0)

Exposure Comp. Mode

In this mode, the internal brightness reference value can be shifted.
As a result, all exposure results are done automatically showing
different results. When AE mode is ‘Manual, Bright’, On/Off setup is
unavailable. (When AE mode is changed, Exposure Comp. Mode will
be disabled or Enabled automatically.)

Exposure Comp.

Spot AE Mode

In this mode, you can designate a particular spot in the image to be
weighted higher than other portions in the exposure calculations.
When AE mode is ‘Manual, Bright’, On/Off setup is unavailable.
(When AE mode is changed, Spot AE Mode will be disabled or Enabled
automatically.)

Spot AE Position

By clicking the ‘Set’ button, you can designate a spot in 16x16 black
blogs in a small screen. The screen is equivalent to the view of live
video. By clicking a block, a spot can be selected.

Noise Reduction

This function removes noise that appears based on the setting of
Gainto provide clearer live video. Higher setting value will increase
the effect of noise reduction. In bright conditions, changing the this
function will not have an effect.

Gain Limit

This function enables users to set the maximum limitation of gain to
get clear live video in low-light condition.

On/ Off

7 (GAIN:-10.5dB) ~ +7 (GAIN:+10.5dB)
(15 Steps, Default 0)

On / Off

Off / 1 / 2 / 3 / 4 / 5 (Default 3)

+6dB ~ +28dB (12 Steps, Default 14dB)

AE Mode

Full Auto: The camera adjust the exposure by itself automatically.
Manual: Triple factors i.e. Shutter speed, Iris, Gain can be adjusted by

users according to their preference.
Shutter Priority: The shutter speed can be selected by the user while
iris and gain are controlled by camera automatically.
Iris Priority: Iris can be selected by users while the shutter speed and
gain are controlled by camera automatically.
Bright: Iris and gain can be selected in terms of brightness while the
shutter speed is automatically controlled.

Full Auto / Manual / Shutter Priority / Iris Rriority
/ Bright



Lens / White Balance Setup

5

Camera Setup -

Picture Effect

Gamma Type

Gamma correction can be changed in this mode.

Aperture

Aperture Control is a function which adjusts the enhancement of
the edges of objects in live video.

Off / Negative / Black & White

Standard / Gamma 1 / S-Curve Low
/ S-Curve Middle / S-Curve High
(Default: Standard)

0 ~ 15 (16 Steps, Default 10)

On / Off

On / Off

On / Off

On / Off

On / Off

Backlight

When the background is too bright or the object is too dark, the
backlight compensation will make the target object look clearer.
Backlight setup is available when AE Mode is Full Auto.

Wide-D(WDR)

This function is intended to provide clear live image even under back
light circumstances when there are both very bright and very dark
areas simultaneously in live video.

High Sensitivity

In this mode, sensitivity of image sense will be increased so that you
can get clearer images in low-light condition.

High Resolution

This mode enhances edges and produces higher definition images.

IR Correction

This function will control the focus error that can be made by ICR.



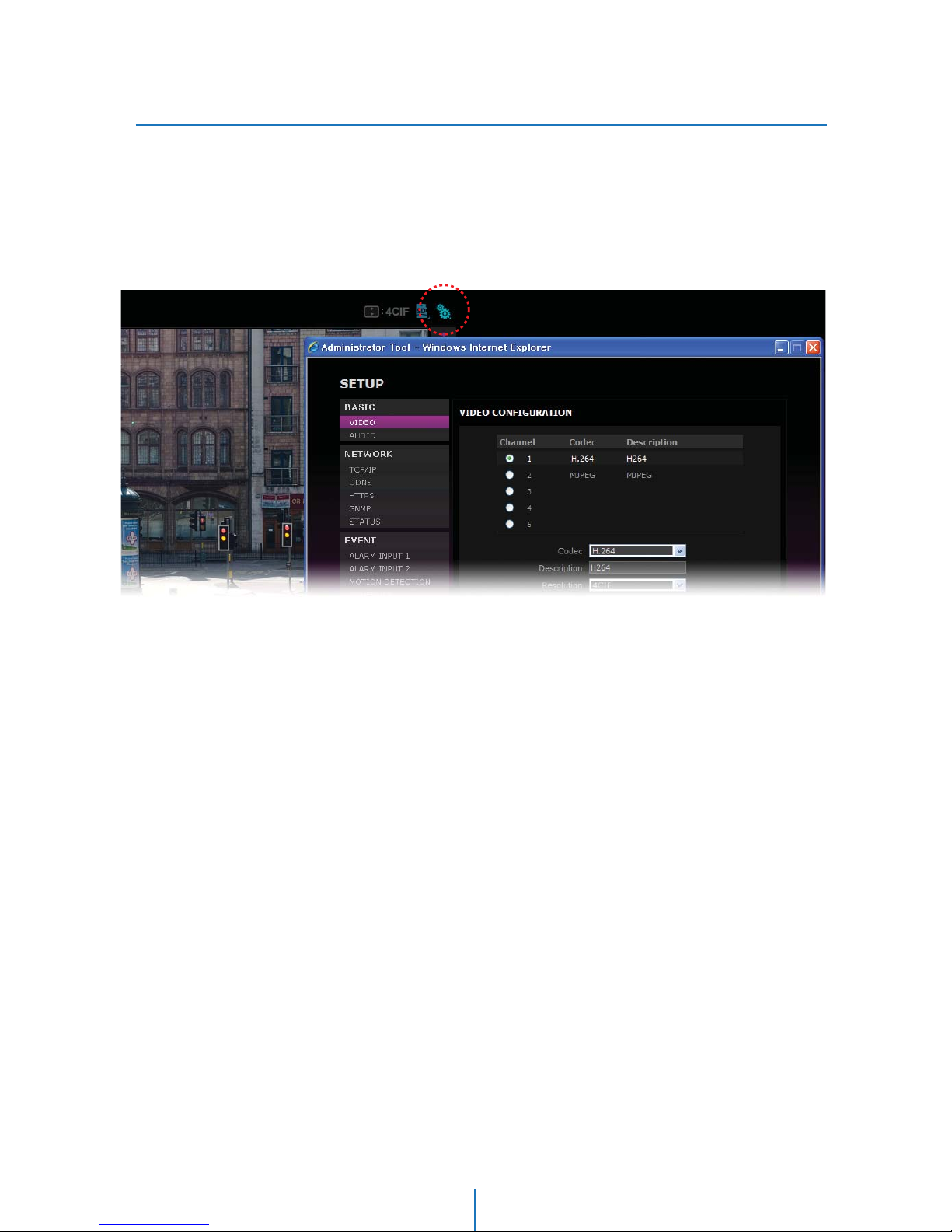

Setup Screen

Setup -

6

This section is provided to familiarize the user with the setup. Intuitive options are not explained in detail.

All the changes on Setup take the effect immediately. These settings will be global, affecting the view of all users currently
logged on. However, OSD items changed are effective only after you refresh the viewer windows or restart the internet Explorer.

All settings are always saved in the video server even when you close the viewer program or you turn off the Power of the video
server. If you lost your password, you must press the reset button to return all setting to its factory defaults.

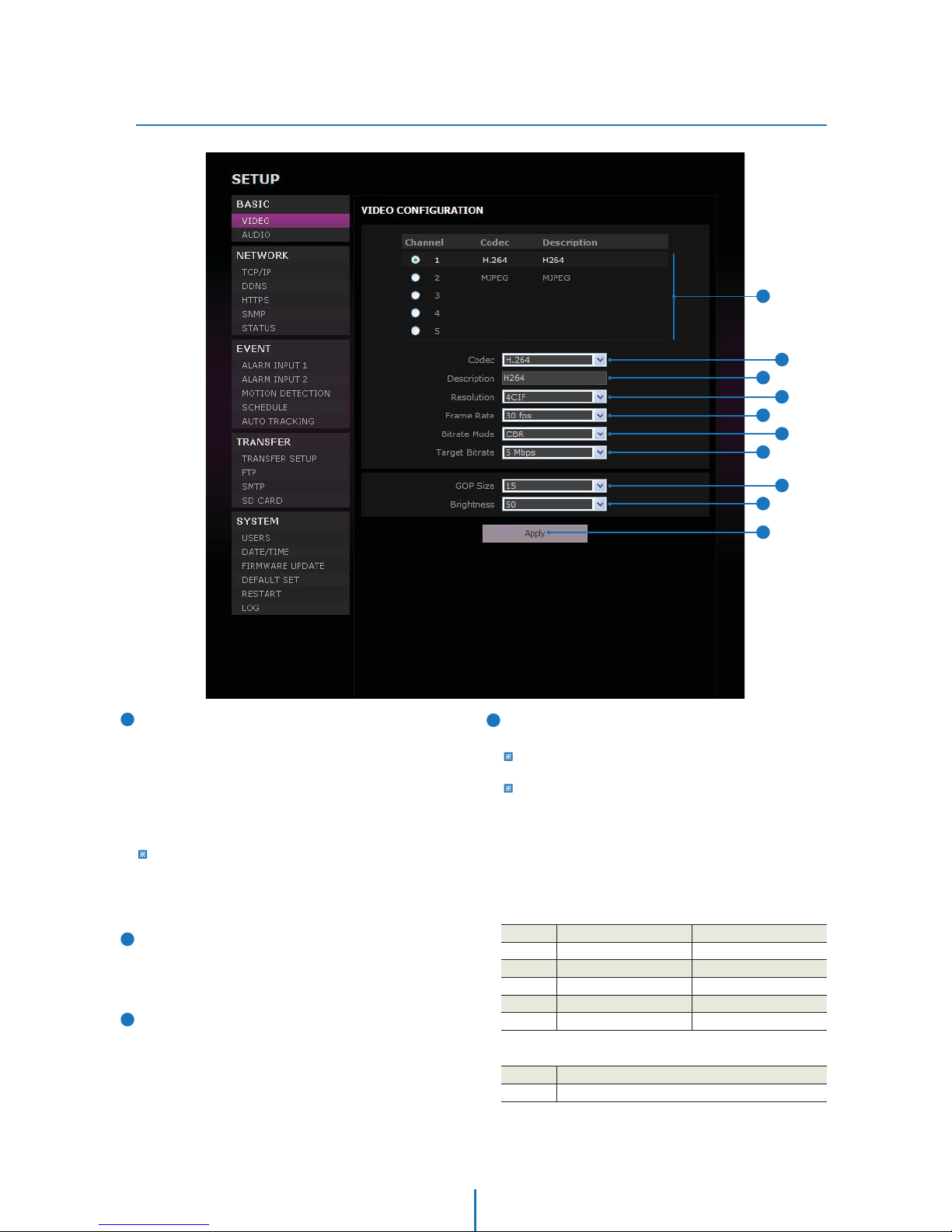

Video Setup

Setup -

6

Resolution

Select the resolution between 1080p, 720p, D1, CIF, QCIF.

Available resolution can be depends on the codec setup between
the channels.

Below are the restriction when setup the resolution as the 1080p.

- Only CH No. 1 can be setup.

- CH No.4 /5 can't be setup.

- In case you assign 1080p 15 frame to No.1 channel for video
setup, if you want to keep the good quality of image, you
should use only up to channel No.2.

- CH No. 1, 1080p is selectable among 1, 5, 10, 15 fps and others
should not have higher frame than set at 1080p.
Ex) If CH No. 1 set up of 1080p as 10 fps, CH No. 2 and NO. 3 is
only selectable among 1, 5, 10 fps.

<Resolution of Video Format>

<Support Resolution of Codec>

Codec

Choose the video compression method preferred between
H.264, MJPEG. According to the selected codec, the
subcategories can be changed automatically.

Description

Input the additional description about the selected channel.
Max. 15 alphabets are allowed(Including space). For the
description, English Alphabets, numbers and special
characters ( / ~ ` ! @ $ ^ ( ) _ - { } [ ] ; , ) can be used.

3

2

4

Live Video Channel Setup

Setup the multiple codec and Video according to the
environment of installed camera. Using selected channel
on the ‘Web-Viewer > PTZ Control > Video Format’.
CH No.1 and No.2 are the default CH, so they can't be
changed. However, detailed category of default codec can
be setup. CH No.3,4,5 are the user channel, and codec and
detailed category of codec can be setup.

If CH No.1, 2 and some of channel are setup to High Performance
(High Resolution and Frame Rate), remainder of channels can not
be setup. Also, when the CH No.4,5 are already setup, there can
be some restriction of setting up the resolution and fps when you
try to setup the detailed category of remained channel.

1080p

720p

D1

CIF

QCIF

PAL

1920 x 1080

1280 x 720

720 x 576
352 x 288
176 x 220

1



NTSC

1920 x 1080

1280 x 720

720 x 480
352 x 240
176 x 144

H.264

MJPEG

1080p, 720p, D1, CIF
720p, D1, CIF, QCIF

1

2

3

4

8

7

6

5

10

9

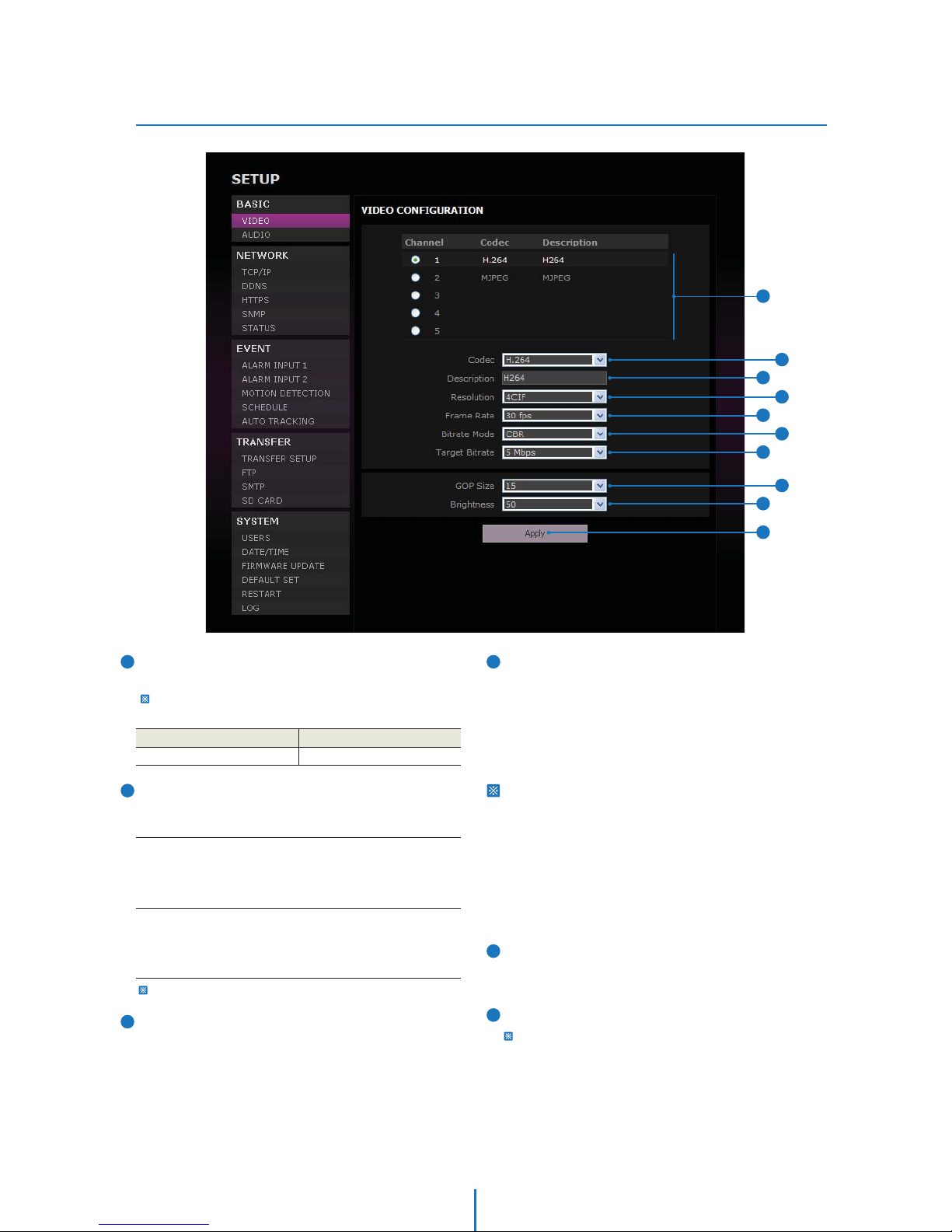

Video Setup

Setup -

6



1

2

3

4

7

6

5

8

10

9

6

7

CBR

To guarantee the designated constant bit rate, the quality of video
are controlled in this mode. Therefore, the quality of video is likely
to be varying when network traffic is changing.

VBR

To guarantee the designated quality, the bit rate of video stream
is changed in this mode. Therefore, the frame rate of video is likely
to be varying when network traffic is changing

Bitrate Mode

Select the bit rate control scheme of video compression
from CBR (Constant Bit Rate) or VBR (Variable Bit Rate).

This category won't be appear if you select the codec.

Target Bitrate

If Bitrate Control is set to be CBR, you can set the Target
Bitrate by 5 steps from 1Mbps to 5Mbps.

............................................................................................................

Quality

For VBR control mode, The Target Quality of video can be
setup from 1~5. Value 1 is the best quality while 5 is the
normal quality.

8

9

GOP(Group of Pictures) Size

Set up the number of frames (P-frame) which contain only
changed information based on basic frame (I-frame).
Regarding videos with lots of movement, if you set GOP size
bigger, only the number of P-frames is bigger. As a result,
video resolution will be low but ‘File size’ and ‘Bit-rate can
be decreased.

GOP(Group of Pictures) Size is..

I-frame and P-frame can be created for MPEG4 and H.264
video compression. I-frame(=key-frame) means the whole
image data for one specific scene of video. P-frame is image
data which has been changed information compared to
I-frame GOP is made up of one I-frame and corresponding
several P-frames. To improve video quality, set the number
of P-frames smaller and to decrease image size, set the
number of P-frames bigger.

Brightness

Adjust the brightness of image. The range of brightness is
1 ~ 30. The max. value of brightness is 30.

Click ‘Apply’ to make above setting effective.

Click this button when completed setup each channels.

10

5

Frame Rate

Select the maximum Frame Rate.

Available Frame Rate can be different although same codecs
were set up.

NTSC PAL

30 / 25 / 20 / 15 / 10 / 5 / 1 25 / 20 / 15 / 10 / 5 / 1



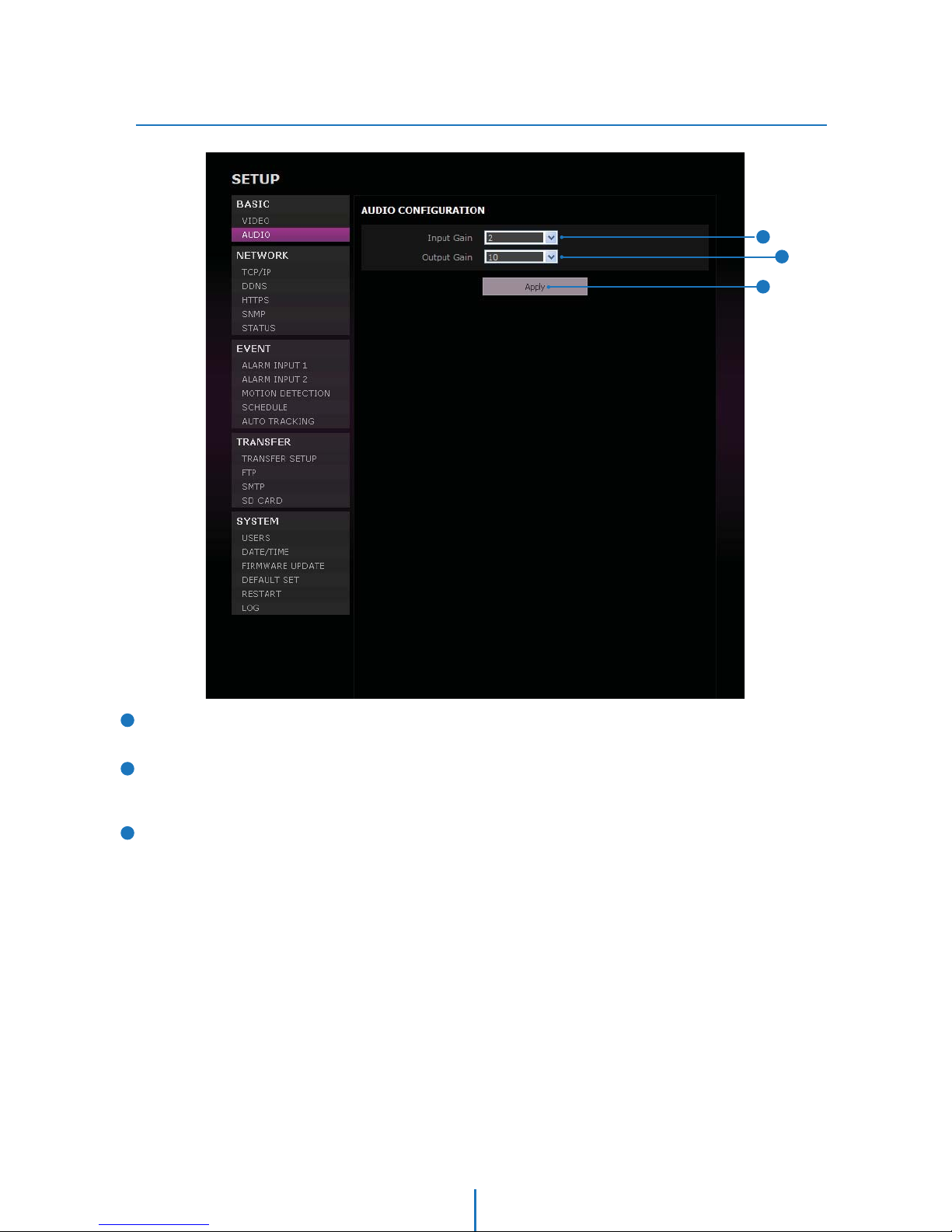

Audio Setup

Setup -

6

Input Gain

Adjust the input gain of audio 1 ~ 4.

Output Gain

Adjust the output gain of audio 0 ~ 10. Output gain 0 is
mute.

Click ‘Apply’ to make above setting effective.

1

2

3

1

2

3

TCP/IP Setup

Setup -

6

Network Type

Define network IP address type from the Static Mode for the
fixed IP or the Dynamic Mode by the dynamic IP address.
If you select the Static Mode, you must fill out IP Address,
Subnet Mask, Gateway, DNS Server and all ports. If you
select the Dynamic Mode, the IP address will be allocated
automatically by DHCP equipment. If you click the Apply
button to update changes, the system will be re-booted.
In this case, you have to reconnect the camera using new IP
address.

IP Address

Define the IP address. The address is consisted of four
numbers separated by dots and the range of each number
is from 0 to 255.

Subnet Mask

Define the Subnet Mask. Format is same as the IP address.

Default Gateway

Default the Gateway IP Address. Format is same as the IP
address.

1

2

4

5

6

Preferred DNS Server

Define the DNS server IP address. Format is same as the IP
address.

Port

There are five ports in the camera providing different
services. To get those services separately, unique port
number must be assigned to each servers.

Click ‘Apply’ to make above setting effective.

If the network type is dynamic, the IP address is changed in
below cases. Therefore, the IP address needs to be searched
again, and the camera needs to be reconnected in these
cases.

- When the camera power is on/off.

- After Firmware update, Default set and reboot.

7

3

1

2

3

4

7

6

5





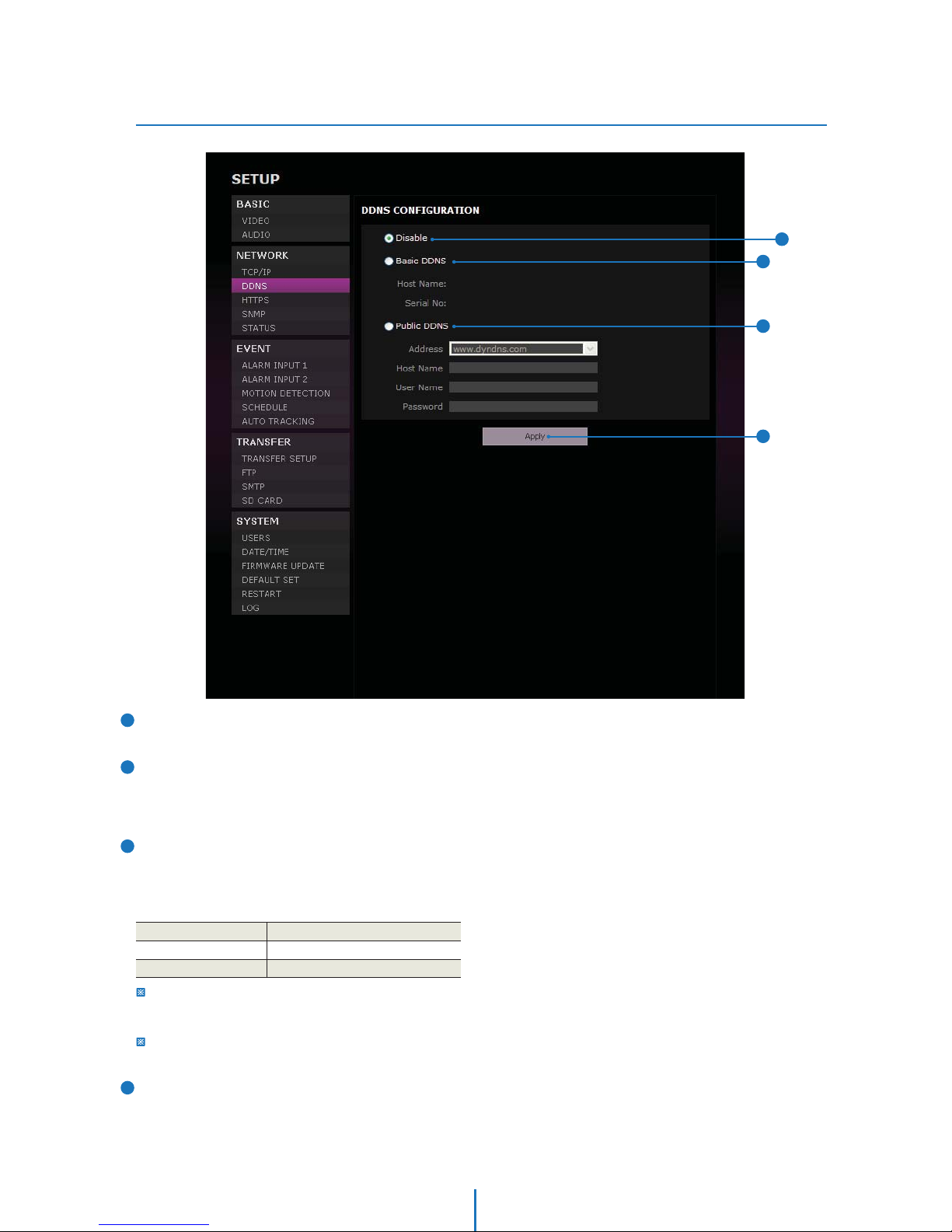

DDNS Setup

Setup -

6

1

2

DDNS Disable

If it is selected, DDNS service does not work.

Basic DDNS

Please register the camera in net4c site so as to use net4c
DDNS. Insert the serial number shown on the screen in the
serial entry field.

Public DDNS

To use public DDNS service, select a site address listed in the
list. After filling out the Host Name of the site, the setup is
completed by entering User Name and Password registered
in that DDNS site.

1

2

3

DDNS Provider Site Address

DynDNS

No-IP

www.dyndns.com

www.no-ip.com

4

3

If you setup DDNS properly, the IP address of your camera will be
updated automatically whenever IP address is changed or system
is rebooted.

If IP updating to DDNS site is failed, camera will keep retrying in
1min. interval.

Click ‘Apply’ to make above setting effective.

4



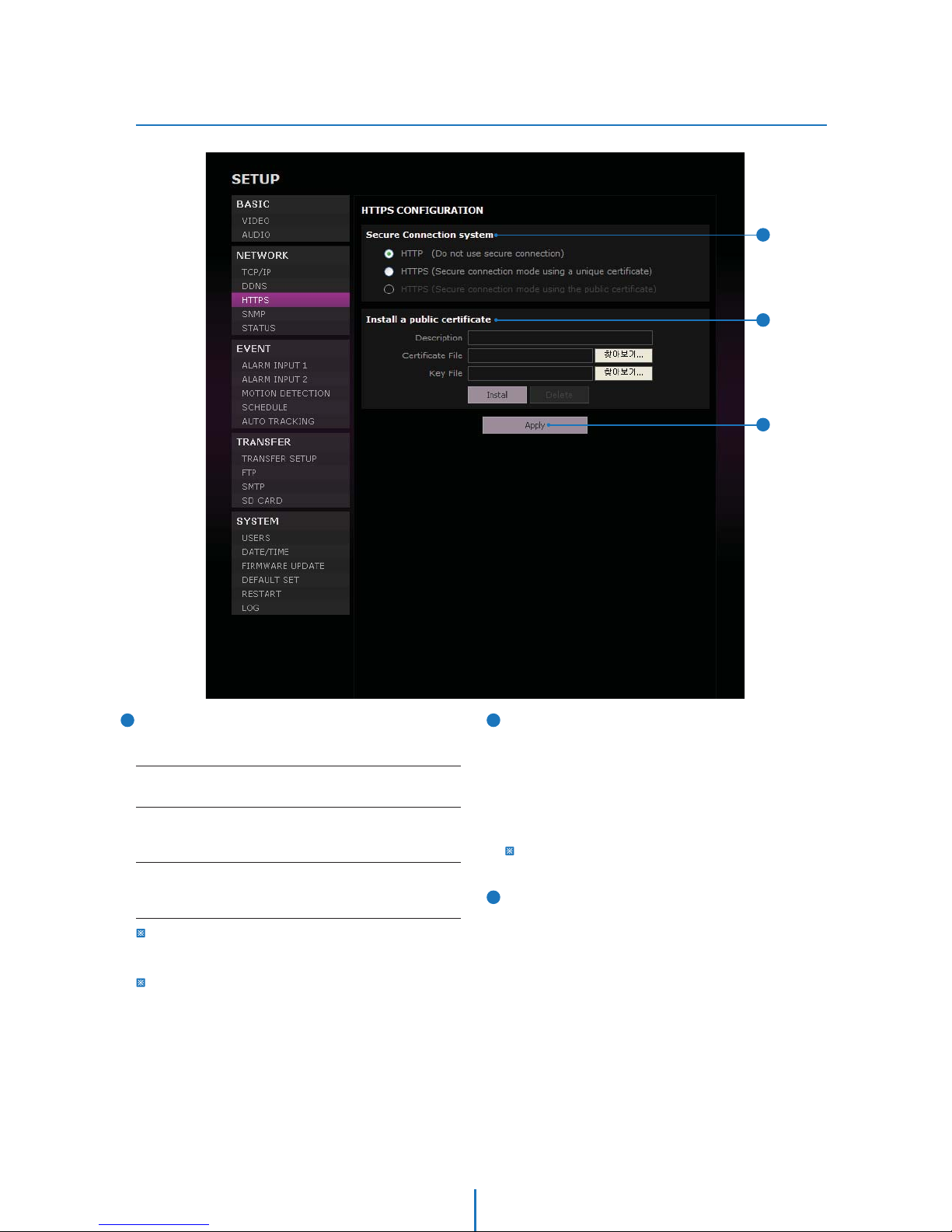

HTTPS Setup

Setup -

6

Secure Connection System

Secure Connection System chooses a method of security
connection.

HTTPS (Secure connection mode using the public certificate)
method can be selected only if a certificate has been already
installed.

When HTTPS mode is chosen, input https://<IP Address> to
connect to the camera.

1

2

3

Install a public certificate

A certificate issued by Certificate Authority can be installed
to the camera and the installed certificate can be deleted.

<How to install or delete the certificate>

1) Input the description(name) of a certificate.

2) Click ‘Install’ button after selecting the certificate files and
key file to be installed.

3) To remove the certificate files, click ‘Delete’ button.
While using HTTPS (Secure connection mode using the public

certificate) method, the certificate cannot be deleted.

Click ‘Apply’ to make above setting effective.

HTTP

HTTP mode does not use a security connection method.

HTTPS (Secure connection mode using a unique certicate)

This mode is a security connection method which uses the
(temporary) certicate in the camera.

HTTPS (Secure connection mode using the public certicate)

This mode is a security connection method which uses a certicate
issued by certicate authority.

1

2

3



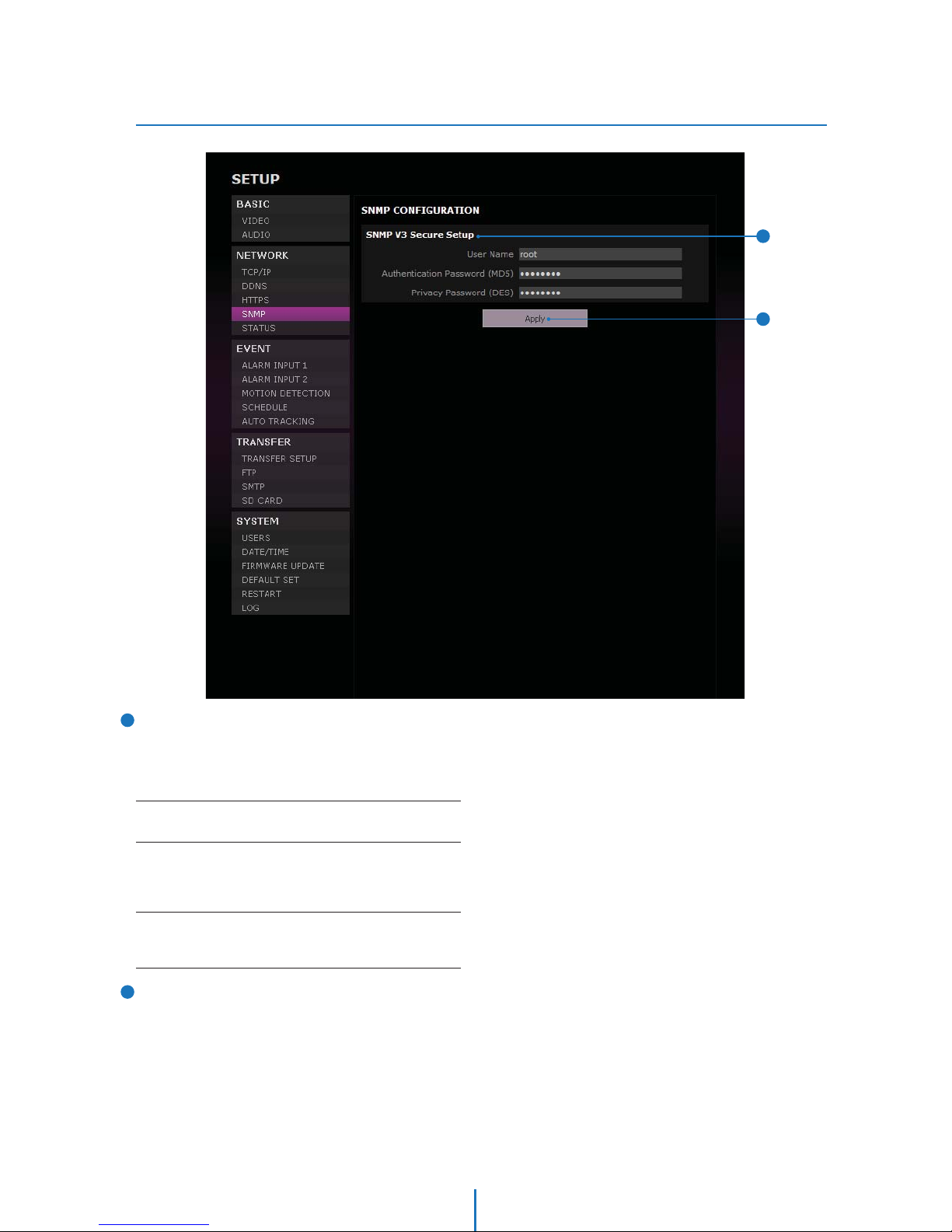

SNMP Setup

Setup -

6

1

2

SNMP V3 Secure Setup

- The information of camera system can be known and
configured with SNMP.

- The changes for configuration use version 3 and username
and password should be certified at that time.

1

2

Click ‘Apply’ to make above setting effective.

Username

Username is the information of user account for user authentication.

Authentication Password(MD5)

The Authentication Password (MD5) is an encryption for
authentication and they are at least 8 digits and up to 30 digits
allowed.

Privacy Password(DES)

Information protection password is a private encryption and they
are at least 8 digits and up to 30 digits allowed.



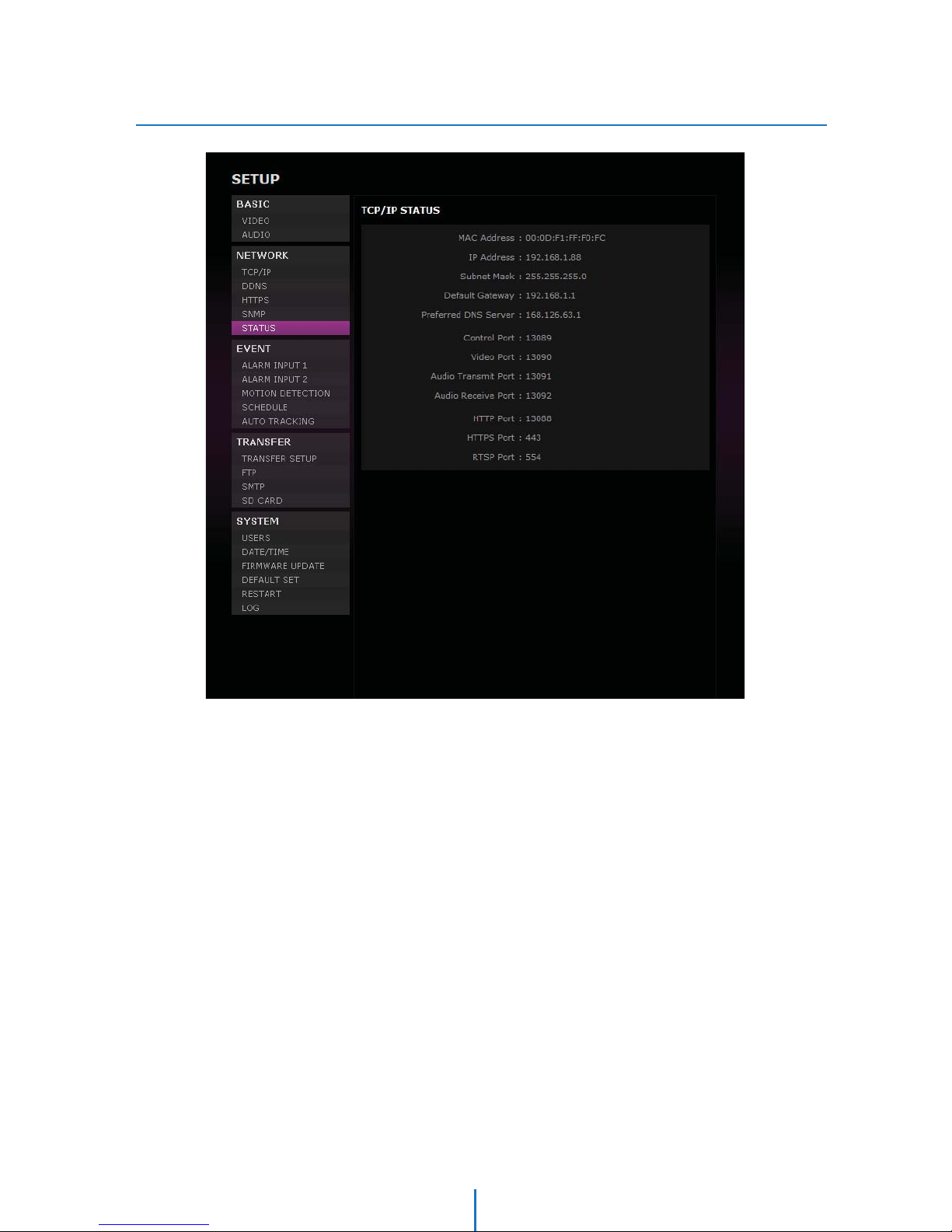

Status

Setup -

6

This menu will show you all the information of Network setting in the camera. However, you cannot change those here.



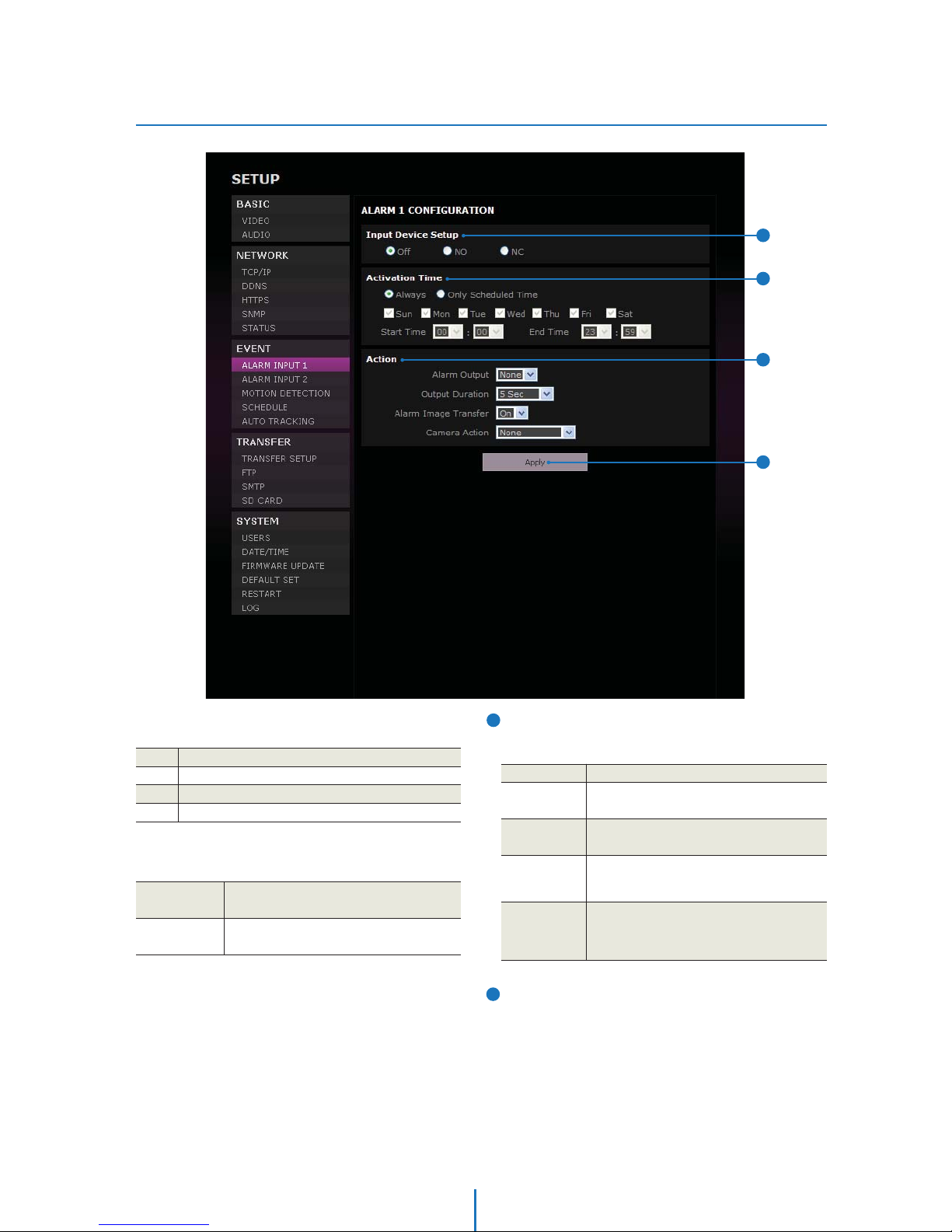

Alarm Input 1 Setup

Setup -

6

Input Device Setup

Select input device type from OFF / N.O. / N.C.

Activation Time

Select activation time from Always / Only Scheduled Time.

DescriptionAction

Alarm Output

Output

Duration

Alarm Image

Transfer

Activate alarm out (relay). None or 1.

Select time duration to maintain output form
3 / 5 / 10 / 20 / 30 sec. or Continue

Turn ON / OFF Image Transfer. Send image via
E-mail or FTP server. (For more detail see
Transfer Setup in this chapter)

Camera

Action

Setup the Camera Action when Alarm in.
Select among the None / Preset(1 ~ 255)
/ Scan(1 ~ 8) / Pattern(1 ~ 4) / Group(1 ~ 8)
/ Home Position.

4

Action

Define a counter action from Alarm Output / Alarm Image
Transfer / Camera Action when Alarm Input is detected.

Click ‘Apply’ to make above setting effective.

3

Operation

O

NO

NC

Ignore this Input sensor.
The contact is normally open and closed when activated.
The contact is normally closed and open when activated.

Always

Only

Scheduled Time

An alarm event is activated whenever sensor
Input is detected.

An alarm event is activated only when sensor
input is detected during the scheduled time.

To setup the schedule, you need to define Start time and End time
followed by selecting Days.

If End time is earlier than Start time, End time is regarded as next
day.
Ex) Assume you select Tue. If you set Start time as 16:00 and End
Time as 09:00, Alarm Input will work from 4:00pm Tue to
9:00am Wed.

1

2

3

4



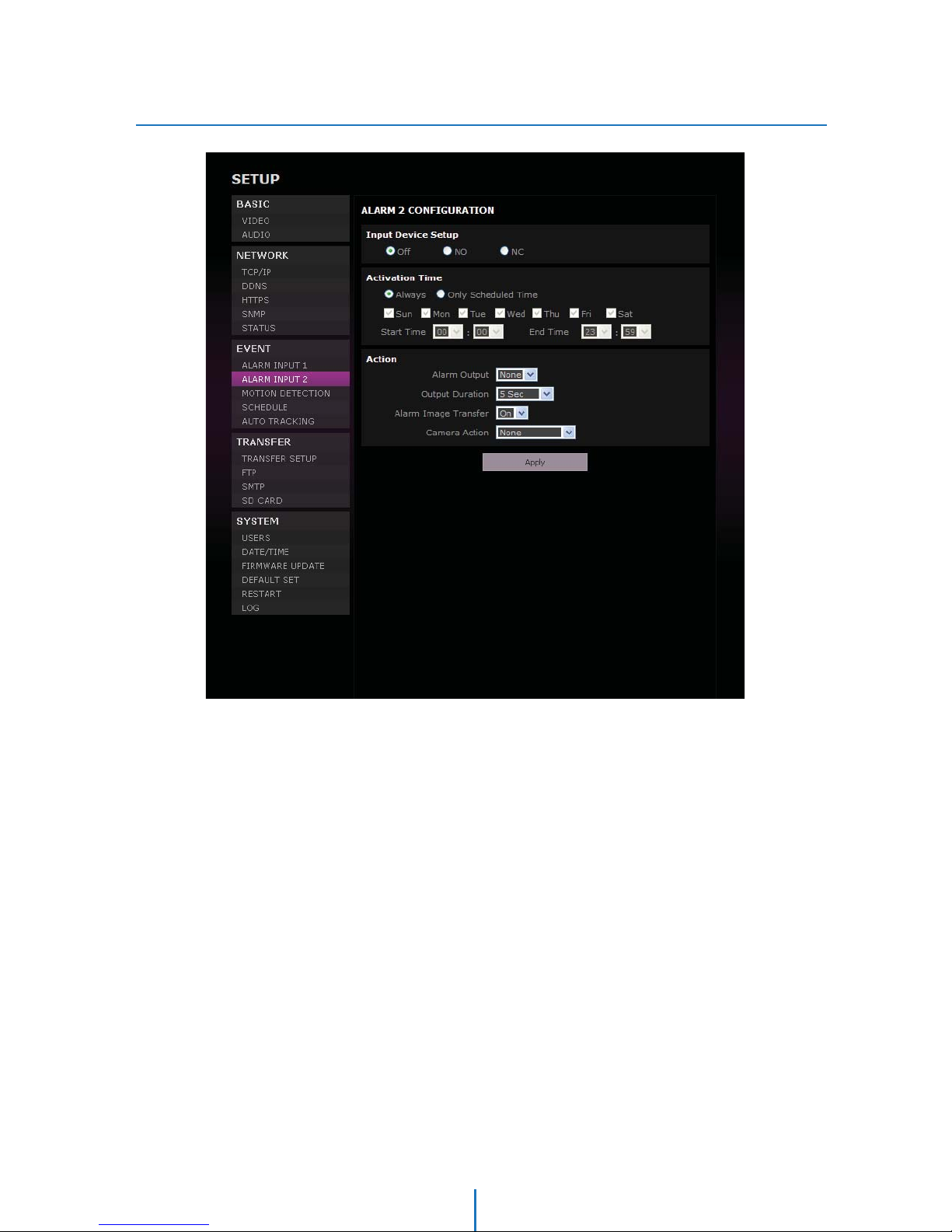

Alarm Input 2 Setup

Setup -

6

You can setup the 2 type of Alarm Input.



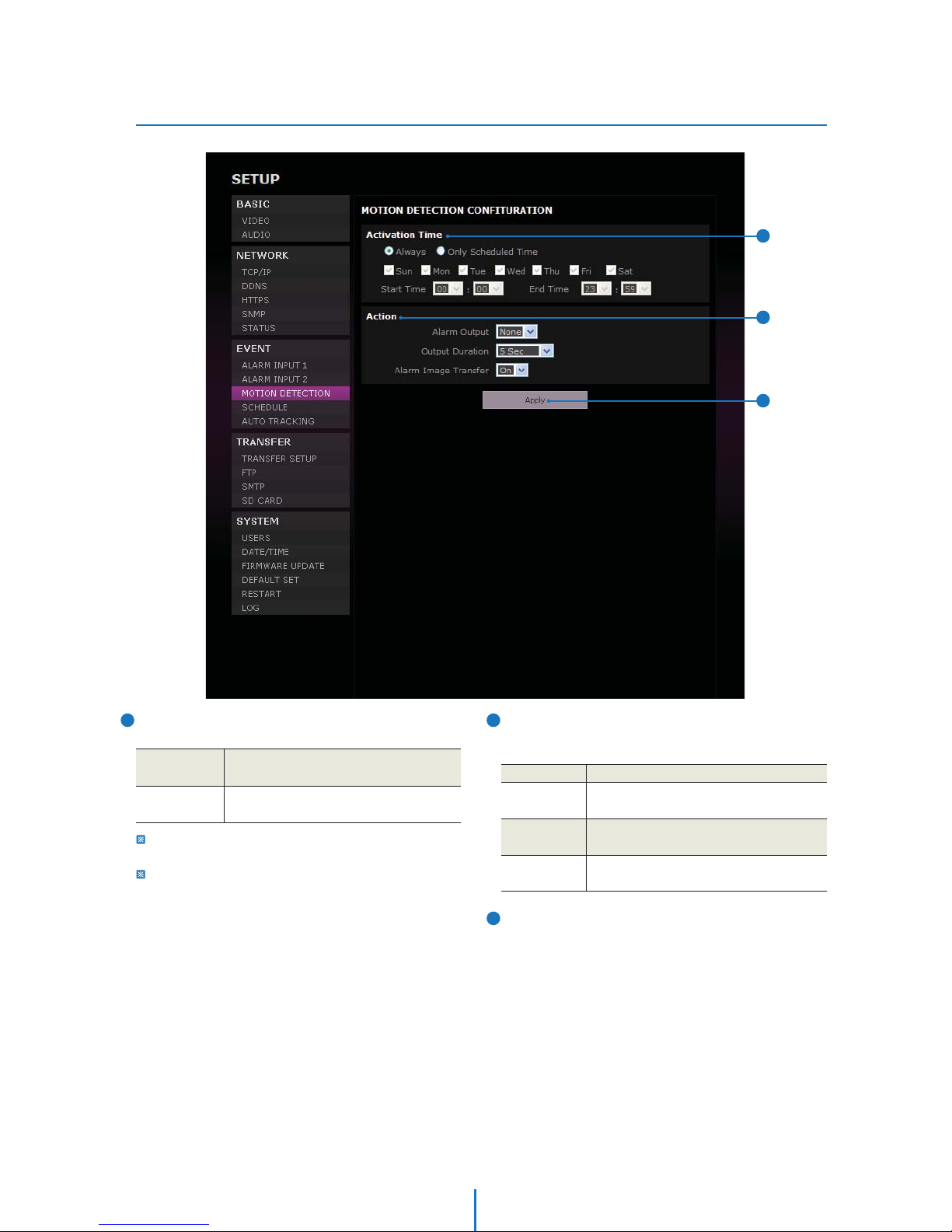

Motion Detection Setup

Setup -

6

3

1

2

Activation Time

Select activation time from Always / Only Scheduled Time.

DescriptionAction

Alarm Out

Output

Duration

Alarm Image

Transfer

Activate alarm out (relay). None or 1.

Select time duration to maintain output form
3 / 5 / 10 / 20 / 30 sec. or Continue.

Send image to E-mail or FTP server
Select from ON / OFF ( see ‘Transfer Setup’ Menu)

1

2

Action

Define a counter action from Alarm Output / Alarm Image
transfer when motion is detected.

Click ‘Apply’ to make above setting effective.

3

Always

Only

Scheduled Time

An alarm is activated whenever motion is
detected.

An alarm event is activated only when motion
is detected during the scheduled time.

To setup schedule, you need to define Start time and End time
followed by selecting Days.

If End time is earlier than Start time, End time is regarded as next
day.
Ex) Assume you select Tue. If you set Start time as 16:00 and End
Time as 09:00, Alarm Input will work from 4:00pm Tue to
9:00 am Wed.



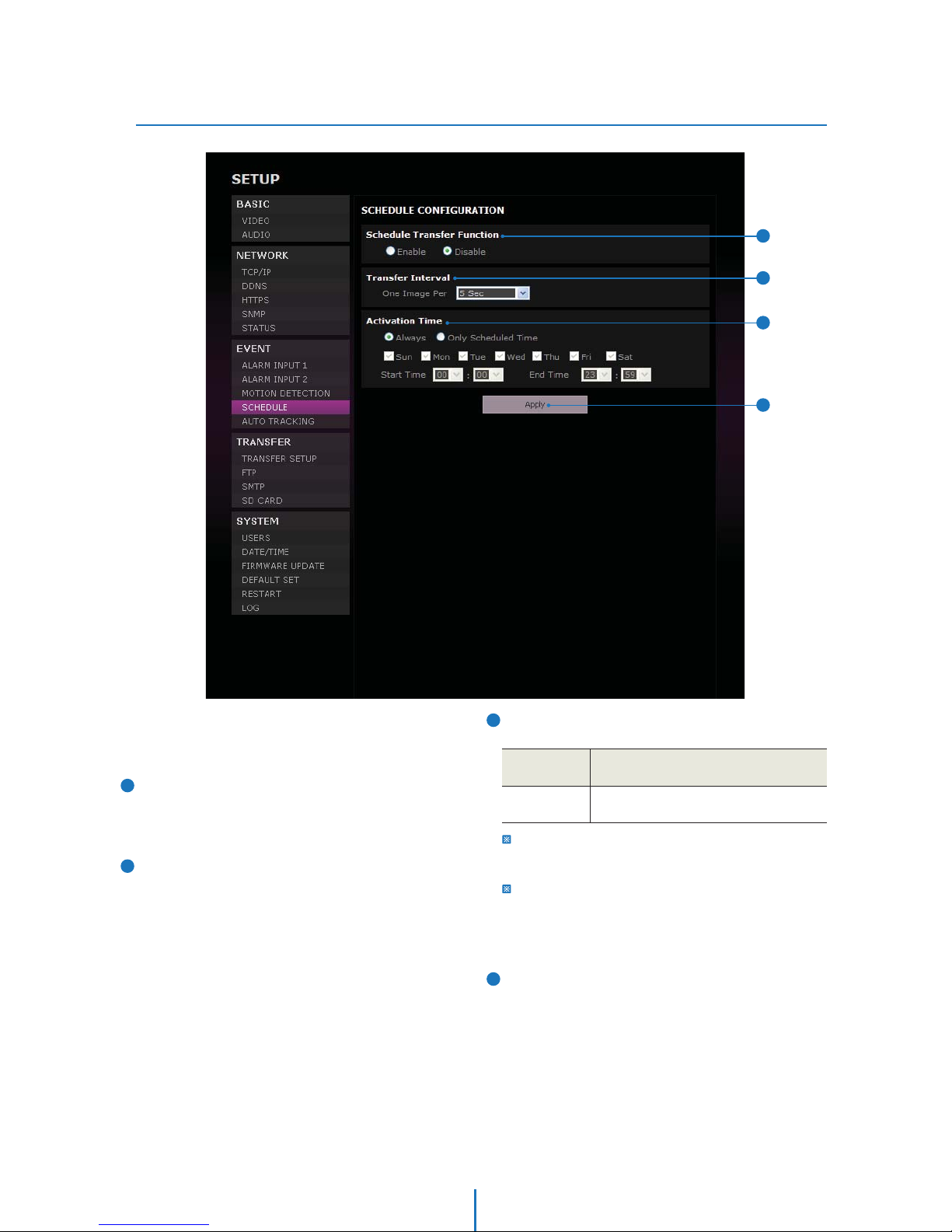

Schedule Setup

Setup -

6

1

2

3

4

Enable / Disable

Set Schedule function to be enabled or disabled. Schedule
function enables to transfer series of still images in a time
interval specified.

Transfer Interval

Define time interval of image transfer from 5 / 15 / 30 / 45
/ 60 sec. and 5 / 15 / 30 / 45 / 60 min.

Schedule function enables to transfer series of still images in
a time interval specified via E-mail or FTP. (For more detail,
see ‘Transfer Setup’ in this chapter)

1

2

Activation Time

Select activation time from Always / Only Scheduled Time.

3

Always

Only

Scheduled Time

Transfer image at all times.

Transfer image during the scheduled time.

To setup ‘Only Scheduled Time’, you need to define Start time and
End time followed by selecting Days. The setup schedule is
repeated every week.

If End time is earlier than Start time, End time is regarded as next
day.
Ex) Assume you select Tue. If you set Start time as 16:00 and End
Time as 09:00, Alarm Input will work from 4:00pm Tue to 9:00am
Wed.

4

Click ‘Apply’ to make above setting effective.



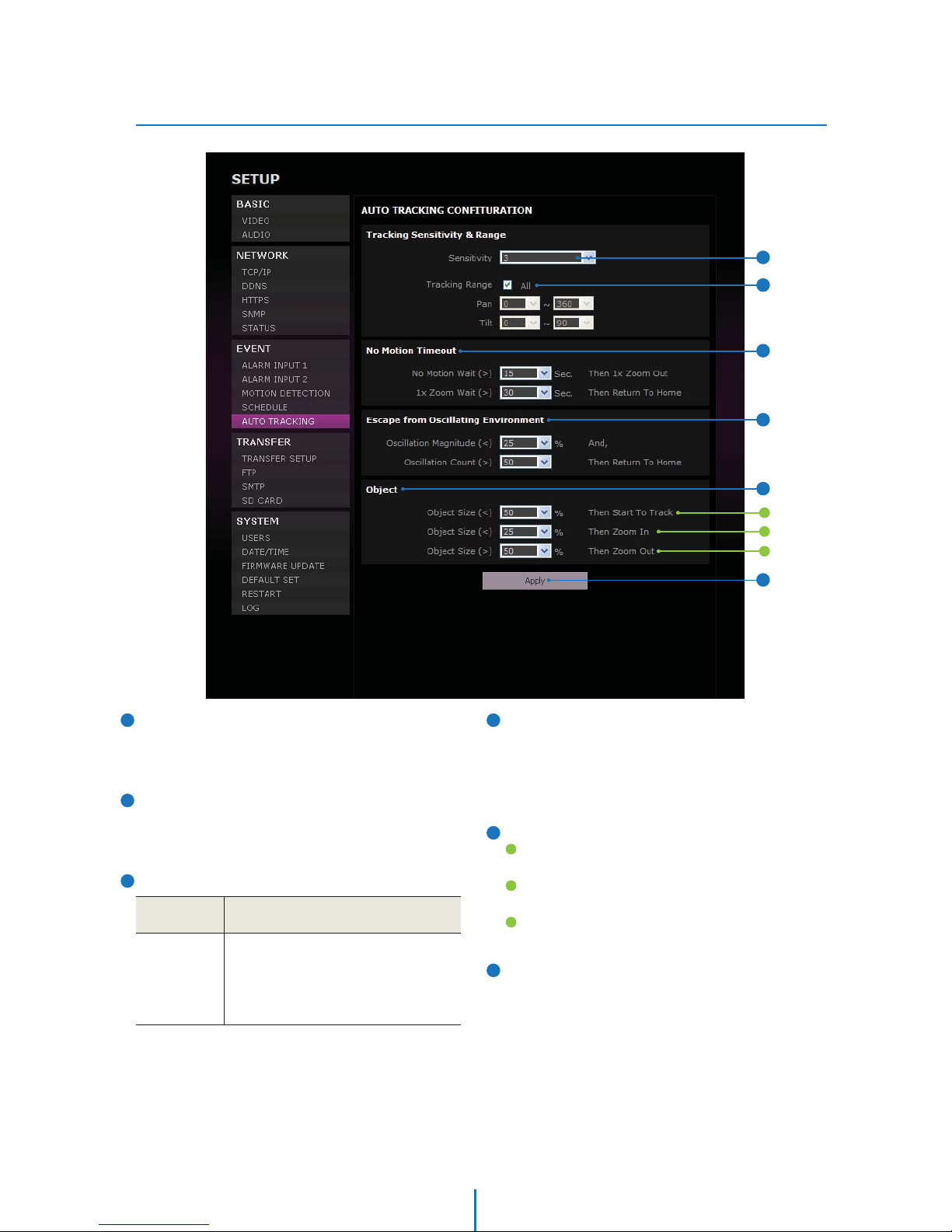

Auto Tracking Setup

Setup -

6

1

2

3

5

4

6

Sensitivity

Setup the sensitivity of tracking motion. Higher numeric
values will make the camera more sensitive when tracking
the motion.

Tracking Range

Setup the range of angle for the camera tracking the motion.
Each angles of Pan/Tilt can be setup. Camera will track the
motion in the entire range when you check the ALL.

No Motion Timeout

1

2

Escape from Oscillating Environment

Camera will go back to home position (where the camera
starts tracking the motion) when it detects motion
constantly more than setting up in the ‘Oscillation Count’
in the smaller area than setting up in the ‘Oscillation
Magnitude’.

Object

Camera will start tracking the motion when the detected
object is smaller than you setup.

Camera will Zoom In when the detected object is smaller
than you setup.

Camera will Zoom Out when the detected object is
smaller than you setup.

3

After Zooming out following the ‘No Motion
Wait Function’, camera will go back to home
position(Where the camera starts tracking the
motion) when there is no motion has detected
during the selected time.

No Motion Wait

1x Zoom Wait

Camera will Zoom Out when there is no motion
has detected during the selected time.

6

4

5

Click ‘Apply’ to make above setting effective.

a

b

c

a

b

c



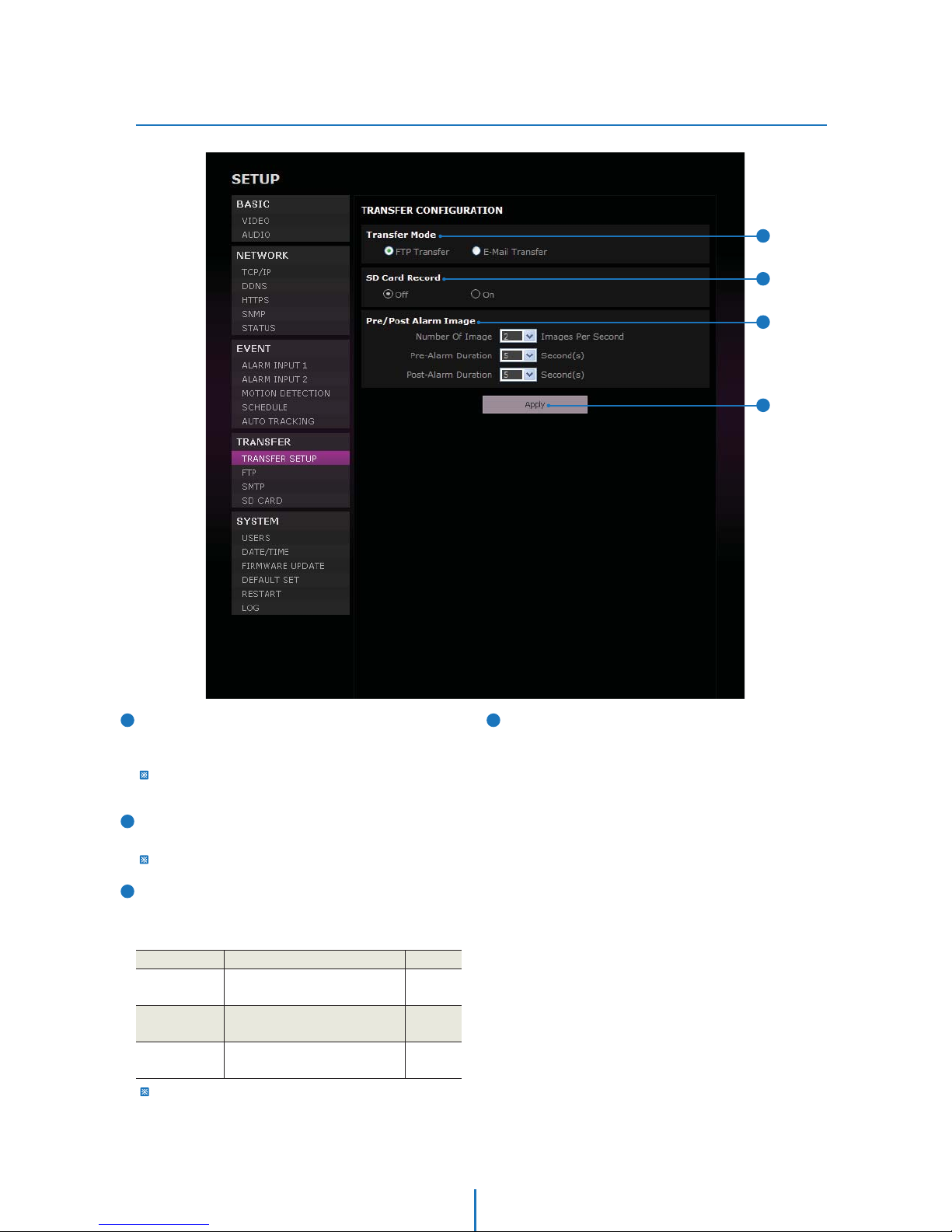

Transfer Setup

Setup -

6

1

Range of Pre/Post alarm duration can be changed according to
Number of image setting.

Click ‘Apply’ to make above setting effective.

4

3

2

1

2

4

3

Number

of Image

Pre-alarm

Duration

Post-alarm

Duration

Dene Number of image
transferred per second.

Descriptions

Range

Define duration of image
transfer before an event.

Define duration of image
transfer after an event.

1 ~ 5

1 / 10
/ 15 / 30

1 / 10
/ 15 / 30

Transfer Mode

Image Transfer method is selected from FTP and
E-Mail (SMTP).

To use image transfer, FTP and SMTP in the next sections must
be configured properly.

SD Card Record

If it is set to On, the image is saved into the SD card as well.

It will setup OFF automatically when SD card doesn't applied.
The SD card setting can be configured on the SD CARD section.

Pre/Post Alarm Image

Image Transfer due to event is configured by setting Image
transfer rate and Pre/Post alarm duration.



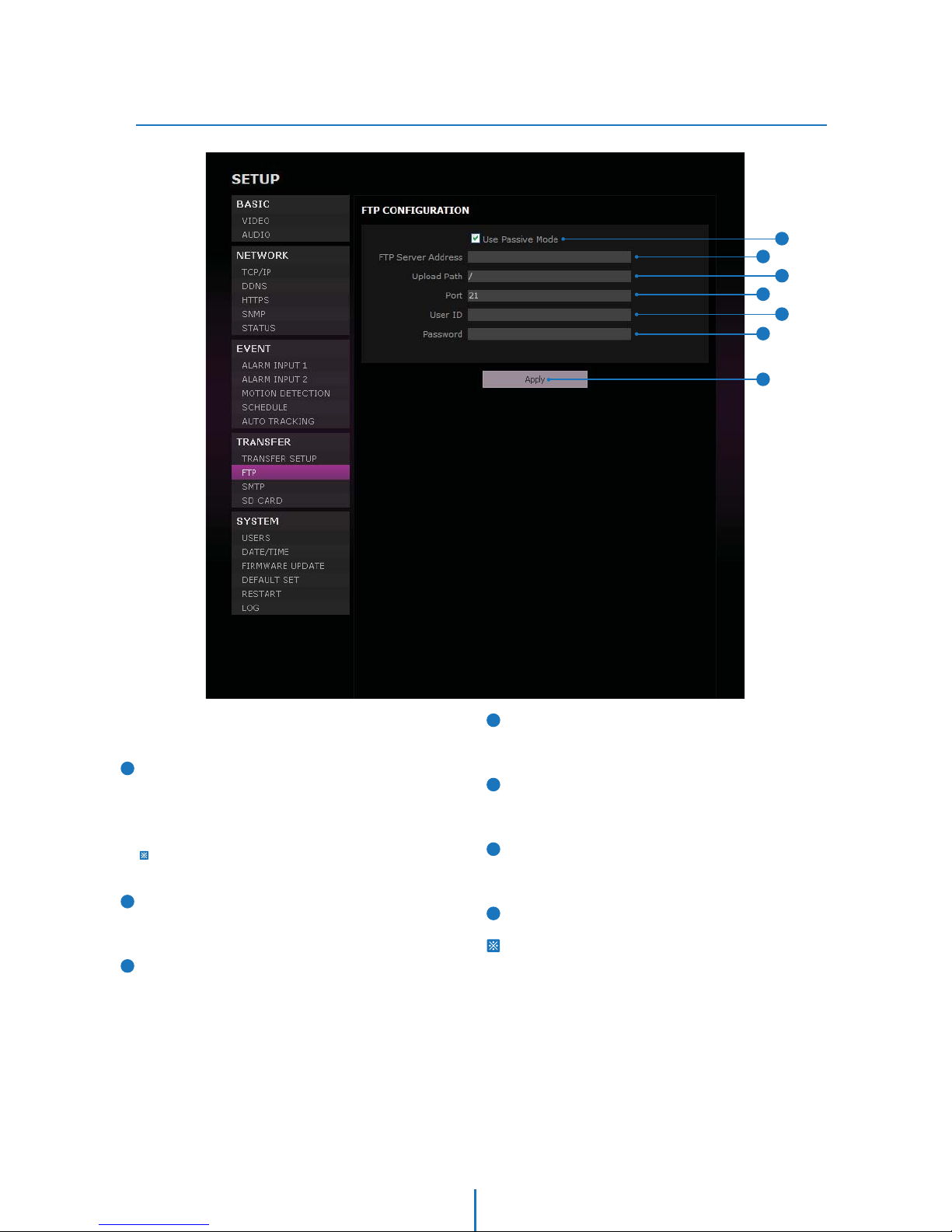

FTP Setup

Setup -

6

1

2

3

4

6

5

7

Use Passive Mode

Check it to use Passive mode for FTP transfer. If it is not check,
the transfer becomes Active Mode. However, if you select
active mode, it is possible that there might be problems due
to the firewall. Consult with your network manager.

In Active mode, the FTP transfer might not work due to the
firewall. In this case, ask to the network administrator.

FTP Server Address

Define FTP Server IP Address. If IP Address form is incorrect,
a Message box will be shown to try again.

Upload Path

Define a path in FTP server to store video. For the path name,
English Alphabets, numbers and special characters

aC

#AB^`>@can be used.

1

2

4

5

6

Port

Define the FTP Server Port. If Port is not appropriate, it is
impossible to access to FTP Server.

User ID

Define User ID to access to the FTP Server. Fill out the correct
User ID registered in the FTP Server.

Password

Define Password to access to the FTP Server. Fill out the
correct Password registered in the FTP Server.

Click ‘Apply’ to make above setting effective.

Refer the above screen image for the example.

3

7

To transfer/save the image to the relevant sites through FTP,
then FTP needs to be setup.



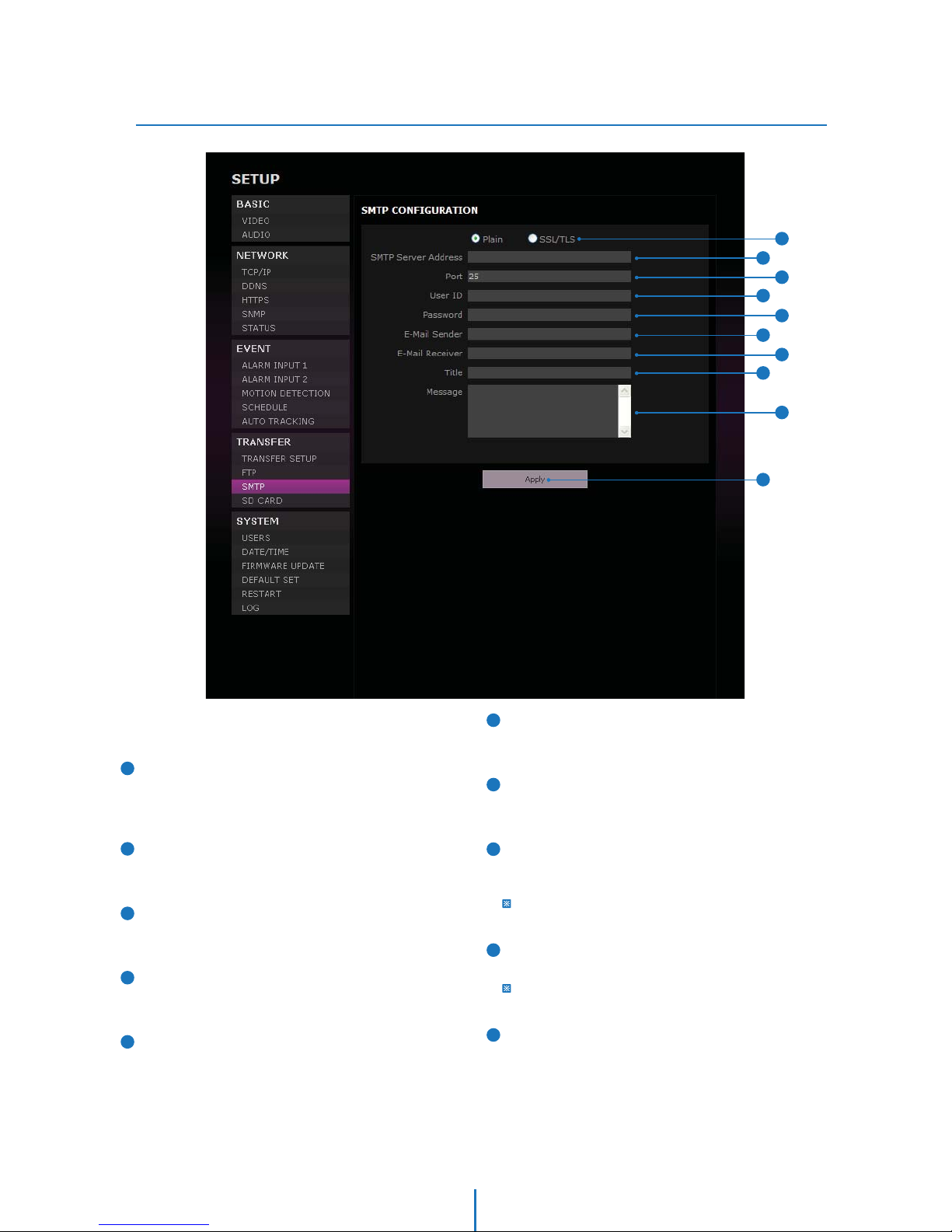

SMTP Setup

Setup -

6

1

2

3

4

6

5

7

8

9

10

E-Mail Sender

Define the e-mail address of E-Mail Sender. It will be
displayed as the sender when the camera sends an E-mail.

E-Mail Receiver

Define the e-mail address of E-Mail Receiver. It will be
displayed as the Receiver when the camera sends an E-mail.

Title

Define the title of the E-Mail when the camera sends an
E-mail.

The title of the Email is limited to 40 characters including the
spaces.

Message

Define the contents of E-Mail when camera sends an E-mail.

The message of the Email is limited to 40 characters including
the spaces.

Click ‘Apply’ to make above setting effective.

Plain, SSL/TLS

Select Security mode of SMTP from Plain or SSL/TLS. After
checking account setup of your SMTP Server, you may
select one.

SMTP Server Address

Define the SMTP Server Address. If the IP Address form is
incorrect, a Message box will be shown to try again.

Port

Define the Port used in the Plain or SSL/TLS security mode
in the above.

User ID

Define the User ID to access to SMTP Server. Fill out the
correct User ID registered in the SMTP Server.

Password

Define the Password to access to SMTP Server. Fill out the
correct Password registered in the SMTP Server.

1

2

4

5

3

6

7

8

9

10

To send/save the image to the relevant sites by Email, SMTP
needs to be setup.



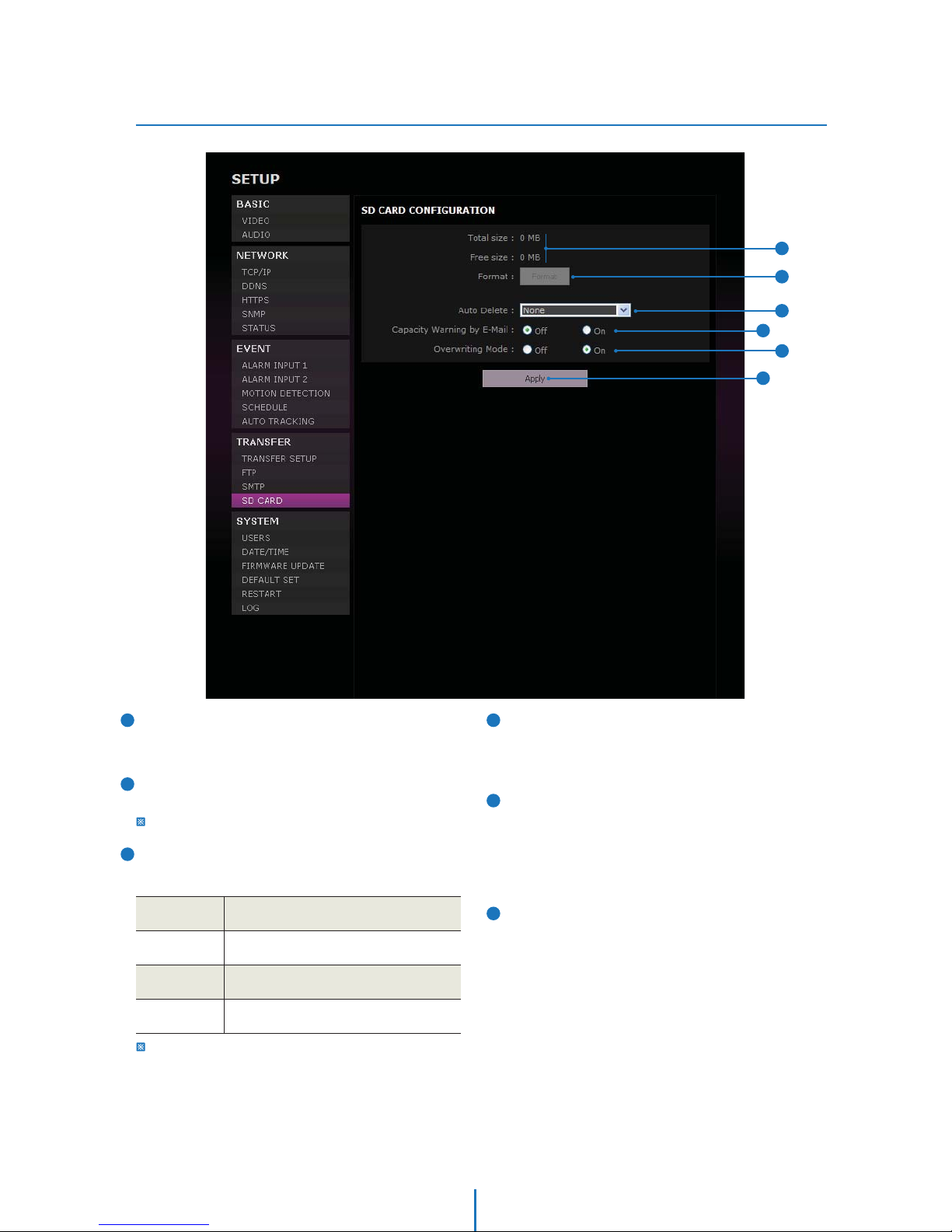

SD CARD Setup

Setup -

6

1

2

3

4

6

5

Total size / Free size

Total capacity of SD card and the remainder of it are
displayed.

Format

Delete the all contents that stored in SD card.

If the SD card doesn't applied, ‘Format’ button will be deactivated.

Auto Delete

Select the period for Auto delete. The image data stored
before period will be deleted automatically.

It is noted that this function will be executed everyday to delete
data before designated period.

1

2

4

5

6

3

Capacity Warning E-mail

If it is set ON and remained space of SD card reach to less
than 8MB, a warning e-mail will be sent to the e-mail
account set in SMTP menu.

Overwriting Mode

If it is set ON and remained space of SD card reach to less
than 8MB, new data will start to be overwritten on the
oldest data. However, if it is set OFF and remained space of
SD card reach to less than 8MB, image recording will be
stopped.

Click ‘Apply’ to make above setting effective.

1 Year

Delete all stored image older than 1 Year
from 00:00 today.

Delete all stored image older than 1 Month
from 00:00 today.

Delete all stored image older than 1 week
from 00:00 today.

Do not use ‘Auto Delete’.NONE

1 Week

1 Month



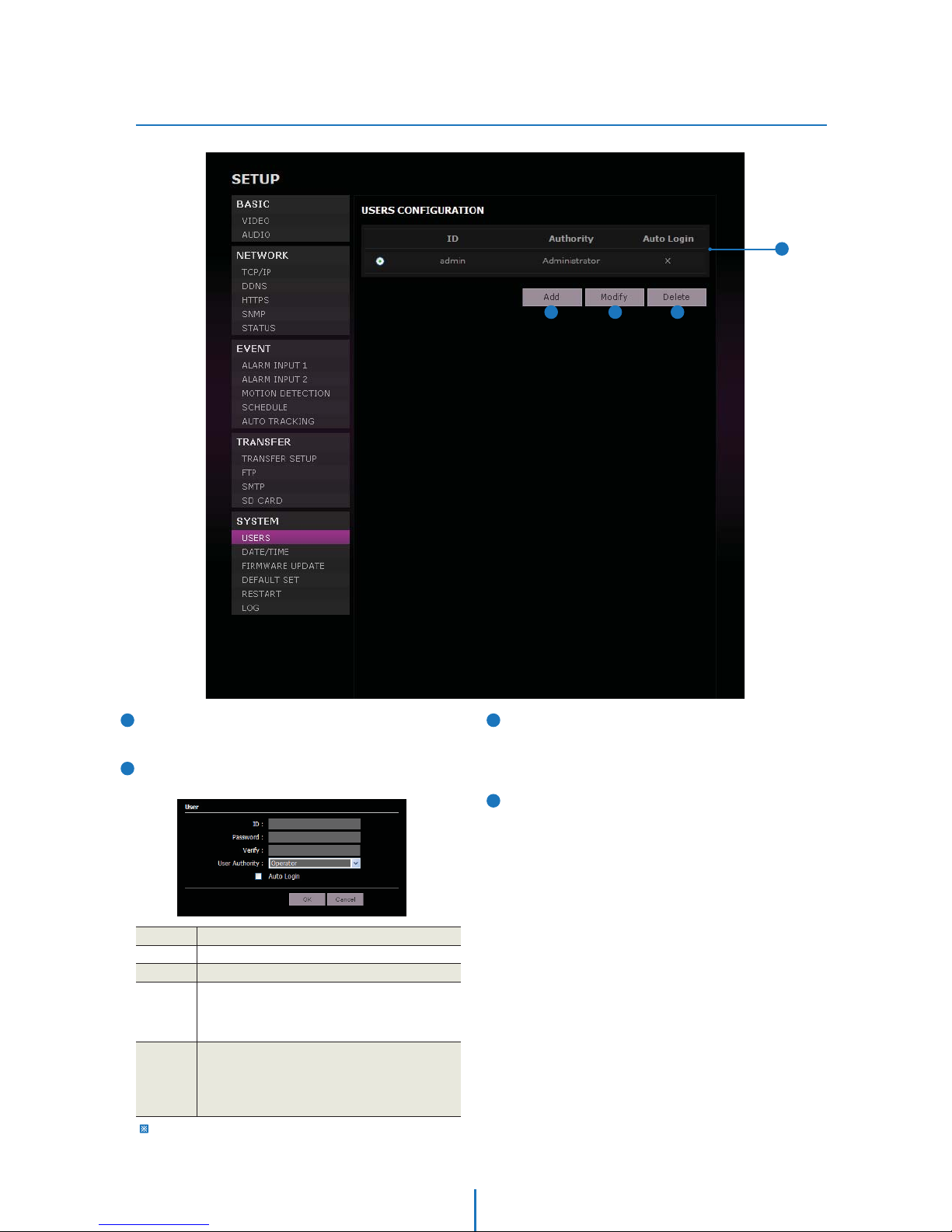

Users Setup

Setup -

6

1

2

3

4

Users

List all the user accounts for authentication.

Add

Register a new user

3

1

2

4

Modify

Modify the information of the user accounts registered.
For admin account, only Password and Auto Login function
can be modified.

Delete

Delete the selected user account. Admin account cannot
be deleted.

Auto Login If you check the auto login for an account, this account

becomes the public account. From the next login,
everybody can access the camera using this account
without

authentication. Only one account can have

the Auto Login.

User Level Select Operator or Viewer.

t7JFXFS : Only monitoring is allowed.
t0QFSBUPS :

Most of the functions are allowed

except ‘Setup’.

t"ENJOJTUSBUPS"MMGVODUJPOTBSFBMMPXFE

Verify Enter the user Password again for verication.

Password Enter the user Password.

ID Enter a new user ID except Admin since it exists.

The ID and Password are limited to 10 characters.



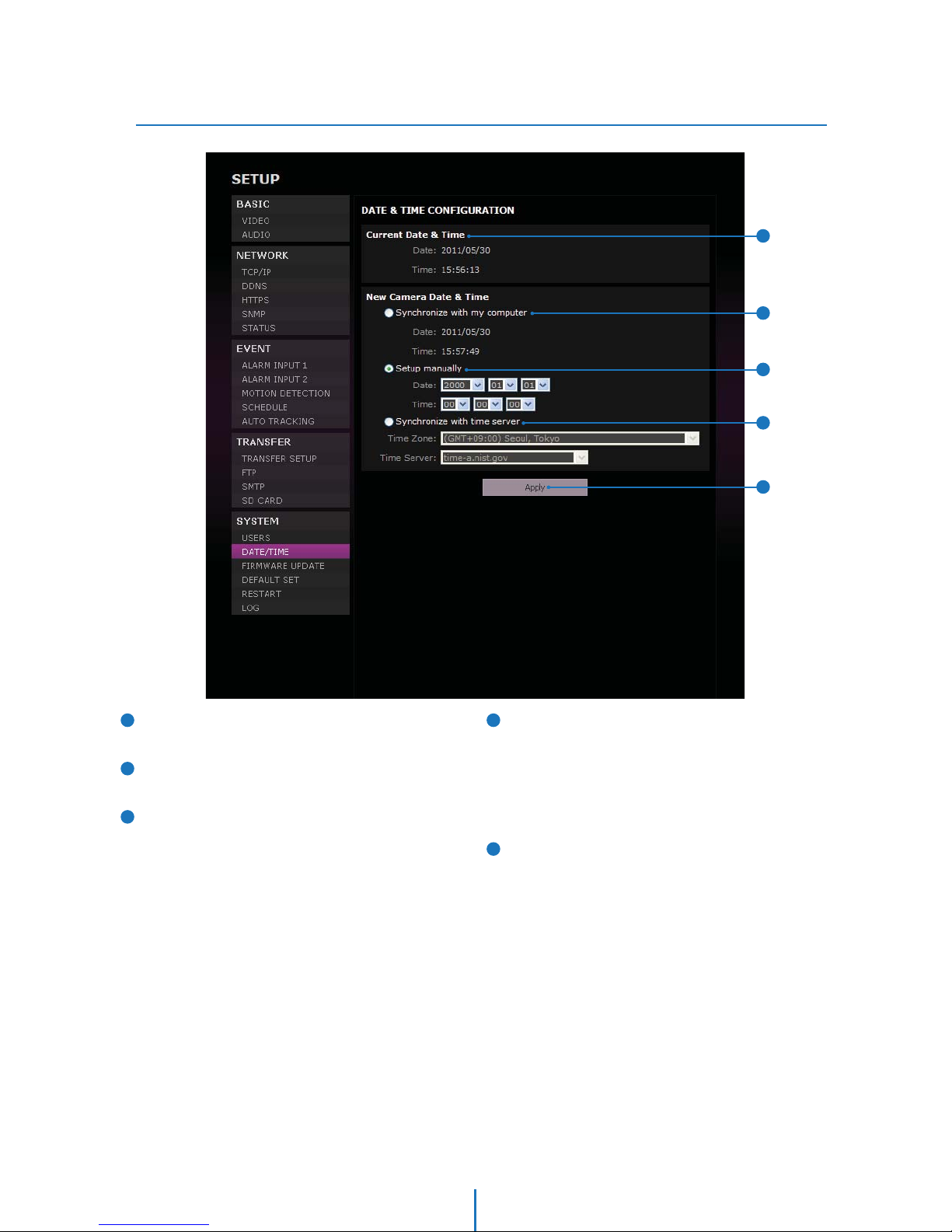

Date/Time Setup

Setup -

6

1

2

3

4

5

Current Date & Time

Shows the current date and time setting in the Camera.

Synchronize with my computer

Set the date/time using those of PC currently connected.

Setup manually

Set the date/time by typing manually.

1

2

4

Synchronize with the time server

In this mode, date/time is automatically updated using the
Time Server selected. After selecting the Time Zone
properly, Time Server must be selected. However, if you
want to assign a time server not in the list, select Manual.
Once synchronization is configured successfully, the time
and date will be updated every 1 hour automatically.

Click ‘Apply’ to make above setting effective.

3

5



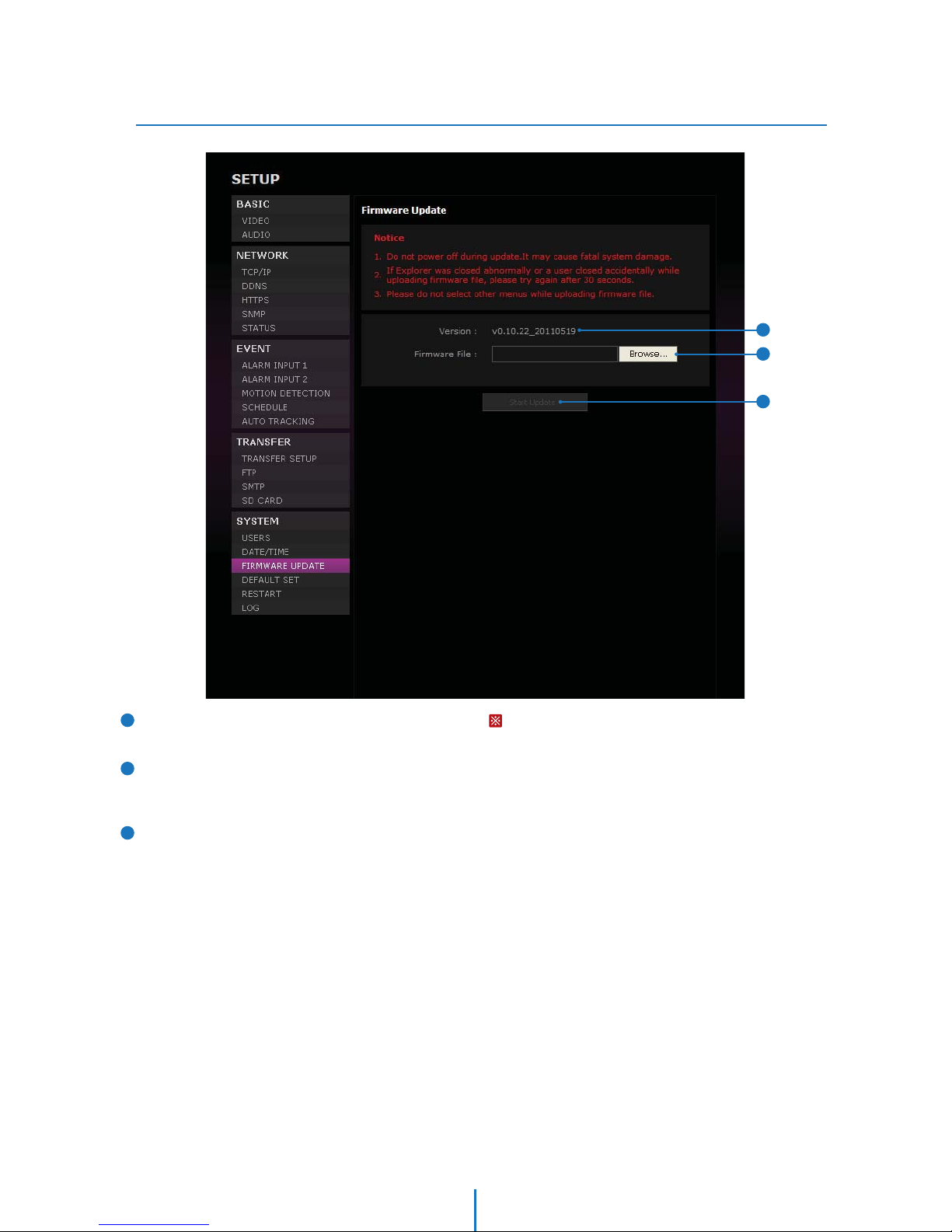

Firmware Update

Setup -

6

Firmware Version

It shows the current Firmware Version in the system.

Firmware Filename

Designate the Firmware file name in your computer by
clicking [Browse…] button.

Start Update

Click this button to start update. Progress of uploading will
be displayed using Progress Bar. If you assign the wrong file
name, an error massage will be shown.

3

1

2

Warning:

1. Do not turn off the power of camera during the Firmware
update. Otherwise, the system can be stuck to be unstable.
If updating is finished, the system will be rebooted
automatically.

2. Please make sure to check the ‘Notice’ shown on screen.
If firmware update is completed, the camera will reboot
automatically and ‘Setup window’ will be closed

1

2

3



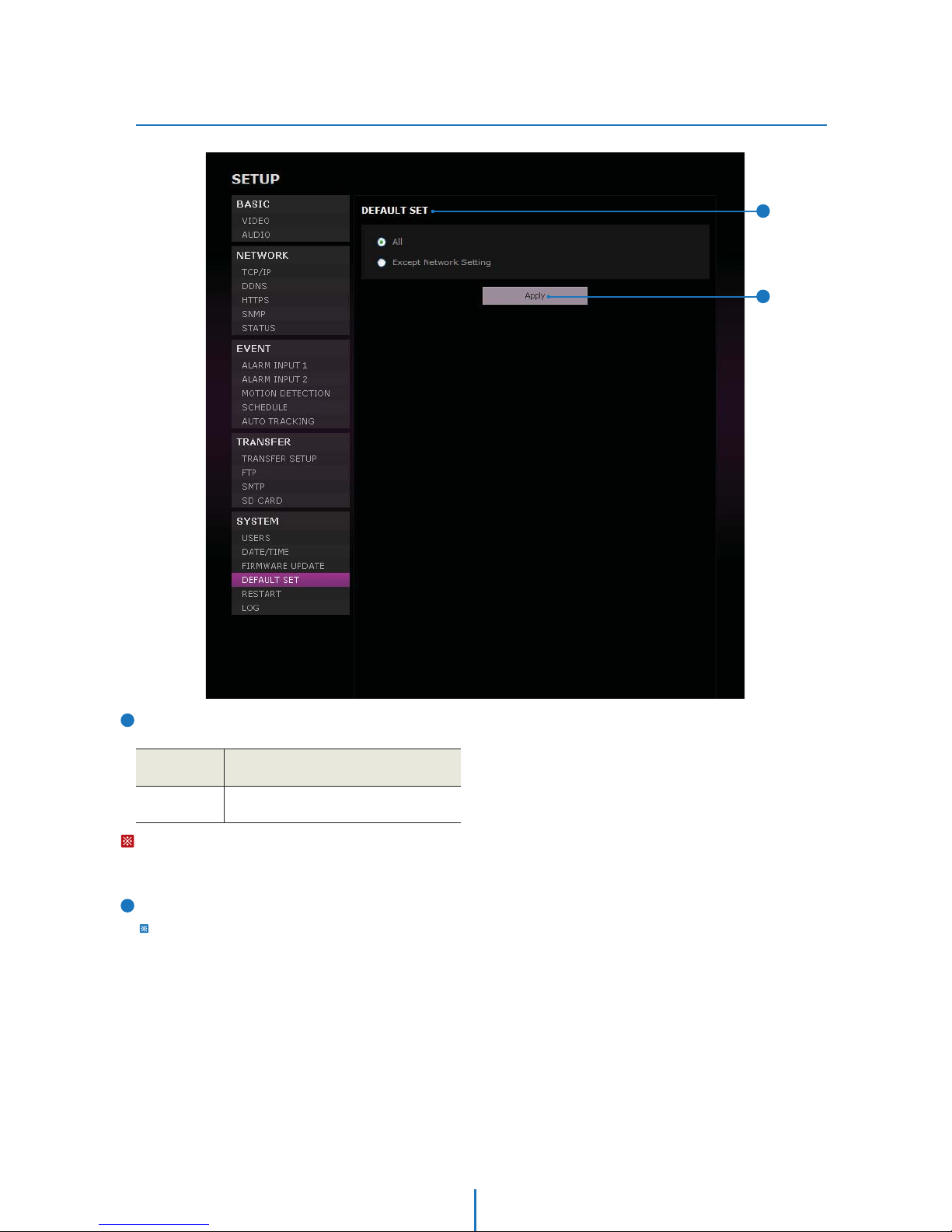

Default Set

Setup -

6

1

2

Reset to the Factory Defaults

Return the setup to the Factory Default.

1

All

Except

Network Settings

Reset all Settings to the Factory Defaults.

Except Network related settings, reset all
others to the Factory Defaults.

Warning:

If you click ‘Apply’, you will lose all setting data. If needed,
please, make a note for further installation.

2

Click ‘Apply’ to make above setting effective.

It takes approximated 4 minutes after clicking ‘Apply’ for the
Default Set.



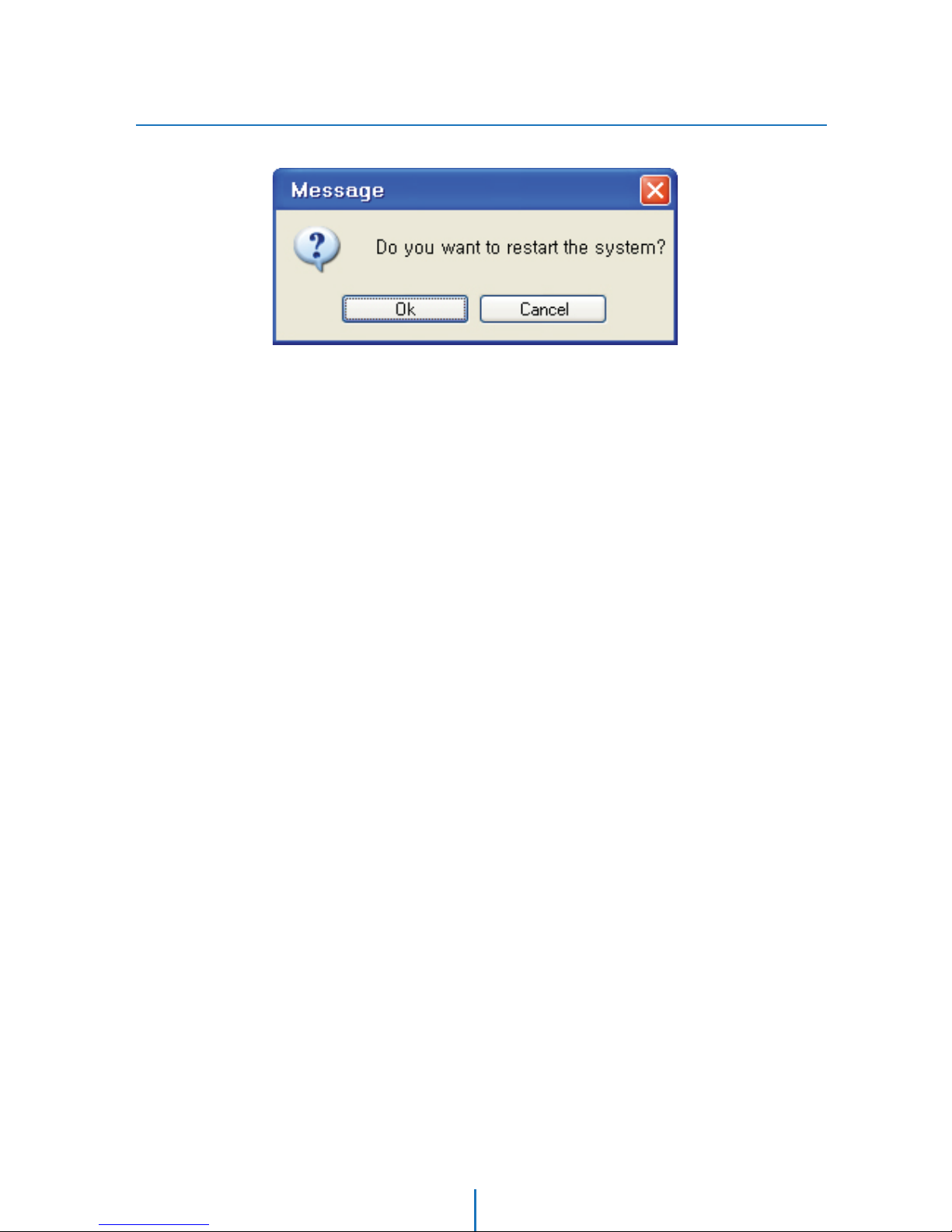

Restart

Setup -

If you click the ‘RESTART’ menu, a message box will be shown to confirm. Click the ‘Ok’ button to restart.

6



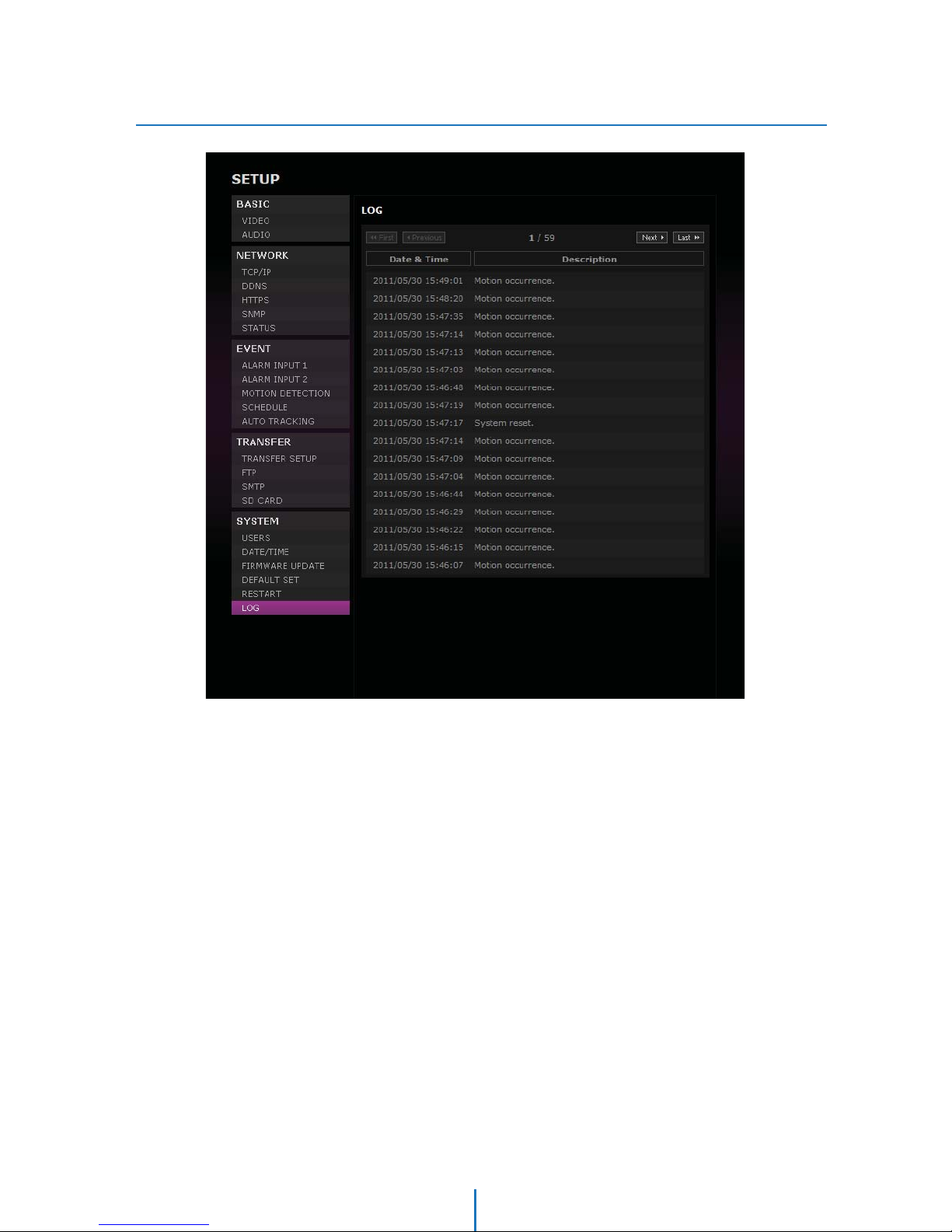

Log

Setup -

System Start, Network Connection Status(Including IP Address), Changing System Time, Changing Video Setup, Network
Setup and Event(Alarm / Motion) Alert will be recorded.

1000 PCS of Log can be stored and the recorded data won't be deleted.

6



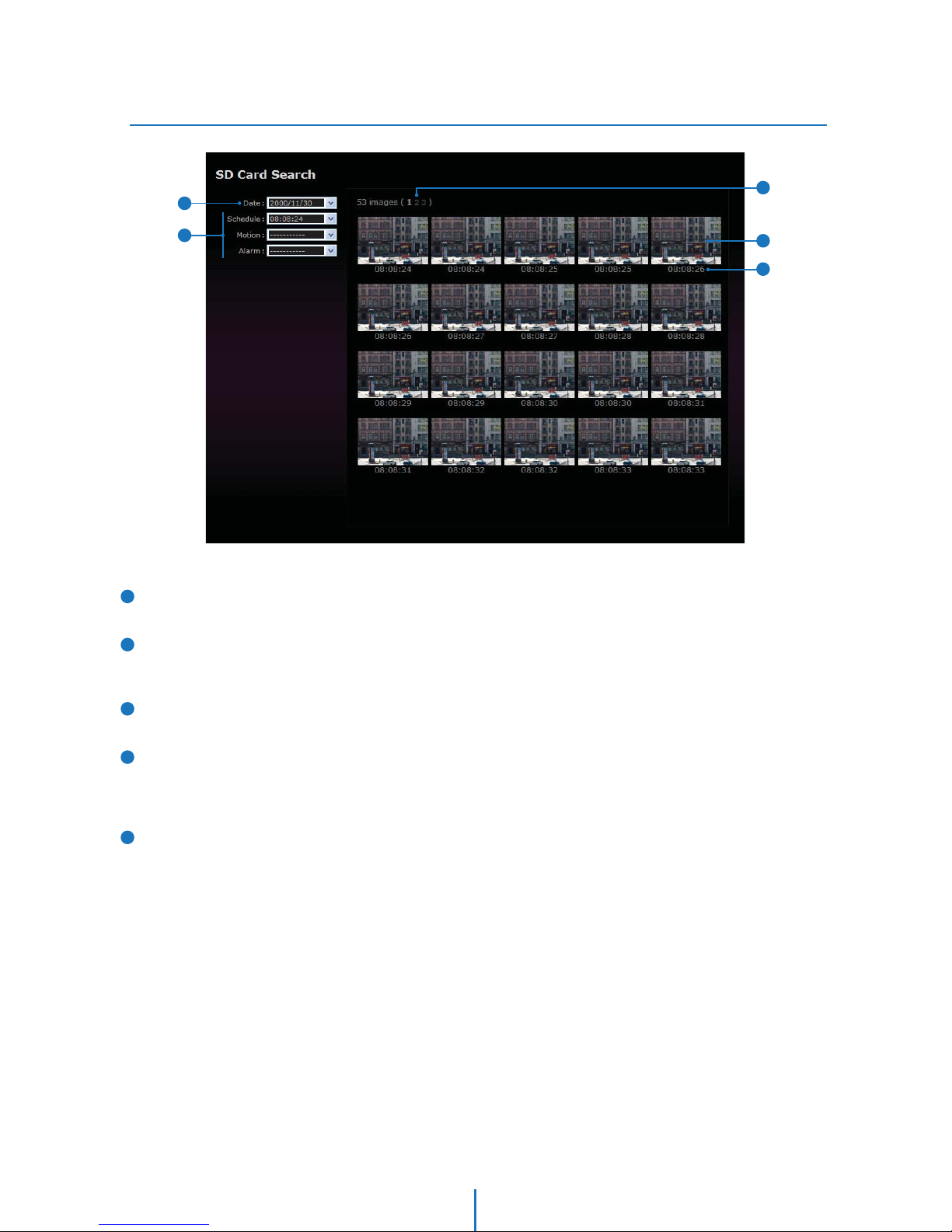

Search

SD Card Search -

7

3

5

4

1

2

1

2

3

4

5

Date of stored image

Choosing the date to nd the stored events.

Stored Events(Schedule / Motion / Alarm)

The interval of stored time and number of stored images in
the Event Setup can be dierent.

Page No. of searched Images

The latest page will be loaded at the head.

Stored Images

Image will be stored by value at CH No. 2 in ‘Setup>Video
conguration’. By clicking the image, see the image on the
larger screen.

Stored Time of Images

The interval of stored image can be setup depending on the
each Events.



A : Current TCP/IP Settings

Appendix

Under the ‘General’ tab of the
TCP/IP Properties you will see
your IP address information.

Start

Right-click

Local Area Connection

Properties

Select the TCP/IP

in General Tab

Click Properties

Control Panel

Network and Dial-up

Connection or

Network Connection

Note the settings under the IP
Address, DNS Conguration,
and Gateway tabs

Under the ‘General’ tab of the
TCP/IP Properties you will see
your IP address information.

Start

Setting

Control Panel

Network

Conguration Tab

Select the TCP/IP

10/100 Protocol

Click Properties

Start

Network and

sharing center

Manage network

connections

Properties

Select either

Internet Protocol

Ver.4 (TCP/IPv4)

or Internet Protocol

Ver.6 (TCP/IPv4)

Click Properties

Control Panel

If your IP settings are obtained automatically, you could use the MS-DOS prompt (or Command Prompt) to determine your IP address.
For information on how to do this, please read the FAQ.

2. Windows 2000 or XP Users1. Windows 98 / ME Users 3. Windows Vista or 7 Users

8



B : Changing IP address and subnet mask

Appendix -

Select 'Use the following IP
address'

Select 'Use the following IP
address'

2. Windows 2000 or XP Users

Start

Right-click

Local Area Connection

Properties

Select the TCP/IP

in General Tab

Click Properties

Control Panel

Network and Dial-up

Connection or

Network Connection

1. Windows 98 / ME Users 3. Windows Vista or 7 Users

Start

Setting

Control Panel

Network

Conguration Tab

Select the TCP/IP

10/100 Protocol

Click Properties

Start

Network and

sharing center

Manage network

connections

Properties

Select either

Internet Protocol

Ver.4 (TCP/IPv4)

or Internet Protocol

Ver.6 (TCP/IPv4)

Click Properties

Control Panel

Select 'Use the following IP
address' and change the IP
address and Subnet Mask.

8

C : Port Forwarding

Appendix -



After assigning the IP Camera a web server
port and video server port you must use Port
Forwarding. (for cases A, B)

Please consult your router’s user guide on how
to correctly configure Port Forwarding.

For your convenience, we have provided two
example configurations.

For D-Link DI-604 broadband routers:

1) Open a web browser and type http://192.168.0.1 into your
Address bar. (the default IP address to access the router)

2) You will have to supply your User Name and Password to
log onto the router. Default from factory.
(User Name: admin Password: [leave blank])

3) Select the “ Advanced” tab and click " Virtual Server"
menu.

4) Click " Apply" button after inputting proper values.
The example is as below

1.

For Linksys BEFSR41 Cable/DSL routers:

1) Open a web browser and type http://192.168.1.1 into you
Address bar. (the default IP address to access the router)

2) You will have to supply your User Name and Password to
log onto the router. Default from factory
(User Name:[leave blank] Password: admin)

3) Select “ Applications & Gaming” from the menu bar.

4) Input port numbers in " Port Range" as below and click
“ Save Setting” button. Both of Web Server Port and Video
Server Port should be added. The example is as below.

2.

Enabled / Disabled

Name

Protocol Type

Private Port / Public Port

Schedule

Select “Enabled”.

Input IVS name.

Input IVS address.

Select “TCP”.

Input IVS Web Server Port.

Select “Always”

Private IP

Enabled / Disabled

Start / End

Protocol

IP Address

Enabled

Input IP Camera name.

Input IP Camera Web Server Port and Video
Server Port.

Start should be same as End.
Both of Web Server Port and Video Server

Port should be added.

Select “TCP” in Protocol option.

Input IP Camera IP Address.

Check the square.

1

3

2

4

5

6

1

2

3

5) If 'Setting Saved' shows, click [Continue] button.

6) With the same method as above, add Video Server Port.

7) The Web Server Port, Video Server Port and 2 Audio Ports
shows in "Virtual Server List" as below.

4

5

6

8



C : Port Forwarding

Appendix -

For Netgear RP614 routers:

1) Input http://192.168.0.1 in address bar of web browser.
http://192.168.0.1 is the default IP address.

2) If it asks ID and password, input admin as ID and password
as password.

3) Click “Port Forwarding” in "Advanced".

4) Click " Add Custom Service" button in Port Forwarding
page.

5) Input proper values in "Ports - Custom Services" page as
below.

6) Click " Add" button.

7) With the same method as above, add Video Server Port.

8) Click "Apply" button to finish Port Forwarding.

3.

Enable

Service Name

Starting/
Ending Port

Server IP Address

Check it.

Input IP Camera name.

Input IP Camera Web Server port.
Starting Port should be same as Ending Port.

Input IP Camera IP Address.

5

1

2

1

2

8



FAQ

My POWER light is not on?

Power is not being supplied to the unit. Please use the power
supply shipped with the unit and verify that a power source
is active from the attached power outlet used to connect the
adapter. You can test this by plugging in any other electrical
device and verify its operation. After using the power supply
shipped with the product, checking the power source, and
reinserting the power connector into the IP Camera, please
call our Support Center. The power supply may be defective.

My ACTIVE light is not flashing?

Verify the power supply to the unit. Power off the unit and
back on again, wait 1 minute, if the ACTIVE light still does
not begin to flash, you will have to set the unit to its factory
default (THIS WILL DELETE ANY CONFIGURATION AND SET
THE UNIT TO THE FACTORY DEFAULTS). Power on the unit
and insert the end of a paper clip into the small recessed
opening on the back of the unit. Use the clip to press the
button located within that opening.

My LINK light is not flashing or solid?

Verify the cable connection. 99% of the time the cable’s
connection to the unit is causing this problem. Try using a
different network cable or crossover cable (for PC connection
only). Try reinserting the cable, if this still doesn’t solve the
problem call our Support Center.

I can access the video server on my LAN, but not from the
Internet.

Verify that your router (if applicable) has port forwarding
properly configured. If accessing from our DDNS service,
verify correct serial number. Firewall issues may prevent user
access.

How do I open an MS-DOS or Command Prompt?

t8JOEPXT.&6TFST 
4UBSU1SPHSBNT"DDFTTPSJFT.4%04QSPNQU

t8JOEPXT916TFST

Start > (All) Programs > Accessories > Command Prompt

How do I find out my IP address information if my settings
were automatically detected?

1.

2.

3.

4.

5.

6.

Windows 98 / ME Users

0QFOBO.4%041SPNQU
"UUIFQSPNQUUZQFiXJOJQDGHwXJUIPVUUIFRVPUBUJPONBSLT
6TFUIFESPQEPXOMJTUUPTFMFDUZPVS&UIFSOFU"EBQUFS

(not a PPP adapter)

/PXZPVXJMMTFFZPVS*1"EESFTT4VCOFU.BTLBOE%FGBVMU

Gateway information

5) For DNS information contact your Internet Service Provider

Windows 2000 / XP Users

1) Open a Command Prompt

"UUIFQSPNQUUZQFiJQDPOGJHBMMwXJUIPVUUIFRVPUFT

3) Near the end of the information supplied, should be your
current IP address, subnet mask, default gateway and DNS
servers

I can’t connect!!

In the case of a connection failure.

.PEFN3FCPPU.PEFN3FCPPU'JOJTIFE3PVUFS3FCPPU

> Router Reboot Finished > IP Camera Reboot > IP Camera
Reboot Finish > Verify DDNS and IP Camera connection, if
applicable.

How do I “PING” an IP address?

0QFOBO.4%04PS$PNNBOEQSPNQU

"UUIFQSPNQUUZQFiQJOHYYYYYYYYYYYYwXJUIPVUUIF
RVPUFTBOESFQMBDFUIFiYwTXJUIBO*1BEESFTT

3) Press Enter

I’m accessing my video server remotely over the Internet
and the video stream is choppy, is this normal?

Yes. The frames per second received remotely are
determined by your bandwidth capabilities both at your site
where the IP Camera is installed and your remote location.
The lower of the two sites will determine how fast your
video stream is received. It is recommended to have at least

B,CTFDVQTUSFBNDPOOFDUJPOGSPNUIFTJUFXIFSFUIF

IP Camera is installed. Lower speeds will operate properly,
but provide poor remote performance. The Faster the
Internet connection at both ends, the faster the video
stream.

How do I enable or check ActiveX on my browser

0QFO*OUFSOFU&YQMPSFS5PPMTPOUIFNFOVCBS*OUFSOFU

Options > Security Tab > Custom Level > Scroll down and

WFSJGZUIBUZPVBSFQSPNQUFEPSIBWFFOBCMFE"DUJWF9
DPOUSPMTBOEQMVHJOTUPCFEPXOMPBEFEBOEFYFDVUFE
DMJDL0,SFTUBSUCSPXTFS

How do I reset the unit to factory defaults?

On the underside of the unit you will find a recessed opening

MPDBUFEOFBSUIFUPQMFGUTJEFPGUIFMBCFM1PXFS0/UIFVOJU

and use a paper clip to push the reset button within that
opening. You should then see the ACTIVE light turn off and
after a few seconds the ACTIVE light will begin to flash,
signifying a successful reboot. If the ACTIVE light does not
turn off after depressing the reset button, please try holding
the button in for a few seconds and releasing. YOU WILL LOSE
ALL DATA THAT HAD BEEN ENTERED PREVIOUSLY AND THE

*1$".&3"8*--#&4&550*54'"$503:3&4&54

7.

8.

9.

10.

11.

"QQFOEJY





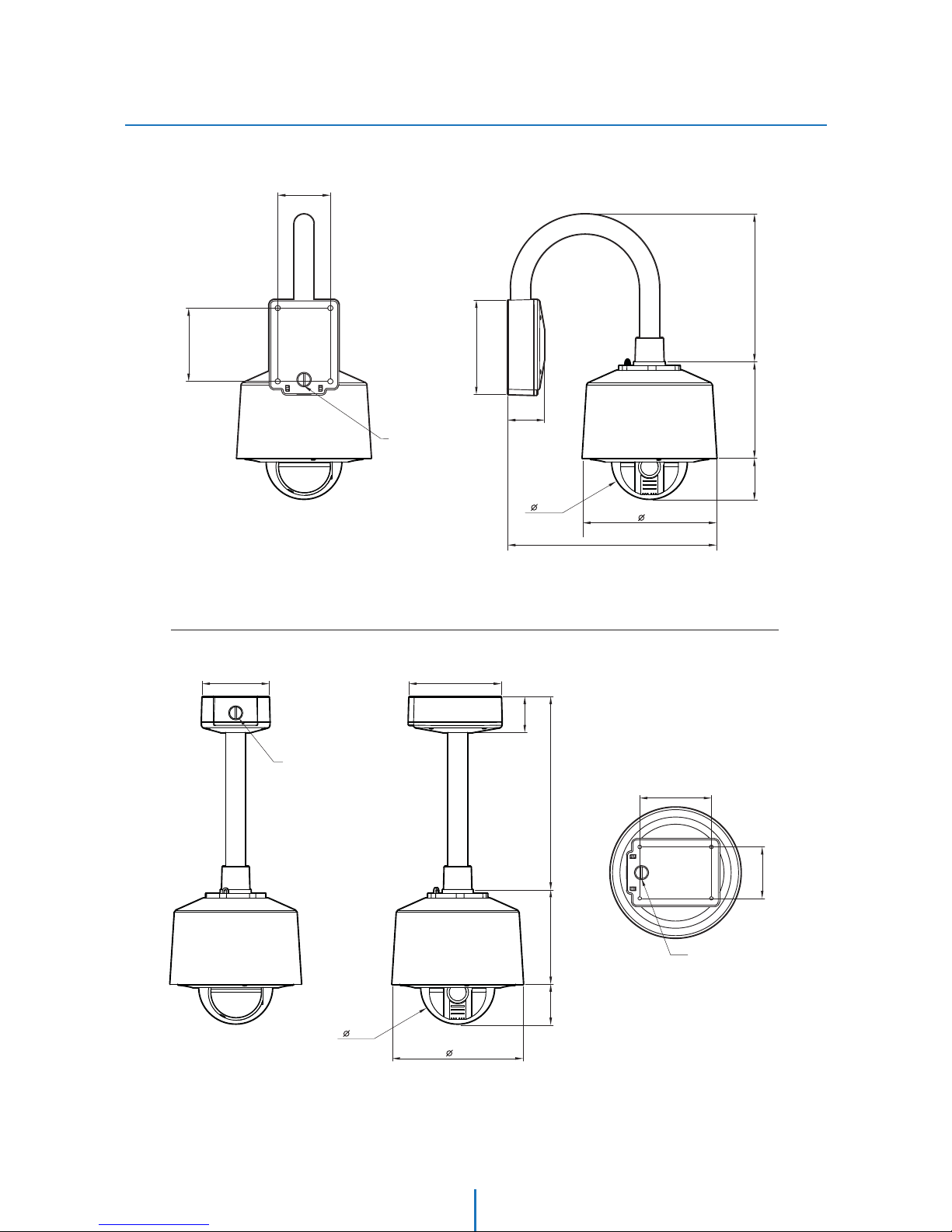

Dimension

Specification -

Unit: mm

182.5

71

286

187

78.7

404.5

146

259

132 182.5

102

142

71

383

187

78.7

146

259

142

102

3/4” PIP THREAD

3/4” PIP THREAD

3/4” PIP THREAD

Wall Mount Bracket

Ceiling Mount Bracket

9



Specification

Specifications -

9

Camera

General

Pan/Tilt

Image Device

Total Pixel

H. Resolution

S/N Ratio

Zoom

Focal Length

Angle of View

Min. Illuminance

Shutter Speed

Day & Night

Focus

Iris

White Balance

AGC

DNR

WDR

Other Functions

1/2.8” 3.0 Mega Pixel CMOS
Approx. 3,270,000 eective pixels
Color: 530 TV Lines B/W: 570 TV Lines
More than 50 dB
x20 Optical Zoom & x10 Digital Zoom (Total x200)
f = 4.7 (W) ~ 94.0 (T) mm, F1.6 (W) ~ 3.5 (T)
H: 54.1° (W) ~ 2.9° (T)
Color: 1.7 Lux @ 50 IRE, F1.6

B/W: 0.3 lux @ 50 IRE, F1.2

1/2 ~ 1/10000 sec. (21Steps)
Auto / Day / Night (ICR)
Auto(Near Limit setting) / Semi Auto / Manual
Auto / Manual
AUTO / ATW / Manual / Indoor / Outdoor / One-Push / SodiumVaporLamp(x / auto)
Level Adjustment / MAX Gain Limit
Level Adjustment (1~5)
On / O
Frame Freeze Function, System Image Flip by Installation Type

360° (Endless)
0° ~ 180° (Auto-Flip On) 0° ~ 90° (Auto-Flip O)
Preset: 360°
Scan: 1° ~ 180°/sec.
Manual: 0.05° ~ 200°/sec. (Zoom Proportional)
1024 Presets with Labels / Independent Camera Setup
128 Patterns
128 Scans
128 Groups (Max. 20 Entities per Group)
7 Rules (Condition: Day, Time Action: Preset, Scan, Group, Pattern)
Image Auto Flip, Auto Parking, Power-up Action & etc.

Pan Range

Tilt Range

Pan/Tilt Speed

Preset

Pattern

Scan

Group

Schedule

Other Functions

BNC: VBS 1.0 Vp-p
Auto, Pelco-D/P, Samsung, Panasonic, GE(Kalatel), AD(American Dynamics) Selectable
Built-in 2 Input / 1 Relay Output
Menu, PTZ Information, etc., Support 7 Languages:

ENGLISH / ESPAÑOL / FRANÇAIS / DEUTSCH / ITALIANO / PУCCKИЙ / PORTUGUÊS

AC 24 V
FCC, CE, IP66, RoHS
Weather Proof, Vandal Proof Structure, White Pearl Color
Body: Aluminum Die-casting Clear Bubble: Polycarbonate
Net: 6 Kg / Package: 10.9 Kg
AC : -40° ~ 50° C (-40° ~ 122° F)

Video Out

Protocol

Sensor In/Out

OSD

Power

Approvals

Outdoor Housing

Material

Weight

Operating Temp.



Network Specification

Specifications -

OS

Video Compression

Video Streaming

Resolution

Frame Rate

Audio Streaming

Local Storage

Motion Detection

Alarm

Number of Clients

IPv4 Protocol

Security Protocol

OS Supported

Embedded Linux
H.264 / MJPEG
VBR / CBR (Controllable Bandwidth)
H.264 : 1080p / 720p / D1 / CIF

MJPEG : 720p / D1 / CIF / QCIF

Max. 30 fps for 1080p/720p/D1/CIF/QCIF
Two-way, G.711 PCM, 16 kHz
SDHC Memory Card (Card Not Included)
Notication: FTP, E-mail, Alarm out, JPEG Recording on SD
Pre-Post Alarm
Max. 5
TCP/IP, UDP/IP, RTSP, NTP, HTTP, DHCP, FTP, SMTP, ICMP,

ARP, DNS, DDNS, DynDNS, (OnViF)

Digest Authentication (ID/PW)
Windows 7, Vista, XP, 2000

H.264
MJPEG

9
