Primax Electronics MOBTDZUL User Manual

2

User guide

Bedienungsanleitung

Guide d’utilisation

Manuale d’uso

Manual del usario

Touch Mouse

PM71_manual 9/10/09 3:33 PM Page 1

The Touch mouse only needs to be paired once with your PC, even if you switch the
mouse off.
To save battery life when not using the Touch mouse, press the connection button on the
underside of the mouse once to switch it off.

Scroll function

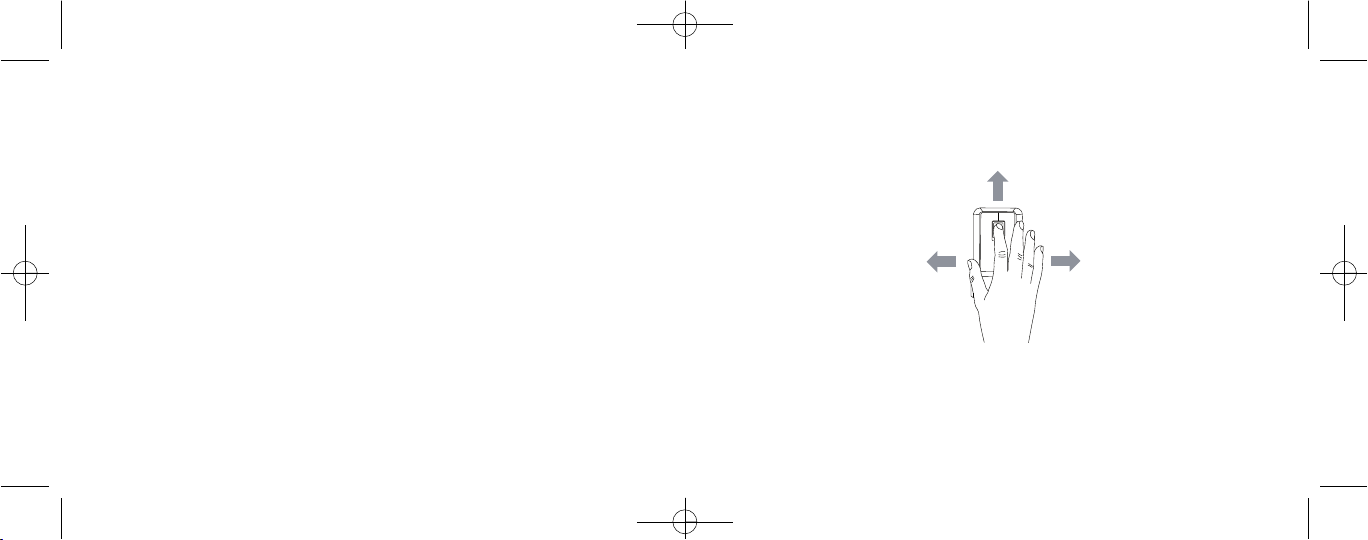

The Touch mouse features advanced touch scroll technology which allows you to perform
a range of scroll movements.
Slide your fingertip on the scroll area to activate the scroll function. Slide your finger
quickly to activate the fast scroll function.
Slide your finger up or down to scroll upwards or downwards through a document or left
and right to scroll to the left or right of the document.
Tap your finger once on the scroll area to stop the function.

Gesture commands

You can perform the following range of additional mouse commands by pressing and
holding the middle mouse button and moving the mouse.

Troubleshooting

If the mouse does not work:
1 Check the batteries have not expired and are inserted properly.
2 Make sure the mouse is switched on by pressing the button on the underside.

Installation for users of Windows® 7, Vista, XP and XP64

Please note: your computer must be bluetooth enabled.
Unscrew the battery cover at the back of the mouse.
Insert the battery in the direction shown and replace the
battery cover.
Turn on the Touch mouse by pressing the connection button
(a) on the underside of the mouse once. The LED will light up green
to show the mouse is on. Press and hold the connection button for
three seconds. The LED blinks red and green to show that the
mouse is looking for a connection.
Go to Windows Start, Settings, Control Panel, Bluetooth Devices.
Click on the Devices tab and click Add to open the Add Bluetooth
Device Wizard. Select “my Device is set up and ready to be found”
and click Next. Your PC will now search for the mouse.
If the mouse is not found, press and hold the button on the
underside of the mouse again and click on Search Again in the
Bluetooth Device Wizard window. When the mouse is found, click on the mouse icon and
then click on Next. At the next screen, select “Don’t use a Passkey” and, when prompted,
click Finish. Your mouse is now set up and ready to use.

3

4

PM71_manual 9/10/09 3:33 PM Page 3

3 Re-establish a bluetooth connection between mouse and computer by following the

installation instructions above.

Technical Support

Can't get started - don't worry, we're here to help you!
Nearly all the products that are returned to us as faulty are not faulty at all - they have just
not been installed properly.
If you experience any difficulty with this product, please first visit our website
www.saitek.com. The technical support area will provide you with all the information you
need to get the most out of your product and should solve any problems you might have.
If you do not have access to the internet, or if the website cannot answer your question,
please contact your local Saitek Technical Support Team. We aim to offer quick,
comprehensive and thorough technical support to all our users so, before you call, please
make sure you have all the relevant information at hand.
To find your local Saitek Technical Support Center, please see the separate Technical
Support Center sheet that came packaged with this product.

Information for Customers in the United States

FCC Compliance and Advisory Statement

Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.

6

5

Press and hold middle
mouse button and move
mouse right: Internet Next
page

Press and hold middle mouse

button and move mouse forward:

Internet home page

Press and hold middle
mouse button and move
mouse left: Internet
Previous page

Press and hold middle mouse

button and move mouse

backward: Internet refresh

PM71_manual 9/10/09 3:33 PM Page 5

Canada ICES-003

Operation is subject to the following two conditions:
1 This device may not cause interference, and;
2 This device must accept any interference, including interference that may cause

undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Battery Information

• 1 AA battery (included)

• Must be disposed of properly

• May explode if damaged or disposed of in fire

• Do not short circuit

Conditions of Warranty

1 Warranty period is 2 years from date of purchase with proof of purchase submitted.
2 Operating instructions must be followed.
3 Specifically excludes any damages associated with leakage of batteries.

Note: Batteries can leak when left unused in a product for a period of time, so it is

advisable to inspect batteries regularly.
4 Product must not have been damaged as a result of defacement, misuse, abuse,

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1 This device may not cause harmful interference, and;
2 This device must accept any interference received, including interference that may

cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna;

• Increase the separation between the equipment and receiver;

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected;

• Consult the dealer or an experienced radio/TV technician for help.
Mad Catz Inc., 7480 Mission Valley Rd, Suite 101, San Diego, CA 92108-4406

7

8

PM71_manual 9/10/09 3:33 PM Page 7

IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE
DURATION OF THIS WRITTEN LIMITED WARRANTY. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitations may not
apply to you. IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. Some states do not allow the
exclusion or limitation of special, incidental or consequential damages, so the above
limitation may not apply to you. This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.

This symbol on the product or in the instructions means that your
electrical and electronic equipment should be disposed at the end of its
life separately from your household waste. There are separate collection
systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you

purchased the product.

neglect, accident, destruction or alteration of the serial number, improper electrical

voltages or currents, repair, alteration or maintenance by any person or party other

than our own service facility or an authorized service center, use or installation of non-

Saitek replacement parts in the product or the modification of this product in any way,

or the incorporation of this product into any other products, or damage to the product

caused by accident, fire, floods, lightning, or acts of God, or any use violative of

instructions furnished by Saitek plc.
5 Obligations of Saitek shall be limited to repair or replacement with the same or similar

unit, at our option. To obtain repairs under this warranty, present the product and proof

of purchase (eg, bill or invoice) to the authorized Saitek Technical Support Center

(listed on the separate sheet packaged with this product) transportation charges

prepaid. Any requirements that

conflict with any state or Federal laws, rules and/or obligations shall not be

enforceable in that particular territory and Saitek will adhere to those laws, rules,

and/or obligations.
6 When returning the product for repair, please pack it very carefully, preferably using

the original packaging materials. Please also include an explanatory note.
7 IMPORTANT: To save yourself unnecessary cost and inconvenience, please check

carefully that you have read and followed the instructions in this manual.

This warranty is in lieu of all other expressed warranties, obligations or liabilities. ANY

9

10

PM71_manual 9/10/09 3:33 PM Page 9

IMPORTANT NOTE:

FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance.This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.

IC Statement

Operation is subject to the following two conditions:

1) this device may not cause interference and

2) this device must accept any interference, including interference that may cause

undesired operation of the device.

11

PM71_manual 9/10/09 3:33 PM Page 11

Installation unter Windows® XP/XP64/Vista/Windows 7

Hinweis: Bluetooth muss für Ihren Rechner aktiviert sein.
Lösen Sie die Batterieabdeckung auf der Rückseite der Maus. Legen
Sie die Batterie in der dargestellten Richtung ein und
setzen Sie die Batterieabdeckung wieder auf.
Schalten Sie die Touch-Maus durch einmaliges Drücken
der Verbindungstaste (a) auf der Mausunterseite ein. Die LED
leuchtet grün auf, um zu zeigen, dass die Maus eingeschaltet ist.
Halten Sie die Verbindungstaste drei Sekunden lang gedrückt. Die
LED blinkt rot und grün, um zu zeigen, dass die Maus nach einer
Verbindung sucht.
Gehen Sie zu Windows Start, Einstellungen, Systemsteuerung,
Bluetooth-Geräte. Klicken Sie auf das Register "Geräte", dann auf
"Hinzufügen", um den Bluetooth-Geräteassistenten zu öffnen.
Wählen Sie "Mein Gerät ist eingerichtet und kann gefunden werden"
und klicken Sie auf "Weiter". Ihr PC sucht daraufhin die Maus.
Falls die Maus nicht gefunden wird, halten Sie die Taste auf der
Mausunterseite erneut gedrückt und klicken Sie auf „Erneut suchen“ im Fenster des
Bluetooth-Geräteassistenten. Wenn die Maus gefunden wird, klicken Sie auf das
Maussymbol und danach auf Weiter. Im nächsten Fenster wählen Sie „Keinen

12

Hauptschlüssel verwenden“. Klicken Sie bei der Eingabeaufforderung auf Beenden. Jetzt
ist die Maus eingerichtet und kann verwendet werden.
Die Touch-Maus muss nur einmal mit Ihrem PC verbunden werden, selbst wenn Sie die
Maus abschalten.
Zur Batterieschonung drücken Sie die Verbindungstaste auf der Mausunterseite, um diese
abzuschalten.

Scrollfunktion

Die Touch-Maus verfügt über die fortgeschrittene Touch-Scroll-Technologie, die es Ihnen
erlaubt, eine Vielzahl von Scrollbewegungen durchzuführen.
Bewegen Sie Ihre Fingerspitze auf dem Scrollbereich, um die Scrollfunktion zu aktivieren.
Durch eine schnelle Fingerbewegung aktivieren Sie die schnelle Scrollfunktion.
Bewegen Sie Ihren Finger nach oben oder unten, um in einem Dokument nach oben oder
unten zu blättern, bzw. nach links und rechts, um nach links oder rechts im Dokument zu
scrollen.
Klopfen Sie einmal mit dem Finger auf den Scrollbereich, um die Funktion abzuschalten.

Handbewegungsbefehle

Sie können die folgenden zusätzlichen Mausbefehle ausführen, indem Sie die mittlere
Maustaste gedrückt halten und die Maus bewegen.

13
