Apple Bluetooth Mouse
Souris Bluetooth pour Apple
Ratón Bluetooth para Apple
RF-ABTMSE
User Guide Guide de l’utilisateur Guía del Usuario
08-1099_RF-ABTMSE.fm Page 2 Friday, March 7, 2008 9:39 AM
Rocketfish RF-ABTMSE
Apple Bluetooth Mouse
Contents
Introduction .................................................................2
Safety.............................................................................. 3
Features ......................................................................... 4
Installing your mouse ............................................... 6
Installing your mouse ............................................... 6
Maintaining ................................................................14
Troubleshooting.......................................................14
Specifications.............................................................14
Legal notices..............................................................15
One-year limited warranty....................................17
Français........................................... 21
Español ........................................... 41
Introduction
Congratulations on your purchase of a high-quality
Rocketfish product. Your RF-ABTMSE Apple® Bluetooth®
mouse represents the state of the art in wireless Bluetooth
mouse design and is designed for reliable and trouble-free
performance.
2
08-1099_RF-ABTMSE.fm Page 3 Friday, March 7, 2008 9:39 AM
Safety
Before getting started, read these instructions and save them
for future reference.
• Do not drop or hit your mouse.
• Do not use your mouse in a location that is subject to
strong vibrations because vibration may damage your
mouse.
• Do not disassemble or modify the product in any way.
Disassembly or modification may void your warranty and
could damage your mouse leading to a fire or electric
shock.
• Do not use or store your mouse in damp locations. Liquid
entering the product may cause damage or lead to fires
or electric shock.
• Do not insert metal objects, such as coins or paper clips,
into your mouse.
• Your mouse is a laser product. Do not directly look the
laser. It may harm your eyes.
• Your mouse is for general computer use. Do not use your
mouse with a computer that requires exceptional
reliability, especially if a breakdown or malfunction of
might jeopardize life or health, such as aerospace
equipment, atomic power control systems, trafficrelated equipment, transportation equipment, industrial
robotics, combustion equipment, safety devices, and
life-support systems.
• Batteries may explode or leak if they are improperly
recharged, inserted, disposed of in fire, or mixed with
used batteries or different battery types. There is a risk of
explosion if a battery is replaced incorrectly.
• Dispose of used batteries according to local regulations
• Keep the battery compartment cover and the batteries
out of the reach of small children.
RF-ABTMSE
3
08-1099_RF-ABTMSE.fm Page 4 Friday, March 7, 2008 9:39 AM
Features
• Bluetooth® 2.0 interface (compliant with Bluetooth 1.0)
• Advanced tilt wheel for scrolling vertically and
horizontally
• Avago™ laser sensor with resolution up to 1200 dpi
Mouse components
1
2
3
5
6
7
8
4
#Component
1 Left button
2 Tile scroll wheel
3Right button
4LED
4
08-1099_RF-ABTMSE.fm Page 5 Friday, March 7, 2008 9:39 AM
# Component
5 Pairing button
6Power switch
7Laser sensor
8Battery cover
LED indicators
Your mouse has an LED indicator that indicates mouse
status.
Green—Flashes when your mouse is pairing.
Red—Flashes when battery power is low.
Package contents
•Mouse
• AAA alkaline batteries (2)
• Driver and software CD
•User Guide
System requirements
Your computer must meet these requirements:
•Microsoft Windows
Windows Vista® operating system or Mac OSx 10.4.7 or
higher operating system
• Bluetooth-enabled computer
Note: The mouse tilt driver only supports Broadcom® and
Toshiba® Bluetooth stack in Windows 2000.
® 2000, Windows® XP, or
RF-ABTMSE
5
08-1099_RF-ABTMSE.fm Page 6 Friday, March 7, 2008 9:39 AM
Installing your mouse

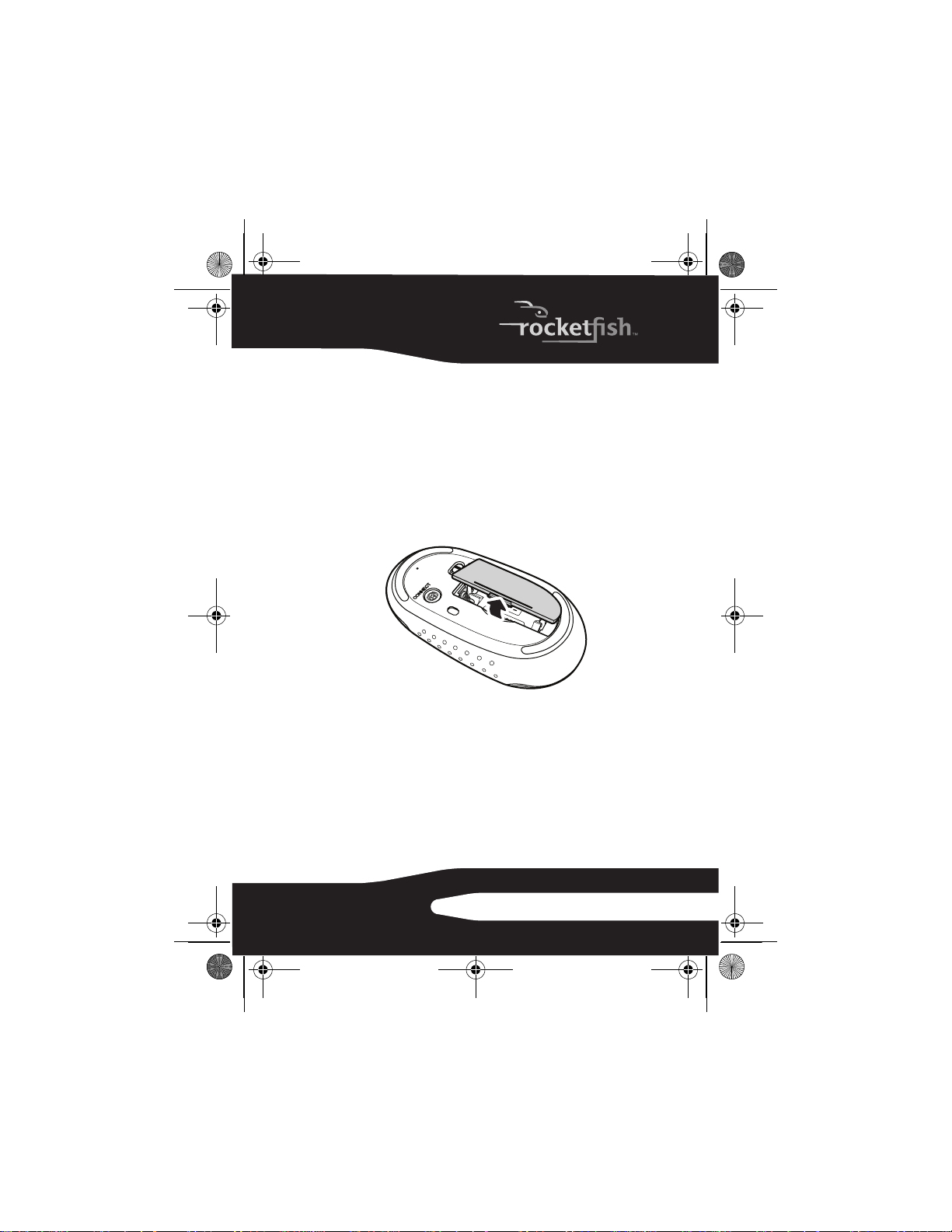

Installing the batteries
To install the batteries:
1 Pry the battery cover open.
2 Insert two AAA batteries into the battery compartment.
Make sure that the + and – symbols on the batteries
match the + and – symbols in the battery compartment.
6
08-1099_RF-ABTMSE.fm Page 7 Friday, March 7, 2008 9:39 AM
3 Replace the battery cover.
RF-ABTMSE
7
08-1099_RF-ABTMSE.fm Page 8 Friday, March 7, 2008 9:39 AM
Installing your mouse
To install your mouse:
1 Turn on your computer and make sure that your
Bluetooth device is set to search mode.
2 Slide your mouse’s power switch to the ON position. The
switch is located on the bottom of your mouse.
3 Press and hold the pairing button on the bottom of your
mouse until the LED indicator flashes green.
4 Your computer automatically detects your mouse and
installs the appropriate driver.
If you are using a Mac, the mouse is fully functional. If you
are using a PC, you need to install the tilt wheel driver to
make your mouse fully functional.
8
08-1099_RF-ABTMSE.fm Page 9 Friday, March 7, 2008 9:39 AM
To install the tilt wheel driver for a PC:
1 Make sure that you have paired your mouse with your
PC.
2 Insert the provided installation CD in the CD or DVD
drive on your PC. The software should start
automatically. If it does not star t automatically, browse to
the CD or DVD drive, then double-click Autorun.exe. The
following screen opens:
3 Click Install Tilt Wheel Driver. The Welcome window opens.
RF-ABTMSE
9
08-1099_RF-ABTMSE.fm Page 10 Friday, March 7, 2008 9:39 AM
4 Click Next. A list of items to be installed opens.
5 Click Next. The driver is installed, and the Setup Complete
window opens.
6 Click Finish. Your PC restarts to complete the driver
installation.
You may see a (mouse) icon on the system tray after
you reboot. Double-click the icon to adjust scrolling
speeds. For more information, see “Adjusting the tilt
scroll wheel for a PC” on page 12.
10
08-1099_RF-ABTMSE.fm Page 11 Friday, March 7, 2008 9:39 AM
To uninstall the tilt wheel driver:
1 Click Start, All programs, Rocketfish Apple Bluetooth Mouse, then
click Uninstall Rocketfish Apple Bluetooth Mouse Driver.
2 When you are asked if you want to delete the driver, click
Yes. The Remove Programs From Your Computer window
opens and shows you the progress of the driver
uninstallation.
3 When the uninstallation is complete, click OK.
4 Restart your PC to complete the uninstallation.
RF-ABTMSE
11
08-1099_RF-ABTMSE.fm Page 12 Friday, March 7, 2008 9:39 AM
Adjusting the tilt scroll wheel for a PC
To adjust the tilt scroll wheel for a PC:
1 Click the (mouse) icon 0n the system tray.
Or, right-click the (mouse) icon, then click Adjust Mouse
Properties. The Rocketfish Apple Bluetooth Mouse window
opens.
2 To adjust the vertical scrolling, click:
• Scroll X line(2) per notch—Selects the number of lines to
scroll when the scroll wheel is moved one notch.
Click the up or down arrow next to the box, to specify
the number of lines.
• Scroll one screen per notch—Scrolls an entire screen
when the scroll wheel is moved one notch.
3 To adjust the horizontal scrolling, drag the slider to
adjust the speed or click Use Default to reset the scrolling.
4 Click OK.
12
08-1099_RF-ABTMSE.fm Page 13 Friday, March 7, 2008 9:39 AM
Using the mouse
Note: Avoid using your mouse on a reflective, transparent,
metallic, or complex-patterned surface.
To use your mouse:
1 Press the left or right mouse button to perform standard
left and right mouse clicks.

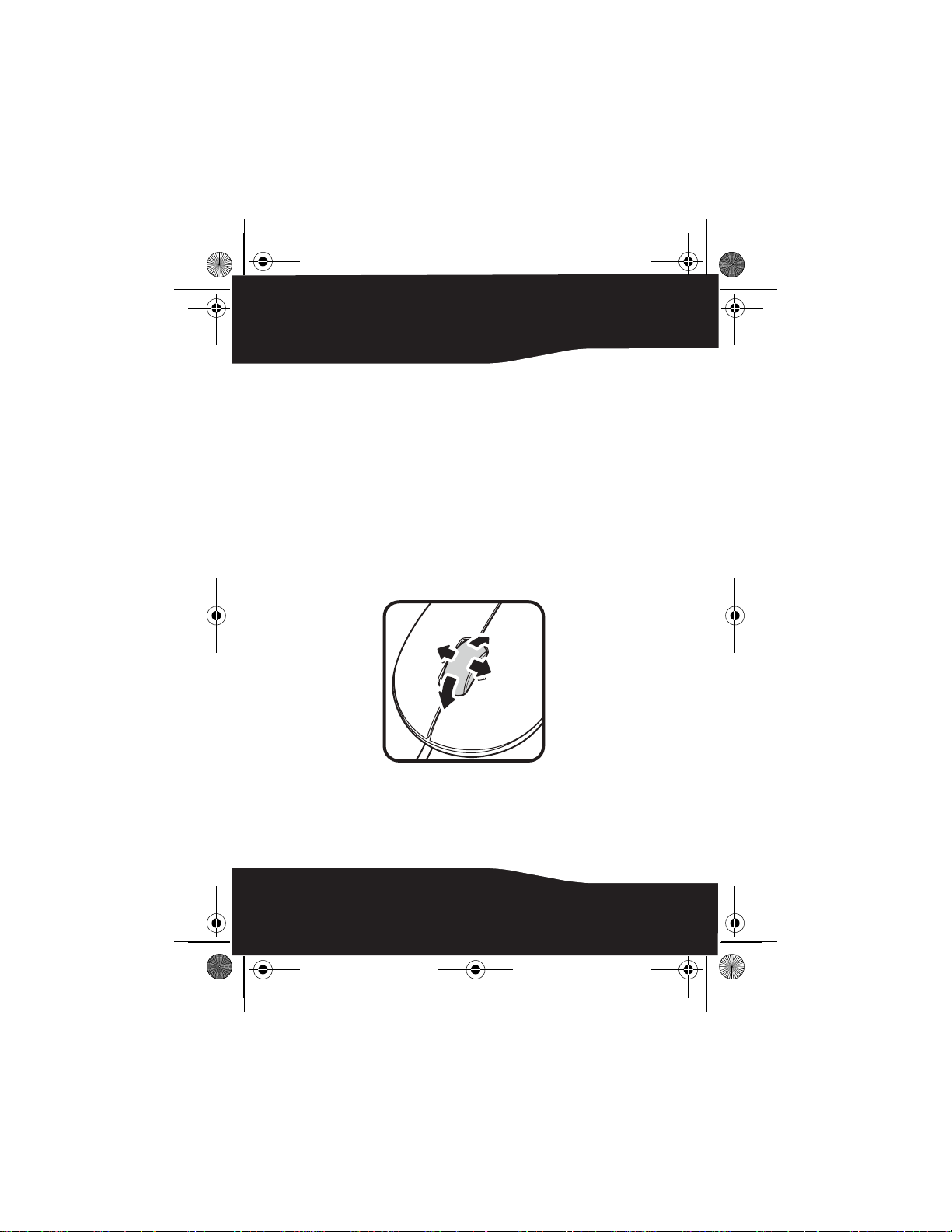

2 Move the scroll wheel to move the screen image up,
down, left, or right.
Tip: You can also press down and hold the scroll wheel. A
four-way icon appears on the screen. Move your mouse up,
down, left, or right to scroll.
RF-ABTMSE
13
08-1099_RF-ABTMSE.fm Page 14 Friday, March 7, 2008 9:39 AM
Maintaining
To clean your mouse, wipe the surface and the optical sensor
with a soft, lint-free cloth slightly moistened with water.
Troubleshooting
• Make sure that you have paired your mouse with your
computer. For more information, see “Installing your
mouse” on page 8.
• Make sure that your operating system is compatible with
your mouse. For more information, see “System
requirements” on page 5.
• Make sure that the + and – symbols on the batteries
match the + and – symbols in the battery compartment.
• If the LED indicator is red, battery power is low. Change
the batteries.
• Make sure that you use your mouse on a clean, flat,
non-slippery surface. Avoid reflective, transparent,
metallic, or complex-patterned surfaces.
Specifications
Dimensions 1.4 × 4.37 × 2.4 inches (35.5 × 111 × 61 mm)
Resolution 1200 DPI
Weight 2.47 ounces (70 g) without batteries
Buttons 2 buttons with tilt scroll wheel
Interface Bluetooth
Compatibility Windows 2000, Windows XP, Windows Vista, or Mac OS 10.4.7 or
Operating Temperature 32°F ~104°F (0°C ~ 40°C)
Operating Humidity 85% RH or less
higher
14
08-1099_RF-ABTMSE.fm Page 15 Friday, March 7, 2008 9:39 AM
Storage Temperature 5°F ~ 140°F (-15°C ~ 60°C)
Storage Humidity 85% RH or less
Legal notices
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/T V technician
for help.
RF-ABTMSE
15
08-1099_RF-ABTMSE.fm Page 16 Friday, March 7, 2008 9:39 AM
Thi s device compli es wi th Par t 15 o f the FCC Rules. Op erati on
is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void
the user's authority to operate this equipment.
Important note:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. End users must
follow the specific operating instructions for satisfying RF
exposure compliance.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
IC Statement
Operation is subject to the following two conditions: 1) this
device may not cause interference and 2) this device must
accept any interference, including interference that may
cause undesired operation of the device.
16
08-1099_RF-ABTMSE.fm Page 17 Friday, March 7, 2008 9:39 AM
One-year limited warranty
Rocketfish Products (“Rocketfish”) warrants to you, the original
purchaser of this new RF-ABTMSE (“Product”), that the Product shall
be free of defects in the original manufacture of the material or
workmanship for one (1) year from the purchase of the Product
(“Warranty Period”). This Product must be purchased from an
authorized dealer of Rocketfish brand products and packaged with
this warranty statement. This warranty does not cover refurbished
Product. If you notify Rocketfish during the Warranty Period of a
defect covered by this warranty that requires service, terms of this
warranty apply.
How long does the coverage last?
The Warranty Period lasts for one year (365 days), beginning on the
date you purchased the Product. The purchase date is printed on the
receipt you received with the product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the
material or workmanship of the Product is determined to be
defective by an authorized Rocketfish repair center or store
personnel, Rocketfish will (at its sole option): (1) repair the Product
with new or rebuilt parts; or (2) replace the Product at no charge
with new or rebuilt comparable products or parts. Products and
parts replaced under this warranty become the property of
Rocketfish and are not returned to you. If service of Products and
parts are required af ter the Warranty Period expires, you must pay all
labor and parts charges. This warranty lasts as long as you own your
Rocketfish Product during the Warranty Period. Warranty coverage
terminates if you sell or otherwise transfer the Product.
RF-ABTMSE
17
08-1099_RF-ABTMSE.fm Page 18 Friday, March 7, 2008 9:39 AM
How to obtain warranty service?
If you purchased the Product at a retail store location, take your
original receipt and the Product to the store you purchased it from.
Make sure that you place the Product in its original packaging or
packaging that provides the same amount of protection as the
original pack aging. If you purchased the Product from an online web
site, mail your original receipt and the Product to the address listed
on the web site. Make sure that you put the Product in its original
packaging or packaging that provides the same amount of
protection as the original packaging.
Where is the warranty valid?
This warranty is valid only to the original purchaser of the Product in
the United States and Canada.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction
•Installation
•Set up adjustments
• Cosmetic damage
• Damage due to acts of God, such as lightning strikes
•Accident
•Misuse
•Abuse
•Negligence
•Commercial use
• Modification of any part of the Product, including the antenna
18
08-1099_RF-ABTMSE.fm Page 19 Friday, March 7, 2008 9:39 AM
This warranty also does not cover:
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by
Rocketfish to service the Product
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been
altered or removed
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS
YOUR EXCLUSIVE REMEDY. ROCKETFISH SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT,
INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF
YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. ROCKETFISH
PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT
TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE
PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO
THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES,
WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY
PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS,
SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR
PROVINCE TO PROVINCE.
Contact Rocketfish:
For customer service please call 1-800-620-2790
www.rocketfishproducts.com
ROCKETFISH™ is a trademark of Best Buy Enterprise Services, Inc.
Distributed by Best Buy Purchasing, LLC.
Rocketfish, 7601 Penn Avenue South, Richfield, Minnesota, U.S.A.
RF-ABTMSE
19
08-1099_RF-ABTMSE.fm Page 20 Friday, March 7, 2008 9:39 AM
20
Loading...
