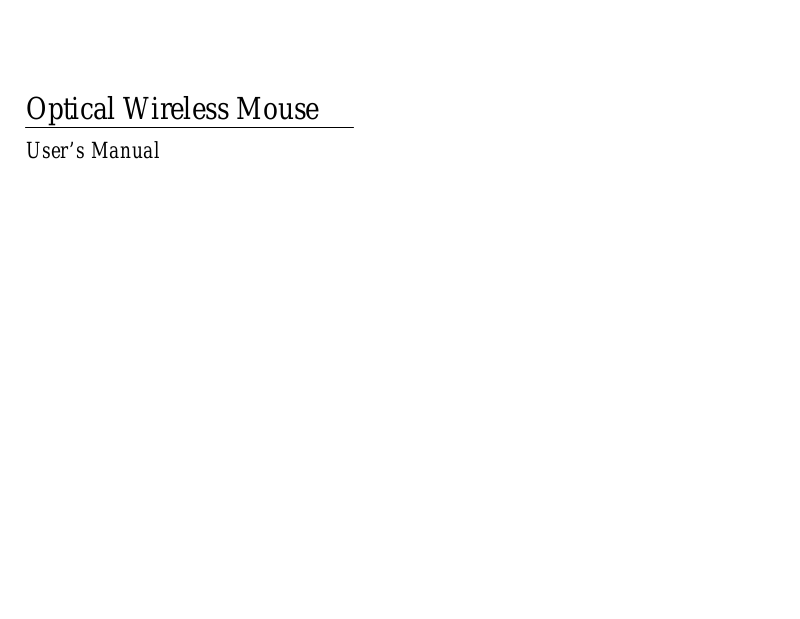

Optical Wireless Mouse

User’s Manual

1-1 Welcome!

Congratulations on your purchase of your new Optical Wireless Mouse. This ma nual contains information that will assist you in installing, operating, and caring for your Optical Wireless Mouse.

Product Description:

The Optical Wireless Mouse was designed to give you freedom of movement and an enjoyable experience while working or gaming. Its sleek, comfortable design makes ordinary tasks easier and helps offer a new level of comfort to your PC computing experience.
The mouse is supported by Microsoft® Windows®95, Window s 98, Windows Me, Windows NT® Workstation, Windows 2000 and Windows XP.
Note: If you are connecting the mouse to a notebook that has an onboard pointing device or if you are using a keyboard with an onboard pointing device, you may need to disable that device before installing and using the mouse.
The package contains:

 Optical Wireless Mouse
 RF receiver with USB connector which is supplied by LPS
 USB to PS/2
 Adapter
 CD-ROM containing driver software for the Optical Wireless Mouse
 Optical Wireless Mouse User’s Manual
 Warranty Information
 3AAA Batteries

Welcome! 1-1

1-2 Optical Wireless Mouse Installation

Optical Wireless Mouse Installation Your Optical Wireless Mouse installation is fast and easy. It can be completed in 3 simple steps. Note: After installing the driver software on your computer y ou w ill need to shut down and reboot your system.

Make sure that all work is saved and all programs are closed before installing this device.
Your Optical Wireless Mouse installation is fast and easy. It can be completed in 3 simple steps. Note: After installing the driver software on your computer you will need to shut down and reboot your system.
Make sure that all work is saved and all programs are closed before installing this device.

Step 1 - Battery Installation:

1. Locate the three AAA sized 1.5 Volt batteries that came in your Optical Wireless Mouse package.

2. Remove the battery cover from the compartment at the back of your Optical Wireless Mouse.

3. Install the two batteries into the compartment paying close attention to proper polarities.

4. Replace the battery compartment cover.

Step 2 - Connecting the Receiver:

PS/2 Installation

1. Make sure your computer is turned off.

2. Locate the round 6-pin (PS/2) connector at the end of receiver cable.

3. Connect this to an available round 6-pin (PS/2) port at the back of your computer.

4. Turn your computer on.
USB Installation (Note: If you have Microsoft Windows 95 or Windows NT Workstation, these operating systems do not support USB. )

1. Make sure that your computer is turned on.

2. Remove the USB to PS/2 adapter at the base of the cord and locate a rectangular USB port on your computer or USB hub.

3. Plug the USB (rectangular) connector into the USB port and follow the on-screen instructions.

Step 3 - Software Installation:

Included in your package is a CD-ROM containing driver software for the Optical Wireless Mouse. Note: If you are installing this device running Windows 2000 or Windows X P, you may encounter a message stating “Digital Signature Not Found” or this device
has
not passed the Windows XP logo testing. Select Yes to continue the installation running Windows 2000 or click Continue Anyway to complete the installation running Windows XP.

1. Insert the Mouse Suite CD-ROM into your CD-ROM drive and then follow the setup program instructions on your screen. Note: If the setup program does not appear, please refer to steps 2-5 listed below.

2. Click the Start button at the left hand corner of the computer screen.

3. Click Run. Type <drive>:\setup. For example, if your CD-ROM drive letter is (E:), type e:\setup.

4. Click OK.

5. Follow the onscreen instructions to complete the Mouse Suite software installation.
Once the Mouse Suite software installation is completed, you can start using your Optical Wireless Mouse.

Optical Wireless Mouse Installation 1-2
