Wireless Keyboard / KBRFBE71
Wireless Mouse / MORFJXO
Dongle / MORFJXO-D
Thank you for choosing this 2.4G Wireless keyboard and Mouse Kits. It operates with digital radio technology
to ensure no hinder communication between the keyboard, the mouse and your computer without connecting
cable.
The transmission and receiving of keyboard and mouse are free from angle restriction.
Preparing Keyboard, mouse and receiver
Before working with your new keyboard and mouse, look at the "Hardware Installation", and take a few
one-time preparations.
Hardware Installation
● Place the receiver at least 20 cm from other electrical devices (e.g. monitor) to achieve optimum
performance.
● The distance between the keyboard, mouse and receiver should not exceed 10 M.
● Do not place the receiver on metal surfaces.
● Do not move optical mouse on following surface
- Glass or any transparent materials
- Dark surface
- Mirror or reflecting surface
- Mouse pad with too many colors
- Rough surface.
Step 1: Connect the Dongle
● Plug the dongle connector into an USB port.
● SYSTEM will take around 10 sec to find your keyboard and mouse automatically.

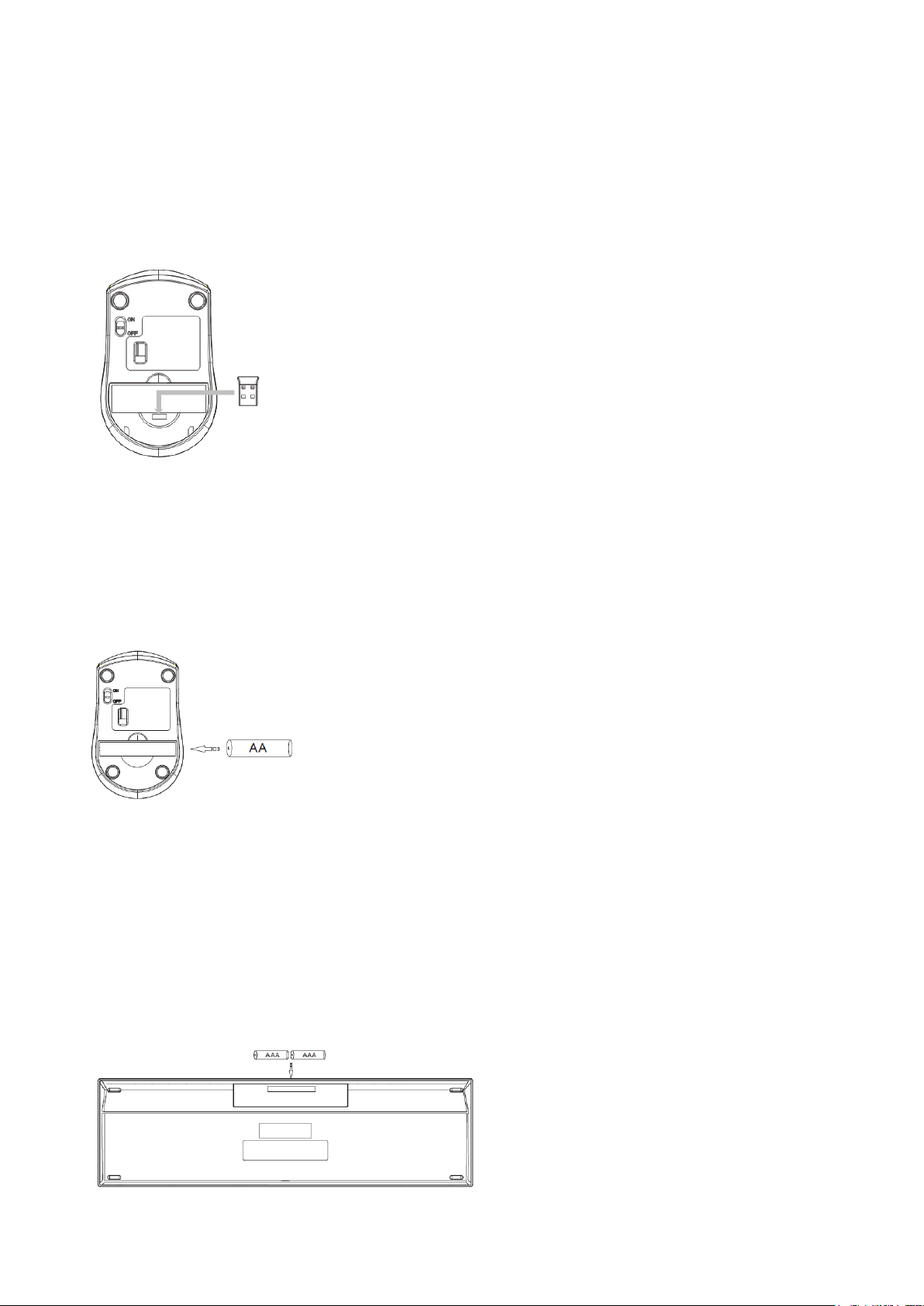

Step 2: Inserting battery in mouse
● The mouse requires one alkaline AA battery.
● Remove the battery compartment cover on the bottom of the mouse
● First push the battery puller in then insert one AA battery into battery compartment.
● Close the battery compartment cover.
Step 3: Inserting batteries in keyboard
Windows Key
Press windows key to open Start Manu
Application key
Press Application key is same as Right Mouse key to open function Menu
Previous Track
Combine keys to skip to the forward title in the active player.
Play/Pause
Combine keys to Start or Pause the soundtrack in active player.
Next Track
Combine keys to skip to the next title in the active player.
Mute
Press this key to On/Off the volume.
Volume down
Press this key to decreasing the volume.
Volume Up
Press this key to increasing the volume.
●The keyboard requires two alkaline batteries (AAA).
● Insert two AAA batteries.
● Close the battery compartment cover.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to
instructions.
Refer to "Important Battery Information" for disposal instructions.
Working with keyboard and mouse
The following sections contain information on using the keyboard and the mouse.
Mouse
In addition to two buttons, the mouse also has a wheel that can be used as follows:
● As a 3rd button: press on the wheel.
● For scrolling, e.g. in documents or on Internet pages: turn the wheel forward or back.
Keyboard
The following description of keys applies for the operating systems that support these functions
(e.g. Windows 2000/XP/Vista/Windows 7).
